WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Distance between centers
500 mm
Taper of tailstock sleeve
MT 2
Travel of tailstock sleeve
45 mm
Weight approx.
130 kg
Center height
110 mm
Swing over bed
220 mm
Spindle bore
20 mm
Speed Range
140 - 1710 rpm, 6 steps
Longitudinal feed
(4) 0,05 - 0,2 mm/rev.
Metric thread
(11) 0,4 - 3 mm
Inch thread
(11) 8 - 28 threads/1“
Machine dimension (W x D x H)
1150 x 480 x 420 mm
Motor power output S1 100%
0,55 kW / 400 V
Motor power input S6 40%
0,80 kW / 400 V
Taper at spindle bore
MT 3

Hobby 500 - 400 V

1092078
€1,861.00
Tax included
Monthly payment from 50.86€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 130 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 130 kg.

Description

Properties

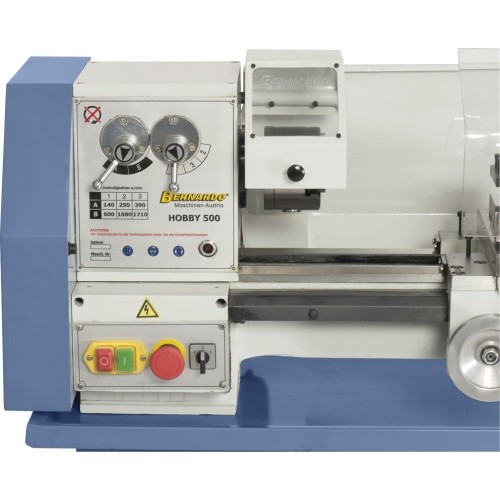

  • Control gear allows easy and quick speed change
  • Machine bed inductive hardened and polished
  • Guideways adjustable via gibs
  • Optimal price-performance-ratio
  • Very handy machine with leadscrew for thread cutting
  • Spindle bedded with 2 adjustable precision ball bearings
  • Tailstock can be adjusted for taper turning
  • Protective switch with undervoltage release
  • Solid and small construction

Standard accessories

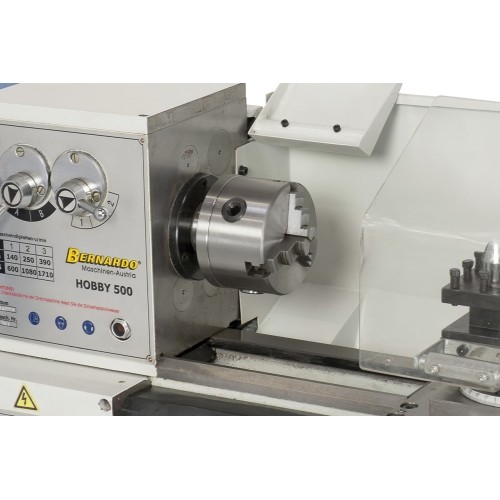

  • 3-jaw chuck 100 mm
  • Change gears
  • Dead center
  • 4-way tool post holder

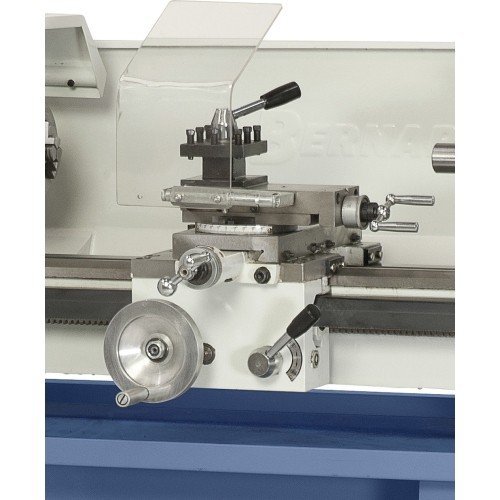

  • Cross slide with top support
  • Chuck guard
