Distance between centers
400 mm

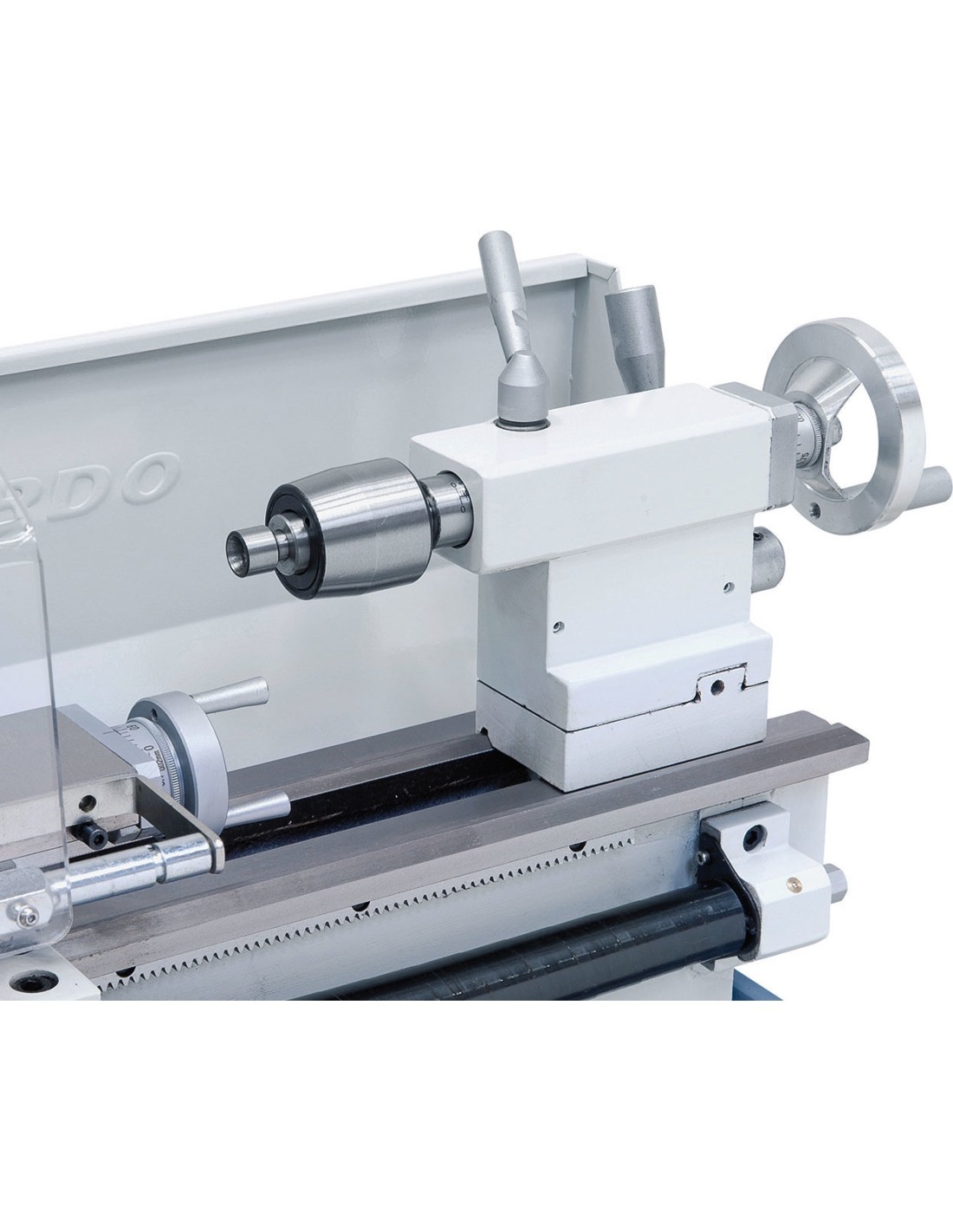

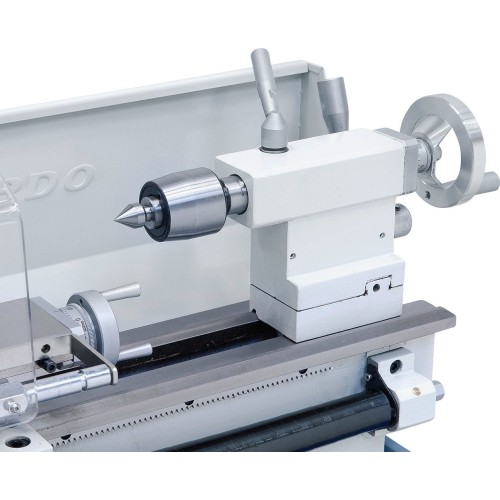

Taper of tailstock sleeve
MT 2
Travel of tailstock sleeve
50 mm
Weight approx.
65 kg
Center height
100 mm
Swing over bed
200 mm
Spindle bore
20 mm
Longitudinal feed
(3) 0,089 - 0,198 mm/rev.
Metric thread
(14) 0,3 - 3 mm
Inch thread
(10) 10 - 44 threads/1“
Machine dimension (W x D x H)
930 x 400 x 380 mm
Motor power output S1 100%
0,60 kW / 230 V
Motor power input S6 40%
0,80 kW / 230 V
Taper at spindle bore
MT 3
Speed range, stepless
50 - 1250 / 100 - 2500 rpm

Profi 400 V incl. 2-axis digital readout DT 40

1092088
Price €2,633.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 65 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 65 kg.

Description

Properties

  • Highly suitable for processing steel, non-ferrous materials or plastics
  • Wide range of applications, such as face turning, straight turning, thread cutting etc.
  • Change gears for metric thread cutting come standard
  • High-quality ball bearing ensure concentricity of spindle nose (better than 0.009 mm)
  • User-friendly arrangement of controls
  • Complete with leadscrew for thread cutting and the automatic longitudinal feed
  • Compact construction, ideal price-to-performance ratio
  • Electronic, stepless speed setting allow ideal adjustment to each workpiece

Standard accessories

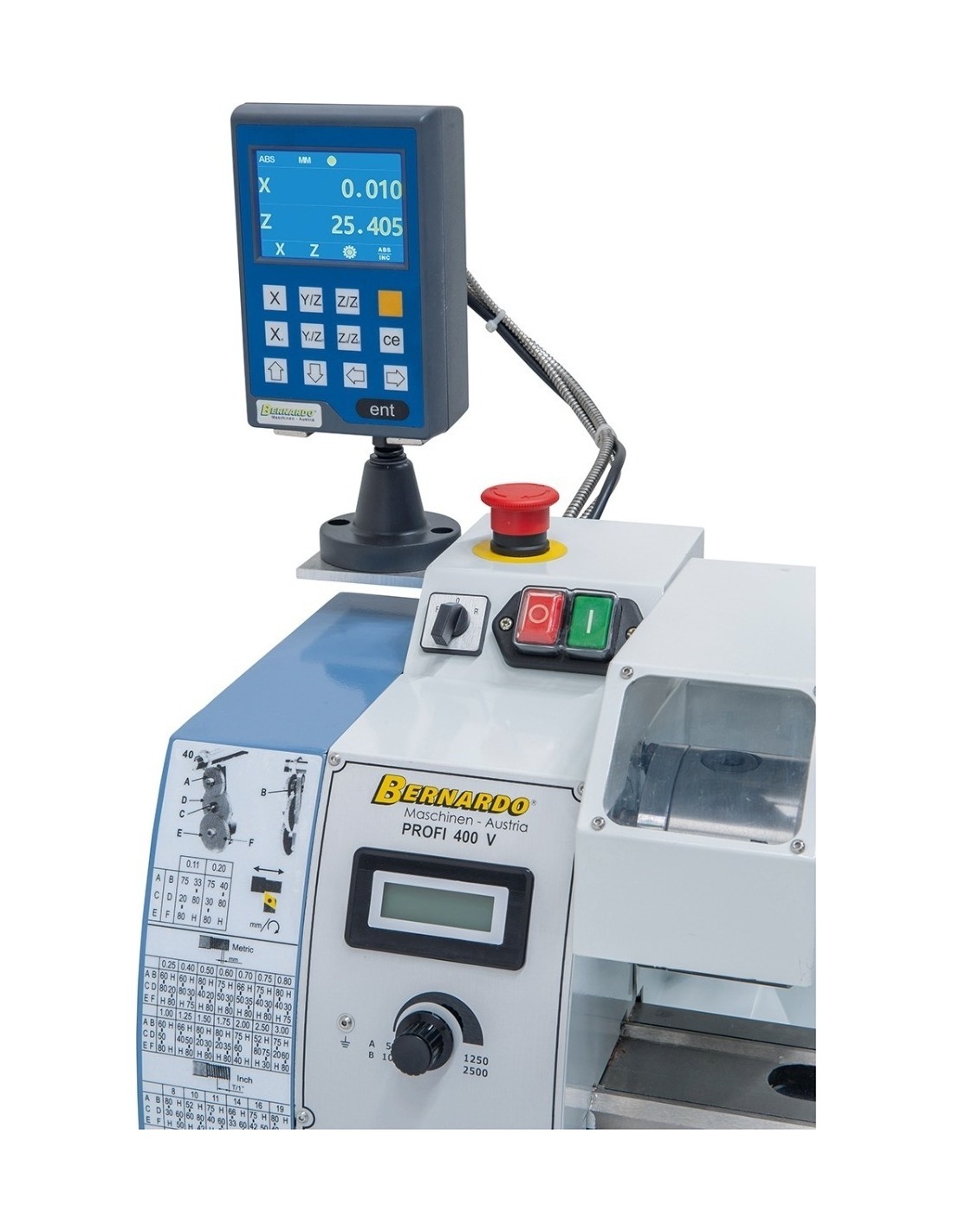

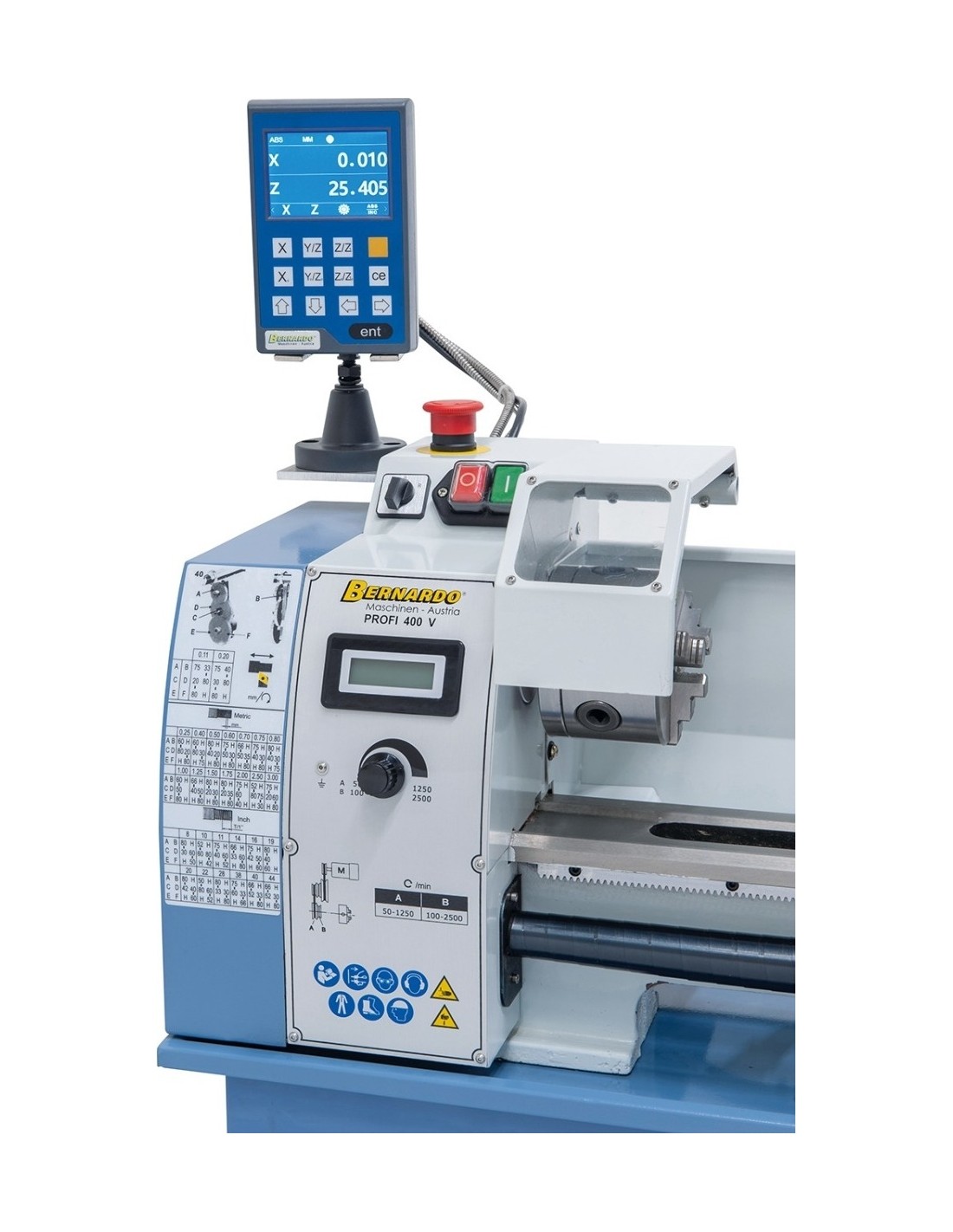

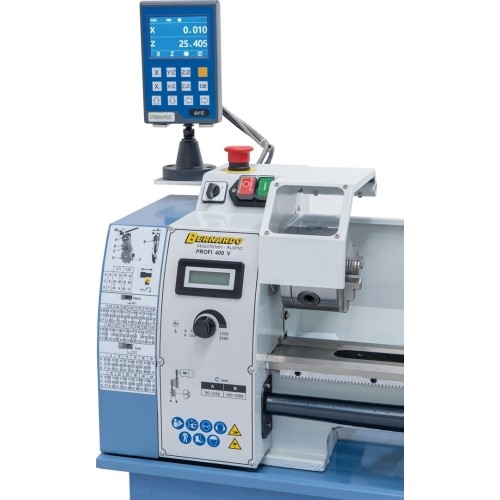

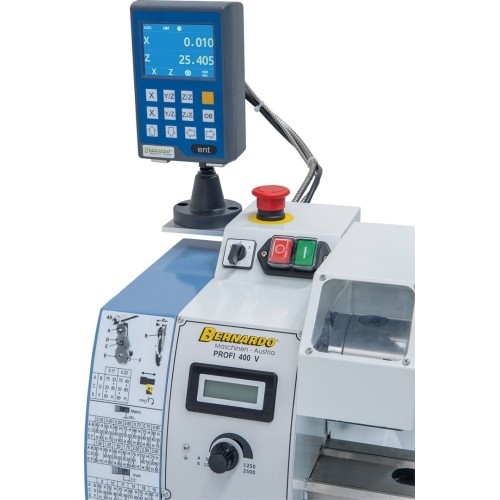

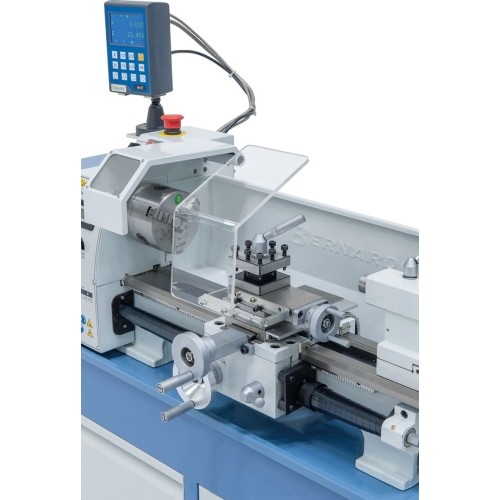

  • 2-axis digital readout DT 40

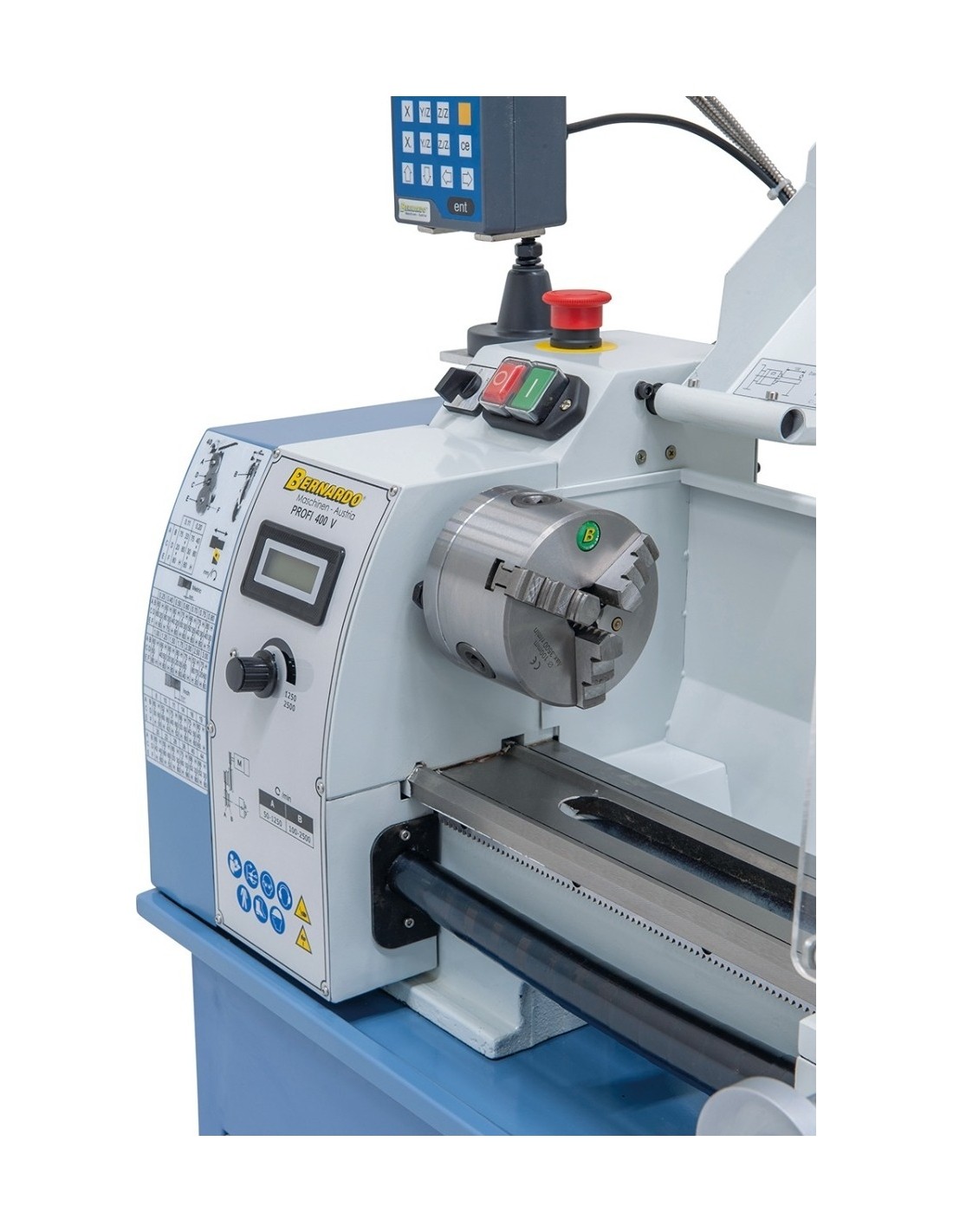

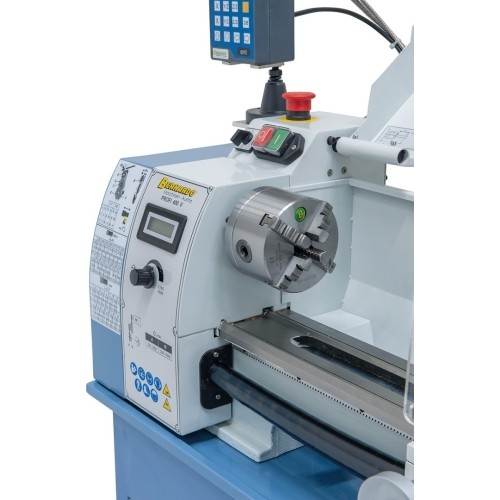

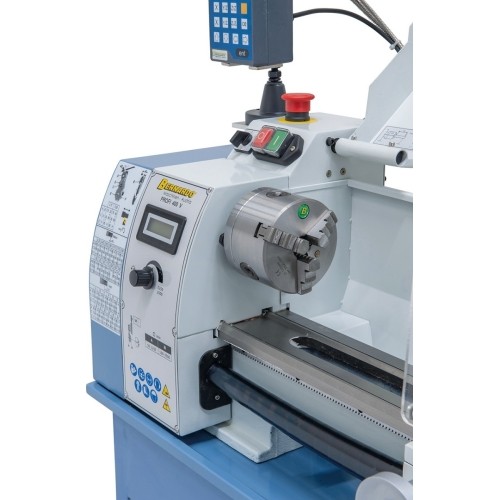

  • 3-jaw chuck DK 11-100 mm

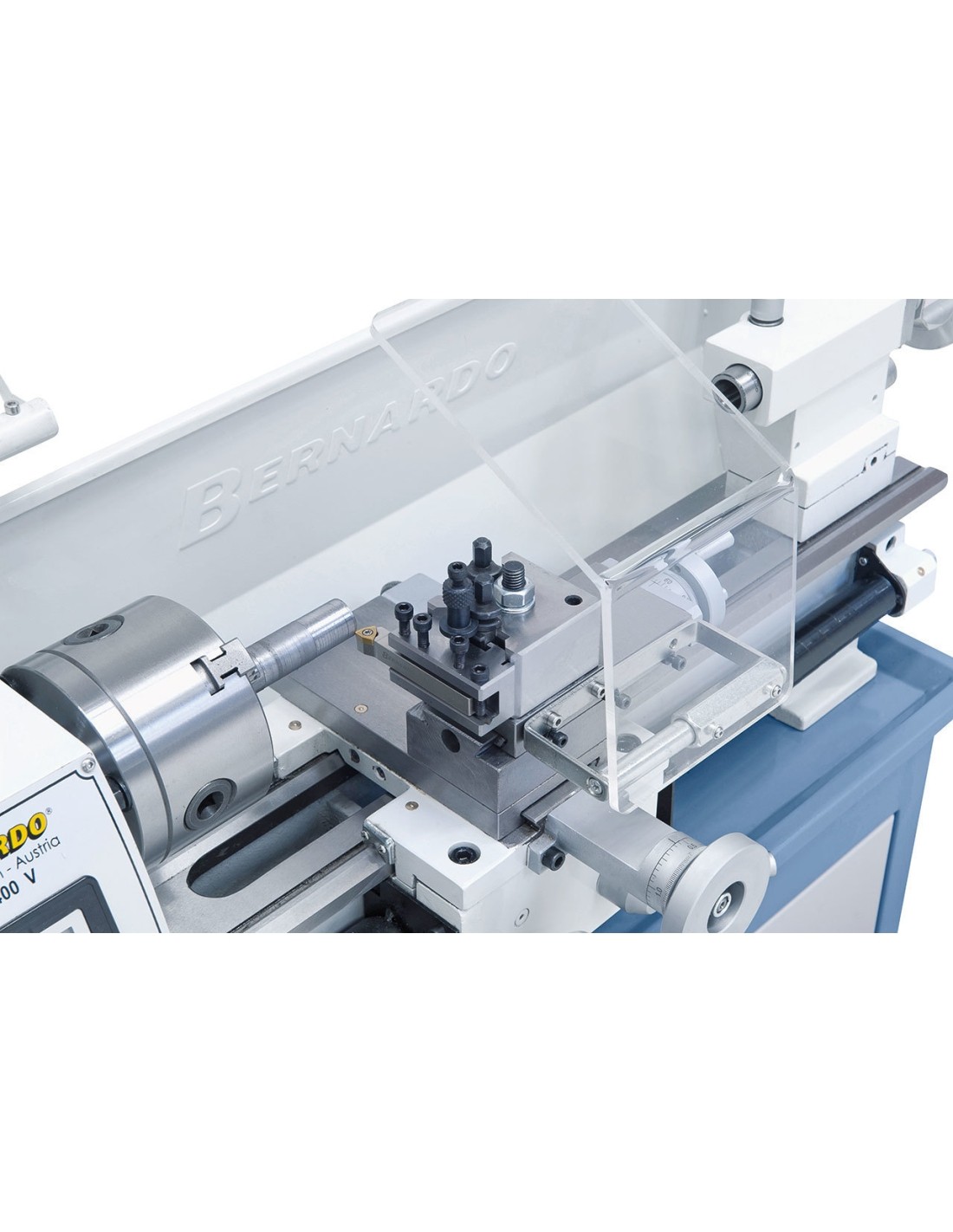

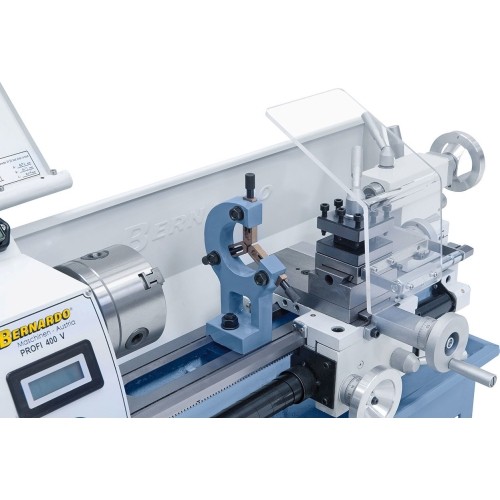

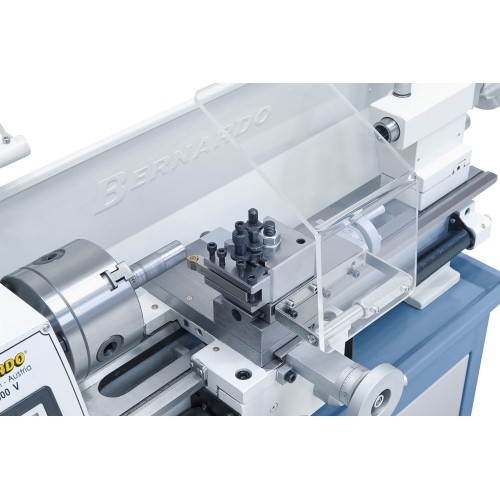

  • 4-way tool post holder
  • Dead center

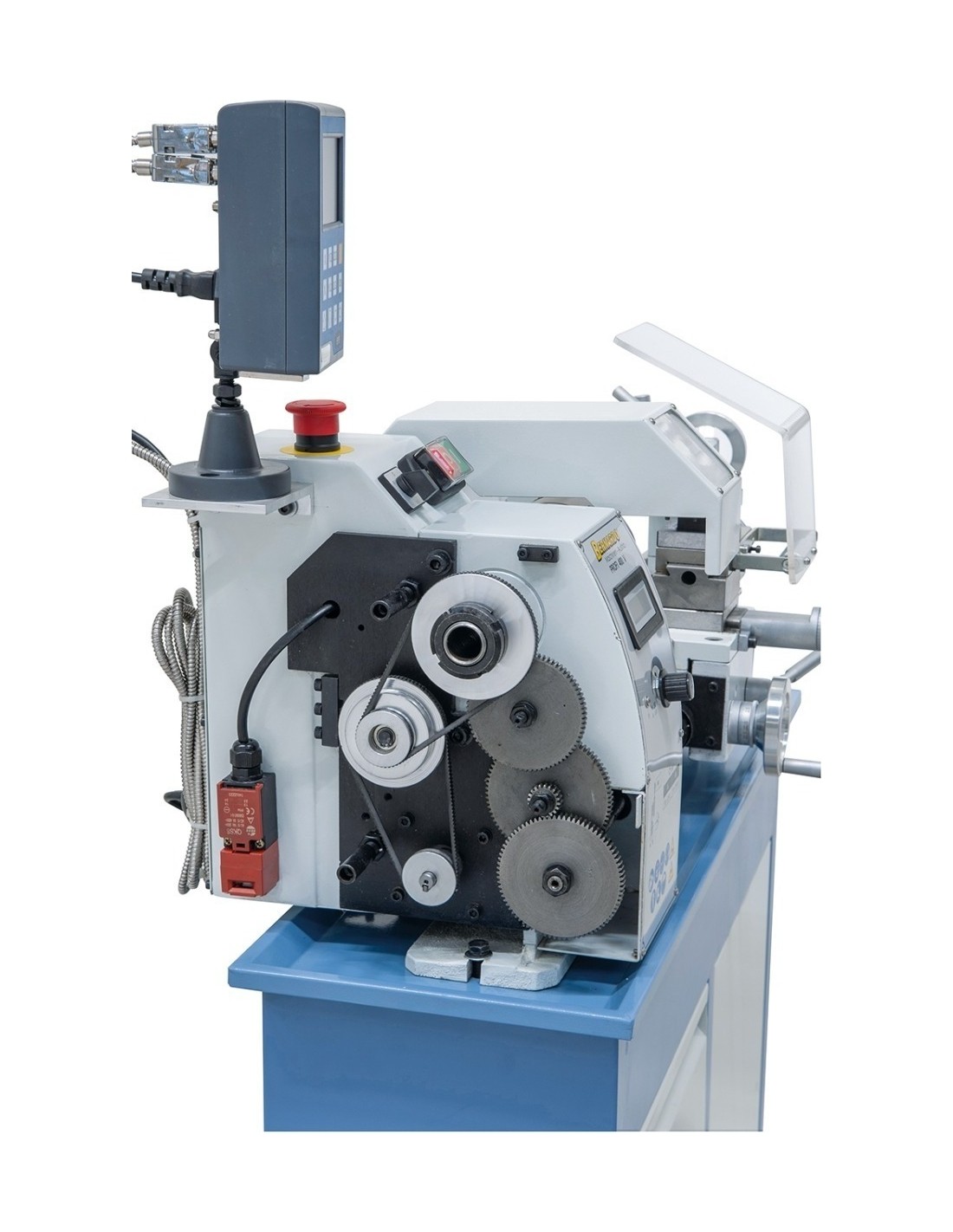

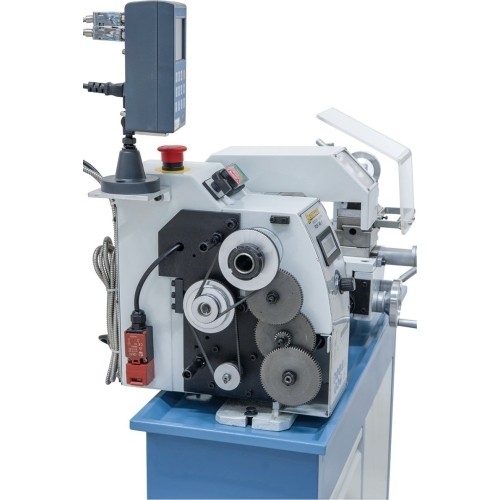

  • Change gears
  • Chuck guard
  • Splash guard
  • Chip tray
  • Digital speed indication
  • Tools
