Distance between centers
450 mm
Taper of tailstock sleeve
MT 2
Travel of tailstock sleeve
60 mm
Weight approx.
112 kg
Center height
115 mm
Swing over bed
230 mm
Spindle bore
20 mm
Speed Range
(6) 125 - 2000 rpm
Longitudinal feed
(2) 0,1 - 0,2 mm/rev.
Metric thread
(14) 0,4 – 3,5 mm
Inch thread
(12) 8 – 44 threads/1“
Machine dimension (W x D x H)
1000 x 580 x 500 mm
Motor power output S1 100%
0,90 kW / 230 V
Motor power input S6 40%
1,35 kW / 230 V
Taper at spindle bore
MK 3
Bed width
135 mm

Profi 450 S / 230 V

1092089
Price €2,174.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up tuesday, august 4 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 112 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 112 kg.

Description

Properties

  • Complete with leadscrew for thread cutting and the automatic longitudinal feed
  • Solid machine bed with inductively hardened and polished guides
  • High-quality tapered roller bearings ensure high concentricity of spindle nose (≤ 0.009mm)

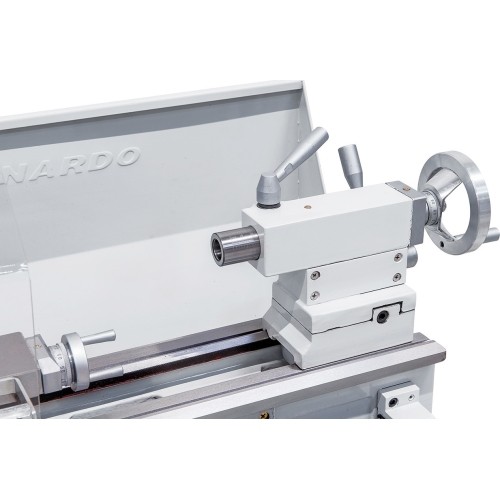

  • Tailstock can be adjusted for taper turning

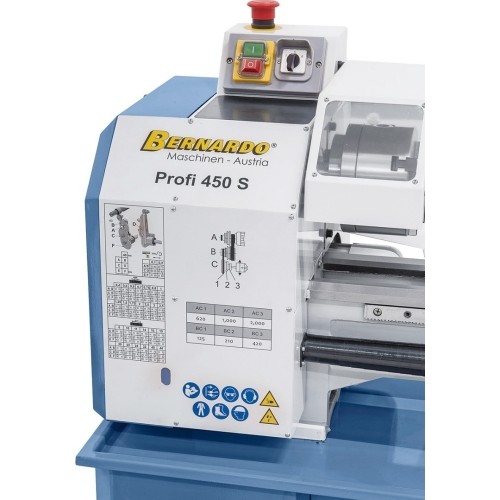

  • User-friendly arrangement of control elements
  • Guides adjustable via gibs
  • Highly suitable for processing steel, non-ferrous materials or plastics
  • Wide range of applications: precision mechanics, training and education, etc.

Standard accessories

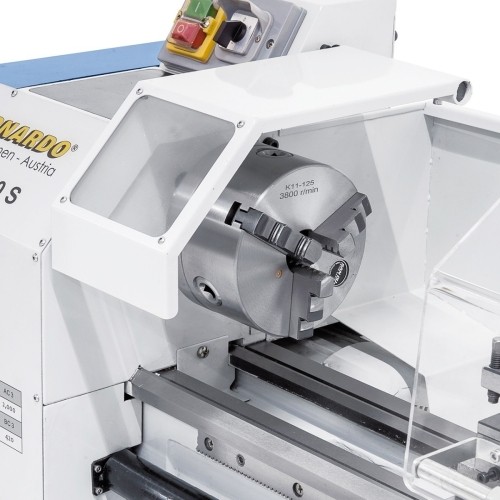

  • 3-jaw chuck 125 mm
  • Flange 125 mm

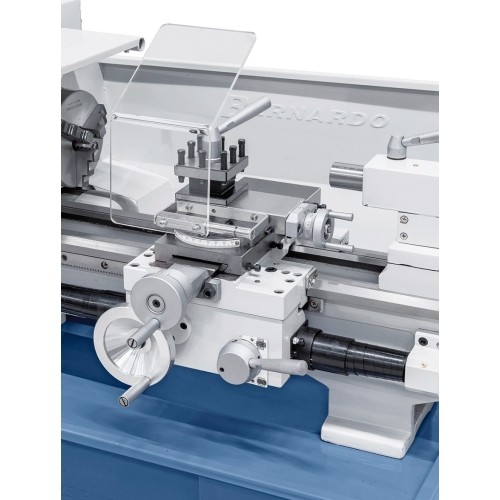

  • Cross slide with top support

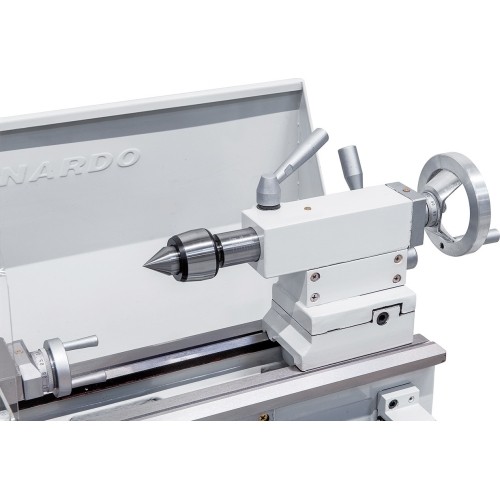

  • Dead centers

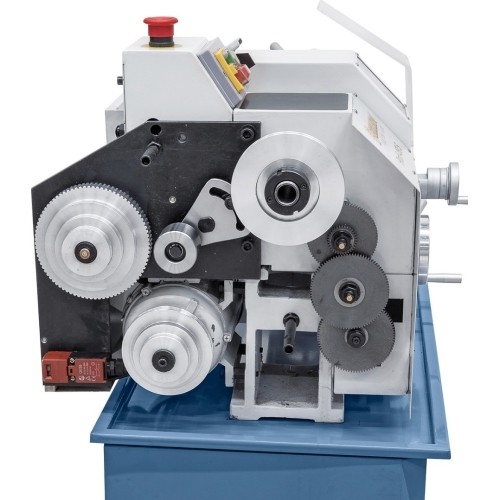

  • Change gears
  • 4-way tool post holder
  • Chuck guard
  • Splash guard
  • Leadscrew cover
  • Tools
