- Distance between centers
- 450 mm
- Taper of tailstock sleeve
- MT 2
- Travel of tailstock sleeve
- 60 mm
- Weight approx.
- 112 kg
- Center height
- 115 mm
- Swing over bed
- 230 mm
- Spindle bore
- 20 mm
- Longitudinal feed
- (2) 0,1 / 0,2 mm/rev.
- Metric thread
- (14) 0,4 – 3,5 mm
- Inch thread
- (12) 8 – 44 threads/1“
- Machine dimension (W x D x H)
- 1000 x 580 x 500 mm
- Motor power output S1 100%
- 0,90 kW / 230 V
- Motor power input S6 40%
- 1,35 kW / 230 V
- Taper at spindle bore
- MK 3
- Speed range, stepless
- 100 – 1100 rpm
- Bed width
- 135 mm

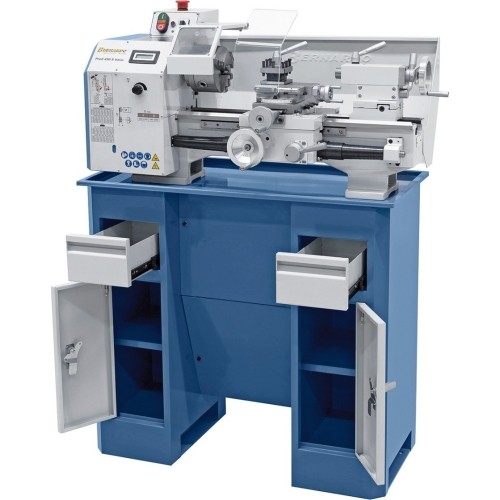

Profi 450 S Vario / 230 V
1092092
Price
€2,498.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up friday, may 15 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 112 kg.
We will deliver the product to you via: 5-11 w.d. Venipak
(€40.99) Weight: 112 kg.
Description
Properties
- Electronic, stepless speed setting allow ideal adjustment to each workpiece
- Complete with leadscrew for thread cutting and the automatic longitudinal feed
- Solid machine bed with inductively hardened and polished guides
- High-quality tapered roller bearings ensure high concentricity of spindle nose (≤ 0.009mm)

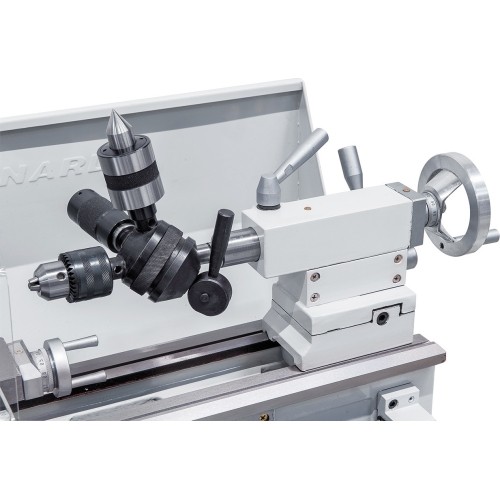

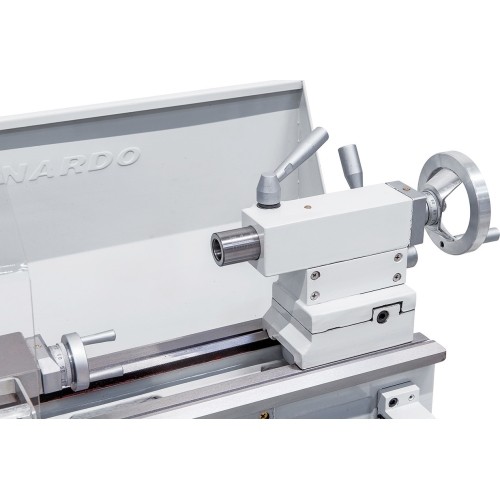

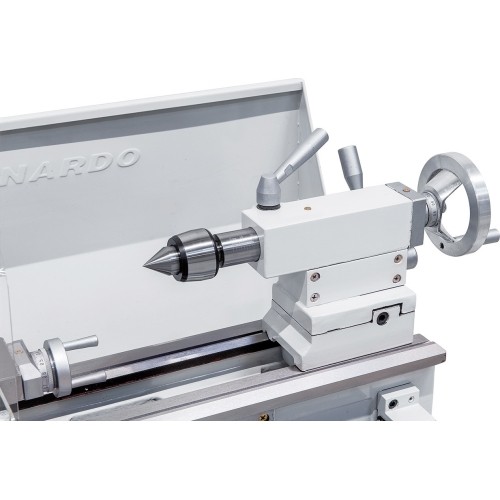

- Tailstock can be adjusted for taper turning
- User-friendly arrangement of control elements
- Guides adjustable via gibs
- Powerful motor for high torque, speed range 100 – 2200 rpm
- Highly suitable for processing steel, non-ferrous materials or plastics
- Wide range of applications: precision mechanics, training and education, etc.
Standard accessories

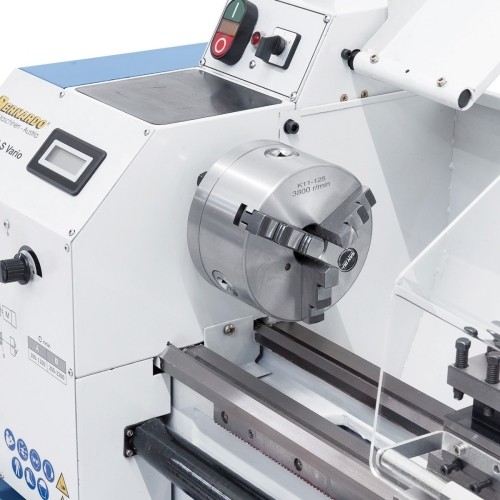

- 3-jaw chuck 125 mm
- Flange 125 mm

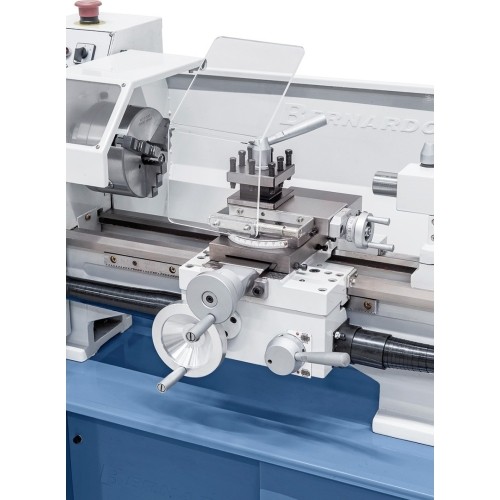

- Cross slide with top support

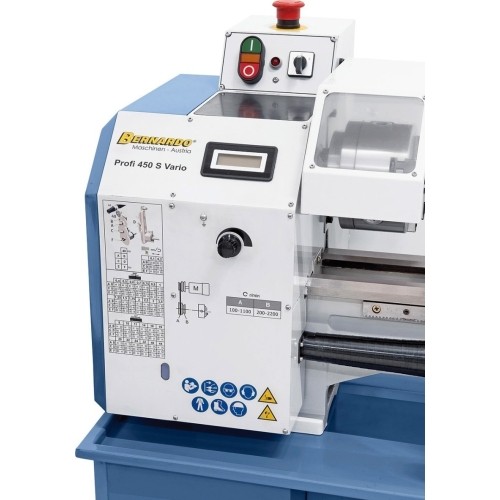

- Digital speed display

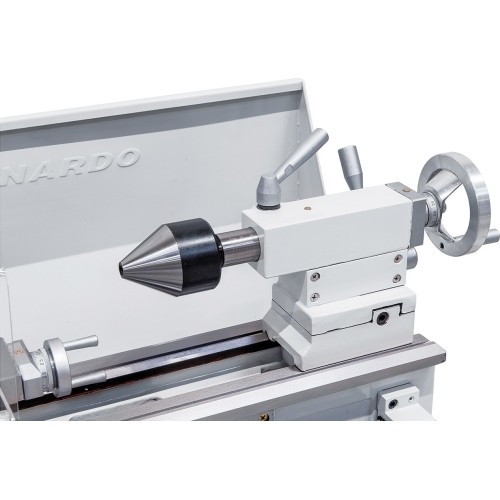

- Dead centers

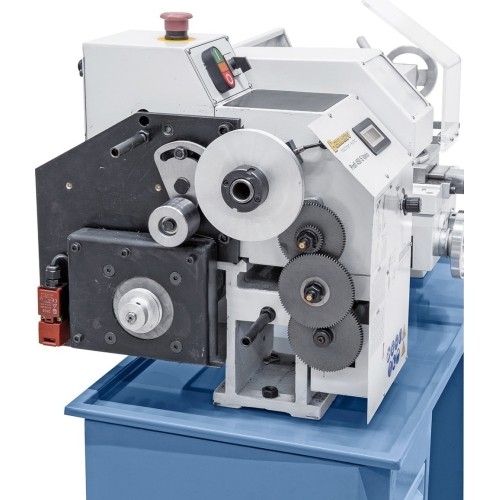

- Change gears
- 4-way tool post holder
- Chuck guard
- Splash guard
- Leadscrew cover
- Tools
