Weight approx.: 630 kg
Motor power: 3,0 kW
Machine dimension (W x D x H): 750 x 1020 x 2340 mm
Drilling capacity in steel: 50 mm
Distance spindle to column: 360 mm
Spindle stroke: 225 mm
Thread cutting max.: M42
Morse taper: MT 4
Feed range: 0,08 / 0,12 / 0,17 / 0,24 / 0,35 / 0,50 mm/rev.
Distance spindle to base: 1185 mm
Distance spindle to table max.: 580 mm
Table size / T-slot size: 570 x 480 mm / 14 mm
Drill chuck: 1 - 13 mm / B 16
Column diameter: 180 mm
Working surface of base: 435 x 445 mm
Drilling capacity in cast iron: 60 mm
Spindle speeds / 2 Steps: 50 - 316 / 316 - 2200 rpm

Brand

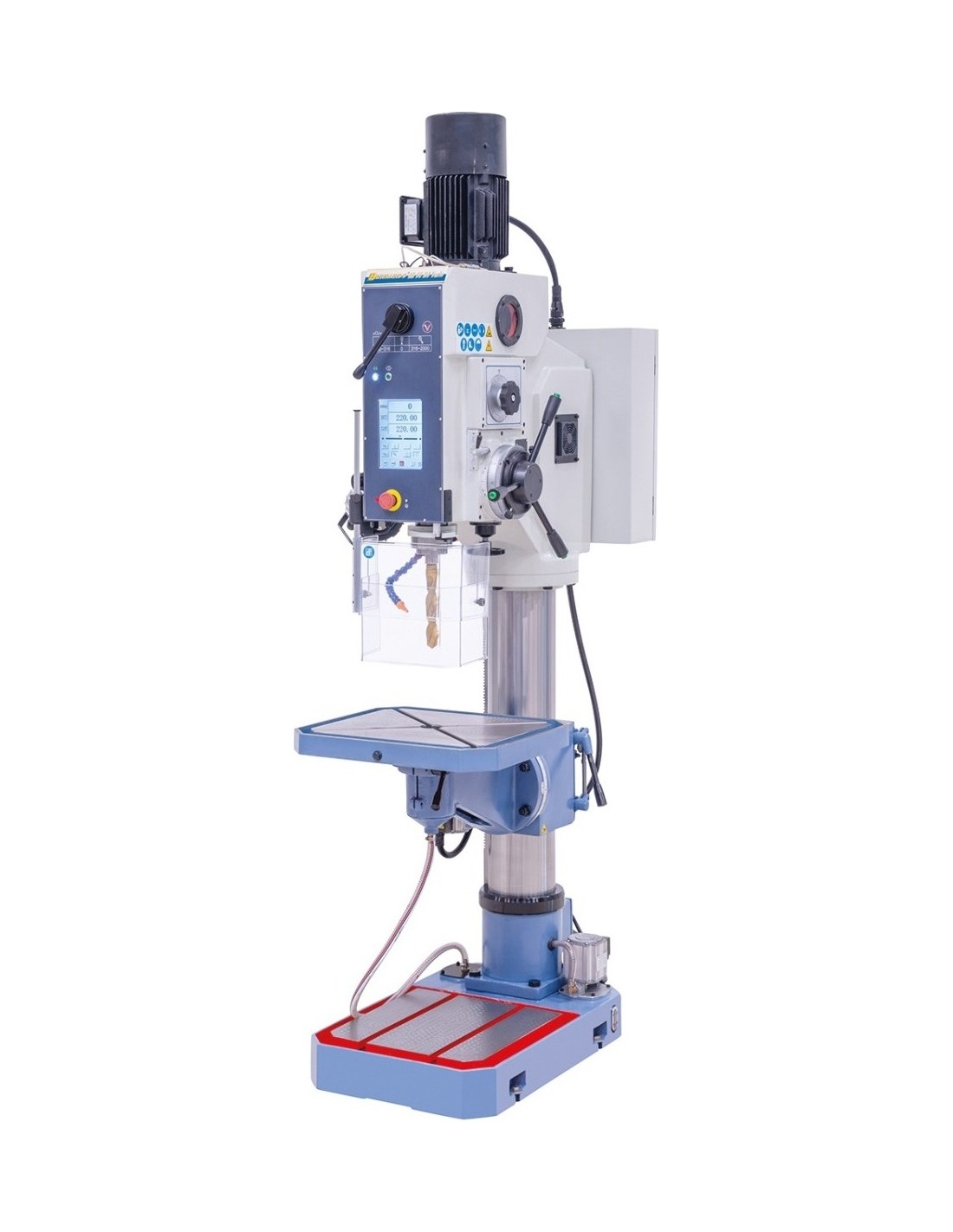

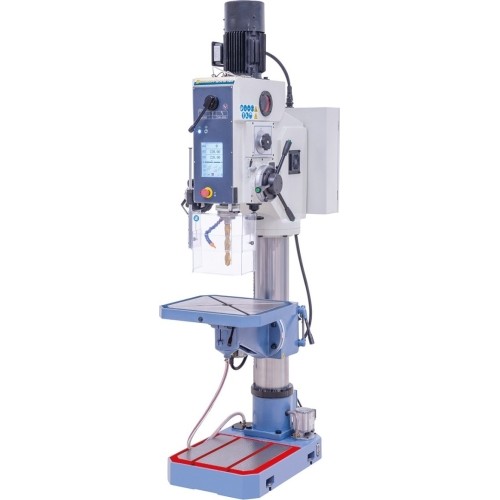

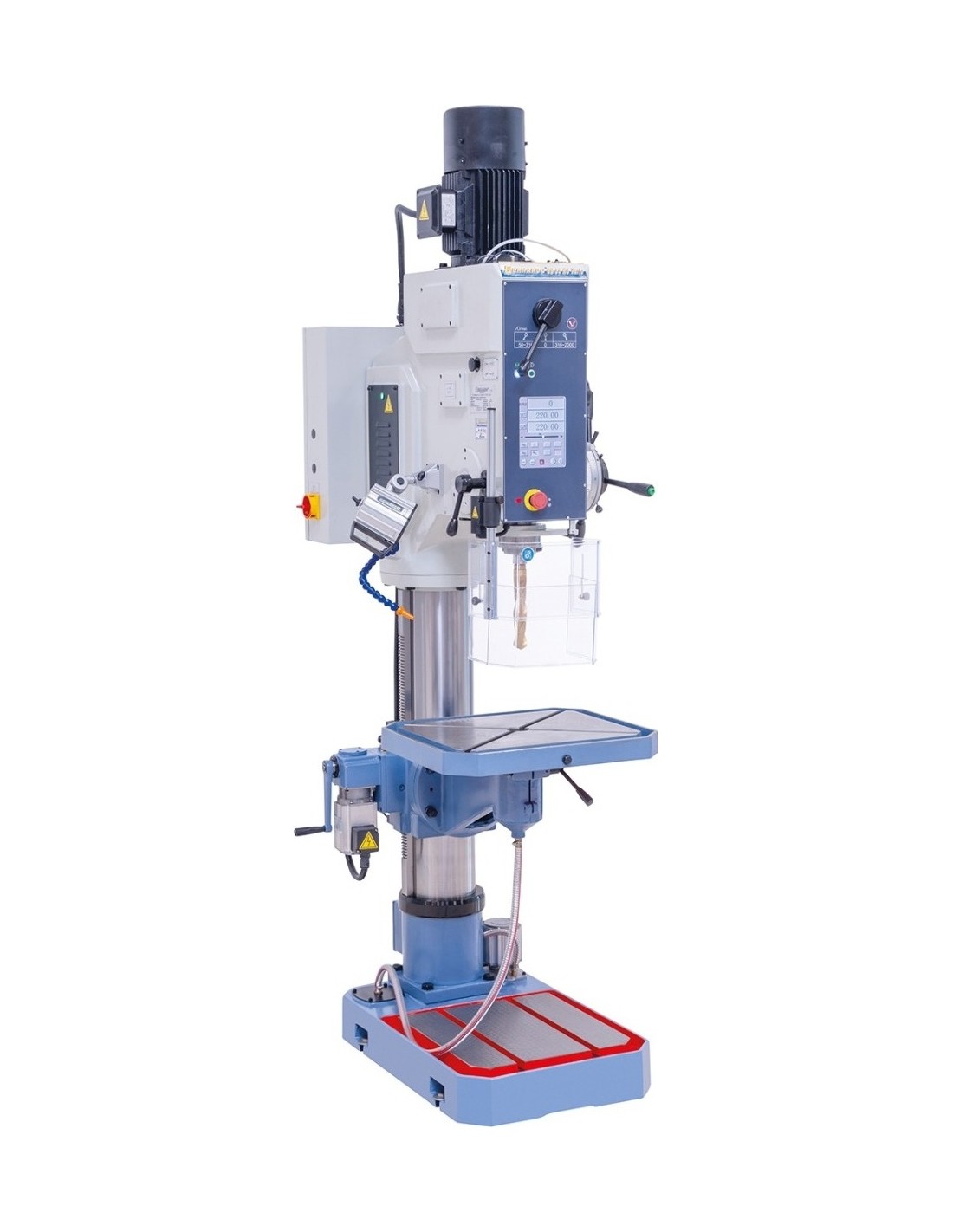

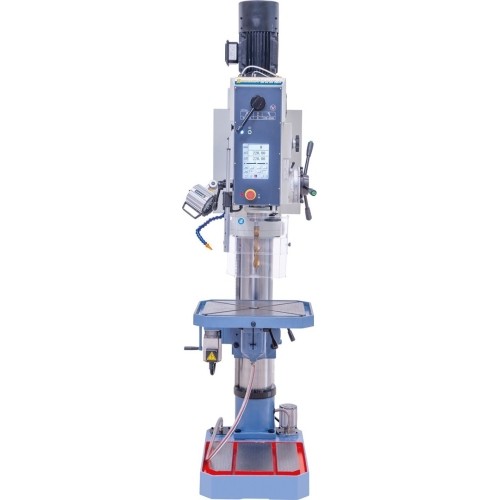

GB 55 NC Vario

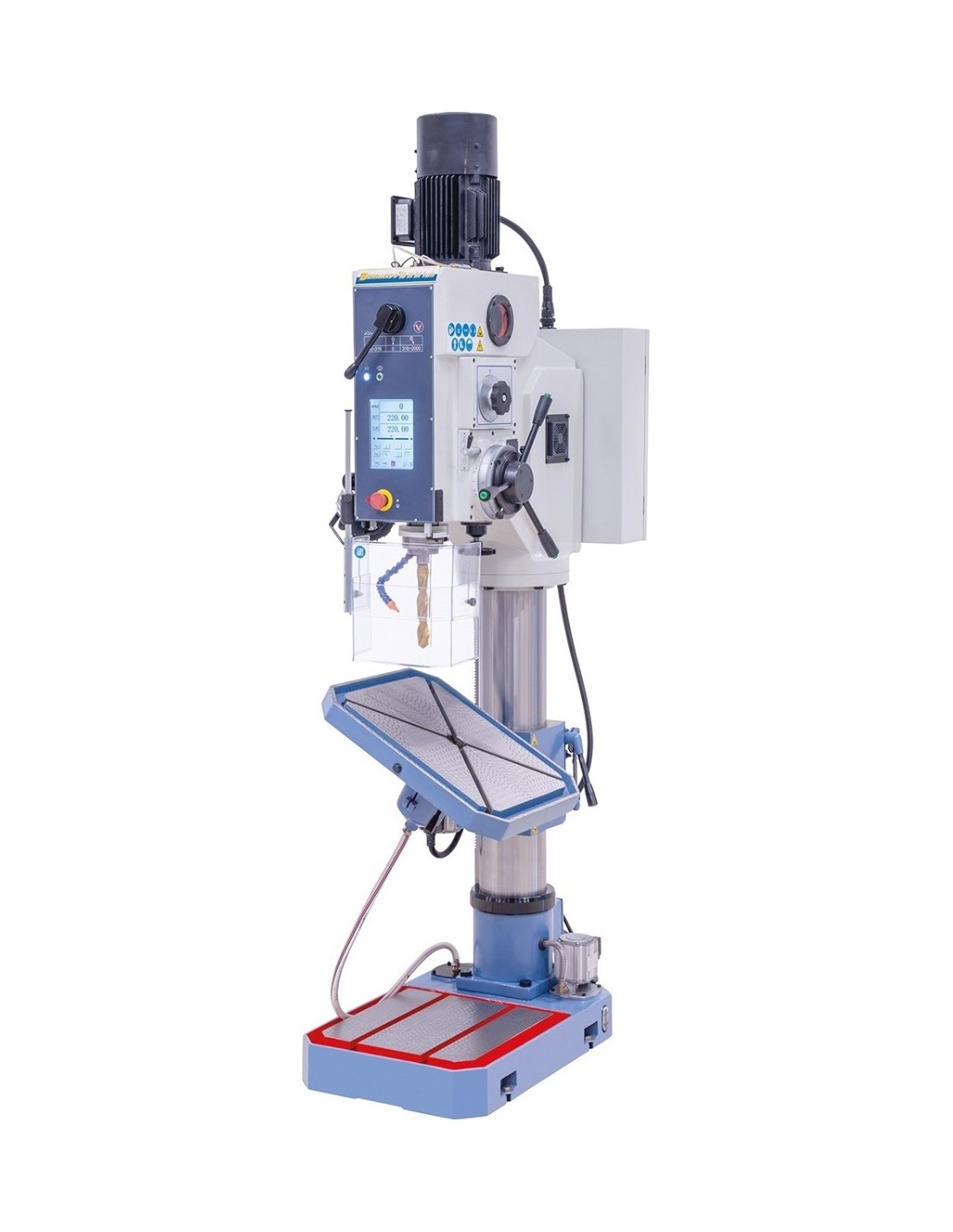

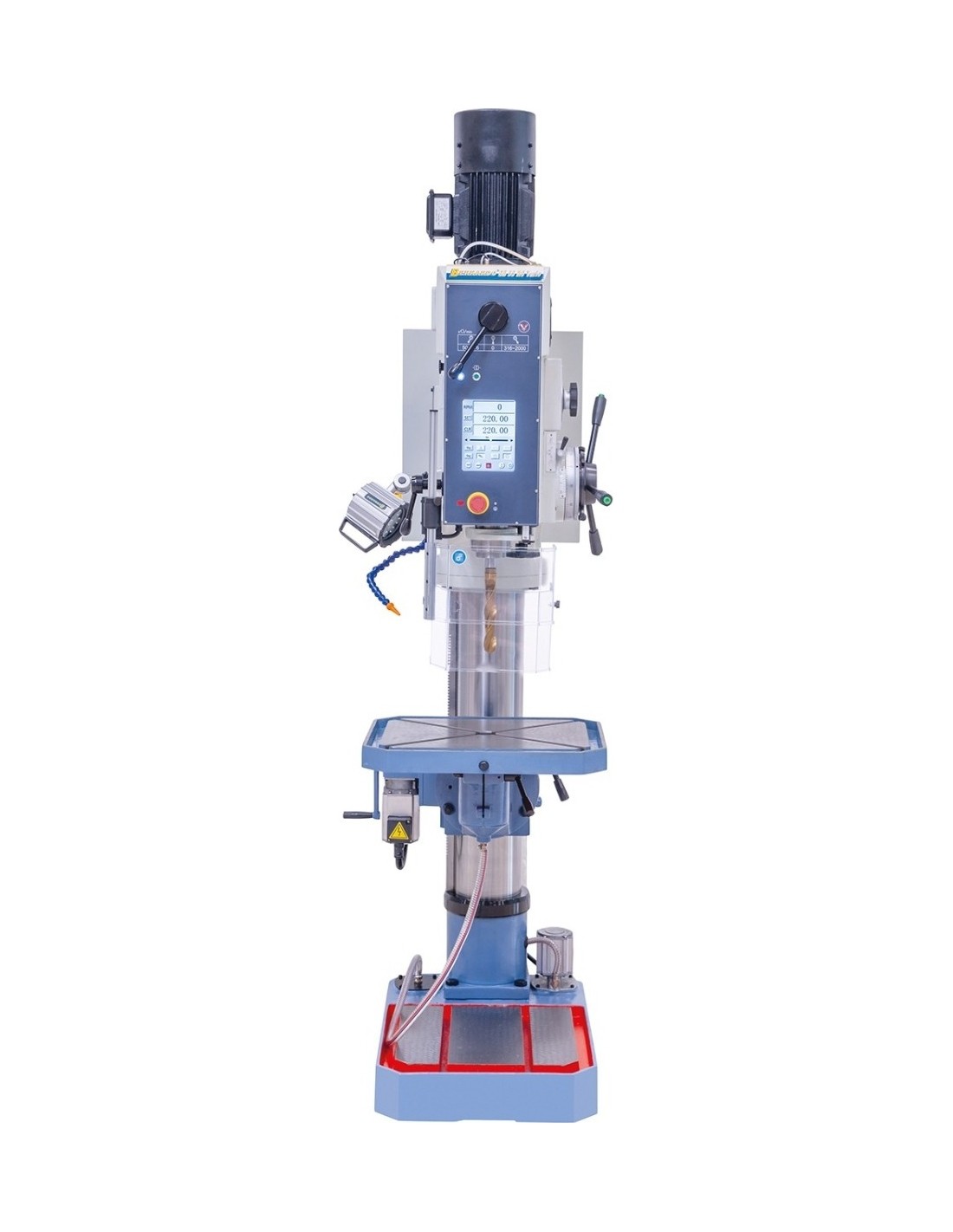

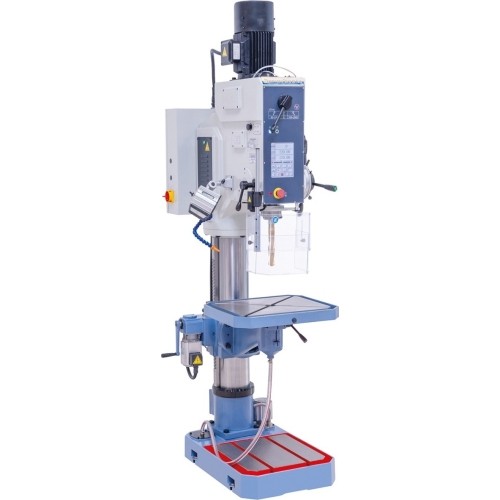

Name: GB 55 NC Vario
Brand: Bernardo
SKU: 1219401
Price: 12218 EUR
Availability: PreOrder

Reference 1219401

Price €12,218.00 VAT incl.

Stock Quantity:

Kaunas Shop
not available

Central warehouse
not available

In Supplier store
(5+ pcs)

Delivery terms:

FREE pick up thursday, june 12 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 630 kg.

We will deliver the product to you via: 5-10 w.d. Venipak (€40.99)
Weight: 630 kg.

Description

Properties

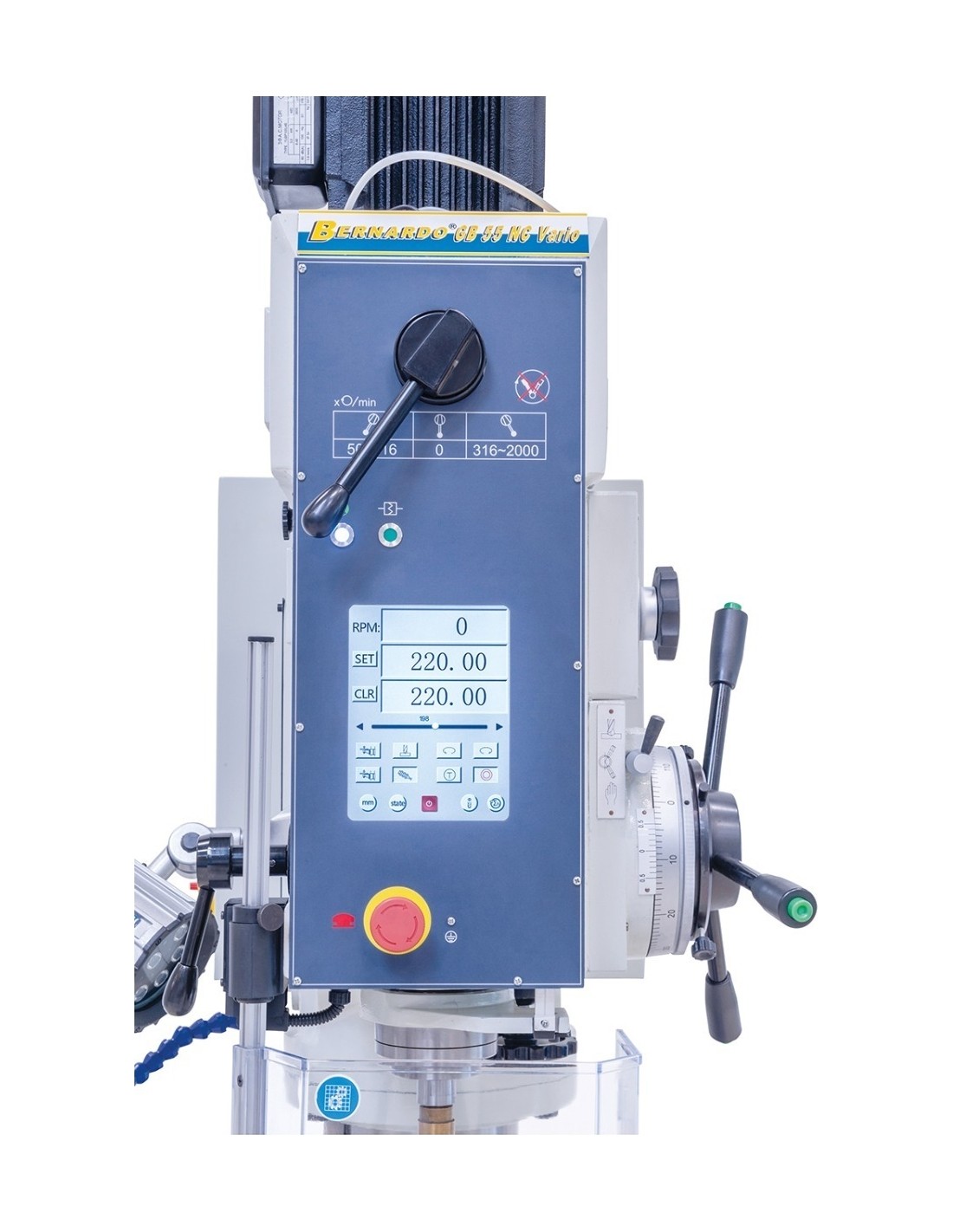

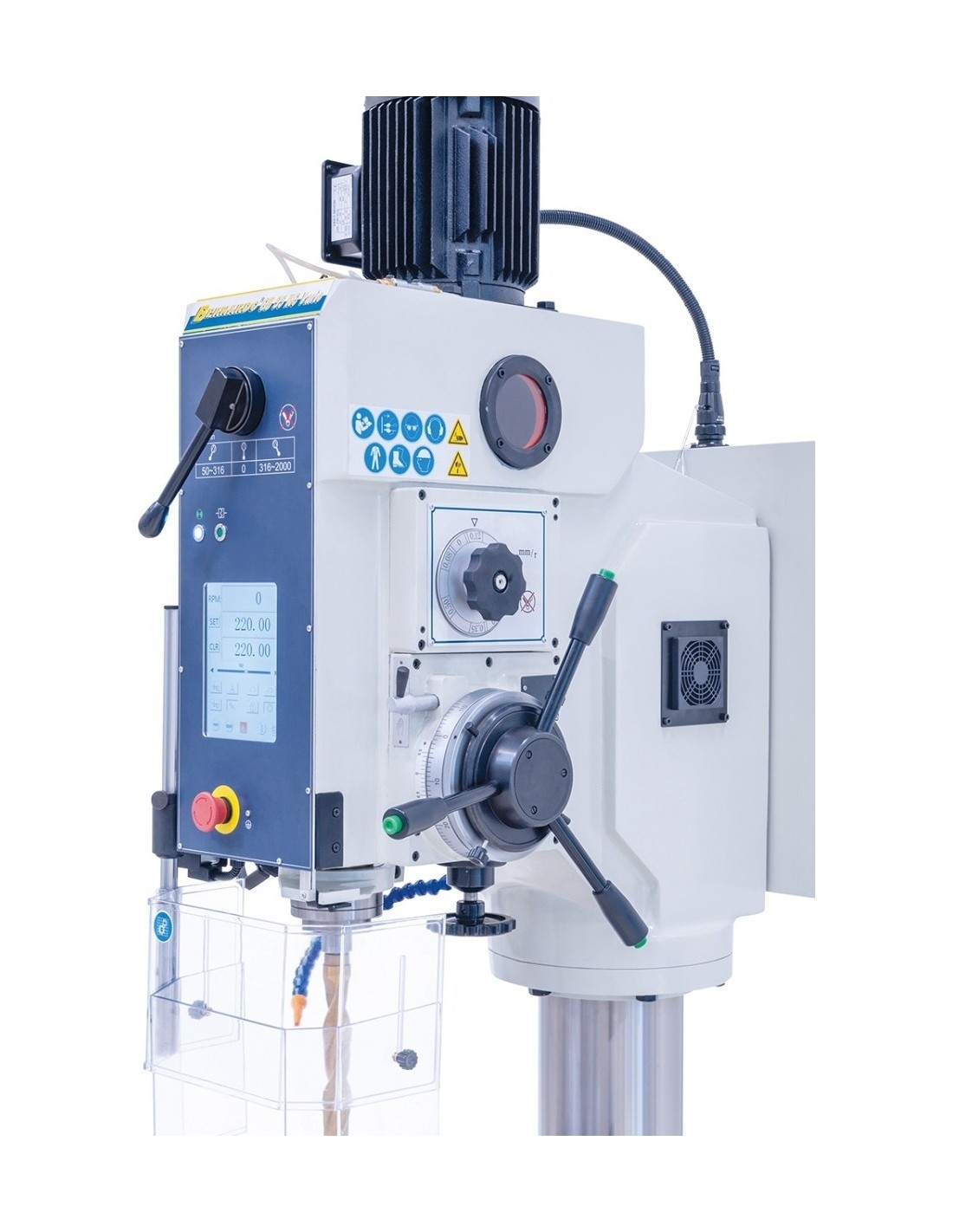

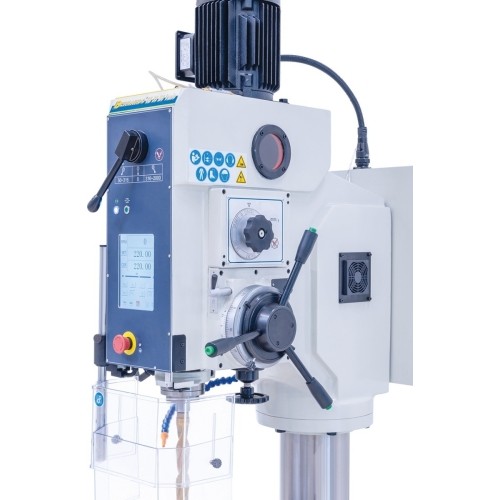

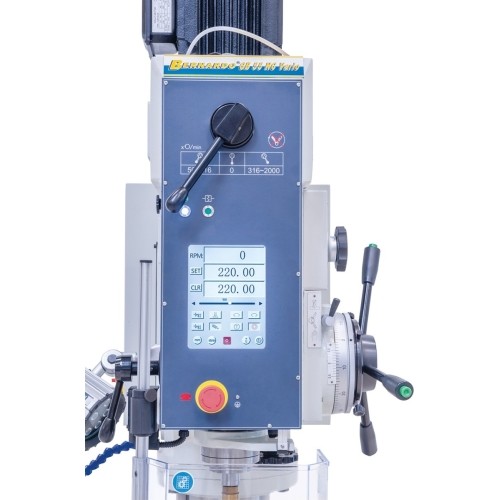

All settings are made directly on the large touchscreen display

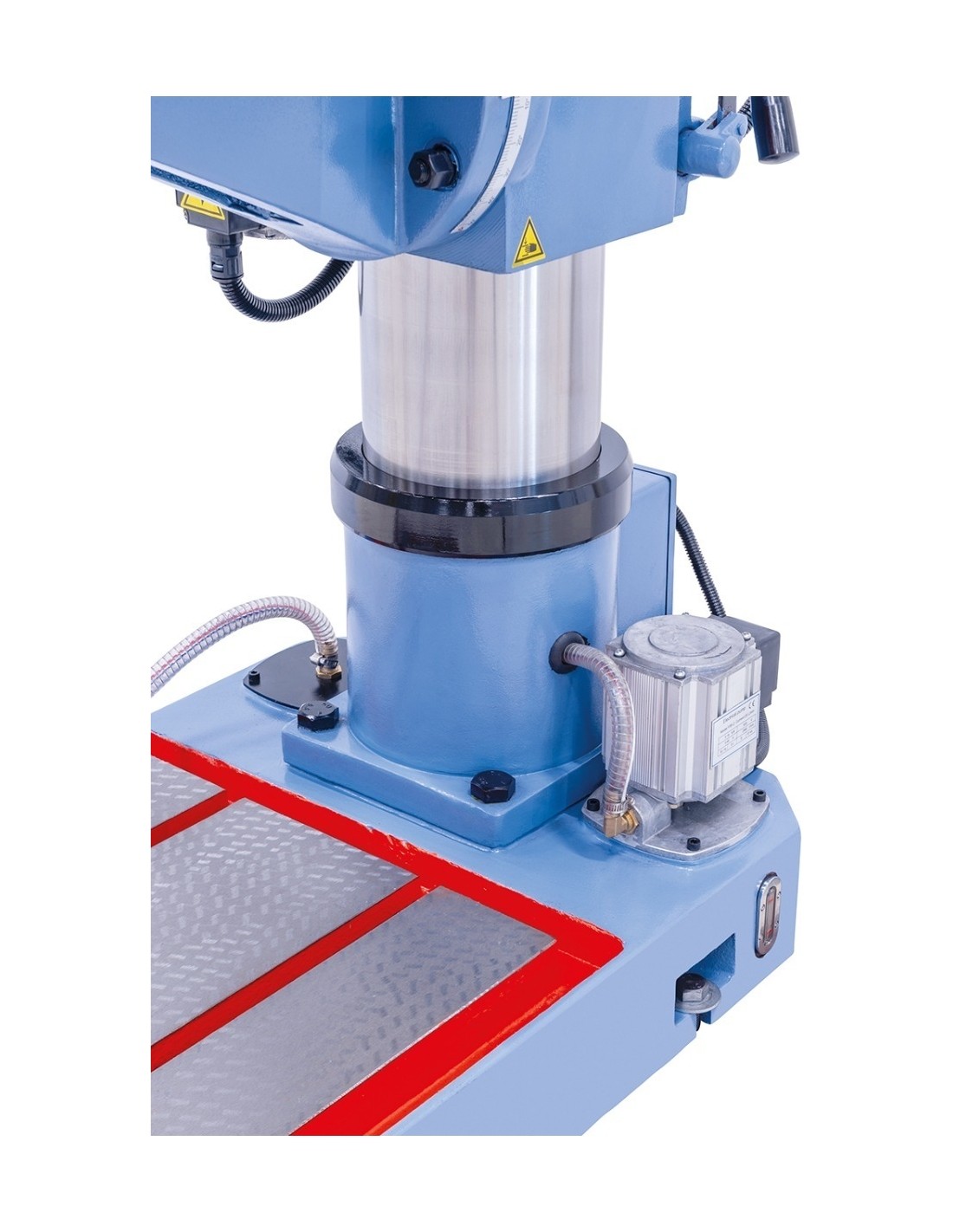

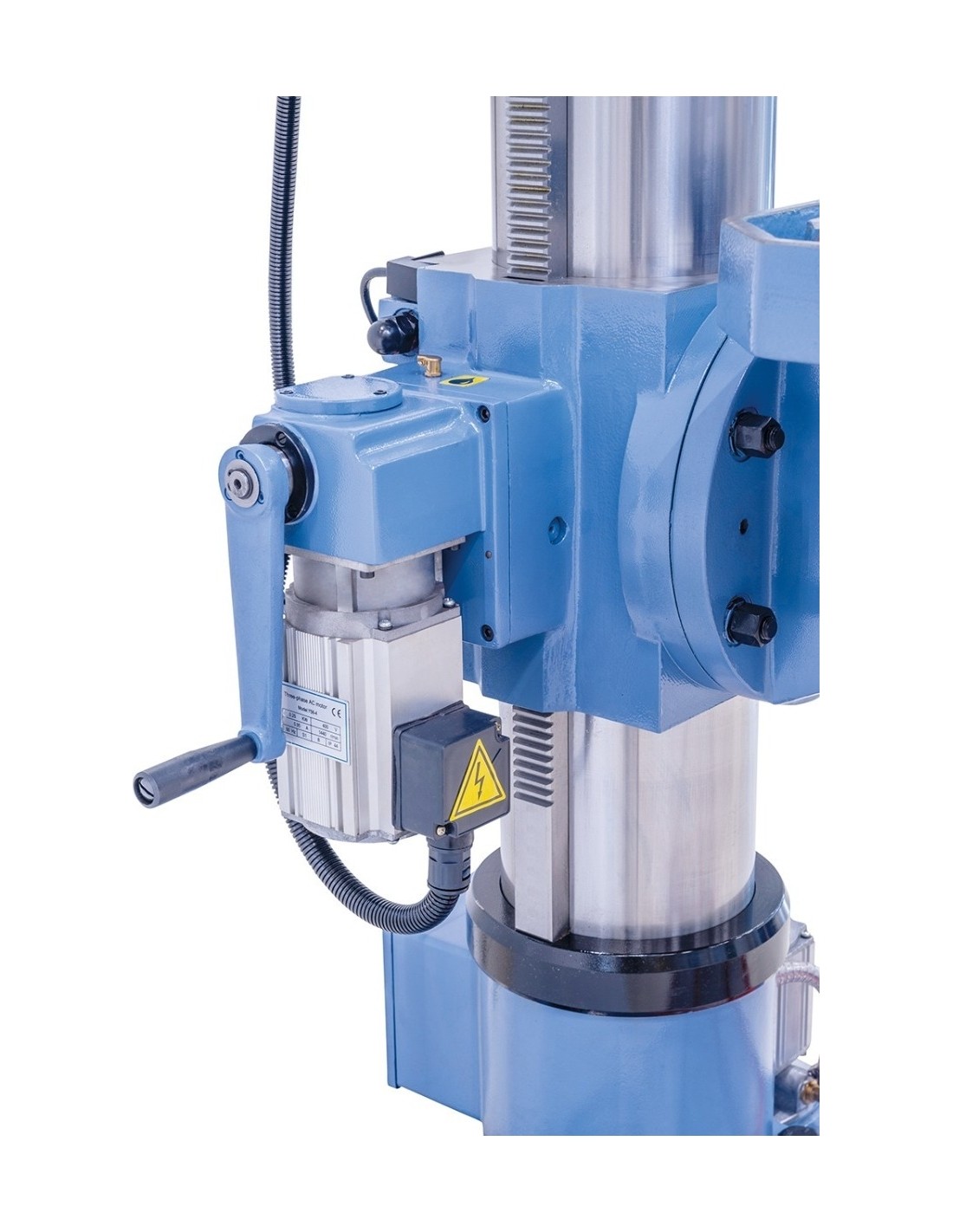

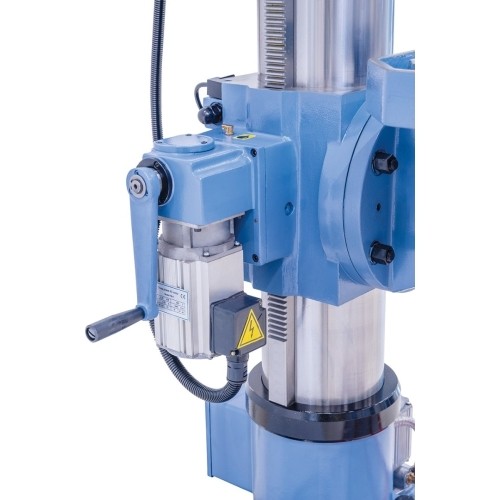

Motorized table height adjustment included
6 automatic drill feeds are controlled by electromagnetic clutch

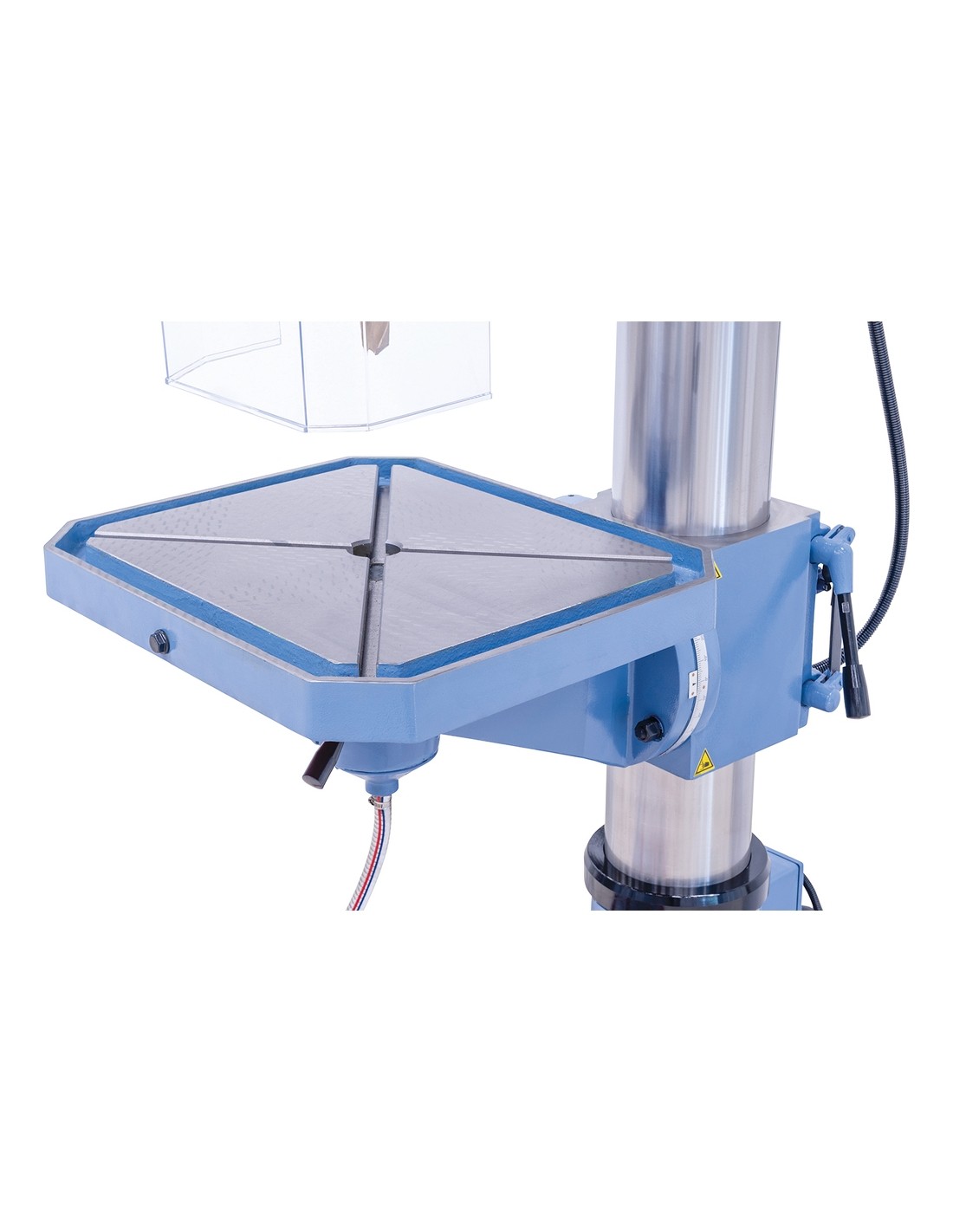

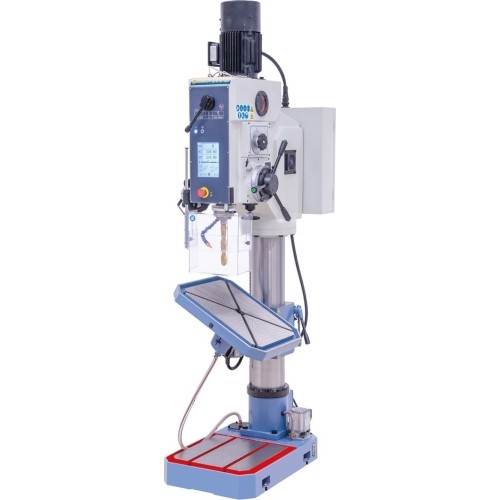

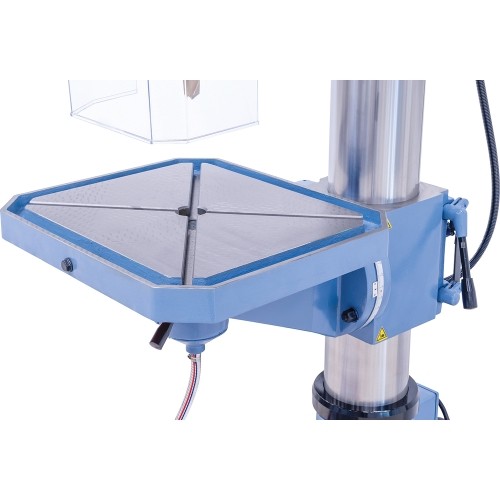

Solid, grey cast iron, surface treated drill table can be tilted from -45º to +45º

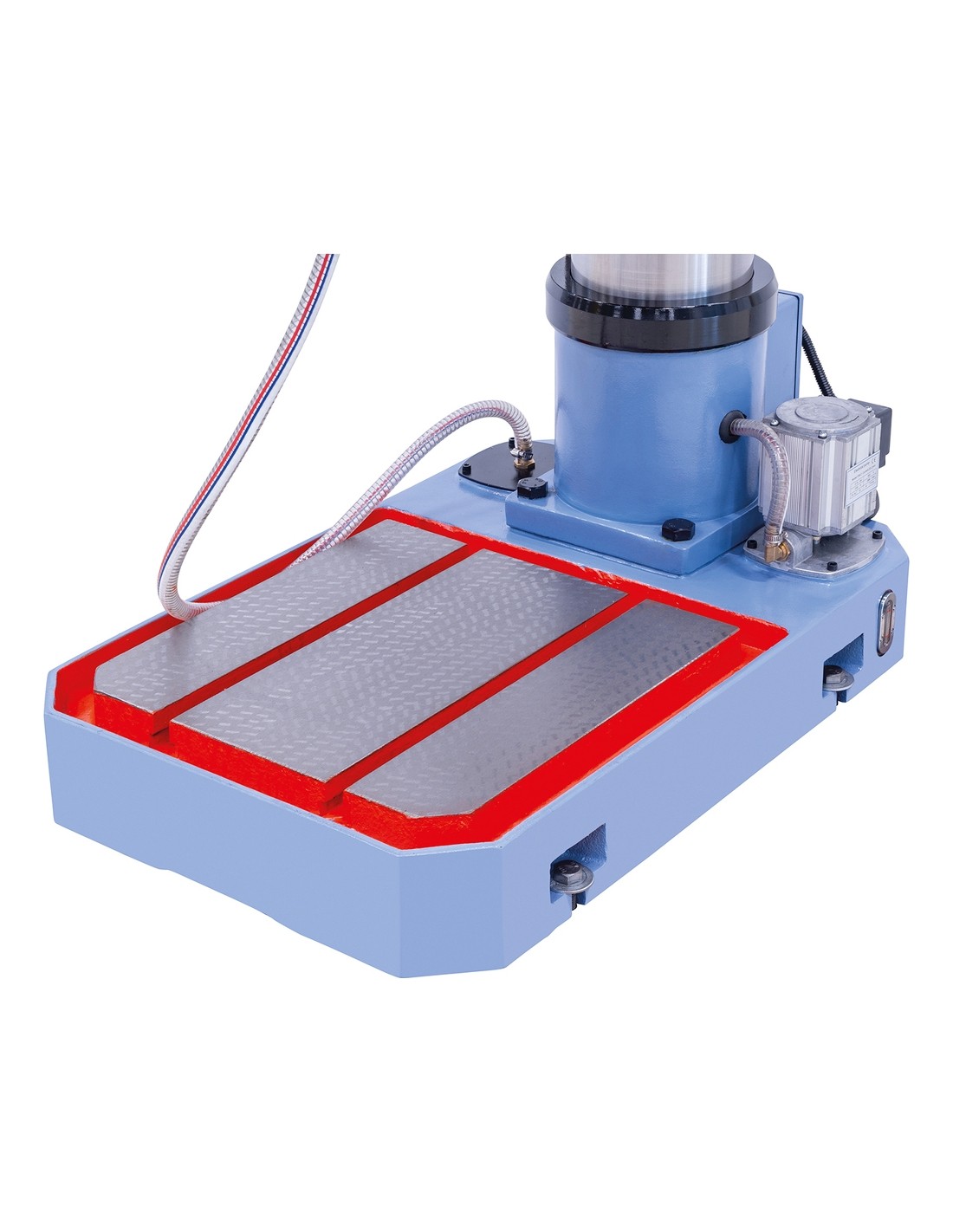

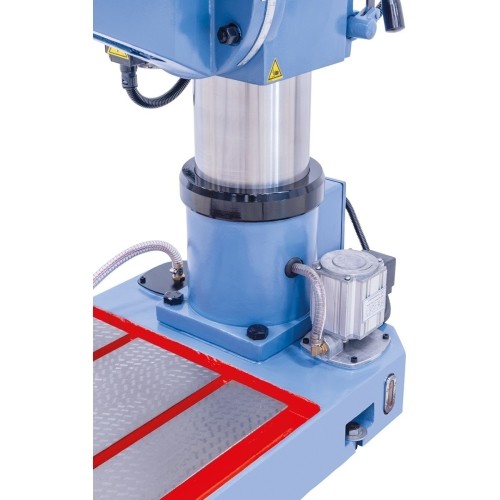

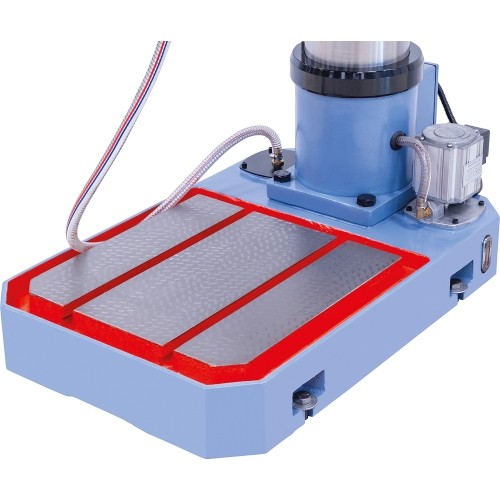

Polished base features T-slots for clamping of larger workpieces
Guaranteed concentricity of ≤ 0.02 mm, measured at spindle
Automatic tool release device and tapping device as standard equipment
Smooth gear wheels, in oil bath, allow for a smooth run
Solid, polished steel column, heavy-duty design

Standard accessories

Drill chuck 1 - 13 mm / B 16
Drill chuck arbor MT 4 / B 16
Morse taper drill sleeve MT 4 / 3, MT 4 / 2, MT 3 / 1
Motoric table stroke
Coolant device
Touchscreen
Electromagnetic spindle feed
Automatic tool release device
Thread cutting device
LED machine light
Initial filling with Shell Tellus 46
Digital speed indication
Digital drill depth indication
Height adjustable protective cover
