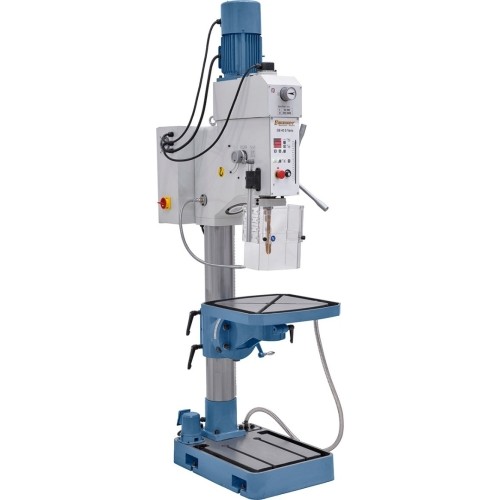

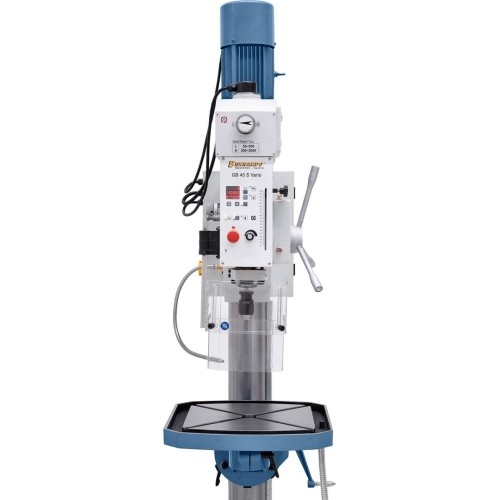

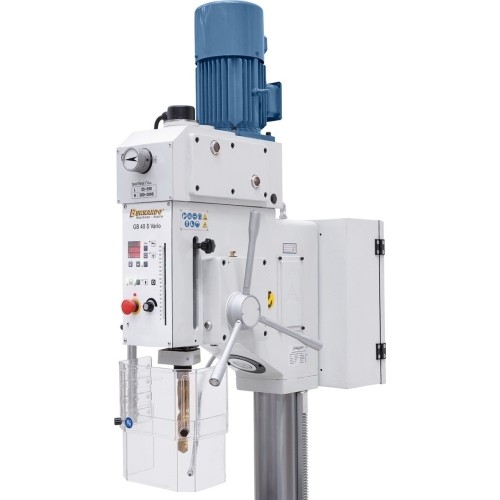

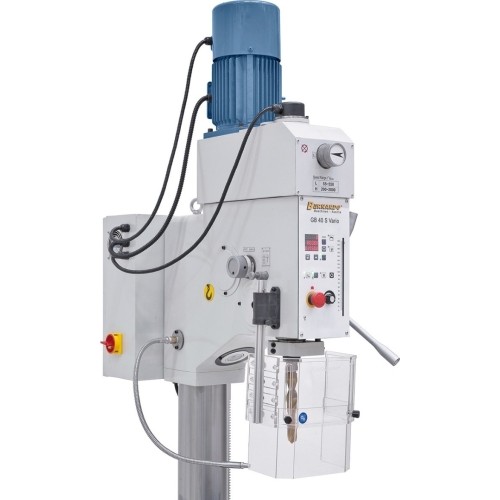

GB 40 S Vario
GB 40 S Vario
GB 40 S Vario
GB 40 S Vario
GB 40 S Vario
GB 40 S Vario
GB 40 S Vario
GB 40 S Vario
  • Online only
GB 40 S Vario
GB 40 S Vario
GB 40 S Vario
GB 40 S Vario
GB 40 S Vario
GB 40 S Vario
GB 40 S Vario
GB 40 S Vario

Weight approx.
475 kg
Machine dimension (W x D x H)
620 x 1000 x 2300 mm
Distance spindle to column
340 mm
Spindle stroke
190 mm
Motor power output S1 100%
2,2 kW / 400 V
Motor power input S6 40%
3,0 kW / 400 V
Drilling capacity max.
40 mm
Thread cutting max.
M24
Morse taper
MT 4
Spindle speeds
55 – 550 / 200 – 2000 rpm
Feed range
0,1 / 0,2 mm/rev.
Distance spindle to base
1195 mm
Distance spindle to table max.
675 mm
Table size / T-slot size
555 x 555 mm / 18 mm
Drill chuck
1 - 16 mm / B 16
Column diameter
150 mm
Working surface of base
535 x 505 mm

GB 40 S Vario

1248881
Price €8,822.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, august 31 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 475 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 475 kg.

Description

Properties

  • Stepless speed setting allows optimal adjustment of cutting speed

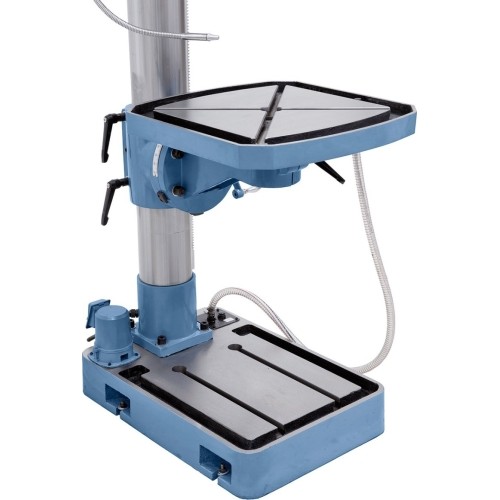

  • High-quality base with T-slots allows clamping of overly long workpieces
  • Includes 2 automatic spindle feeds, adjustable electromagnetically

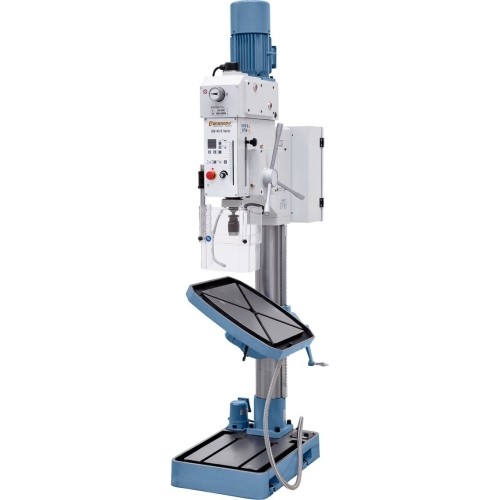

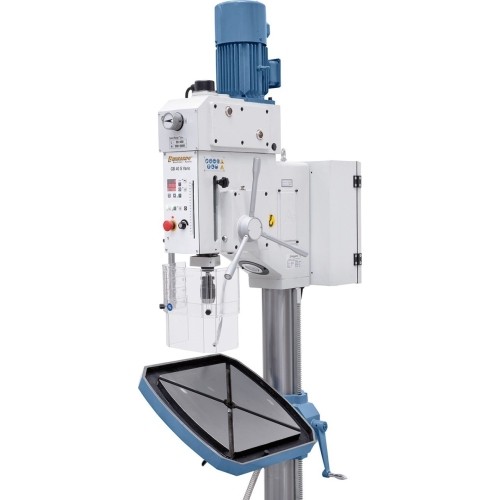

  • Worktable swivels horizontally around column, 45° tiltable left and right
  • Hardened, polished gear wheels allow for smooth operation
  • Guaranteed concentricity of ≤ 0.02 mm, measured at spindle
  • Membrane keyboard ensures user-friendly operation
  • Automatic tool release device and thread cutting device come standard

Standard accessories

  • Keyless drill chuck 1 - 16 mm / B 16
  • Drill chuck arbor MT 4 / B 16
  • Morse taper drill sleeve MT 4 / 3, MT 3 / 2
  • Frequency inverter Delta VFD
  • Automatic tool release device
  • Coolant device
  • Electromagnetic spindle feed
  • Thread cutting device
  • LED-machine light
  • Digital speed indication
  • Digital drill depth indication
  • Height adjustable protective cover
