WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Weight approx.
360 kg
Machine dimension (W x D x H)
540 x 900 x 2120 mm
Distance spindle to column
300 mm
Spindle stroke
160 mm
Motor power output S1 100%
1,5 kW / 400 V
Motor power input S6 40%
2,2 kW / 400 V
Drilling capacity max.
32 mm
Thread cutting max.
M22
Morse taper
MT 4
Feed range
0,06 / 0,12 / 0,18 mm/rev.
Distance spindle to base
1285 mm
Distance spindle to table max.
670 mm
Table size / T-slot size
460 x 460 mm / 14 mm
Drill chuck
1 - 13 mm / B 16
Column diameter
125 mm
Working surface of base
420 x 340 mm
Spindle speed / 2 steps
90 – 980 / 1000 – 3000 rpm

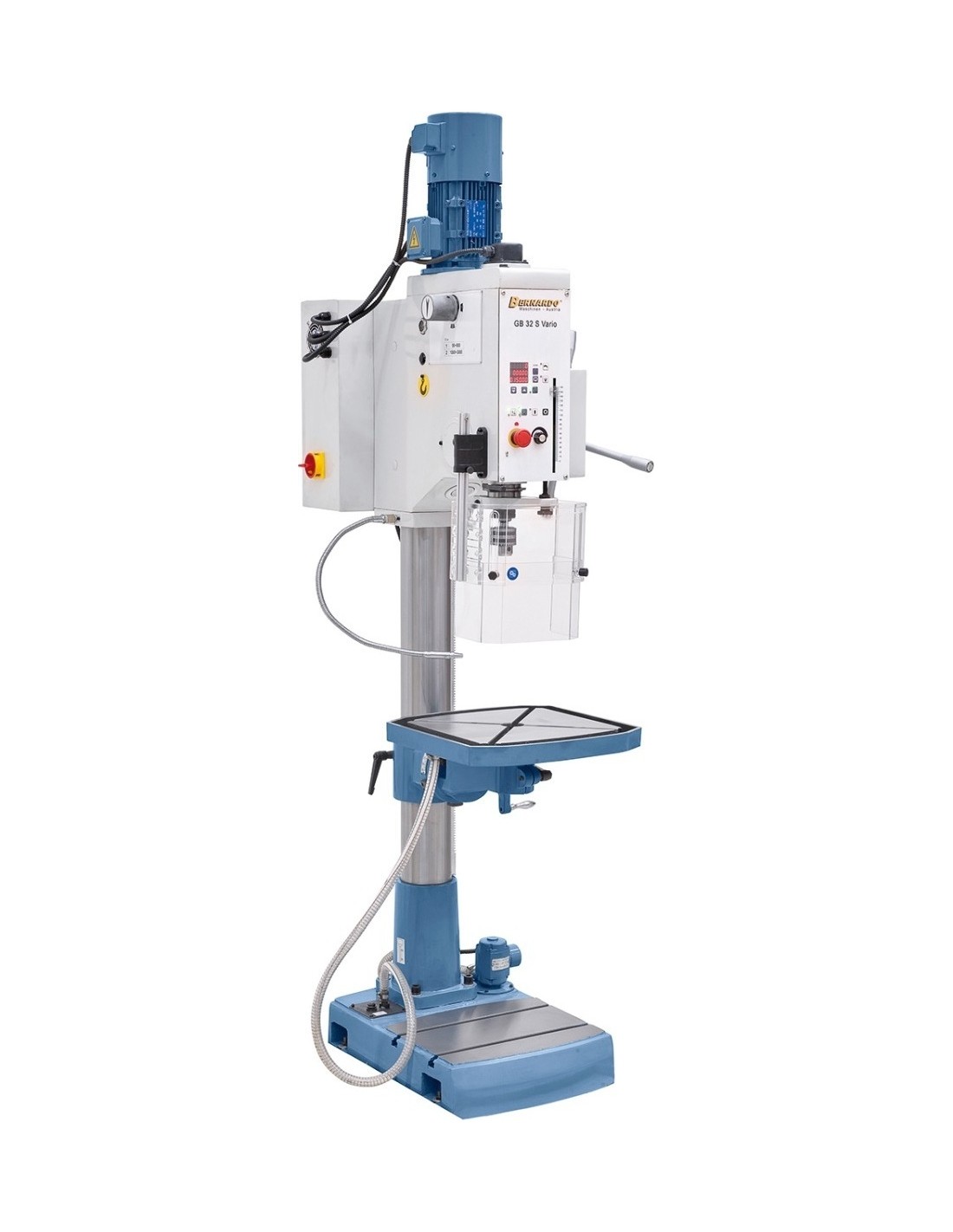

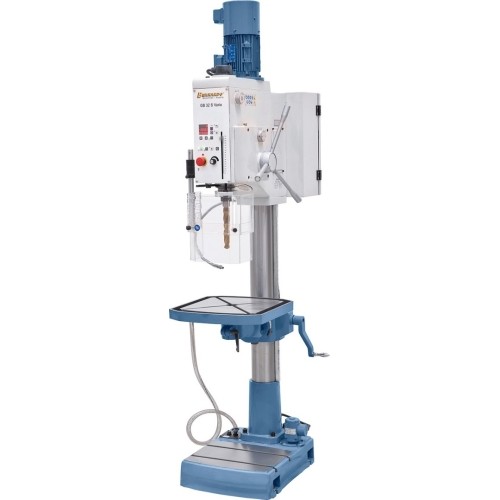

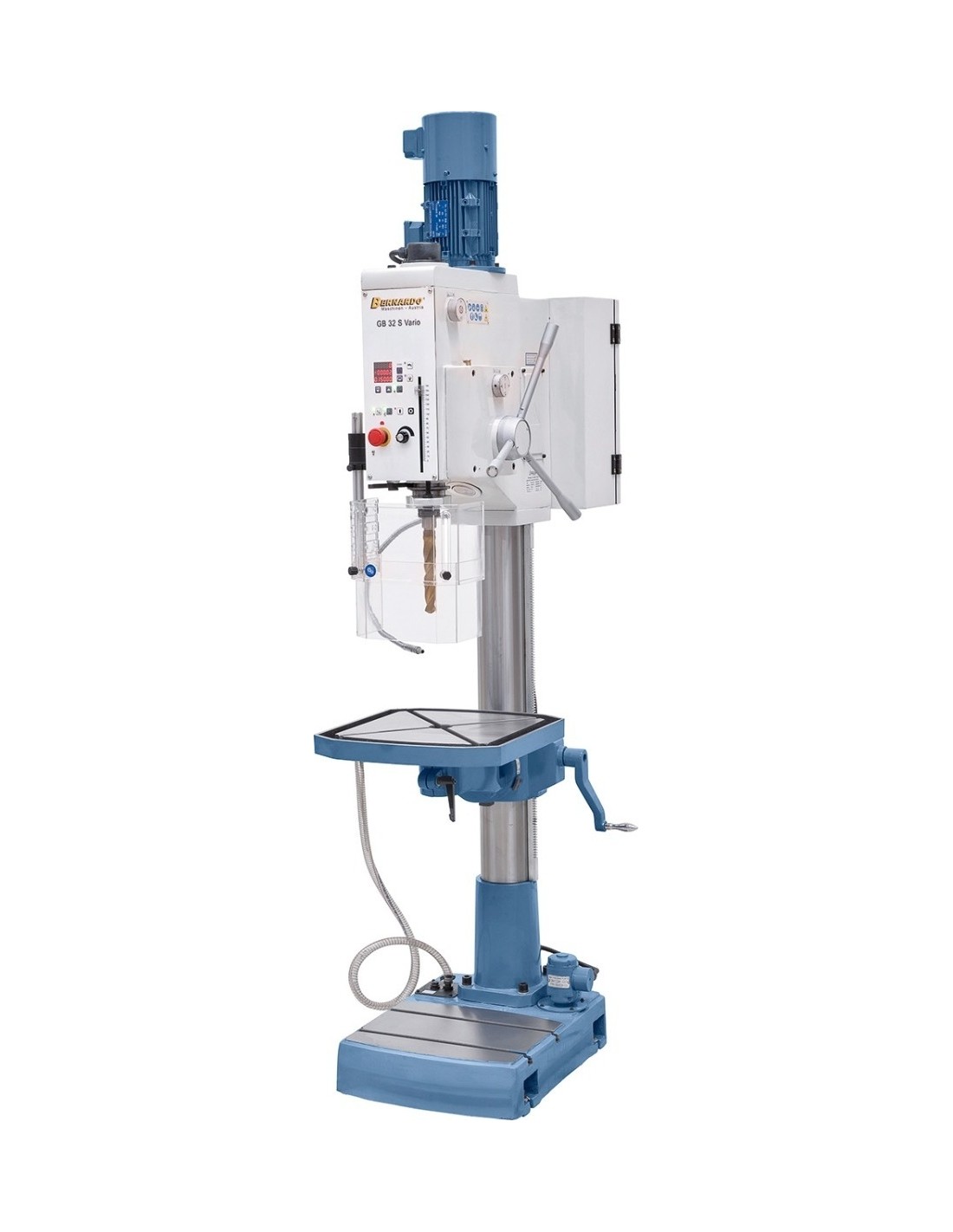

GB 32 S Vario

1248880
€5,900.00
Tax included
Monthly payment from 144.97€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 360 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 360 kg.

Description

Properties

  • Stepless speed setting allows optimal adjustment of cutting speed

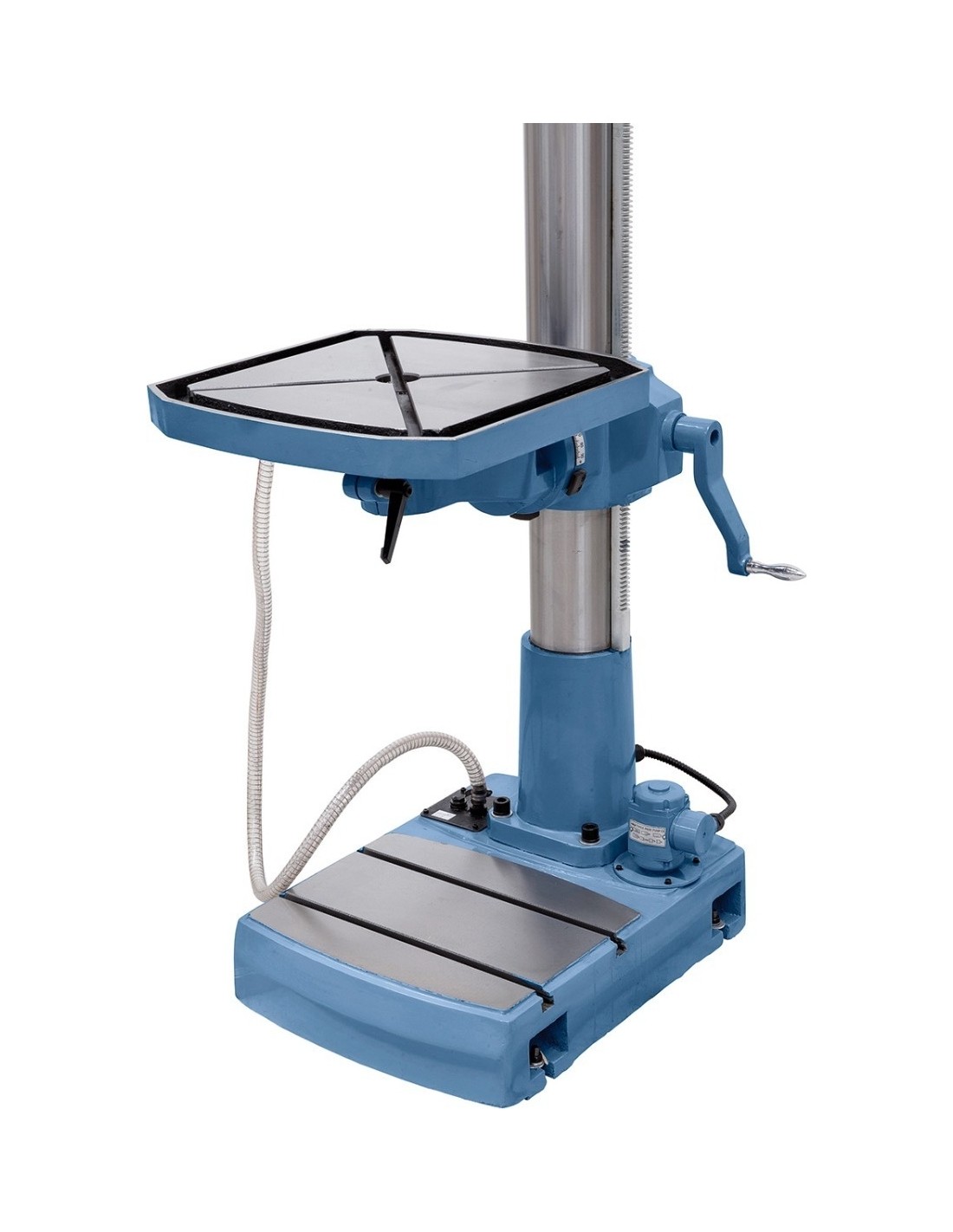

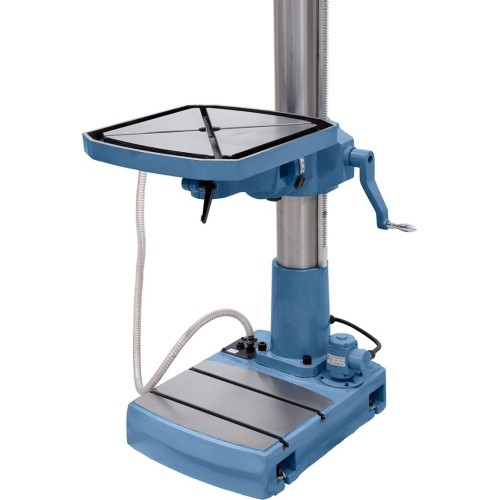

  • Treated machine base (420 x 340 mm) with integrated coolant pump

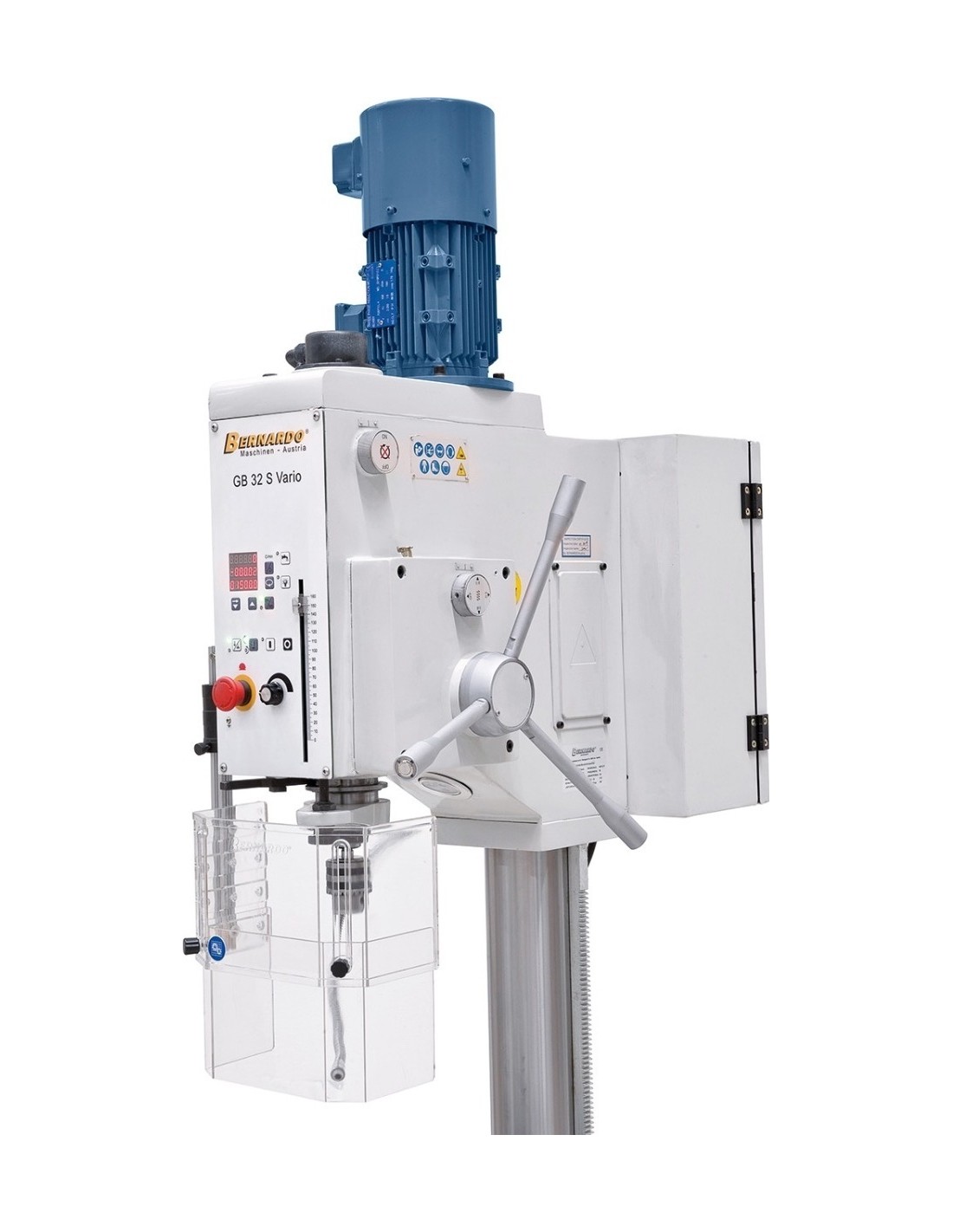

  • Integrated digital display to show the speed and drilling depth

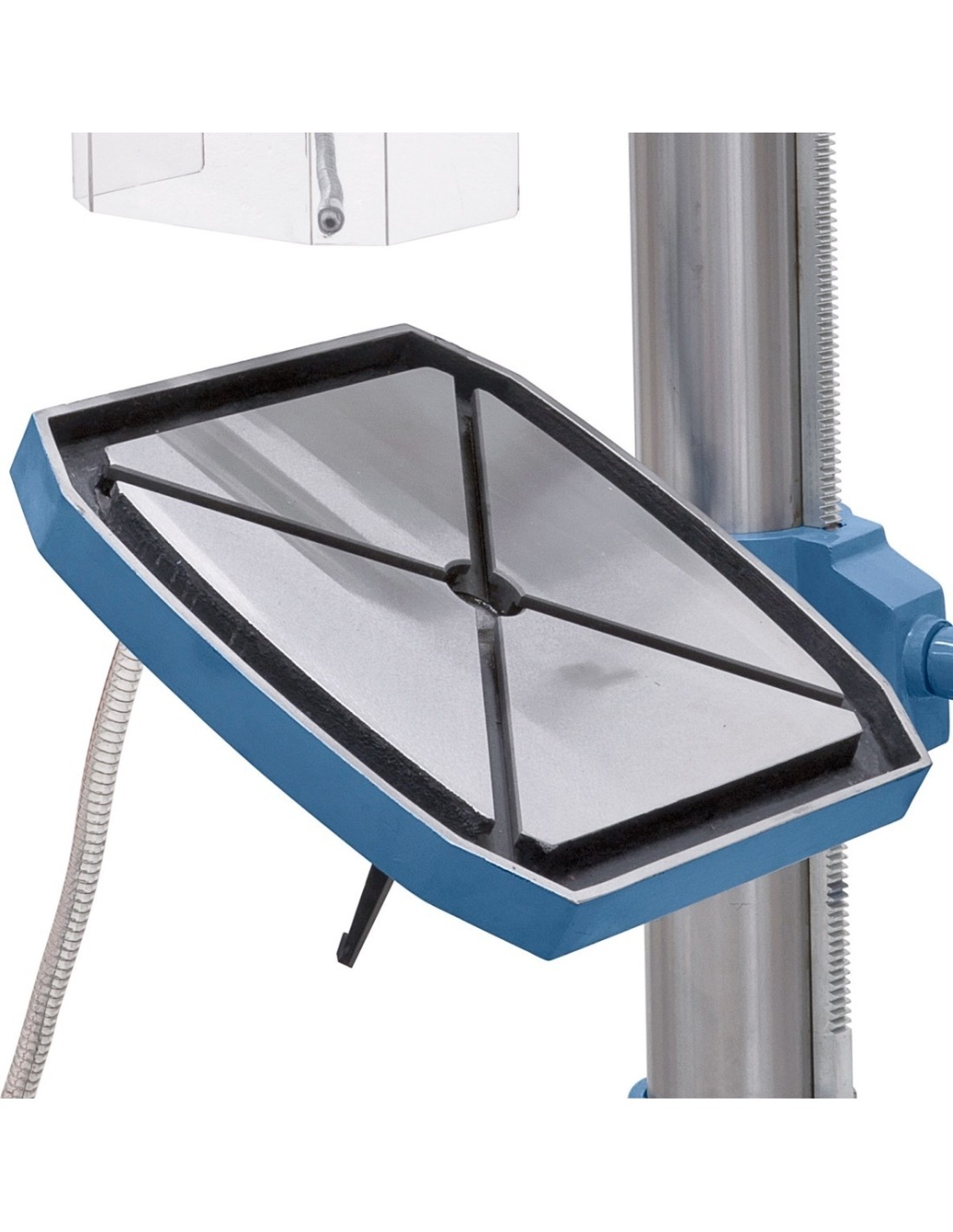

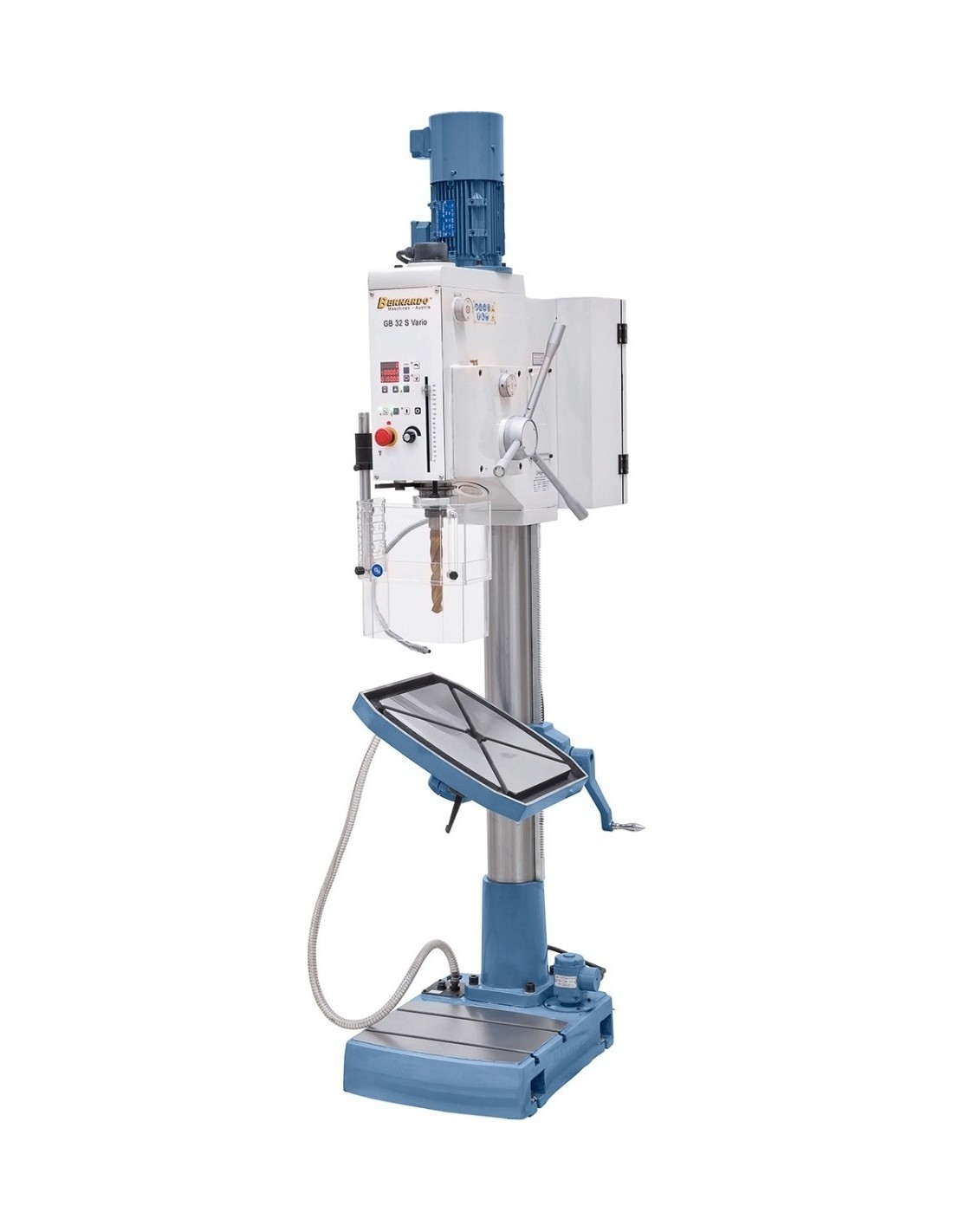

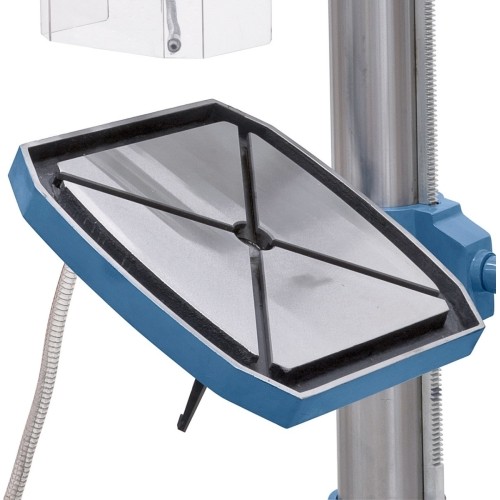

  • Solid, grey cast iron table features a tilt- and turnable support
  • 3 automatic spindle feeds come standard
  • Guaranteed concentricity of ≤ 0.02 mm, measured at spindle

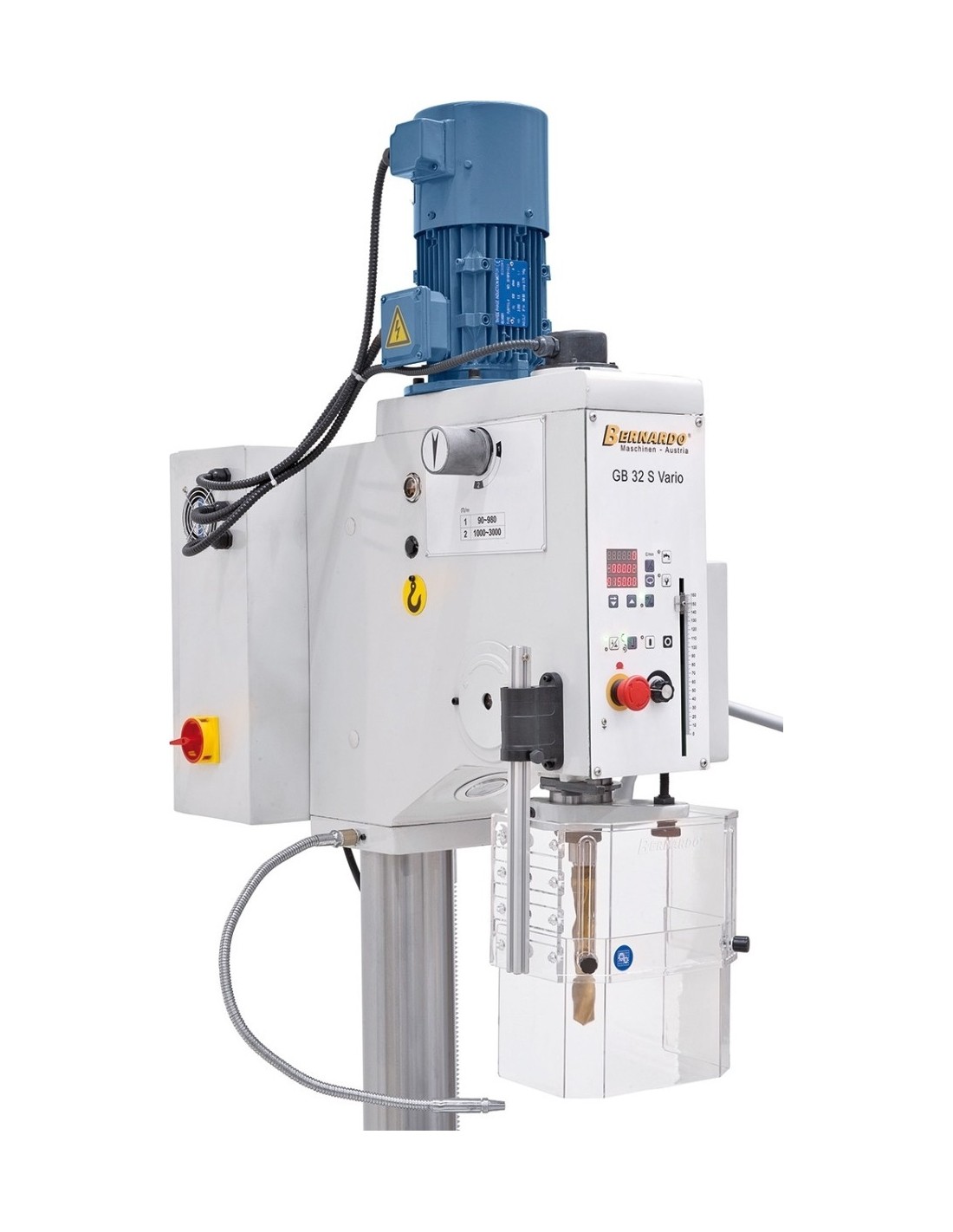

  • Membrane keyboard ensures user-friendly operation
  • Serially equipped with automatic spindle feed and thread cutting device
  • Solid and polished steel column, designed for heavy workloads

Standard accessories

  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 4 / B 16
  • Morse taper drill sleeve MT 4 / 3, MT 3 / 2
  • Frequency inverter Delta VFD
  • Automatic tool release device
  • Coolant device
  • Electromagnetic spindle feed
  • Thread cutting device
  • LED-machine light
  • Digital speed indication
  • Digital drill depth indication
  • Height adjustable protective cover
