Weight approx.
320 kg
Drilling capacity in steel
32 mm
Distance spindle to column
280 mm
Spindle stroke
125 mm
Motor power output S1 100%
1,1 kW
Motor power input S6 40%
1,5 kW
Thread cutting max.
M22
Morse taper
MT 3
Feed range
0,1 / 0,2 / 0,3 mm/rev
Distance spindle to base
1120 mm
Distance spindle to table max.
650 mm
Table size / T-slot size
420 x 350 mm / 14 mm
Drill chuck
1 - 13 mm / B 16
Column diameter
110 mm
Machine dimensions (W x D x H)
500 x 800 x 2100 mm
Drilling capacity in cast iron
35 mm
Spindle speeds / 2 Steps
70 - 495 / 495 - 3500 rpm
Work surface base
340 x 330 mm

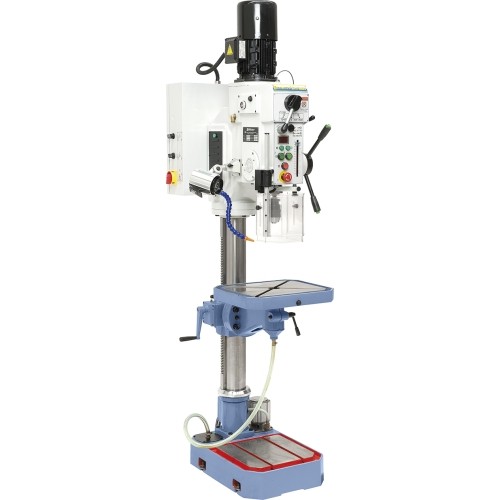

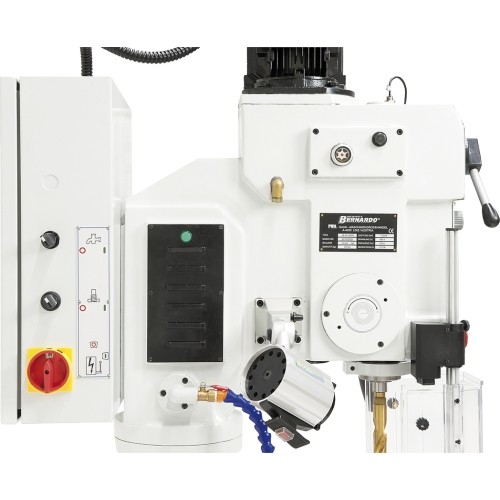

GB 30 Vario

1092013
€6,389.00
Tax included
Monthly payment from 157.02€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 320 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 320 kg.

Description

Properties

  • Stepless speed settings allows optimal adjustment of cutting speed
  • Automatic tool release device and thread cutting device come standard
  • Electromechanic drill feed, adjustable from 0,1 - 0,3 mm/rev.

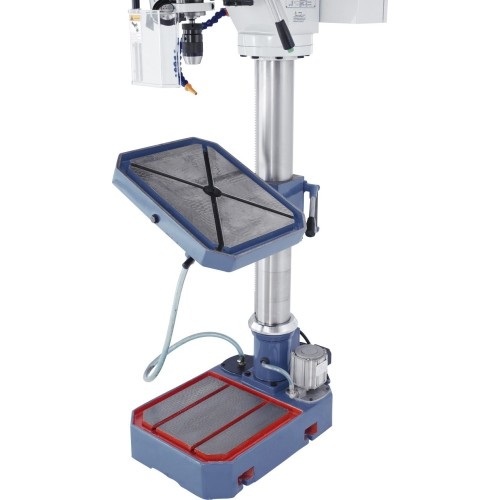

  • Solid, grey cast iron table featues a tilt- and turnable support

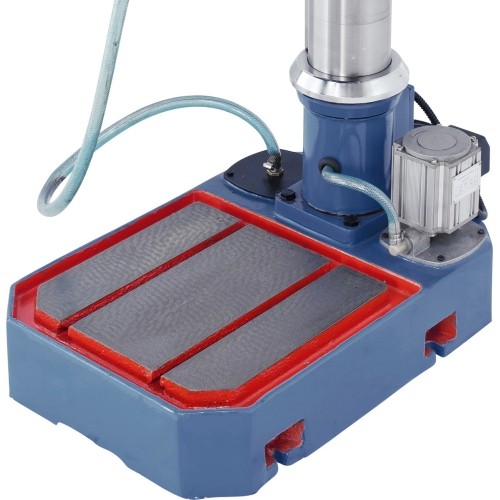

  • T-slot in machine base allow clamping of oversize workpieces
  • Guaranteed concentricity of ≤ 0,02 mm, measured at spindle
  • Hardened, polished gear wheels allow for smooth operation
  • Adjustable drill depth stop includes scale for easy readout

Standard accessories

  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Morse taper drill sleeve

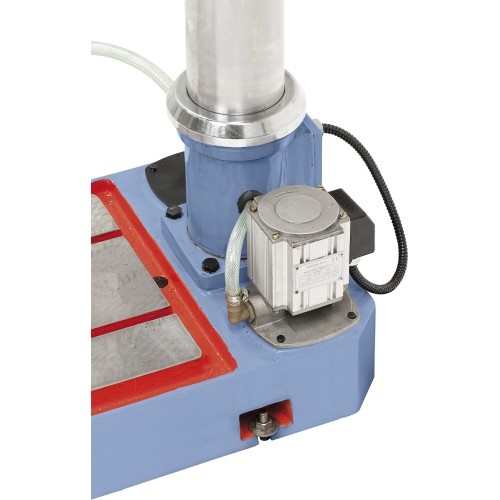

  • Coolant pump
  • Thread cutting device
  • Electromagnetic spindle feed
  • Automatic tool release device
  • LED machine light
  • Initial filling with Shell Tellus 46

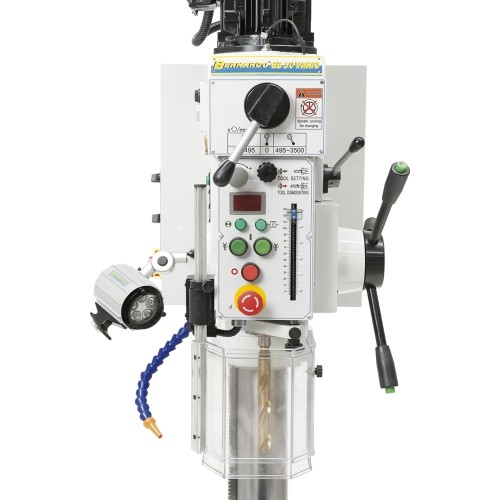

  • Digital readout of speeds

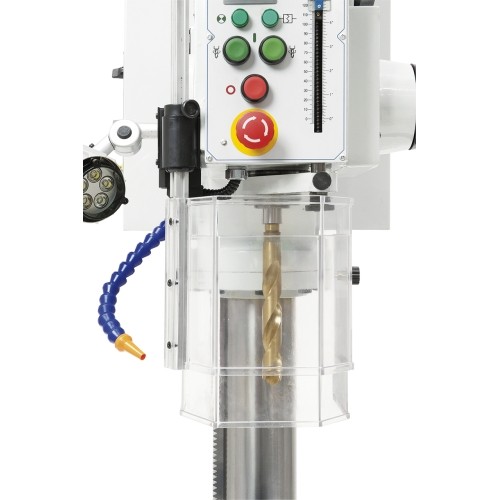

  • Height adjustable protective cover
