WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Weight approx.
500 kg
Motor power
2,0 kW
Machine dimension (W x D x H)
700 x 950 x 2270 mm
Drilling capacity in steel
40 mm
Distance spindle to column
340 mm
Spindle stroke
210 mm
Thread cutting max.
M32
Morse taper
MT 4
Feed range
0,1 / 0,2 / 0,3 / 0,4 mm/rev.
Distance spindle to base
1205 mm
Distance spindle to table max.
595 mm
Table size / T-slot size
540 x 435 mm / 14 mm
Drill chuck
1 - 13 mm / B 16
Column diameter
140 mm
Working surface of base
400 x 410 mm
Drilling capacity in cast iron
45 mm
Spindle speeds / 2 Steps
60 - 400 / 392 - 2600 rpm

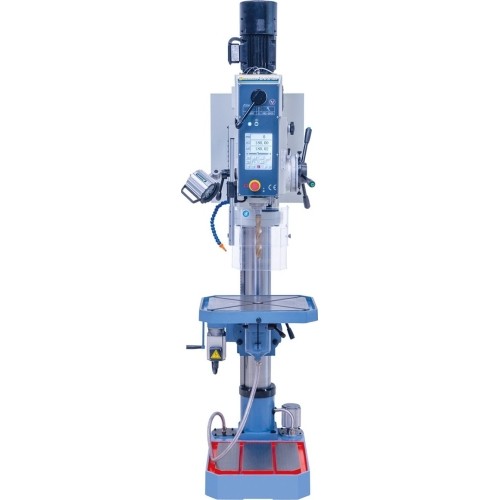

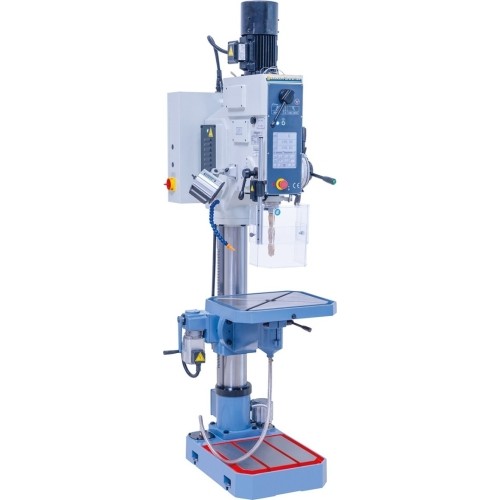

GB 45 NC Vario

1219406
Price €10,858.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up friday, august 29 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 500 kg.
We will deliver the product to you via: 5-10 w.d. Venipak (€40.99)
Weight: 500 kg.

Description

Properties

  • Stepless speed adjustment, easy readout on digital display

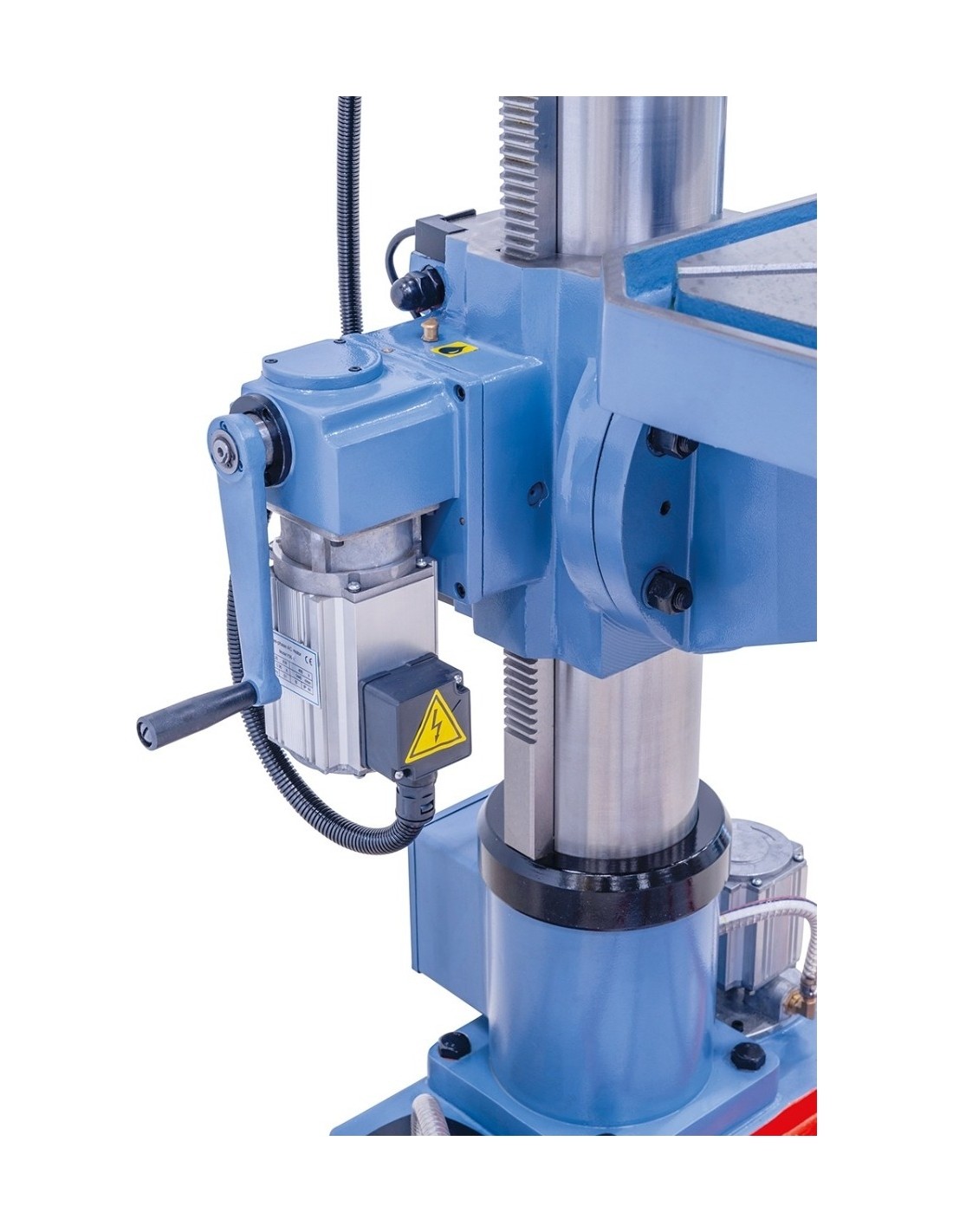

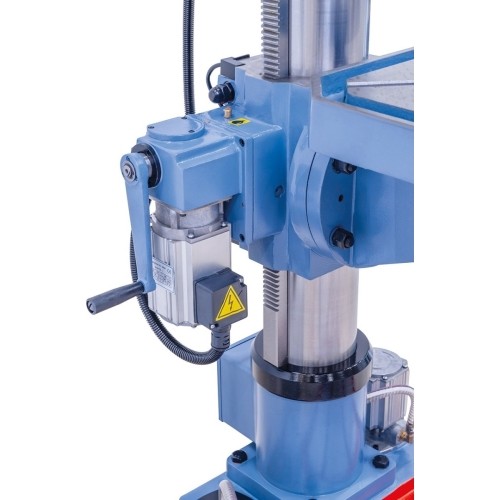

  • Motorized table stroke reduces downtime significantly
  • Choose between 4 automatic spindle feeds, set by electromagnetic clutch

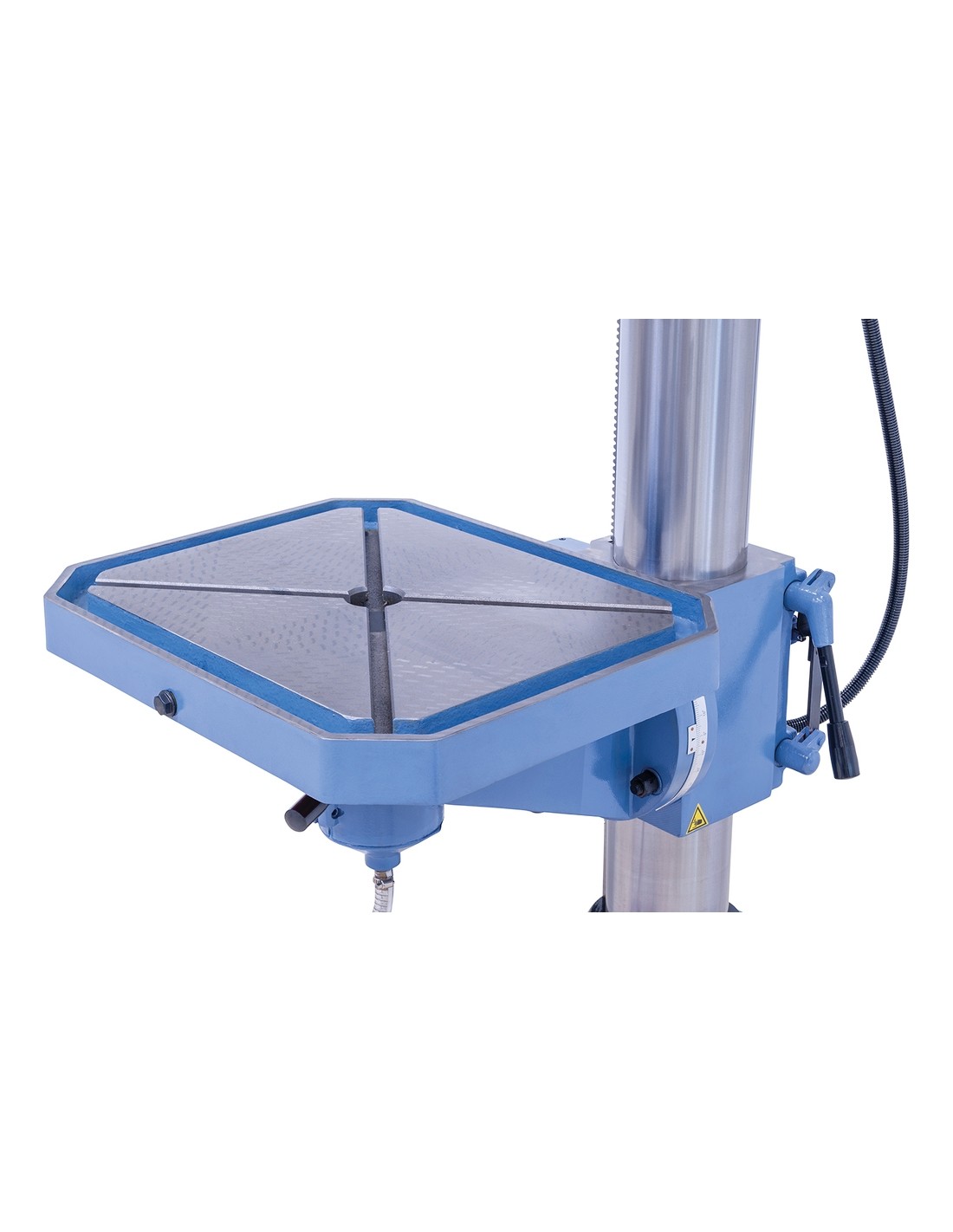

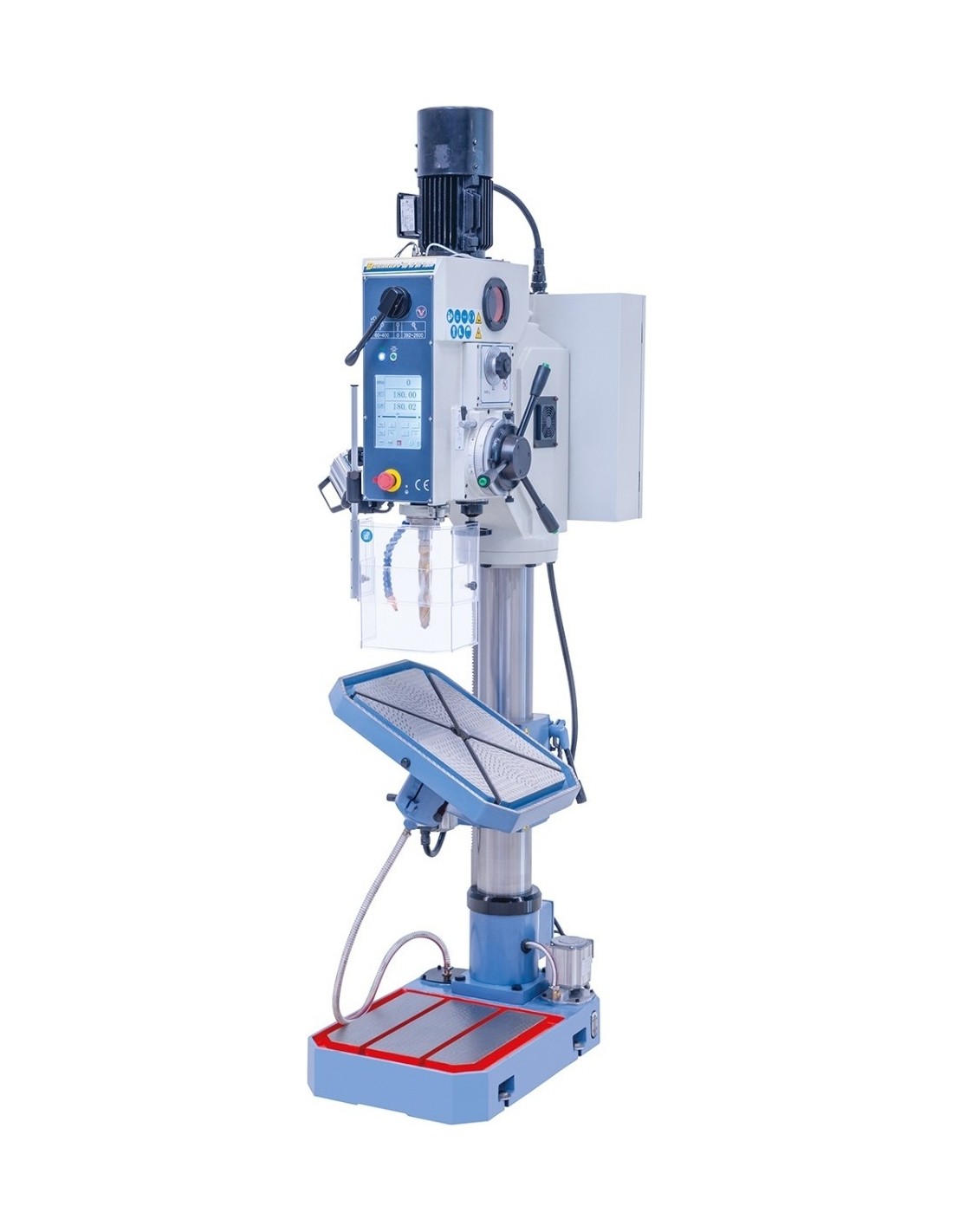

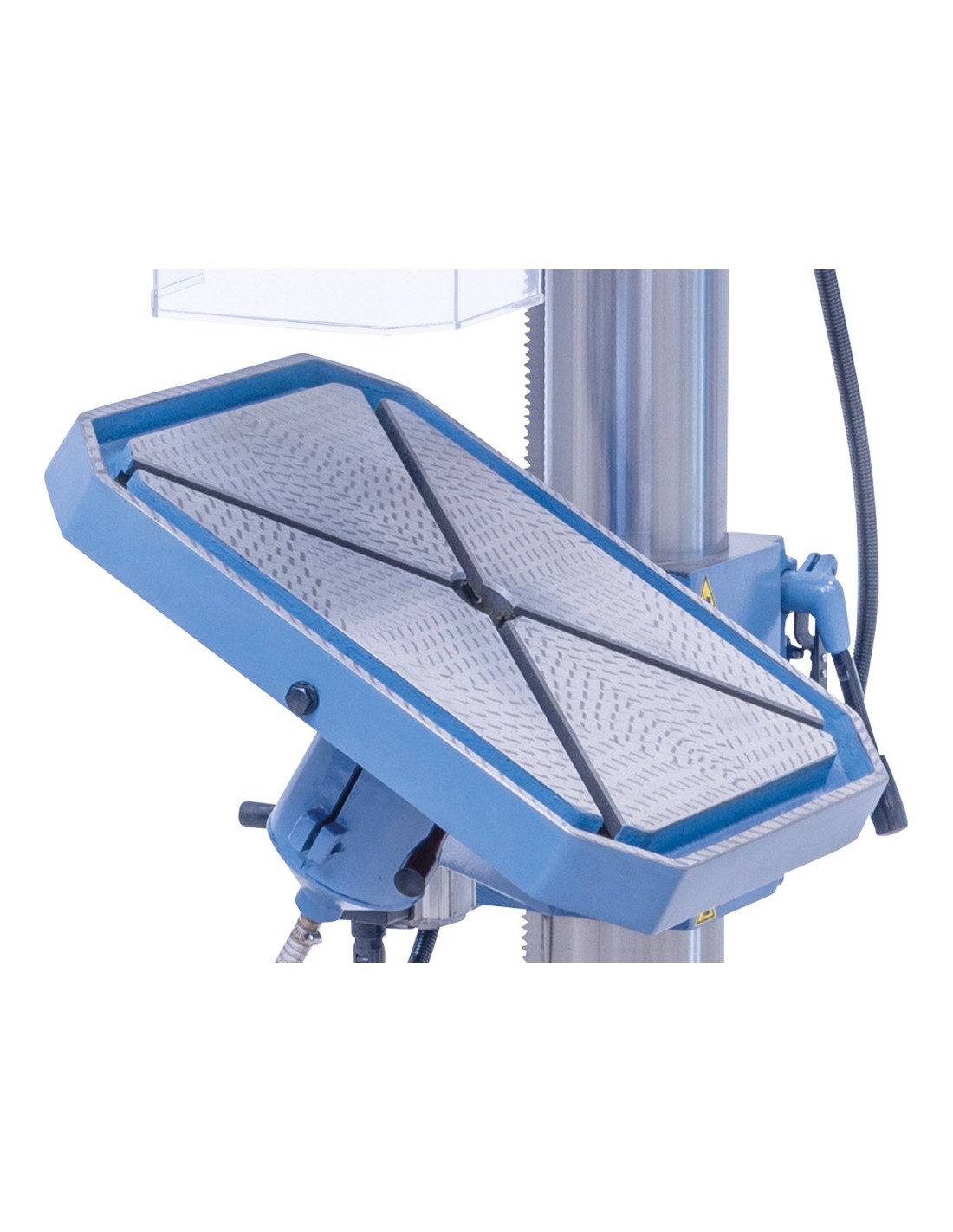

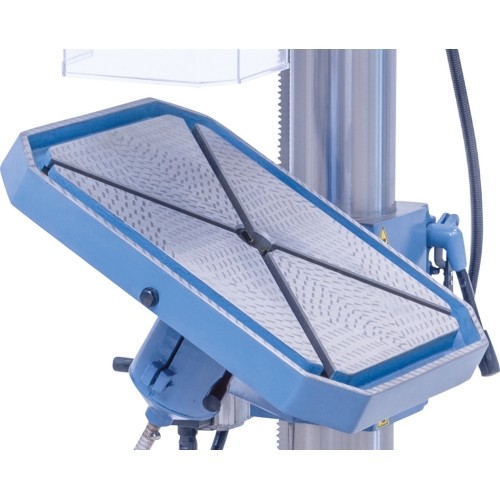

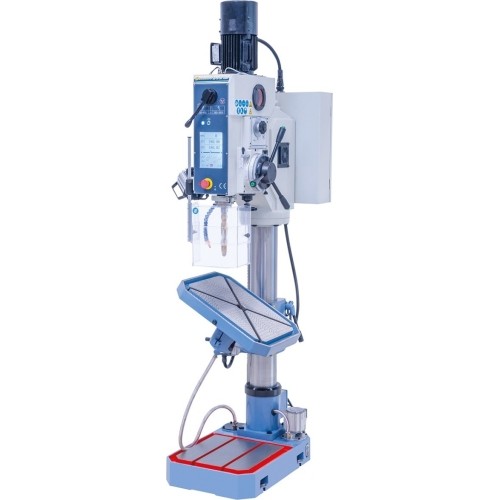

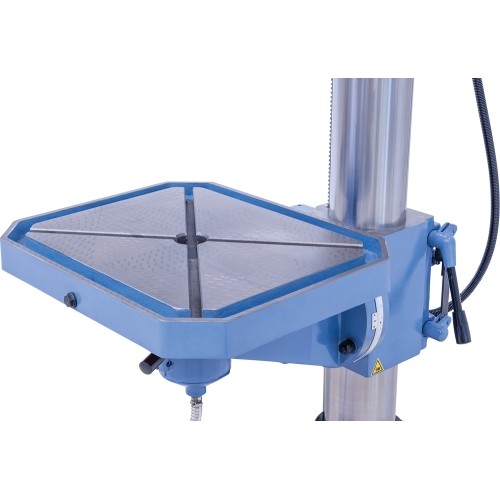

  • Table turns around the column horizontally and tilts 45º to both sides

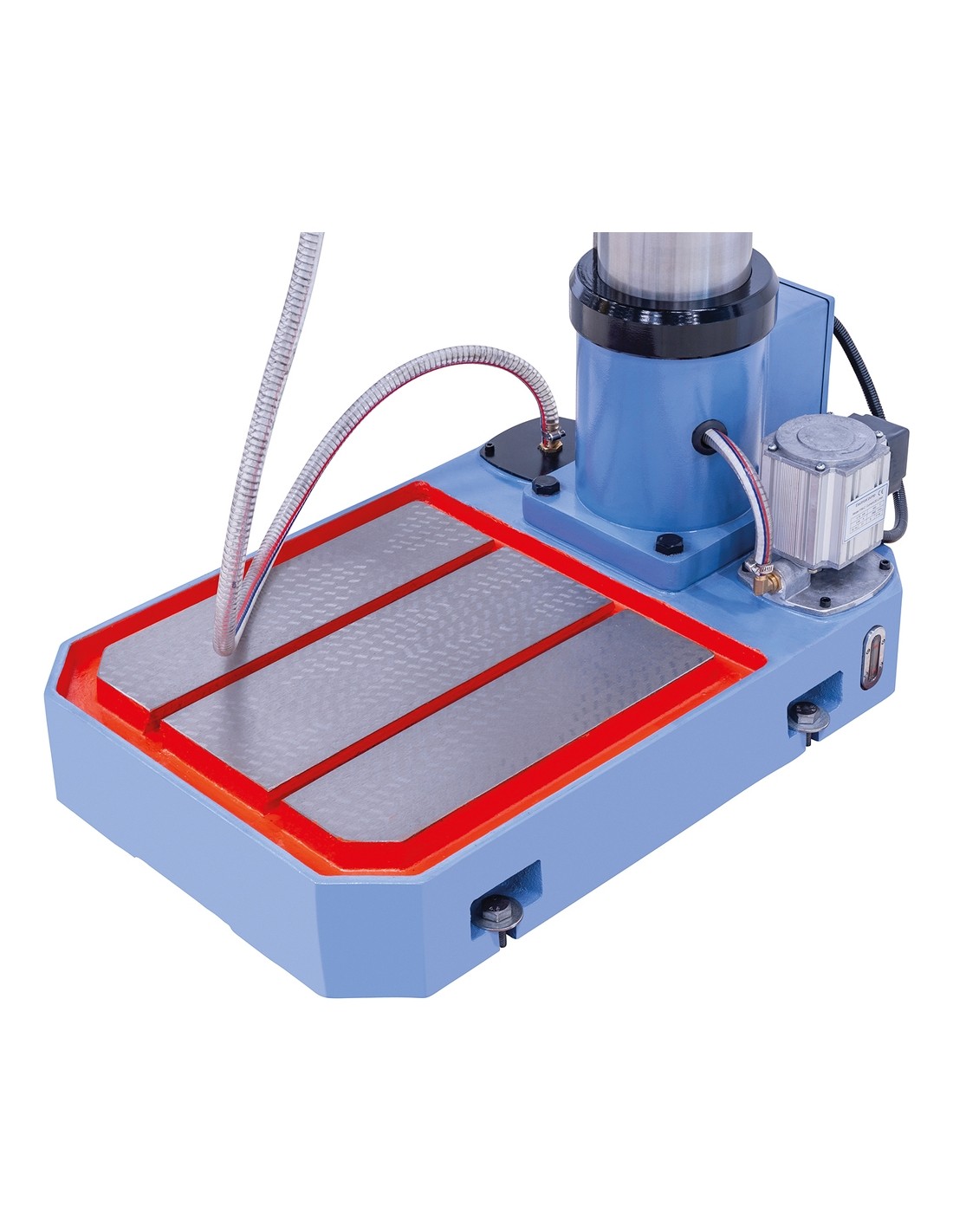

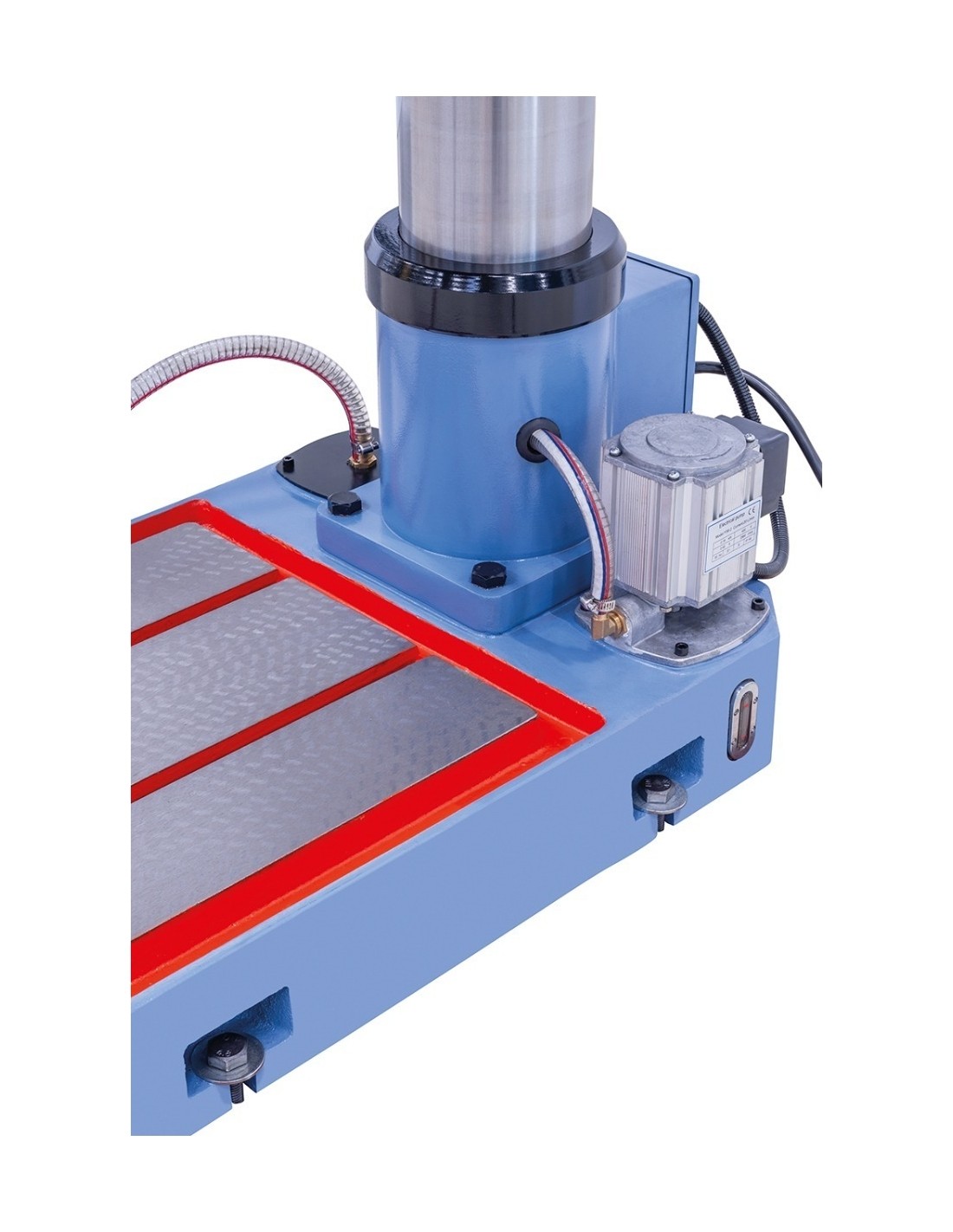

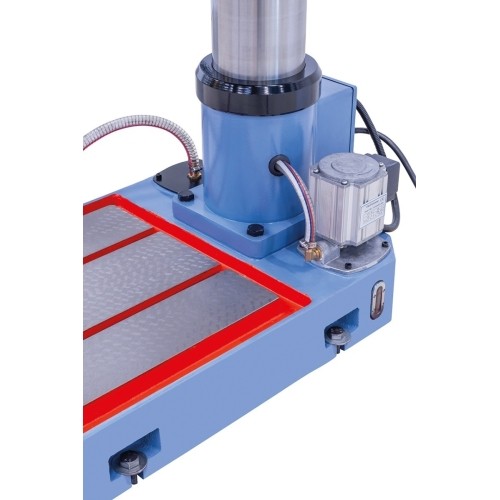

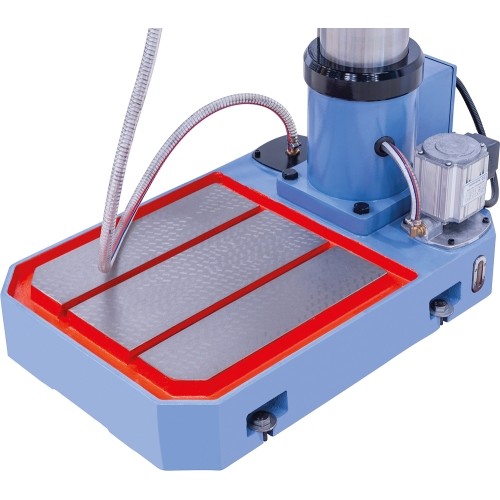

  • Surface treated machine base (400 x 410 mm) with integrated coolant pump
  • Guaranteed concentricity of ≤ 0.02 mm measured at spindle
  • Hardened, polished gear wheels guarantees smooth operation

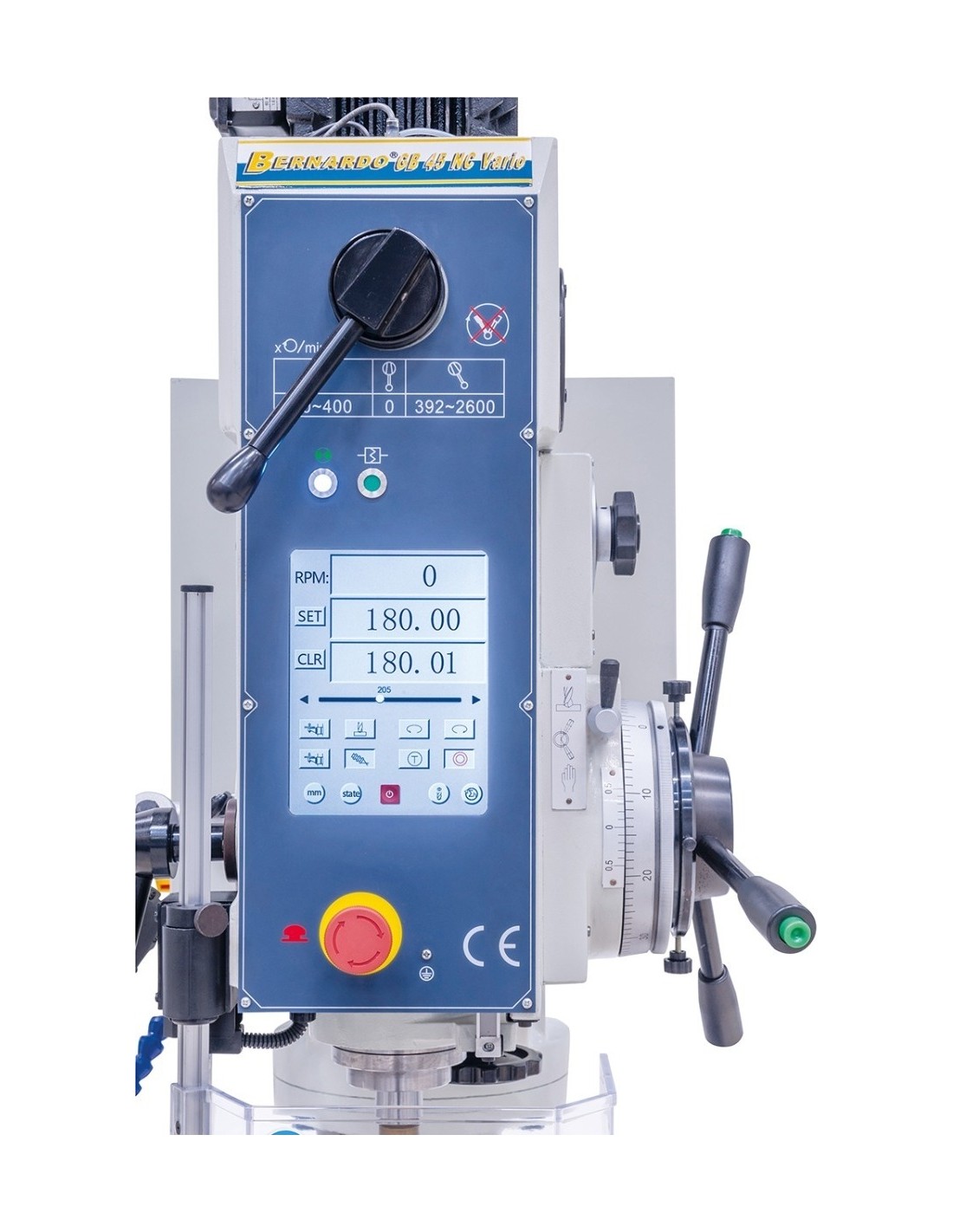

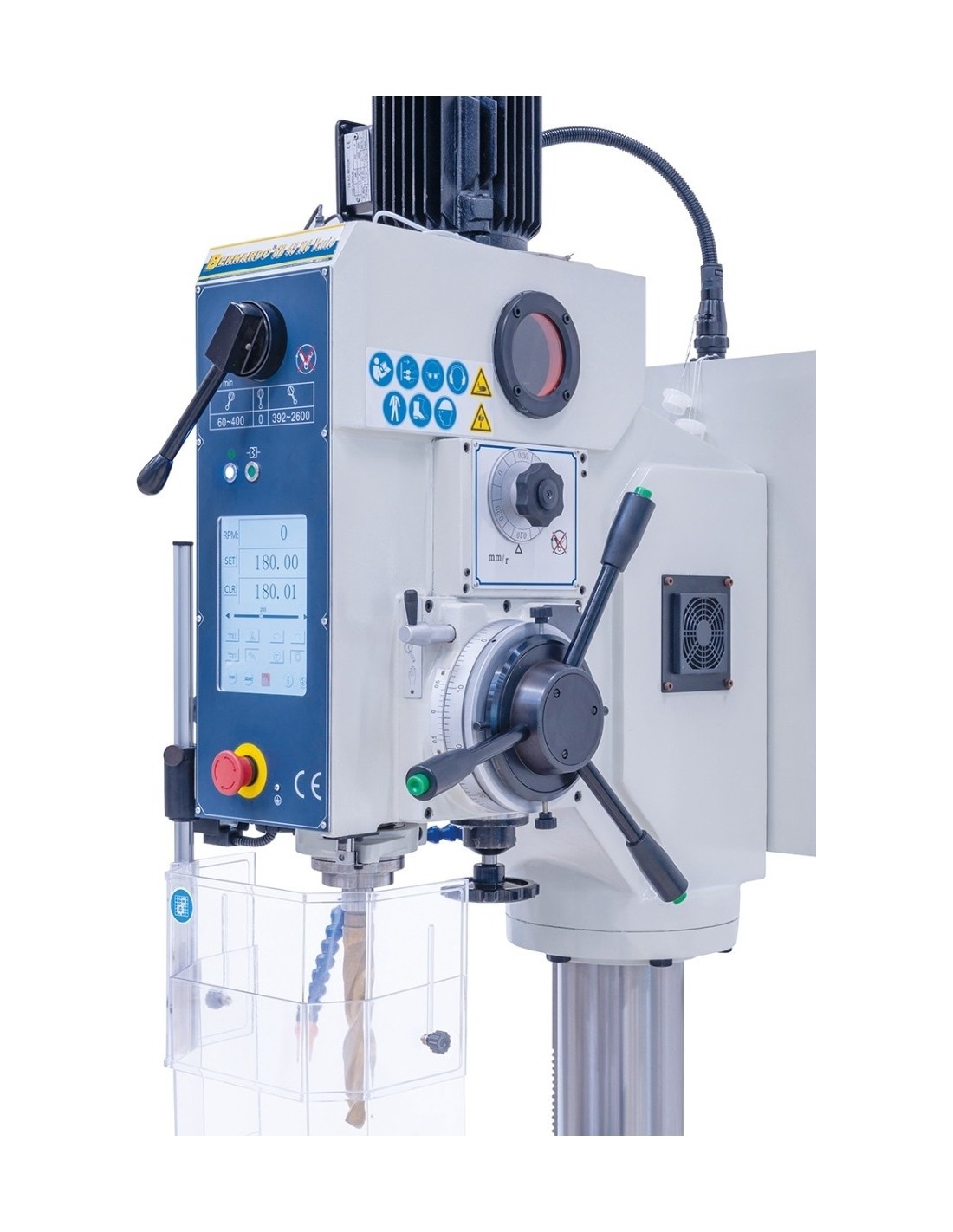

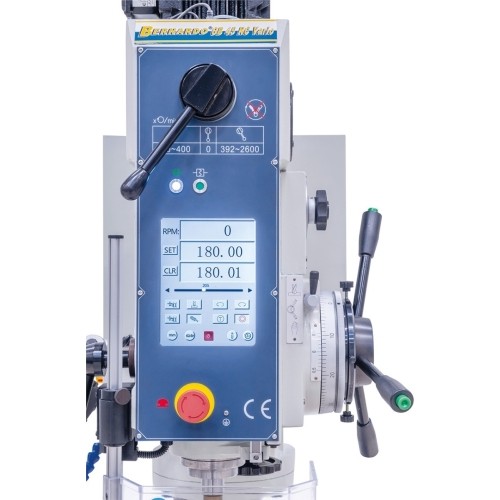

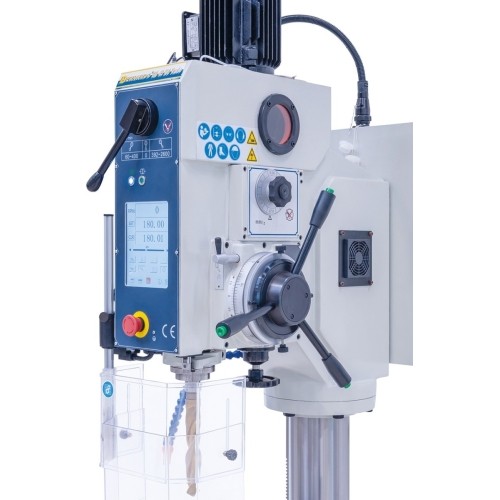

  • Large touchscreen for all settings
  • Powerful drive motor designed for longer use

Standard accessories

  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 4 / B 16
  • Morse taper drill sleeve MT 4 / 3, 4 / 2, 3 / 1
  • Motoric table stroke
  • Coolant device
  • Touchscreen
  • Thread cutting device
  • Electromagnetic spindle feed
  • Automatic tool release device
  • LED machine light
  • Initial filling with Shell Tellus 46
  • Digital speed indication
  • Digital drill depth indication
  • Height adjustable protective cover
