Weight approx.
375 kg
Drilling capacity in steel
35 mm
Distance spindle to column
320 mm
Spindle stroke
160 mm
Motor power output S1 100%
1,5 kW
Motor power input S6 40%
2,2 kW
Thread cutting max.
M24
Morse taper
MT 4
Feed range
0,1 / 0,2 / 0,3 mm/rev
Distance spindle to base
1145 mm
Distance spindle to table max.
580 mm
Table size / T-slot size
500 x 420 mm / 14 mm
Drill chuck
1 - 16 mm / B 16
Column diameter
120 mm
Machine dimensions (W x D x H)
600 x 870 x 2170 mm
Drilling capacity in cast iron
40 mm
Spindle speeds / 2 Steps
65 - 460 / 460 - 3250 rpm
Work surface base
365 x 370 mm

GB 35 Vario

1092010
Price €9,738.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, august 10 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 375 kg.
We will deliver the product to you via: 6-12 w.d. Venipak (€40.99)
Weight: 375 kg.

Description

Properties

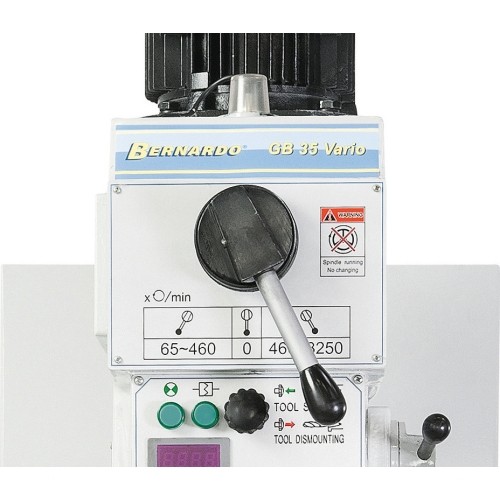

  • Stepless speed settings allows optimal adjustment of cutting speed
  • Automatic tool release device and thread cutting device come standard
  • Electromechanic drill feed, adjustable from 0,1 - 0,3 mm/rev.

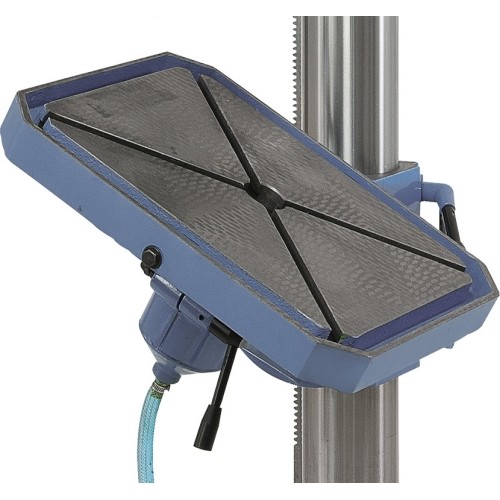

  • Solid, grey cast iron table featues a tilt- and turnable support
  • T-slot in machine base allow clamping of oversize workpieces
  • Guaranteed concentricity of ≤ 0,02 mm, measured at spindle
  • Hardened, polished gear wheels allow for smooth operation
  • Adjustable drill depth stop includes scale for easy readout

Standard accessories

  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 4 / B 16
  • Morse taper drill sleeve

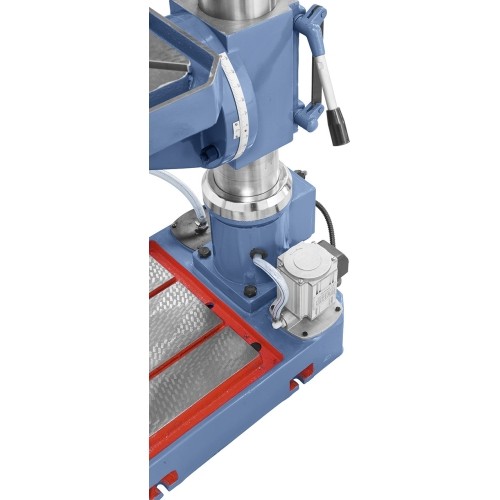

  • Coolant pump
  • Thread cutting device
  • Electromagnetic spindle feed
  • Automatic tool release device
  • LED machine light
  • Initial filling with Shell Tellus 46
  • Digital readout of speeds
  • Height adjustable protective cover
