WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Distance between centers
700 mm
Taper of tailstock sleeve
MT 3
Travel of tailstock sleeve
85 mm
Weight approx.
235 kg
Center height
150 mm
Swing over bed
300 mm
Spindle bore
38 mm
Longitudinal feed
(14) 0,07 - 0,65 mm/rev.
Cross feed
(11) 0,03 - 0,012 mm/rev.
Metric thread
(18) 0,2 - 3,5 mm
Inch thread
(21) 8 - 56 threads/1"
Machine dimension (W x D x H)
1380 x 640 x 500 mm
Motor power output S1 100%
1,5 KW / 230 V
Motor power input S6 40%
2,2 kW / 230 V
Taper at spindle bore
MT 5
Speed range, stepless
30 - 450 / 150 - 3000 rpm
Bed width
180 mm

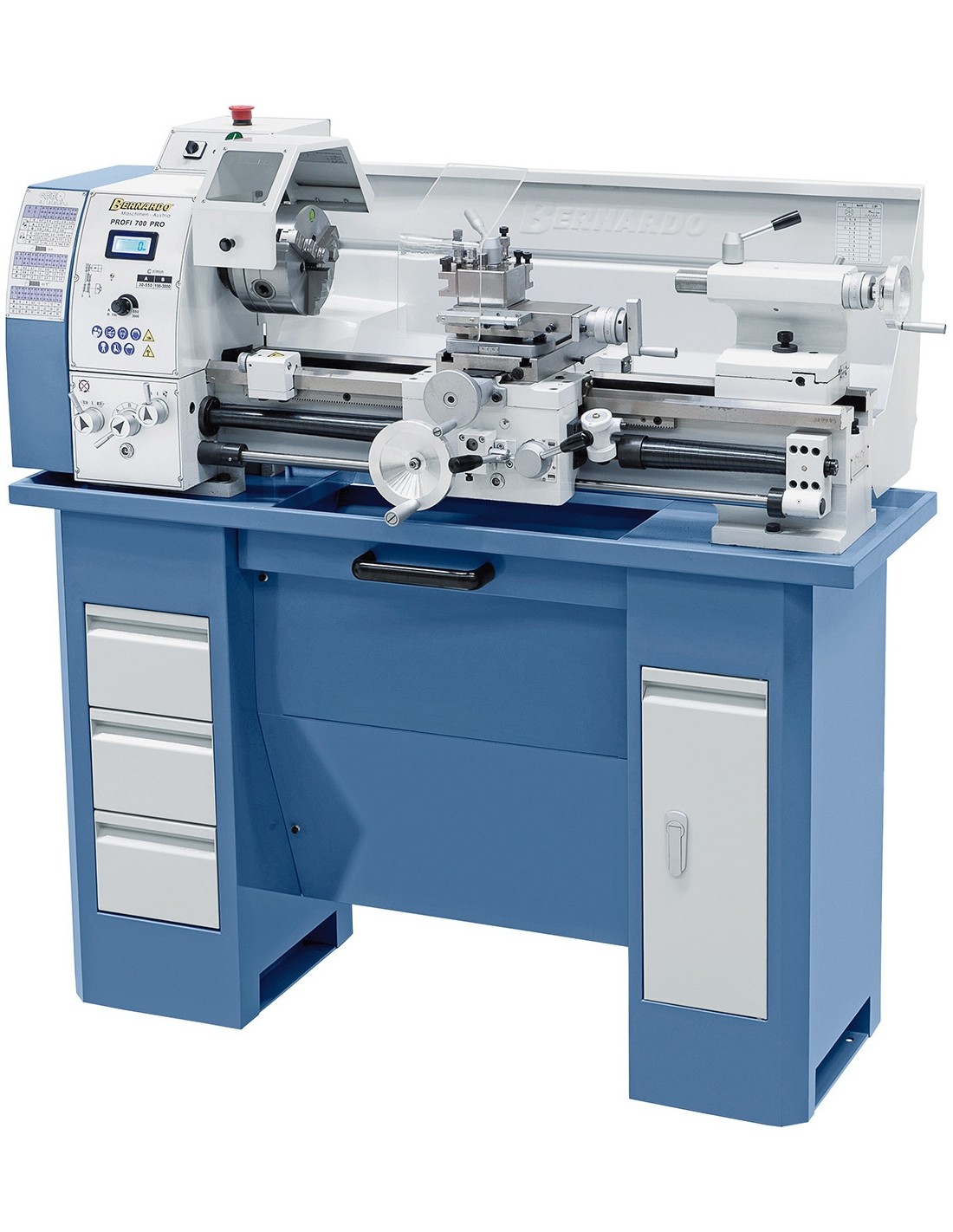

Tekinimo staklės Bernardo Profi 700 Pro

1052651
€4,805.00
Tax included
Monthly payment from 117.97€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 235 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 235 kg.

Description

Properties

  • Precision 3-jaw steel chuck for speed up to 3000 rpm comes standard

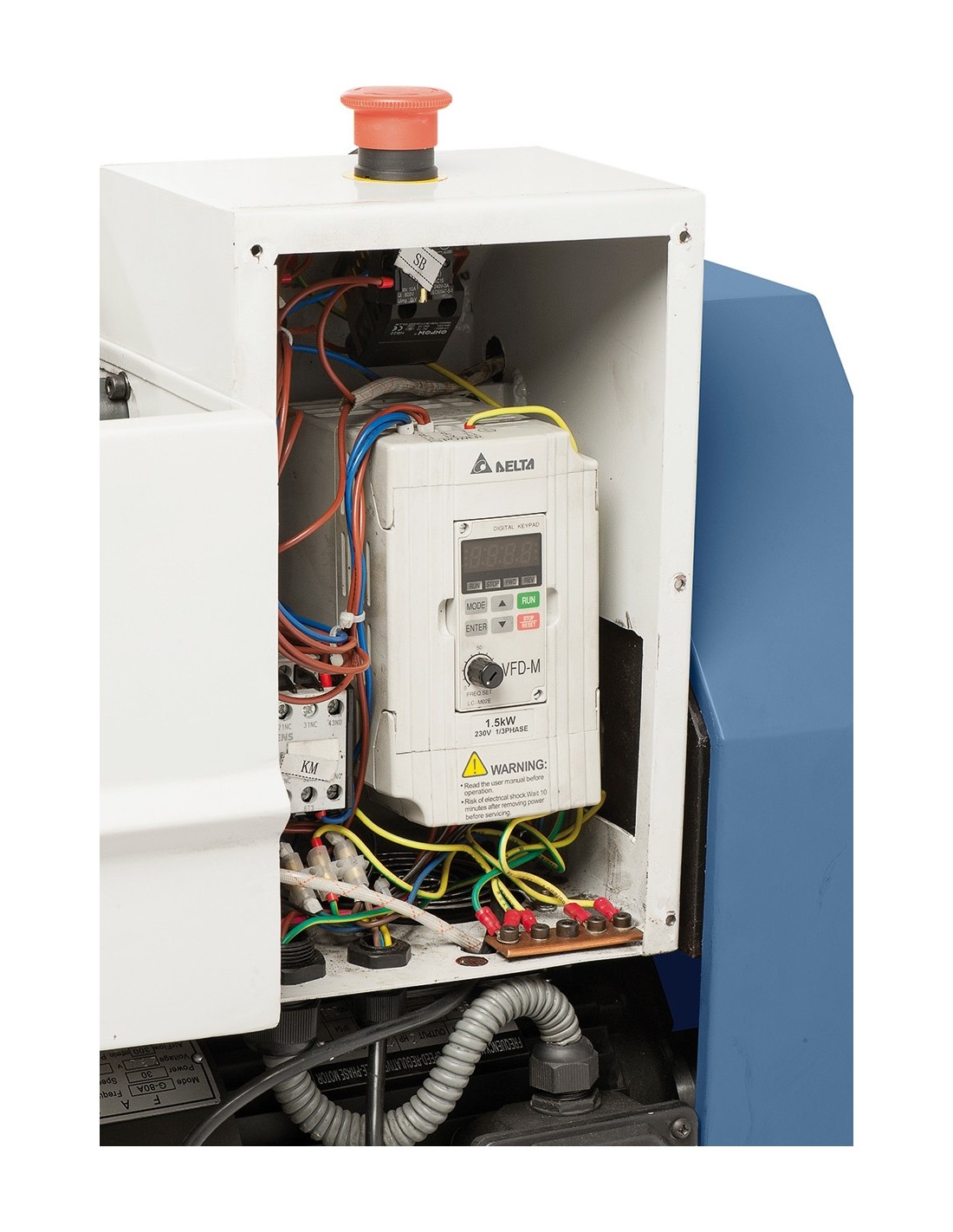

  • Serially with Delta frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads
  • Main spindle bearing with adjustable taper roller bearing in P5-quality
  • Tailstock spindle and handwheel come with adjustable scale (0,02 mm)
  • Optionally available milling attachment increases range of applications
  • High concentricity of the hardened spindle nose ≤ 0,009 mm
  • Solid machine bed with inductive hardened and polished guideways
  • Top support can be adjusted in x-axis

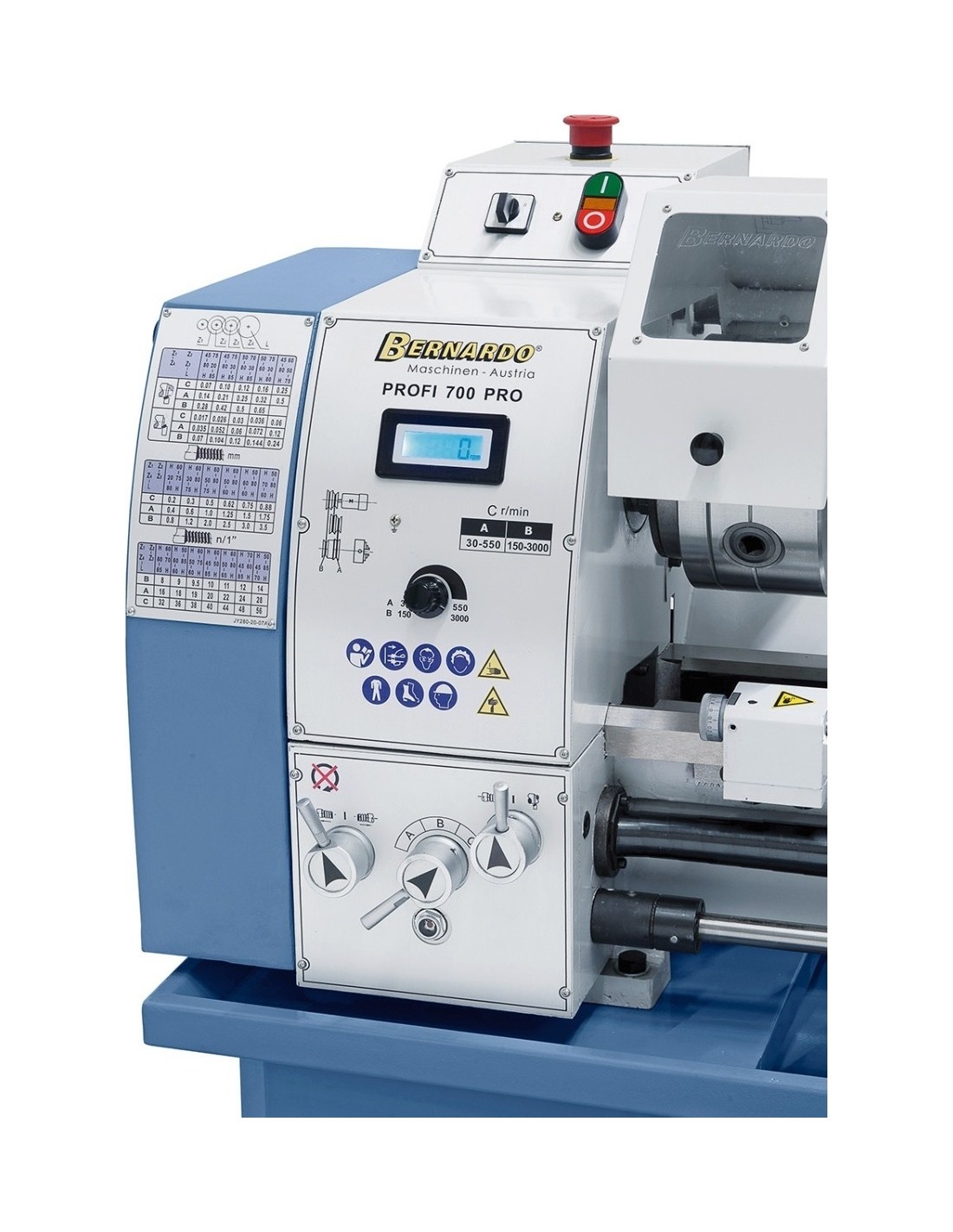

  • Stepless speed adjustment as part of standard accessories, set speed can be read on digital display

Standard accessories

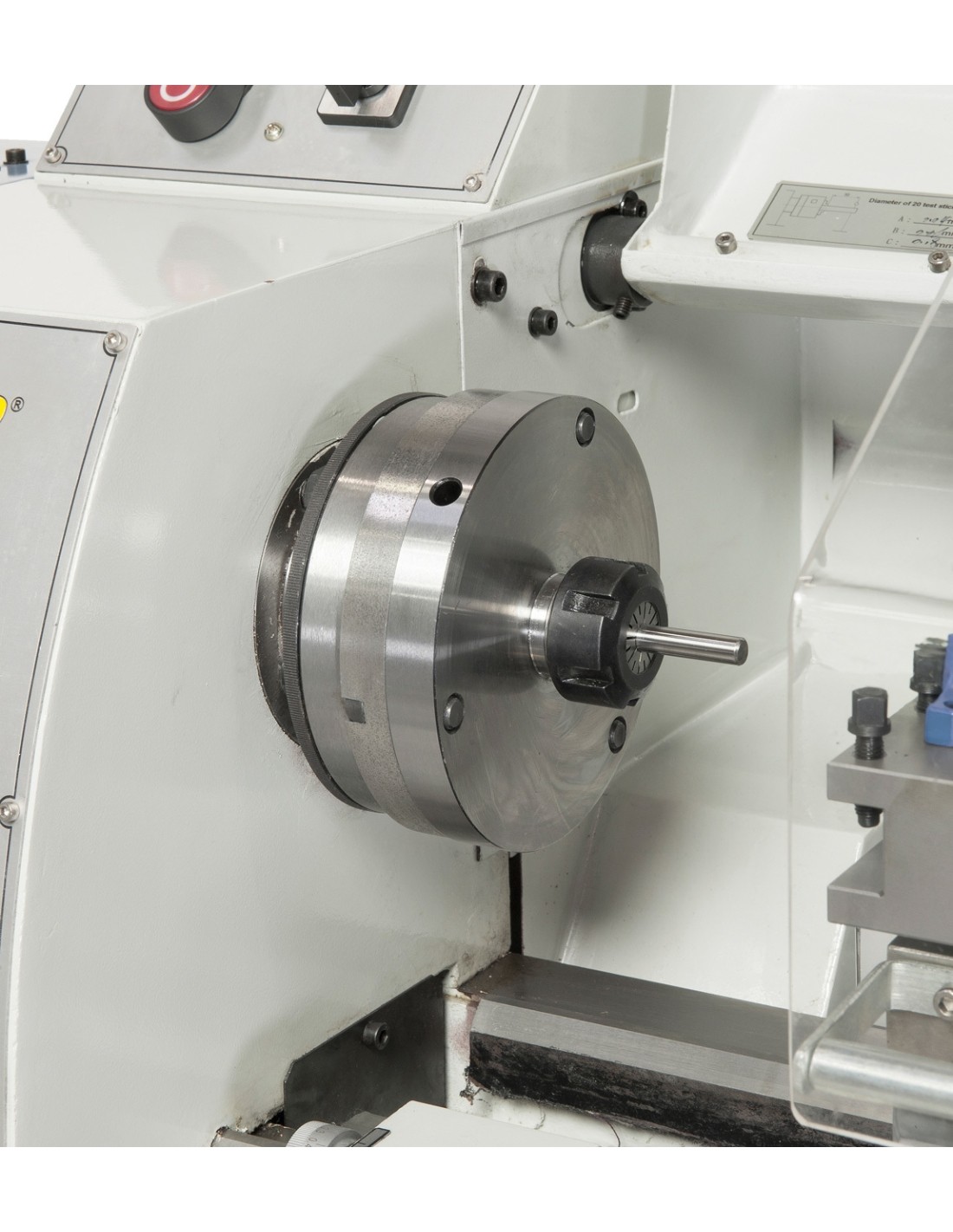

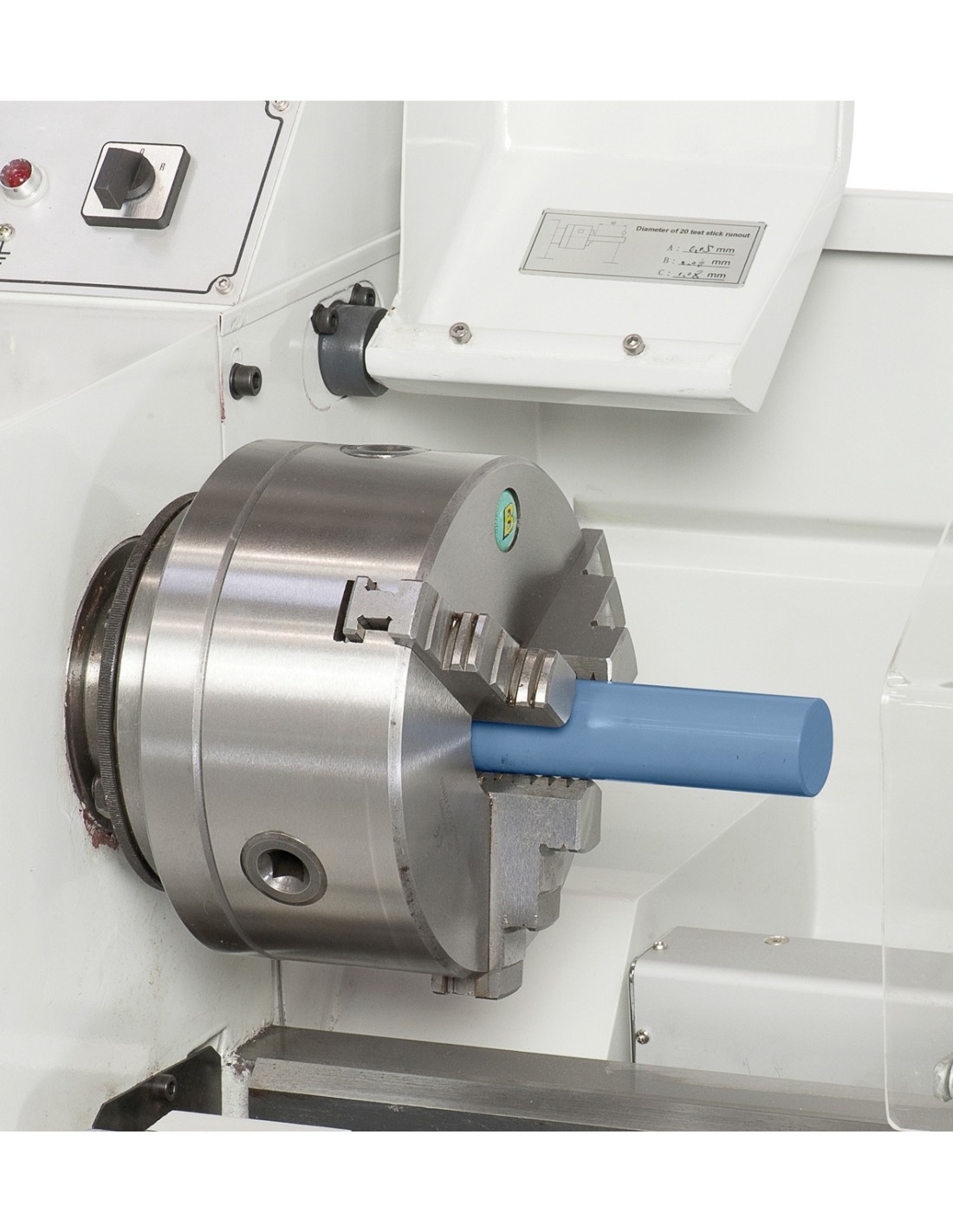

  • 3-jaw steel chuck PO3-160 mm
  • Flange 160 mm
  • Dead centers

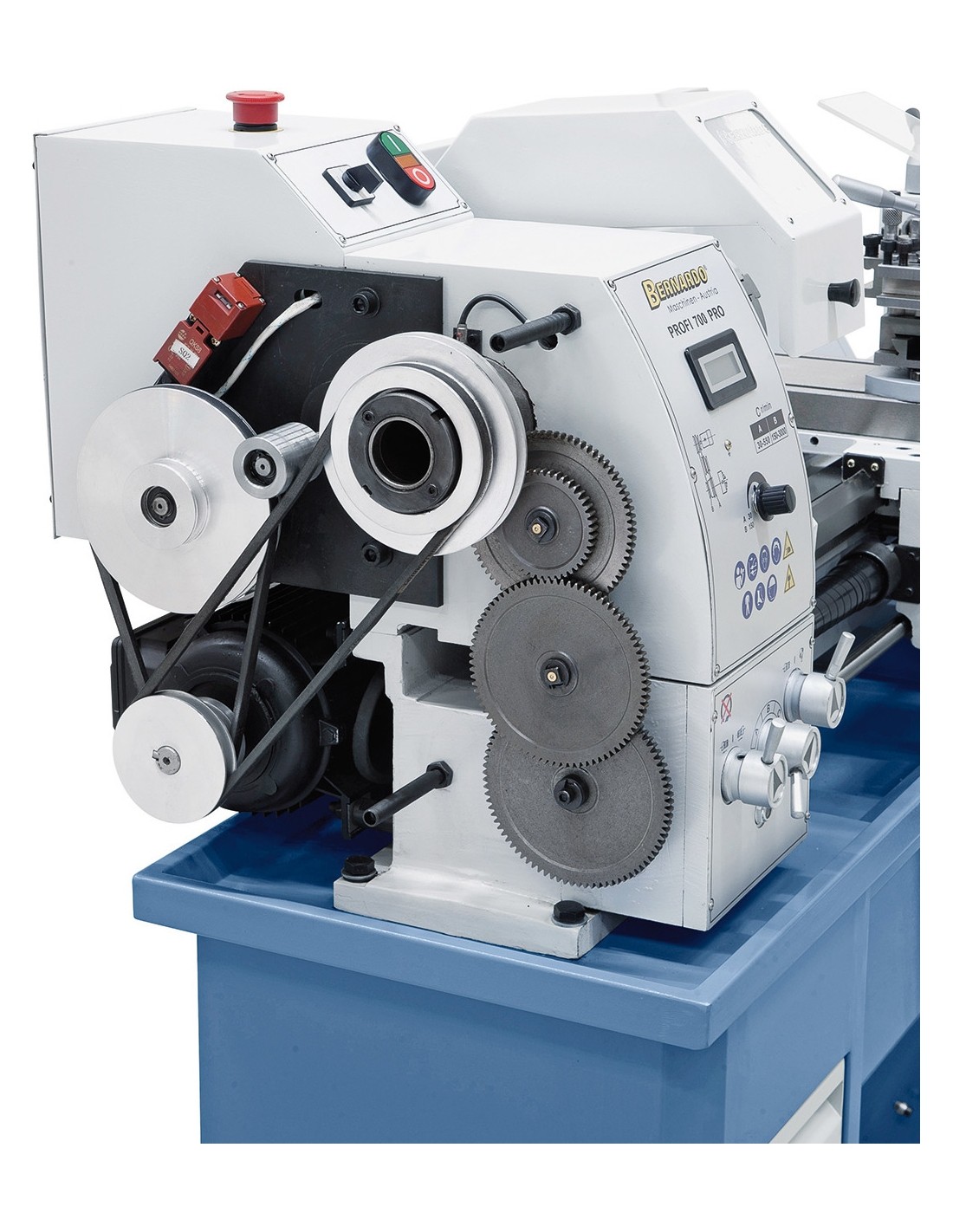

  • Change gears

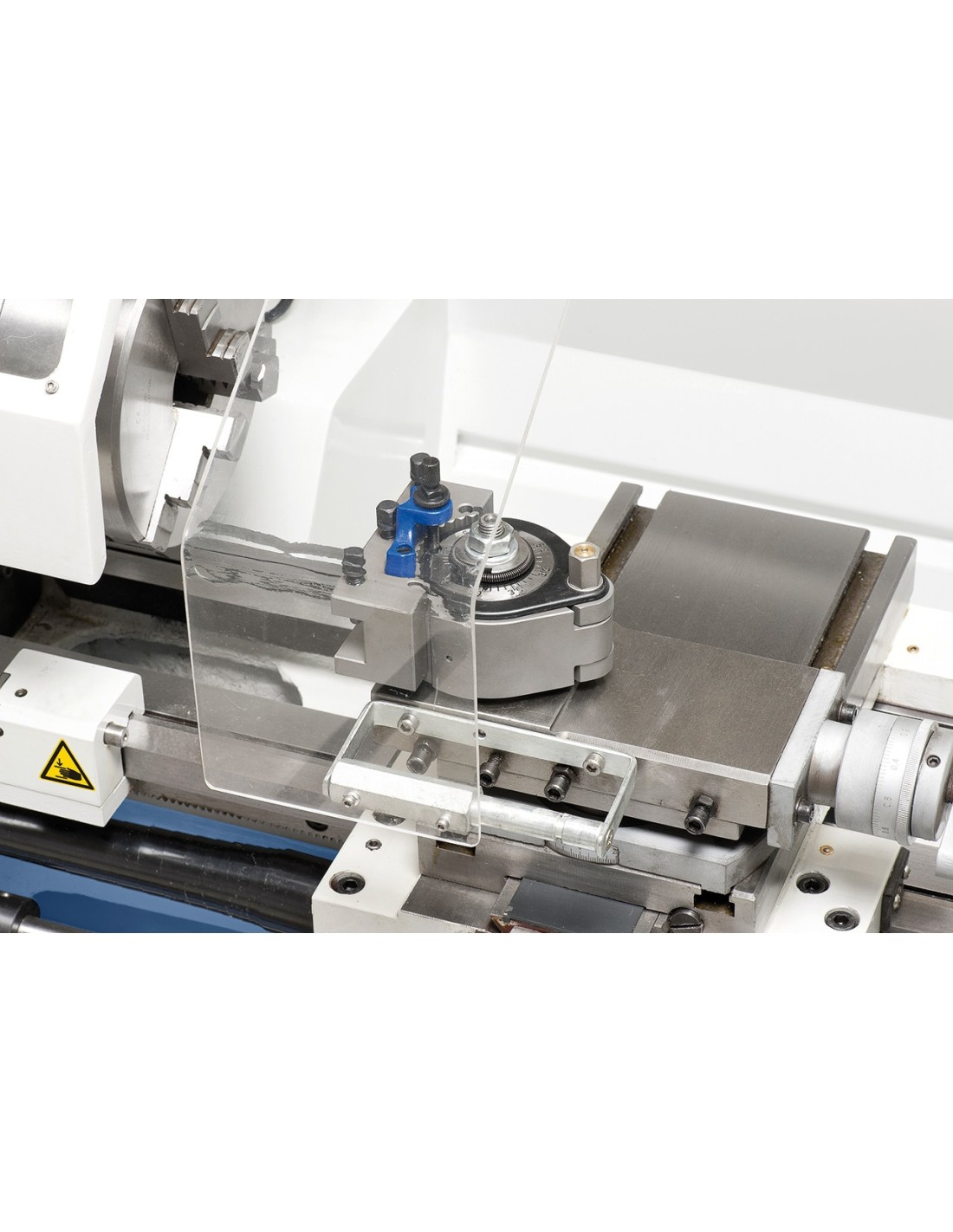

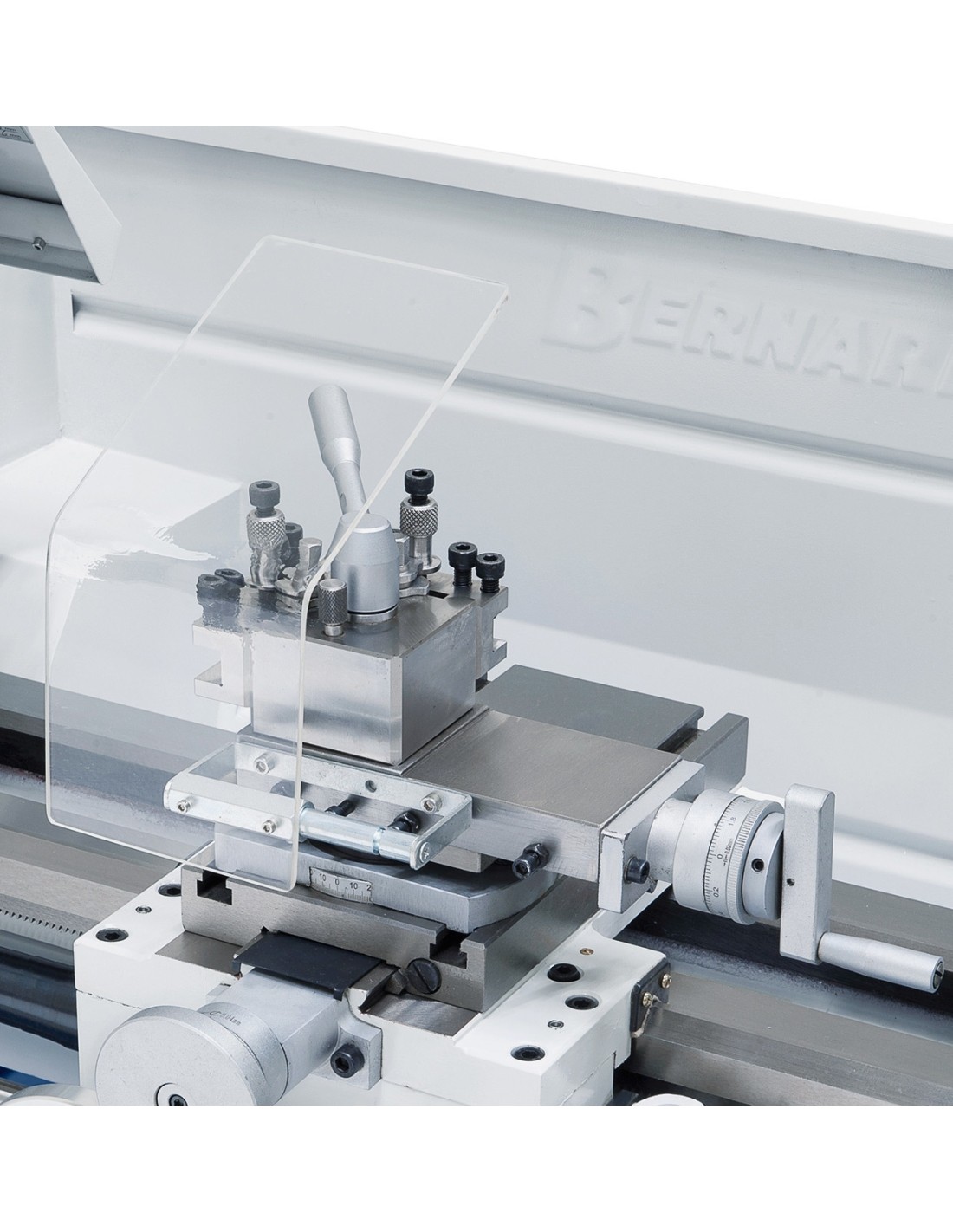

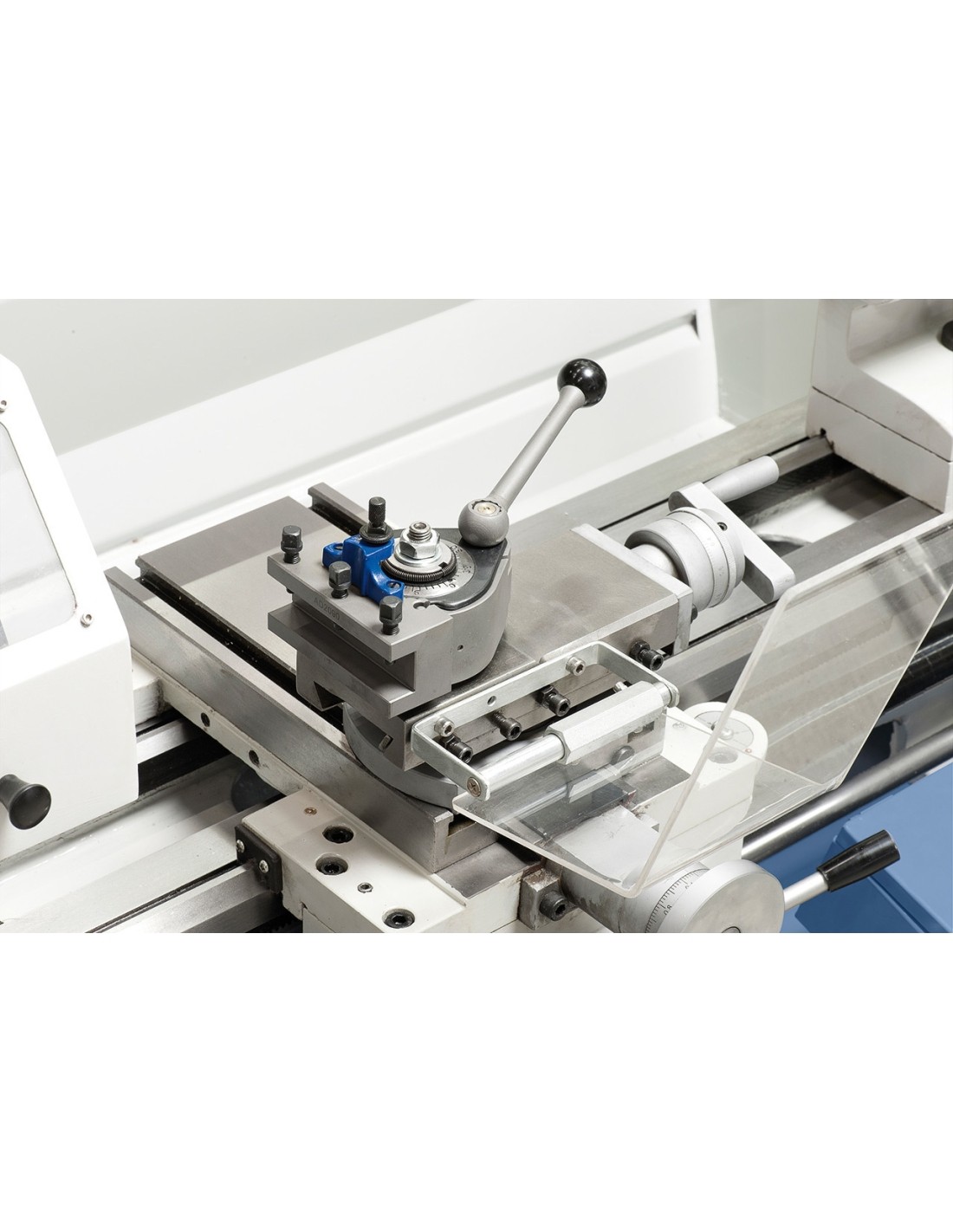

  • Quick change tool post size 20-2 with 2 straight inserts
  • Safety clutch

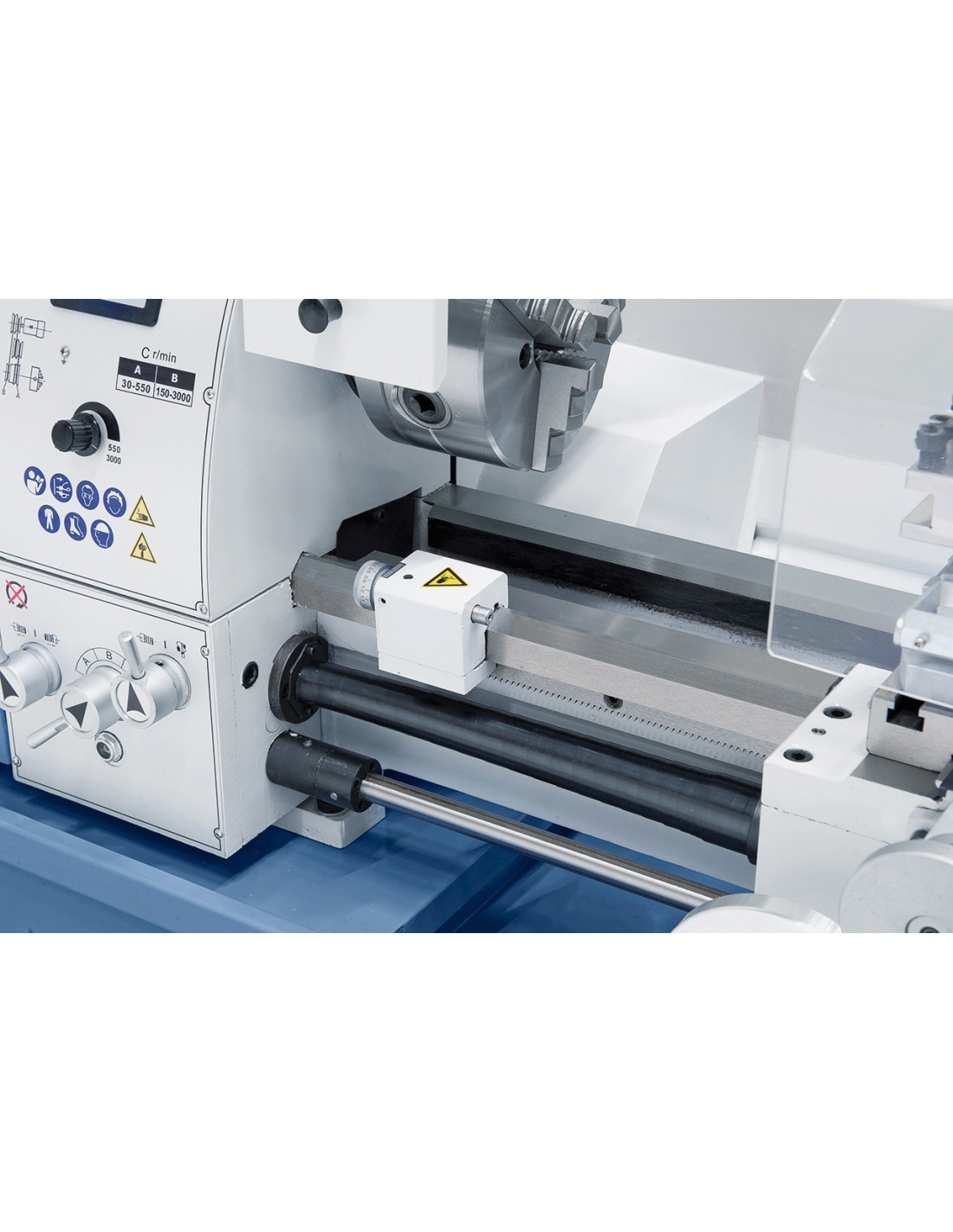

  • Micrometer longitudinal fence

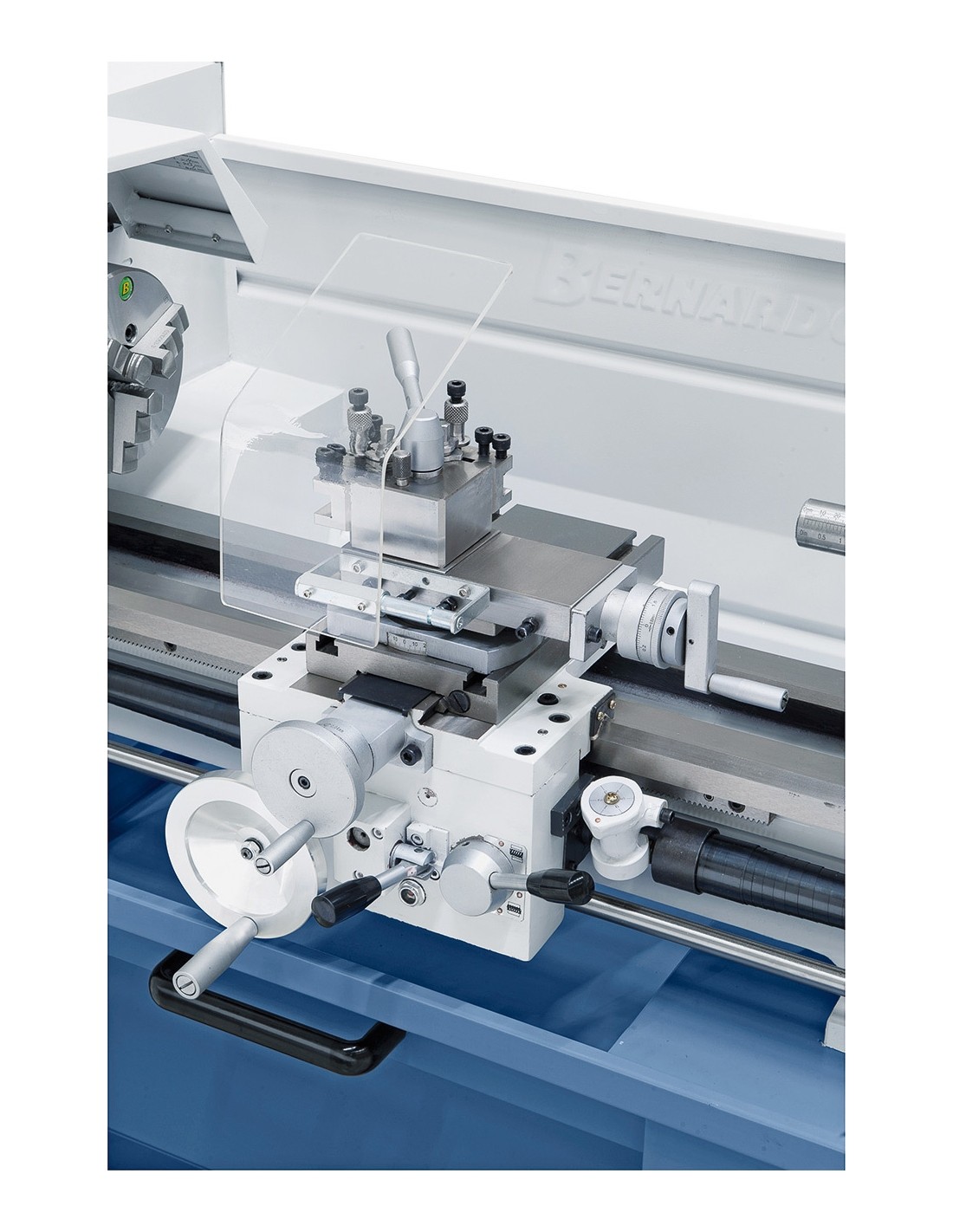

  • Cross slide with top support
  • Frequency inverter
  • Digital speed indication
  • Thread dial
  • Chuck guard
  • Splash guard
  • Leadscrew cover
  • Tools
