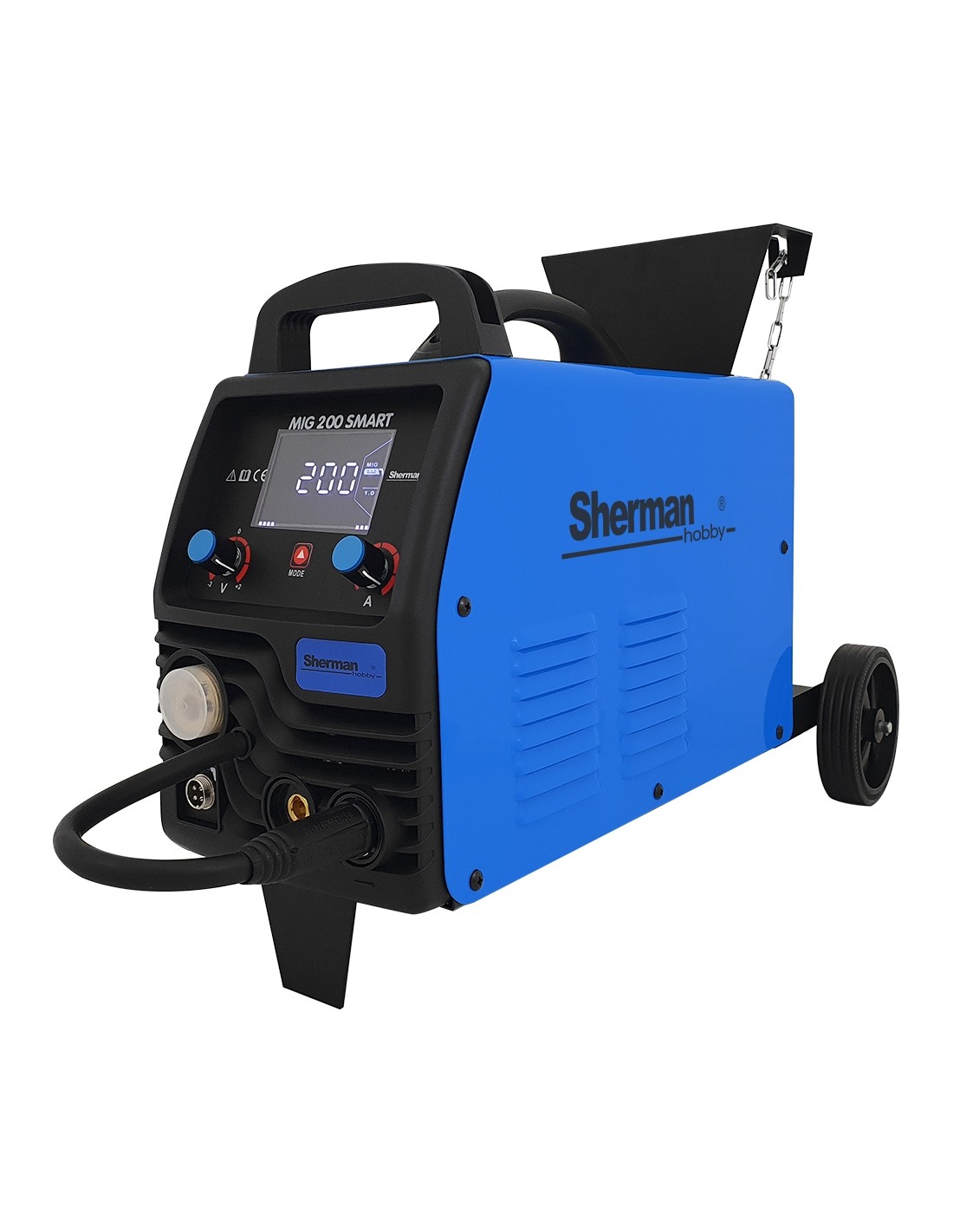

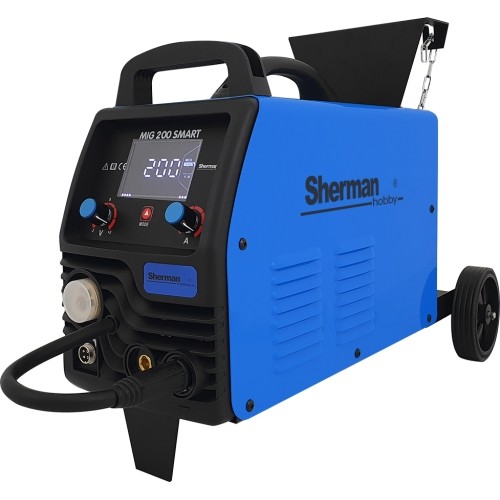

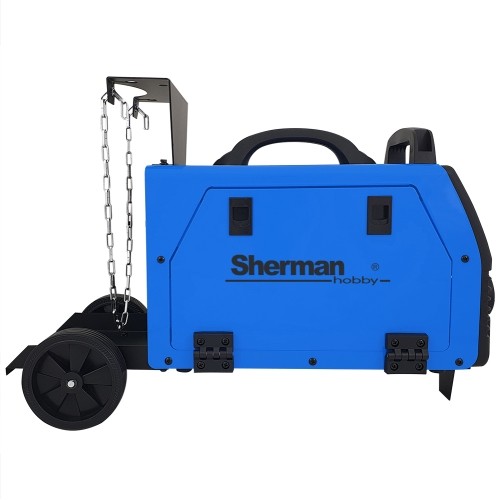

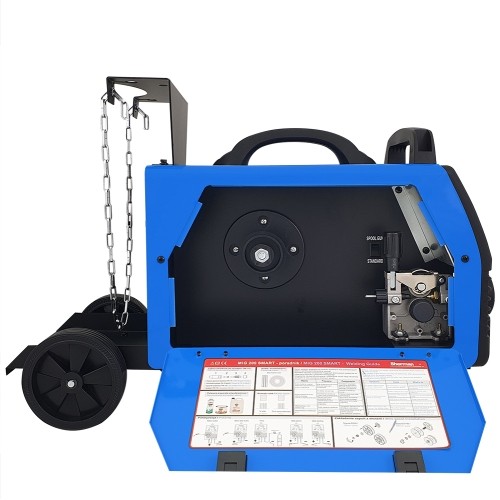

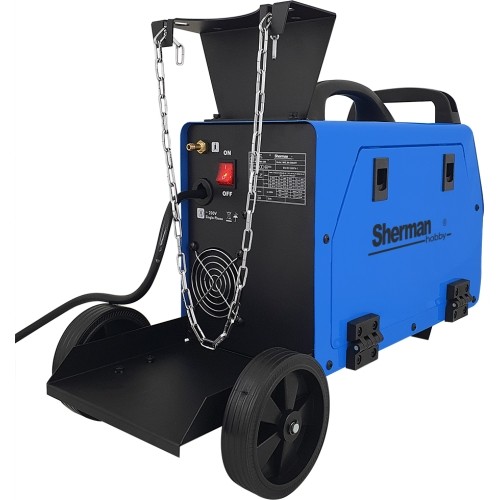

MIG 200 SMART inverter welder with wheels and cylinder shelf

Max DC TIG welding current [A].: 200
MMA duty cycle [%].: 60
TIG duty cycle [%].: 60
No-load voltage [V].: 78
MIG welding voltage [V].: 16,5 – 22
Welding voltage correction: -2,0 – +2,0
Max MMA power consumption [kVA}: 4,6
Max TIG power consumption [kVA].: 4,6
Max MIG/MAG power consumption [kVA].: 4,6
Max MMA current consumption [A].: 23,9
Roll dimensions [mm].: 30x10x10
Main method: MIG/MAG
Network protection [A].: 20
Warranty period for companies [years].: 1
Degree of protection: IP21S
Phase: Vienfazis (230V)
Control: synergetic
User Level: Hobbyist / Home user
Weight, kg: 12.5
Wire spool size [kg]: 5
1
Išmatavimai mm: 43 x 18,5 x 32
PFC function: No
Maximum current MMA [A]: 200
Maximum current TIG [A]: 14,8
Maximum current MIG/MAG: 200
MIG/MAG darbo ciklas [%]: 60
Vielos ritės skersmuo ø [mm].: 100, 200
Max pobór prądu MIG/MAG [A]: 19,9
Inverter technology: IGBT
Shielding Gas Requirement: Gas / Gasless

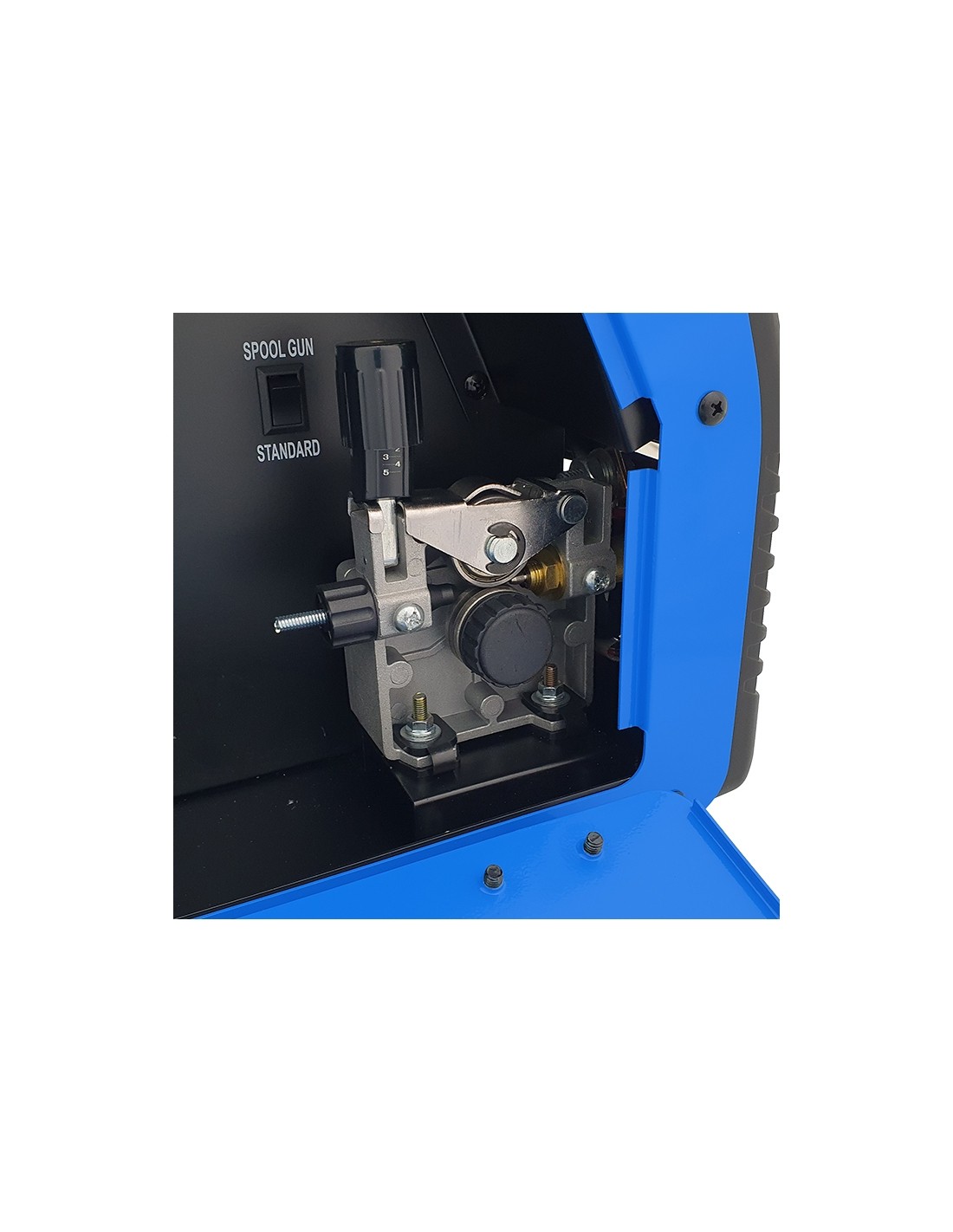

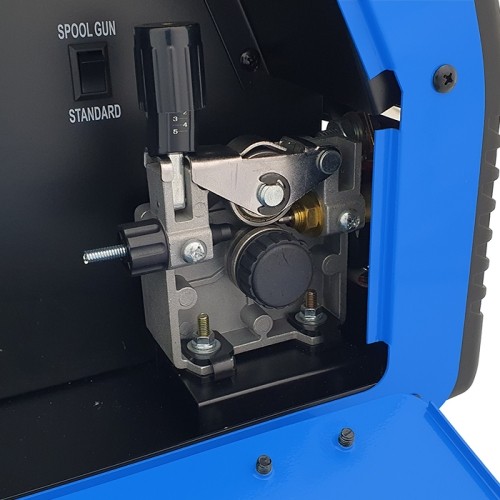

Number of wire feed rollers: 2

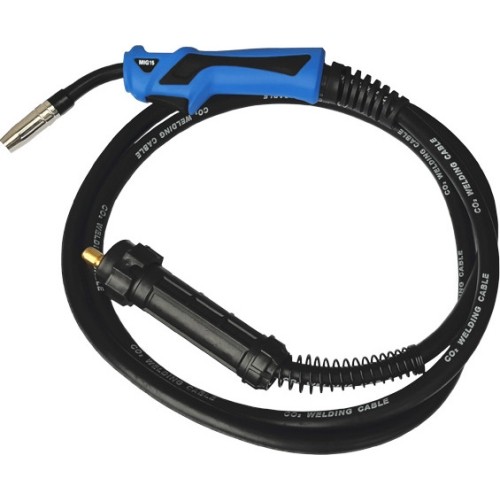

MIG/MAG torch length: 3 m

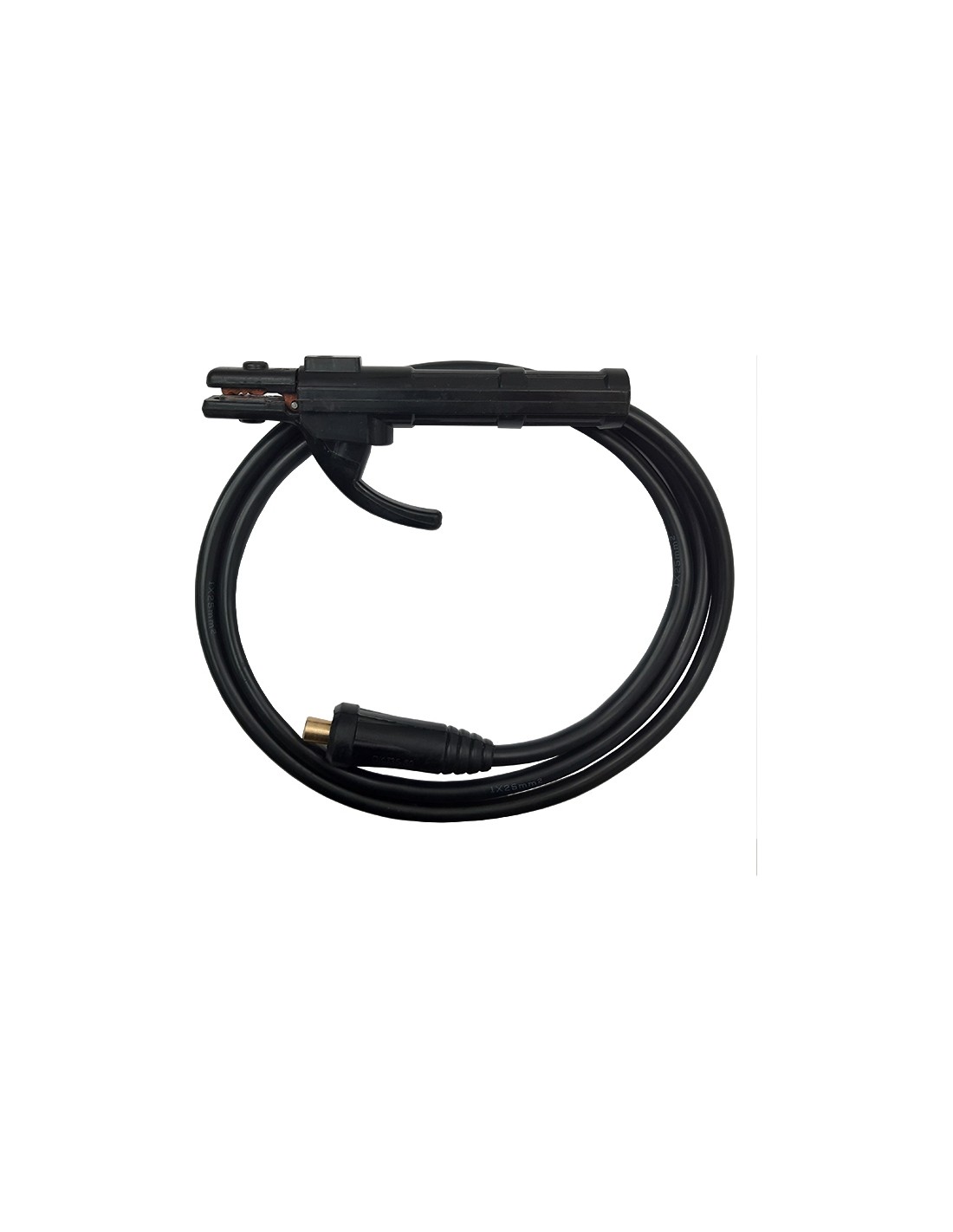

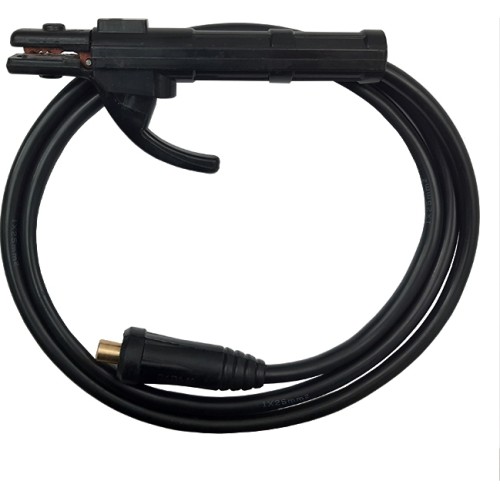

Package Contents: electrode cable

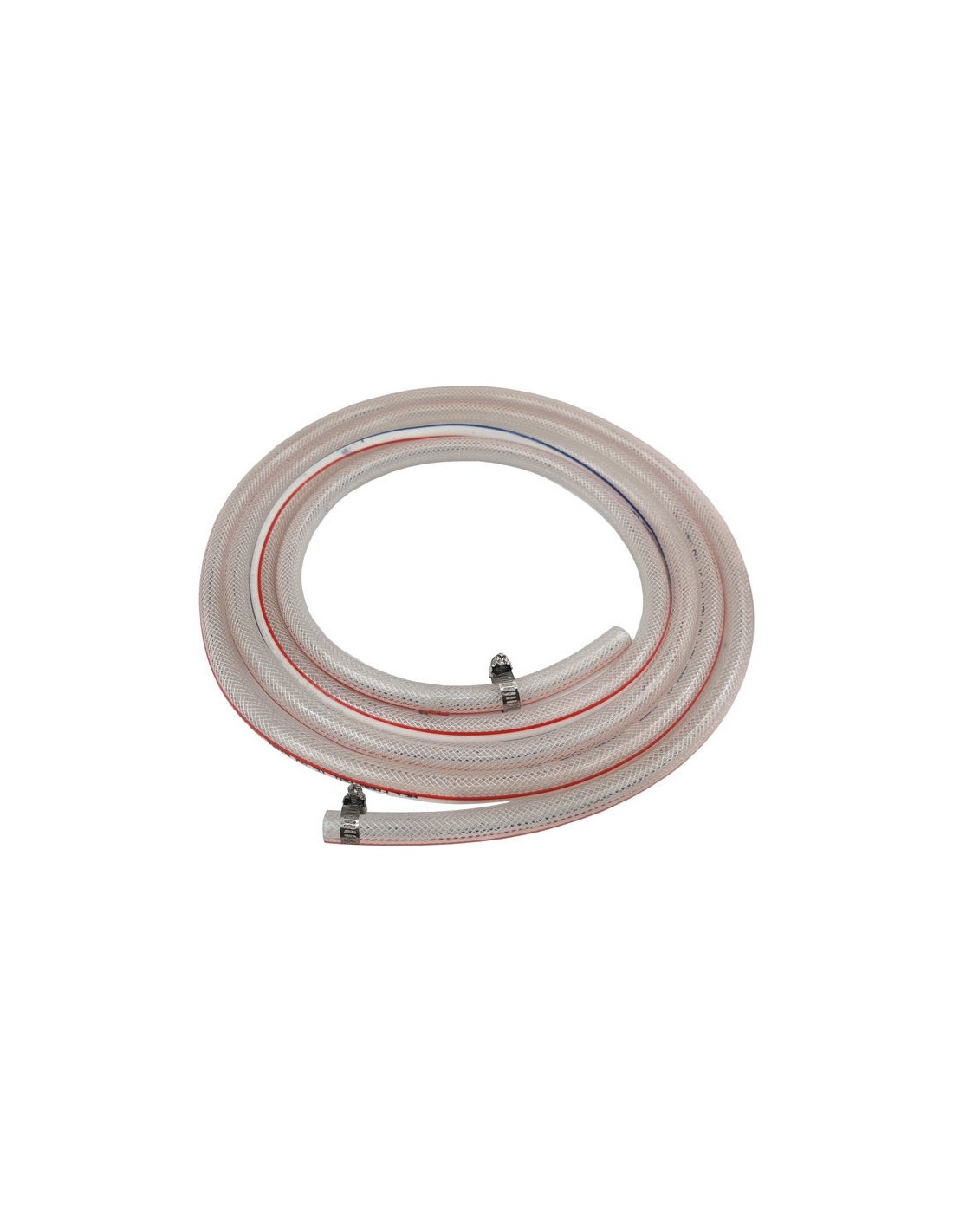

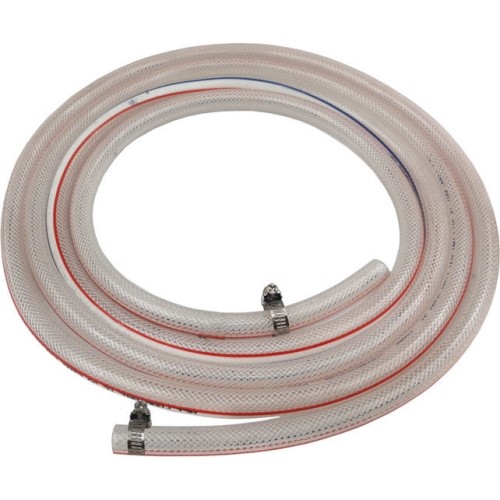

gas hose

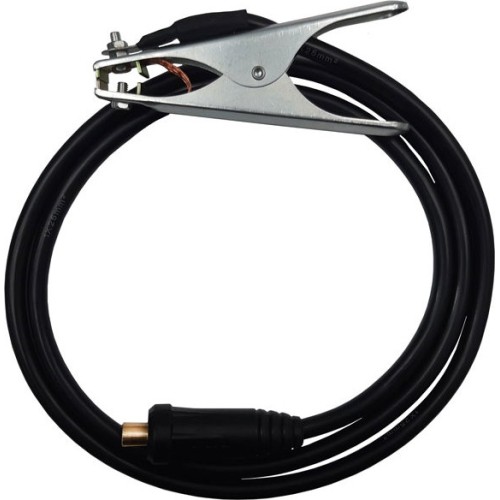

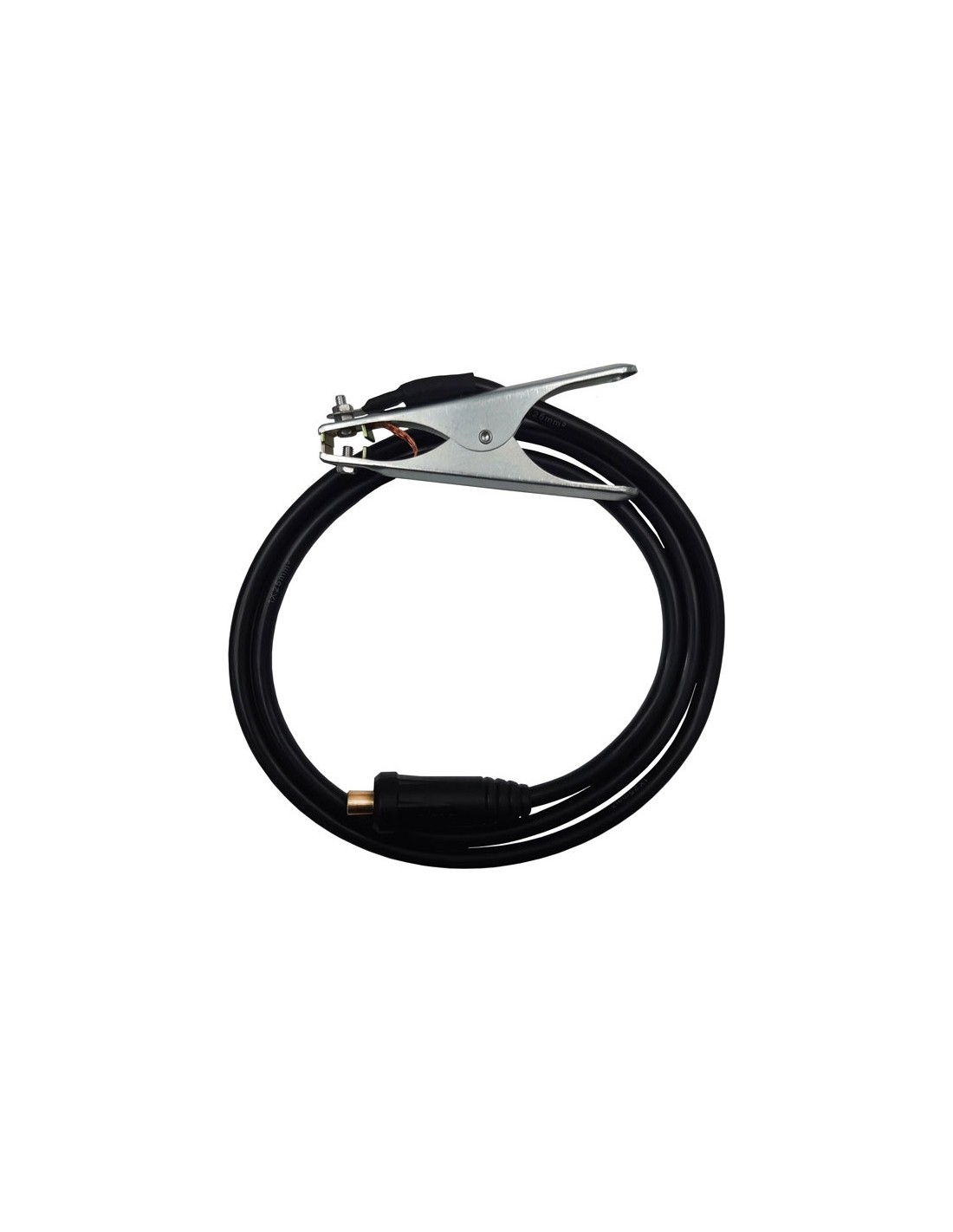

ground cable

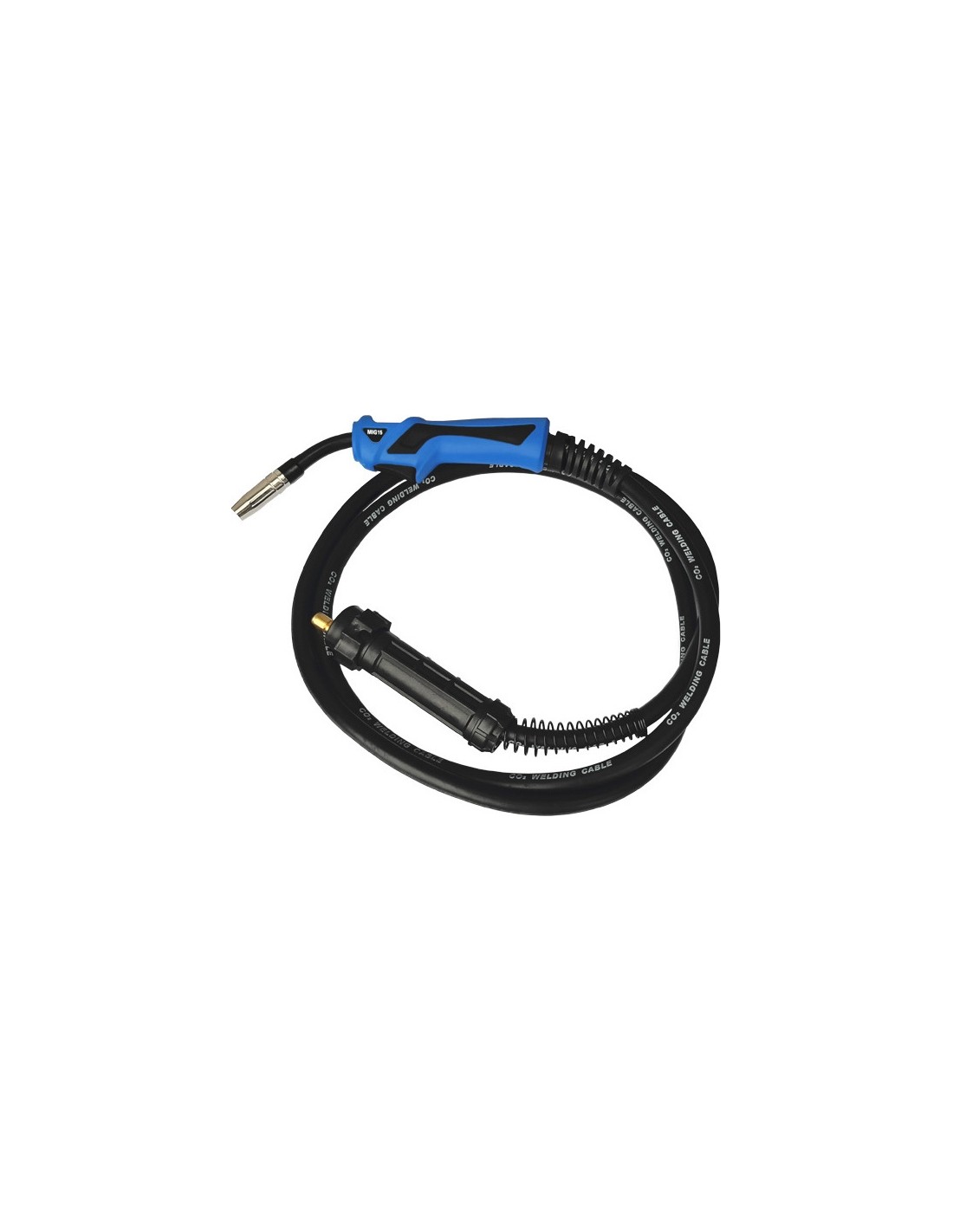

MIG / MAG burner
trolley with gas cylinder holder
welding machine
Ground cable connection: small (10 - 25 mm)
Torch connection in the machine: EURO

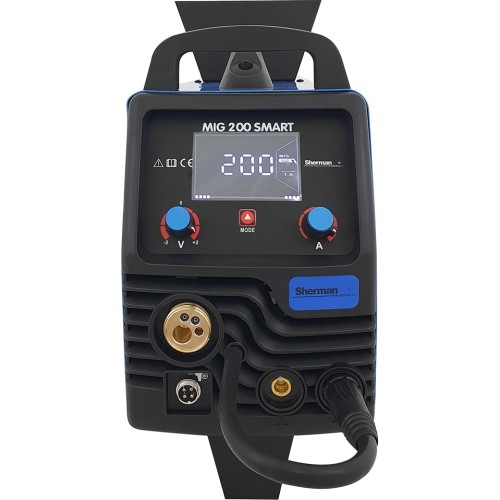

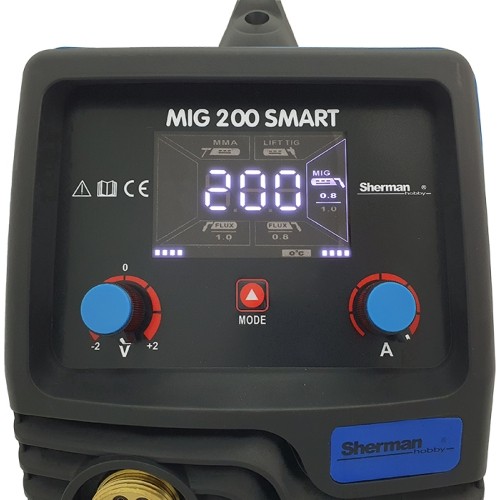

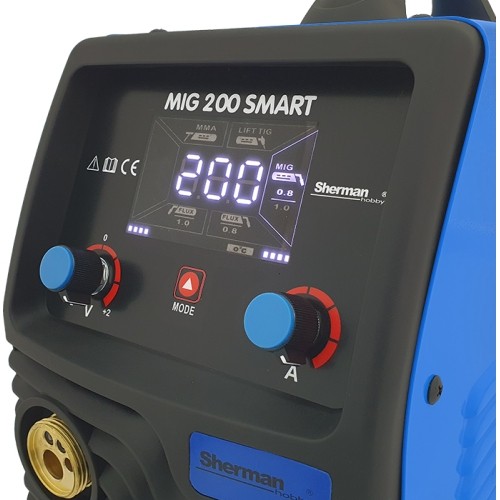

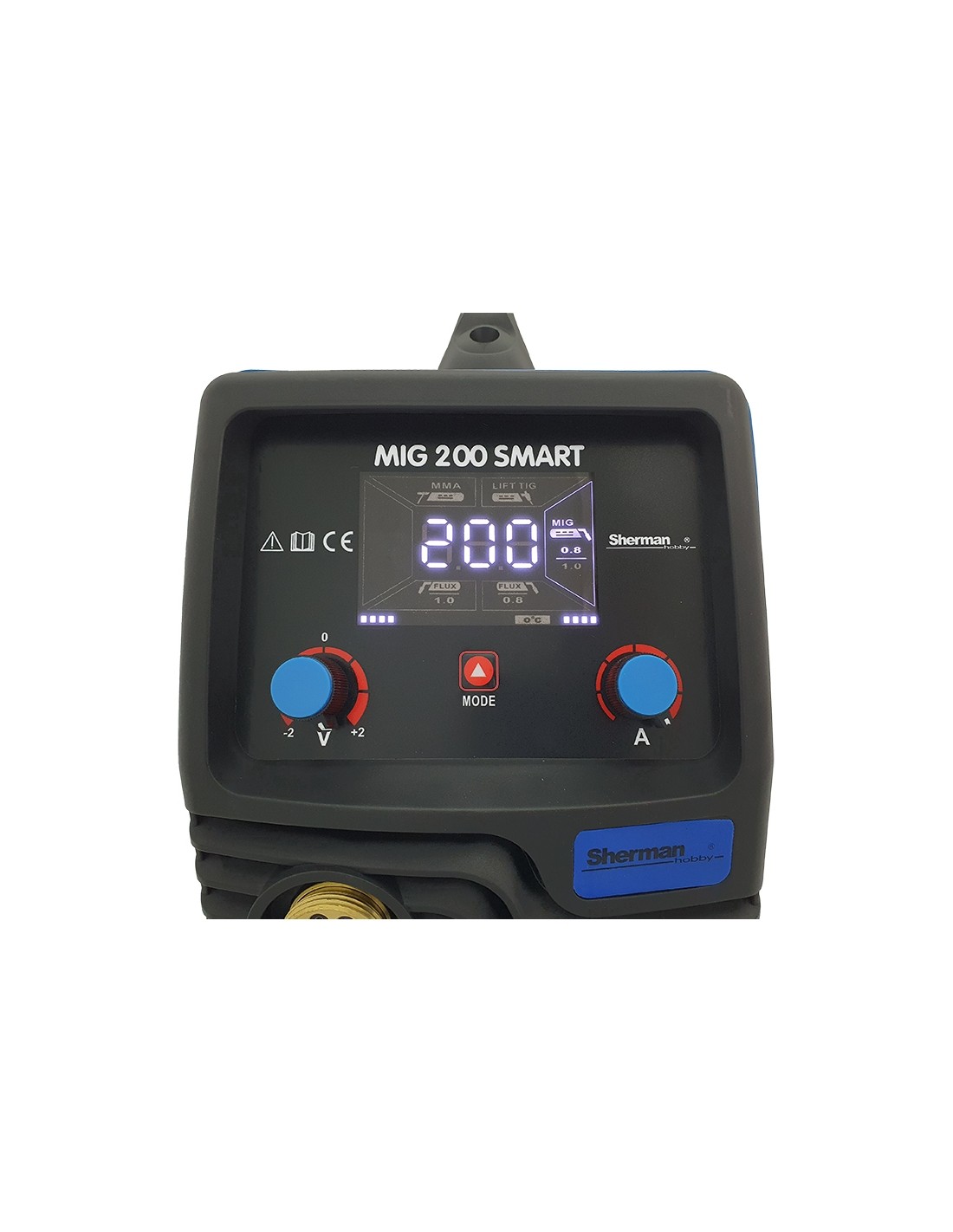

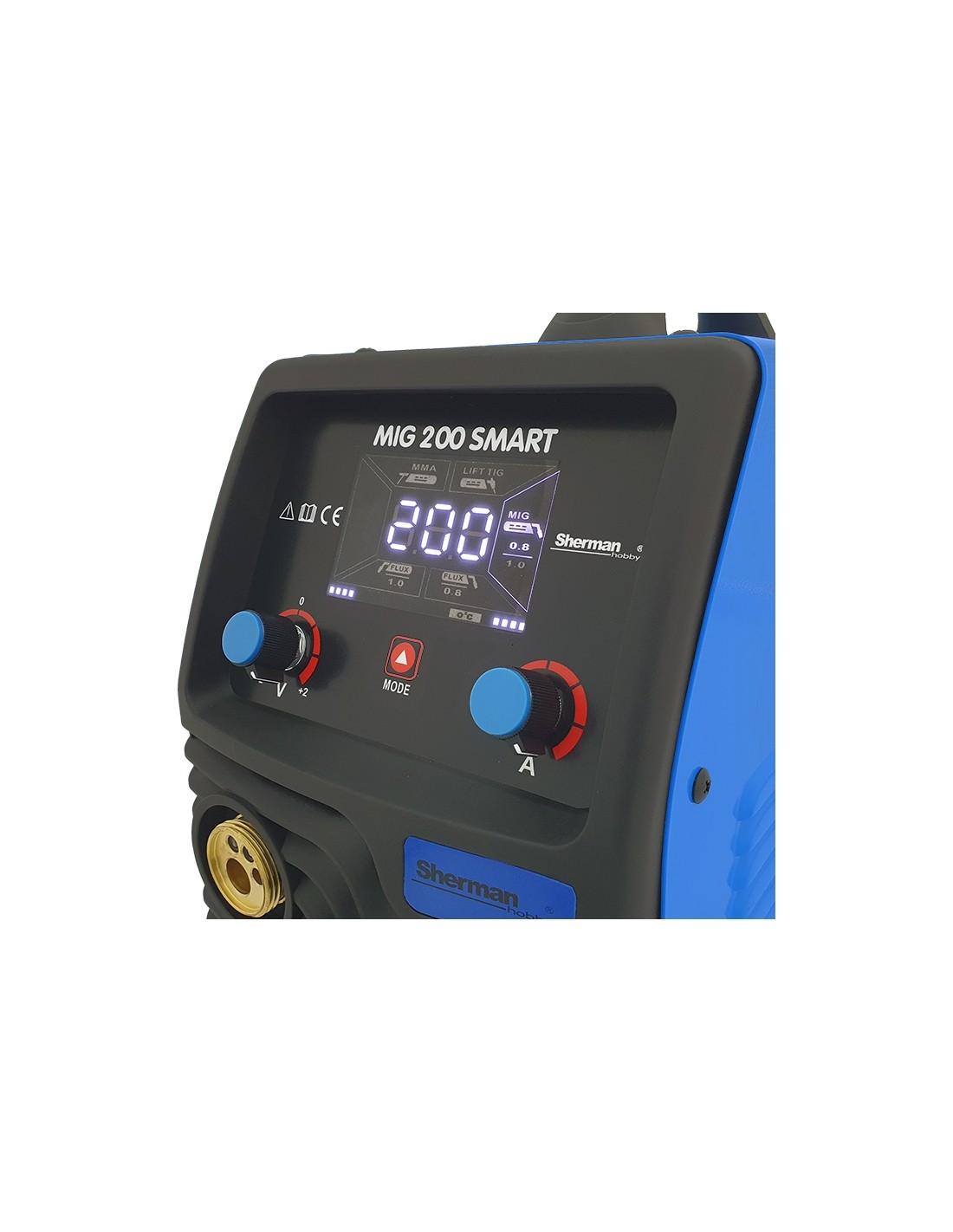

Functions: digital display
FLUX (be dujų)
Lift TIG
overheating protection
polarity change (quick switching between MIG and FLUX)
reguliavimas pagal metalo stori
Spoolgun connection option
Welding methods: MIG FLUX (without gas)
MIG/MAG welding
TIG Lift

Brand

MIG 200 SMART inverter welder with wheels and cylinder shelf

Name: MIG 200 SMART inverter welder with wheels and cylinder shelf
Brand: Sherman
SKU: 1487745
Price: 309 EUR
Availability: OutOfStock

Reference 1487745

Price €309.00 VAT incl.

This pack contains

Inverter welder Sherman MIG 200 SMART

€239.00

Wheels and cylinder shelf for MIG 200 SMART

€23.00

Stock Quantity:

No products in stock

Kaunas Shop
not available

Central warehouse
not available

Description

Synergic IGBT inverter, welding current 200A (60%), AC 230V 50Hz power supply, MIG, MMA, TIG Lift, self-shielding wire welding, Spool Gun option.

The synergistic MIG 200 SMART welder is designed for manual steel welding. This easy-to-use device allows for MMA (covered electrode), TIG Lift , and MIG/MAG welding in synergistic mode. Thanks to polarity reversal, the device allows for MIG/MAG welding using both standard gas-shielded wires and self-shielded flux-cored wires.

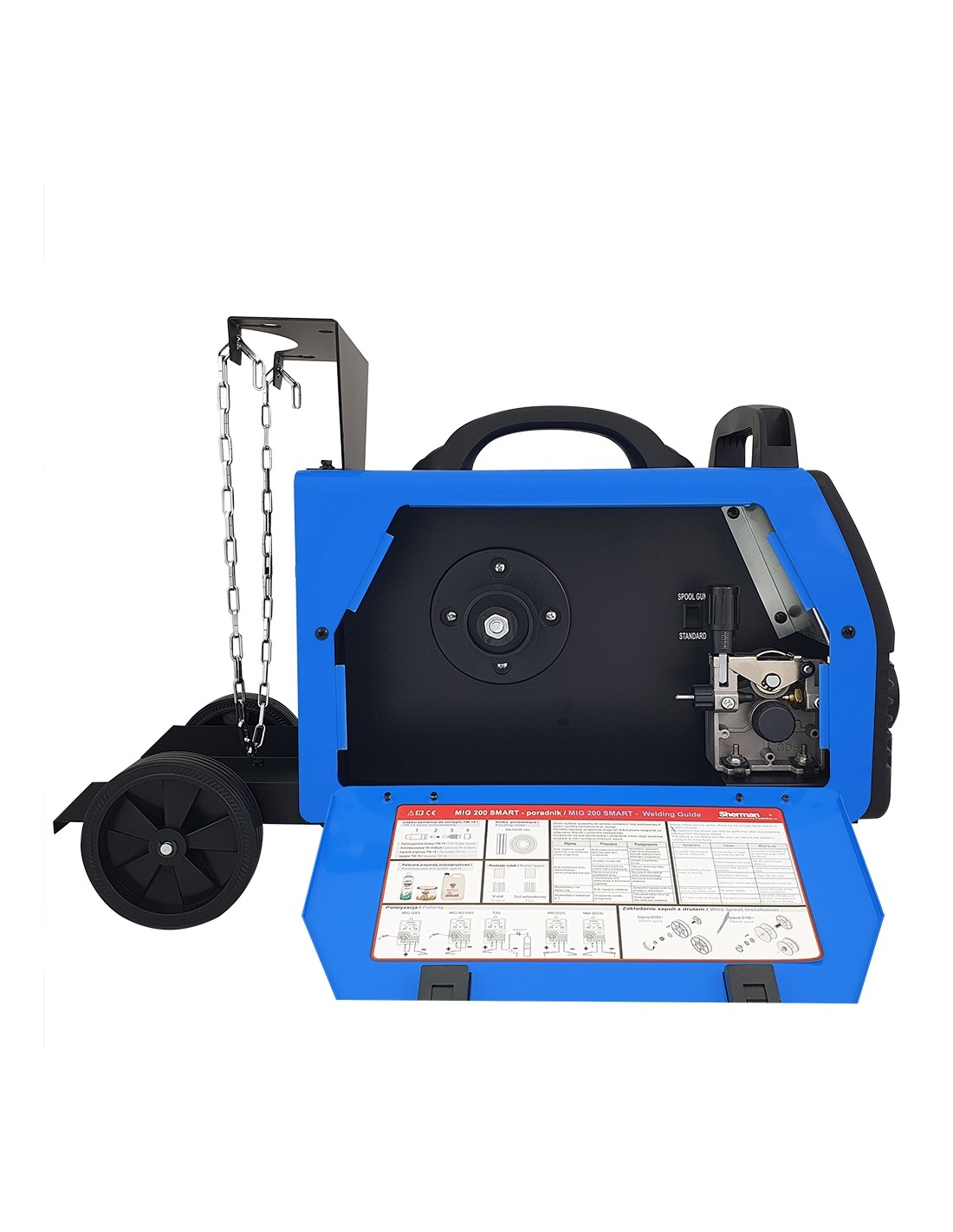

The welder allows for the connection of a spool gun with a built-in mini wire feeder and a D100 spool of steel or colored wire. The built-in synergistic system allows less experienced users to adjust welding parameters.

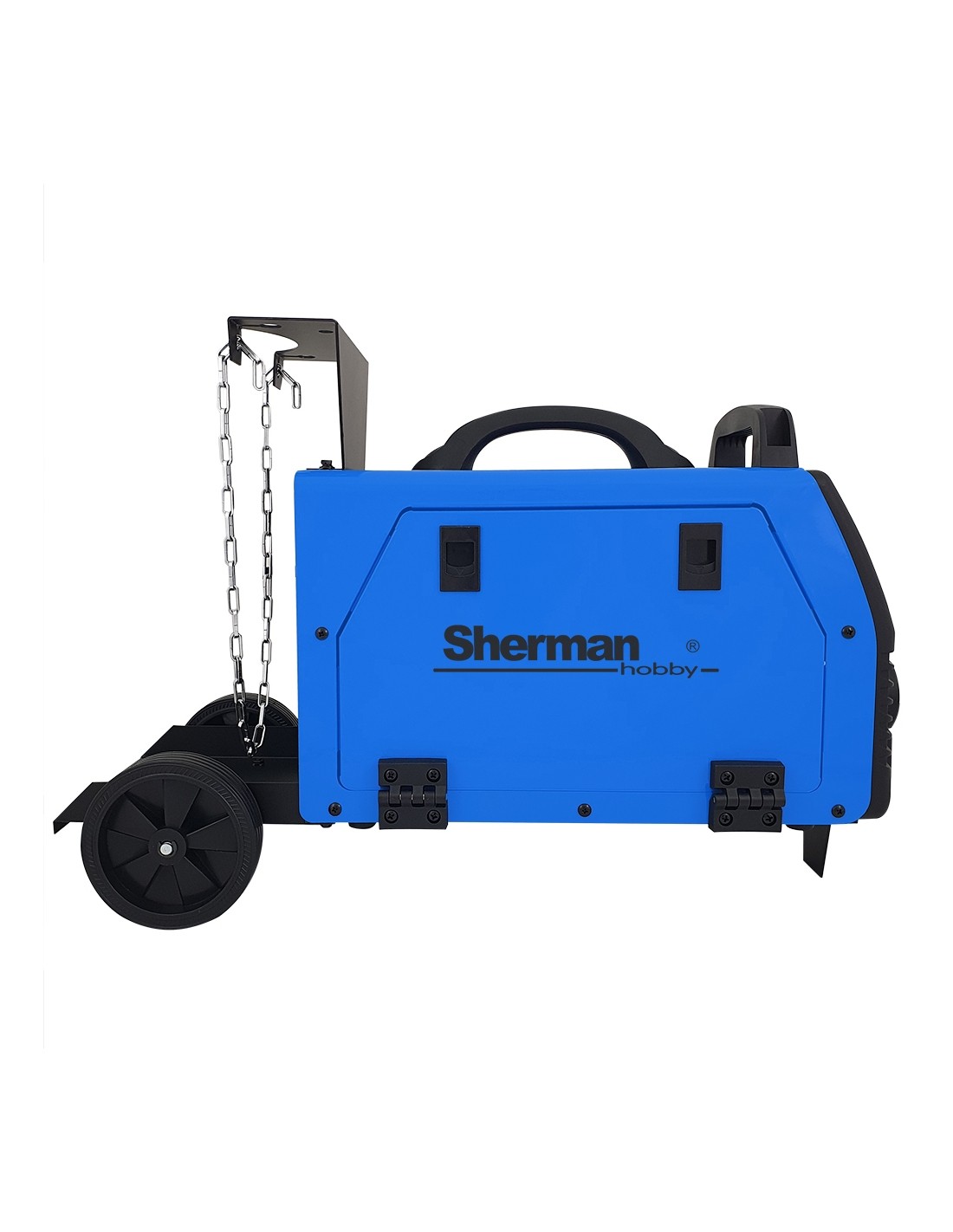

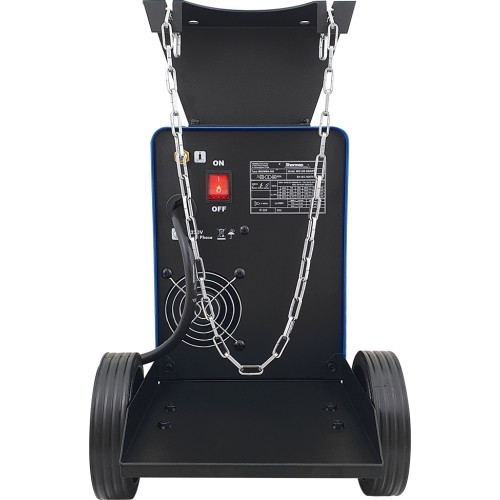

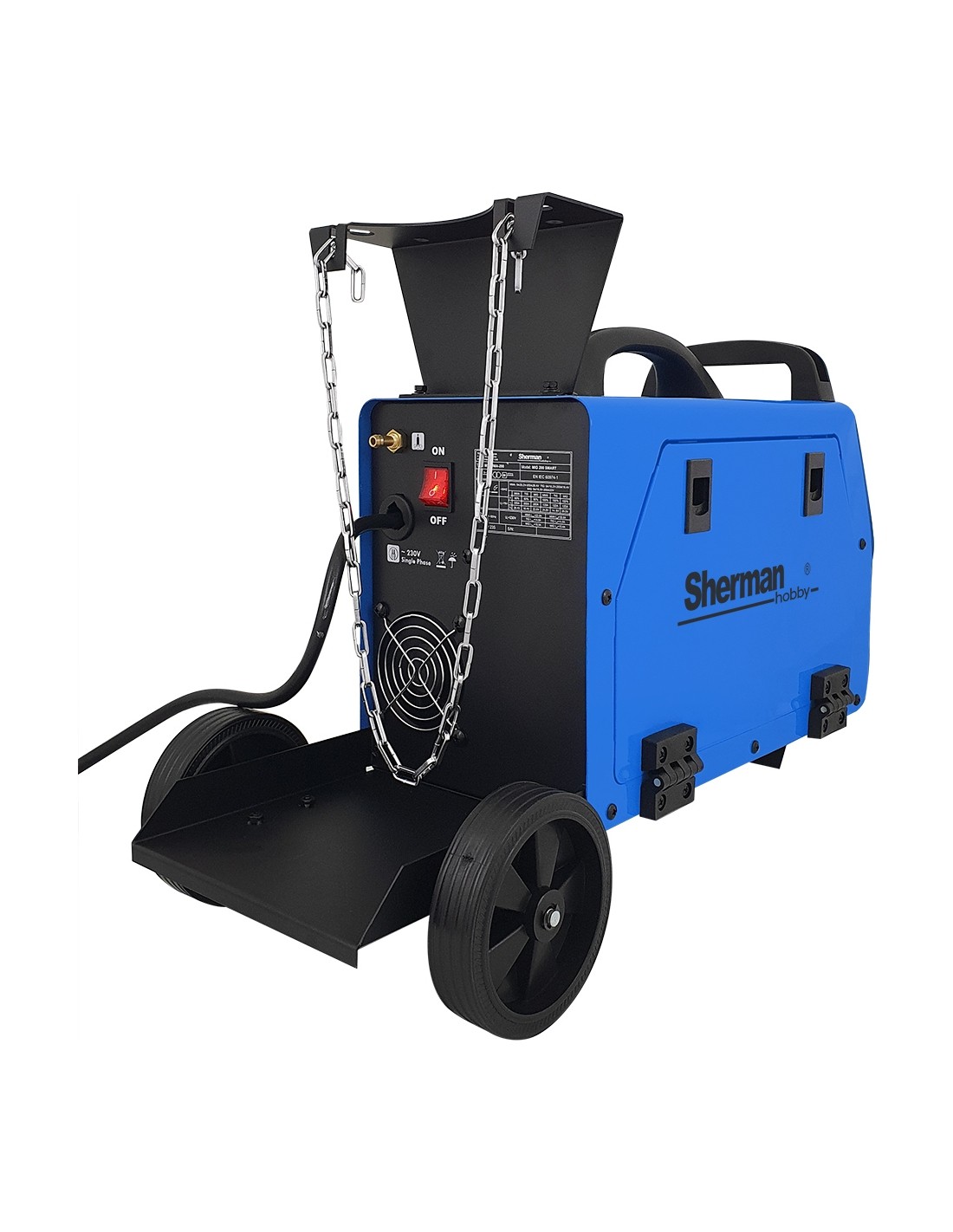

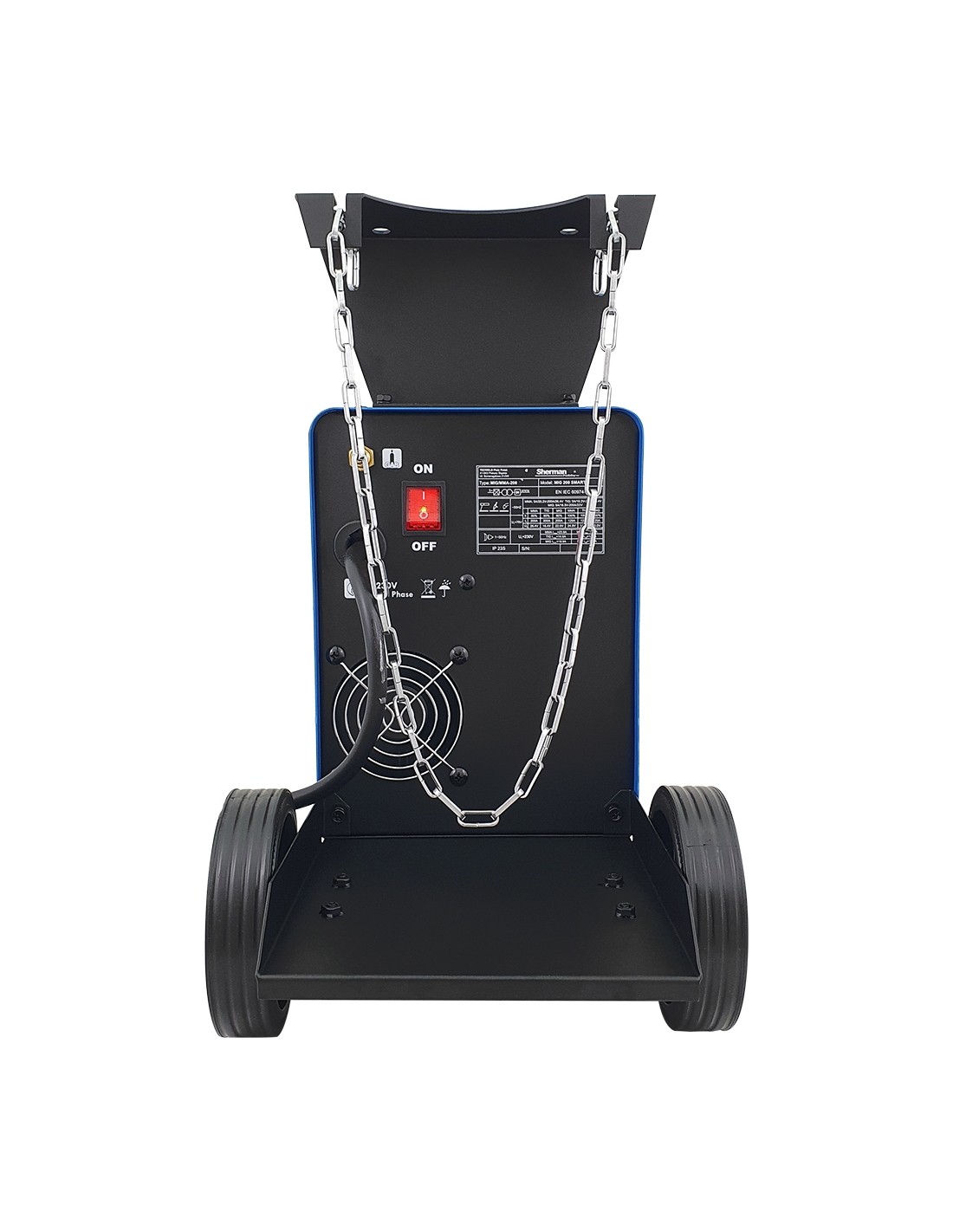

The device is manufactured using IGBT technology , which significantly reduces the welder's weight and size, increasing efficiency while simultaneously lowering energy consumption. The welder is equipped with wheels and a gas cylinder shelf for easy transport and use.

The welding machine is intended for use in closed or roofed rooms, not directly exposed to atmospheric influences.

EQUIPMENT INCLUDED:
