Welding and plasma cutting set HORNEC® smart SynMIG 2200i COMBO 5-in-1 (MIG / MMA / TIG DC (HF) / PLASMA) + air compressor + gas

Phase: Vienfazis (230V)
Control: rankinis
synergetic
User Level: Hobbyist / Home user
Weight, kg: 20
Wire spool size [kg]: 5
0,45
1
D100-D200 / 1-5kg
PFC function: No
Maximum current MMA [A]: 200
Maximum current TIG [A]: 200
TIG darbo ciklas [%].: 200
Maximum separation (cut) thickness [mm].: 15
Maximum cutting current [A]: 50
Maximum current MIG/MAG: 200
MIG/MAG darbo ciklas [%]: 60
200
Current type: DC
Suitable for welding: Aluminum and its alloys
Stainless steel (Inox)
Structural steel
Inverter technology: IGBT
Shielding Gas Requirement: Gas / Gasless
Number of wire feed rollers: 2
Torch length: 4 m
Package Contents: 2 in 1 hammer/brush
Clamp
consumable parts
electrode cable
gas cylinder
gas hose
ground cable
MIG / MAG burner
Mini shield for welding
oro kompresorius
plasma torch
reduktorius Ar / CO2
TIG torch
welding machine
wire
Ground cable connection: big (35 - 50 mm)
Torch connection in the machine: EURO
Functions: 2T / 4T
digital display
overheating or failure indicator
overheating protection
polarity change (quick switching between MIG and FLUX)
Post-gas regulation
Pre-gas adjustment
Spot welding mode
Welding methods: MIG/MAG welding
MMA (electrodes)
Plasma cutting
TIG DC
Uždegimo tipas: HF (High Frequency)

Brand

Welding and plasma cutting set HORNEC® smart SynMIG 2200i COMBO 5-in-1 (MIG / MMA / TIG DC (HF) / PLASMA) + air compressor + gas

Name: Welding and plasma cutting set HORNEC® smart SynMIG 2200i COMBO 5-in-1 (MIG / MMA / TIG DC (HF) / PLASMA) + air compressor + gas
Brand: Hornec
SKU: 1594213

Reference 1594213

This pack contains

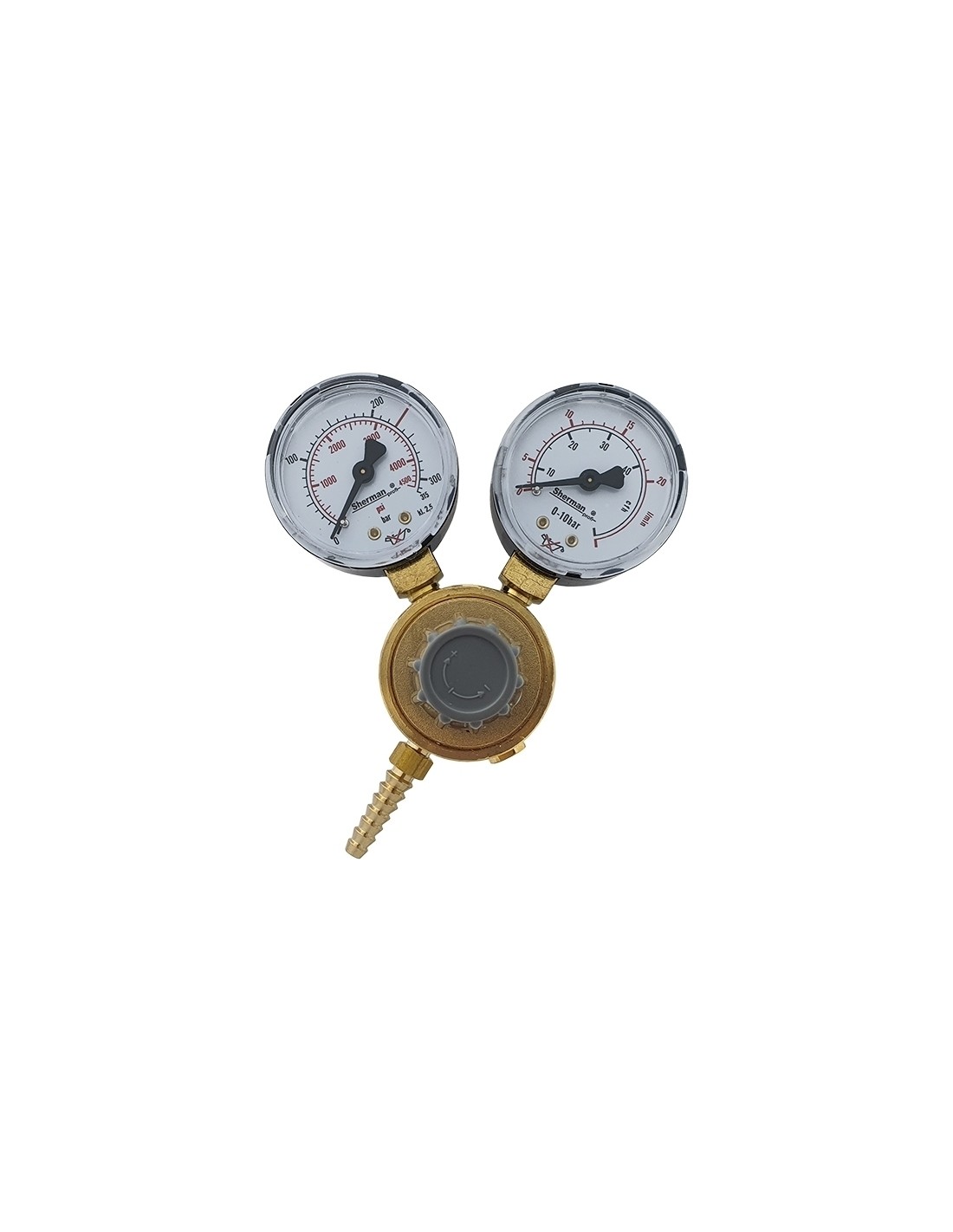

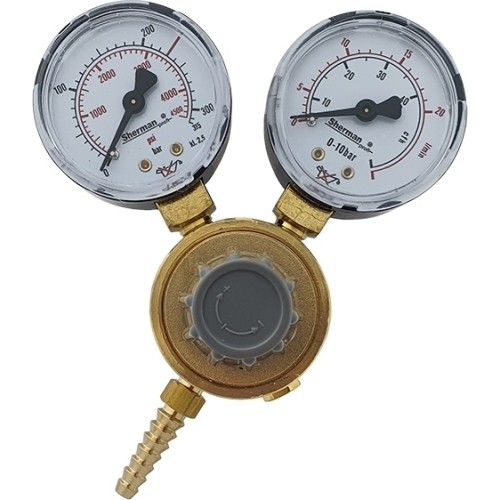

Mini CO₂/Argon reducer with two pressure gauges

Dujų papildymas CO2 - 8 l / 5 kg

Welding wire for black steel SG2 MIG spool D200 5kg - 0.8 mm

Sąvarža - 6 - 10mm

Empty CO2 EURO type 8 l cylinder

MANNOL Compressor Oil ISO 46

1m hose DryShield for argon, nitrogen, CO2 gas, 6mm

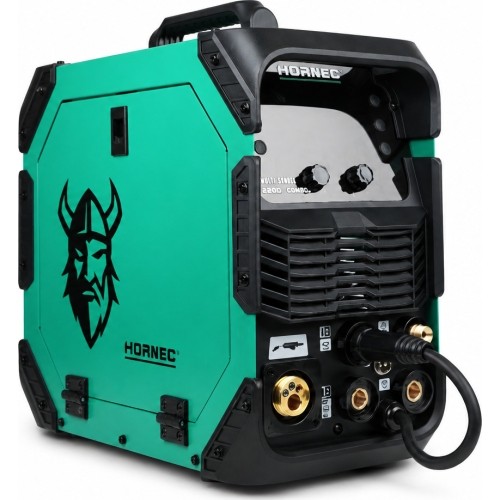

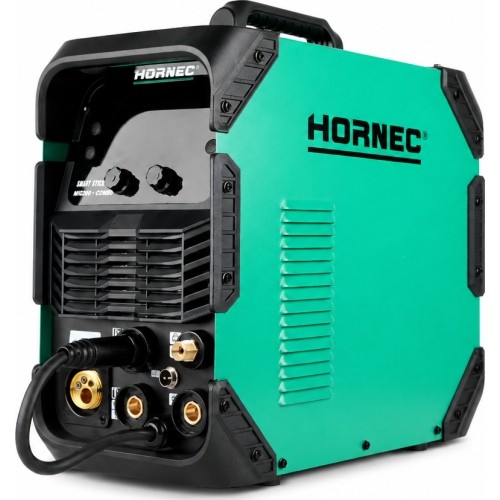

HORNEC® smart SynMIG 2200i COMBO 5 in 1 welding machine (MIG / MMA / TIG DC (HF) / PLASMA)

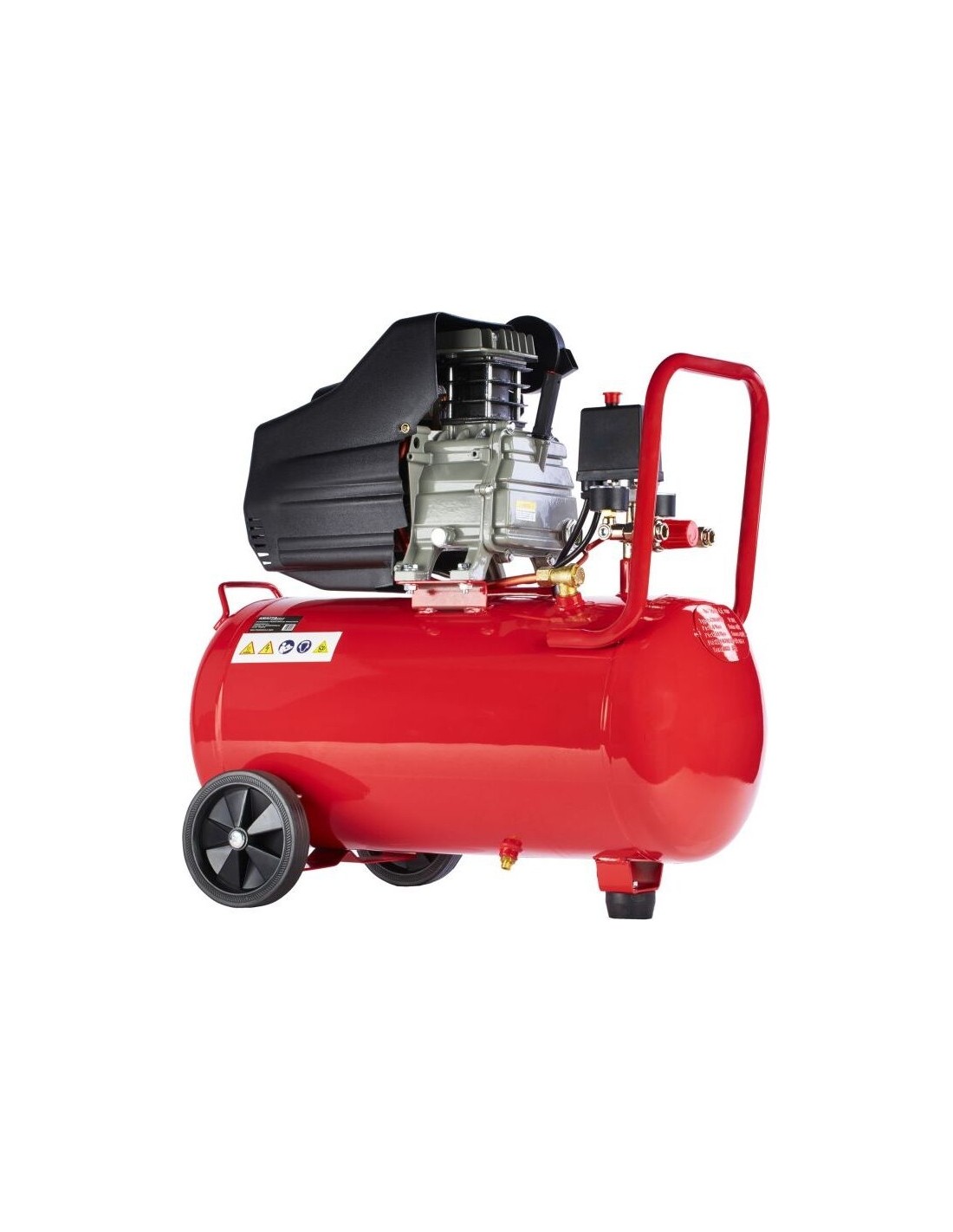

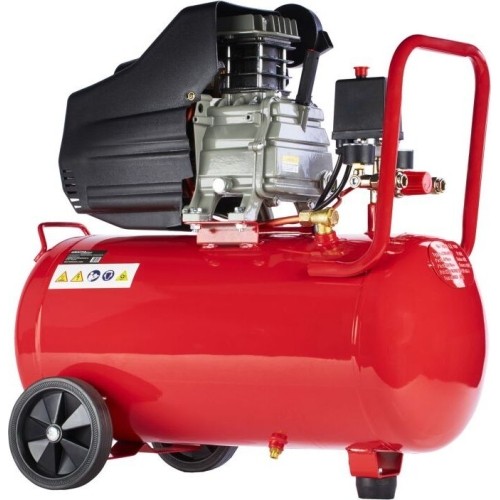

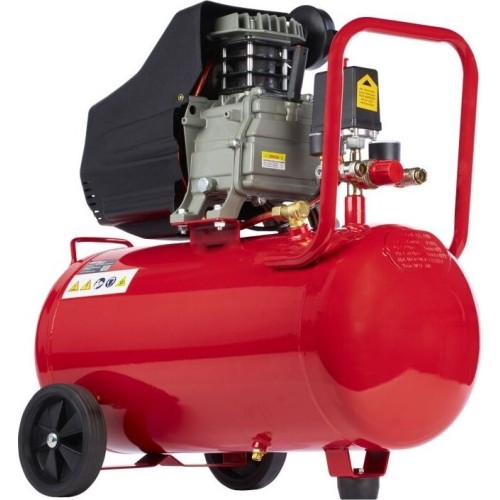

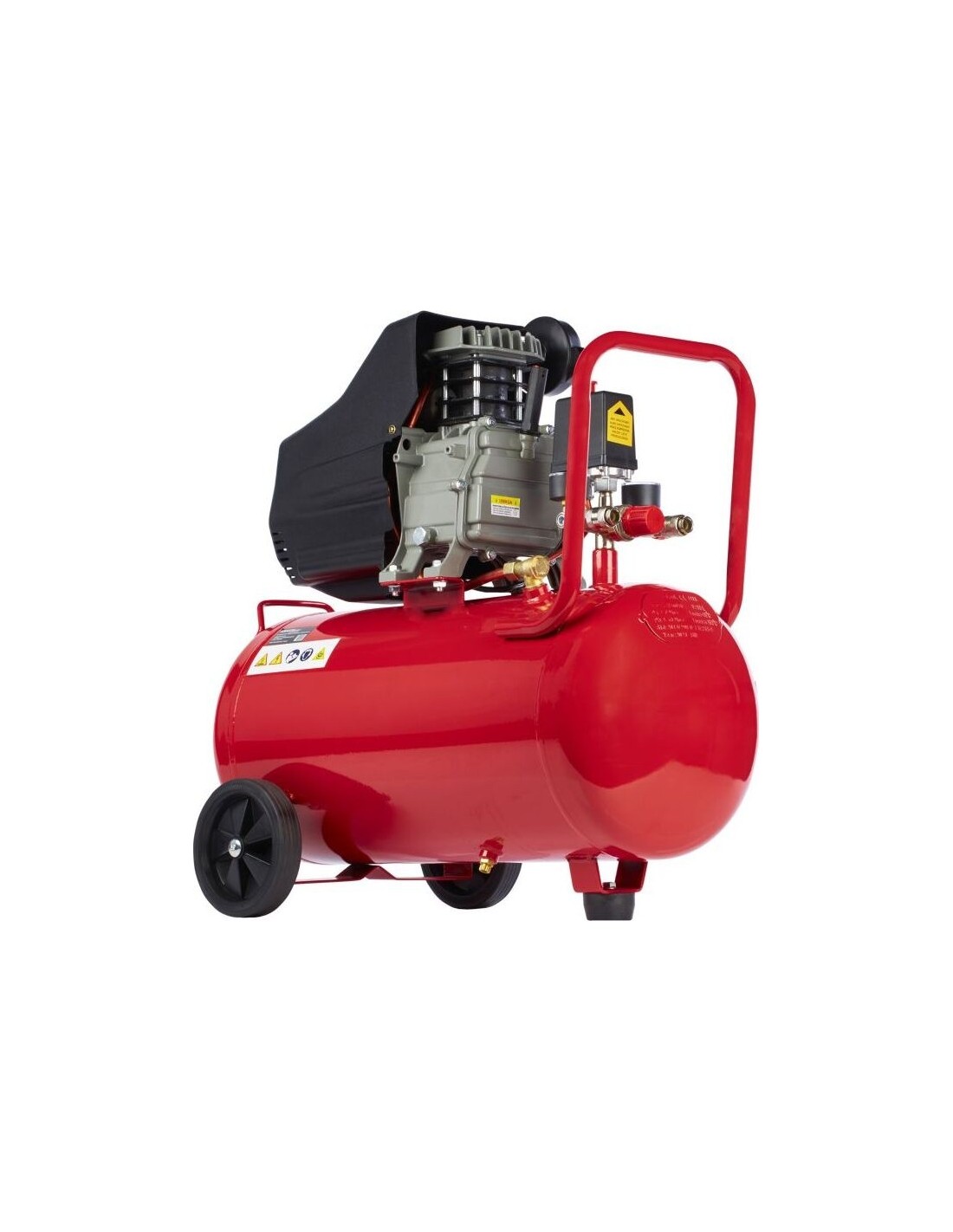

Oil-lubricated air compressor, 50 l, 2.8 kW, 8 bar, 220/230 V

Ask for the price and delivery time by phone

You can buy our products from our partner stores

Interested in a B2B partnership?

b2b@tolas.lt +370 648 47770

Opens in a new window

Description

Suvirinimo aparatas HORNEC smart SynMIG 2200i COMBO 5 in 1

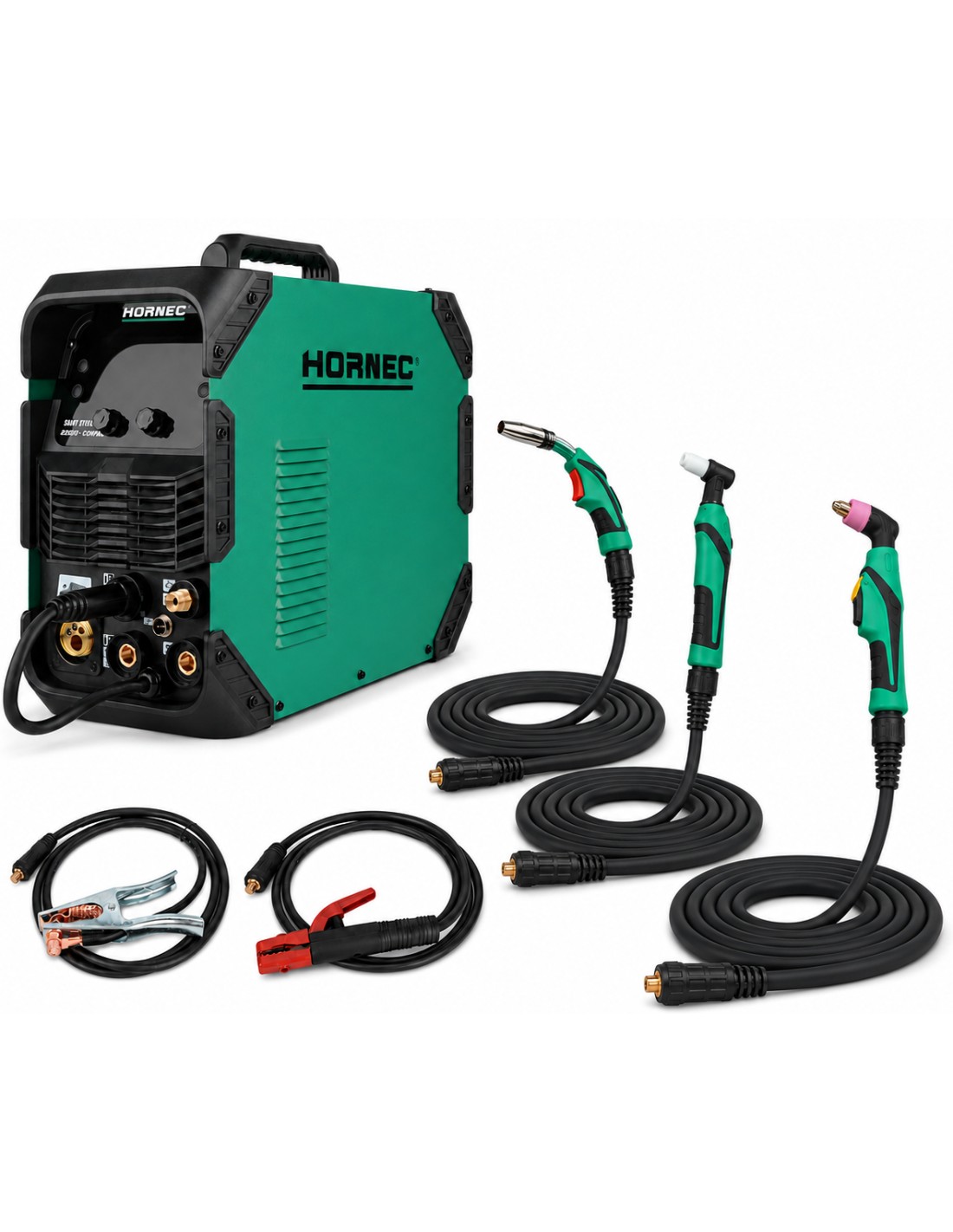

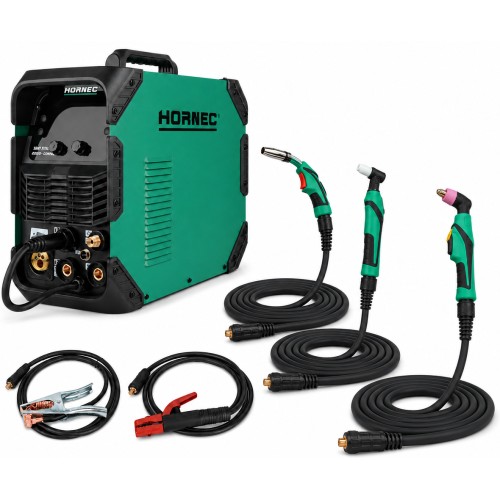

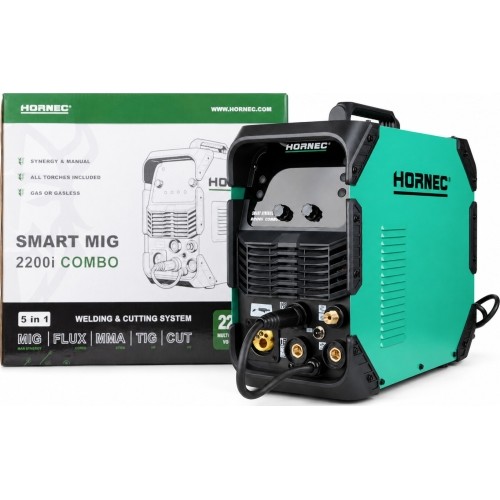

Welding machine HORNEC® smart SynMIG 2200i COMBO 5 in 1

MIG / MMA / TIG DC (HF) / plasma cutting in one machine

The HORNEC® smart SynMIG 2200i COMBO is designed for users who need more than just a MIG welder. By switching the mode and connecting the right torches and cables, the same machine can weld with wire, with coated electrodes and by the TIG method, and it can plasma cut electrically conductive metals.

Applications:

car and agricultural machinery repair;
making gates, fences, shelves and other metal structures;
garage, country house and home workshop jobs;
welding thin and medium-thickness metal;
plasma cutting of sheet metal and profiles;
mobile repair and installation work.

Why choose this model?

Five welding and cutting processes in one compact machine.
Synergic MIG mode helps you find the right settings faster.
Welding with shielding gas or self-shielded FLUX wire.
HF TIG arc ignition lets you start without touching the workpiece with the electrode.
Built-in plasma cutting up to 50 A.
Digital control, 2T, 4T and SPOT operating modes.

Advanced IGBT inverter technology
This is an inverter welding machine that uses advanced IGBT technology. The inverter converts the 50Hz/60Hz AC mains voltage into DC, which a high-frequency (20 kHz) converter then turns back into AC voltage.

IGBT technology allows efficient control of welding parameters, gives a stable arc and reduces energy losses.

HORNEC® SynMIG 2200i COMBO operating modes

Synergic MIG

The machine helps match the welding voltage and wire feed settings to the selected wire, its diameter and the shielding gas. Handy when you need to get started quickly.

Manual MIG

Lets you set voltage and wire feed speed separately. Suits experienced users who want to fine-tune the arc to the metal, wire and welding position.

MMA

Welding with coated electrodes. A practical choice for repair, installation and outdoor work when no wire feeder or shielding gas cylinder is needed.

TIG DC (HF)

TIG mode is for cleaner, more precisely controlled welds. HF high-frequency ignition forms the arc without the tungsten electrode touching the workpiece. *DC mode (direct current) does not support aluminium welding.

Plasma cutting

A cutting current of up to 50 A lets you cut electrically conductive metals. Adjustable gas flow before and after cutting helps make the torch consumables last longer.

HORNEC SynMIG 2200i COMBO skaitmeninis valdymas

Synergic and manual MIG control

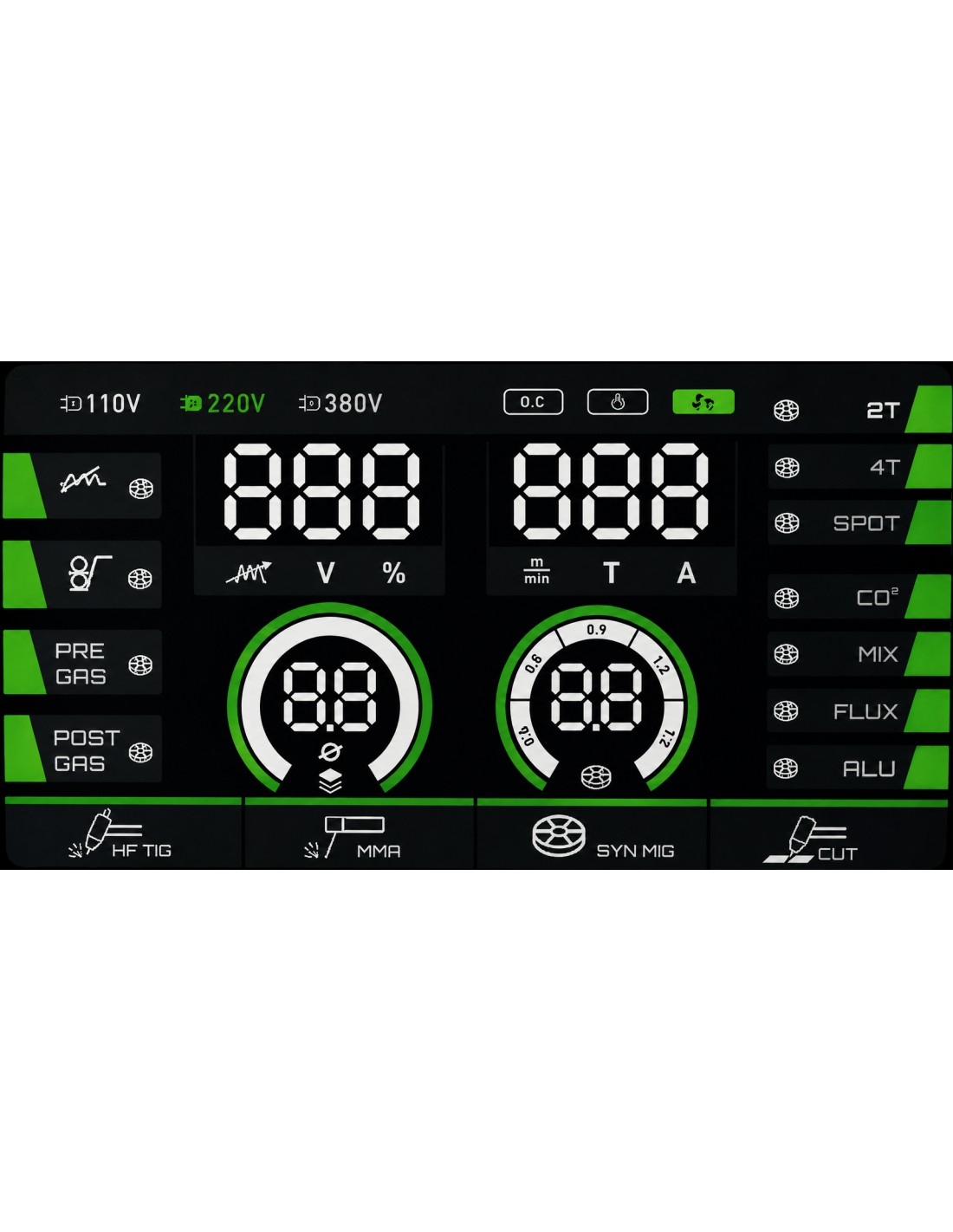

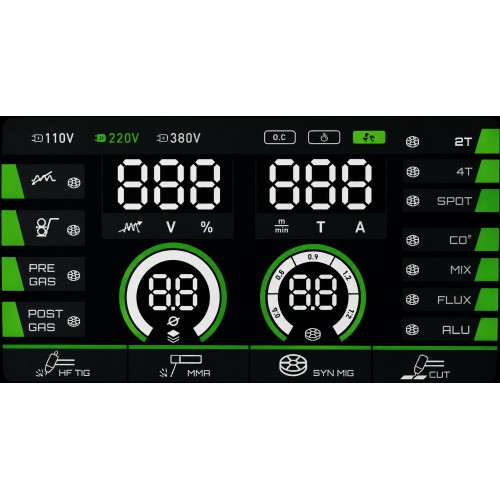

The digital control panel lets you select synergic or manual MIG mode, wire diameter, shielding gas type and additional arc parameters. Settings are clearly shown on the display, so the machine is easier to set up and the welding process is easier to control.

Wire diameter: 0.6 / 0.8 / 0.9 / 1.0 mm.
Gas selection: CO₂, gas mixture, argon or gasless FLUX mode.
2T mode: the torch button is held down for the whole weld.
4T mode: better for longer welds, as the button does not need to be held all the time.
SPOT: spot welding with a set time of about 0-3 seconds.
Arc softness adjustment: helps tune the arc character and the amount of spatter.
Pre-gas / Post-gas: adjustable gas flow before and after welding.

Stable MIG wire feed

The easy-opening wire compartment makes it simple to change the spool, thread the wire and service the feed mechanism. Correctly adjusted roller pressure helps keep the wire moving evenly and the welding arc more stable.

Wire diameters of 0.6-1.0 mm can be selected.
For steel, use steel wire with CO₂ or an argon/CO₂ mixture.
Self-shielded FLUX wire lets you work without a shielding gas cylinder.
The aluminium MIG program is set for 1.0 mm Al wire with argon gas.
Recommended all-purpose gas mixture for steel - about 83% argon and 17% CO₂.

HORNEC SynMIG 2200i COMBO vielos padavimo mechanizmas

Precise HF TIG arc ignition

High-frequency HF ignition forms the arc without the tungsten electrode touching the workpiece. This lowers the risk of contaminating the electrode and the weld and gives a more precise weld start.

Adjustable gas pre-flow time.
Adjustable gas post-flow protects the weld and the tungsten electrode while they cool.
A gap to the workpiece of about 3 mm or less is recommended.
It is recommended to hold the torch at an angle of no more than 15°.

Plasma cutting up to 50 A

The built-in plasma cutting mode is for cutting electrically conductive metals. Where possible, start cutting from the edge of the workpiece - this reduces molten metal blowback and protects the torch parts.

Adjustable cutting current range: 10-50 A.
Adjustable pre-gas and post-gas times.
A distance of about 1.5 mm from the workpiece surface is recommended.
Do not keep the pilot arc on longer than necessary.

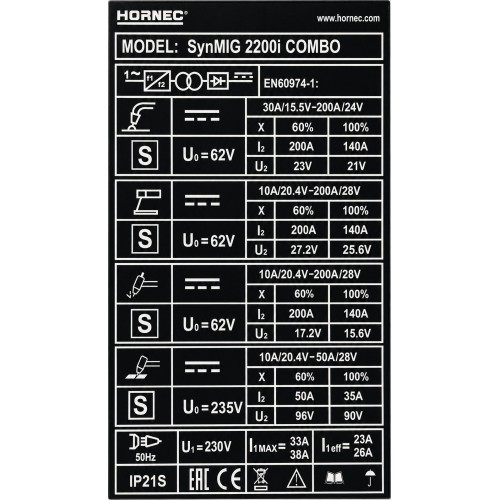

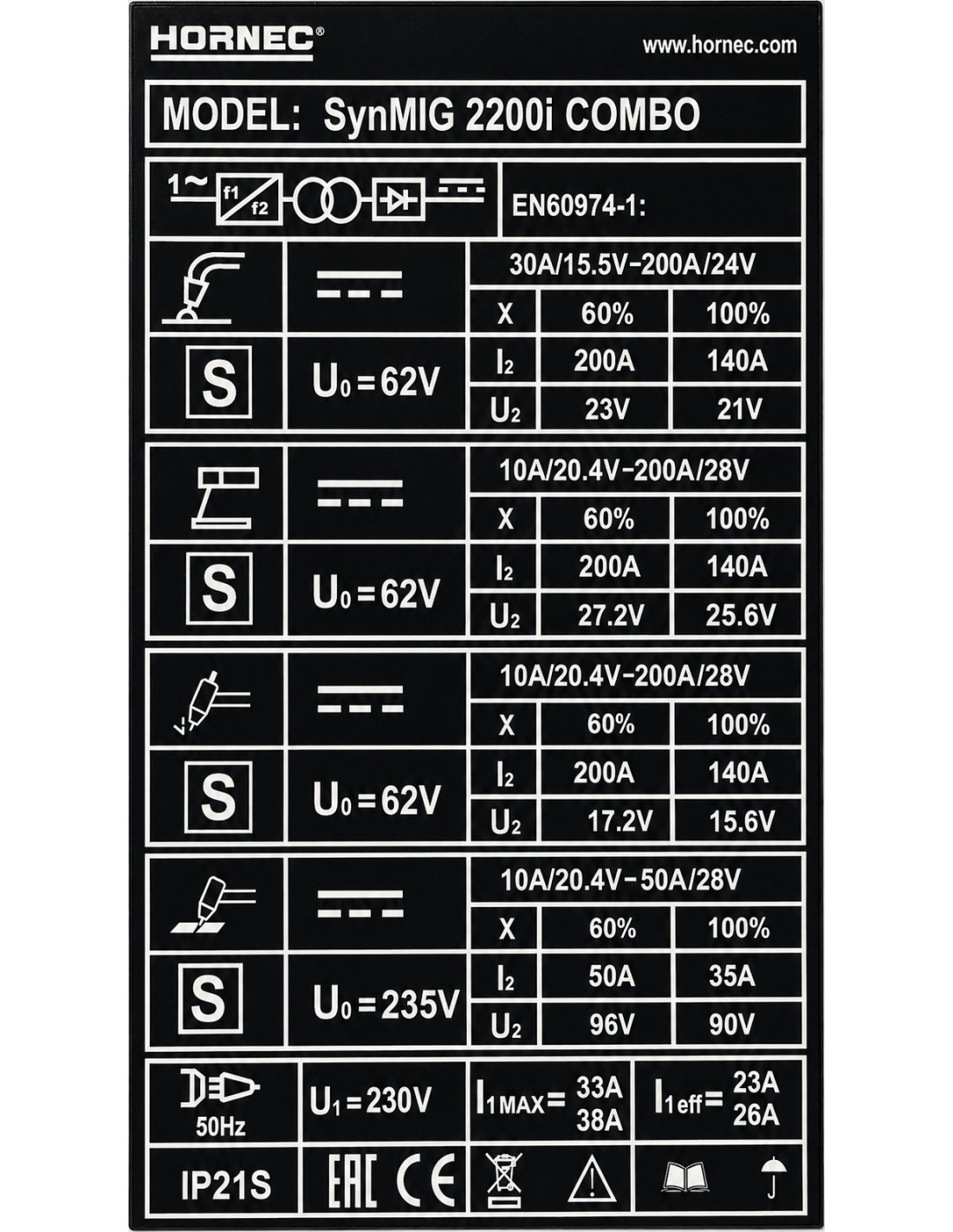

Duty cycle according to the machine rating plate

Process	60% duty cycle	100% duty cycle
MIG	200 A / 23 V	140 A / 21 V
MMA	200 A / 27.2 V	140 A / 25.6 V
TIG	200 A / 17.2 V	140 A / 15.6 V
Plasma cutting	50 A / 96 V	35 A / 90 V

Duty cycle shows how long the machine can work within a 10-minute period at the stated current. For example, a 60% duty cycle means up to 6 minutes of work, with the rest of the time for cooling. High ambient temperature, poor ventilation or blocked air vents can reduce the duty cycle.

HORNEC IGBT inverterio technologija

Main technical specifications

Model	HORNEC® smart SynMIG 2200i COMBO
Power supply	230 V, 50 Hz, 1 phase
MIG range	30-200 A
MMA range	10-200 A
TIG range	10-200 A
Plasma cutting range	10-50 A
Open-circuit voltage	62 V in welding modes; 235 V in plasma cutting mode
Wire diameter	0.6 / 0.8 / 0.9 / 1.0 mm
Protection class	IP21S
Standard	EN 60974-1

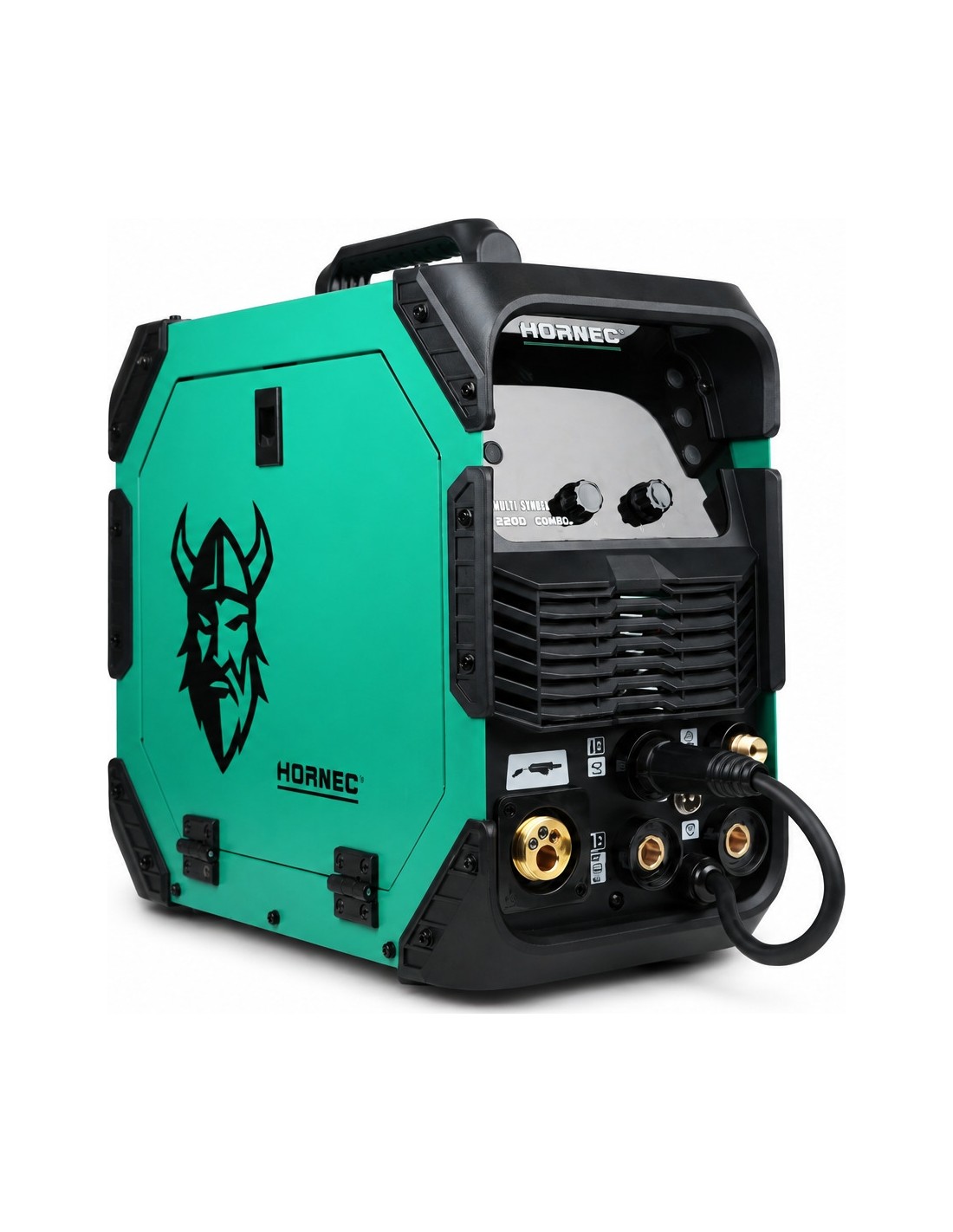

HORNEC SynMIG 2200i COMBO konstrukcija

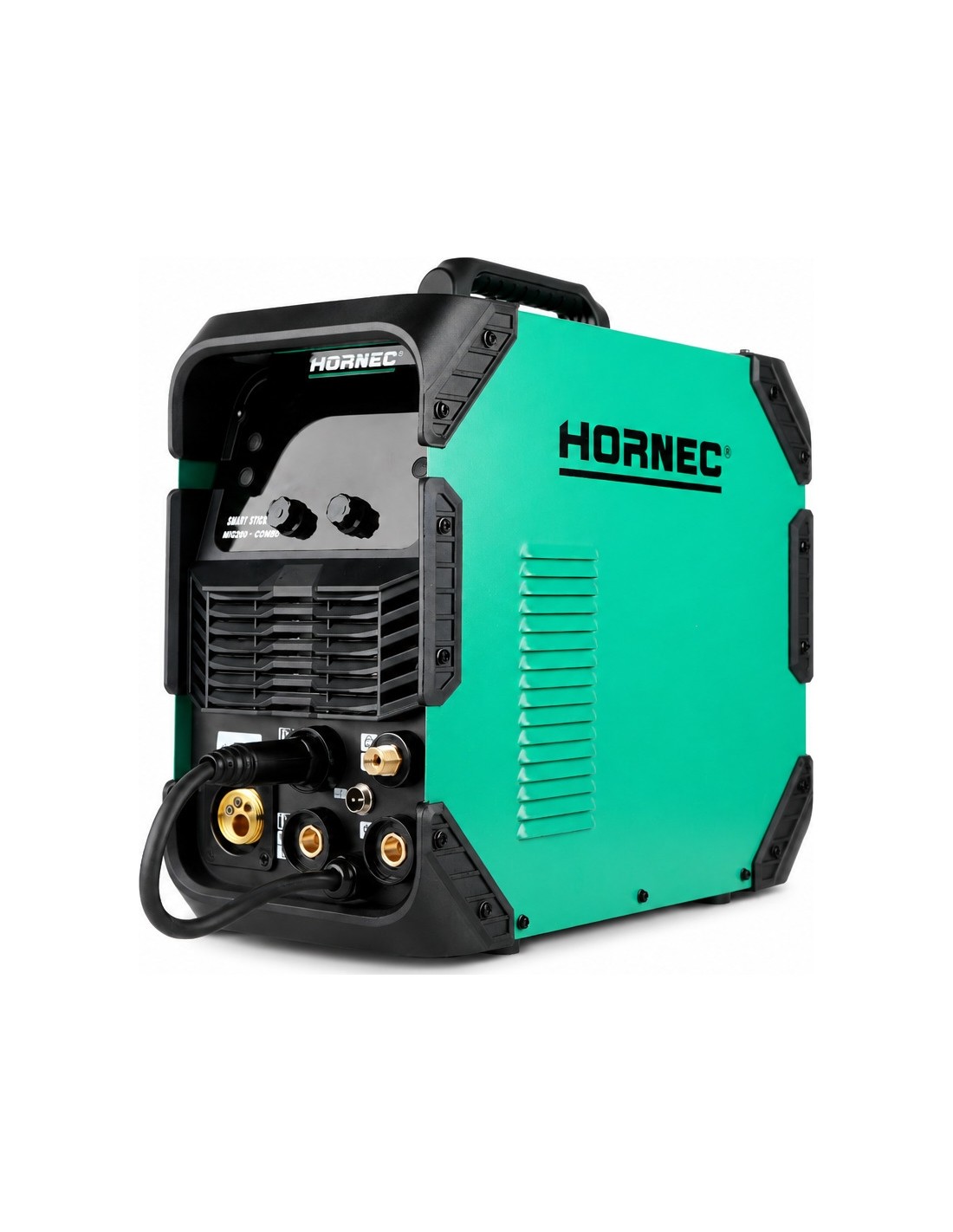

Practical in the workshop and garage

Built-in handle makes it easy to move the machine between workplaces.
Digital display clearly shows the selected parameters.
Processes combined in one housing mean you need fewer separate machines.
Ventilation openings and active cooling help remove heat produced during operation.
IP21S class is meant for work in a dry environment protected from rain.
Changeable polarity lets you set up the machine correctly for gas or self-shielded wire.
Large 35/50 connectors - give even better welding current stability.
Euro-type torch connector - easy torch changes and compatibility with popular MIG torches.

Important before starting work

The machine is intended for welding and plasma cutting of electrically conductive metals.
Use suitable eye, face, hand and body protection.
Work in a well-ventilated, dry environment.
Do not cover the ventilation openings; leave enough free space around the machine.
Do not exceed the duty cycle stated on the rating plate.
If the machine overheats, stop working and let it cool down with the fan running.
Disconnect the machine from the mains before changing connections or torches or doing maintenance.

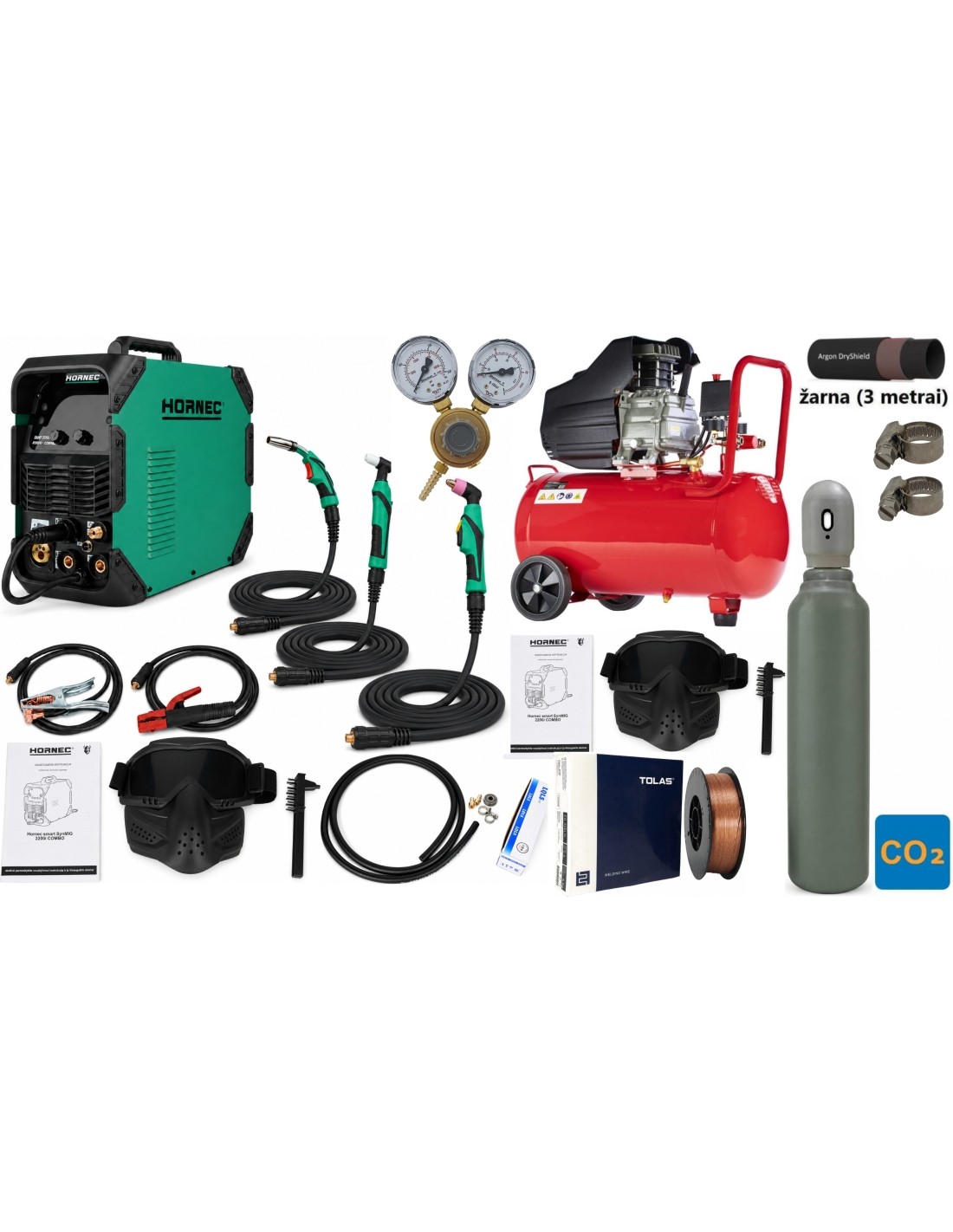

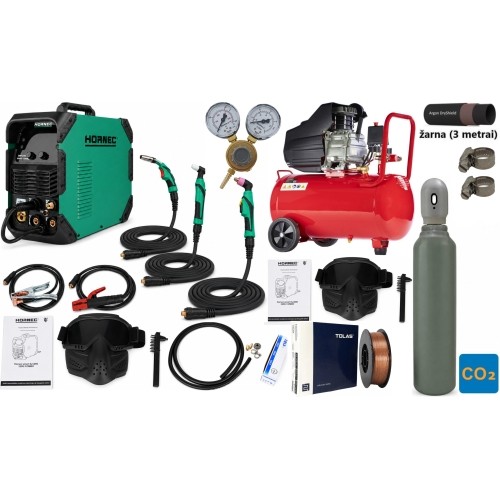

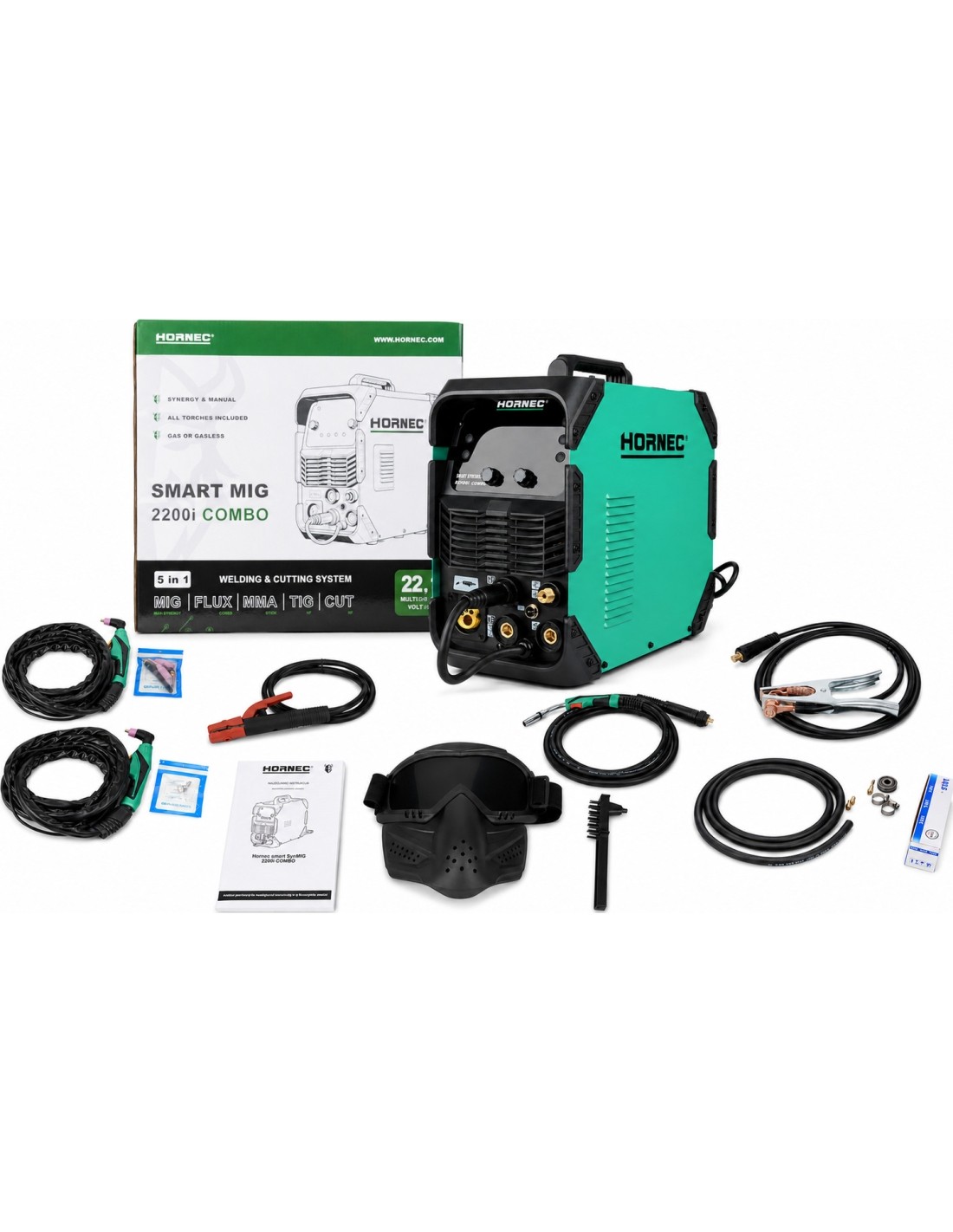

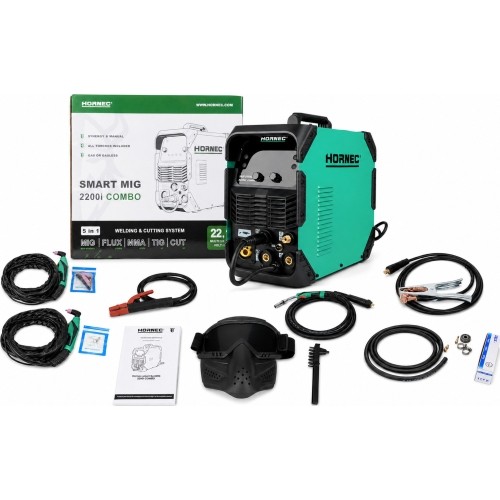

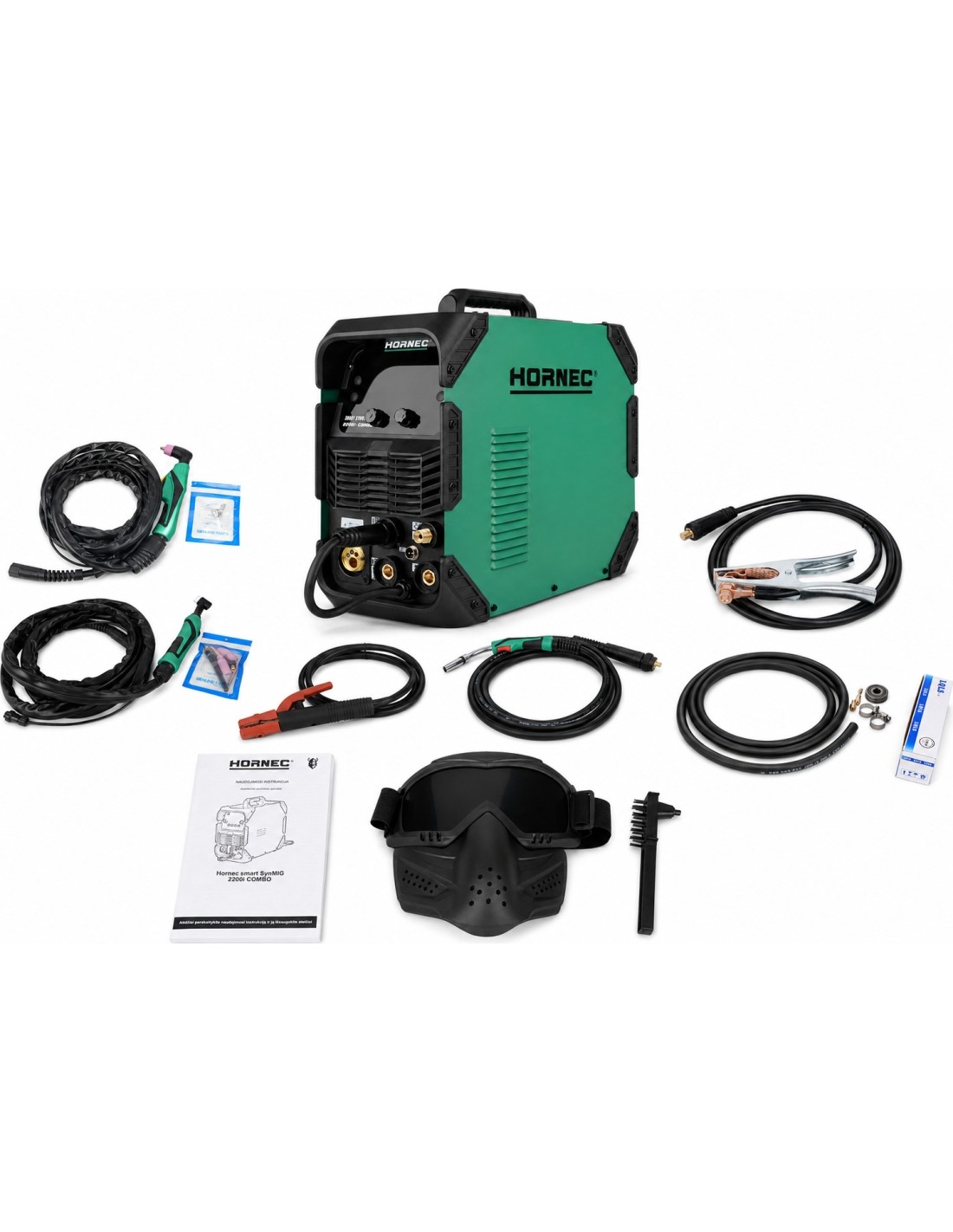

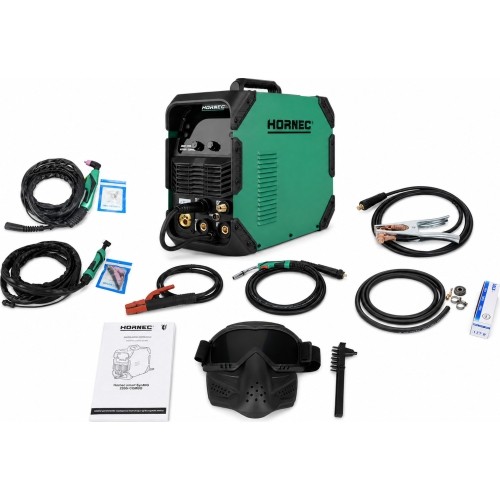

Package contents

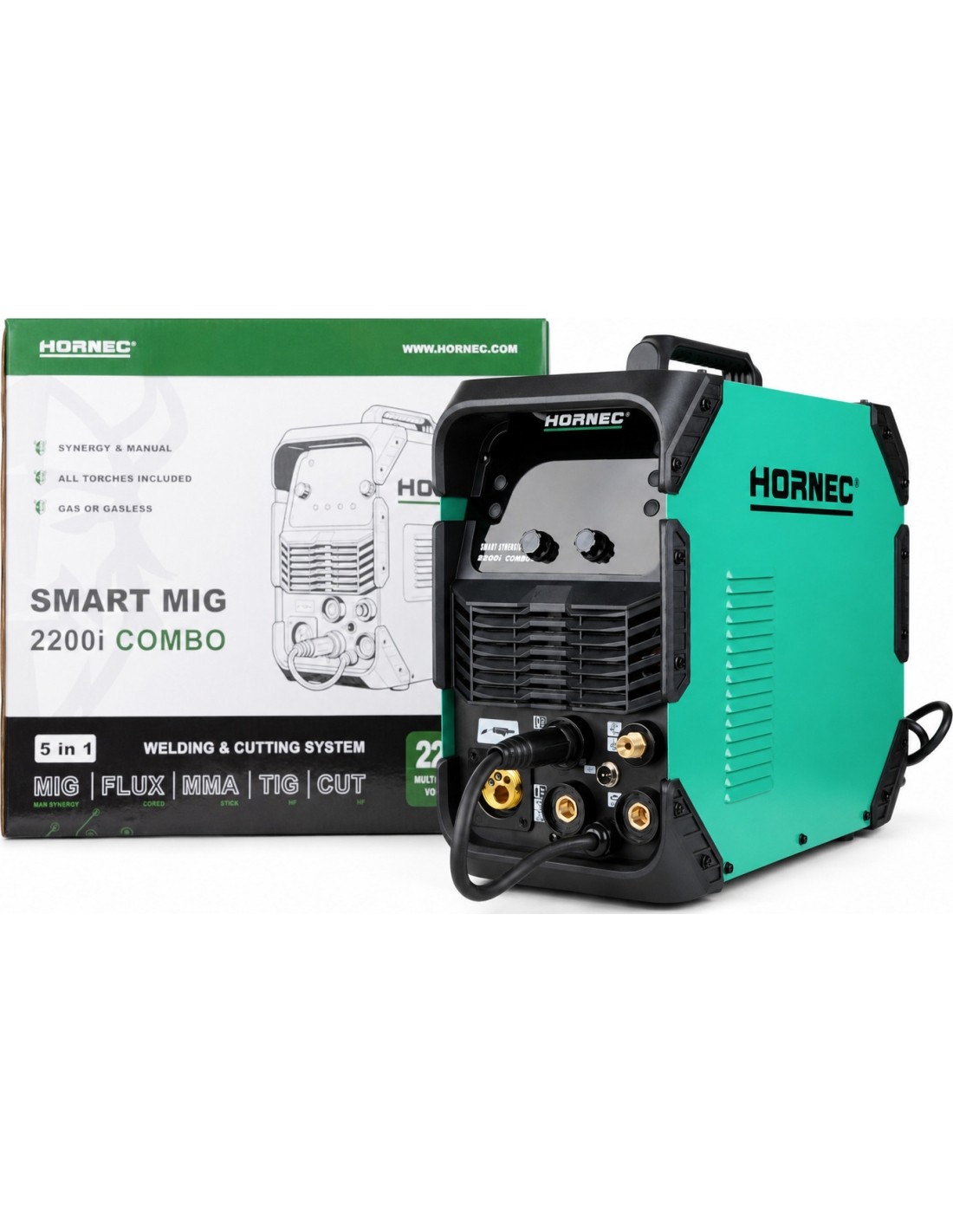

HORNEC® smart SynMIG 2200i COMBO welding machine

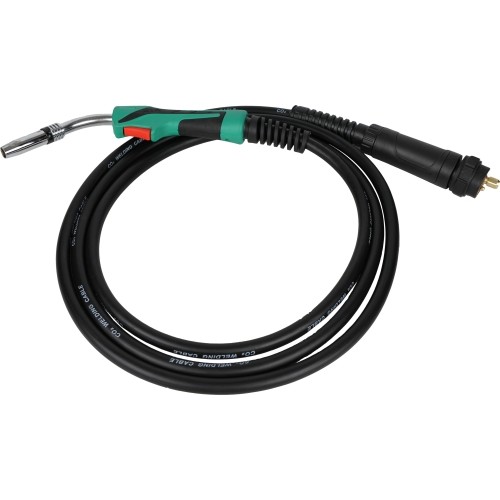

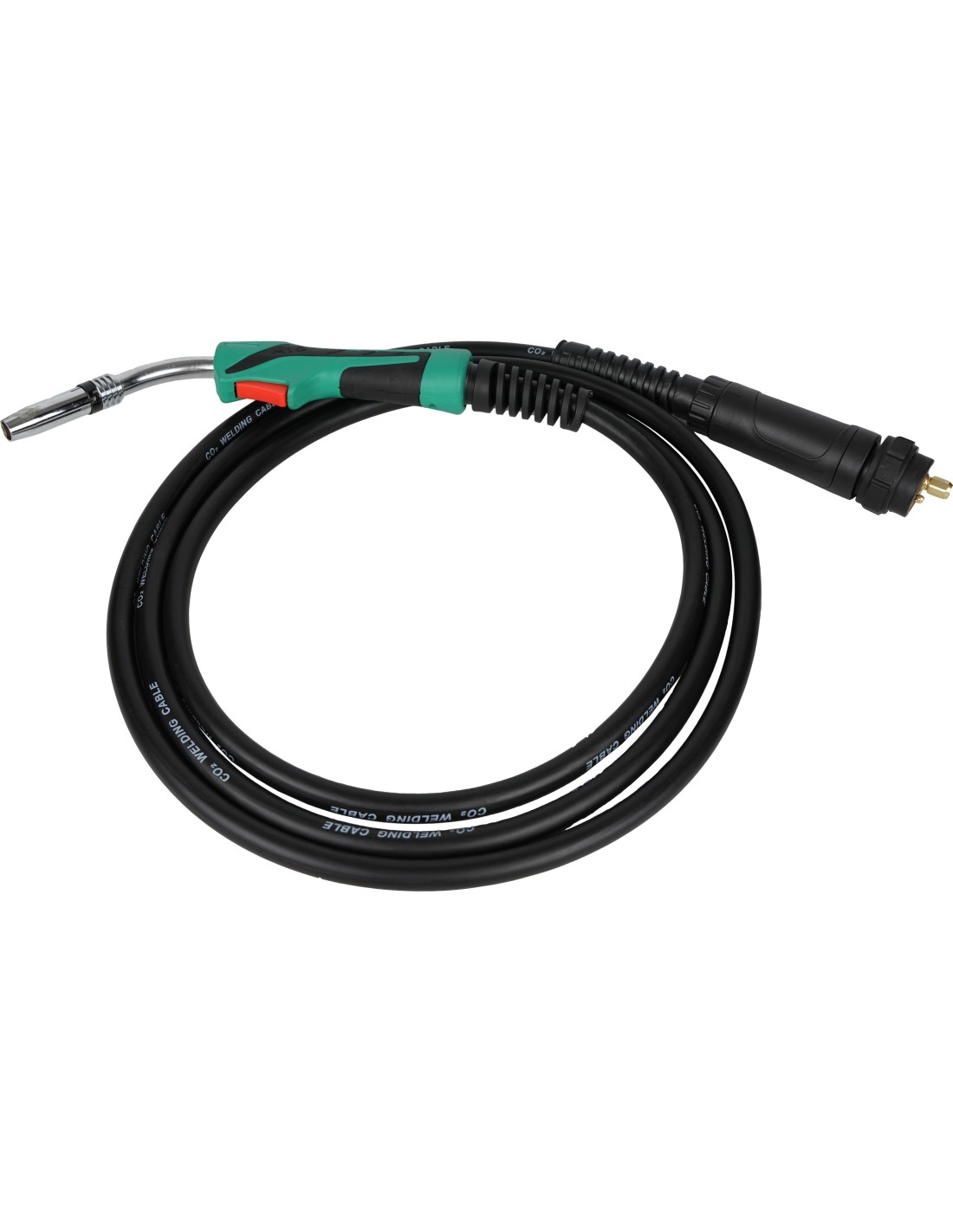

MIG torch M-24, EURO connector, 4 metres (with consumables)

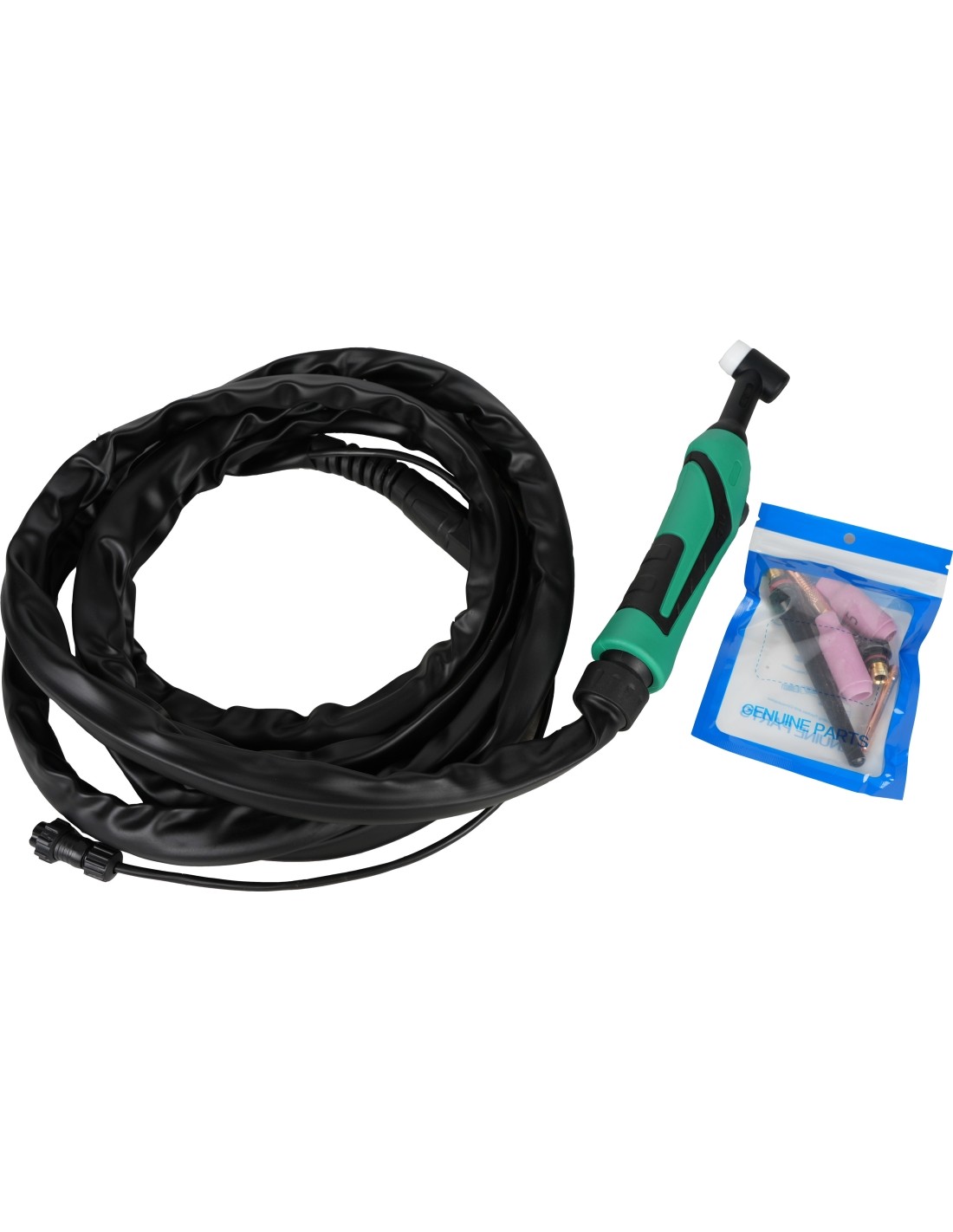

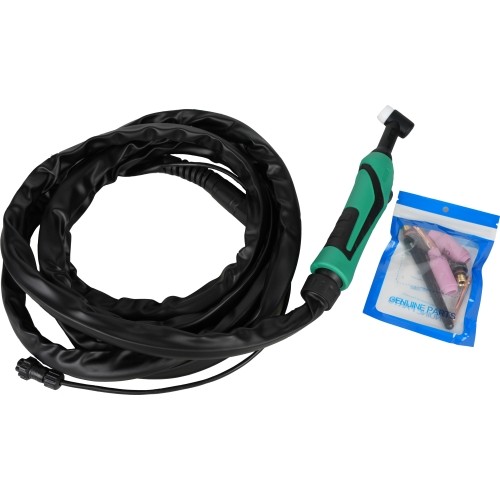

TIG torch, EURO connector, 4 metres (with consumables)

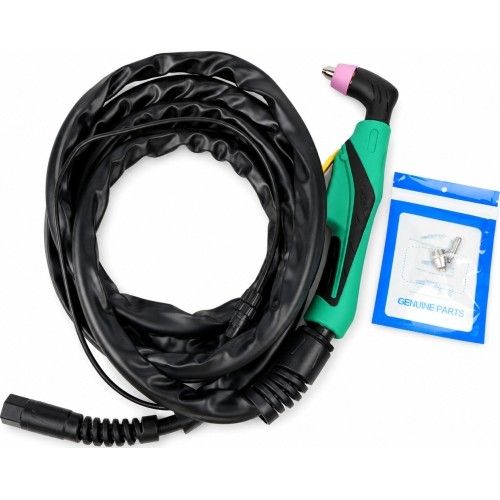

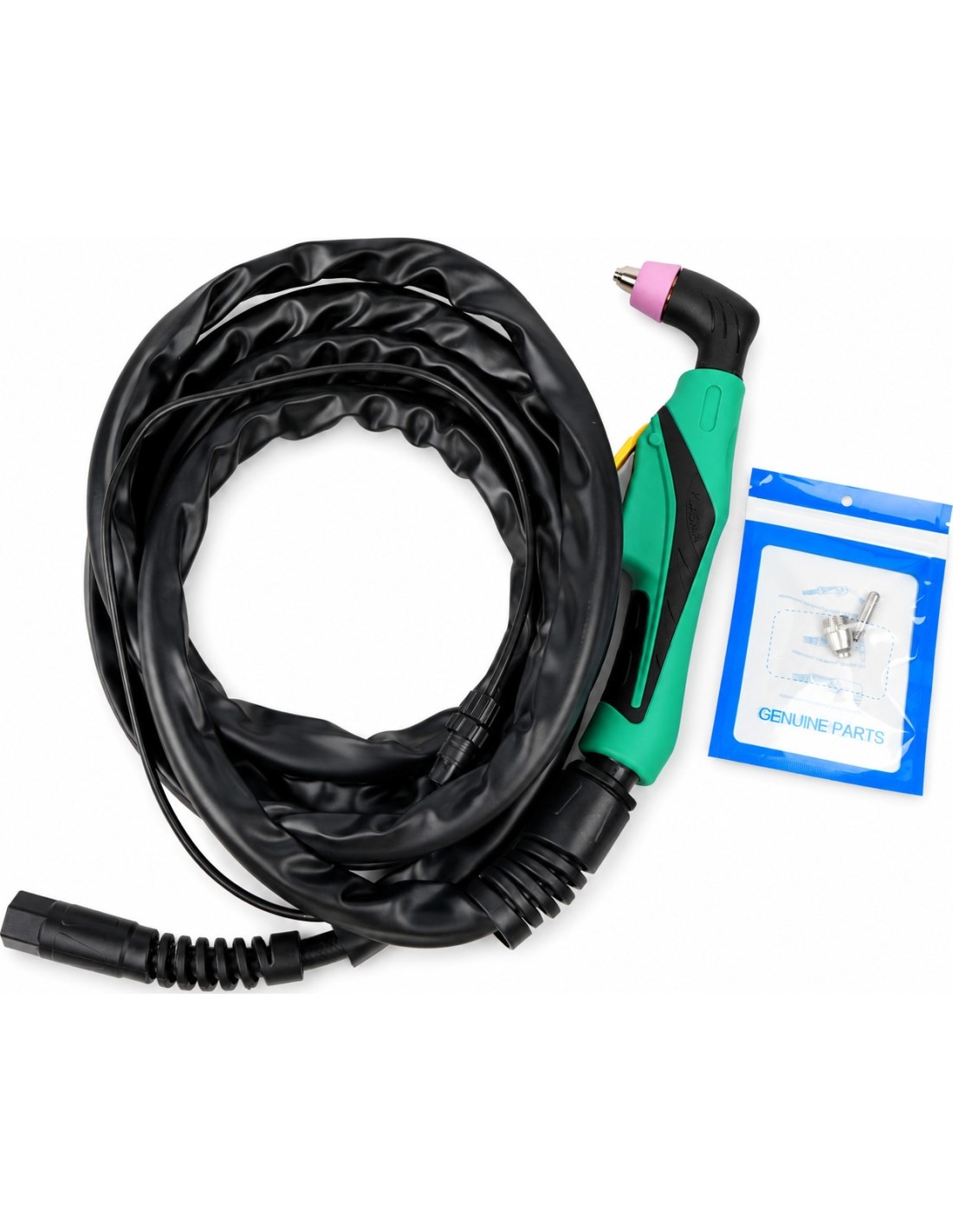

Plasma torch, EURO connector, 4 metres (with consumables)

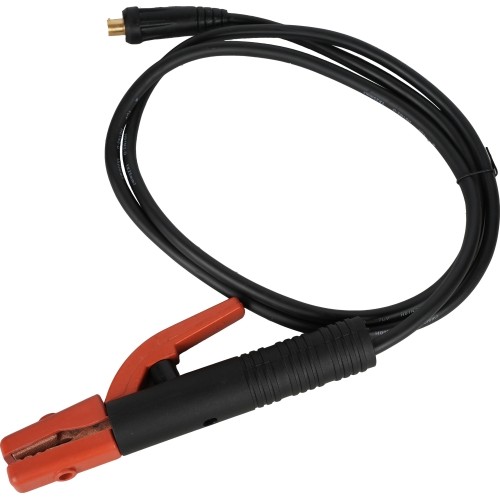

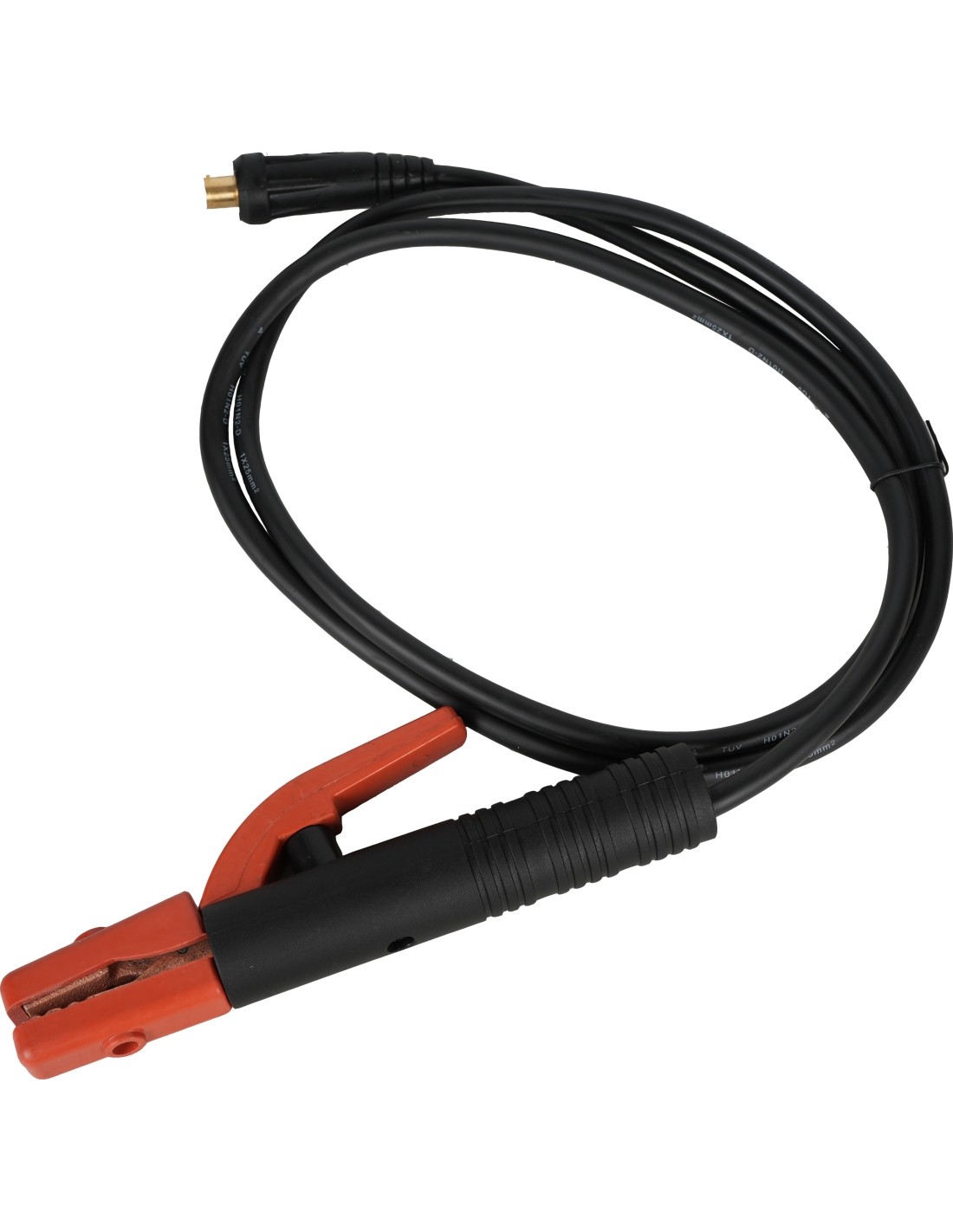

Electrode holder with 3-metre cable (16 mm2 cable, 35-50 mm connector)

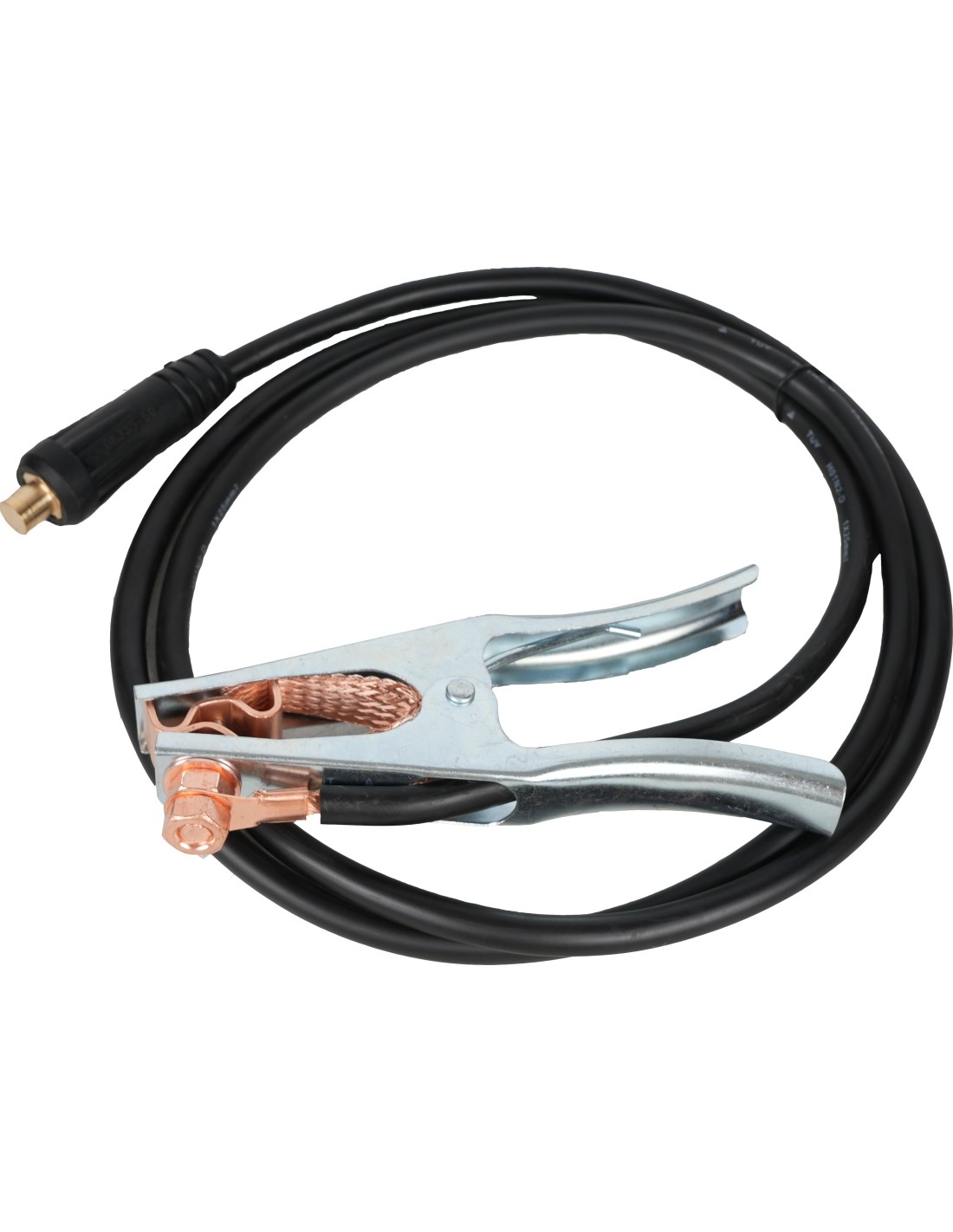

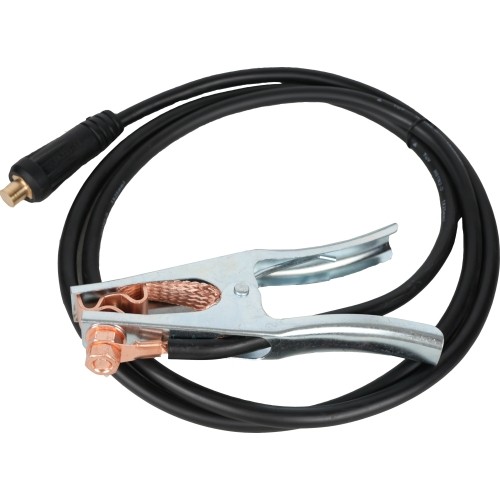

Ground clamp with 3-metre cable (16 mm2 cable, 35-50 mm connector)
machine power cord - 2.1 metres

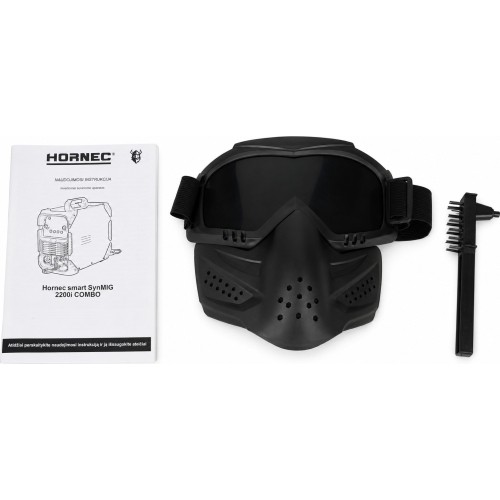

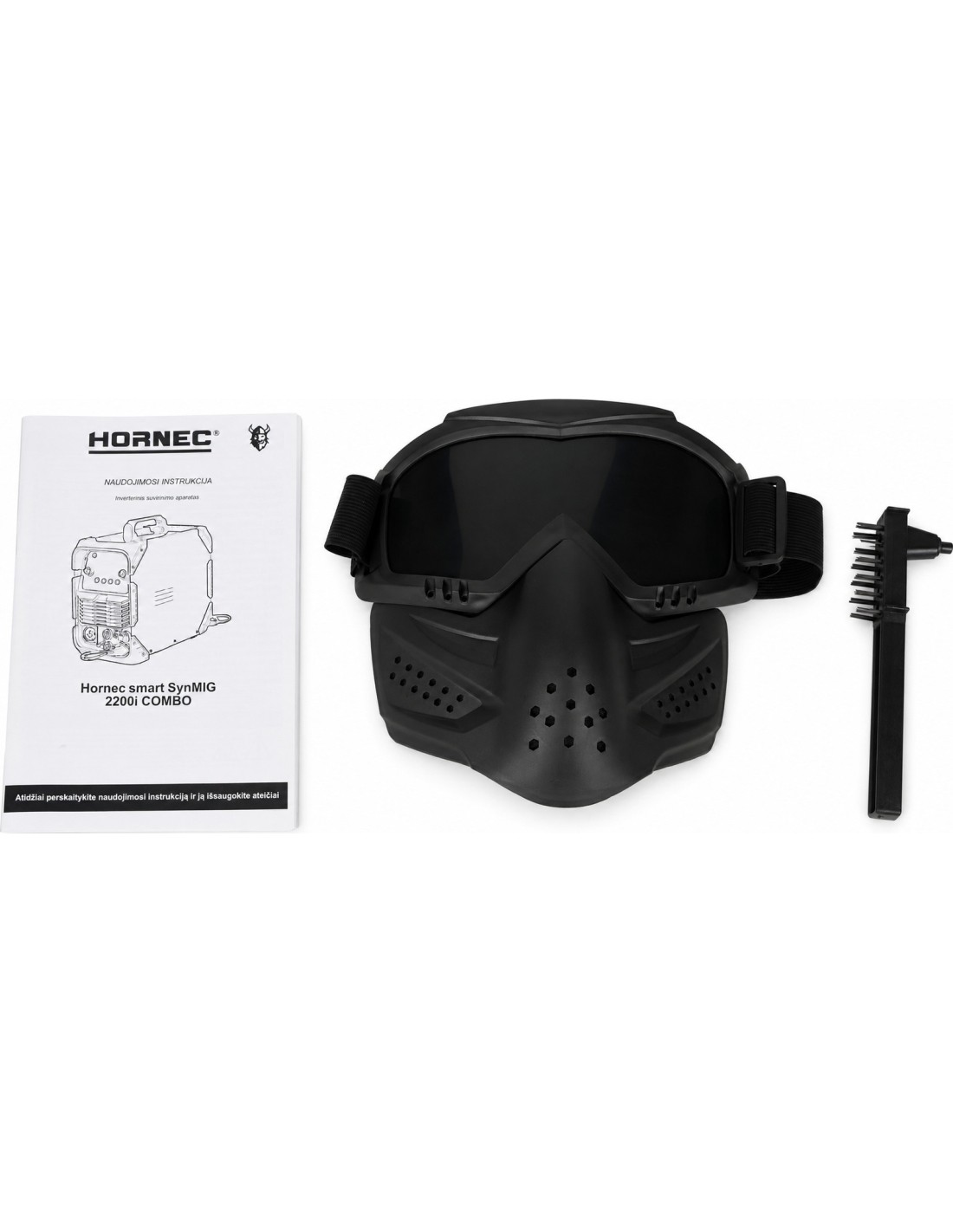

welding safety glasses / mask
"2 in 1" metal cleaning hammer-brush
Compressor

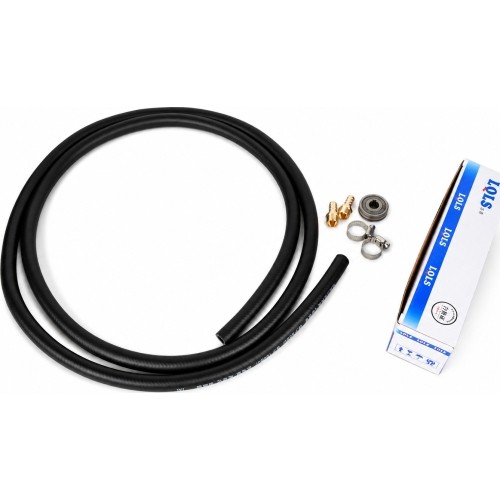

Gas hose and connection fittings (to the compressor)

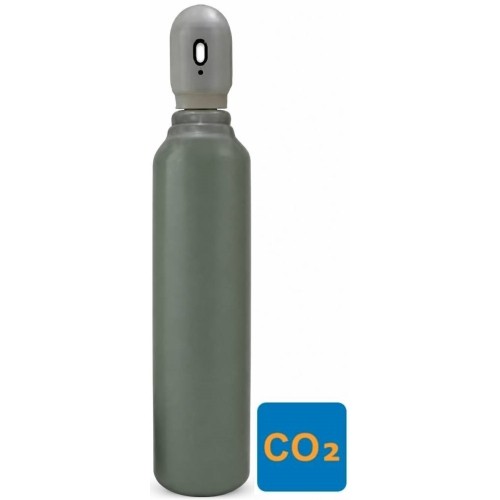

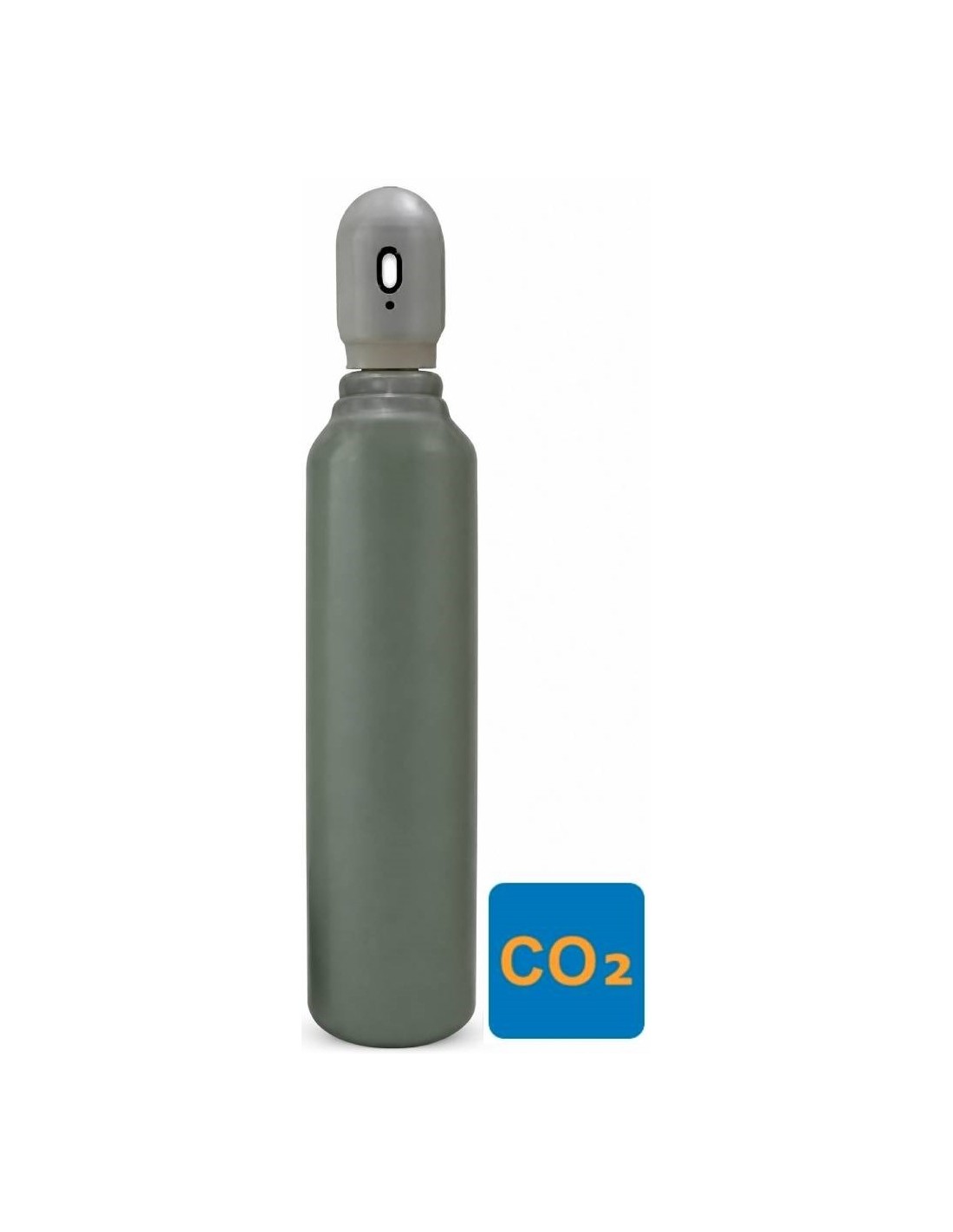

Gas cylinder 8L CO2 (filled)

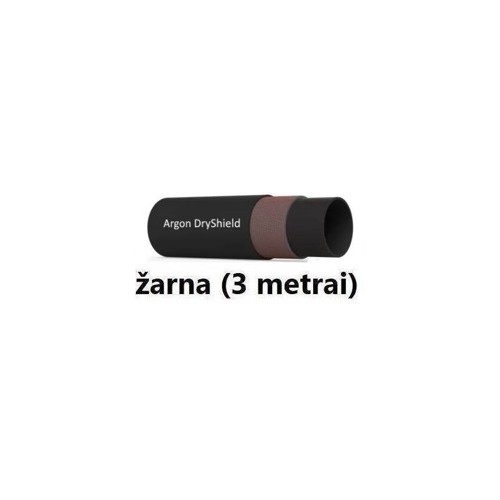

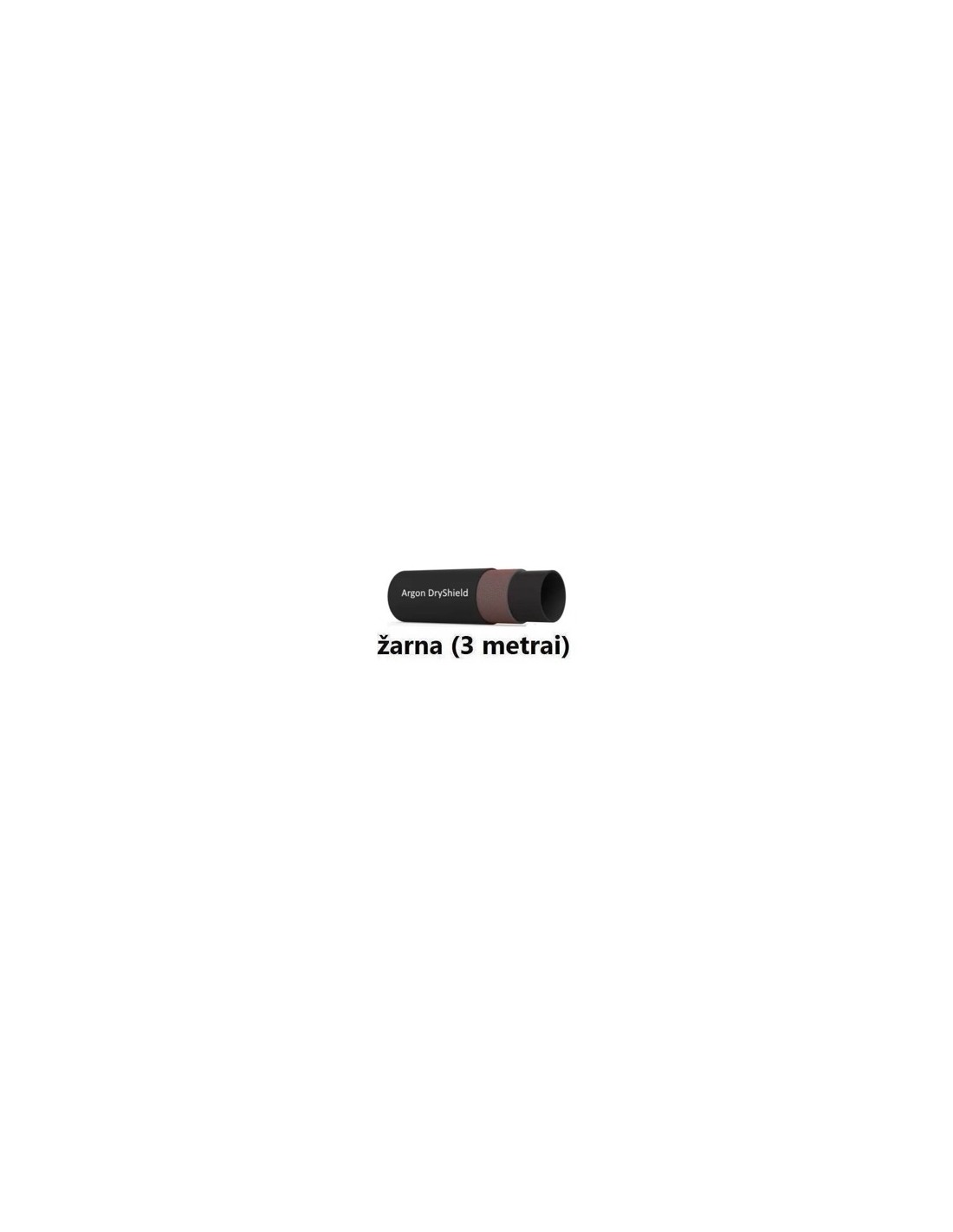

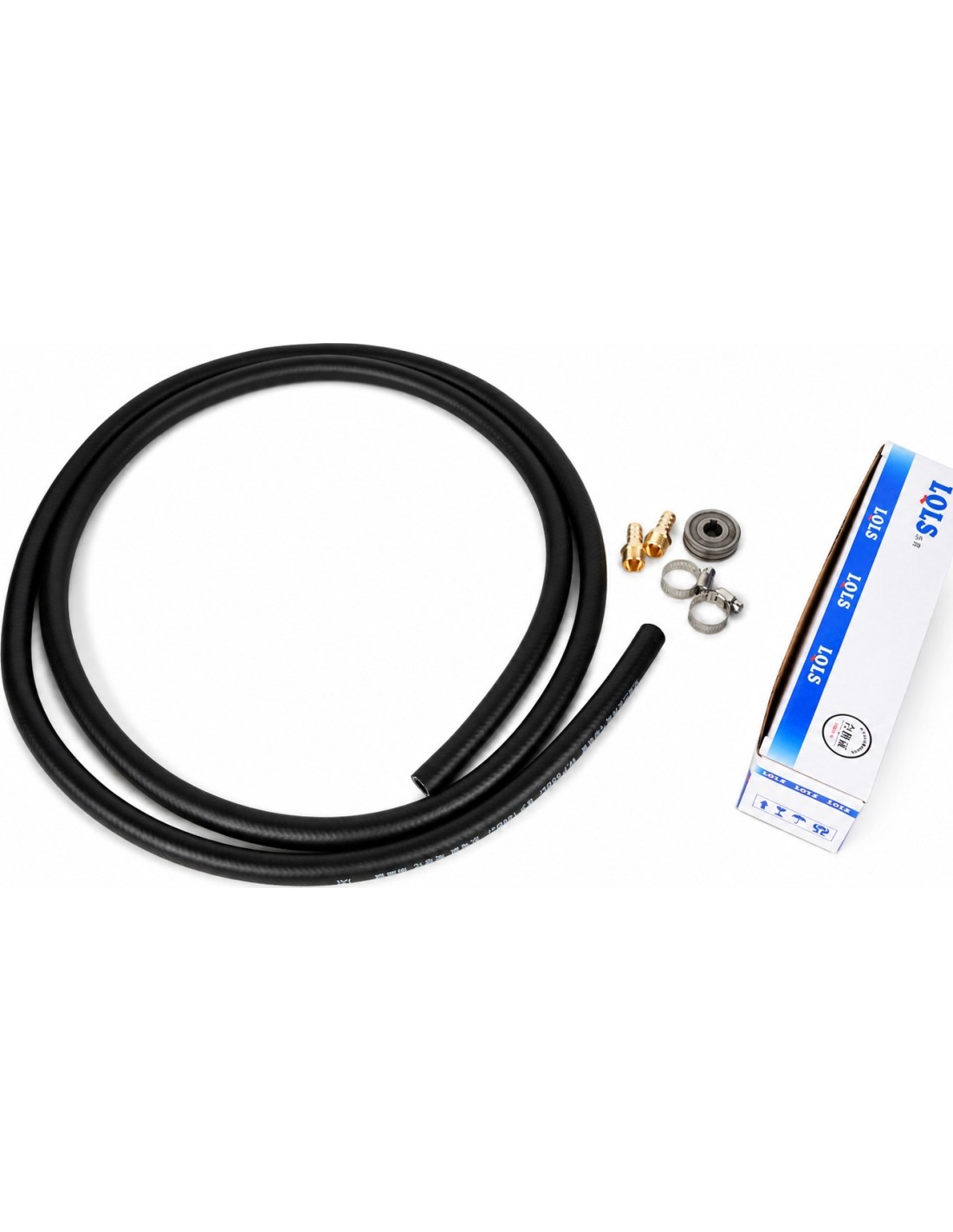

3-metre pressure-resistant gas hose
Compressor oil 1 pc.
Hose clamps 2 pcs.
Ar/CO2 regulator
Wire for structural steel 0.8mm 5kg
User manual EN/LT

The appearance of the package contents and the number of small consumables may vary depending on the product batch.

HORNEC smart SynMIG 2200i COMBO komplektacija

Versatile 5 in 1 welding machine for home workshops and repair work

If you are looking for one machine for MIG, MMA, TIG DC (HF) welding and plasma cutting, the HORNEC® smart SynMIG 2200i COMBO offers a wide range of functions and convenient digital control. Synergic MIG mode makes choosing settings easier, while manual control lets you fine-tune the machine to the specific job.
