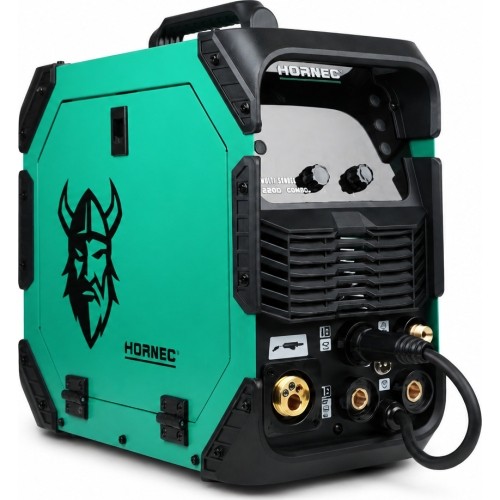

HORNEC® smart SynMIG 2200i COMBO 5 in 1 welding machine (MIG / MMA / TIG DC (HF) / PLASMA)

Phase: Vienfazis (230V)
Control: rankinis
synergetic
User Level: Hobbyist / Home user
Weight, kg: 20
Wire spool size [kg]: 5
0,45
1
D100-D200 / 1-5kg
PFC function: No
Maximum current MMA [A]: 200
Maximum current TIG [A]: 200
TIG darbo ciklas [%].: 200
Maximum separation (cut) thickness [mm].: 15
Maximum cutting current [A]: 50
Maximum current MIG/MAG: 200
MIG/MAG darbo ciklas [%]: 60
200
Current type: DC
Suitable for welding: Aluminum and its alloys
Stainless steel (Inox)
Structural steel
Inverter technology: IGBT
Shielding Gas Requirement: Gas / Gasless
Number of wire feed rollers: 2
Torch length: 4 m
Package Contents: 2 in 1 hammer/brush
consumable parts
electrode cable
gas hose
ground cable
MIG / MAG burner
Mini shield for welding
plasma torch
TIG torch
welding machine
Ground cable connection: big (35 - 50 mm)
Torch connection in the machine: EURO
Functions: 2T / 4T
digital display
overheating or failure indicator
overheating protection
polarity change (quick switching between MIG and FLUX)
Post-gas regulation
Pre-gas adjustment
Spot welding mode
Welding methods: MIG/MAG welding
MMA (electrodes)
Plasma cutting
TIG DC
Uždegimo tipas: HF (High Frequency)

Brand

HORNEC® smart SynMIG 2200i COMBO 5 in 1 welding machine (MIG / MMA / TIG DC (HF) / PLASMA)

Name: HORNEC® smart SynMIG 2200i COMBO 5 in 1 welding machine (MIG / MMA / TIG DC (HF) / PLASMA)
Brand: Hornec
SKU: 1545771

Reference 1545771

Ask for the price and delivery time by phone

You can buy our products from our partner stores

Interested in a B2B partnership?

b2b@tolas.lt +370 648 47770

Opens in a new window

Description

Suvirinimo aparatas HORNEC smart SynMIG 2200i COMBO 5 in 1

Welding machine HORNEC® smart SynMIG 2200i COMBO 5 in 1

MIG / MMA / TIG DC (HF) / plasma cutting in one machine

HORNEC® smart SynMIG 2200i COMBO is designed for users who need more than just a MIG welder. By switching the mode and connecting the torches and cables correctly, the same machine can be used for wire welding, coated electrode welding and TIG welding, as well as plasma cutting of electrically conductive metals.

Applications:

car and agricultural machinery repair;
manufacturing of gates, fences, shelves and other metal structures;
garage, country house and home workshop jobs;
welding of thin and medium-thickness metal;
plasma cutting of sheet metal and profiles;
mobile repair and installation work.

Why choose this model?

Five work processes in one compact machine.
Synergic MIG mode helps you select the right settings faster.
Welding with shielding gas or self-shielded FLUX wire is possible.
HF TIG arc ignition lets you start work without touching the workpiece with the electrode.
Integrated plasma cutting up to 50 A.
Digital control, 2T, 4T and SPOT operating modes.

Advanced IGBT inverter technology
The welding machine is an inverter type and uses advanced IGBT technology. The inverter converts the 50Hz/60Hz AC voltage from the mains into DC, which is then transformed back into AC voltage by a high-frequency (20 kHz) converter.

IGBT technology allows efficient adjustment of welding parameters, ensures a stable arc and reduces energy losses.

HORNEC® SynMIG 2200i COMBO operating modes

Synergic MIG

The machine helps match the welding voltage and wire feed parameters to the selected wire, its diameter and shielding gas. Convenient when you need to start working quickly.

Manual MIG

Allows separate adjustment of voltage and wire feed speed. Suitable for experienced users who want to fine-tune the arc to the metal, wire and welding position.

MMA

Welding with coated electrodes. A practical choice for repair, installation and outdoor work when no wire feeder or shielding gas cylinder is needed.

TIG DC (HF)

TIG mode is intended for cleaner and more precisely controlled welds. HF high-frequency ignition forms the arc without touching the tungsten electrode to the workpiece. *DC mode (direct current) does not support aluminium welding.

Plasma cutting

Cutting current of up to 50 A allows cutting of electrically conductive metals. Adjustable gas flow before and after cutting helps preserve the torch consumables.

HORNEC SynMIG 2200i COMBO skaitmeninis valdymas

Synergic and manual MIG control

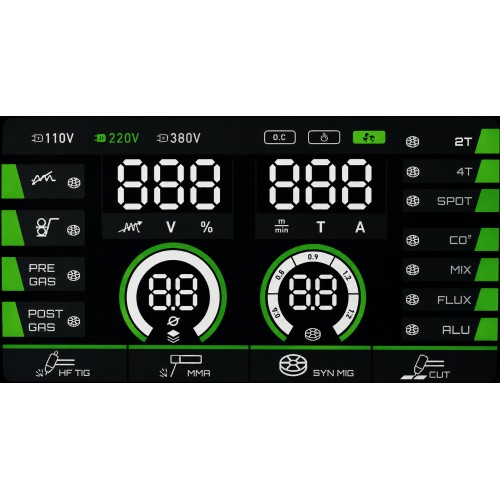

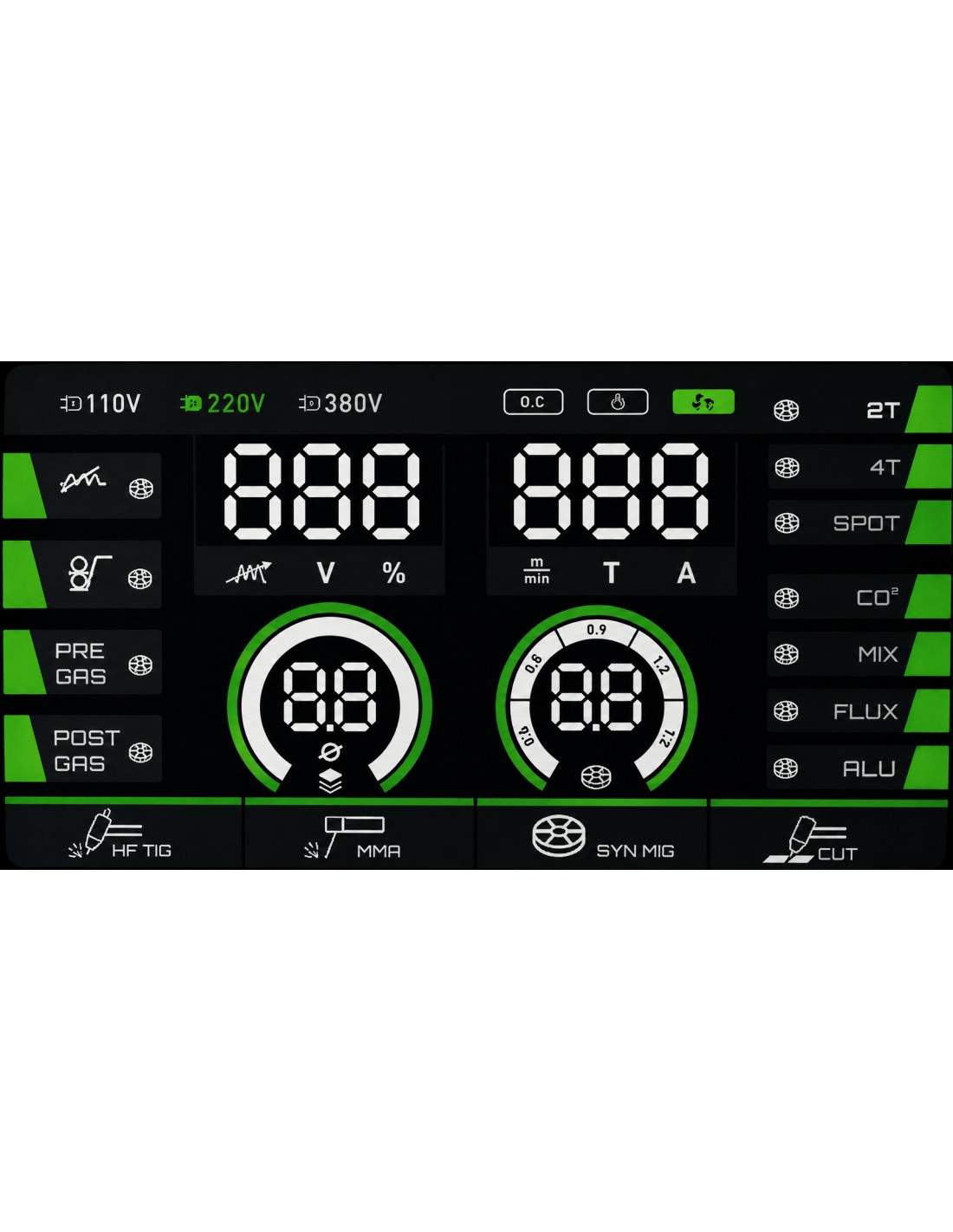

The digital control panel lets you select synergic or manual MIG mode, wire diameter, shielding gas type and additional arc parameters. Settings are clearly visible on the display, making it easier to prepare the machine for work and control the welding process.

Wire diameter: 0.6 / 0.8 / 0.9 / 1.0 mm.
Gas selection: CO₂, gas mixture, argon or gasless FLUX mode.
2T mode: the torch button is held down throughout welding.
4T mode: more convenient for longer welds, as the button does not need to be held constantly.
SPOT: spot welding with a set time of approx. 0-3 seconds.
Arc softness adjustment: helps tune the arc character and amount of spatter.
Pre-gas / Post-gas: adjustable gas flow before and after welding.

Stable MIG wire feed

The easy-opening wire compartment simplifies spool replacement, wire threading and maintenance of the feed mechanism. Correctly adjusted roller pressure helps ensure smooth wire movement and a more stable welding arc.

Wire diameters of 0.6-1.0 mm can be selected.
For steel, use steel wire with CO₂ or an argon/CO₂ mixture.
Self-shielded FLUX wire allows work without a shielding gas cylinder.
The aluminium MIG program is designed for 1.0 mm Al wire with argon gas.
Recommended universal gas mixture for steel - approx. 83 % argon and 17 % CO₂.

HORNEC SynMIG 2200i COMBO vielos padavimo mechanizmas

Precise HF TIG arc ignition

High-frequency HF ignition forms the arc without touching the tungsten electrode to the workpiece. This helps reduce the risk of electrode and weld contamination and allows a more precise start of welding.

Adjustable pre-weld gas flow time.
Adjustable post-weld gas flow protects the weld and tungsten electrode while they cool.
A gap of approx. 3 mm or less to the workpiece is recommended.
It is recommended to hold the torch at an angle of no more than 15°.

Plasma cutting up to 50 A

The integrated plasma cutting mode is intended for cutting electrically conductive metals. Where possible, it is recommended to start cutting from the edge of the workpiece - this reduces molten metal blowback and preserves the torch parts.

Adjustable cutting current range: 10-50 A.
Adjustable pre-gas and post-gas times.
A distance of approx. 1.5 mm from the workpiece surface is recommended.
The pilot arc should not be kept on longer than necessary.

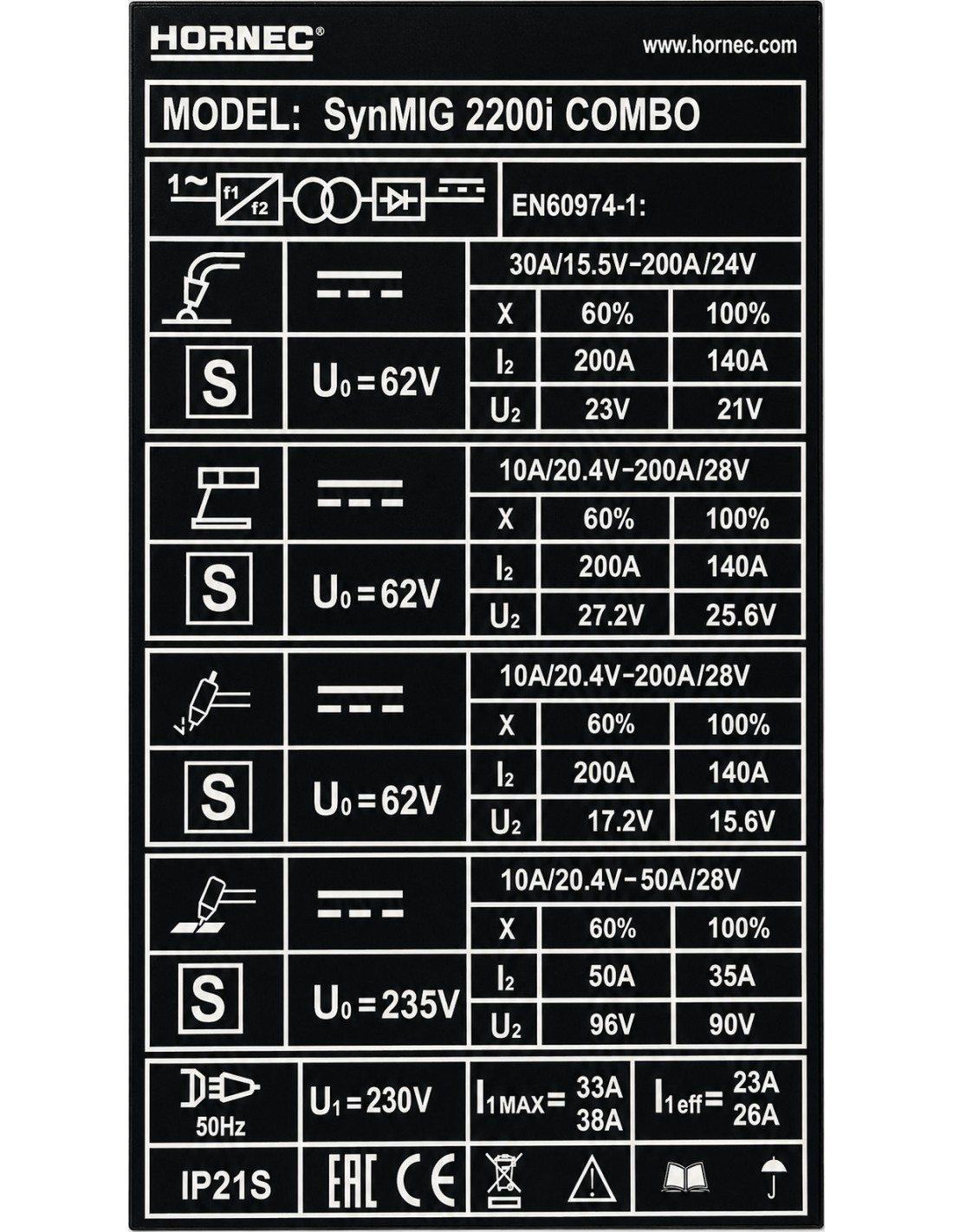

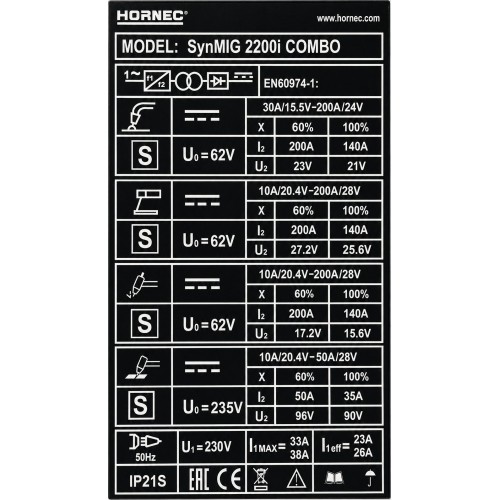

Duty cycle according to the machine rating plate

Process	60 % duty cycle	100 % duty cycle
MIG	200 A / 23 V	140 A / 21 V
MMA	200 A / 27.2 V	140 A / 25.6 V
TIG	200 A / 17.2 V	140 A / 15.6 V
Plasma cutting	50 A / 96 V	35 A / 90 V

Duty cycle indicates how long the machine can operate within a 10-minute period at the specified current. For example, a 60 % duty cycle means up to 6 minutes of operation, with the remaining time for cooling. The duty cycle may be reduced by high ambient temperature, insufficient ventilation or covered air vents.

HORNEC IGBT inverterio technologija

Main technical specifications

Model	HORNEC® smart SynMIG 2200i COMBO
Power supply	230 V, 50 Hz, 1 phase
MIG range	30-200 A
MMA range	10-200 A
TIG range	10-200 A
Plasma cutting range	10-50 A
No-load voltage	62 V in welding modes; 235 V in plasma cutting mode
Wire diameter	0.6 / 0.8 / 0.9 / 1.0 mm
Protection class	IP21S
Standard	EN 60974-1

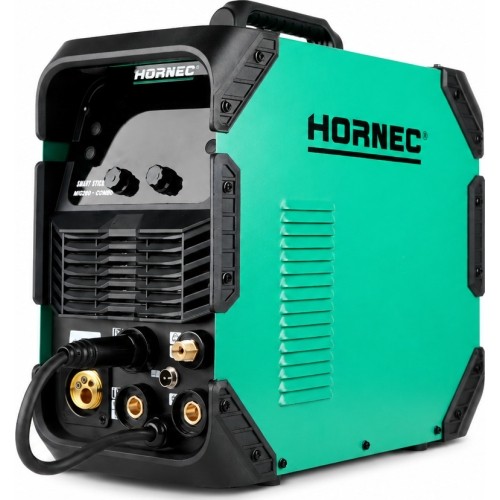

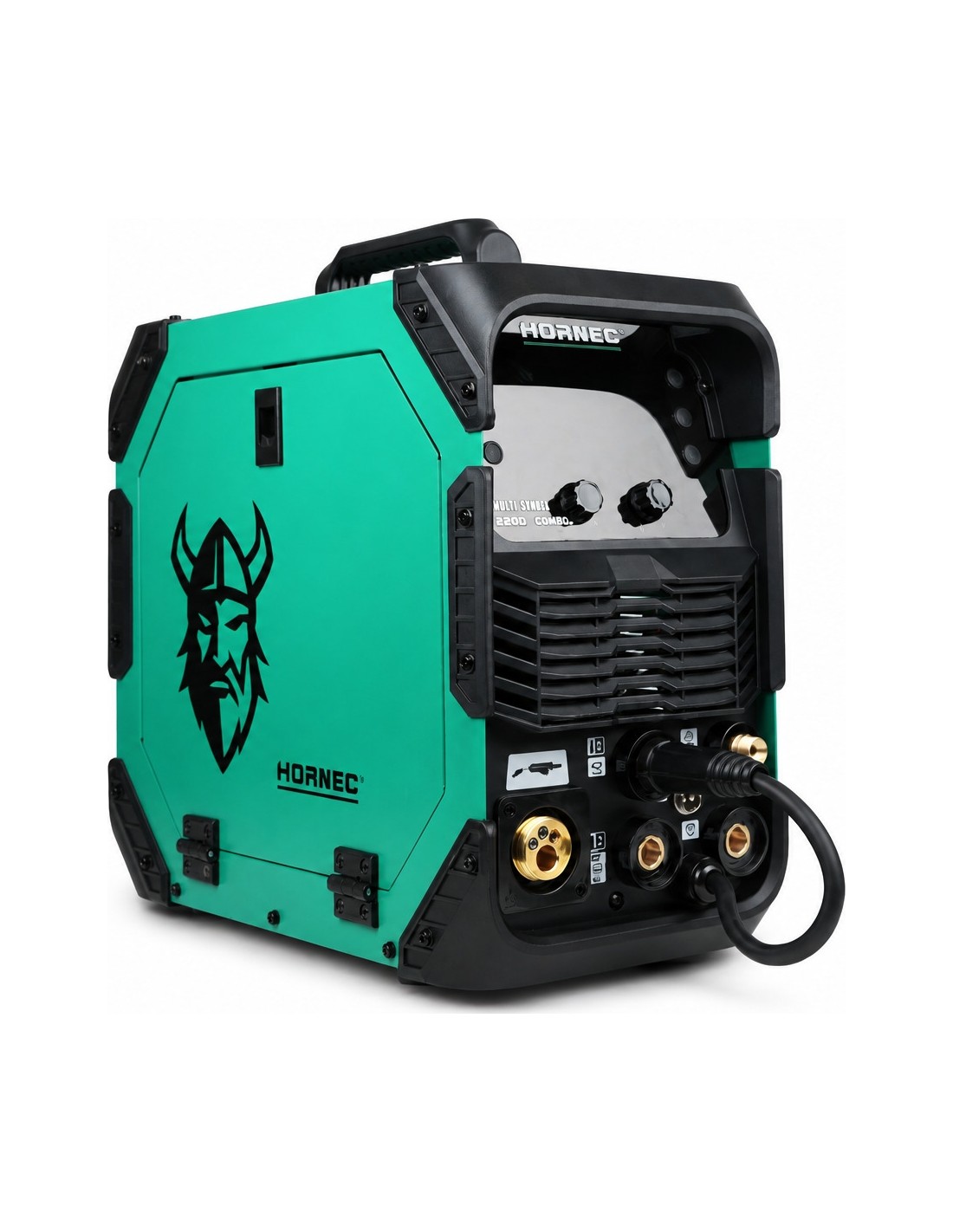

HORNEC SynMIG 2200i COMBO konstrukcija

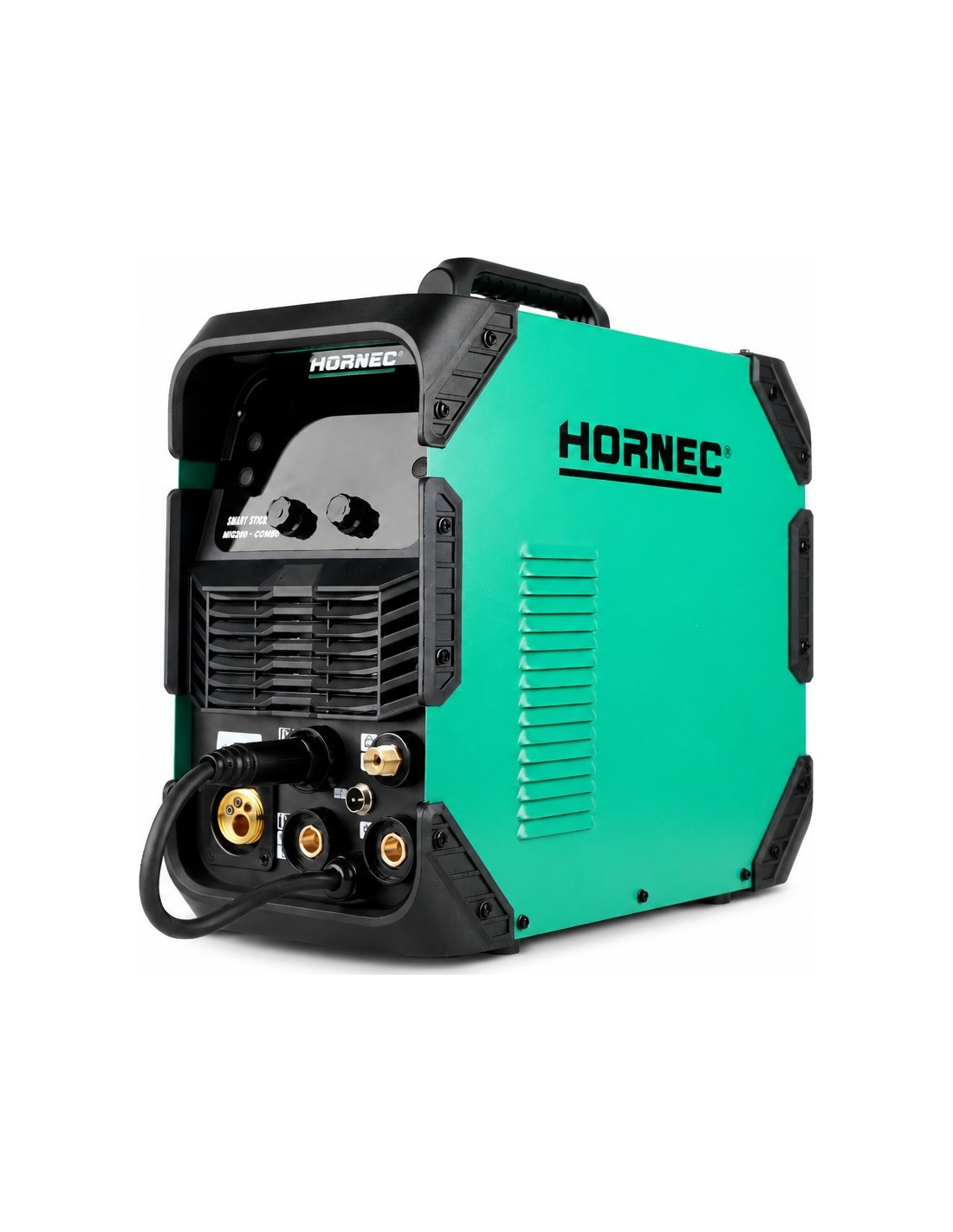

Practical in the workshop and garage

Integrated handle makes it easier to move the machine between workstations.
Digital display clearly shows the selected parameters.
Processes combined in one housing reduce the need for separate machines.
Ventilation openings and active cooling help dissipate heat generated during operation.
IP21S class is intended for work in a dry environment protected from rain.
Changeable polarity allows the machine to be properly set up for work with gas or self-shielded wire.
Large 35/50 connectors - ensure even greater welding current stability.
Euro-type torch connector - easy torch replacement and compatibility with popular MIG torches.

Important before starting work

The machine is intended for welding and plasma cutting of electrically conductive metals.
Use appropriate eye, face, hand and body protection.
Work in a well-ventilated, dry environment.
Do not cover the ventilation openings; leave enough free space around the machine.
Do not exceed the duty cycle specified on the rating plate.
If the machine overheats, stop work and let it cool down with the fan running.
Disconnect the machine from the mains before changing connections or torches or performing maintenance.

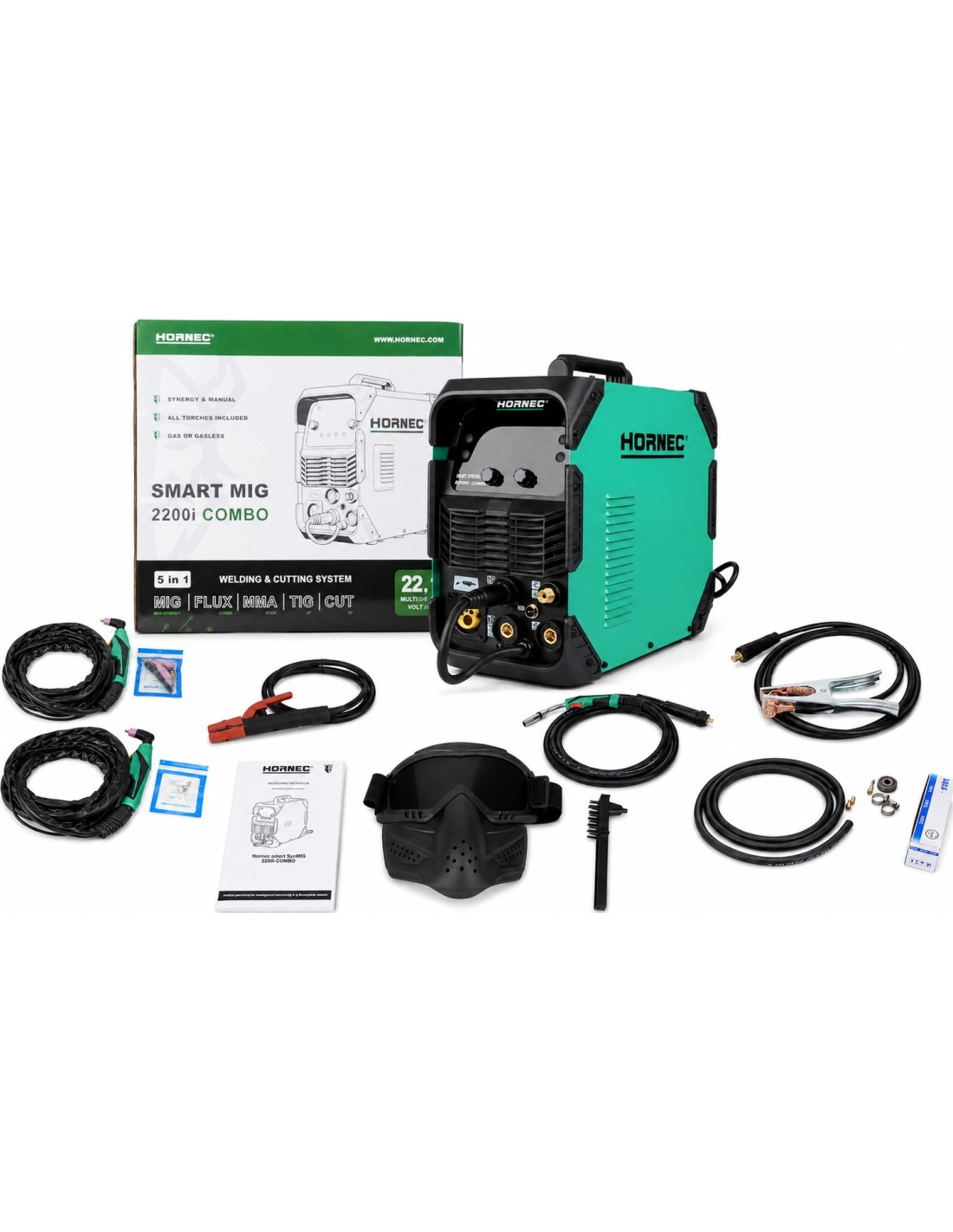

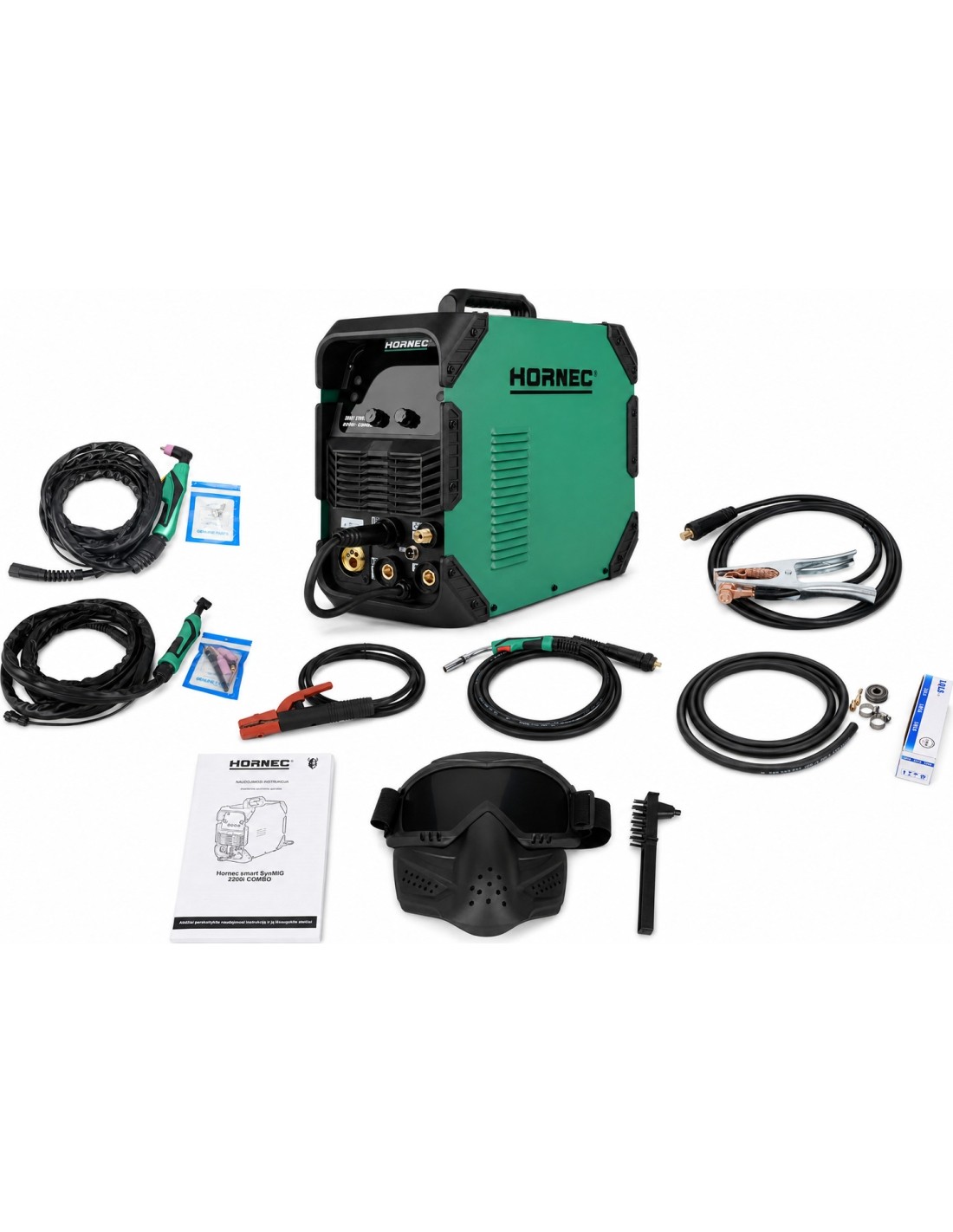

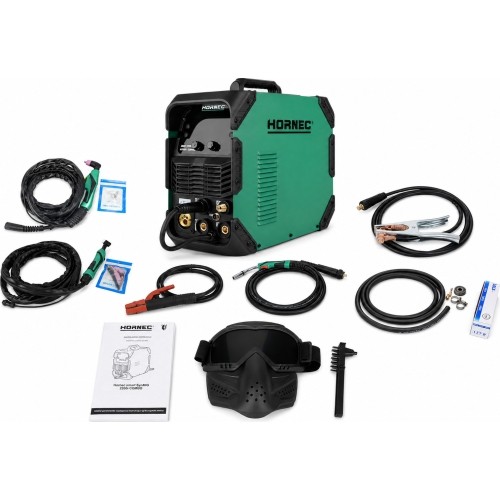

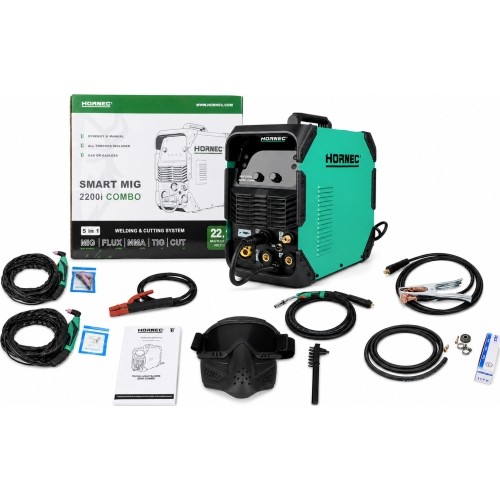

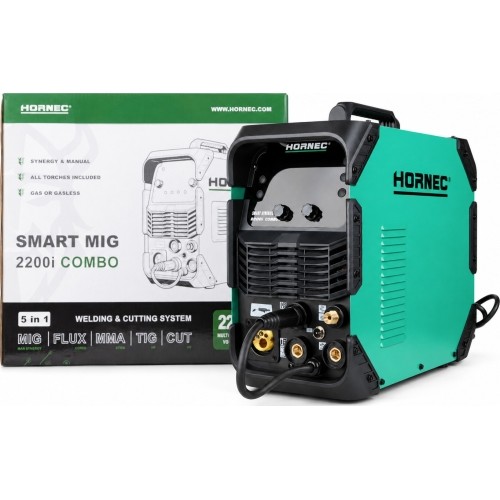

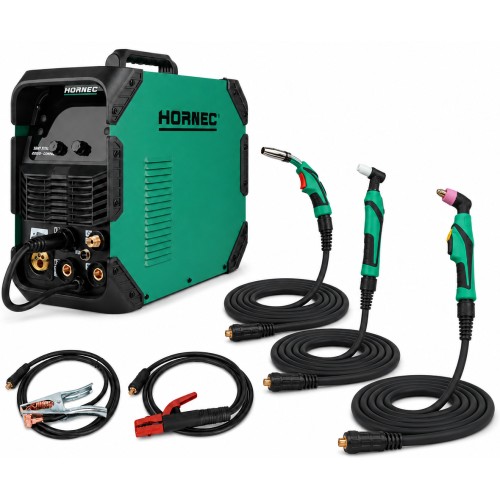

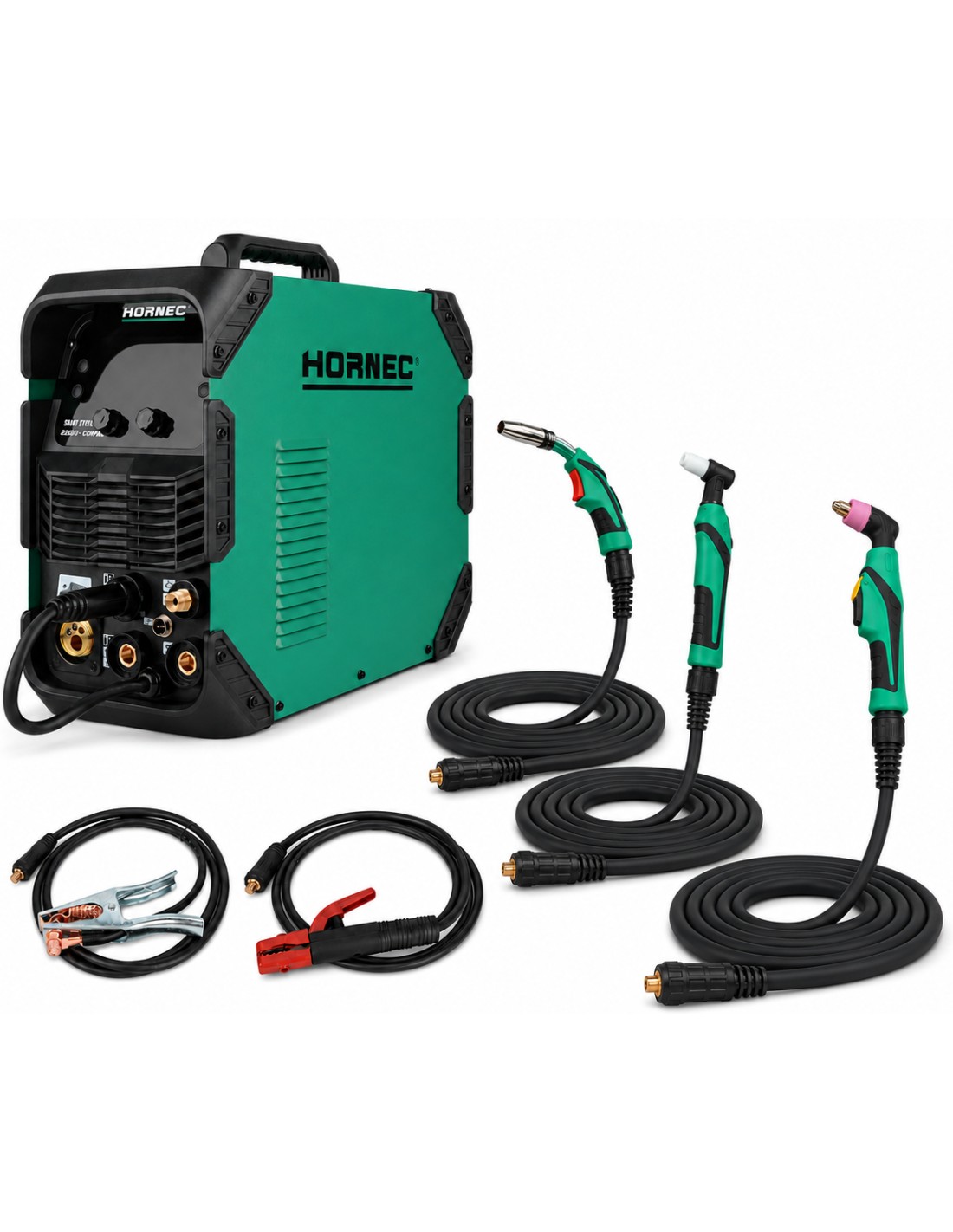

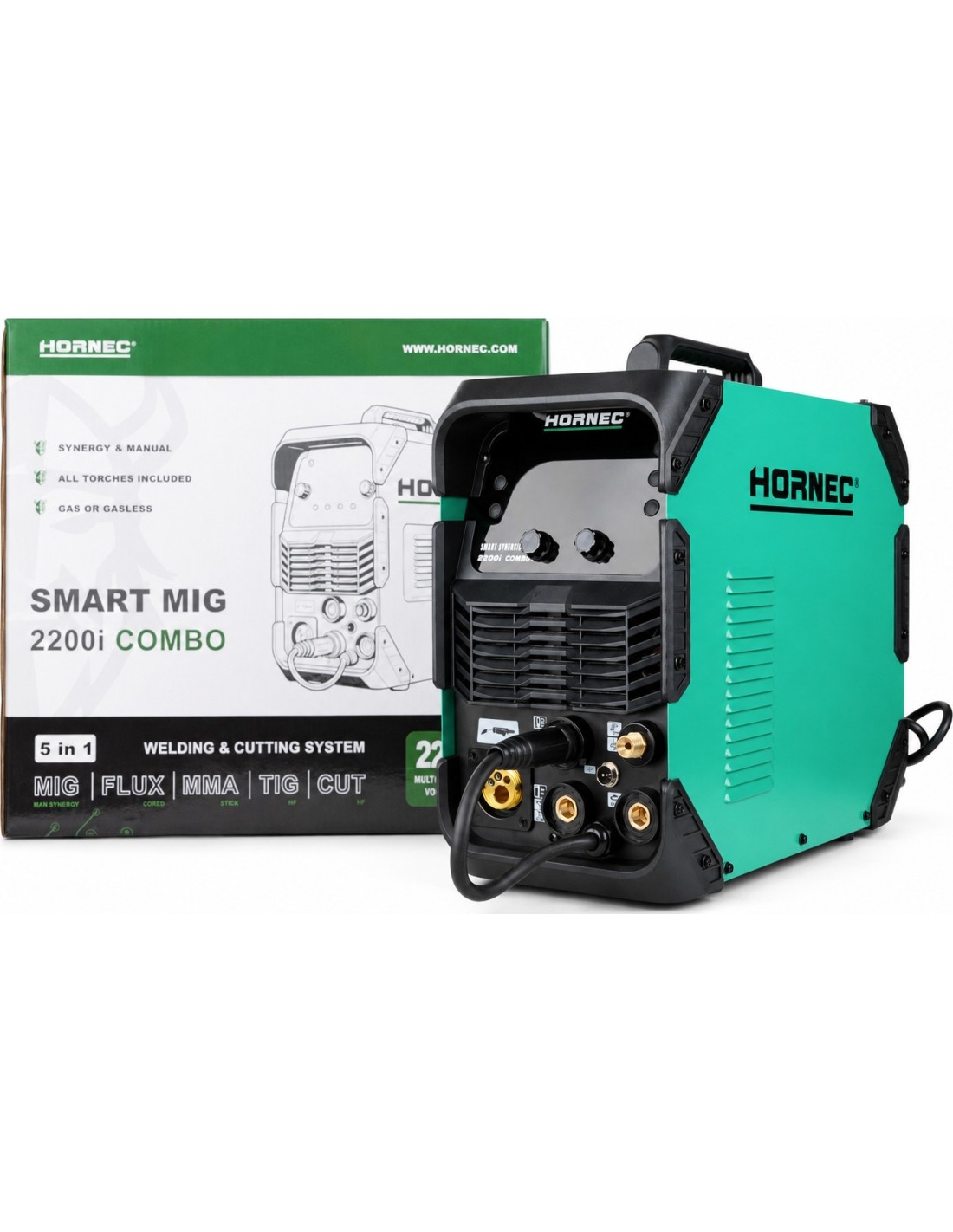

Package contents

HORNEC® smart SynMIG 2200i COMBO welding machine

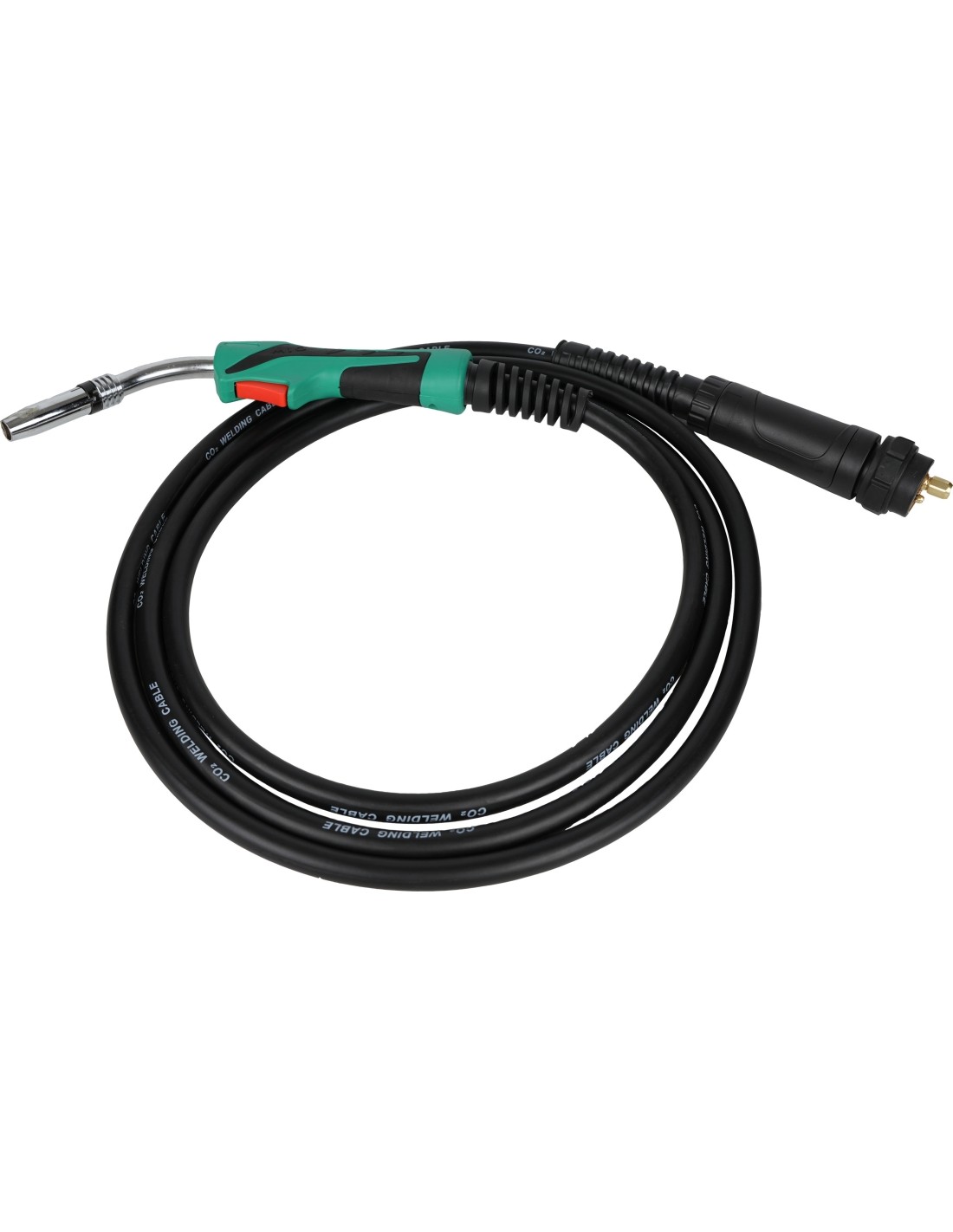

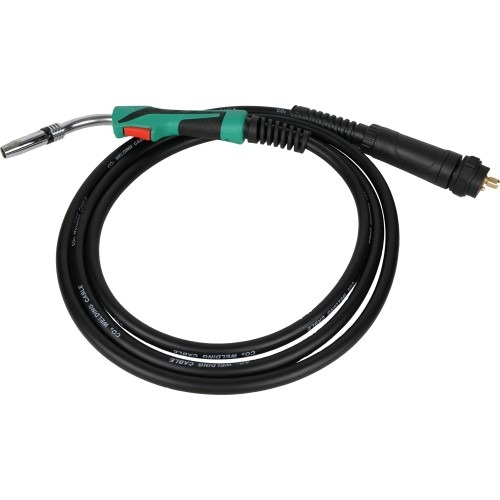

MIG torch M-24, EURO connector, 4 metres (with consumables)

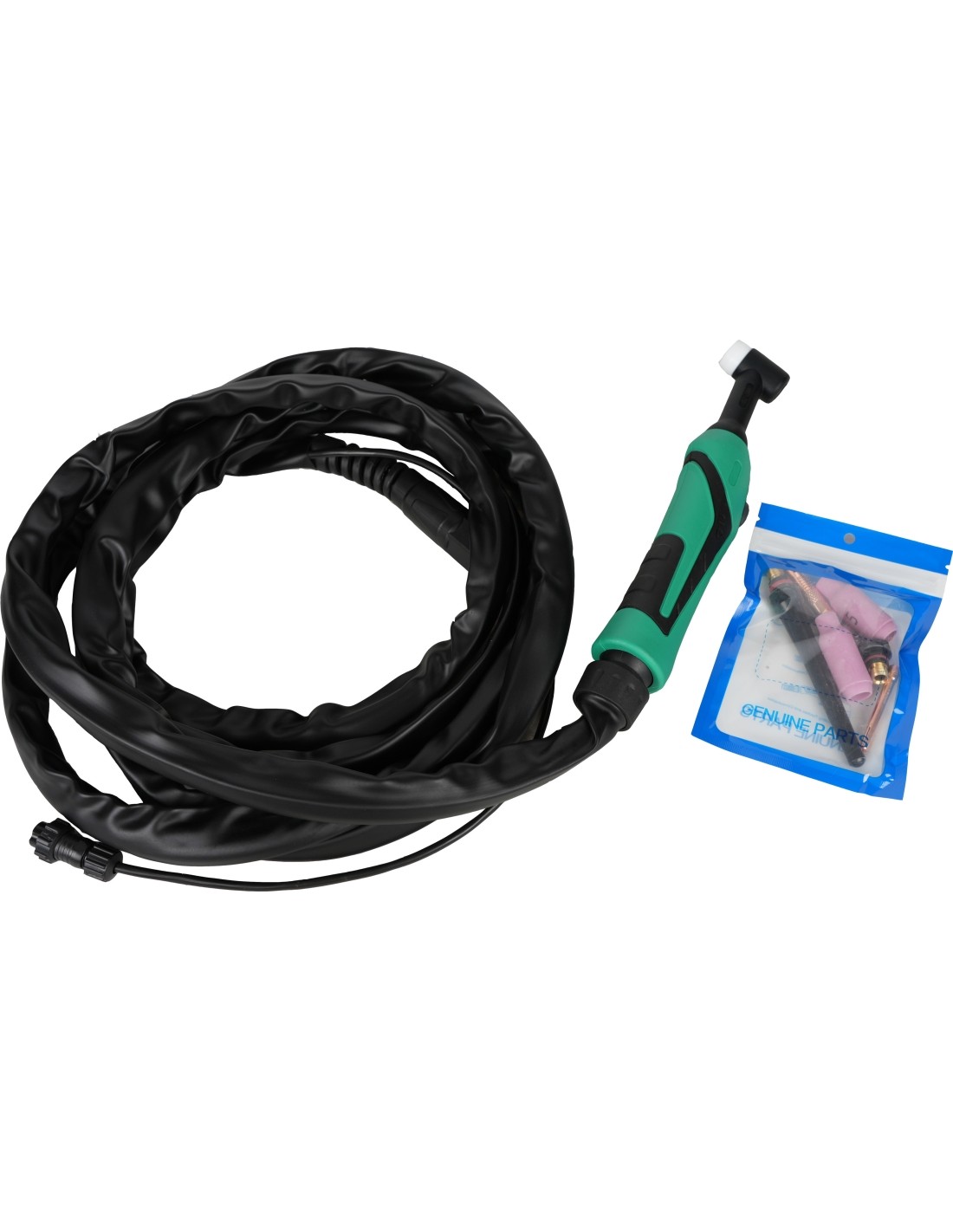

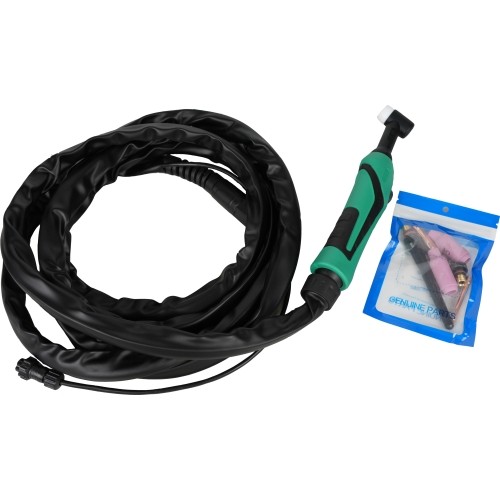

TIG torch, EURO connector, 4 metres (with consumables)

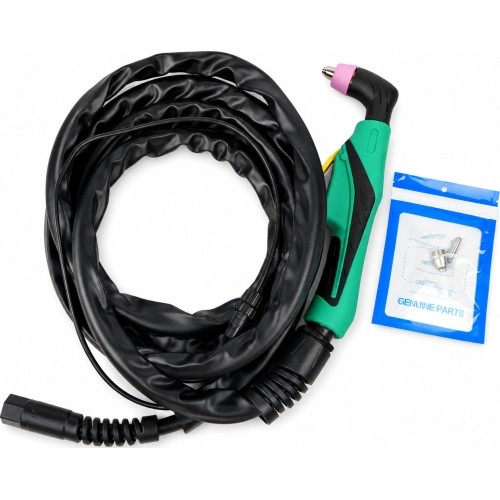

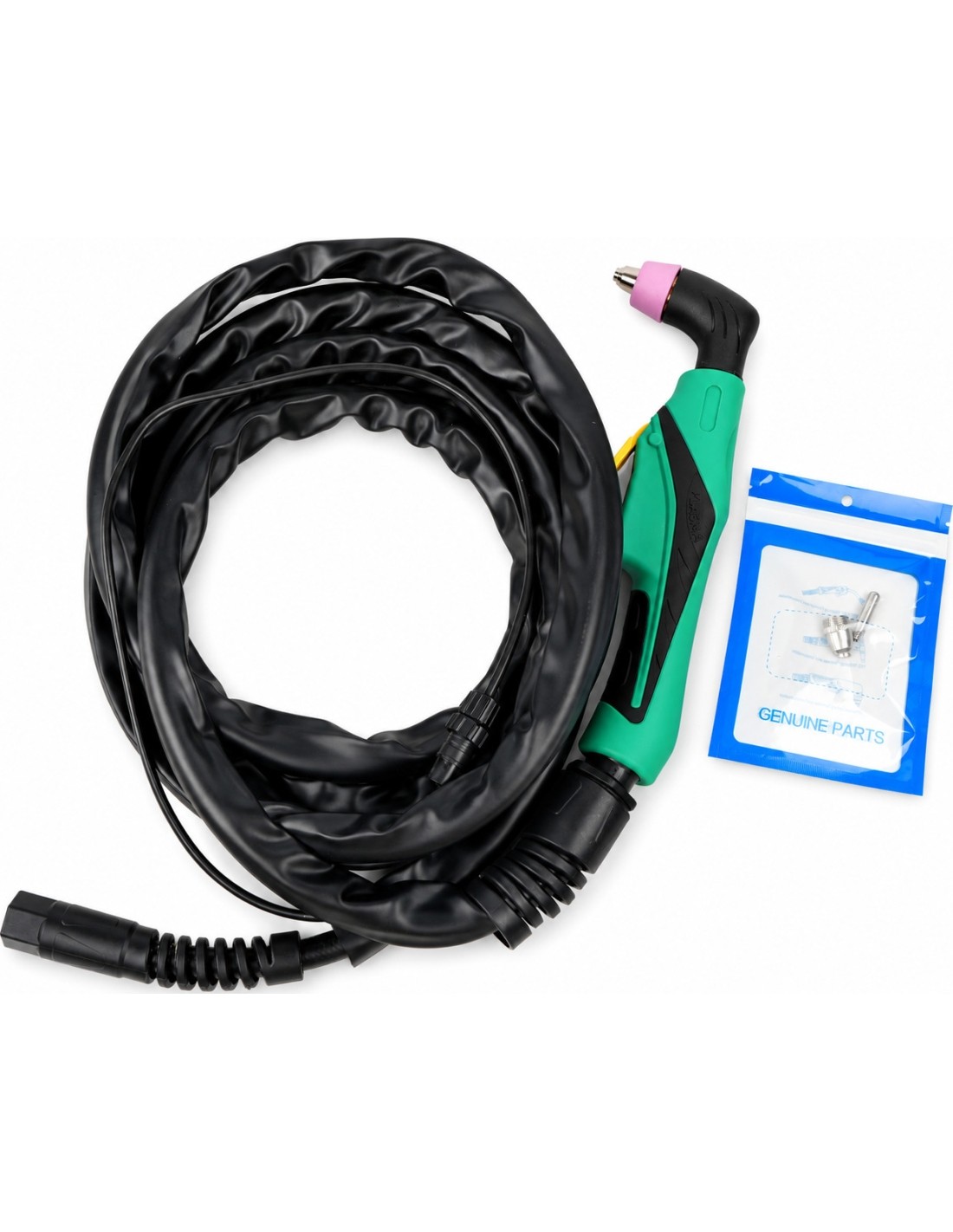

Plasma torch, EURO connector, 4 metres (with consumables)

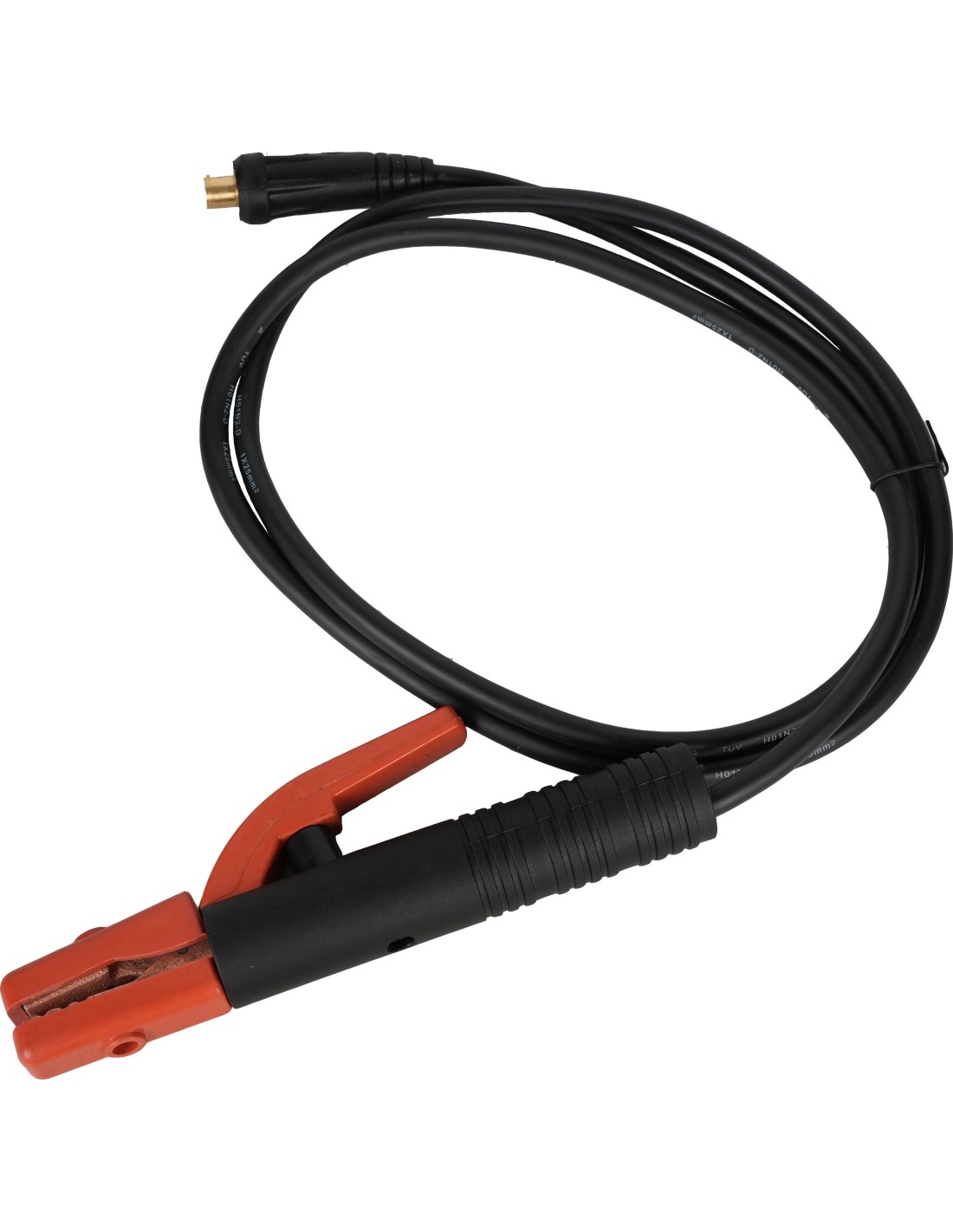

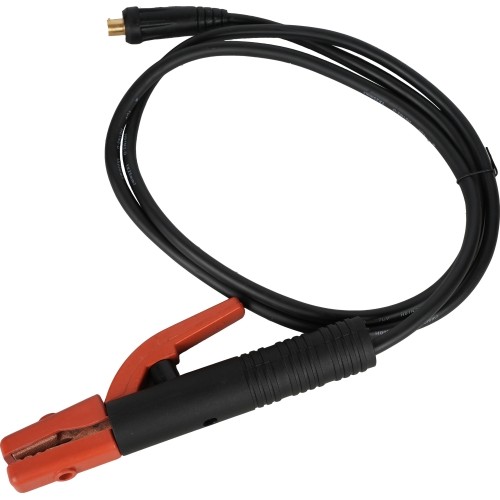

Electrode holder with 3 metre cable (16 mm2 cable, 35-50 mm connector)

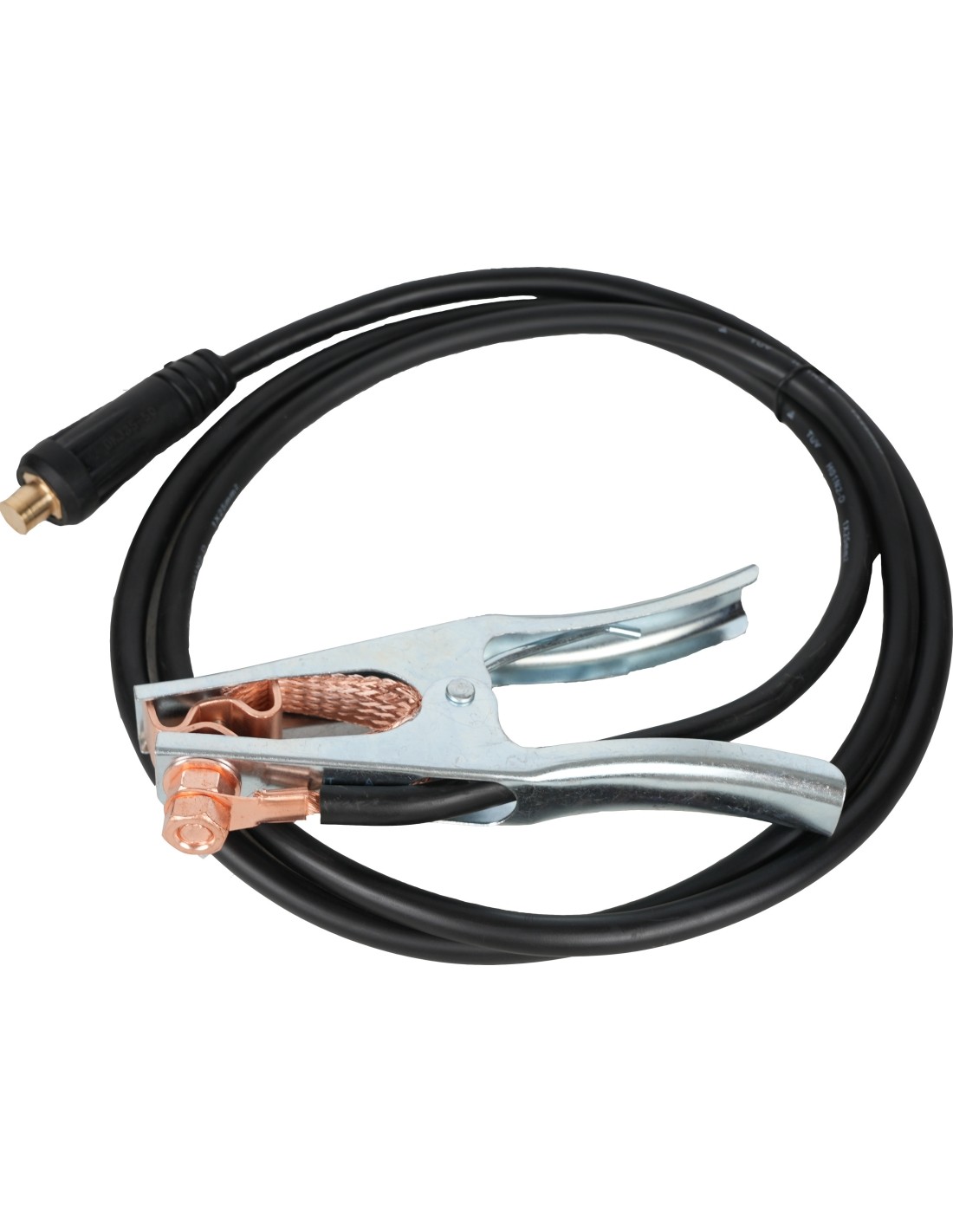

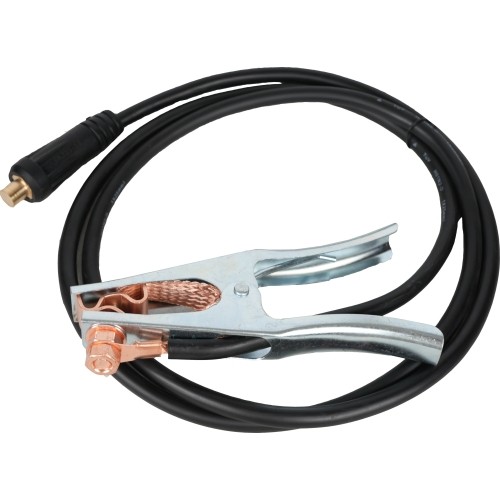

Ground clamp with 3 metre cable (16 mm2 cable, 35-50 mm connector)
machine power cord - 2.1 metres

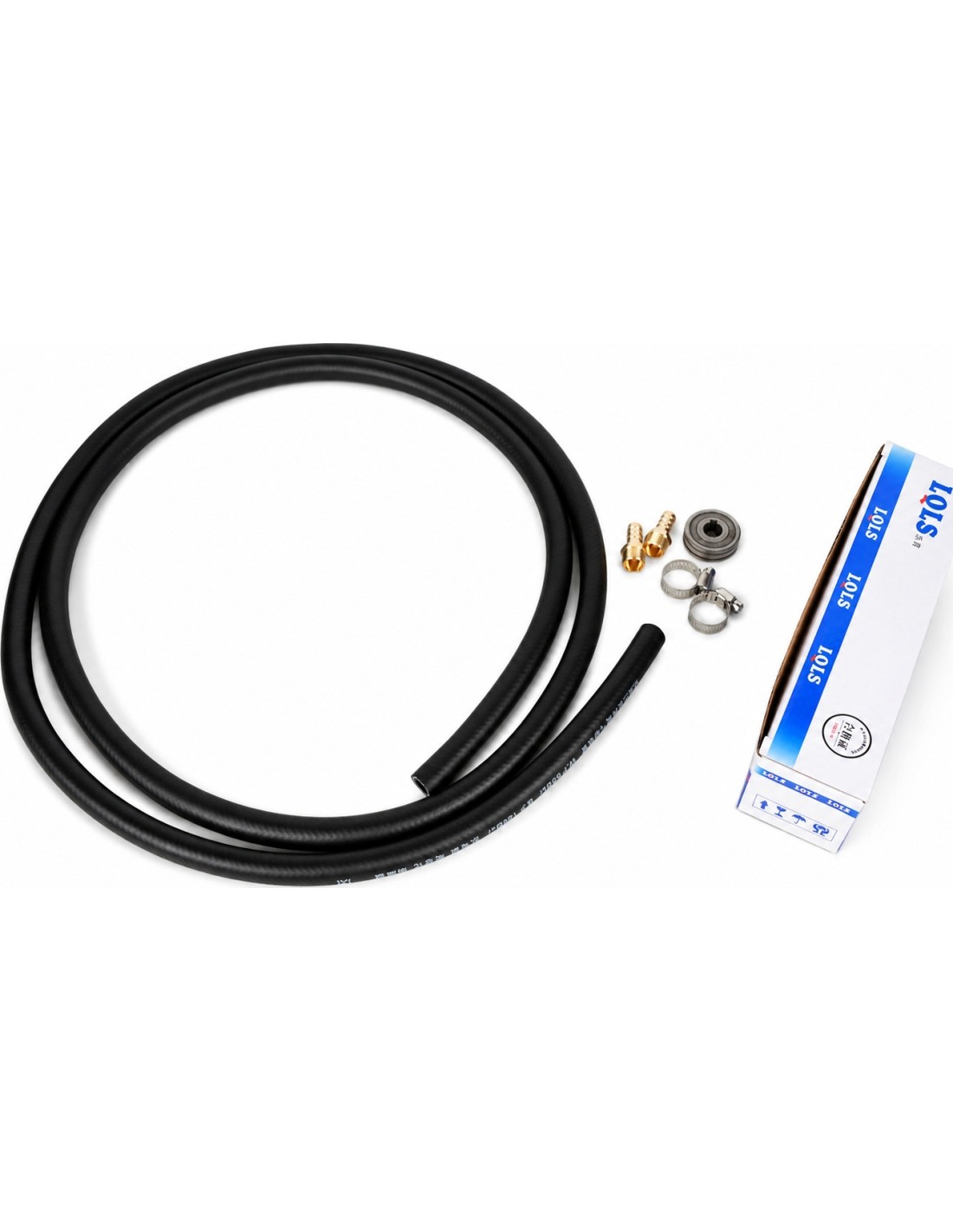

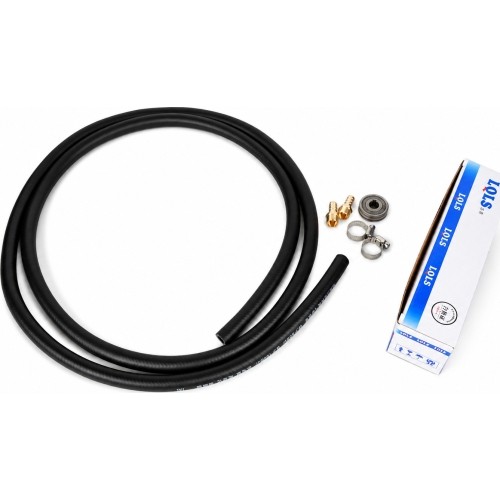

gas hose and connection fittings (for compressor)

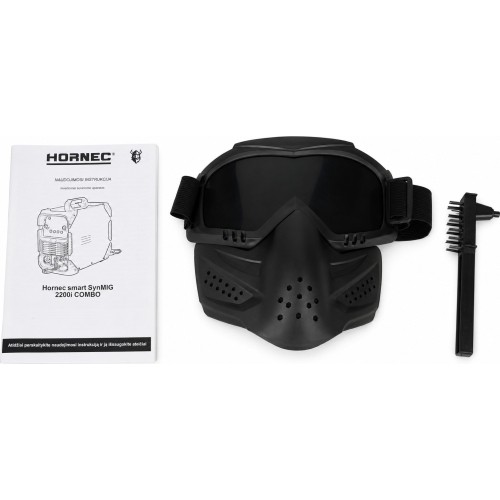

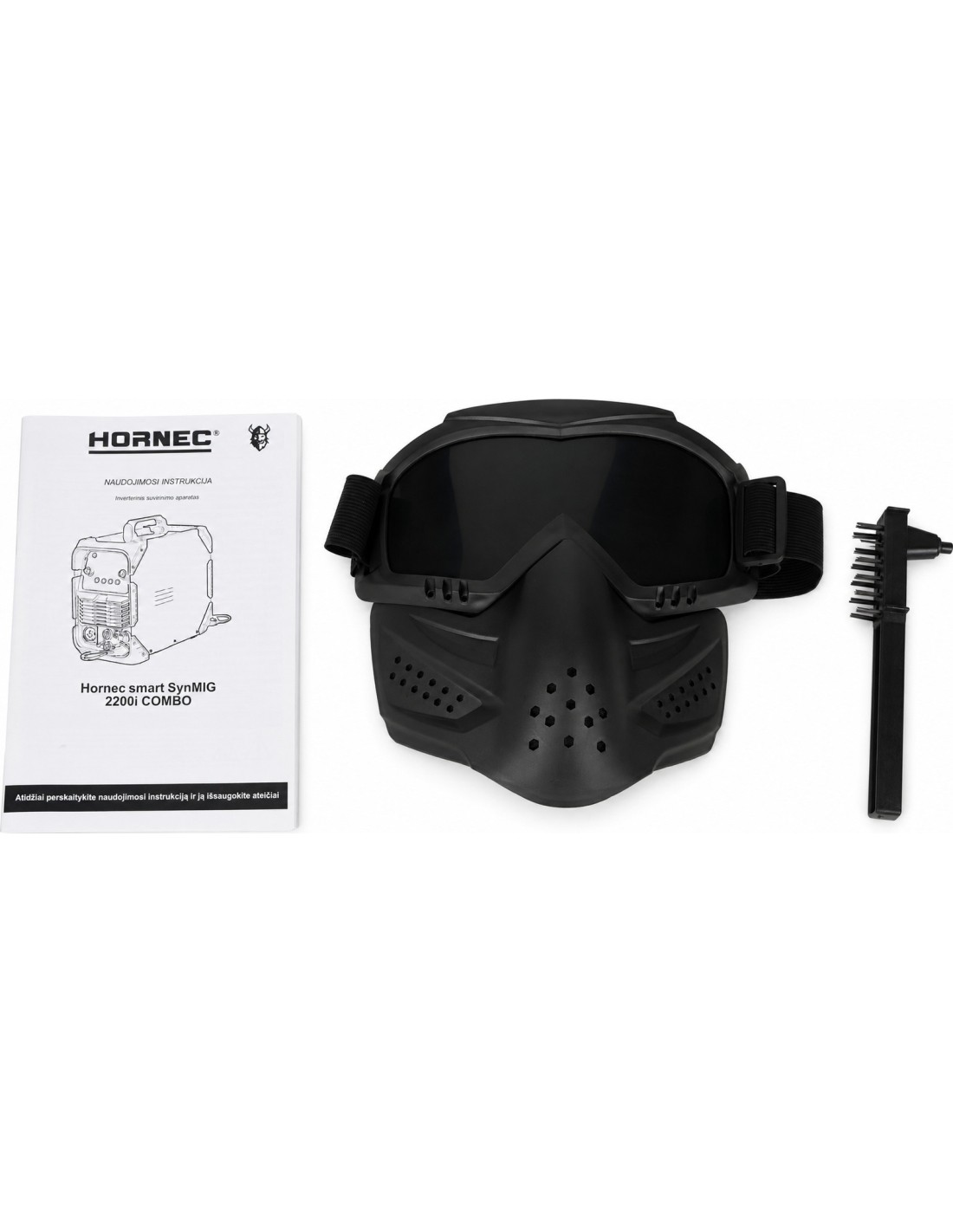

protective welding glasses / shield
"2 in 1" metal cleaning hammer-brush
User manual EN/LT

The appearance of the package contents and the quantity of small consumables may vary depending on the specific product batch.

HORNEC smart SynMIG 2200i COMBO komplektacija

Versatile 5 in 1 welding machine for home workshops and repair work

If you are looking for one machine for MIG, MMA, TIG DC (HF) welding and plasma cutting, HORNEC® smart SynMIG 2200i COMBO offers a wide range of functions and convenient digital control. Synergic MIG mode simplifies the selection of settings, while manual control allows the machine to be tuned more precisely to the specific job.
