- Funkcijos
- 2T/4T, Fan Stop, Hot Start, Mikrokontroler (MCU), Opcja Spool Gun, Pamięć ustawień, Podajnik 2-rolkowy, Podwójny Puls, Powypływ gazu MIG, Przedwypływ gazu, Puls MIG, Puls TIG, Regulacja ind
- Phase
- Vienfazis (230V)
- Control
- synergetic
- User Level
- for workshops and small businesses
- Weight, kg
- 15
- Suvirinimas / pjaustymas / kiti metodai
- Litavimas, MIG/MAG, MMA DC, TIG Lift (trinant) DC.
- Wire spool size [kg]
- 1
5 - Išmatavimai mm
- 49 x 22 x 37,5
- PFC function
- No
- Gamybos technologija
- IGBT
- Maximum current MMA [A]
- 200
- Maximum current TIG [A]
- 200
- MMA darbo ciklas [%].
- 60
- TIG darbo ciklas [%].
- 60
- Įtampa be apkrovos [V].
- 64
- Maksimalus MMA suvartojamos galios kiekis [kVA}
- 7,7
- Maksimalus TIG sunaudojamas galingumas [kVA].
- 7,7
- Pagrindinis metodas
- MIG/MAG
- Tinklo apsauga [A].
- 25
- Įmonių garantijos laikotarpis [metai].
- 1
- Išankstinis dujų srautas [s].
- 0 - 10
- TIG impulsų dažnis [Hz].
- 0,1-99
- TIG impulsų plotis [%].
- 5-95
- Serijinis Nr.
- Taip
- Maximum current MIG/MAG
- 200
- MIG/MAG darbo ciklas [%]
- 60
- MIG suvirinimo įtampa [V].
- 16,5 - 24
- MIG taškinio suvirinimo laikas [s].
- 0,1-9,9
- Maksimalus MIG/MAG sunaudojamas galingumas [kVA].
- 7,7
- Ritinio matmenys [mm].
- 30x22x10 2RA
- Suvirinimo įtampos korekcija
- -50 - +50%
- Padavėjo atvykimo greitis
- 1-15
- Vielos degimo laikas [s]
- -50 - +50%
- MIG dujų srautas [s].
- 0,1-50
- Maitintuvo tipas
- 2RA
- MIG impulsų dažnis [Hz].
- 0,5 - 5
- MIG impulsų plotis [%].
- 20-80
- MIG impulsų amplitudė [%] [%] MIG impulsų amplitudė
- 5-50
- TIG impulso amplitudė [%]
- 1-500
- Vielos ritės skersmuo ø [mm].
- 100, 200
- Inverter technology
- IGBT
- Shielding Gas Requirement
- Gas / Gasless

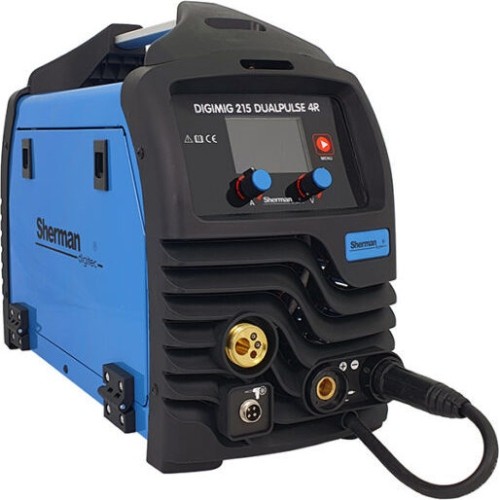

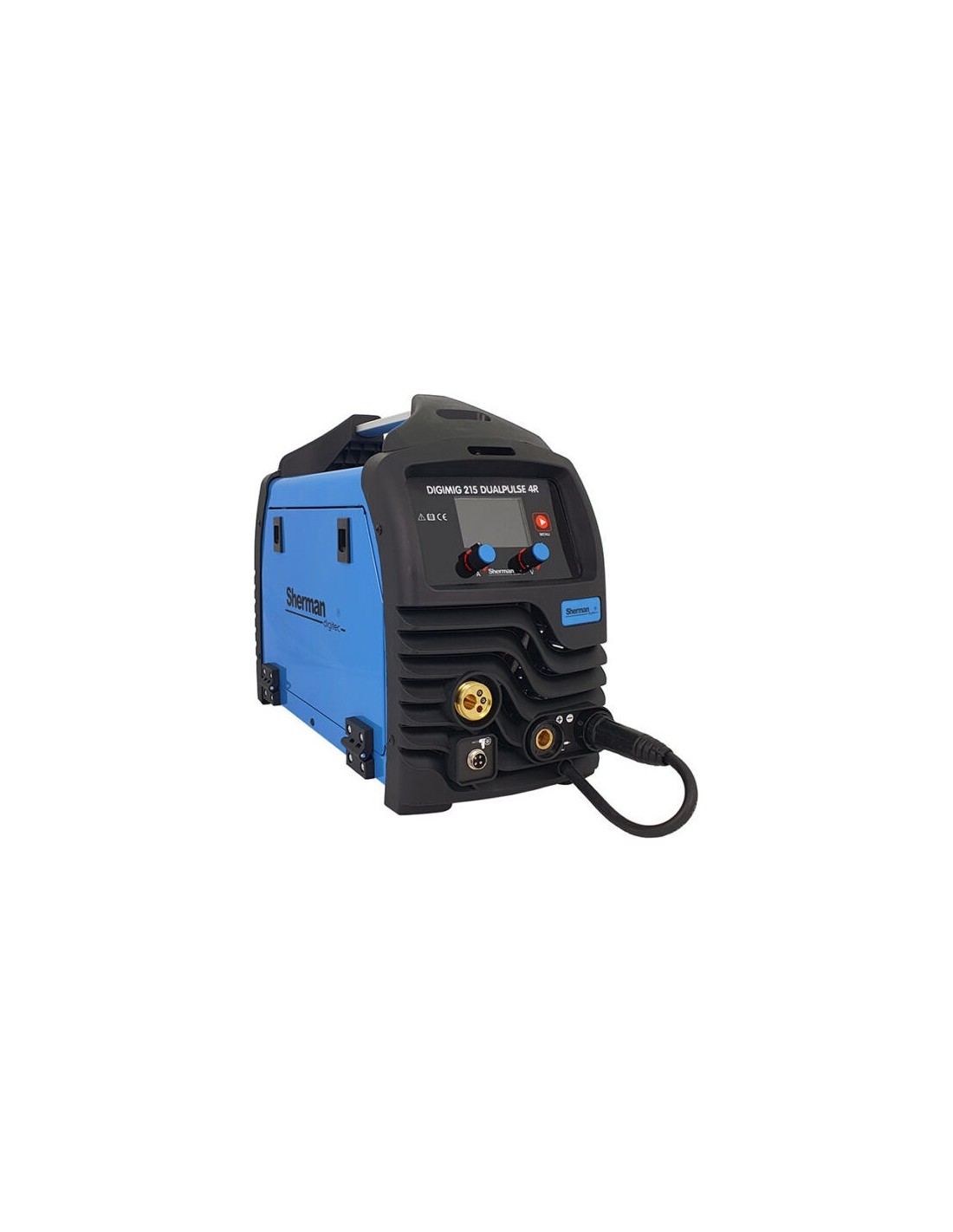

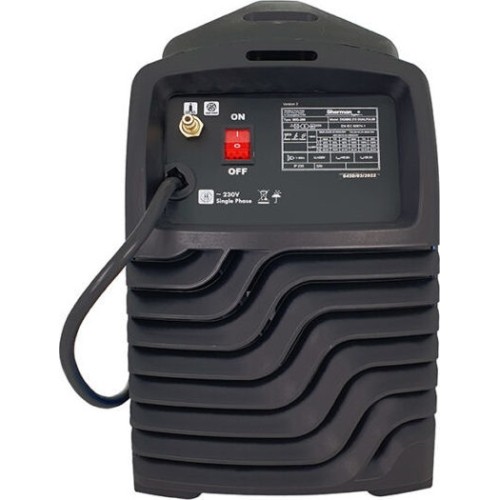

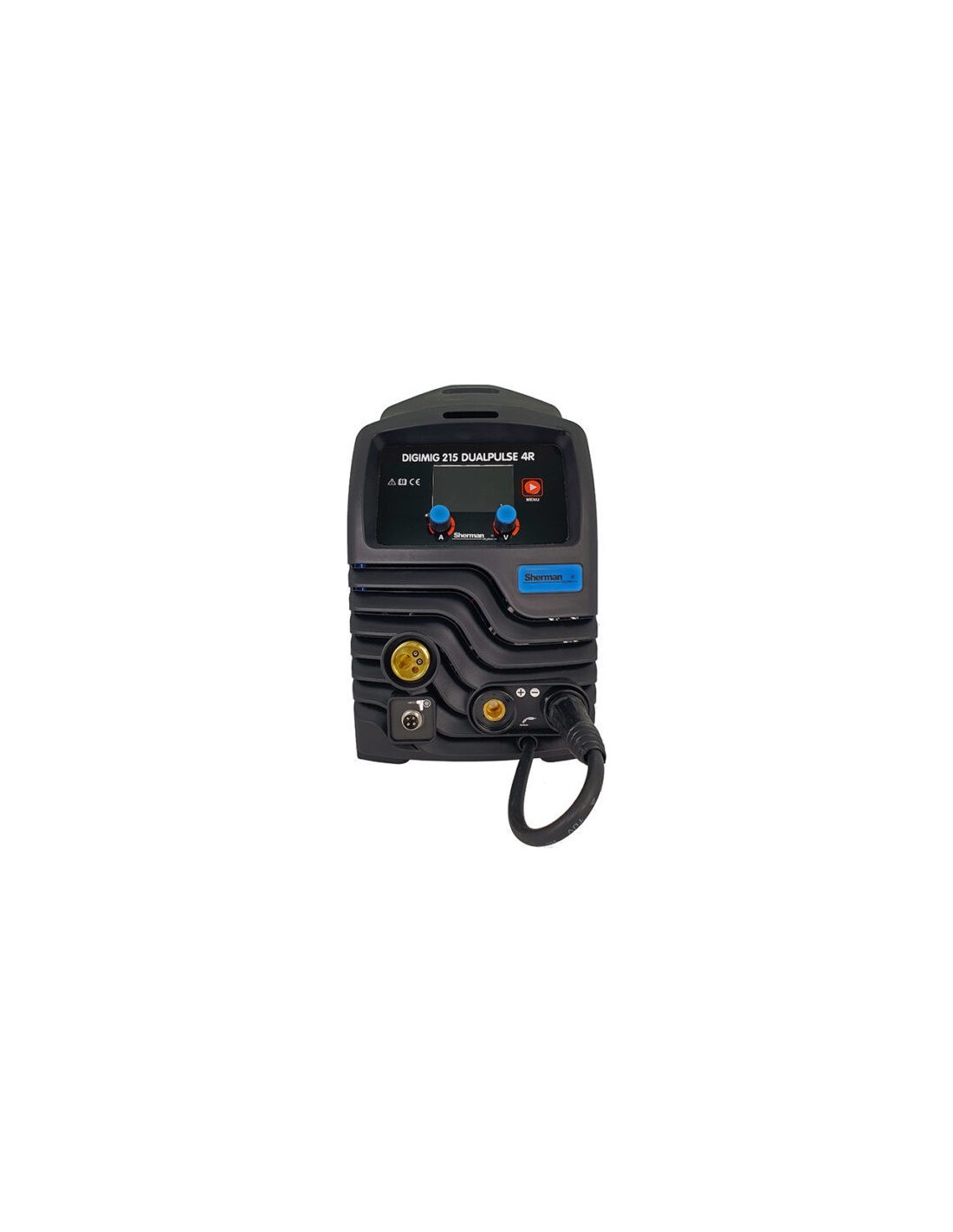

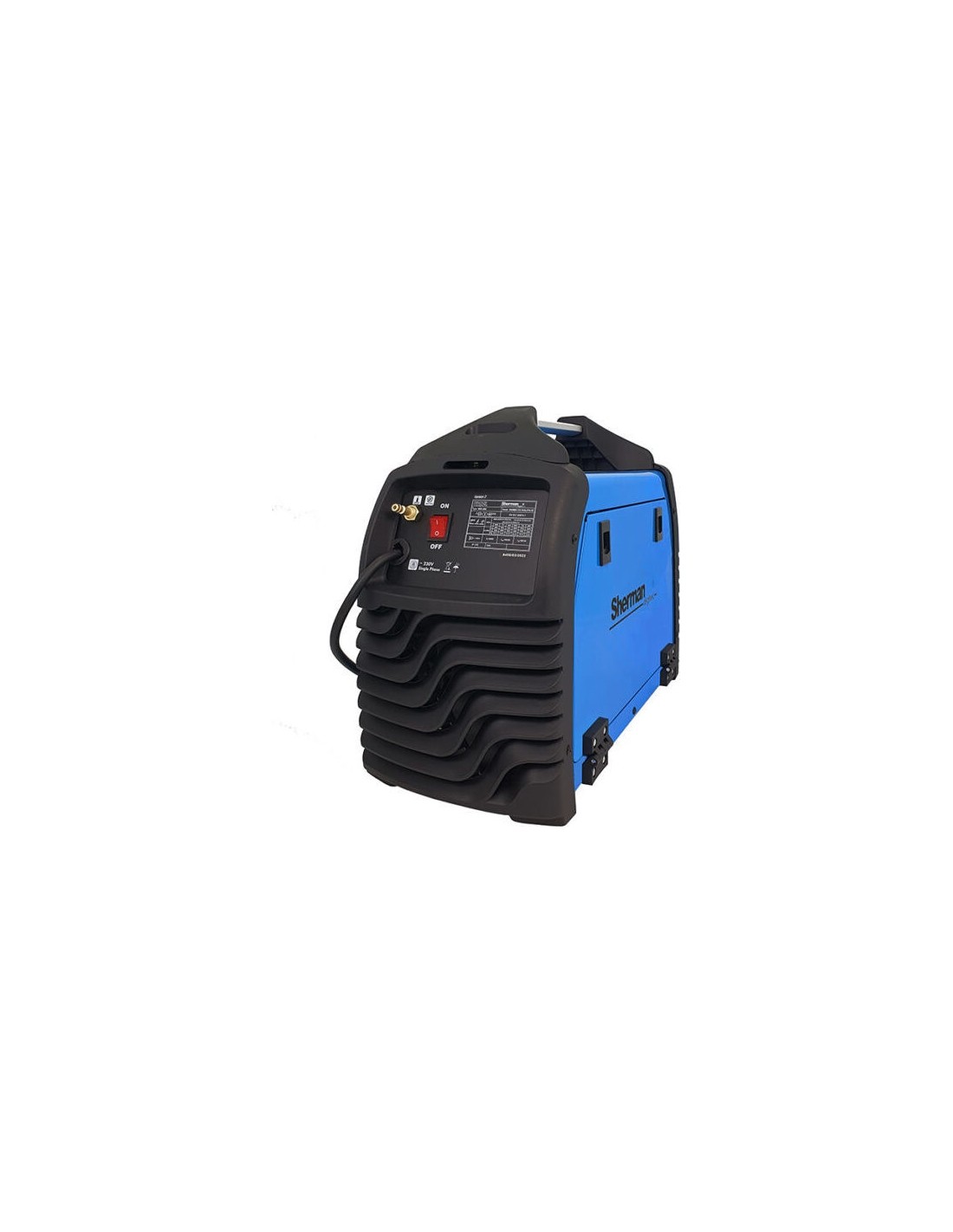

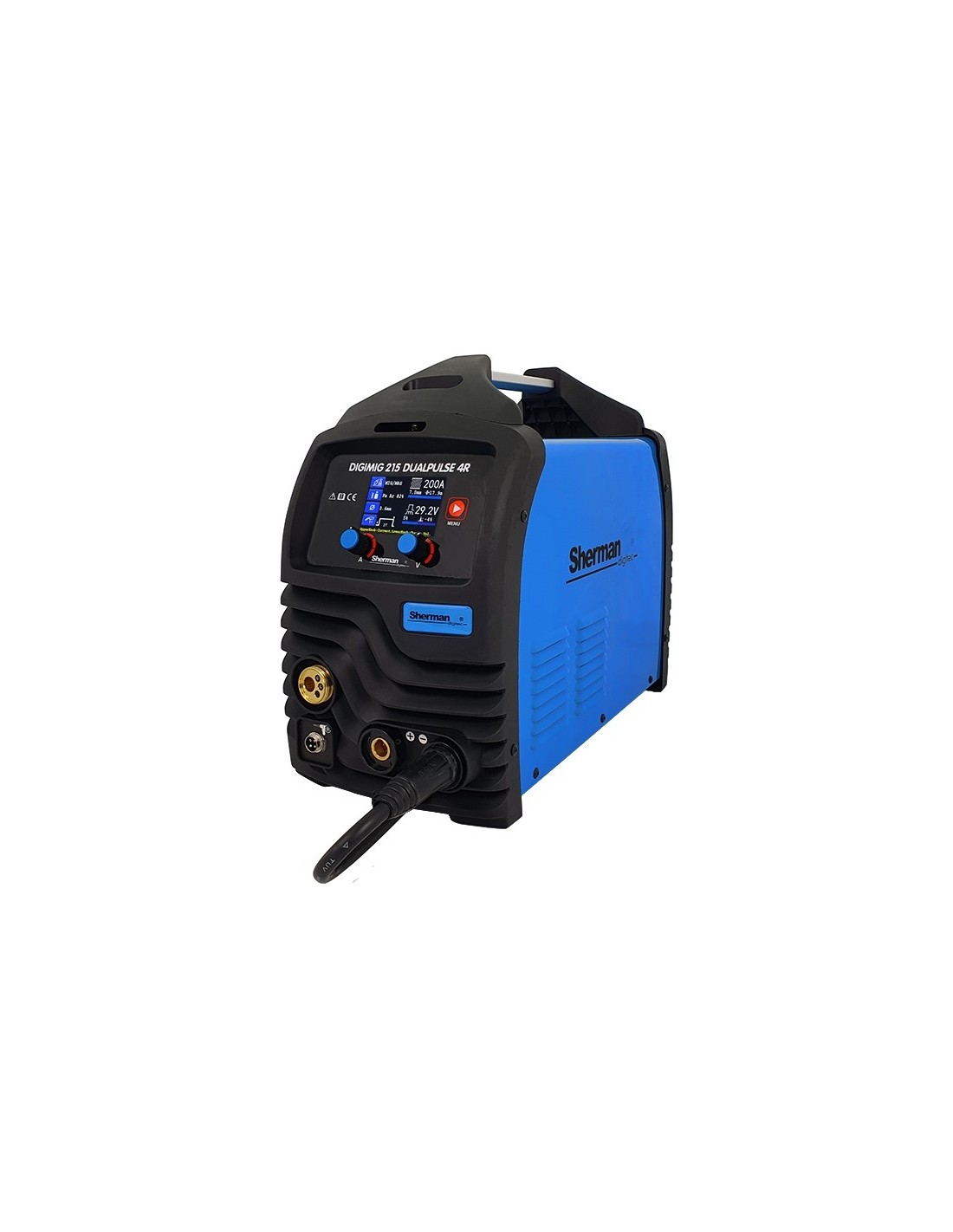

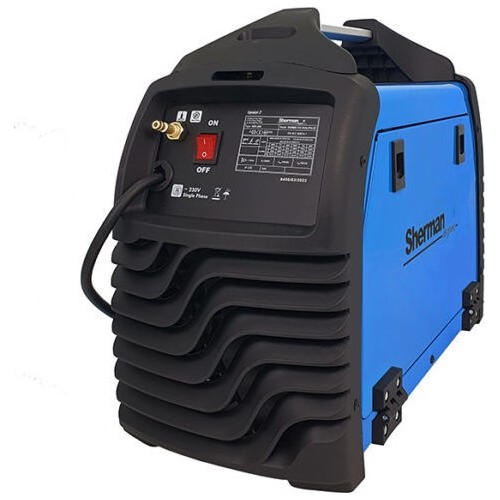

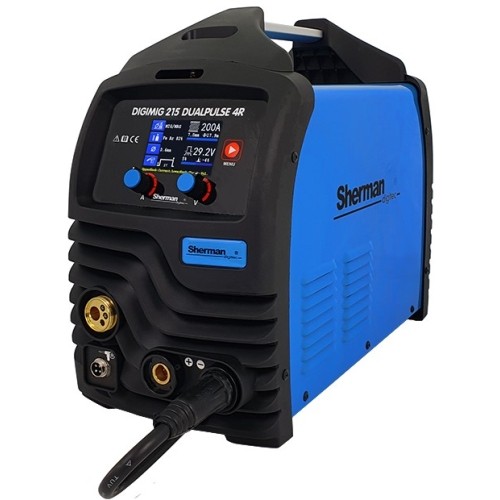

Inverter welder Sherman DIGIMIG 215 DUALPULSE 4R
1057354
Price
€549.00
VAT incl.
Stock Quantity:
Kaunas Shop
(1 pcs)
Central warehouse
not available
Delivery terms:
FREE pick up tomorrow, in the store, Raudondvario pl. 141, Kaunas
(€0.00)
We will deliver the product to you via: 1-2 w.d. Venipak
(€6.00)
We will deliver the product to you via: 1-2 w.d. Venipak pickup (paštomatas)
(€8.00)
Spare parts
Description
Synergic welder DIGIMIG 215 DUALPULSE 4R is designed for manual welding of steel and non‑ferrous metals. It supports MMA (covered electrode), TIG Lift, and MIG/MAG processes. The MIG/MAG method can be used in a synergic mode, which simplifies setup and operation, making the machine suitable for less experienced users and hobbyists. By changing the polarity, the unit allows MIG/MAG welding with both standard wires in shielding gas and self‑shielded flux‑cored wires. Using pulse or double pulse helps achieve higher weld quality and excellent appearance with very high productivity. Digital control enables full adjustment of parameters, arc dynamics, characteristics, and operating modes. Built on reliable IGBT inverter technology for stable performance.

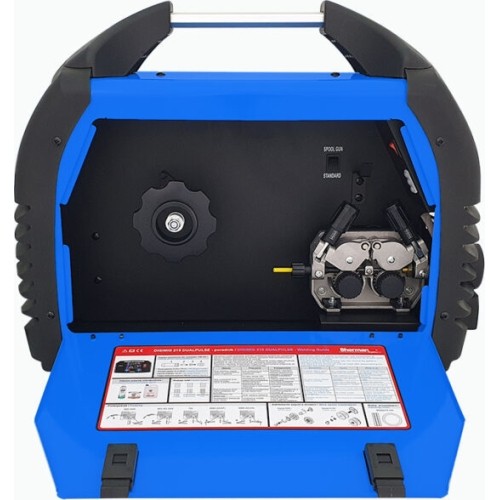

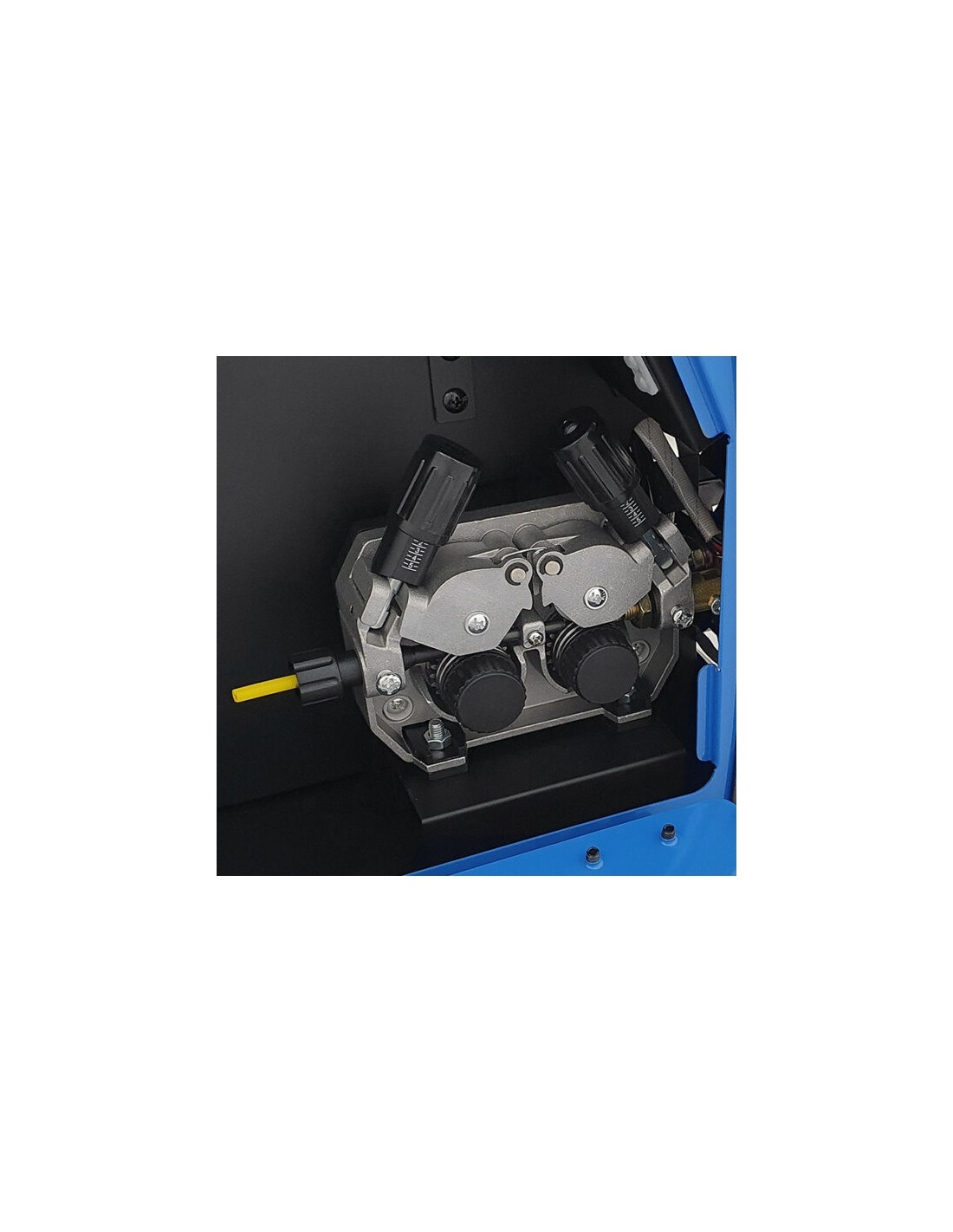

The unit features a 4‑roll wire feeder for stable electrode wire feeding.

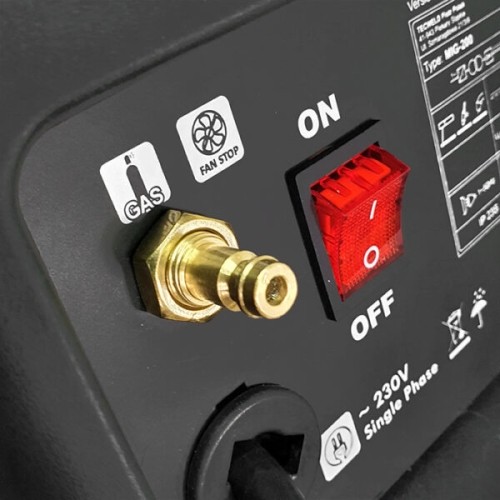

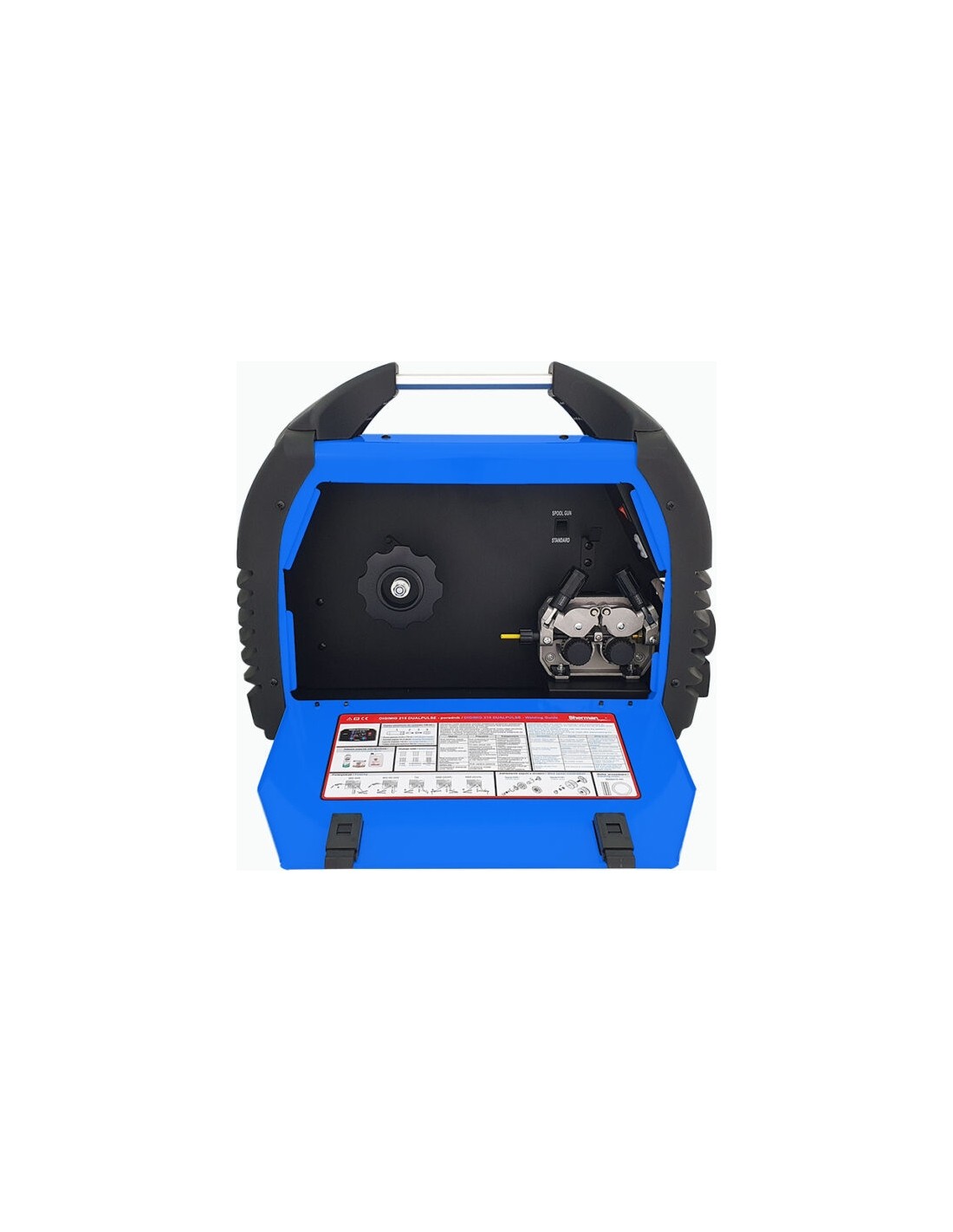

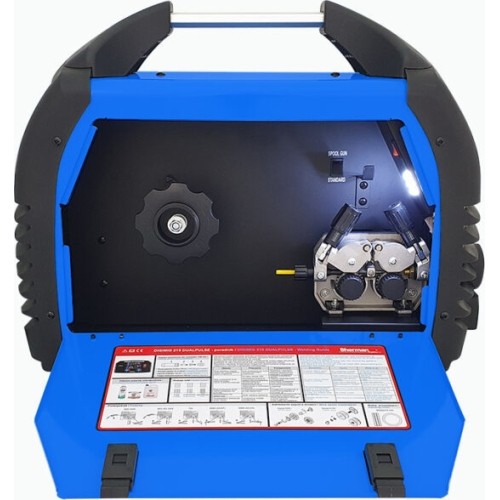

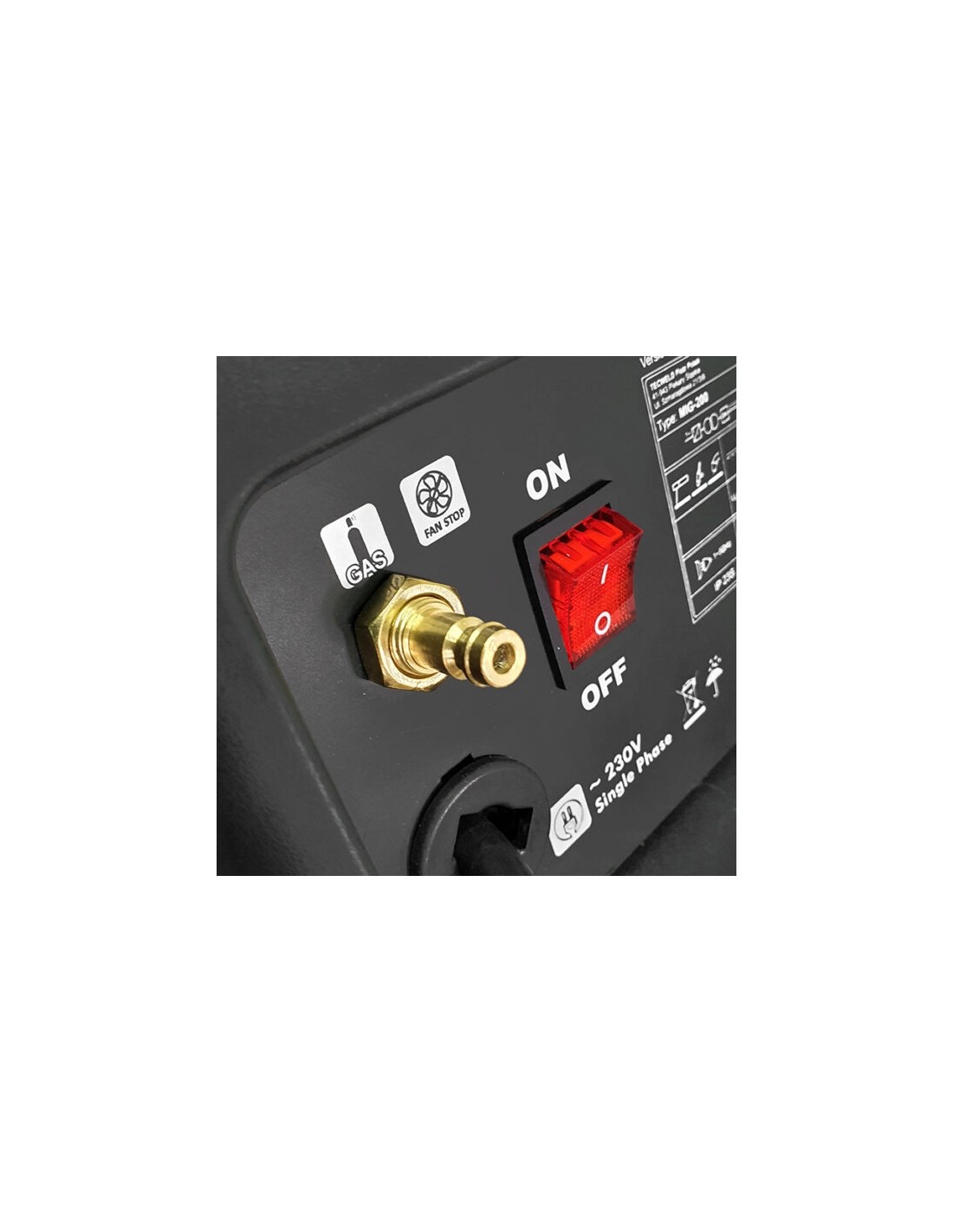

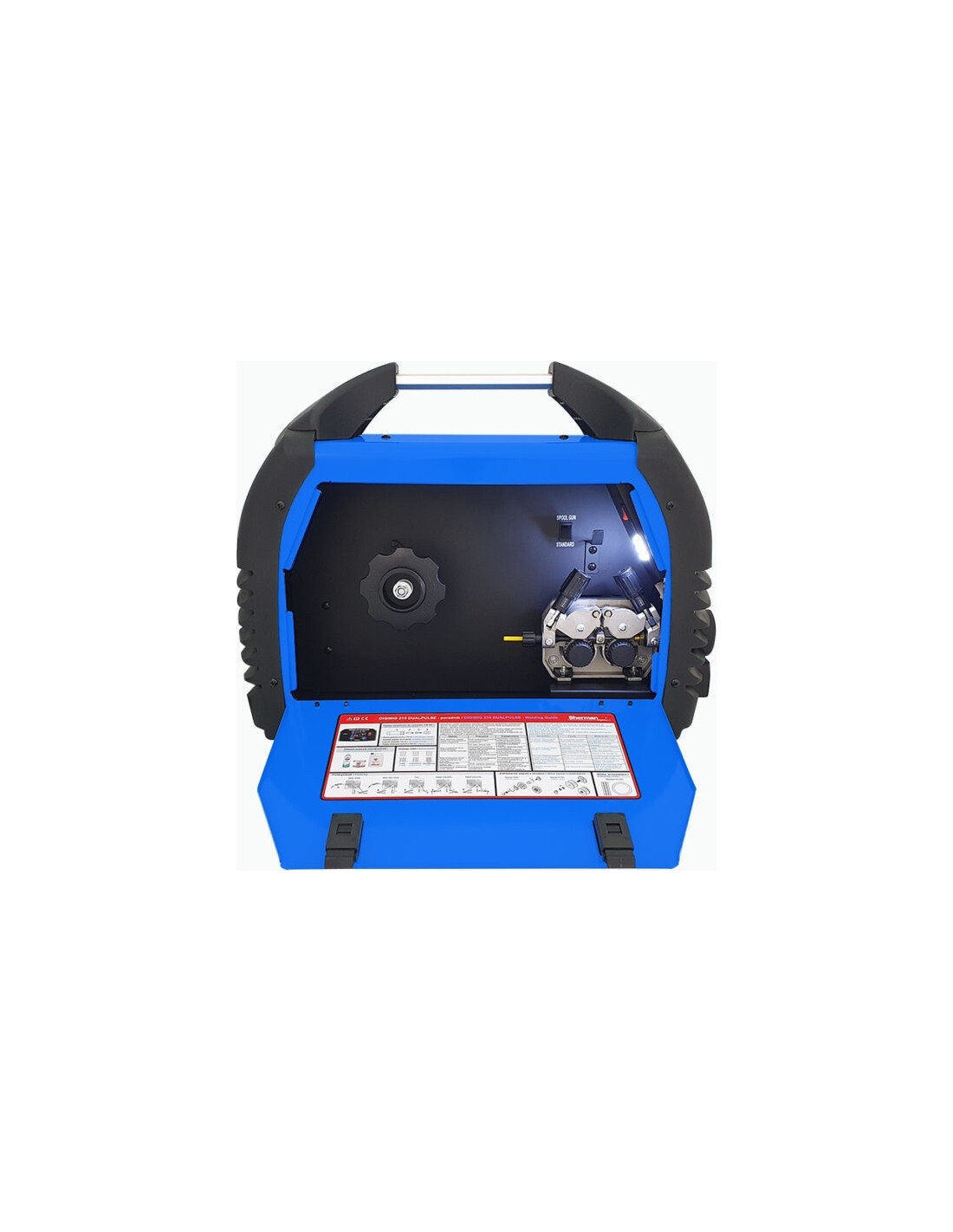

The wire feeder chamber lighting and hanger for guide rollers make it much easier to replace the wire spool and guide rollers and keep things tidy. The shielding gas connection fitting allows the use of a quick coupler, which facilitates and speeds up changing the shielding gas. The Fan Stop function switches off the fan at low load, reducing noise and improving user comfort.

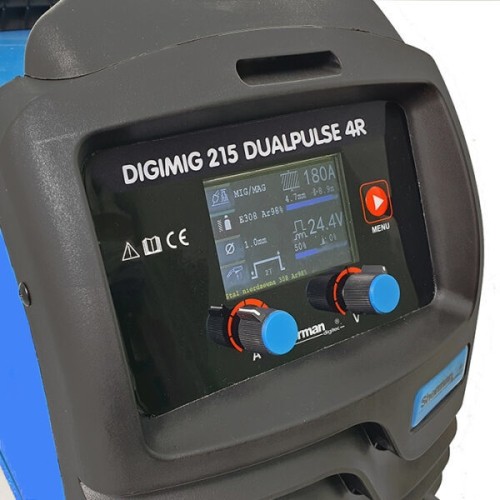

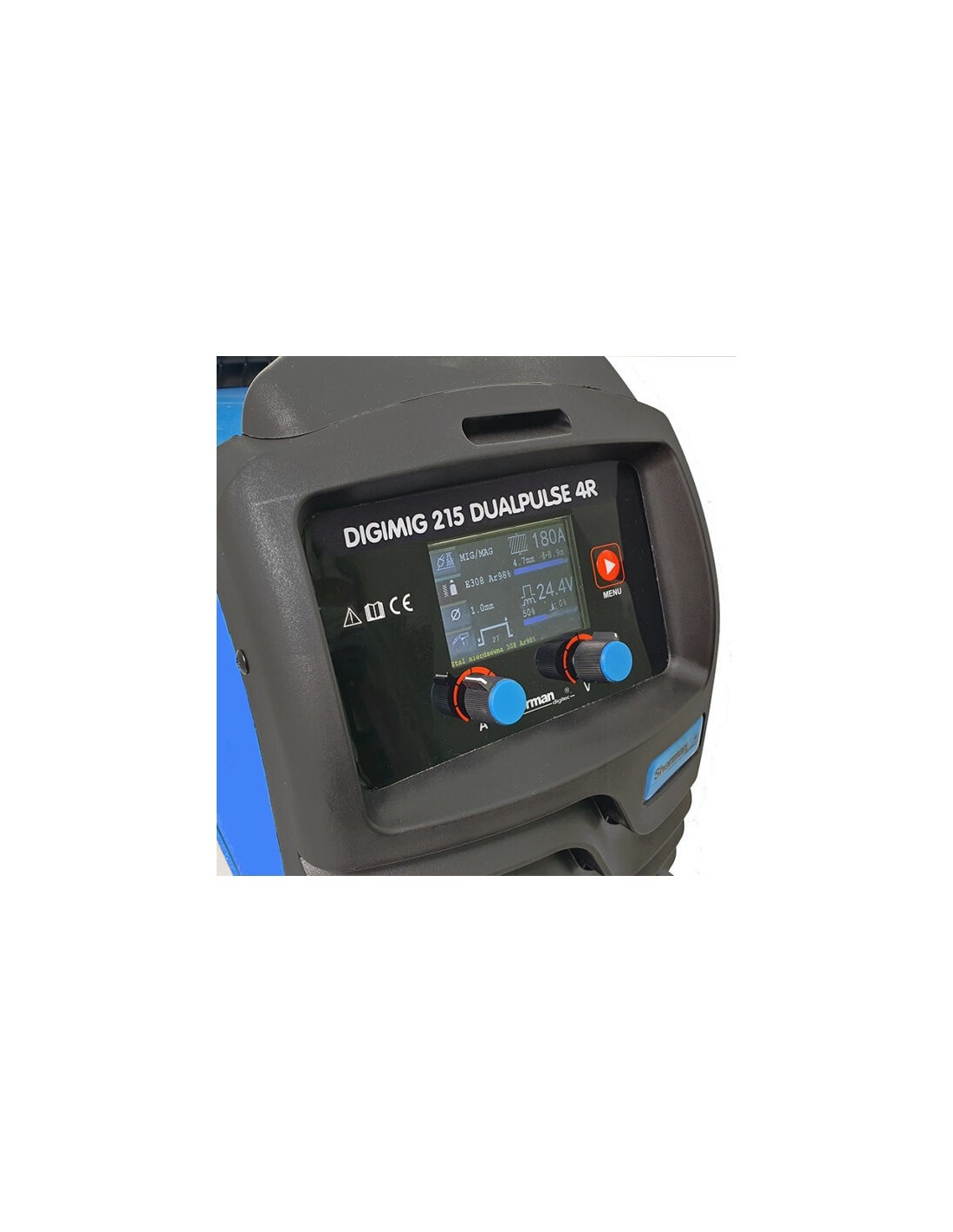

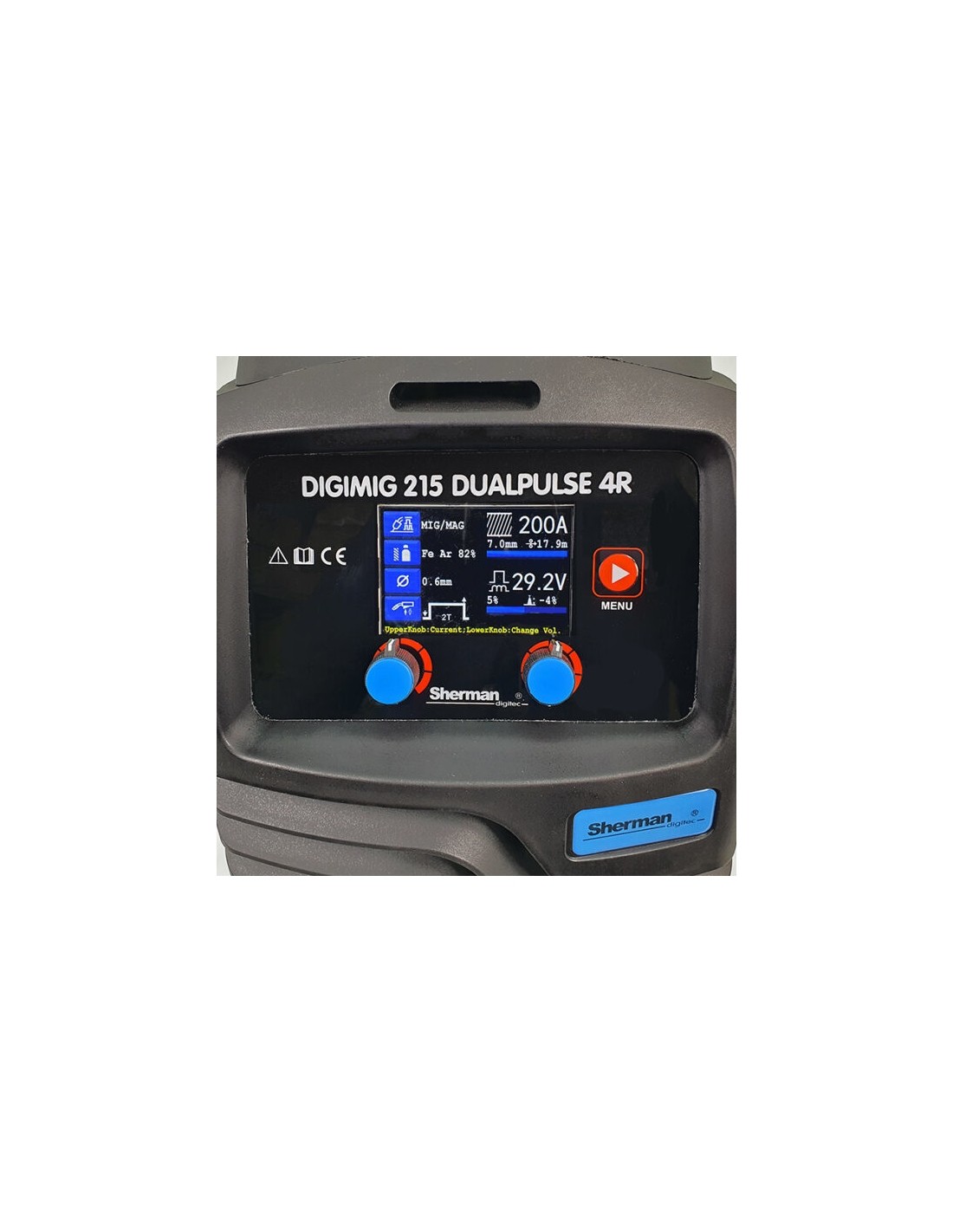

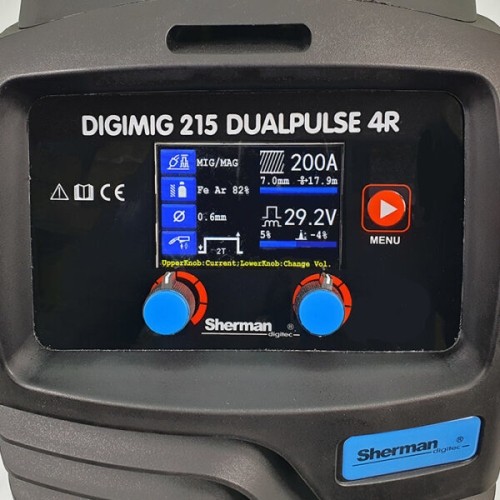

The welder is equipped with a clear LCD display with a menu option in Polish.

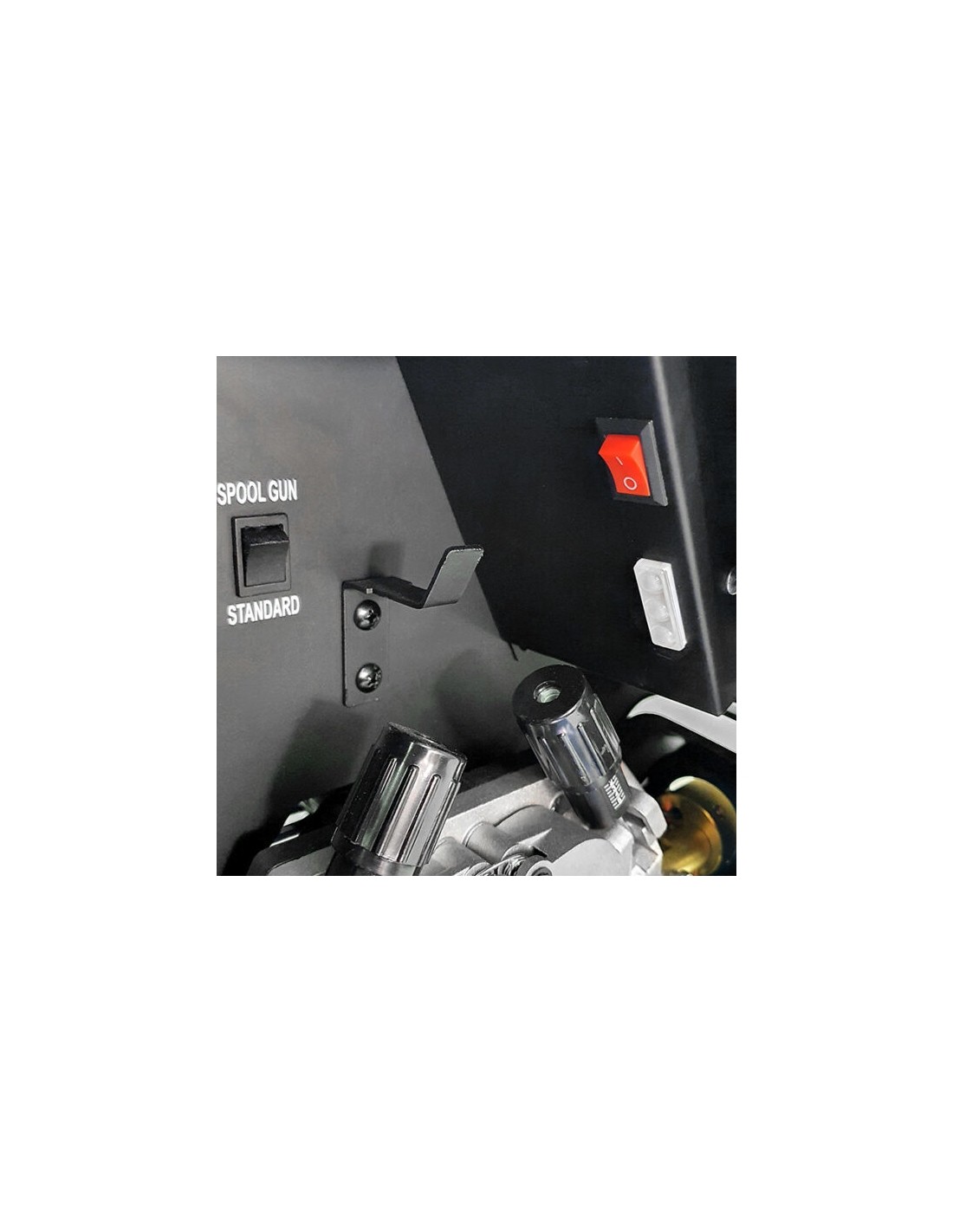

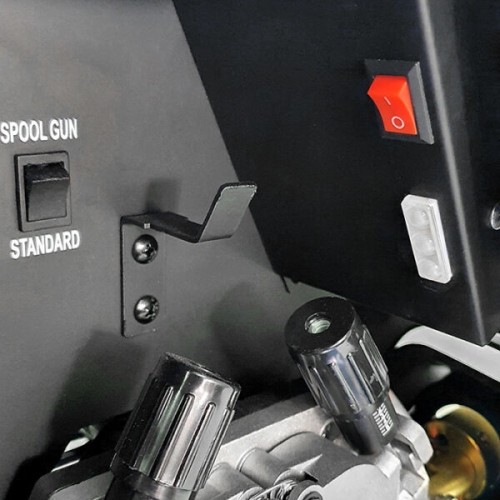

The unit allows connection of a Spool Gun (SG) torch with an integrated mini wire feeder and a D100 spool of steel or non‑ferrous wire.

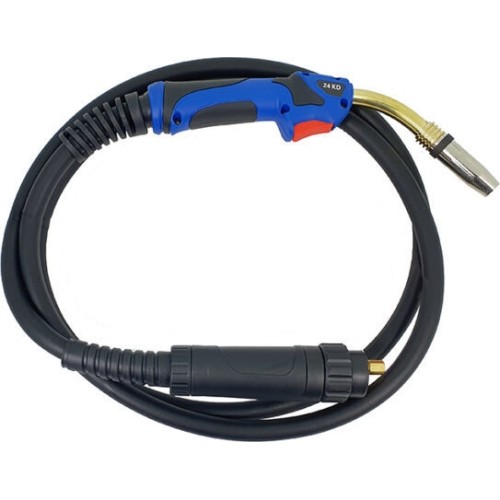

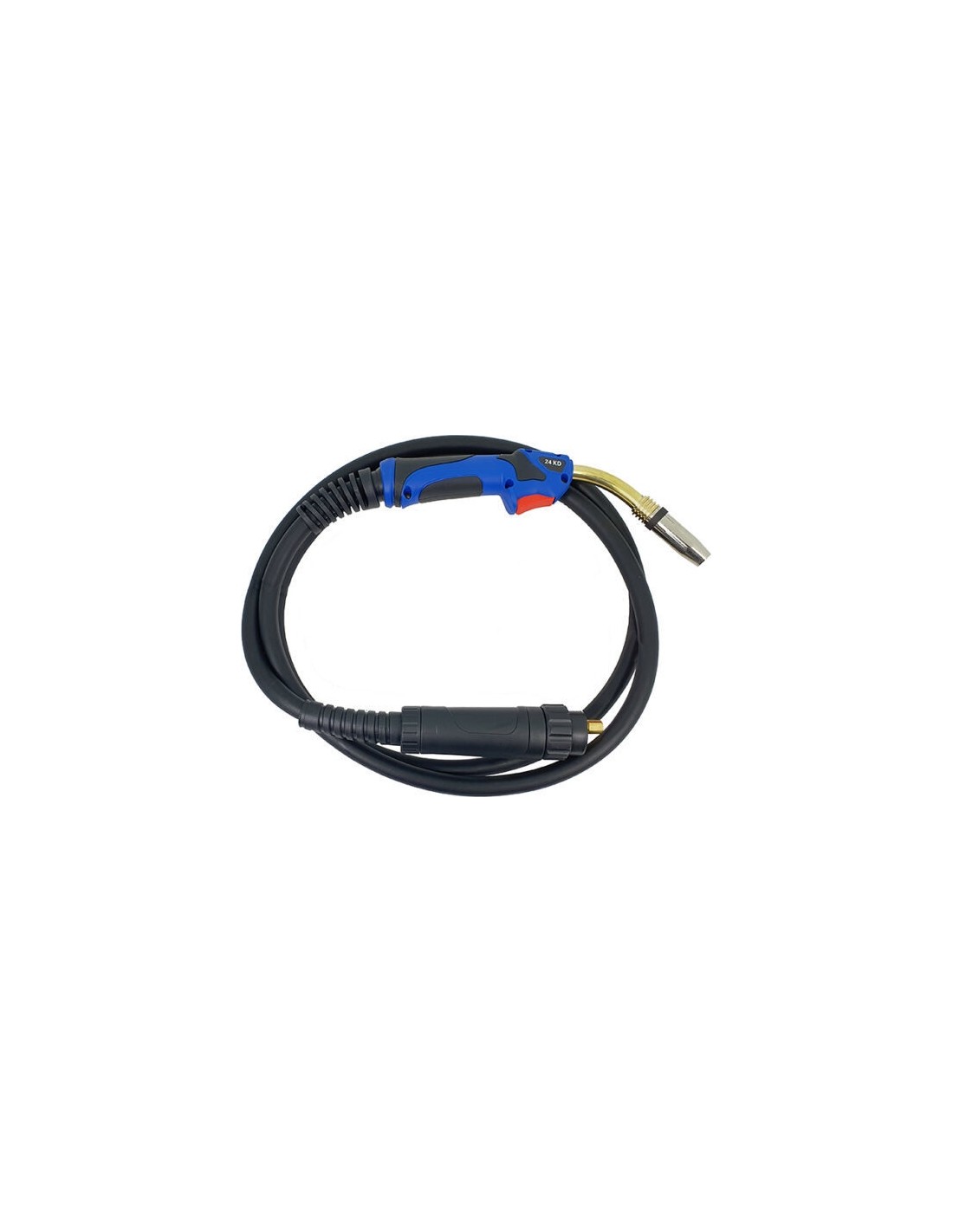

The welder comes factory‑configured for aluminum welding; a steel liner and a roller for welding steel are also included. The set additionally includes a MIG welding torch, electrode cable, work (ground) cable, and a hose for connecting the shielding gas.
