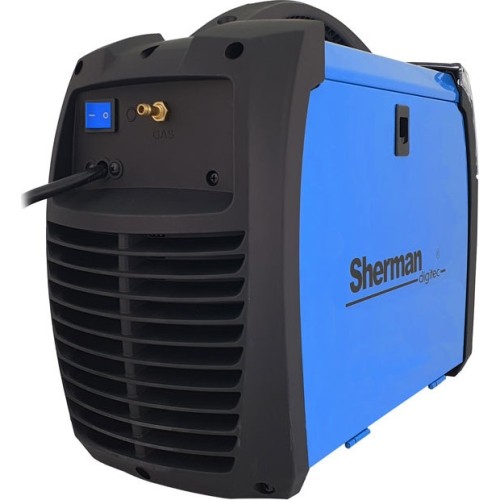

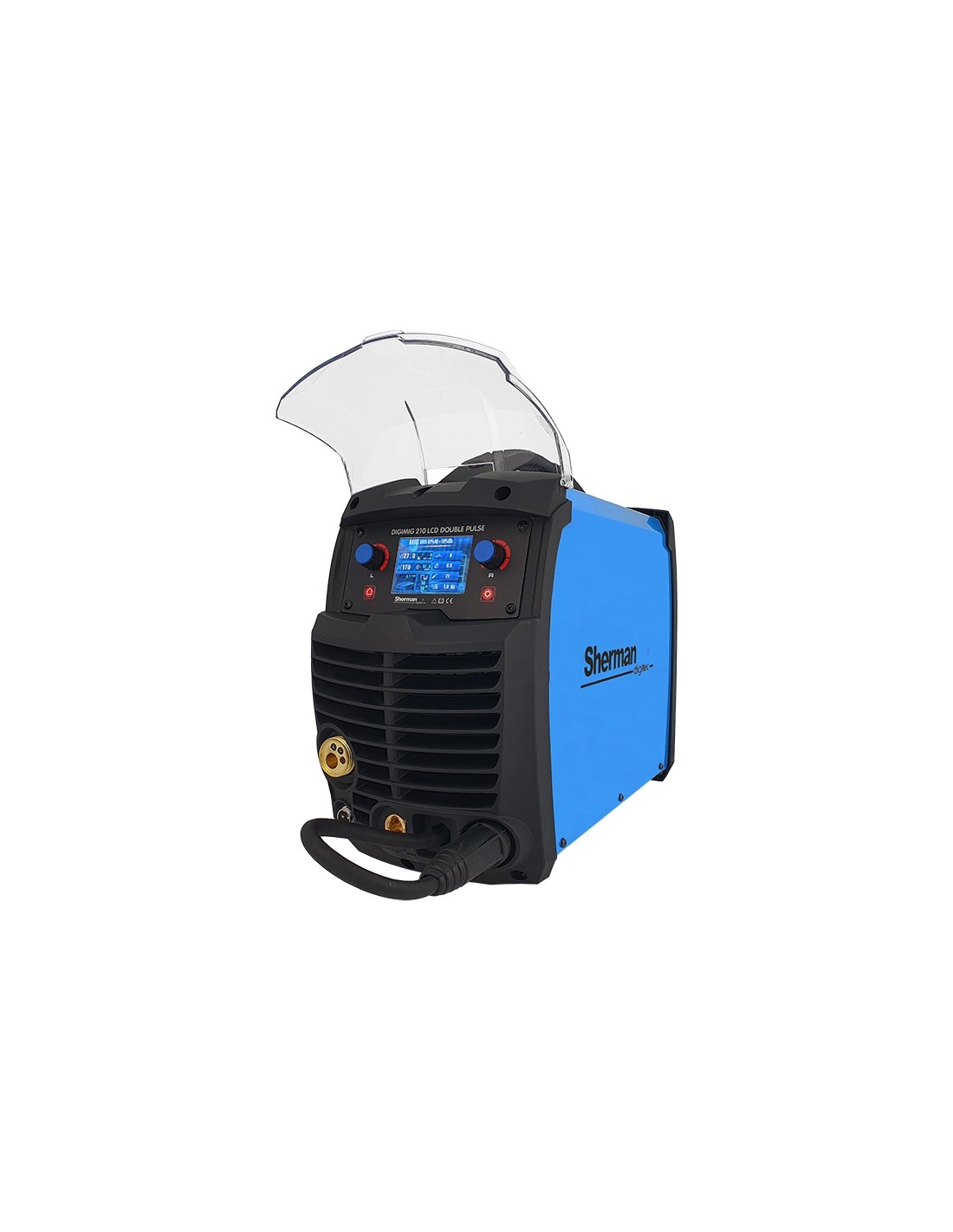

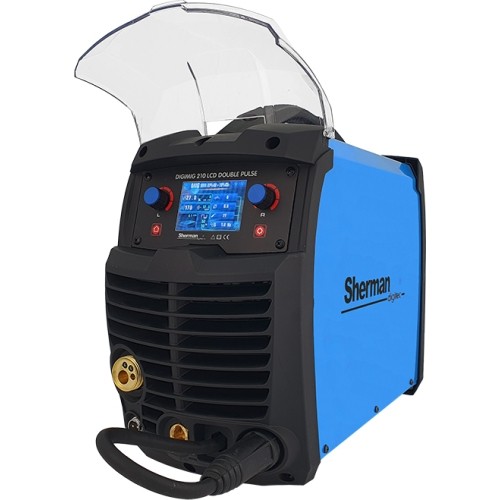

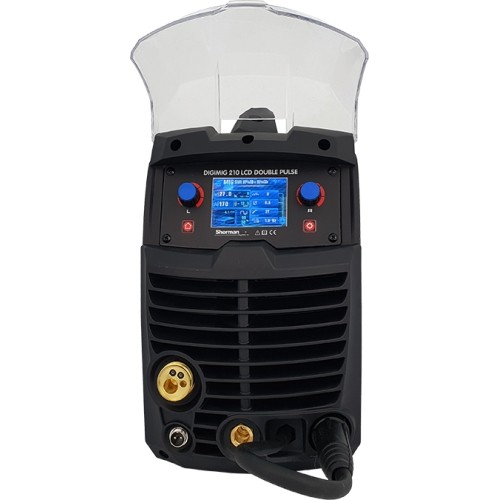

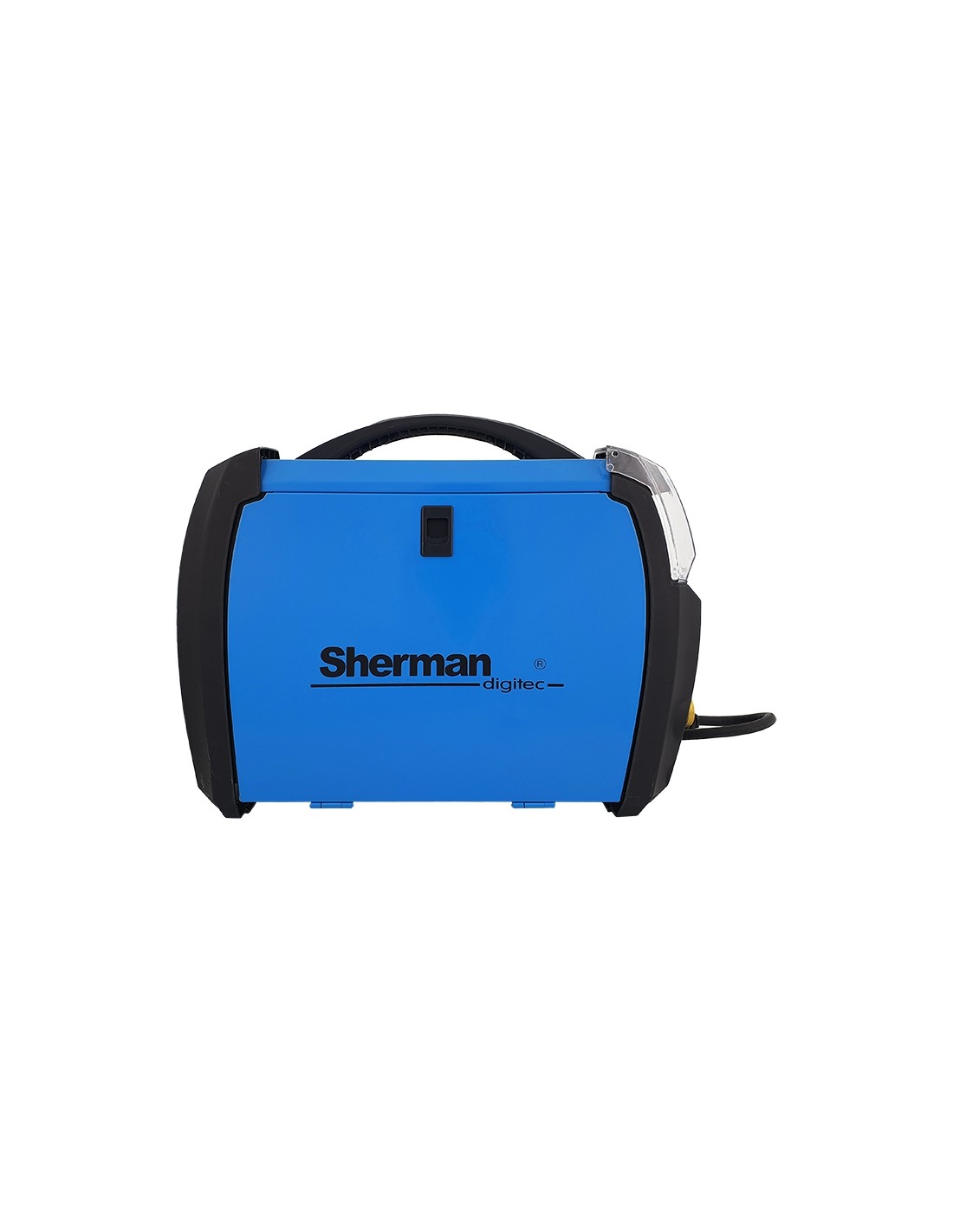

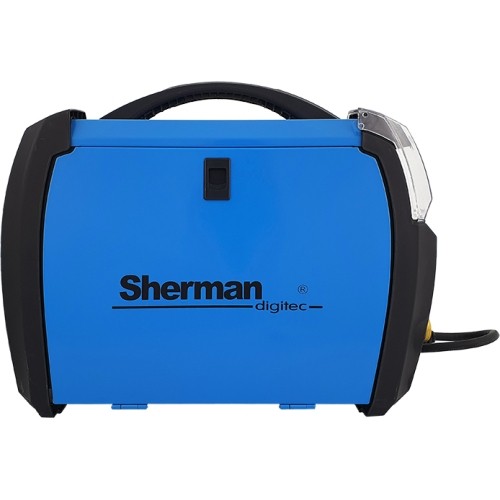

DIGIMIG 210 LCD DOUBLE PULSE synchronous inverter welder

Best price

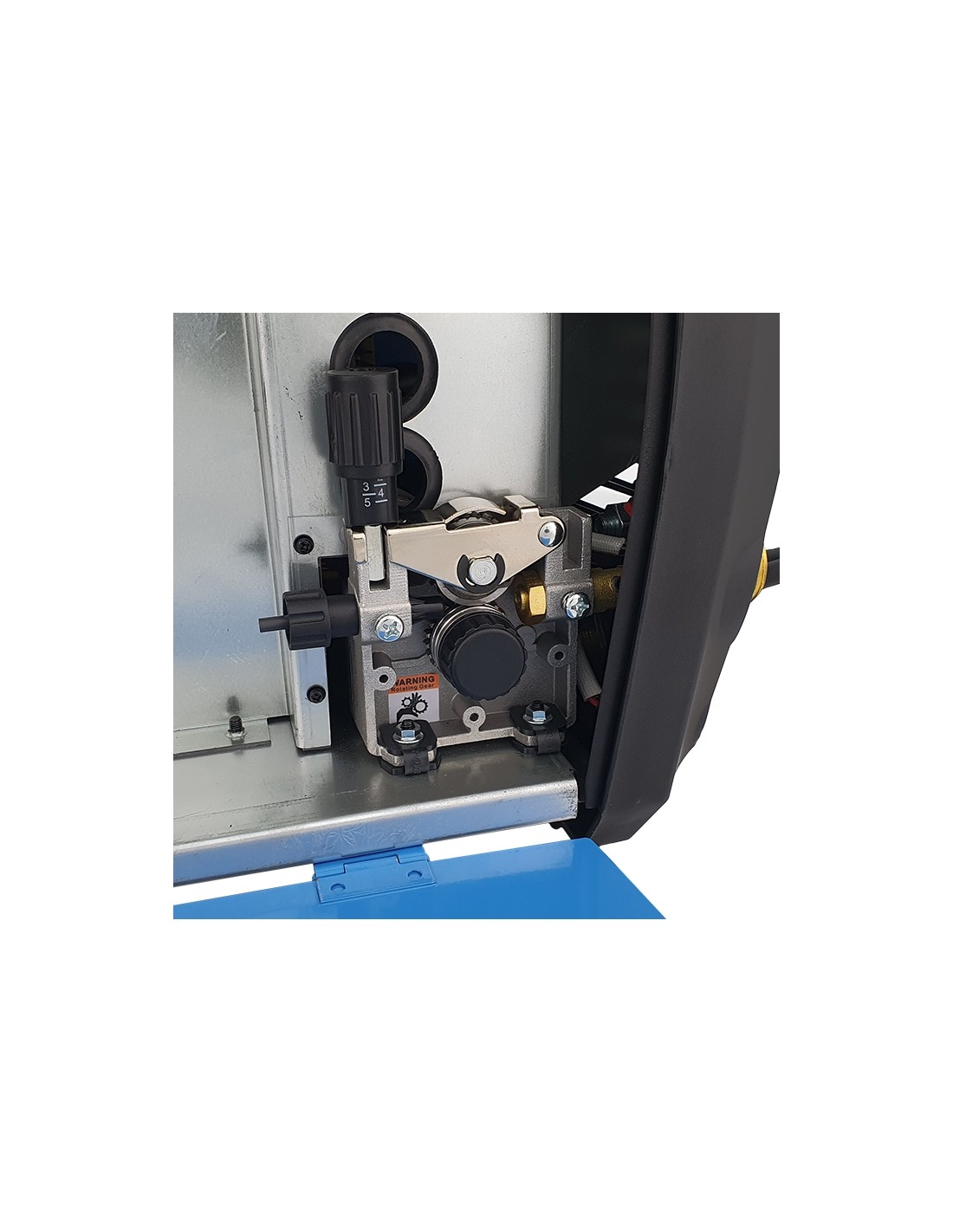

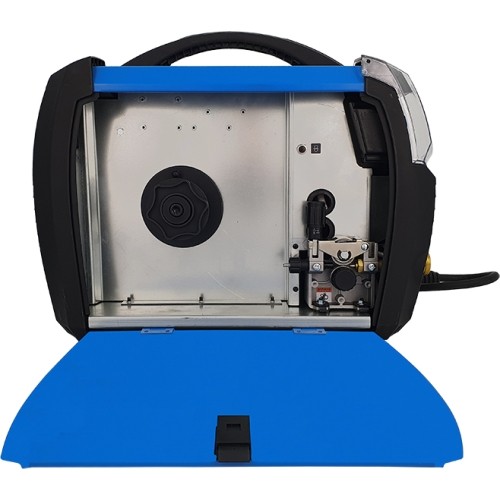

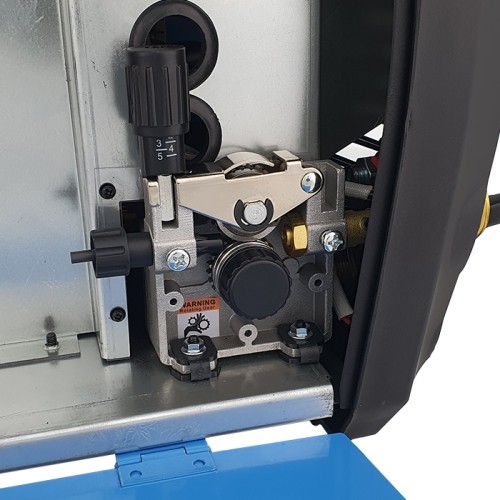

Funkcijos: 2T/4T, lanko jėga, ventiliatoriaus stabdymas, dujų testas, 36 V kintamosios srovės maitinimo lizdas, karštas paleidimas, mikrovaldiklis (MCU), ritės pistoleto parinktis, 4 ritinių tiektuvas
Vielos padavimo greitis m/min: 2 - 12,8
Phase: Vienfazis (230V)
Control: synergetic
User Level: for workshops and small businesses
Weight, kg: 13,3
Suvirinimas / pjaustymas / kiti metodai: Litavimas, MIG/MAG, MMA DC, TIG Lift (trinant) DC.

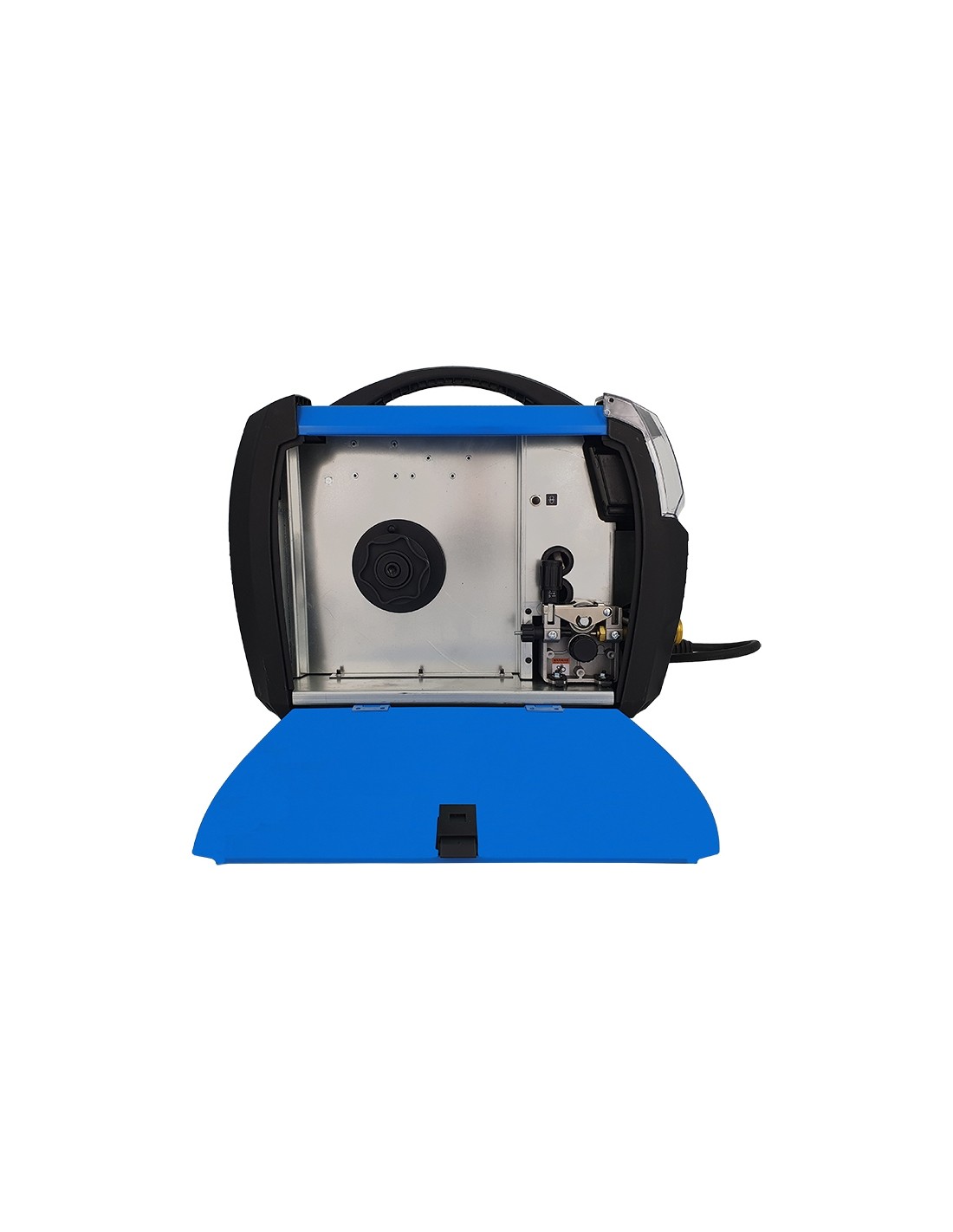

Wire spool size [kg]: 5
Išmatavimai mm: 495 x 210 x 330
PFC function: No
Gamybos technologija: IGBT

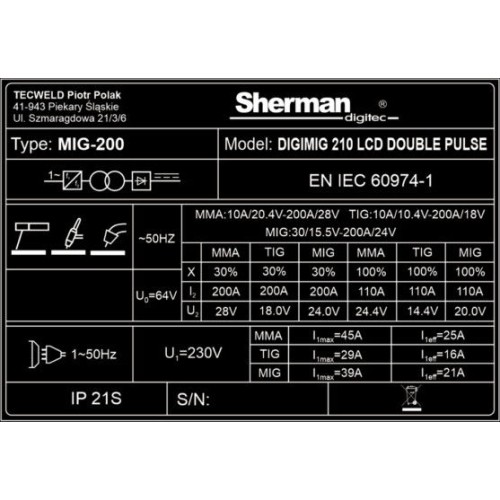

Maximum current MMA [A]: 200
Maximum current TIG [A]: 200
MMA darbo ciklas [%].: 30
TIG darbo ciklas [%].: 30
Įtampa be apkrovos [V].: 64
Maksimalus MMA suvartojamos galios kiekis [kVA}: 8,5
Maksimalus TIG sunaudojamas galingumas [kVA].: 8,5
Pagrindinis metodas: MIG/MAG
Tinklo apsauga [A].: 25
Įmonių garantijos laikotarpis [metai].: 1
Maximum current MIG/MAG: 200
MIG/MAG darbo ciklas [%]: 30
MIG suvirinimo įtampa [V].: 15,5 - 24
Maksimalus MIG/MAG sunaudojamas galingumas [kVA].: 8,5
Ritinio matmenys [mm].: 30x22x10 2RA
Suvirinimo įtampos korekcija: -5 - +5
Padavėjo atvykimo greitis: 3 - 6
MIG dujų srautas [s].: 0,1-2
Maitintuvo tipas: 2RA
MIG impulsų dažnis [Hz].: 1-2,5
MIG impulsų plotis [%].: 20-80
Vielos ritės skersmuo ø [mm].: 200
Inverter technology: IGBT
Shielding Gas Requirement: Gas / Gasless

Brand

DIGIMIG 210 LCD DOUBLE PULSE synchronous inverter welder

Name: DIGIMIG 210 LCD DOUBLE PULSE synchronous inverter welder
Brand: Sherman
SKU: 1057361
Price: 589 EUR
Availability: InStock

Reference 1057361

Price €589.00 VAT incl.

Stock Quantity:

Kaunas Shop
(3+ pcs)

Central warehouse
(3+ pcs)

Delivery terms:

FREE pick up today, in the store, Raudondvario pl. 141, Kaunas (€0.00)

We will deliver the product to you via: 1-2 w.d. Venipak (€5.00)

Show all delivery methods

Description

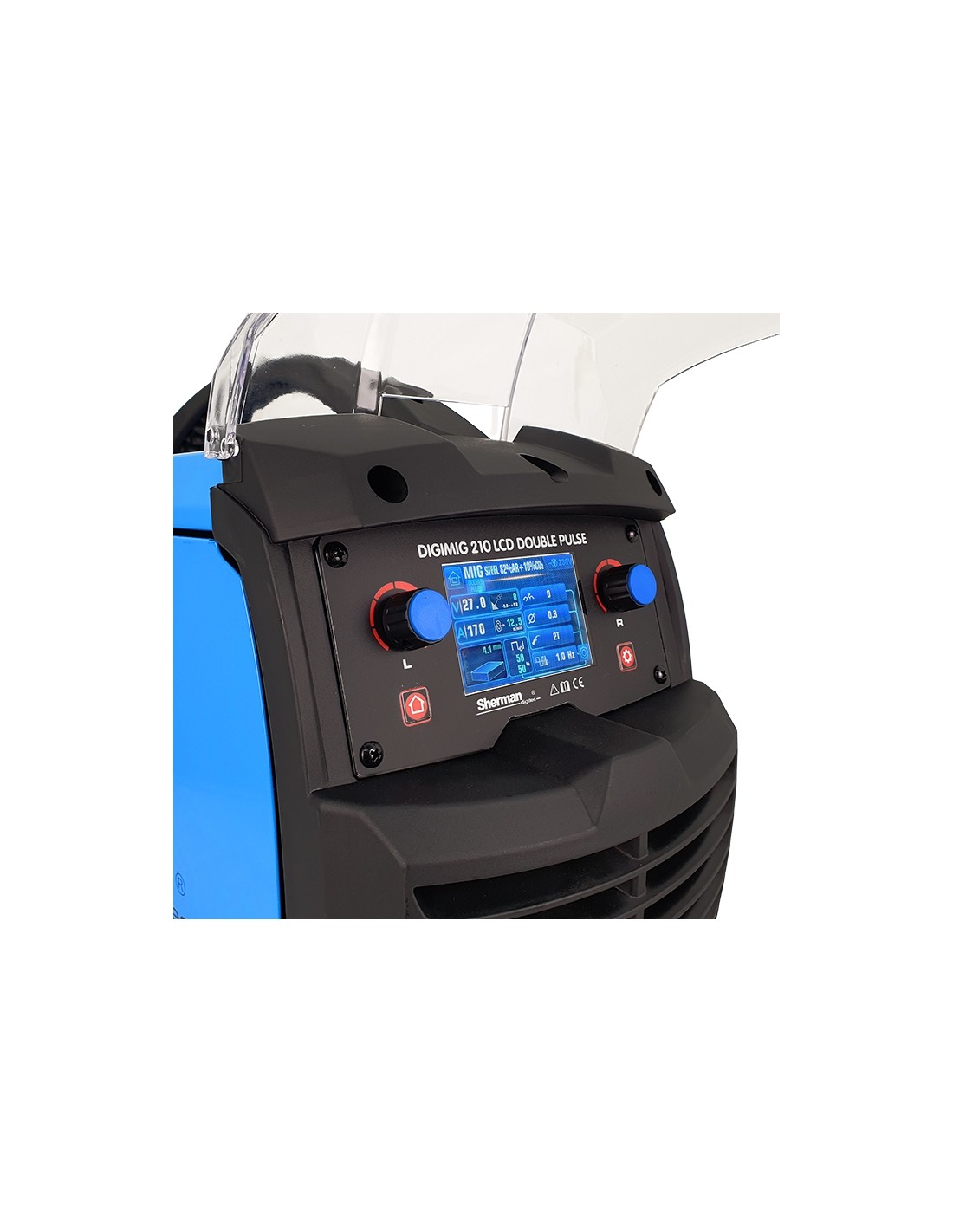

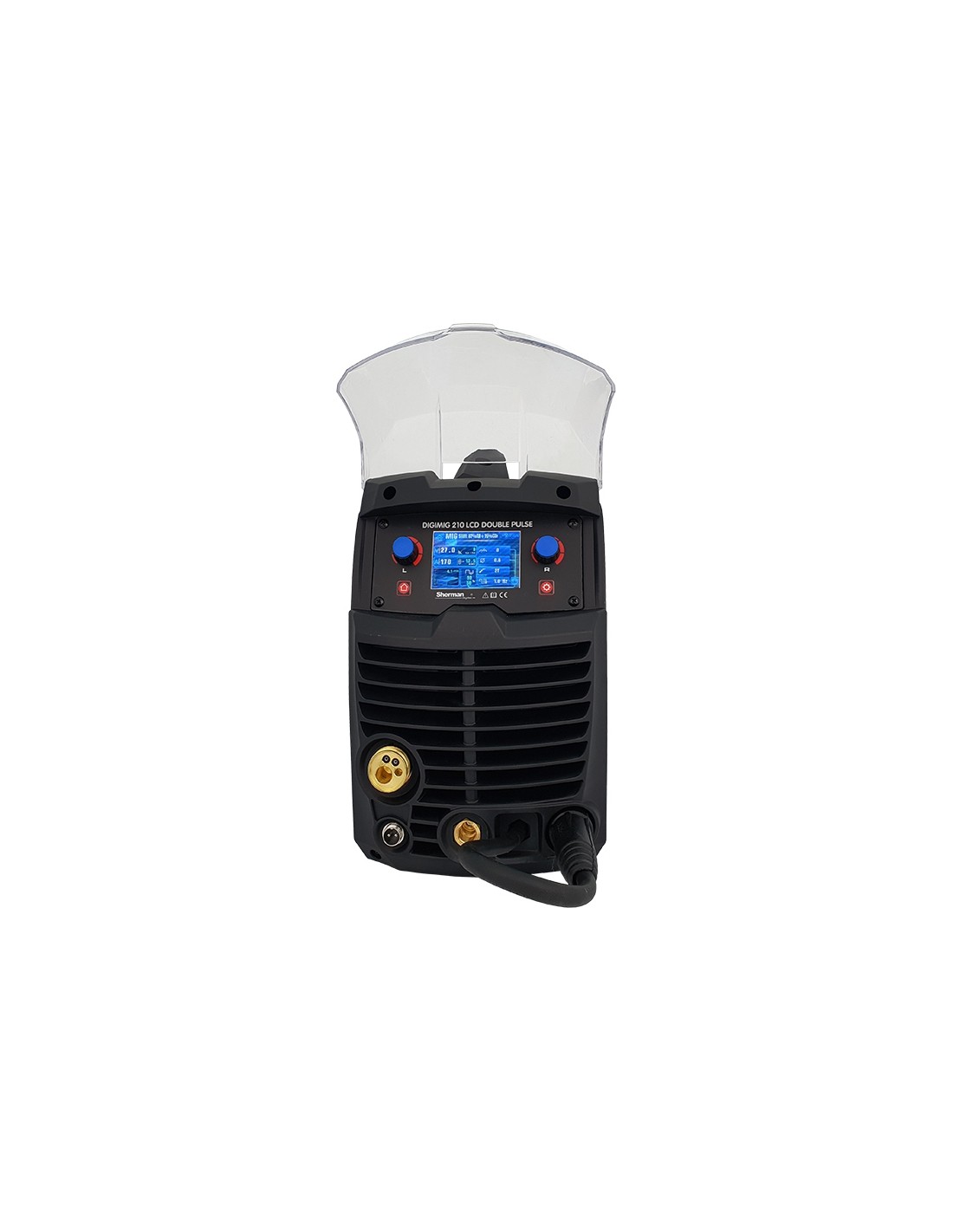

Synergic welder with digital control DIGIMIG 210 LCD DOUBLE PULSE designed for manual welding of steel and non‑ferrous metals. It can also be used for brazing thin galvanized sheets.

Supports MMA (shielded electrode), TIG Lift (scratch start), and MIG methods. MIG can be used in manual or synergic mode to simplify operation. Thanks to polarity reversal, the unit enables MIG welding with both solid wires in shielding gas and self‑shielded flux‑cored wires. The IGBT inverter design with synergic control offers stable arc characteristics and convenient setup.

Using a pulse or double pulse helps achieve higher weld quality and excellent appearance with very high productivity.

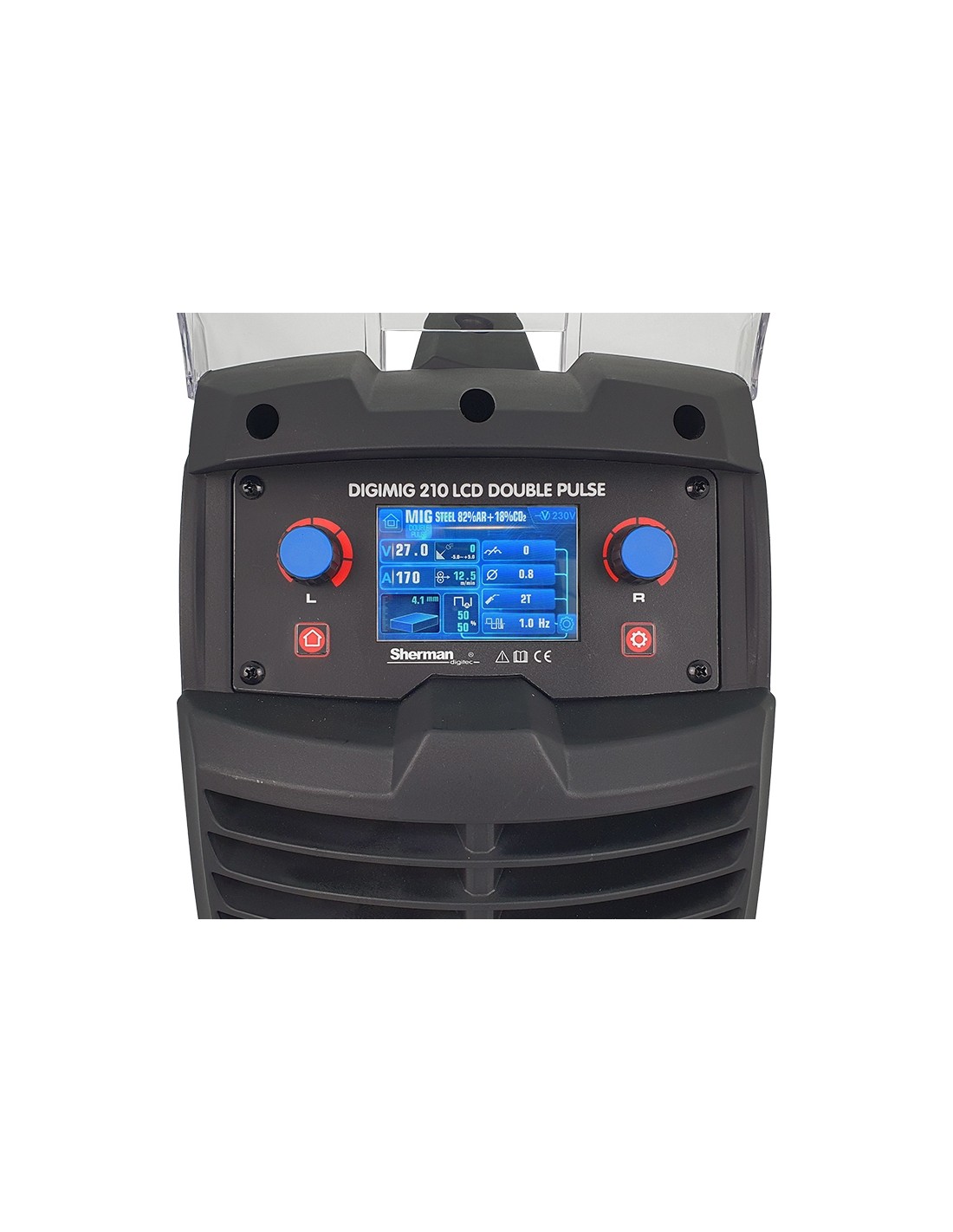

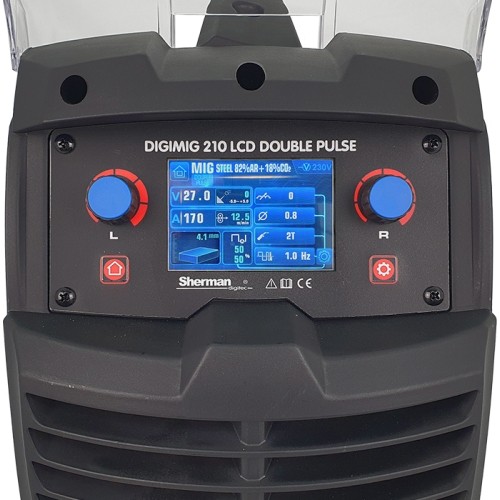

Refined synergic settings for carbon steel, stainless steel, and aluminum and copper alloys make the machine suitable for less experienced users and hobbyists. During MMA welding you can adjust HOT START and ARC FORCE and disable VRD. The machine remembers the last settings, so switching it off and on restores the previous parameters. The Fan Stop function, which turns off the fan at low load, significantly reduces noise.

The welder is factory configured for aluminum.

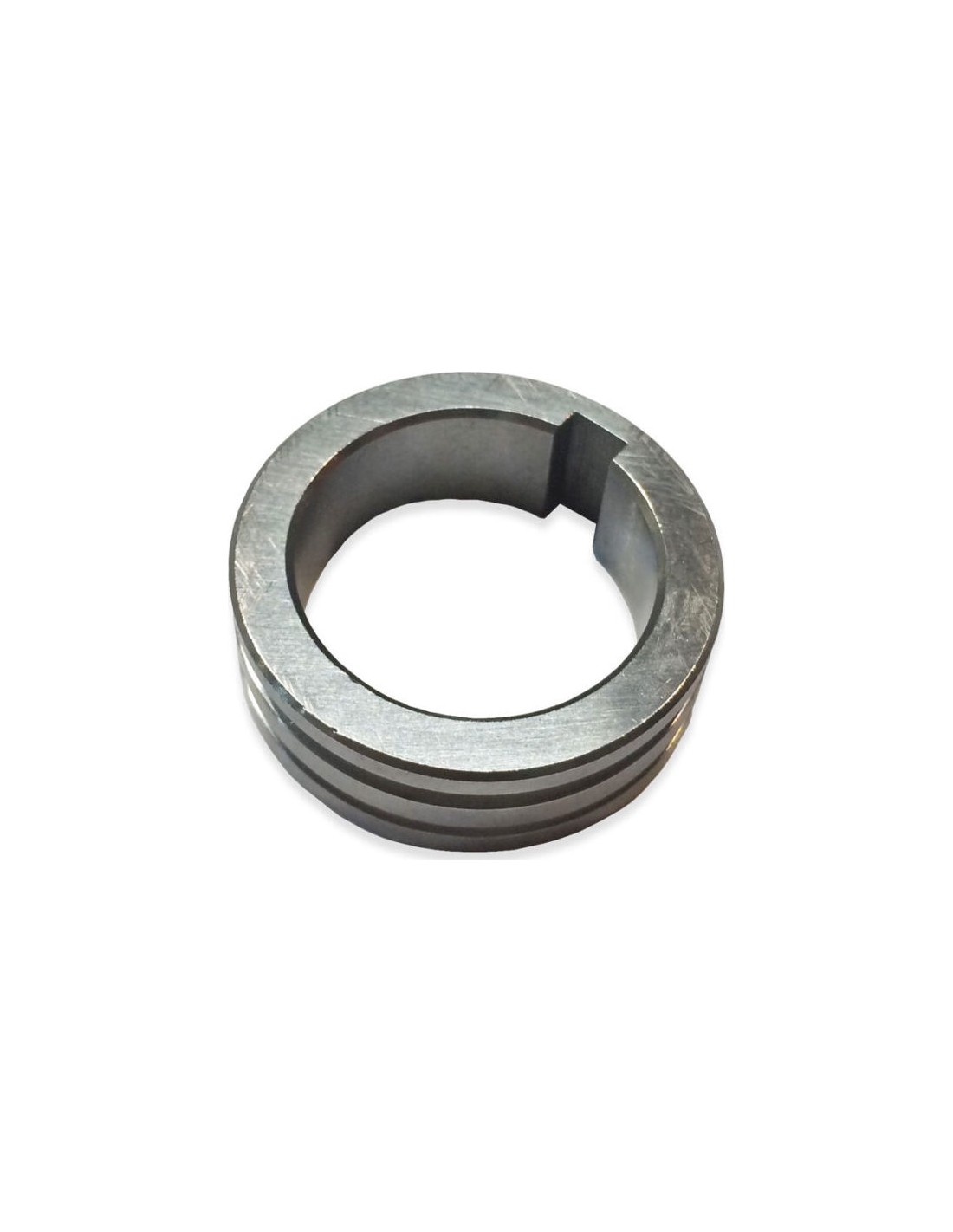

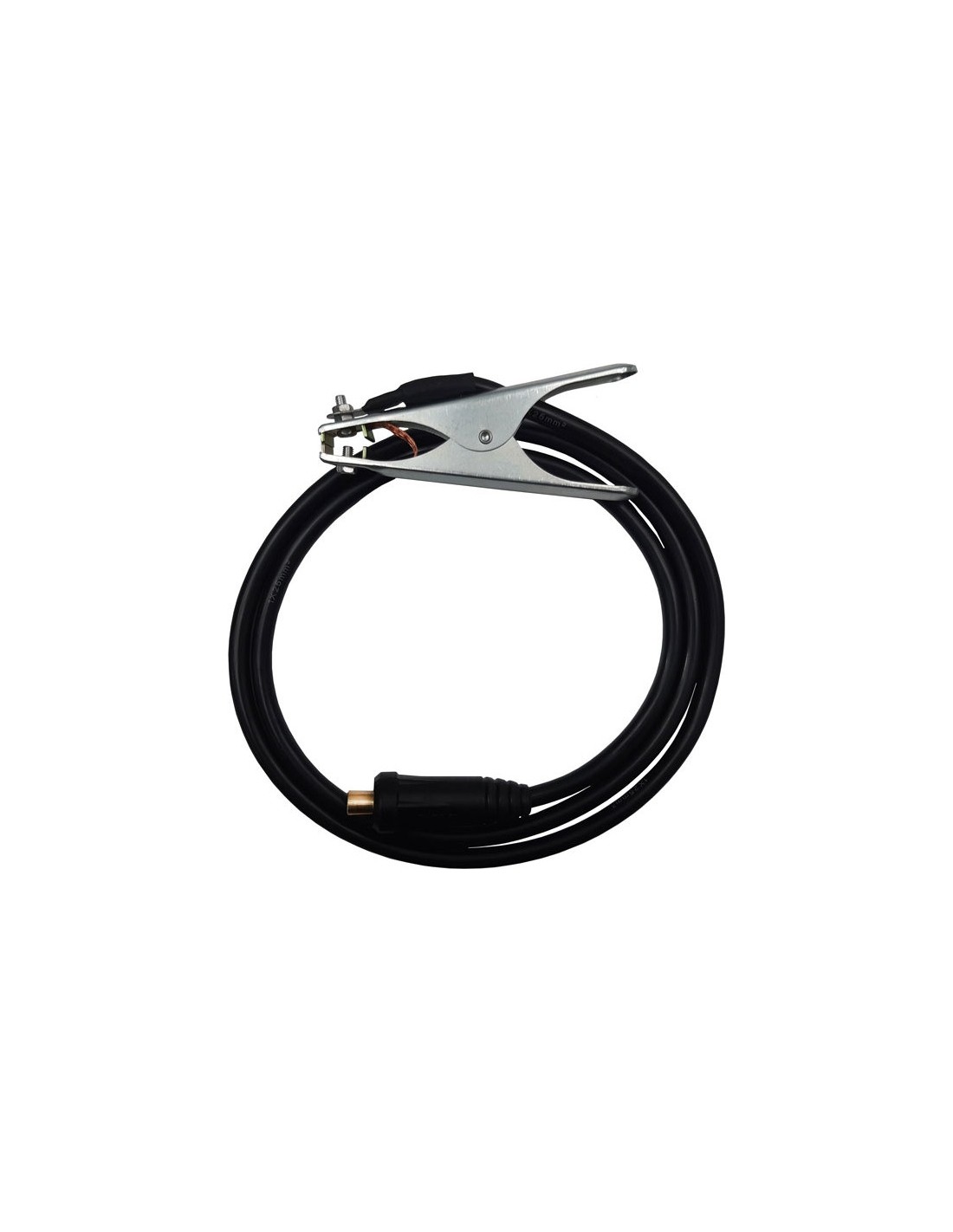

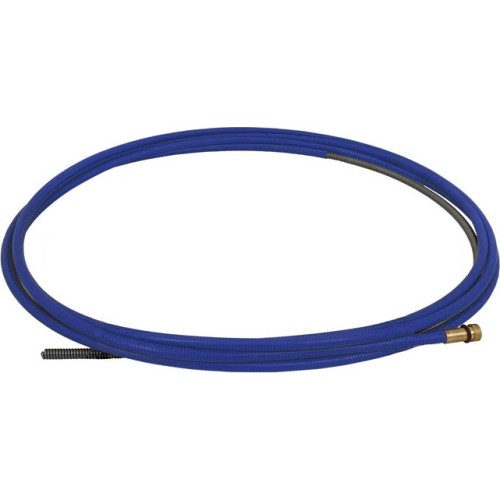

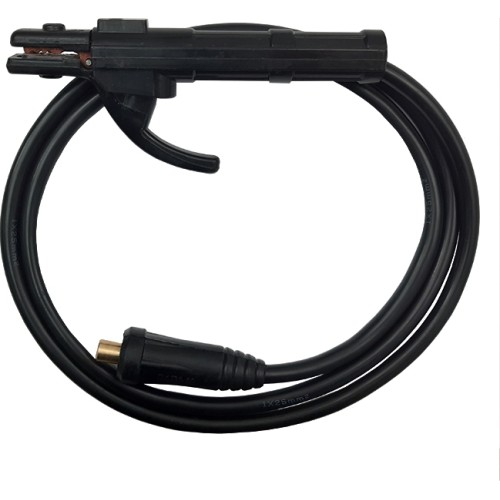

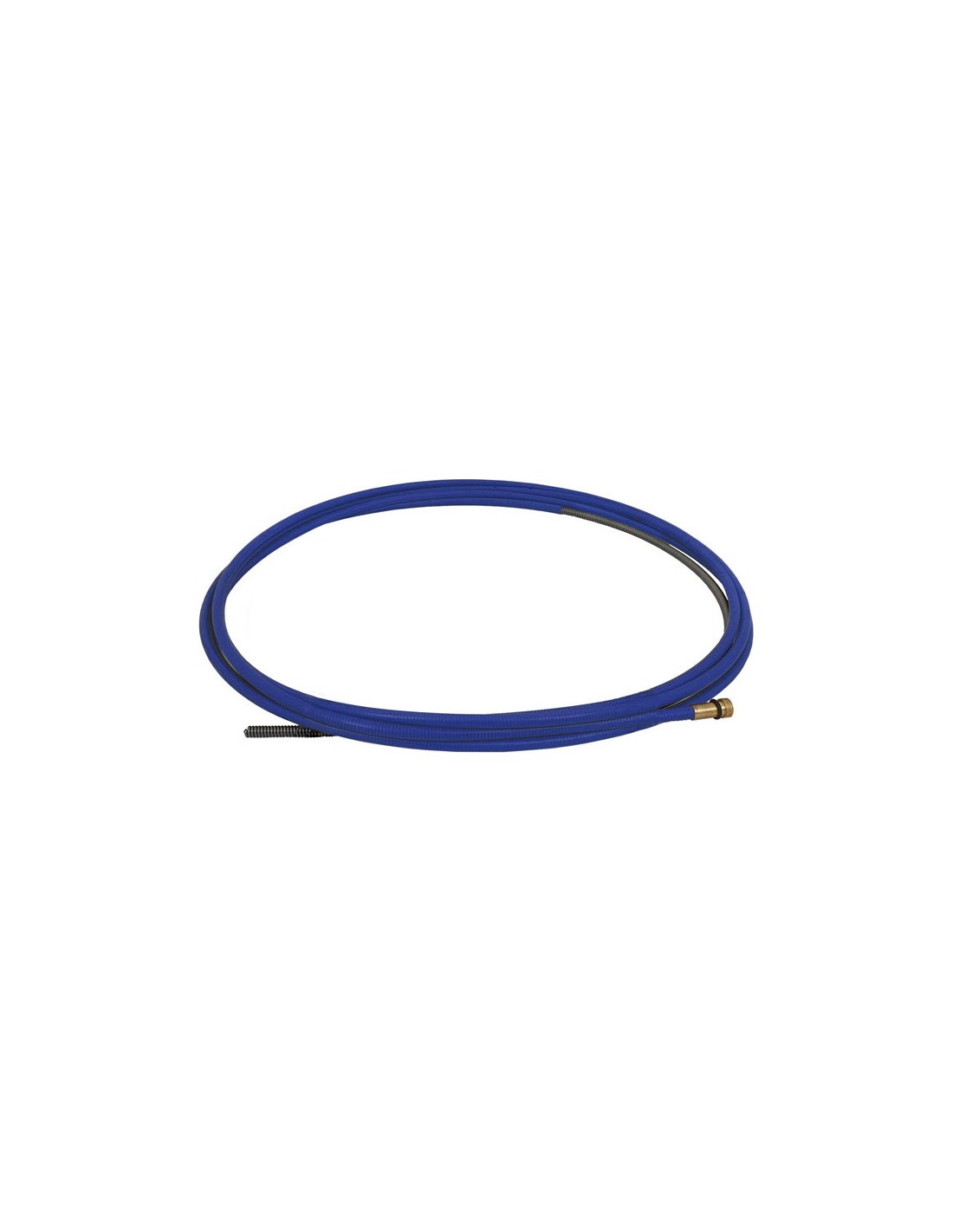

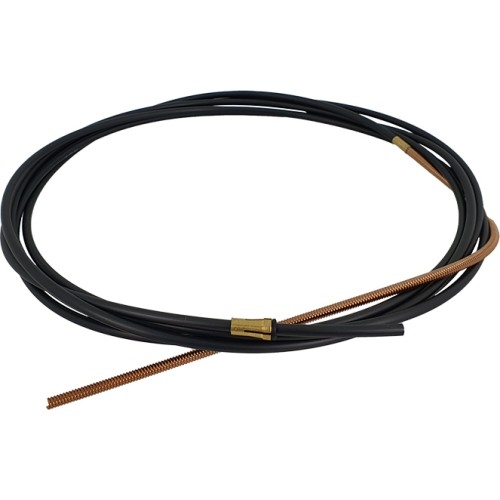

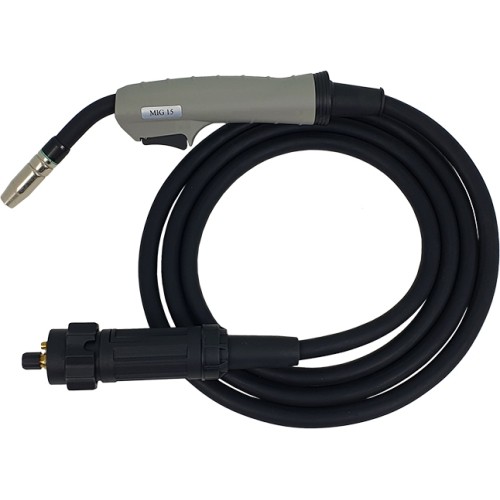

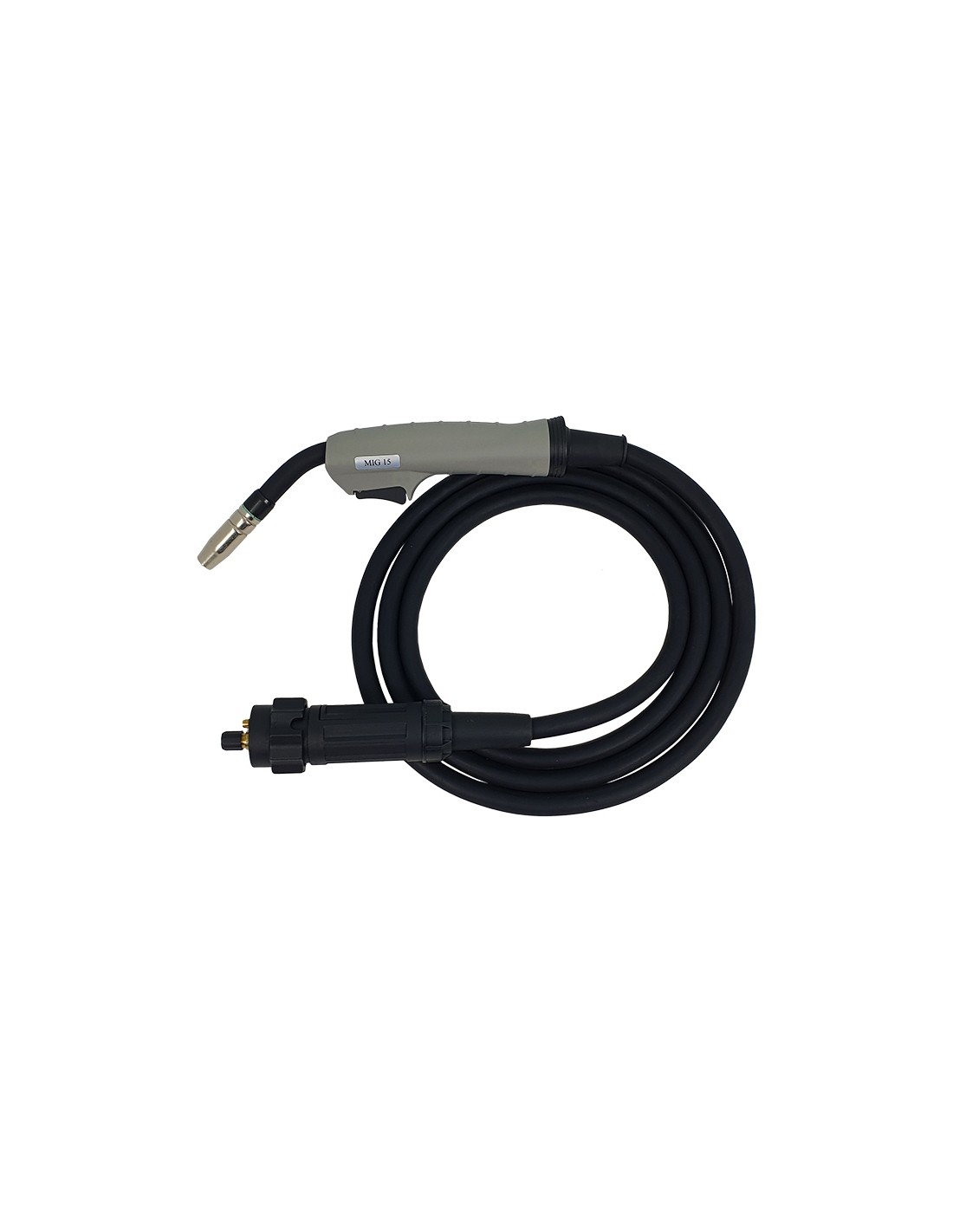

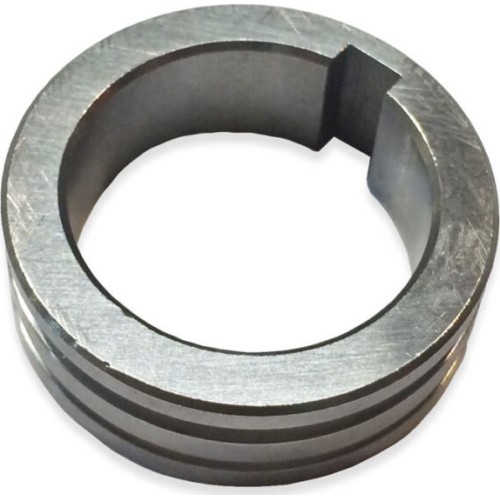

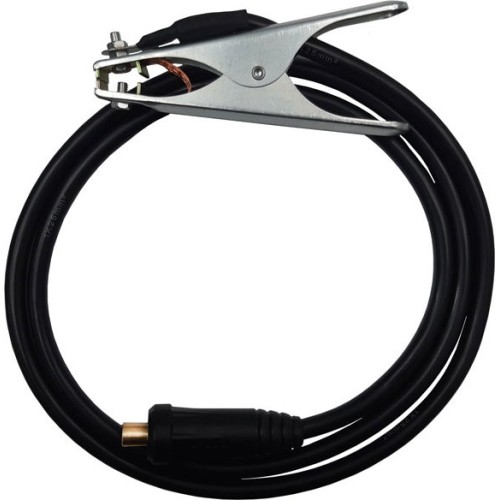

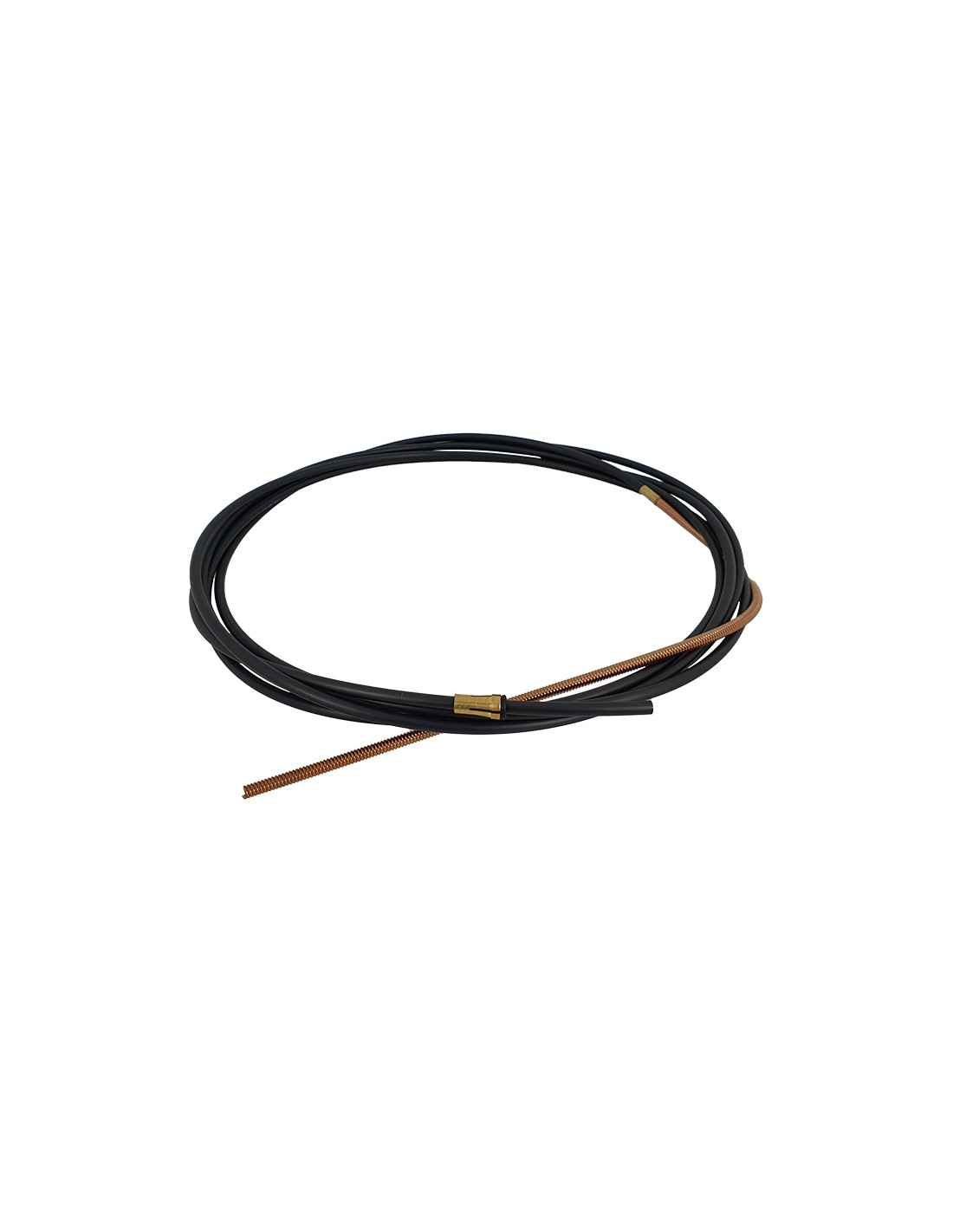

Included: MIG torch, ground cable, electrode cable, additional steel drive roller, steel liner, and Teflon liner.
