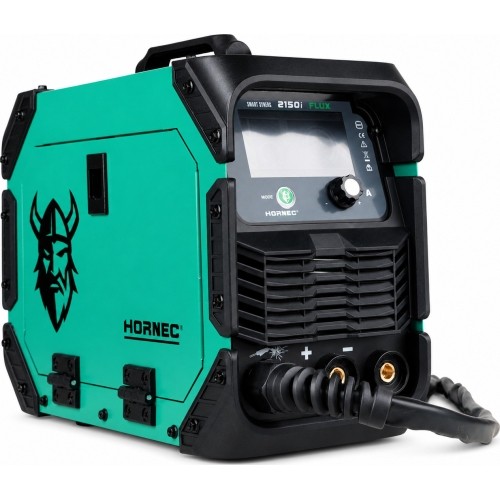

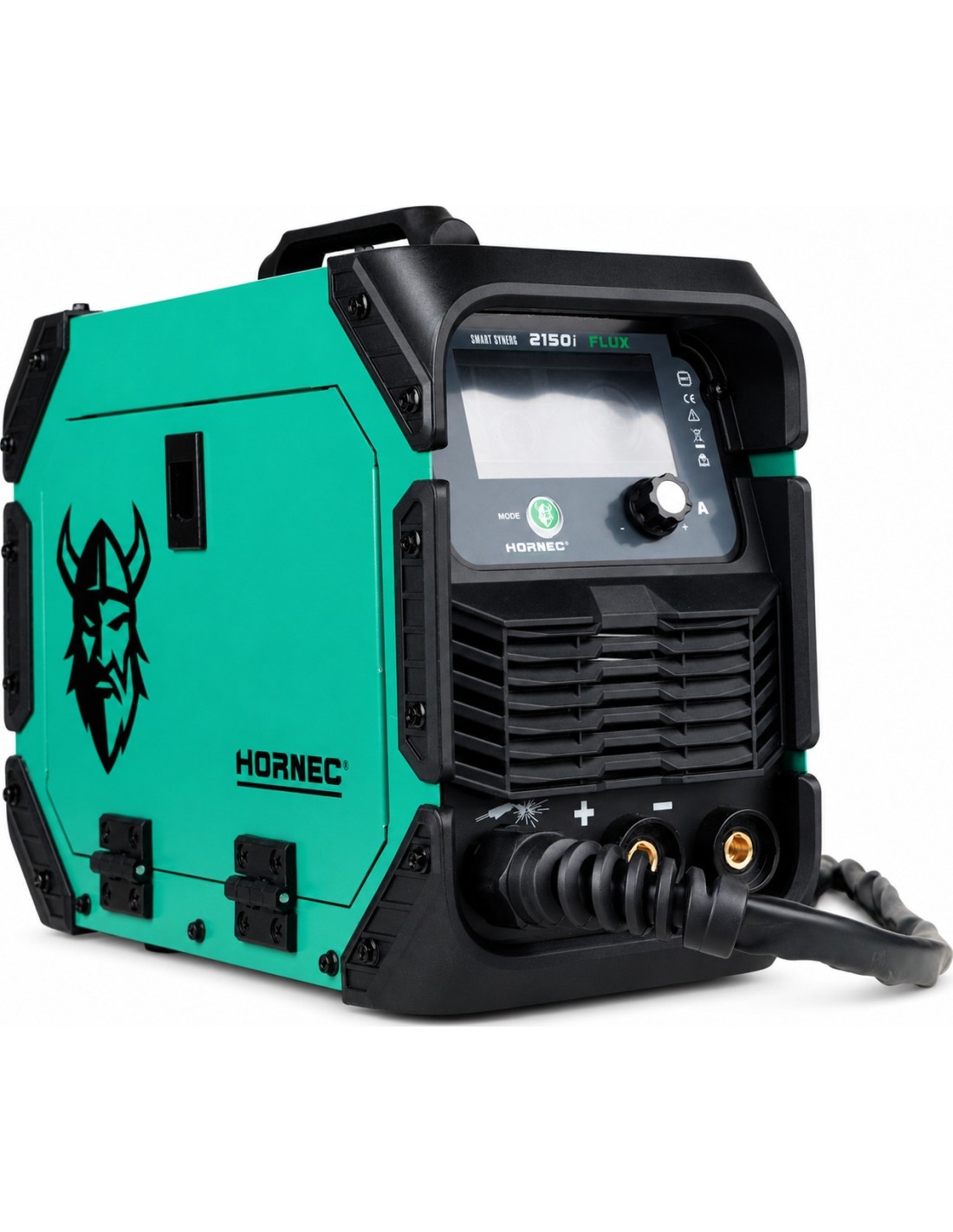

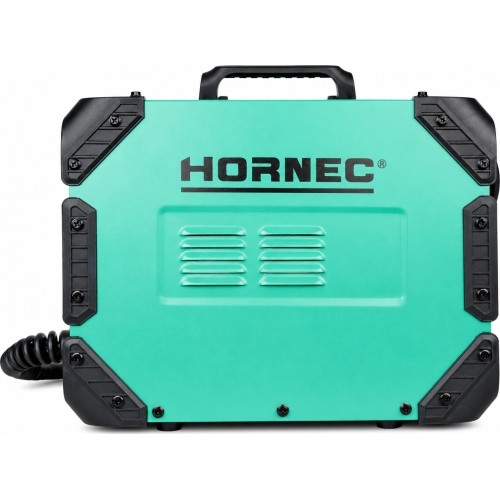

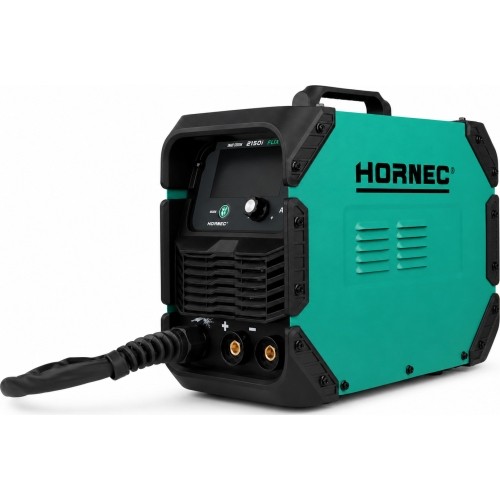

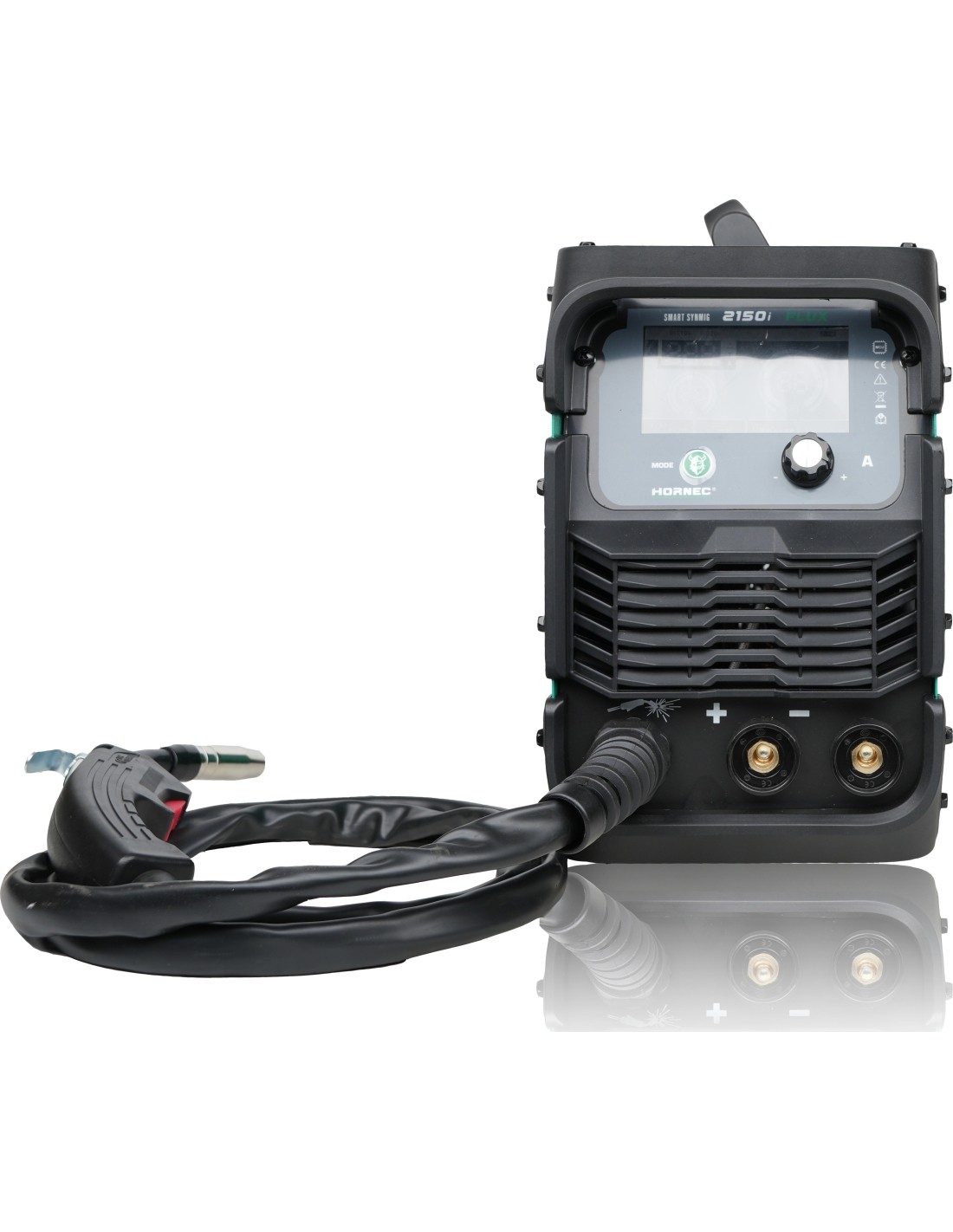

HORNEC® smart SynMIG 2150i FLUX welding machine (gasless)

Phase: Vienfazis (230V)
Control: synergetic
User Level: Hobbyist / Home user
Weight, kg: 5,8
Wire spool size [kg]: 0,45
1
PFC function: No
Maximum current MMA [A]: 140
Maximum current MIG/MAG: 140
MIG/MAG darbo ciklas [%]: 60
140
Inverter technology: IGBT
Shielding Gas Requirement: gasless only
Number of wire feed rollers: 2
Torch length: 2 m
Package Contents: 2 in 1 hammer/brush
electrode cable
ground cable
MIG / MAG burner
Mini shield for welding
welding machine
Ground cable connection: small (10 - 25 mm)
Torch connection in the machine: integrated (non-detachable)
Functions: digital display
overheating protection
Welding methods: MIG FLUX (without gas)
MMA (electrodes)
TIG Lift

Brand

HORNEC® smart SynMIG 2150i FLUX welding machine (gasless)

Name: HORNEC® smart SynMIG 2150i FLUX welding machine (gasless)
Brand: Hornec
SKU: 1545769

Reference 1545769

Ask for the price and delivery time by phone

You can buy our products from our partner stores

Interested in a B2B partnership?

b2b@tolas.lt +370 648 47770

Opens in a new window

Description

Suvirinimo aparatas HORNEC smart SynMIG 2150i FLUX

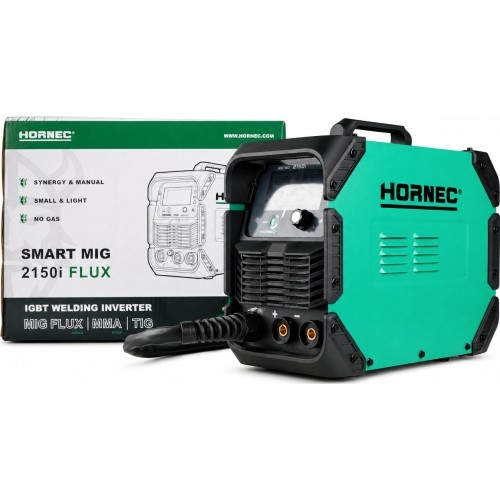

HORNEC® smart SynMIG 2150i FLUX welding machine (gasless)

3 in 1: SYN MIG (NO GAS) / Lift-TIG / MMA

HORNEC® smart SynMIG 2150i FLUX - a compact, digitally controlled DC inverter machine designed for welding with self-shielded FLUX wire without a shielding gas cylinder. Additional Lift-TIG and MMA modes let you handle a variety of repair, installation and small fabrication jobs with a single machine.

Why is this model a convenient choice?

FLUX welding requires no gas cylinder, regulator or gas hose;
synergic control helps you set the main MIG parameters faster;
the integrated MIG torch is always ready for work;
the compact design is convenient in the garage, at the country house and for mobile jobs;
three welding processes in one machine.

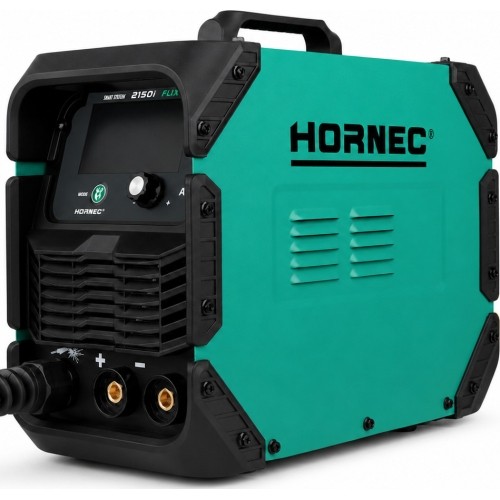

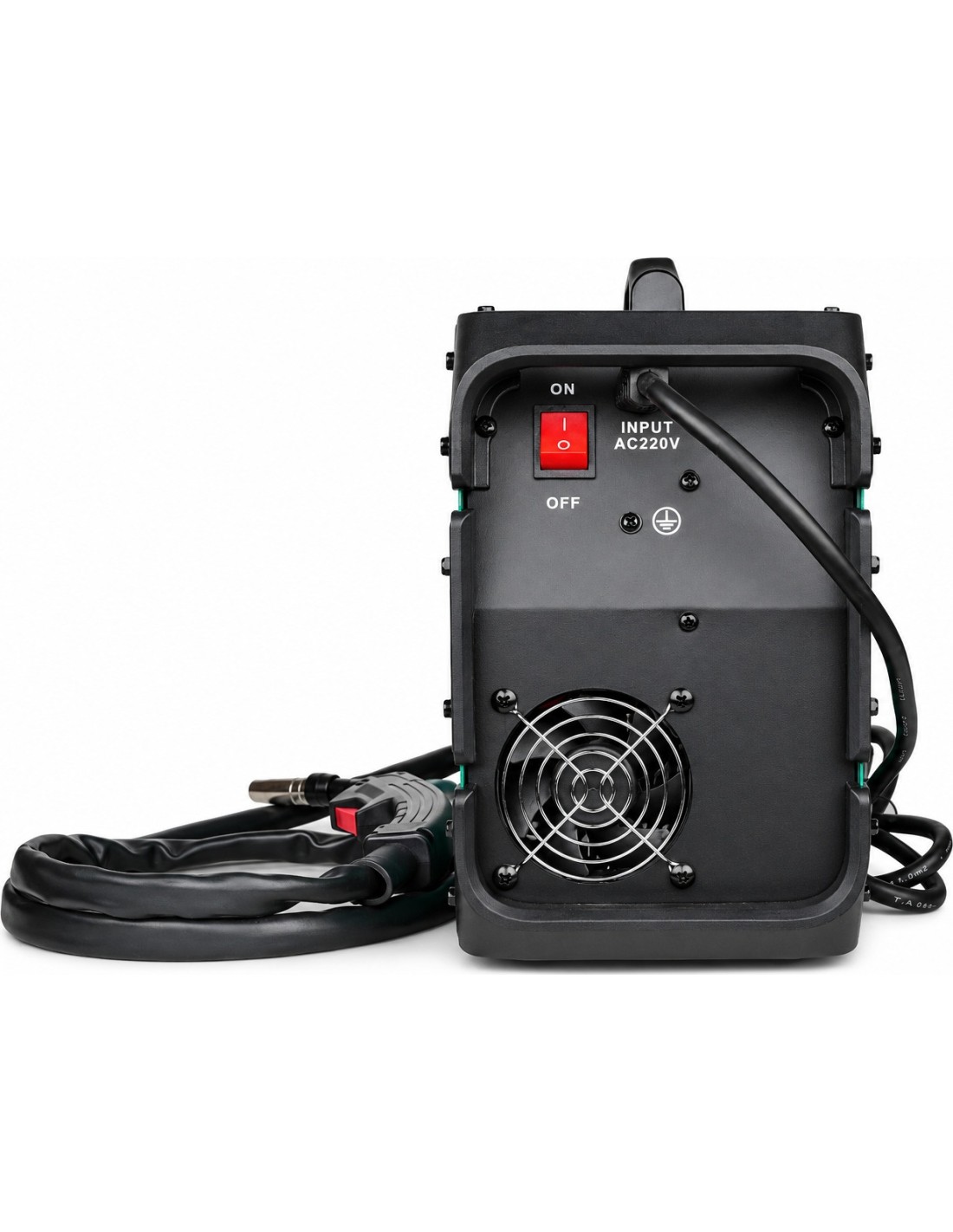

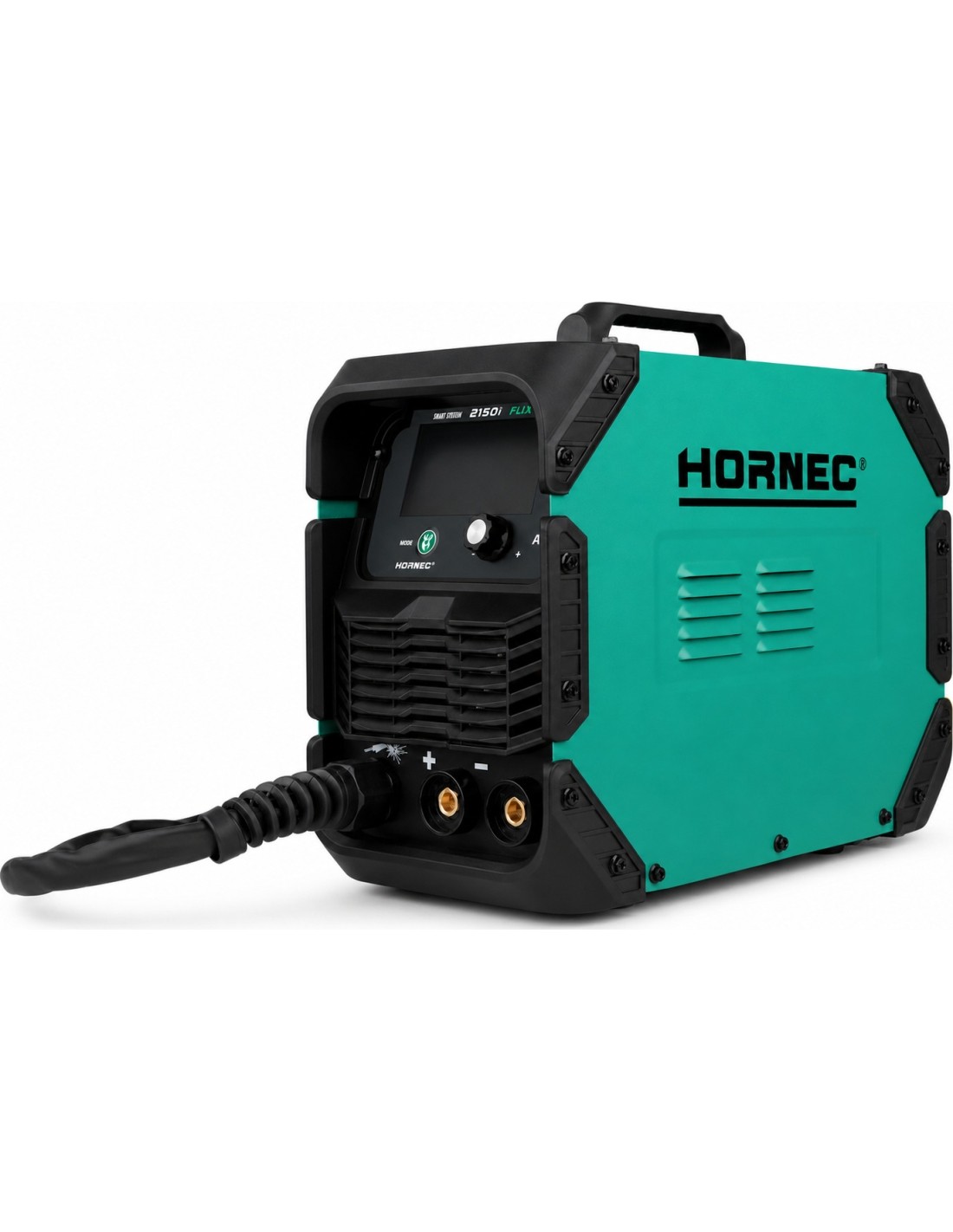

Advanced IGBT inverter technology

The IGBT inverter design allows efficient adjustment of welding parameters, helps maintain a stable arc and reduces energy losses. The integrated handle and low weight of 5.8 kg make the machine easy to carry.

digital parameter control;
stable DC arc;
overheating and overcurrent protection;

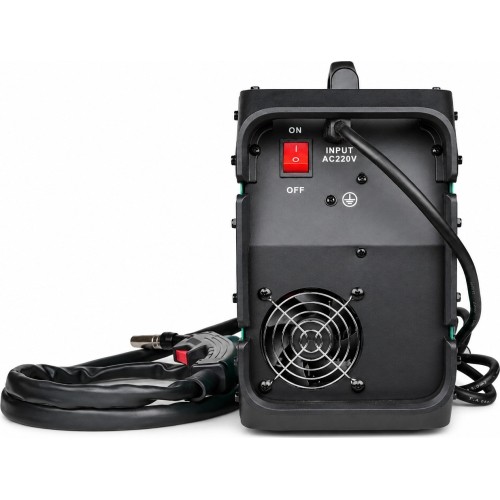

active fan cooling;
compact housing for home workshops.

HORNEC SynMIG 2150i FLUX suvirinimo aparatas

Three welding modes in one 3 in 1 machine

SYN MIG (NO GAS)

The synergic MIG mode is designed for welding with self-shielded flux-cored FLUX wire. The flux inside the wire burns and creates a protective atmosphere, so no external shielding gas is needed.

Lift-TIG

Lift-TIG mode is designed for a more precise, cleaner and better controlled weld. The arc is ignited by touching the workpiece with the tungsten electrode in a controlled way and then lifting it.

MMA

Welding with 1.6-3.2 mm coated electrodes. A practical choice for repair and installation work when no wire feed mechanism is needed.

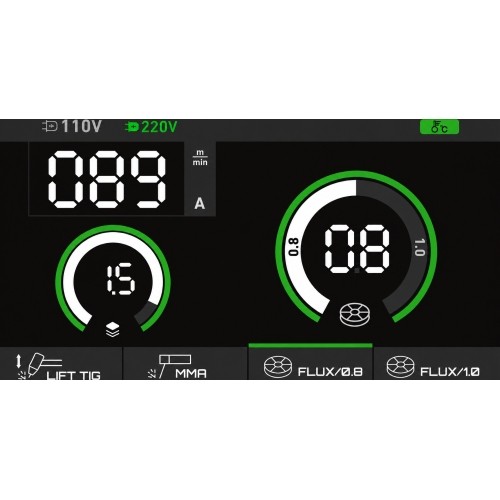

HORNEC SynMIG 2150i FLUX skaitmeninis valdymas

Simpler synergic FLUX control

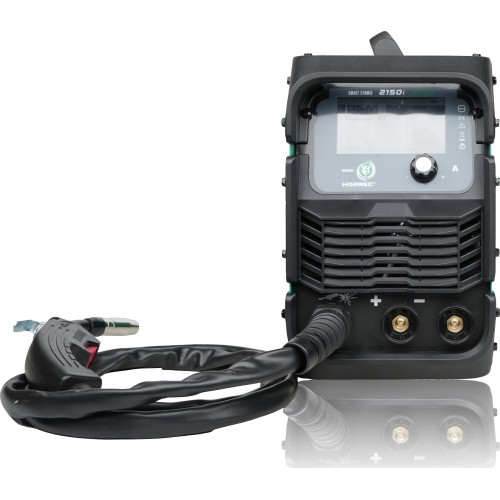

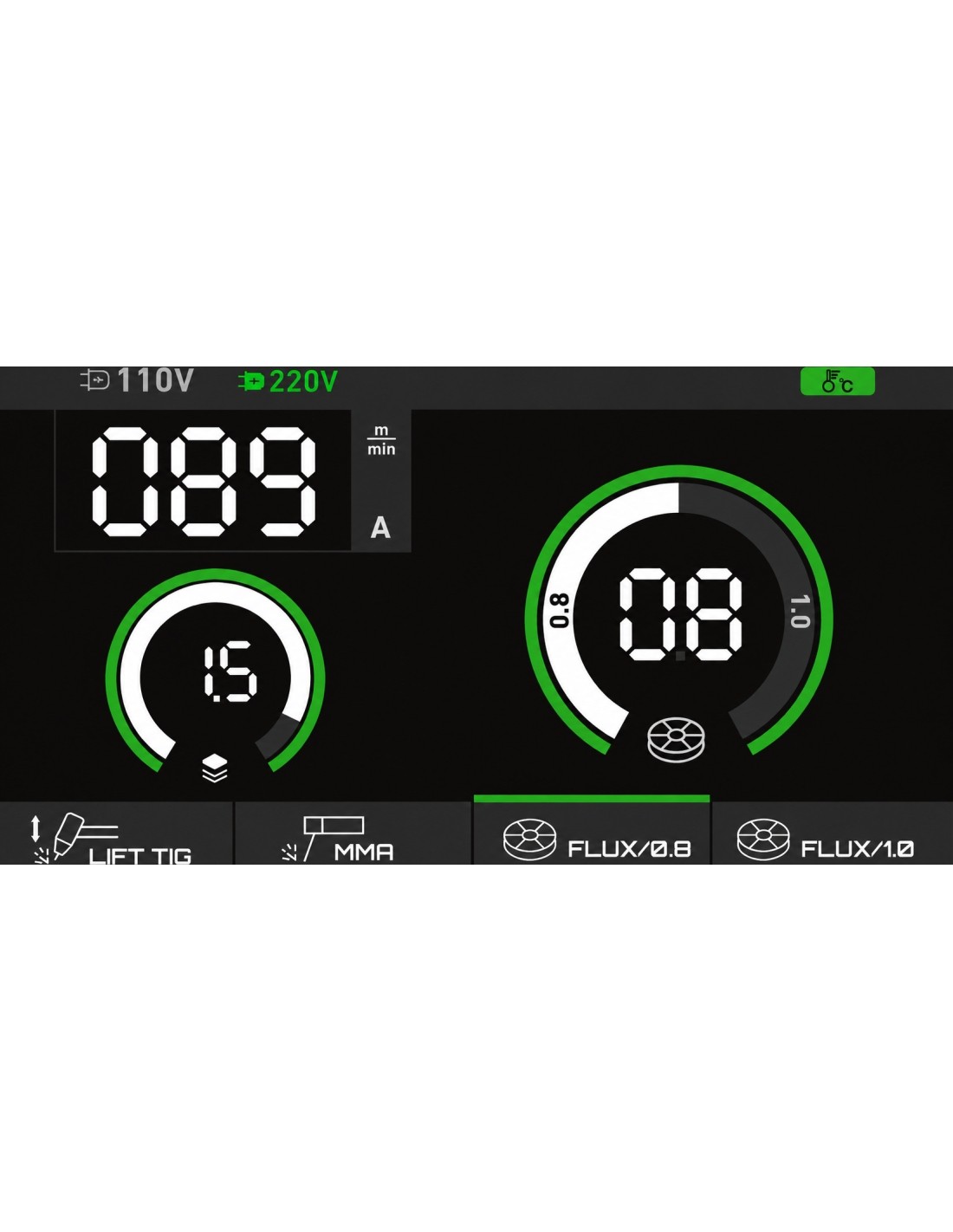

The digital control panel lets you select the MIG, Lift-TIG or MMA process and adjust the parameters required for the job. Clearly visible settings help you get the machine ready for work faster.

Wire: self-shielded FLUX wire only, 0.8-0.9 mm.
Gasless: no gas cylinder, regulator or hose needed.
Integrated MIG torch: normally not removable from the machine.
Maximum current: up to 140 A according to the machine rating plate.

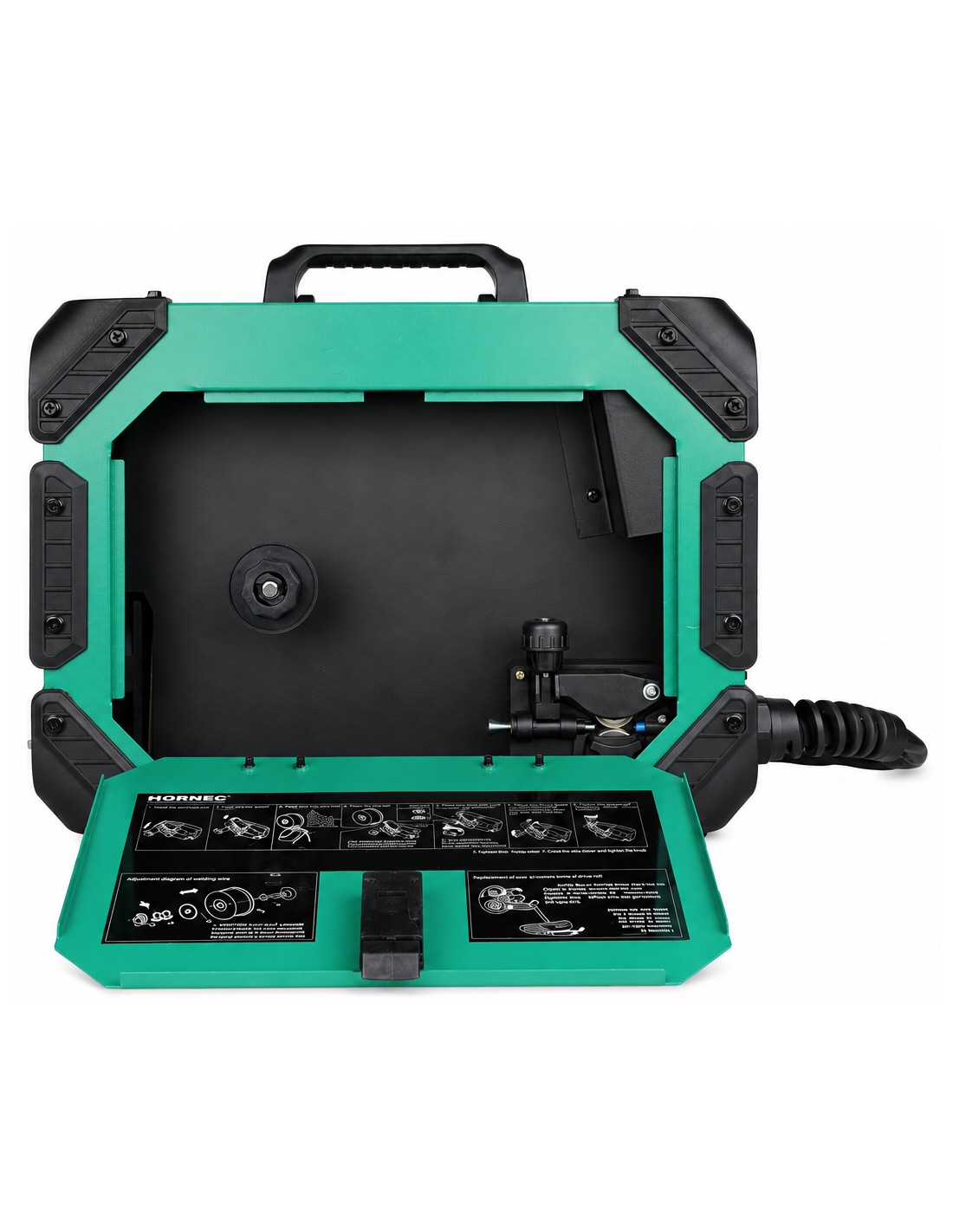

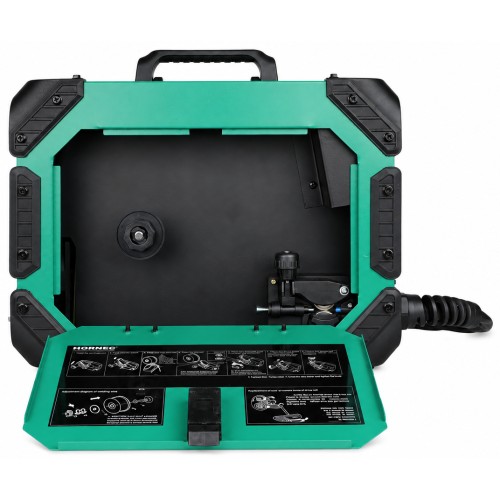

Integrated torch and plastic wire feed mechanism

The easily accessible wire compartment makes it easier to change the spool, thread the wire and maintain the feed mechanism. Correctly adjusted roller pressure helps ensure smooth wire movement and a more stable arc. The MIG torch is integrated into the machine, so it does not need a separate EURO connector and is normally not removable. The wire compartment houses a plastic feed mechanism designed for the compact construction of a hobby machine.

uses 0.8-0.9 mm self-shielded FLUX wire;
accepts a 1 kg wire spool;
a feed roller with a suitable profile is recommended for FLUX wire;
correct pressure helps maintain smooth wire movement;
protect the torch cable from sharp bends.

HORNEC SynMIG 2150i FLUX vielos padavimo mechanizmas

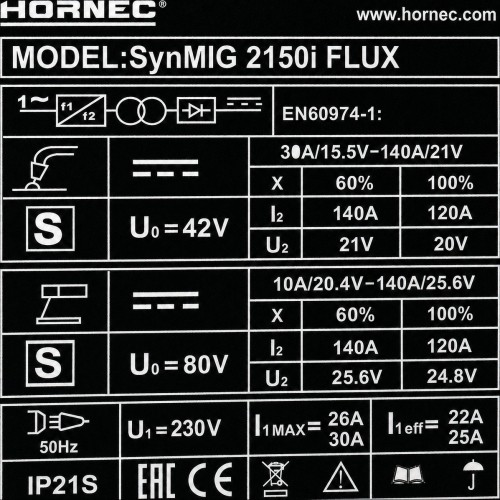

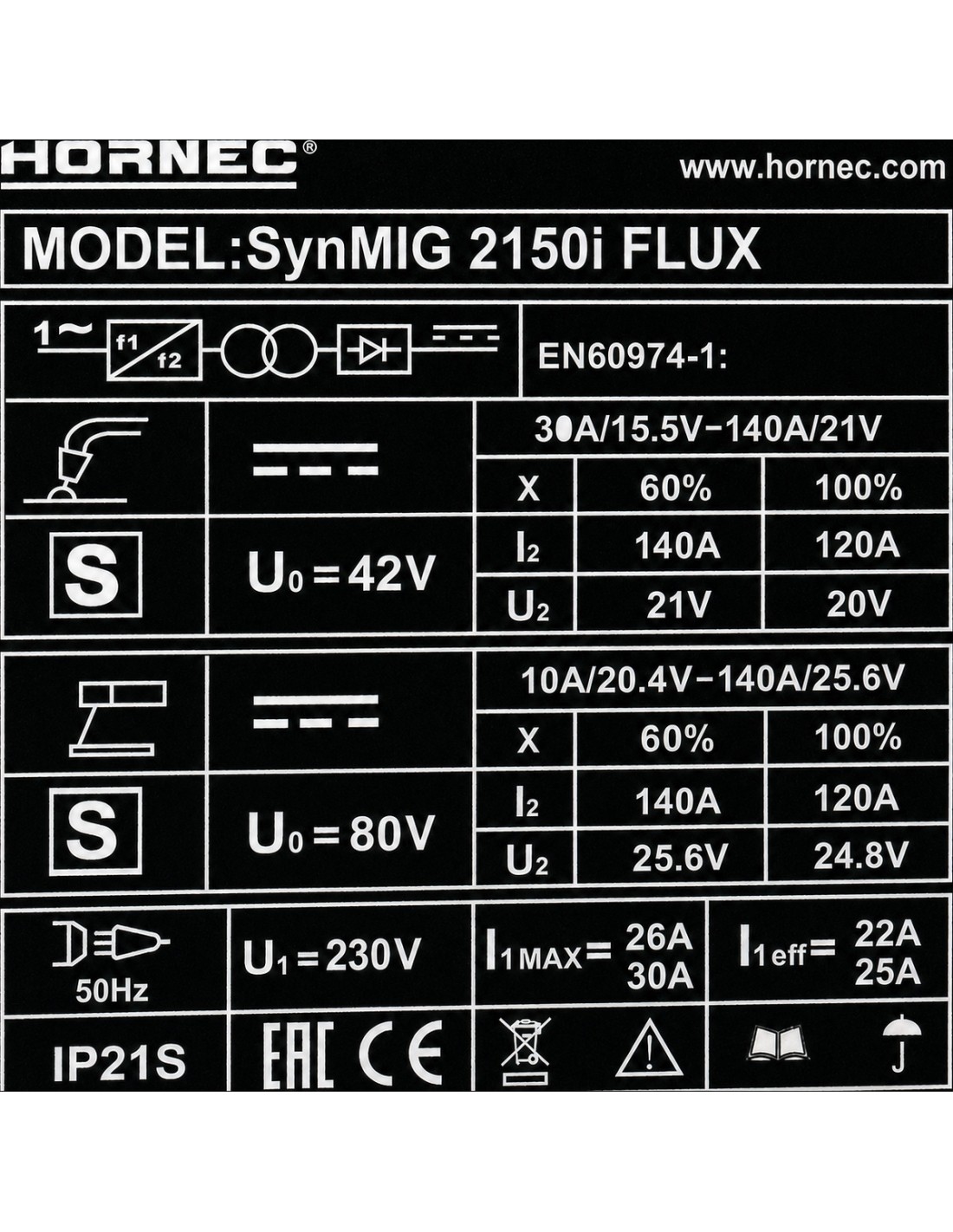

Duty cycle according to the machine rating plate

Process	Adjustment range	60 % duty cycle	100 % duty cycle
MIG / FLUX	30 A / 15.5 V - 140 A / 21 V	140 A / 21 V	120 A / 20 V
MMA	10 A / 20.4 V - 140 A / 25.6 V	140 A / 25.6 V	120 A / 24.8 V

Duty cycle indicates how long the machine can operate within a 10-minute period at the specified current. A 60 % duty cycle means up to 6 minutes of welding, with the remaining time for cooling. The manual also states the Lift-TIG / MMA rated output as 120 A / 20.8 V.

HORNEC smart SynMIG 2150i FLUX konstrukcija

Main technical specifications

Model	HORNEC® smart SynMIG 2150i FLUX
Power supply	230 V, 50 Hz, 1 phase
Welding current range	20-140 A (manual)
Welding modes	SYN MIG (NO GAS), Lift-TIG, MMA
Open-circuit voltage	42 V in MIG mode; 80 V in MMA mode
Wire diameter	0.8-0.9 mm
Wire type	self-shielded FLUX wire, gasless
Electrode diameter	1.6-3.2 mm
Electrode types	6010 / 6011 / 6013
Protection class	IP21S according to the rating plate
Weight	5.8 kg
Dimensions	355 × 165 × 280 mm
Standard	EN 60974-1

HORNEC smart SynMIG 2150i FLUX detalės

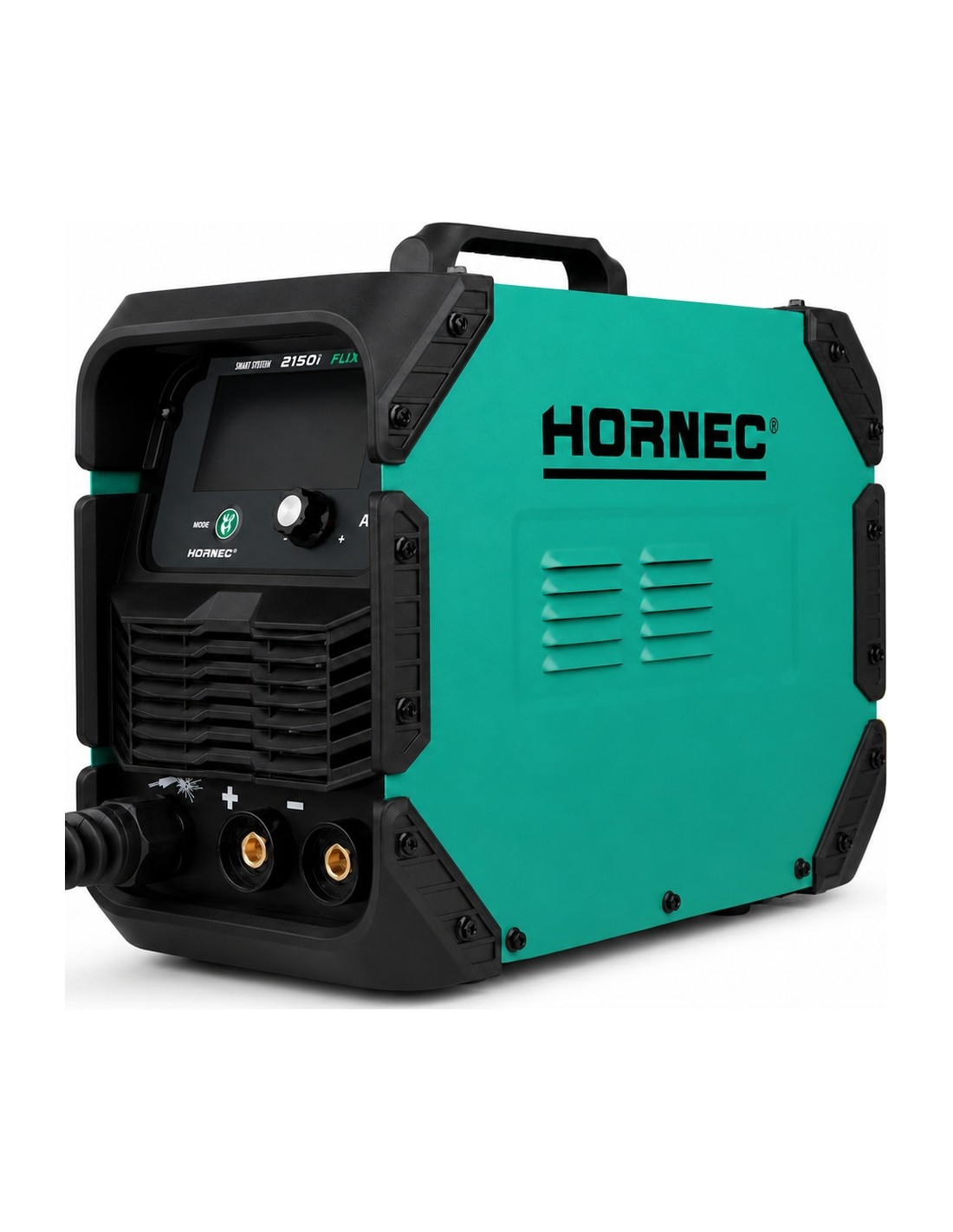

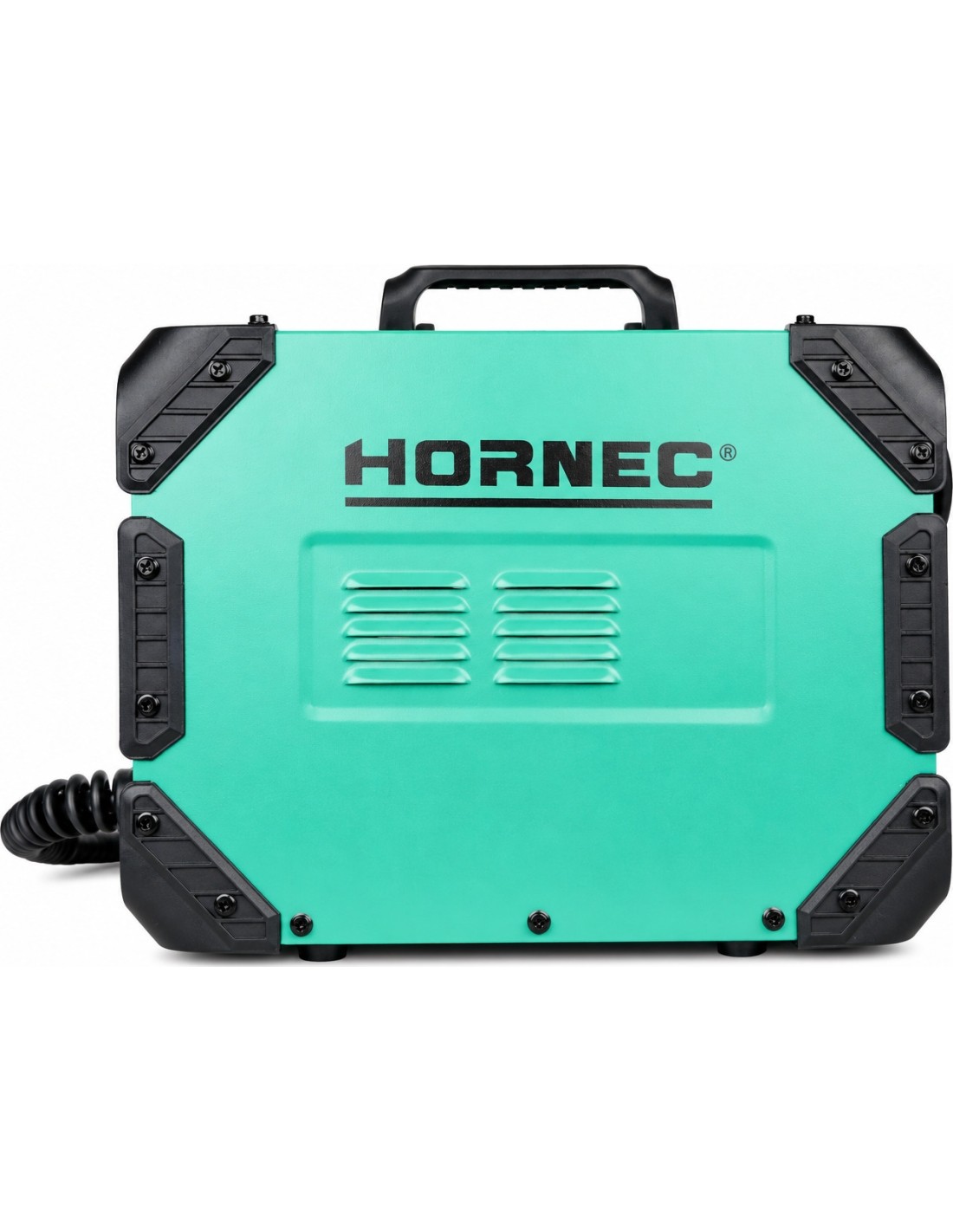

Practical in the garage and for mobile jobs

The integrated handle and 5.8 kg weight make the machine easy to carry.
The digital display clearly shows the selected parameters.
The integrated MIG torch requires no separate connection before work.
Gasless operation reduces the need for additional equipment.
Active cooling helps remove the heat generated during operation.
The plastic wire feed mechanism is adapted to the design of this compact hobby machine.

Important before you start

In MIG mode, use only self-shielded FLUX wire suitable for this machine.
Use appropriate eye, face, hand and body protection.
Work in a well-ventilated, dry environment protected from rain.
Do not cover the ventilation openings and do not exceed the specified duty cycle.
If the machine overheats, stop working and let it cool down with the fan running.
Disconnect the machine from the mains before changing connections or wire, or carrying out maintenance.

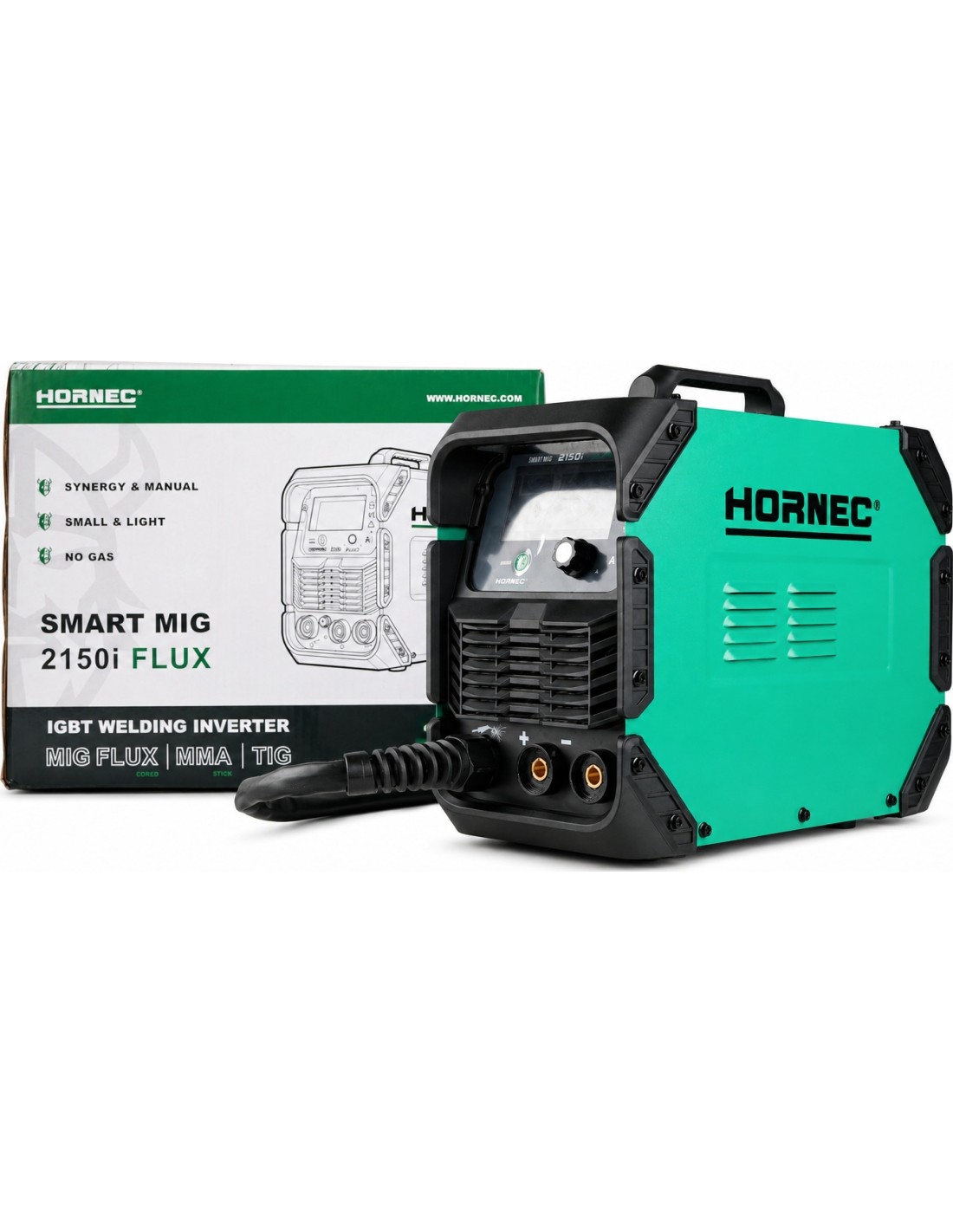

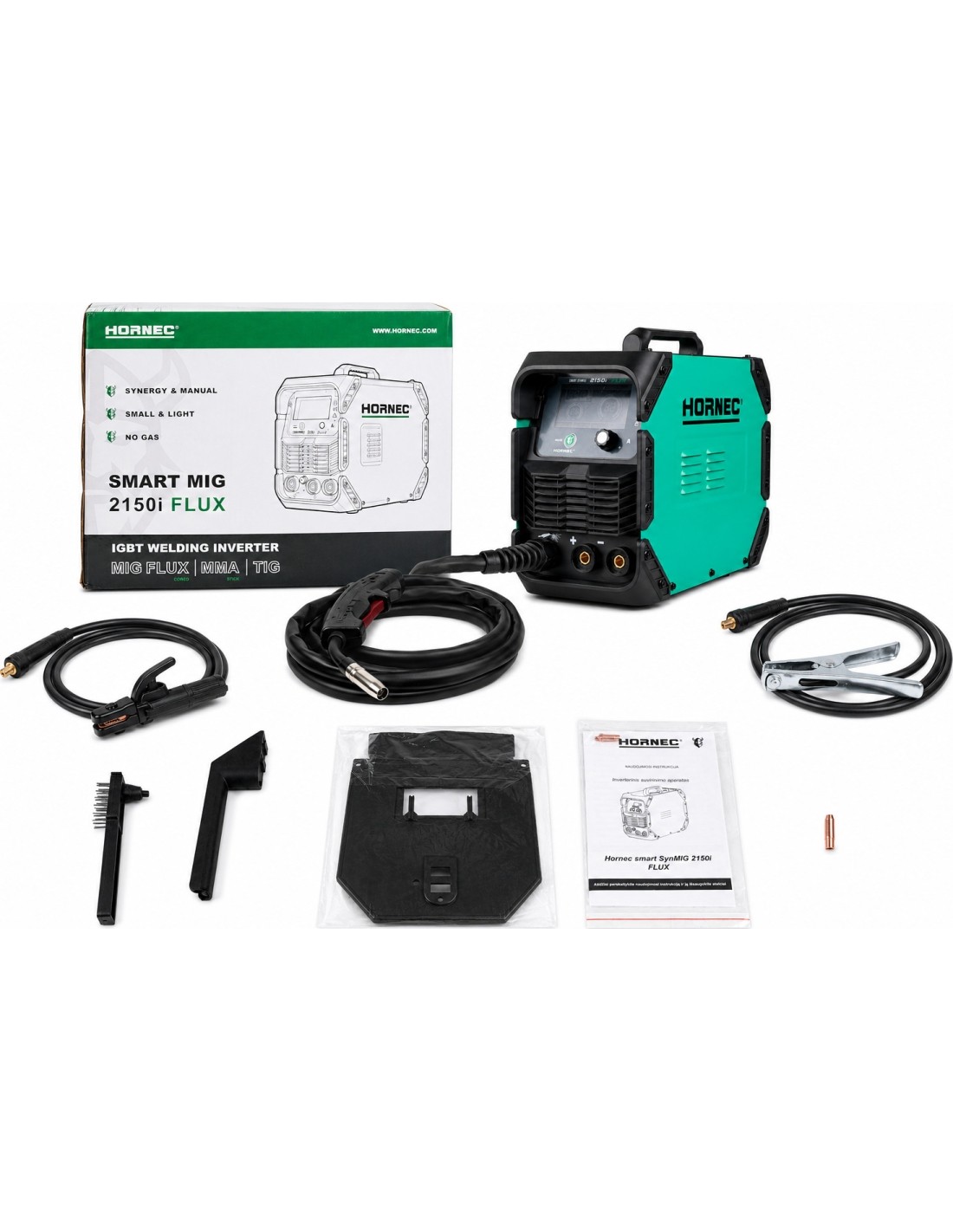

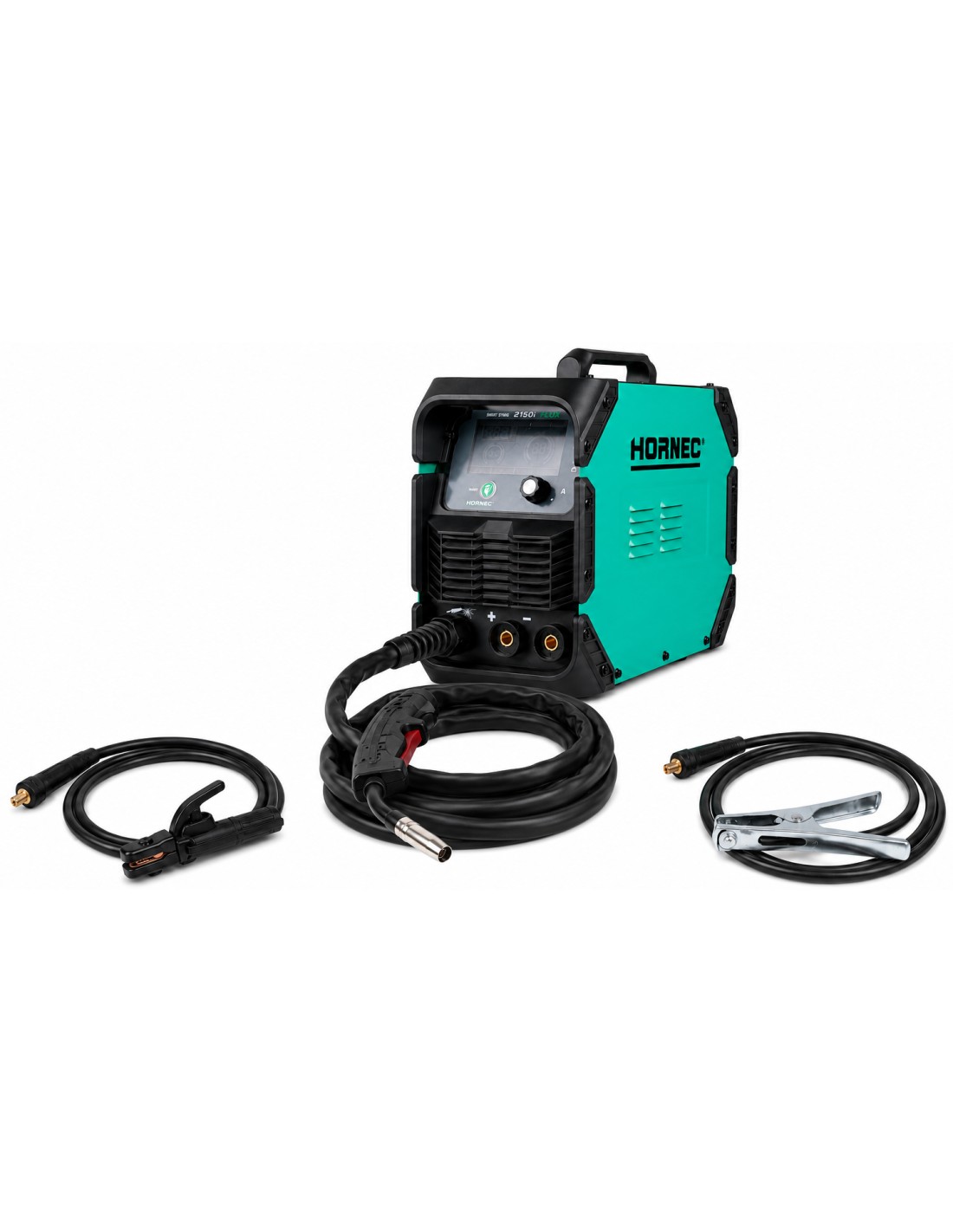

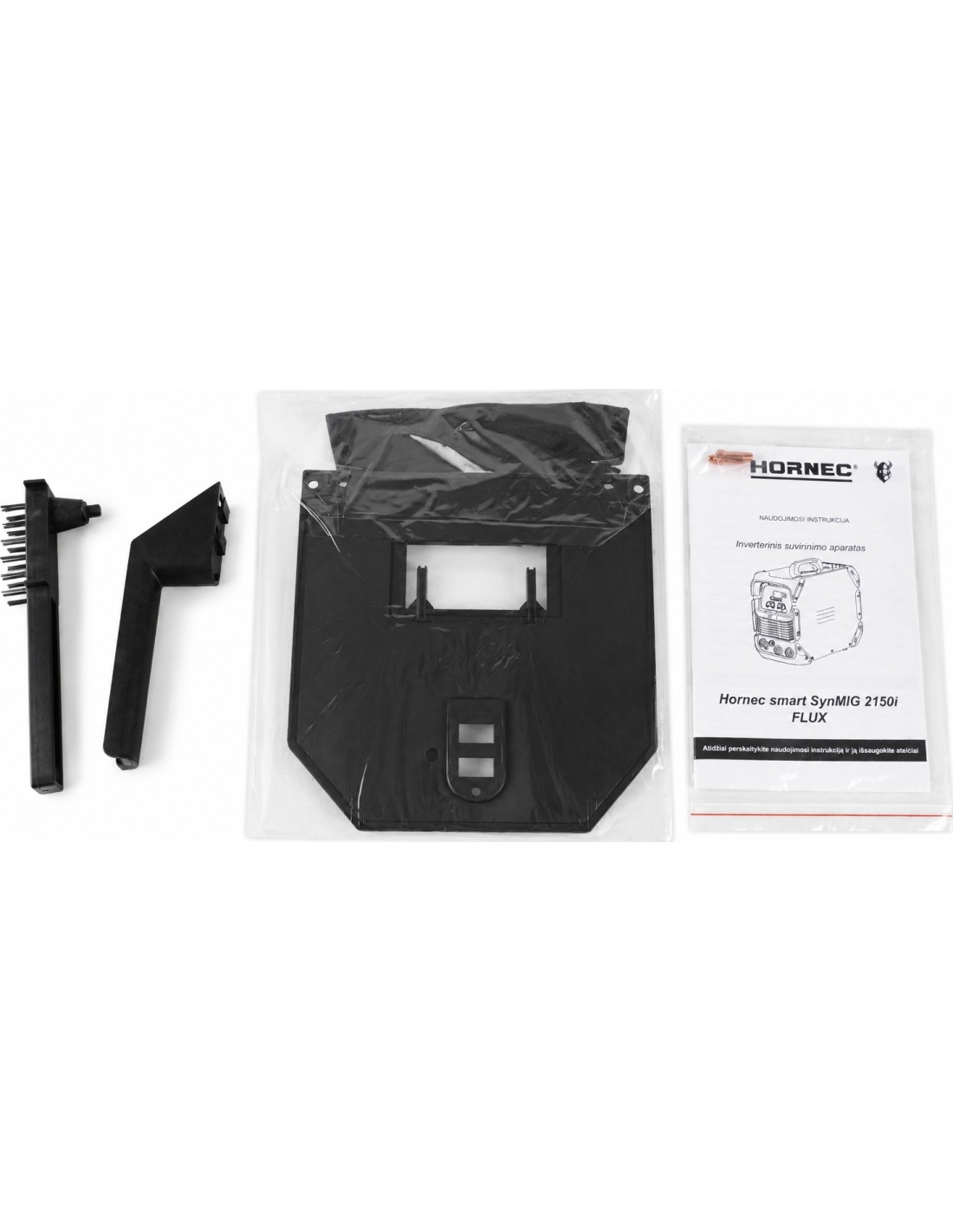

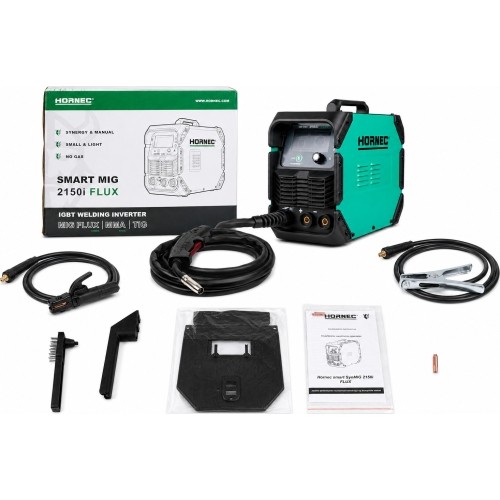

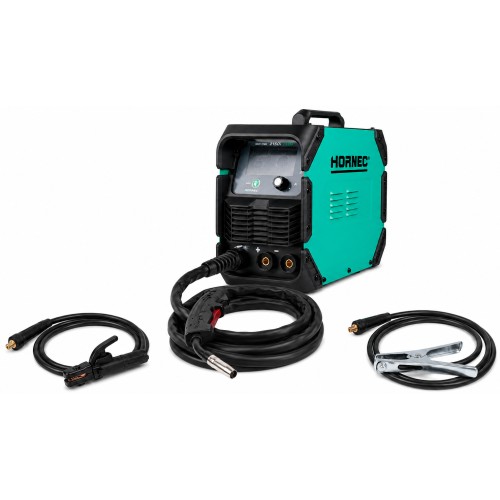

Package contents

HORNEC® smart SynMIG 2150i FLUX welding machine
MIG torch with consumables, integrated into the welding machine

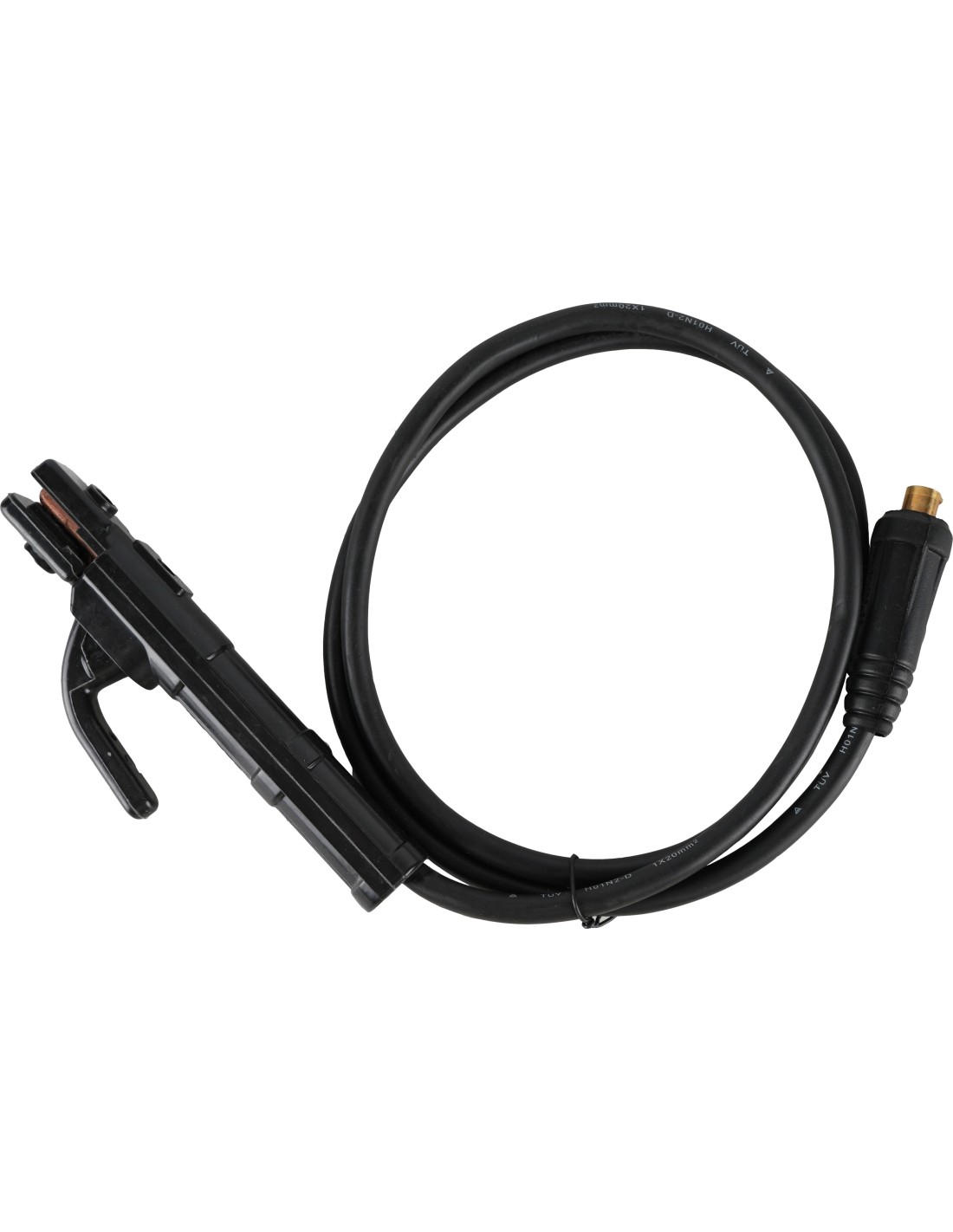

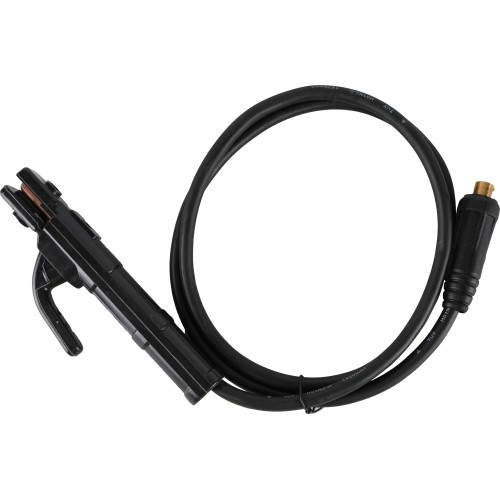

electrode holder with 1.5 m cable (16 mm² cable, 10-25 mm connector)

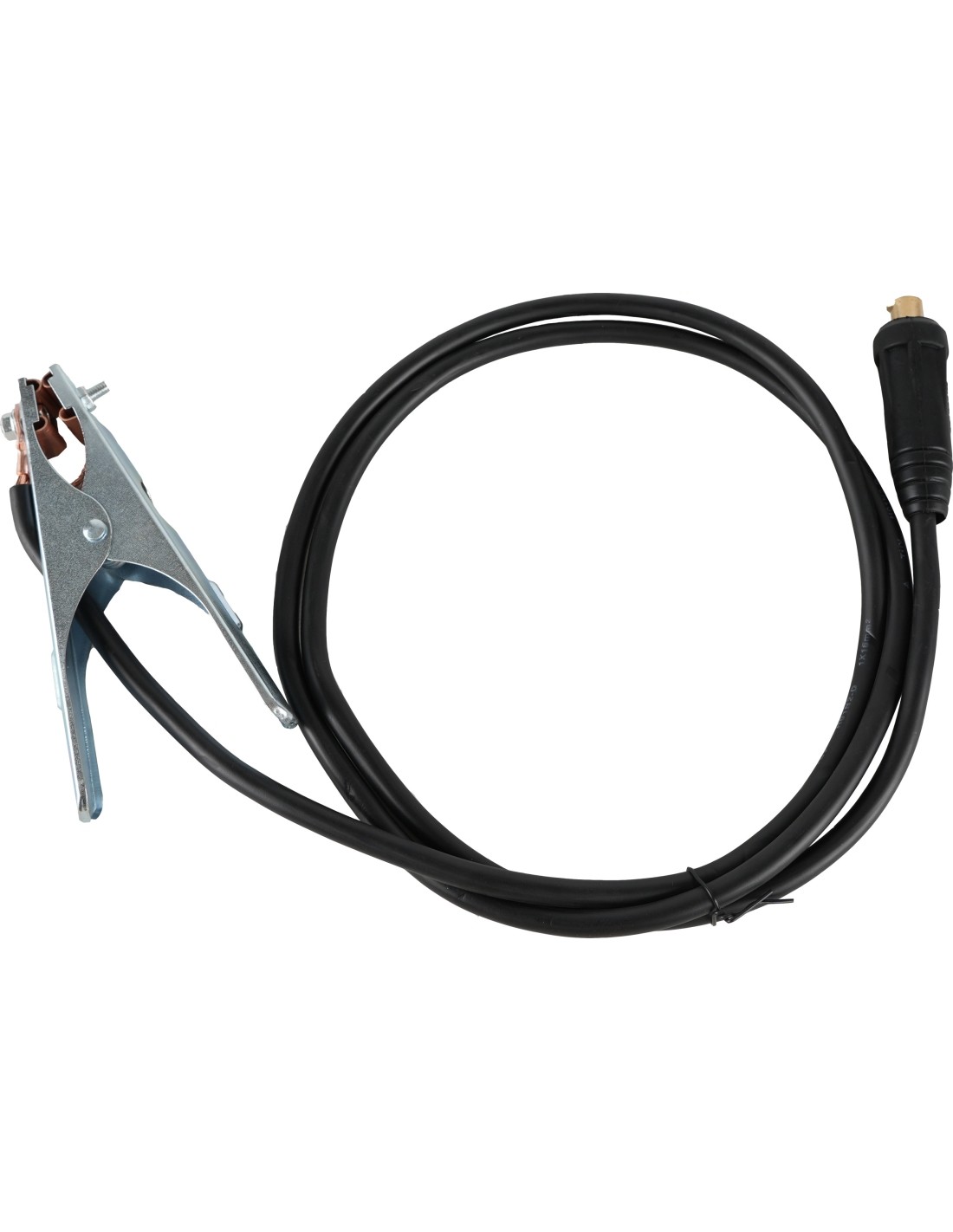

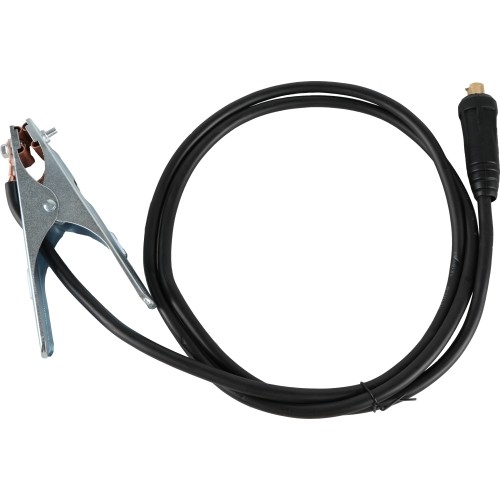

ground clamp with 1.5 m cable (16 mm² cable, 10-25 mm connector)
machine power cord, 1.8 m

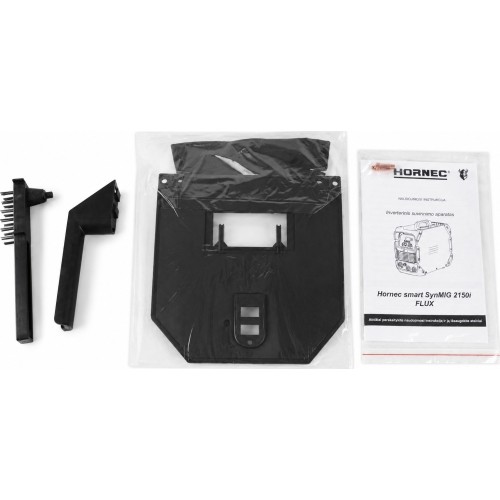

protective welding shield / mask
"2 in 1" metal cleaning hammer-brush
user manual EN / LT

The appearance of the package contents and the quantity of small consumables may vary depending on the specific product batch.

HORNEC smart SynMIG 2150i FLUX komplektacija

Compact 3 in 1 welding machine for gasless work

If you are looking for a compact machine for gasless welding with self-shielded wire, the HORNEC® smart SynMIG 2150i FLUX offers SYN MIG (NO GAS), Lift-TIG and MMA processes, digital control and welding current up to 140 A. The integrated MIG torch and low weight make it suitable for the garage, country house, home workshop and mobile repair jobs.
