- Funkcijos
- 2T/4T, Fan Stop, Gniazdo zasilania AC 36 V, Hot Start, Mikrokontroler (MCU), Pamięć ustawień, Podajnik 2-rolkowy, Podwójny Puls, Powypływ gazu MIG, Przedwypływ gazu, Puls MIG, Puls TIG, Reg
- Vielos padavimo greitis m/min
- 3 - 18
- Phase
- Trifazis (400V)
Vienfazis (230V) - Control
- rankinis
- User Level
- for workshops and small businesses
- Weight, kg
- 68,05
- Suvirinimas / pjaustymas / kiti metodai
- Litavimas, MIG/MAG, DC MMA
- Wire spool size [kg]
- 5
15 - PFC function
- No
- Gamybos technologija
- IGBT
- Maximum current MMA [A]
- 250
- MMA darbo ciklas [%].
- 60
- Įtampa be apkrovos [V].
- 59
- Maksimalus MMA suvartojamos galios kiekis [kVA}
- 9,4
- Pagrindinis metodas
- MIG/MAG
- Įmonių garantijos laikotarpis [metai].
- 1
- Maximum current MIG/MAG
- 230
250 - MIG/MAG darbo ciklas [%]
- 60
- Maksimalus MIG/MAG sunaudojamas galingumas [kVA].
- 9,4
- Ritinio matmenys [mm].
- 30x10x12 4Rn
- MIG dujų srautas [s].
- 0-10
- Maitintuvo tipas
- 4RN
- Vielos ritės skersmuo ø [mm].
- 200, 300
- Inverter technology
- IGBT
- Shielding Gas Requirement
- Gas / Gasless
- Number of wire feed rollers
- 4
- Package Contents
- MIG / MAG burner
ground cable
welding machine - Ground cable connection
- big (35 - 50 mm)
- Torch connection in the machine
- EURO
- Welding methods
- MIG/MAG welding
MMA (electrodes)

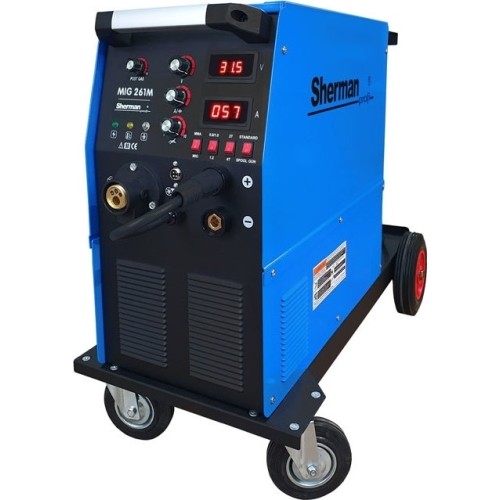

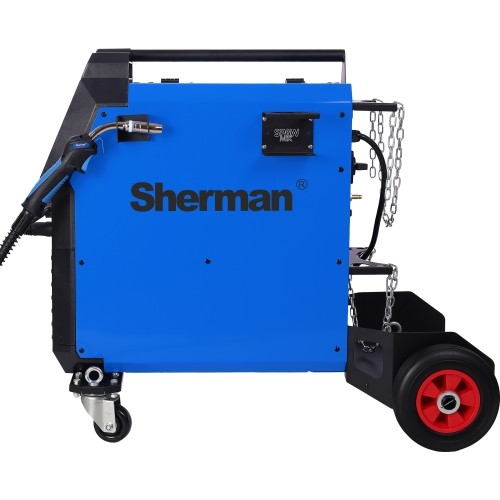

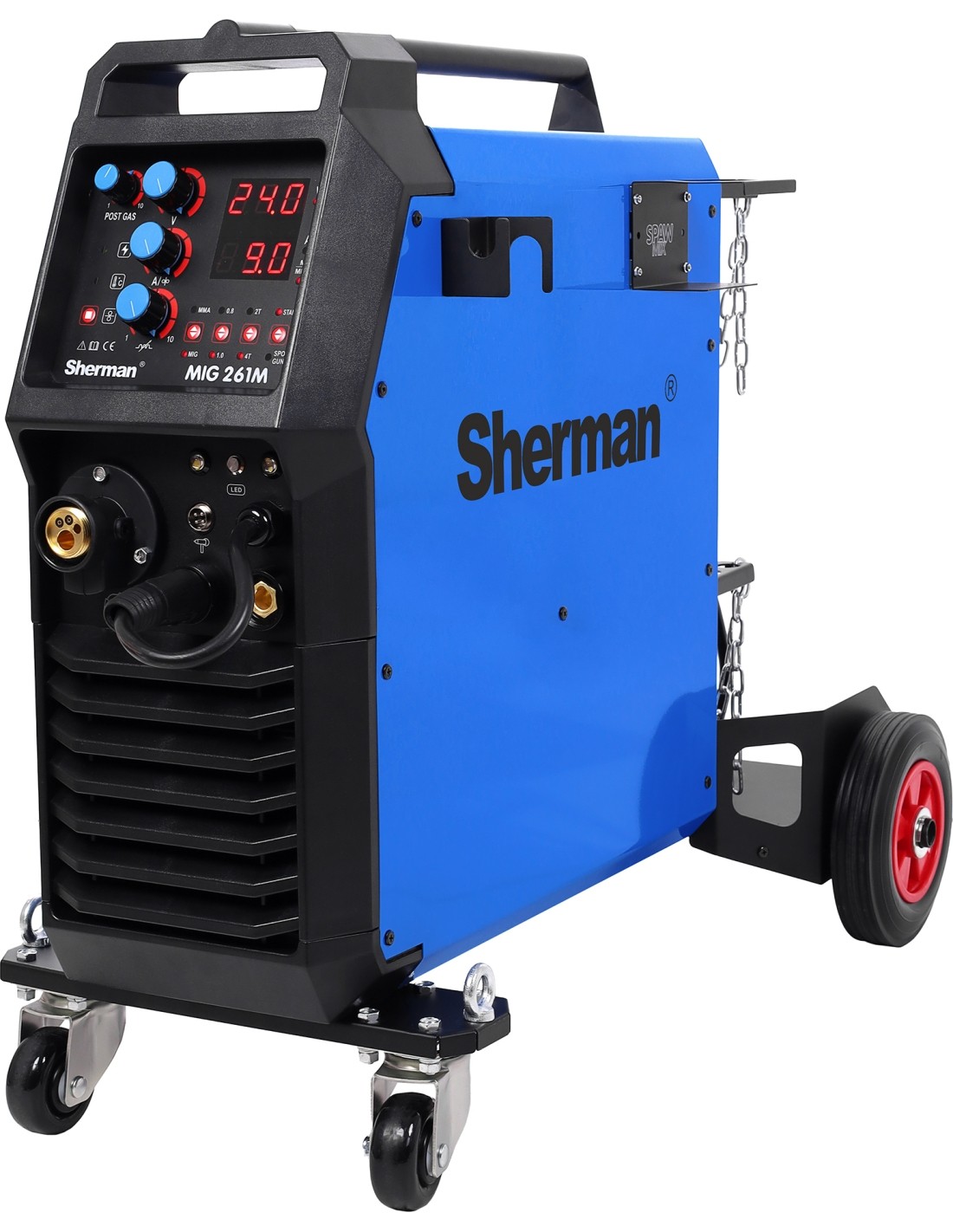

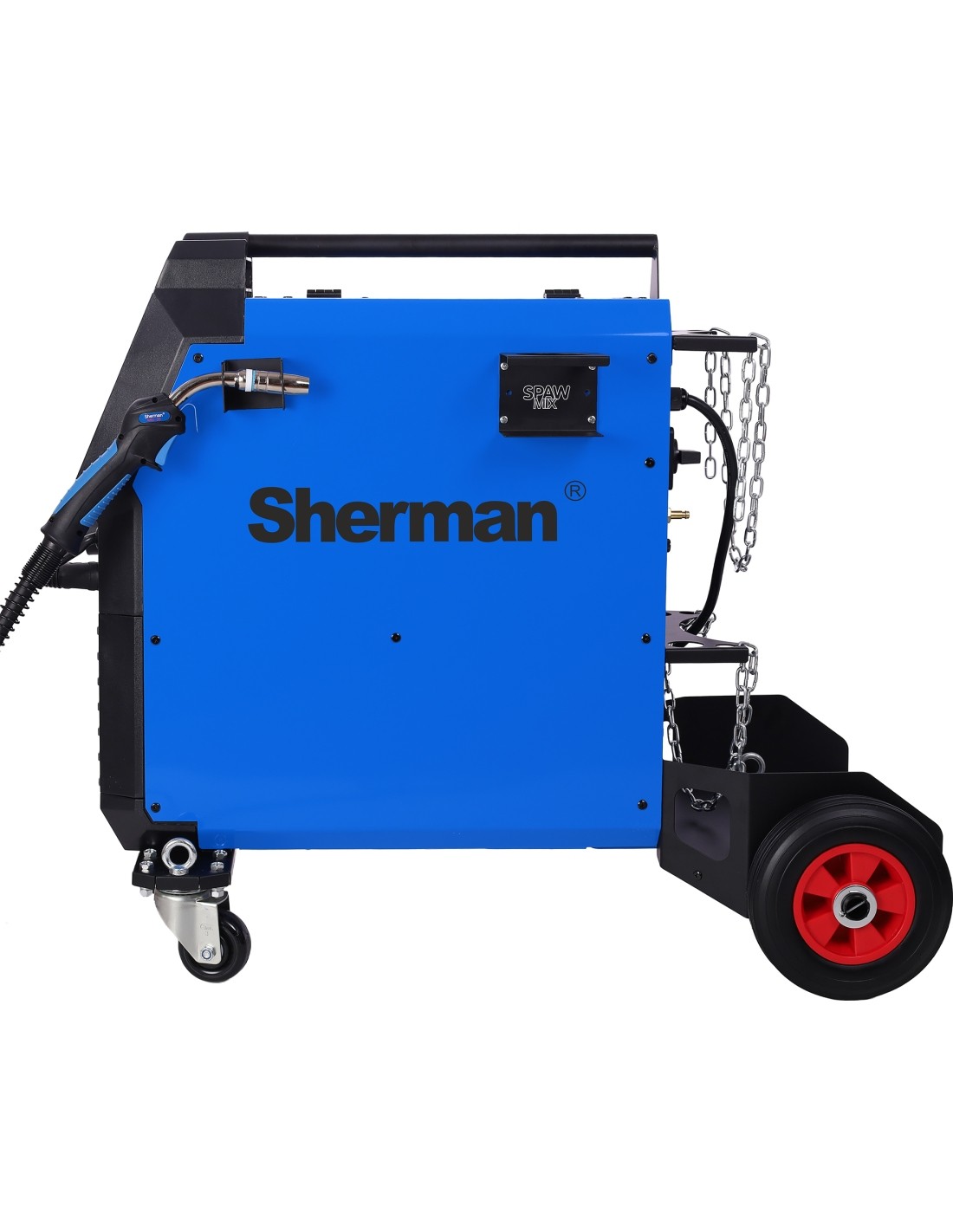

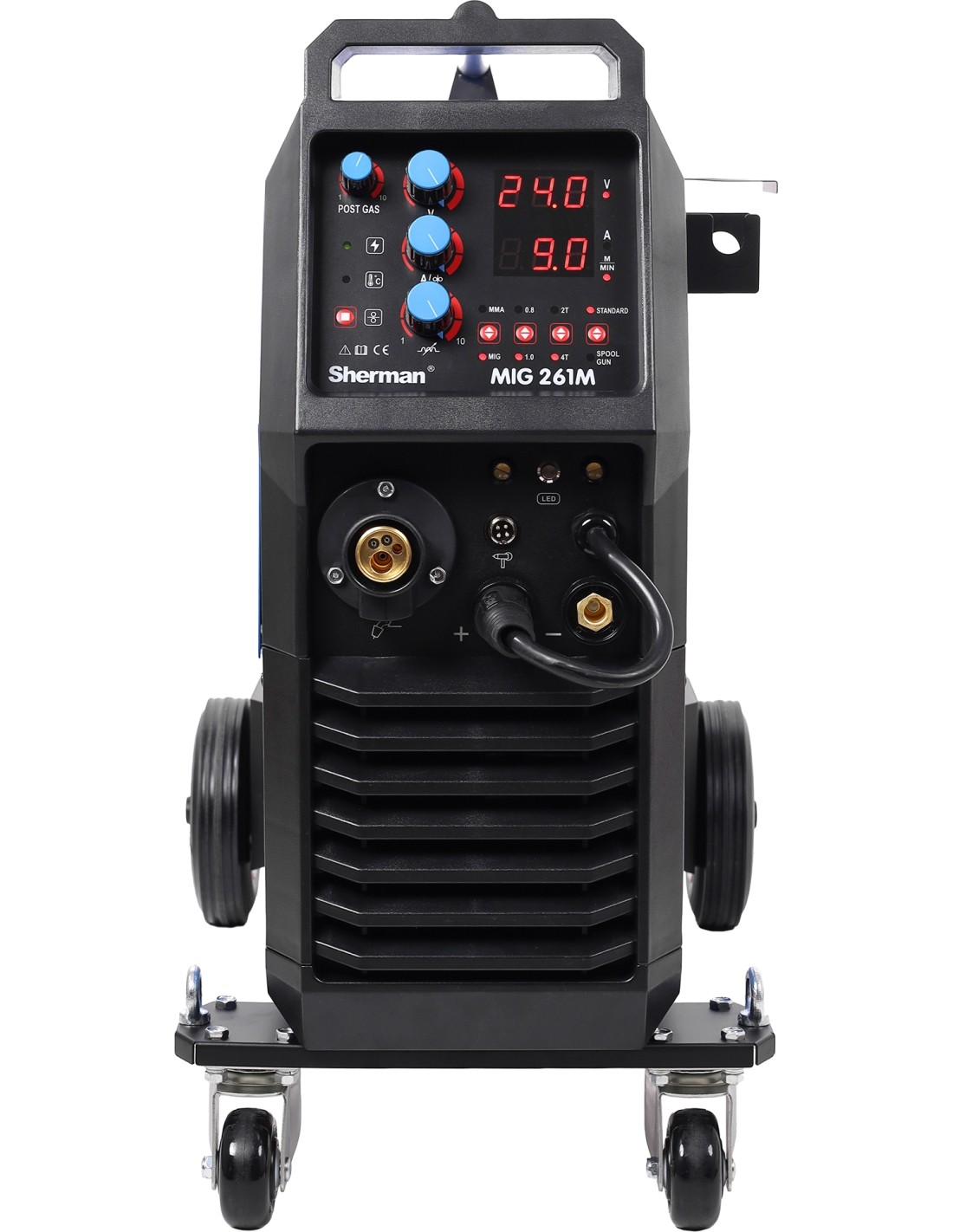

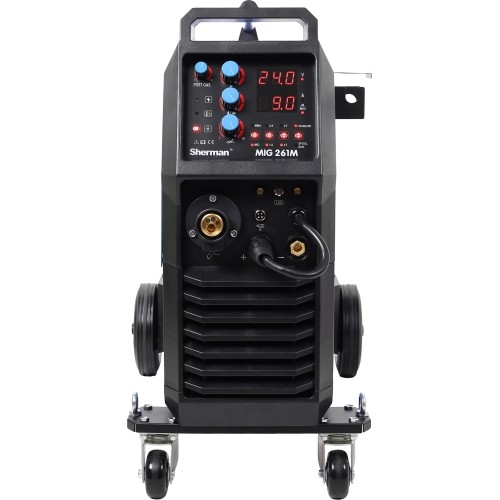

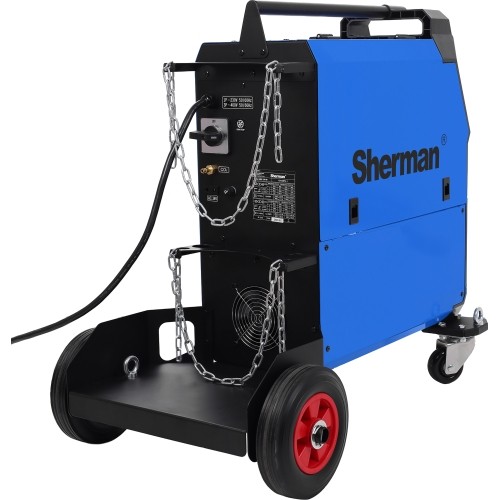

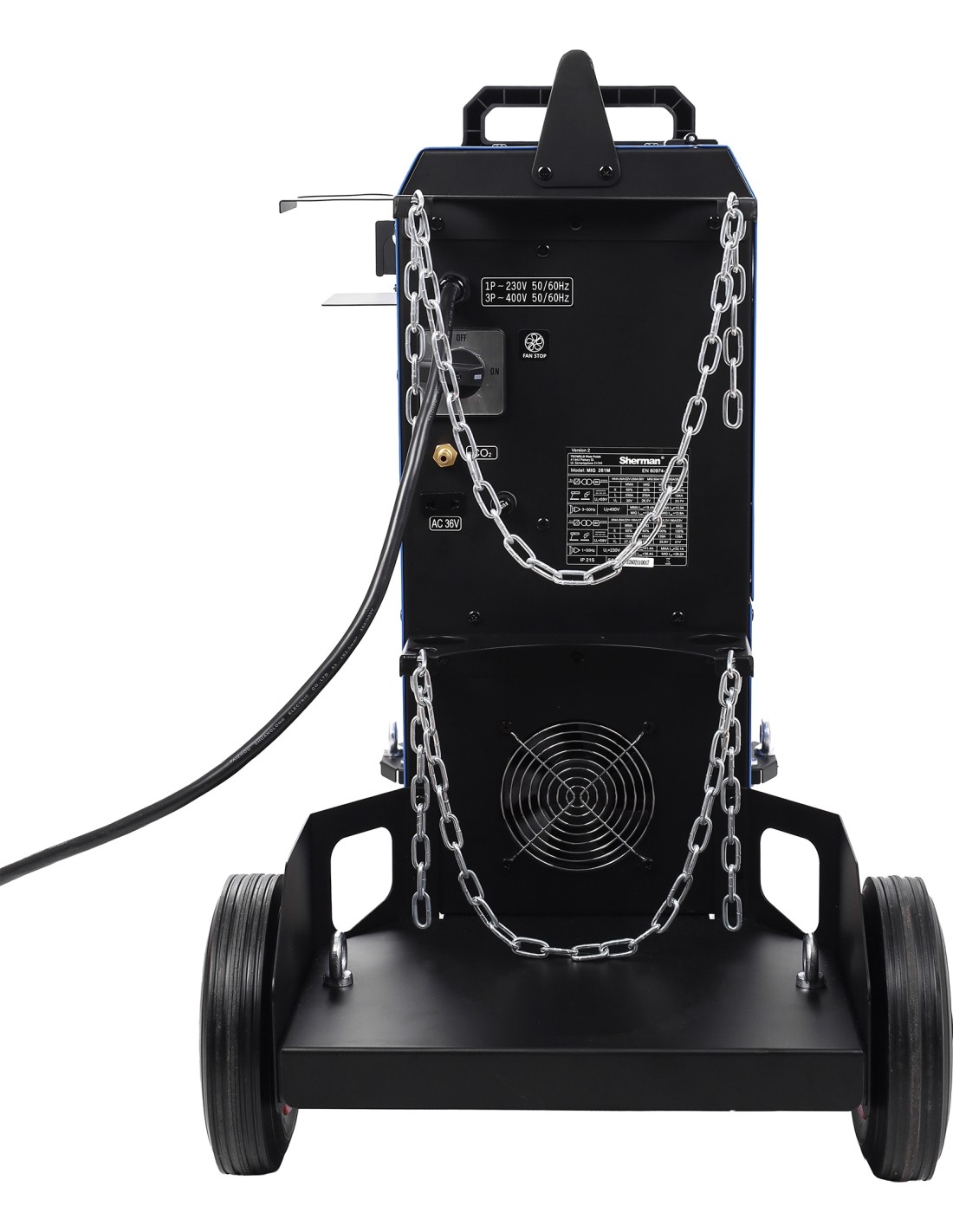

Inverter welder Sherman MIG 261M/4R
1051160
Price
€759.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
(2 pcs)
Delivery terms:
FREE pick up today, in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 68.05 kg.
We will deliver the product to you via: 1-2 w.d. Venipak
(€40.99) Weight: 68.05 kg.
Description
Description

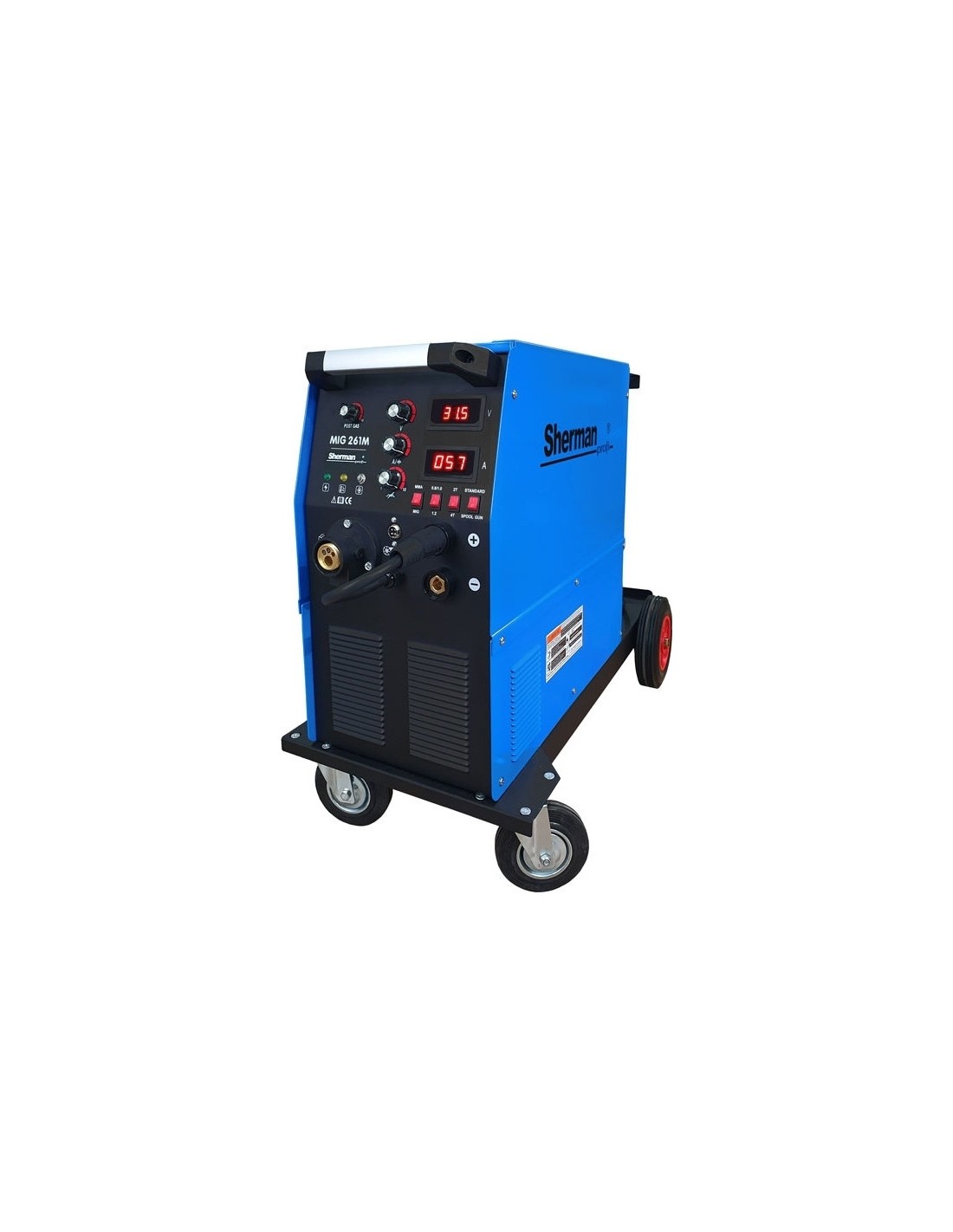

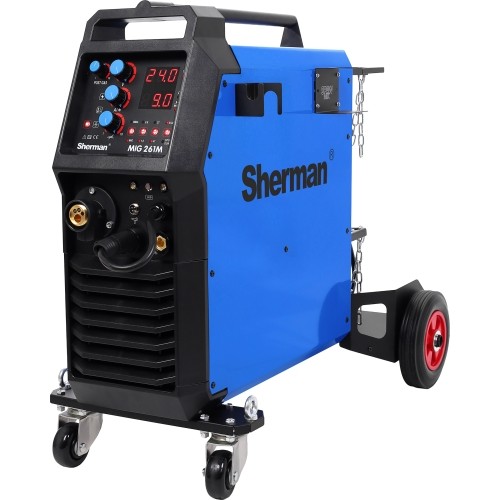

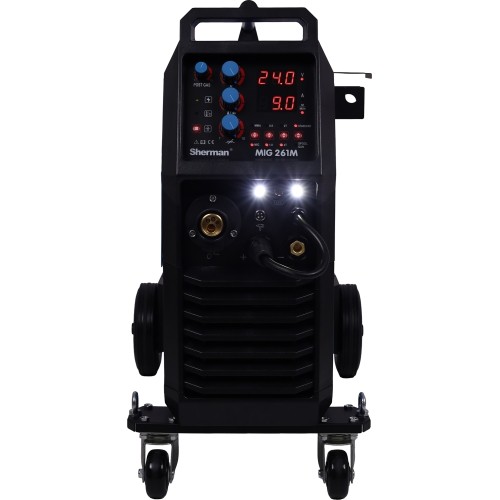

The MIG 261M welder is a second‑generation unit built on IGBT technology. It is designed for manual welding of steel and non‑ferrous metals in shielding gas (MIG/MAG) as well as with coated electrodes (MMA). It can also be used for gasless welding with flux‑cored wire and supports 100 mm wire spools when using a Spoolgun.

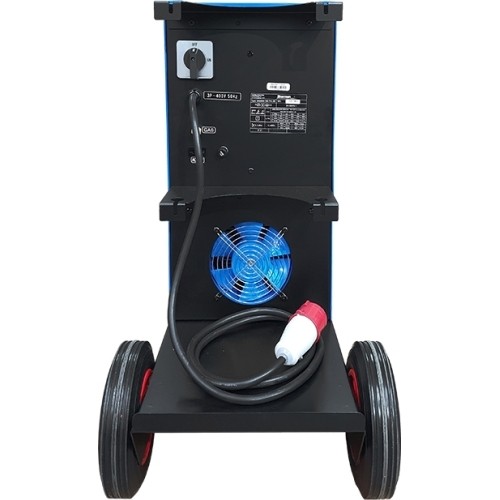

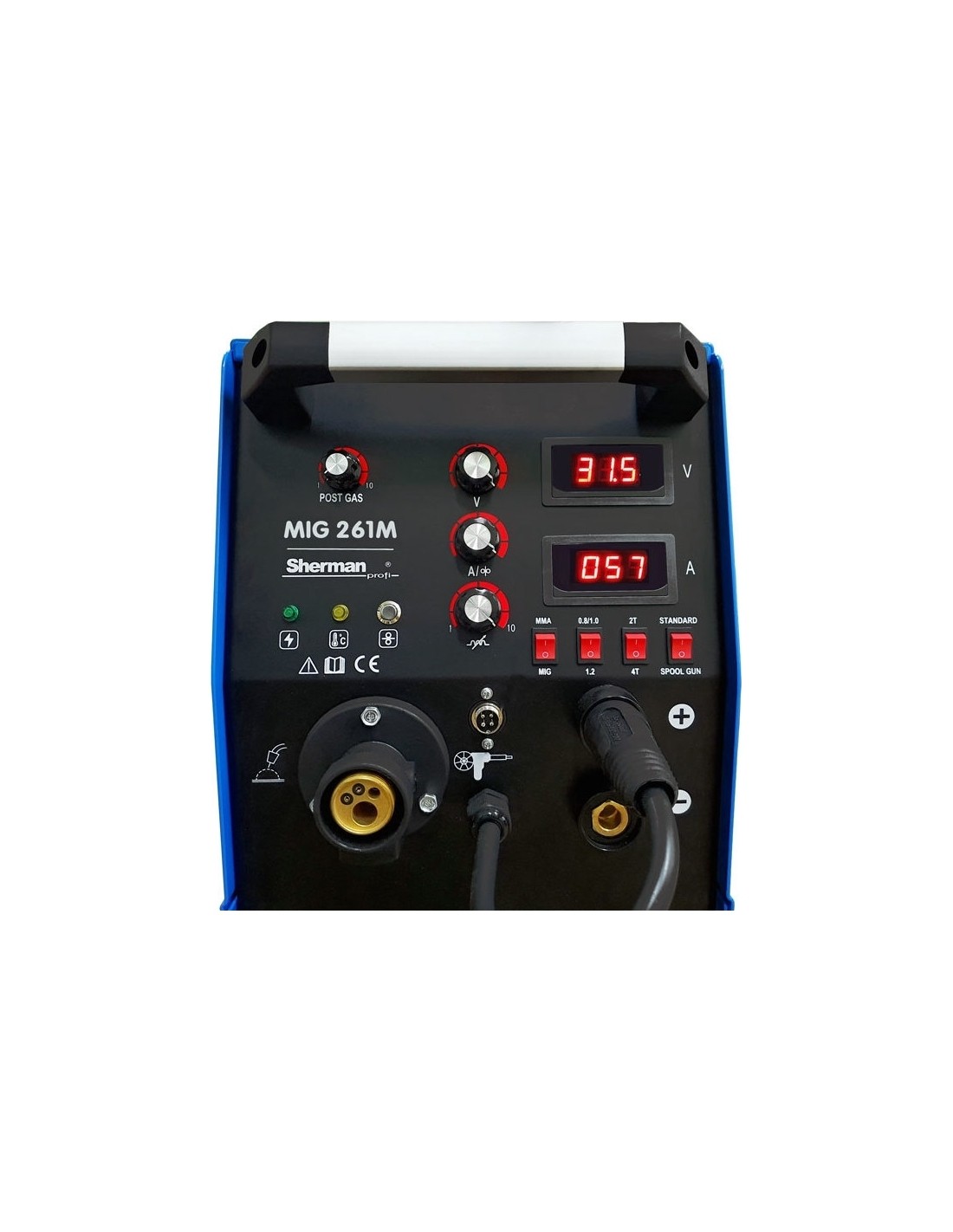

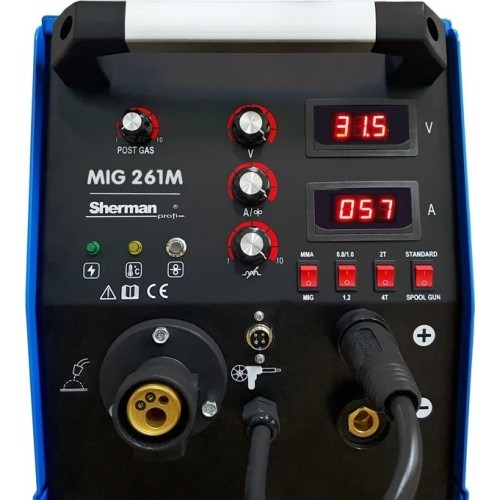

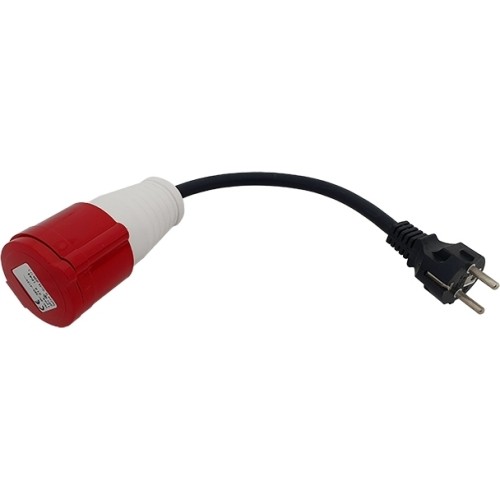

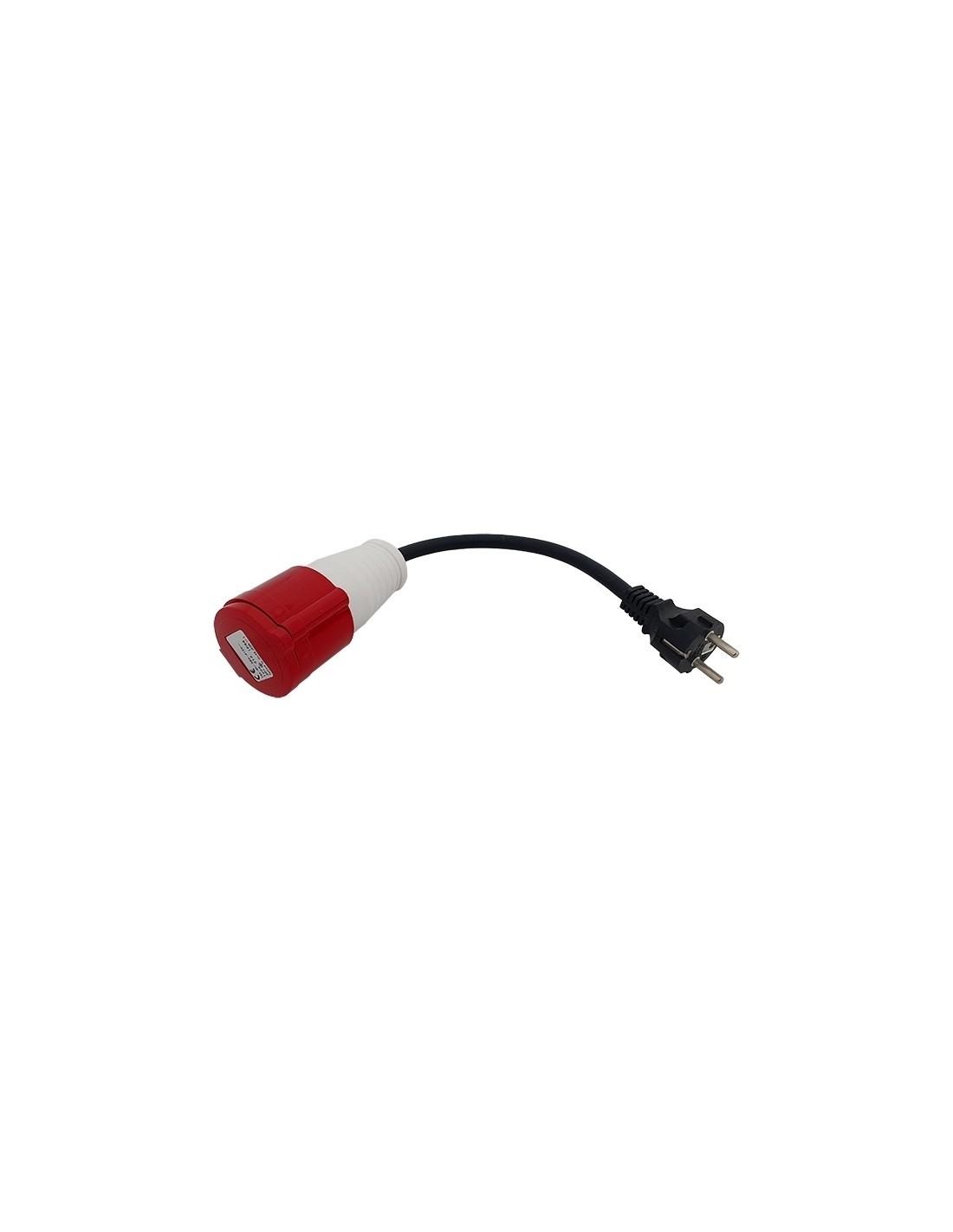

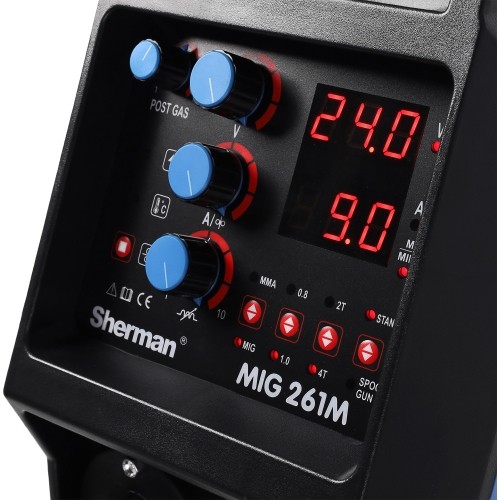

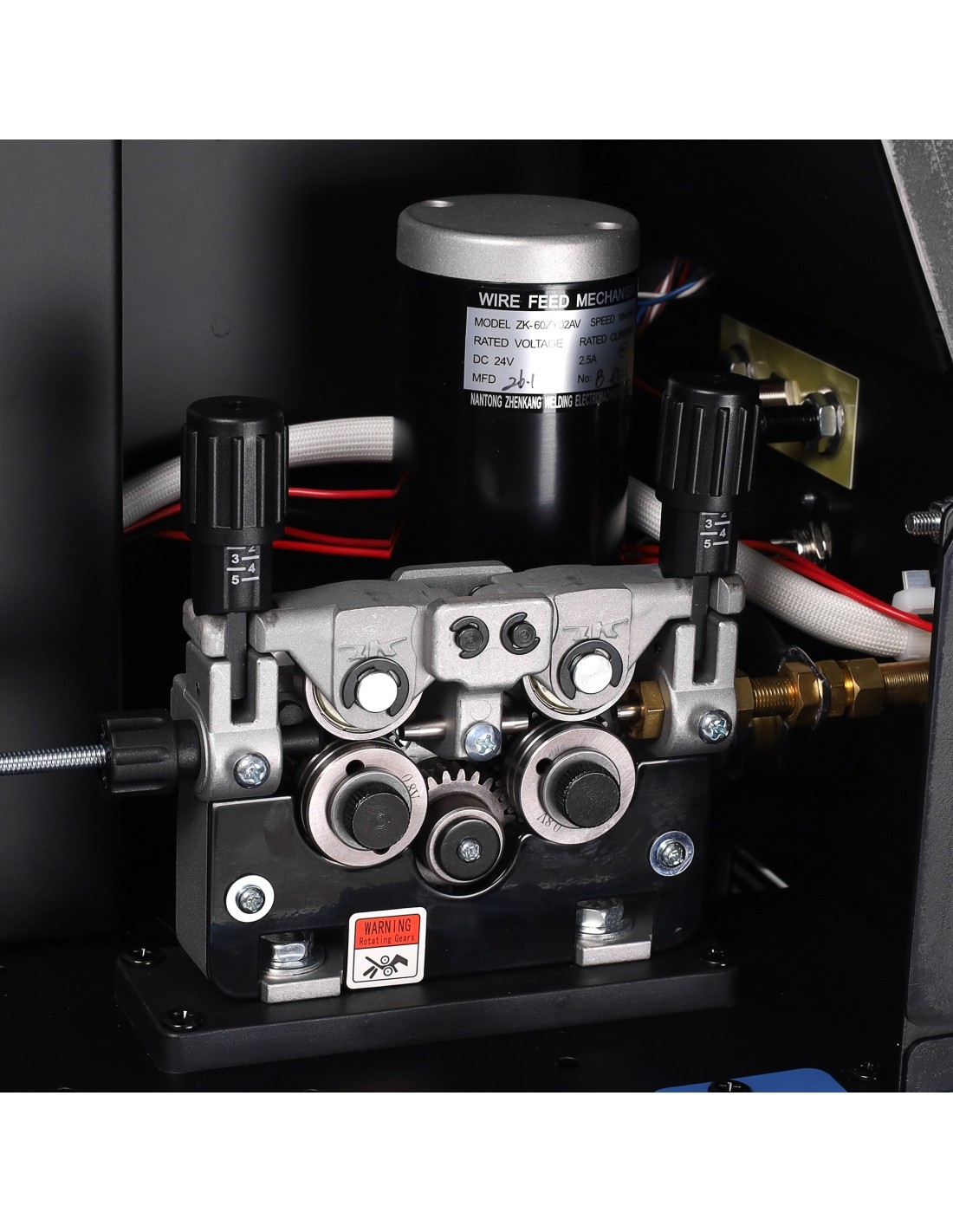

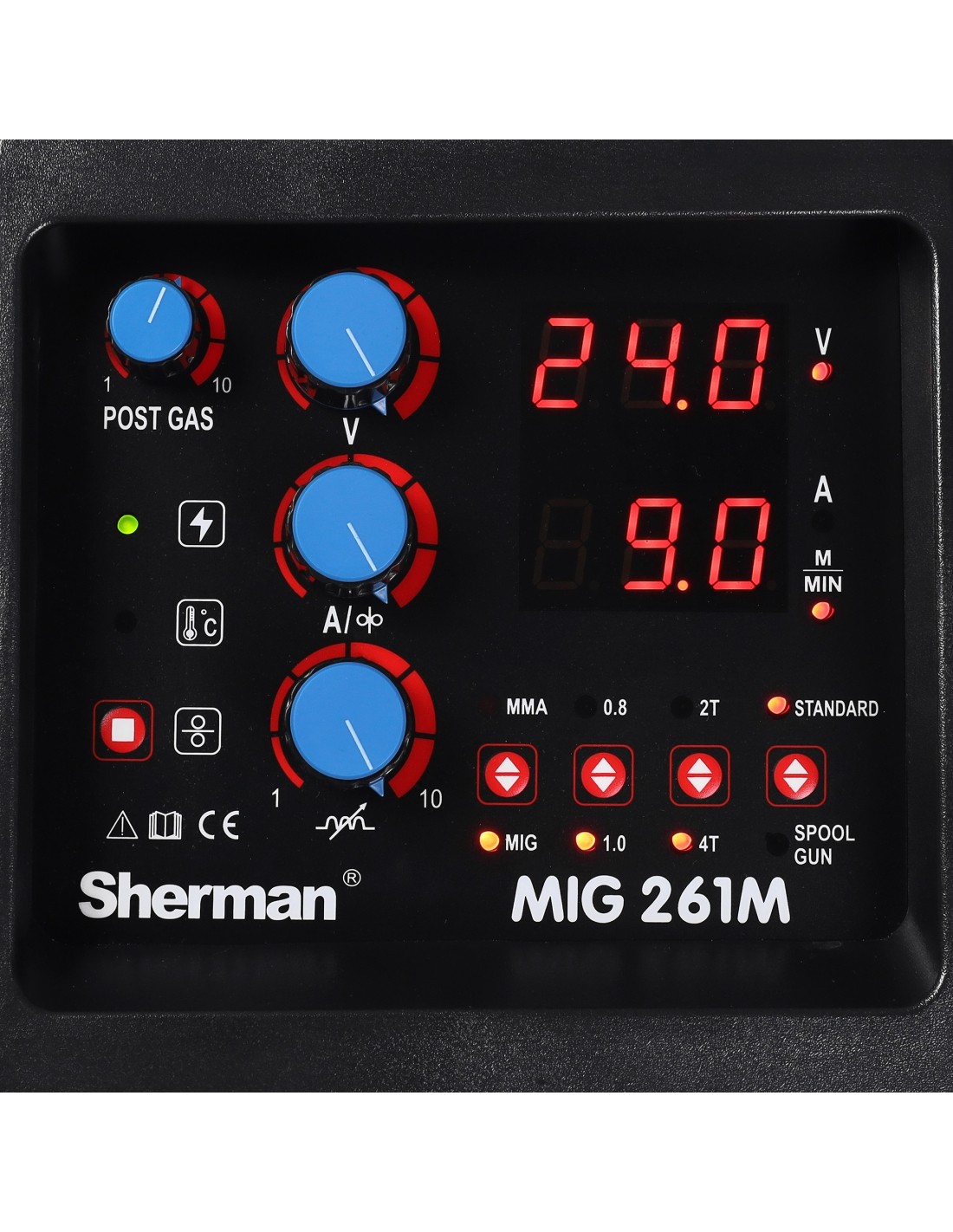

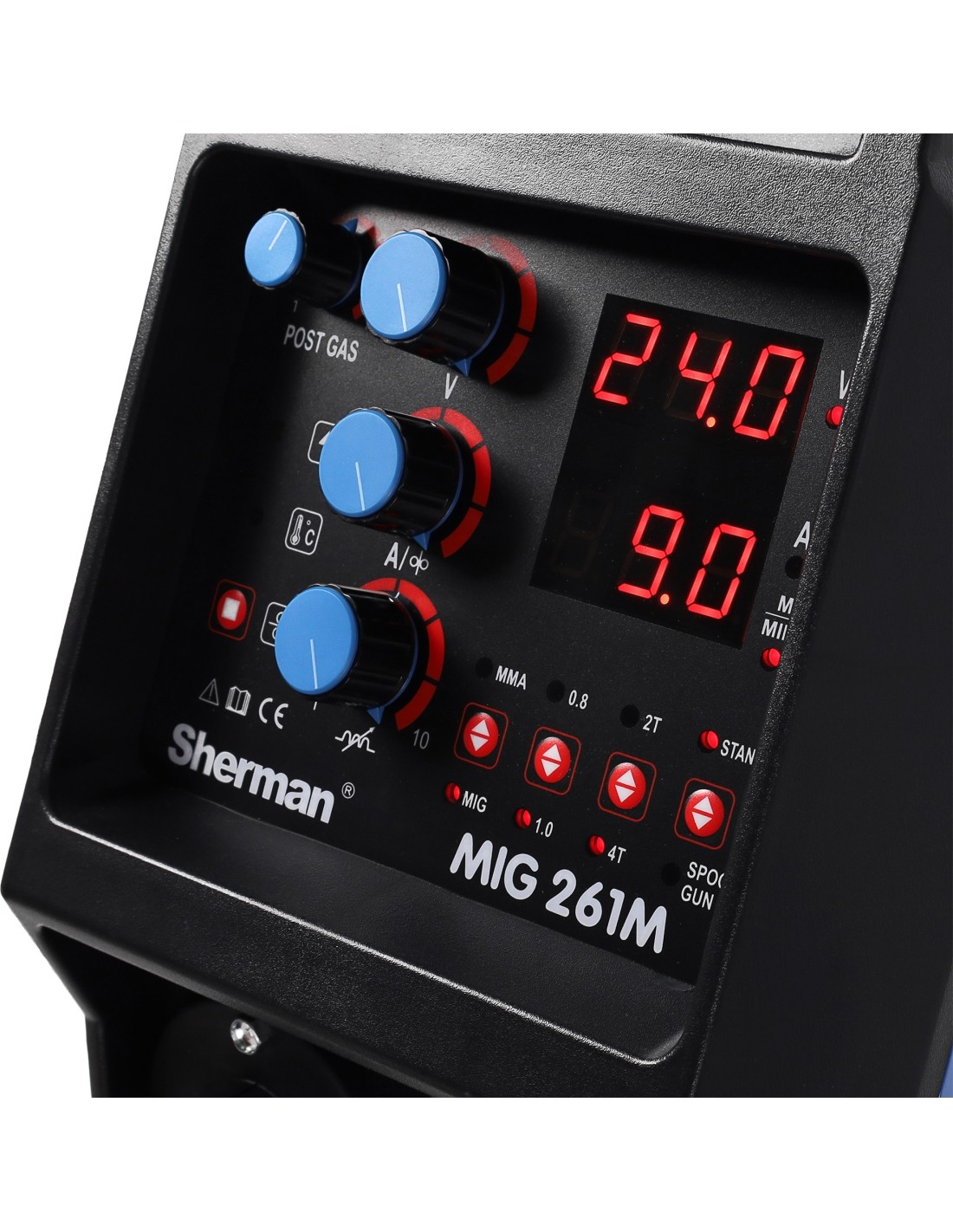

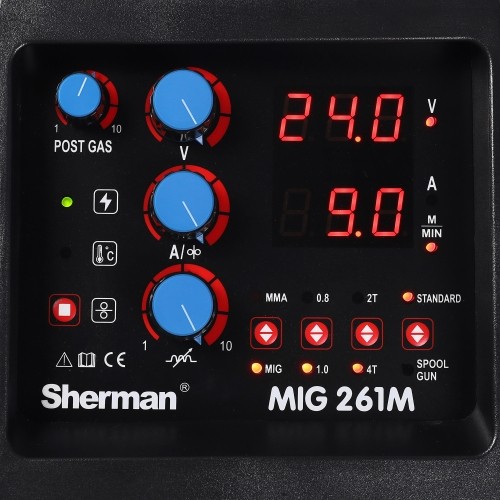

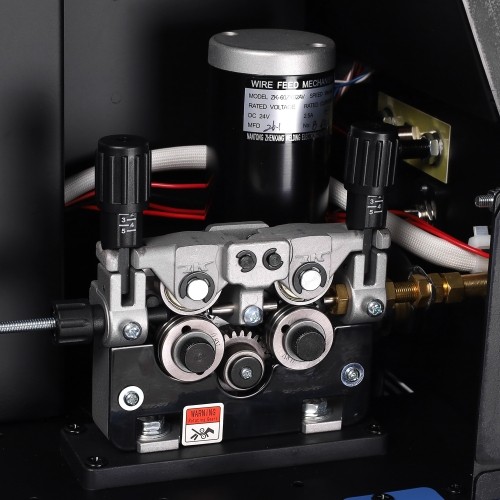

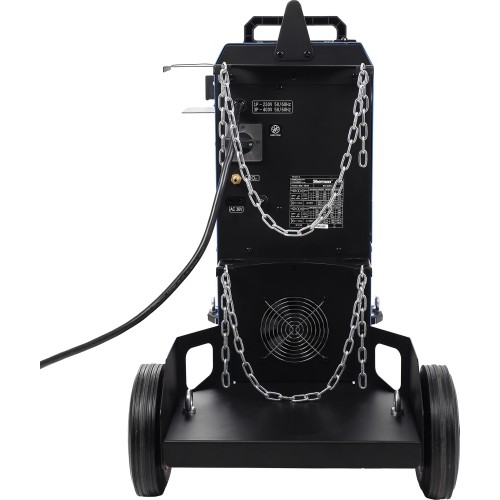

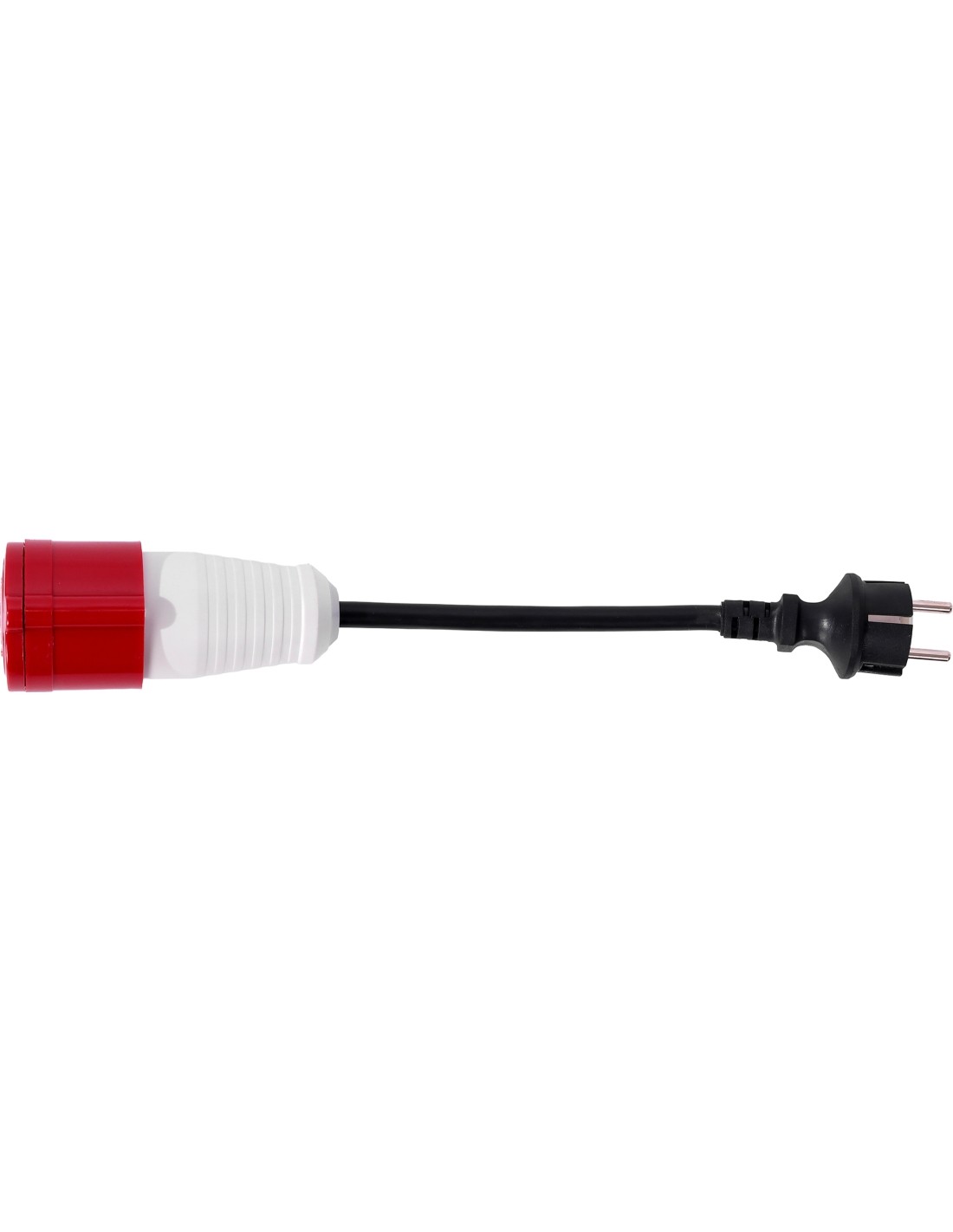

The welder can be powered from either a single‑phase 230 V supply or a three‑phase 3×400 V supply. Mains voltage is detected automatically, and a cable adapter is included. It features a professional 4‑roll wire feeder with smooth wire speed control, smooth voltage adjustment in MIG/MAG, and welding current adjustment in MMA. Gas post‑flow delay, a 2T/4T switch, and inductance control (useful for thin sheet welding) are provided. Thermal protection guards against overload. The machine works with K‑200 (5 kg) and K‑300 (15 kg) wire spools. Duty cycle is up to 60% for MIG/MAG and MMA, wire feed speed ranges from 3 to 18 m/min, and open‑circuit voltage is 59 V.

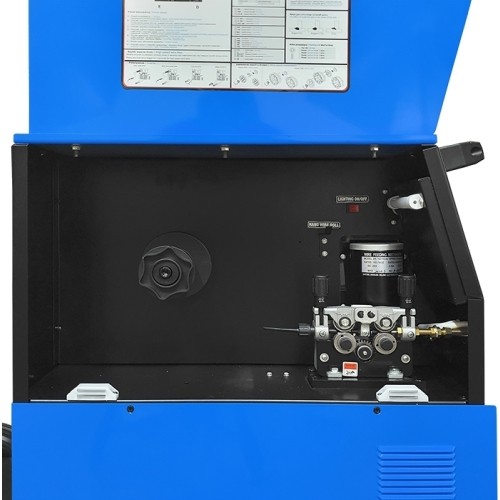

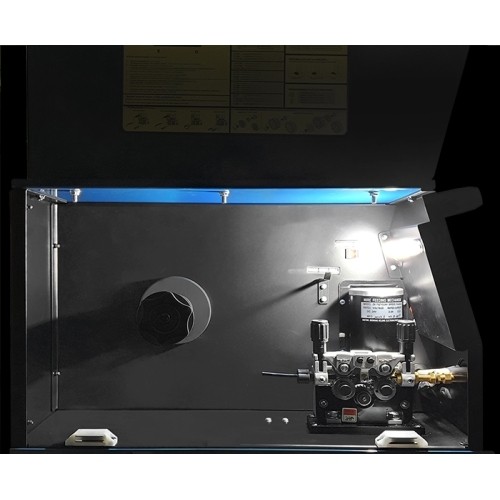

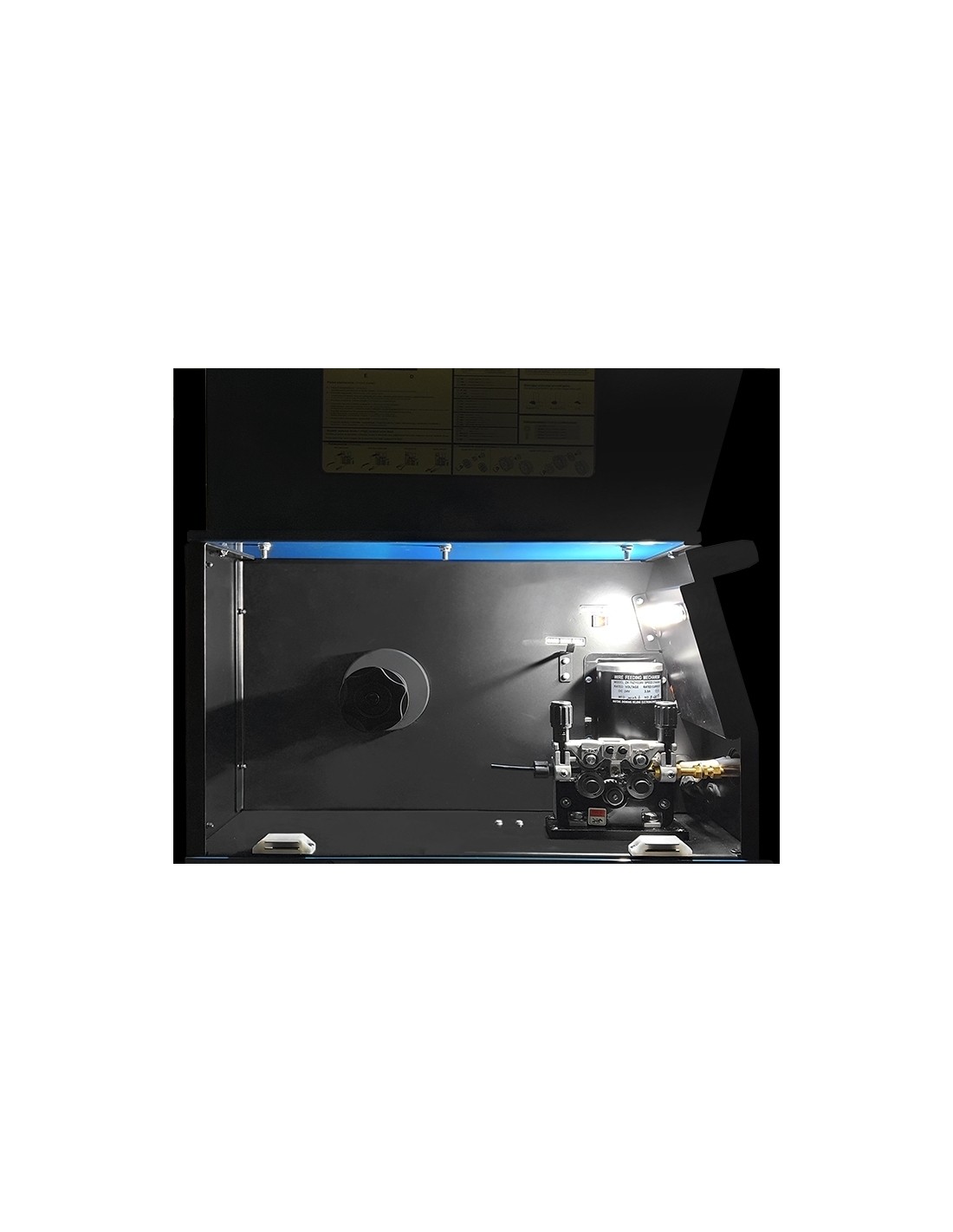

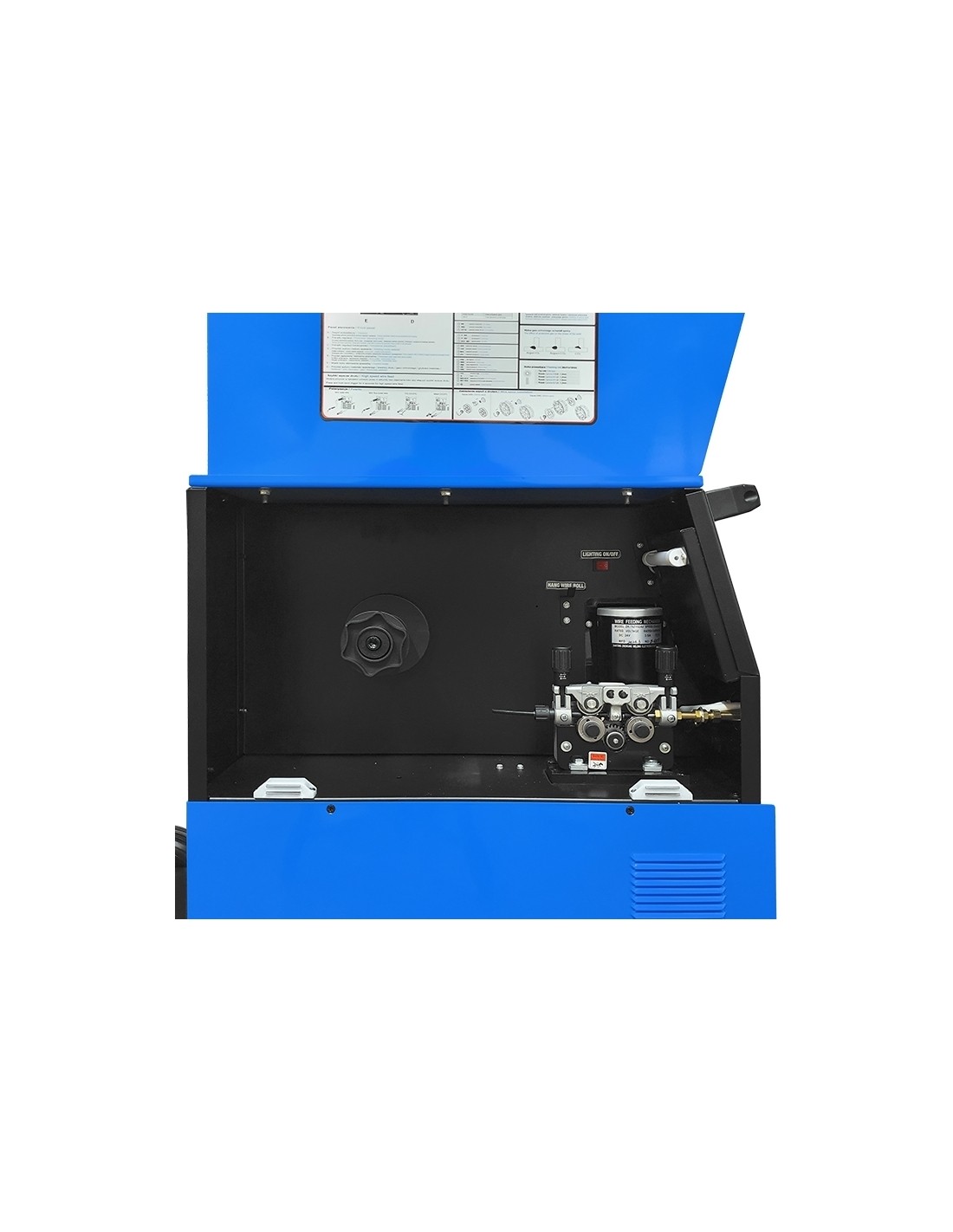

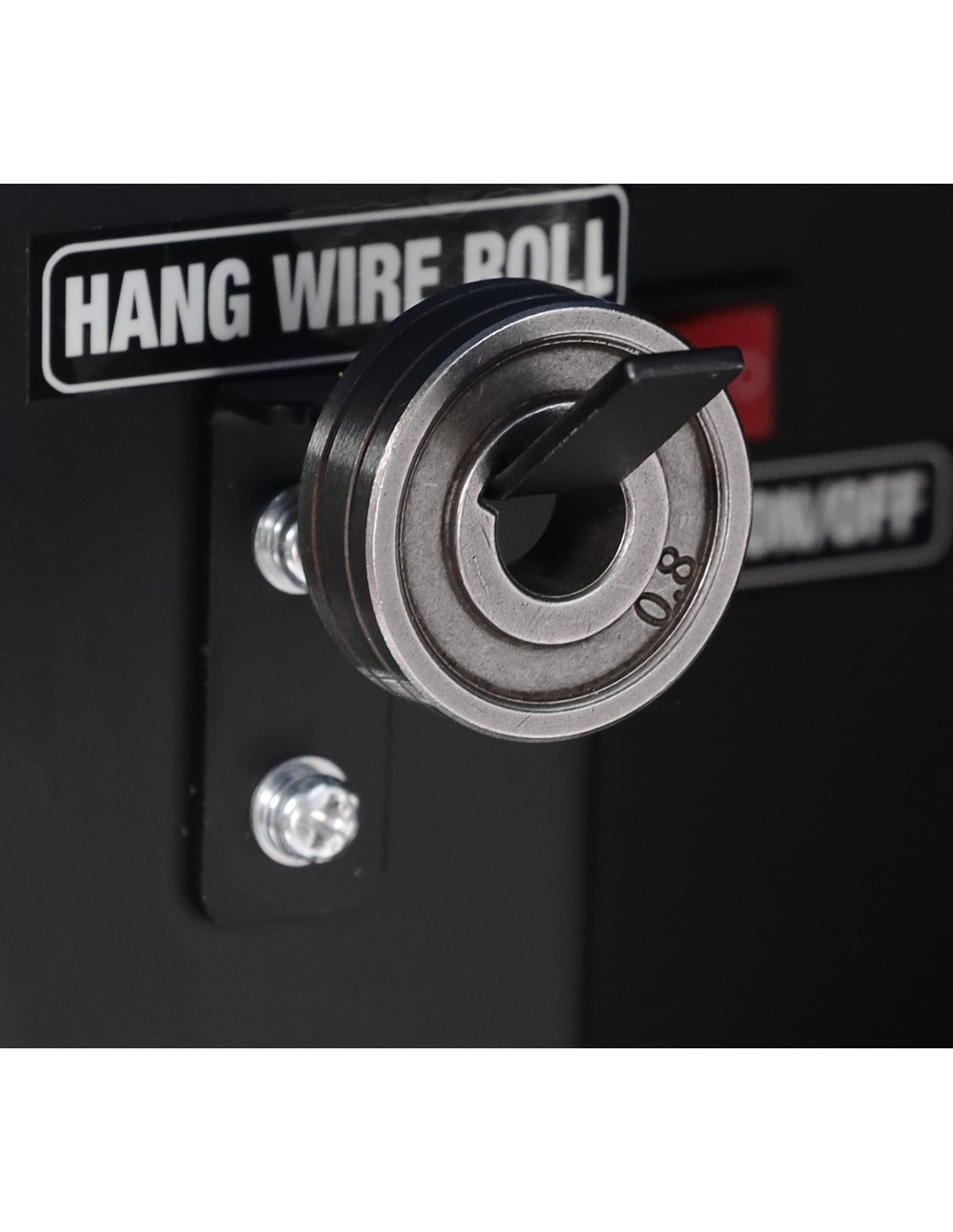

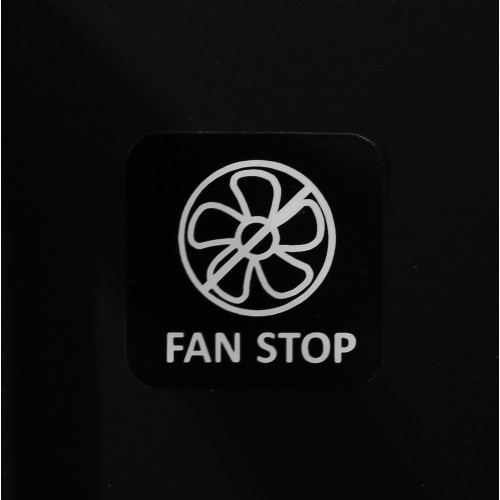

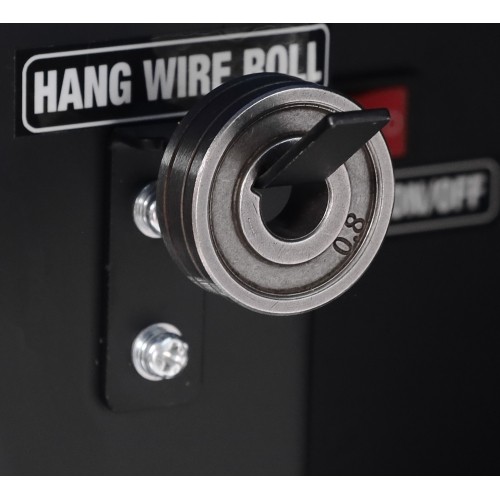

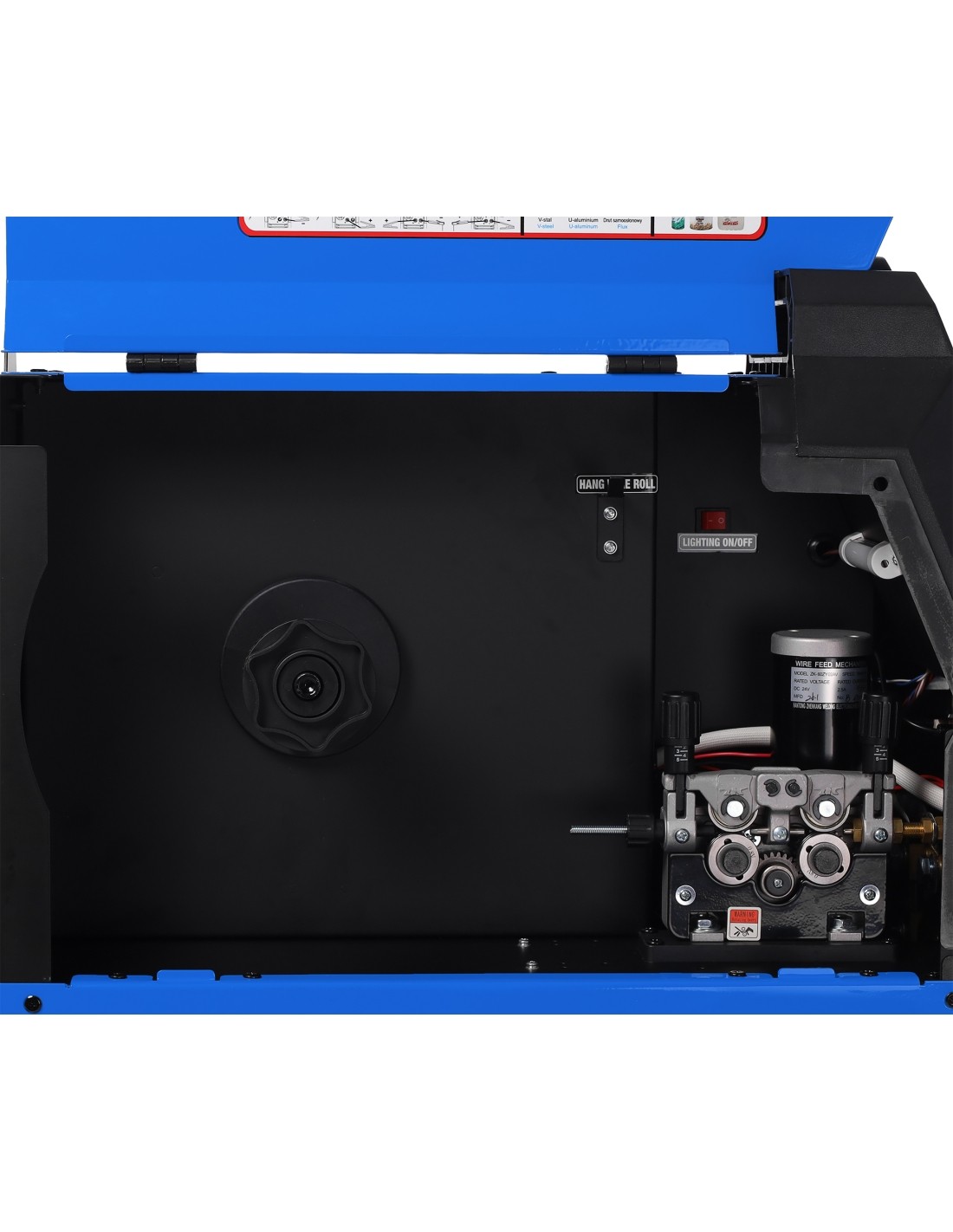

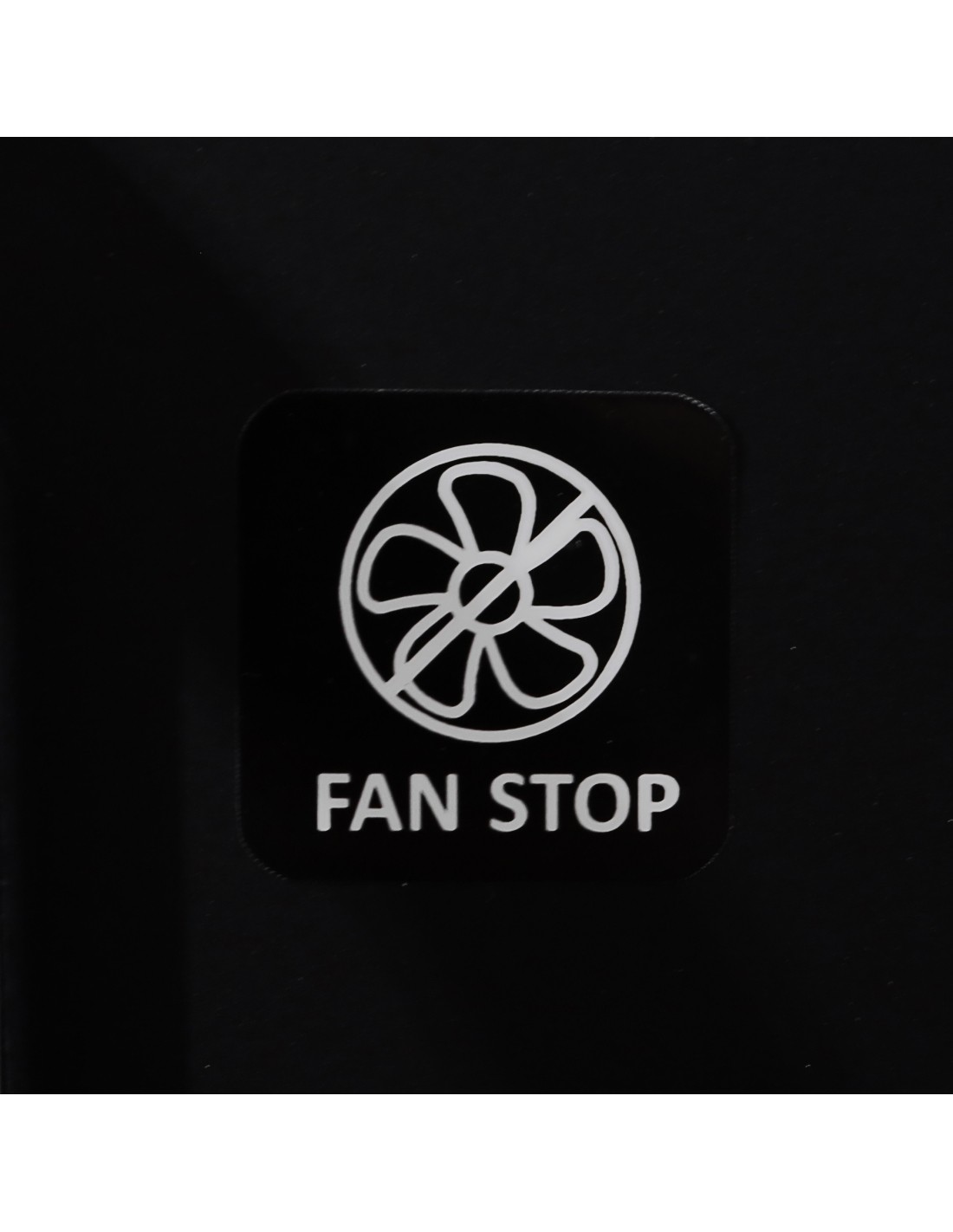

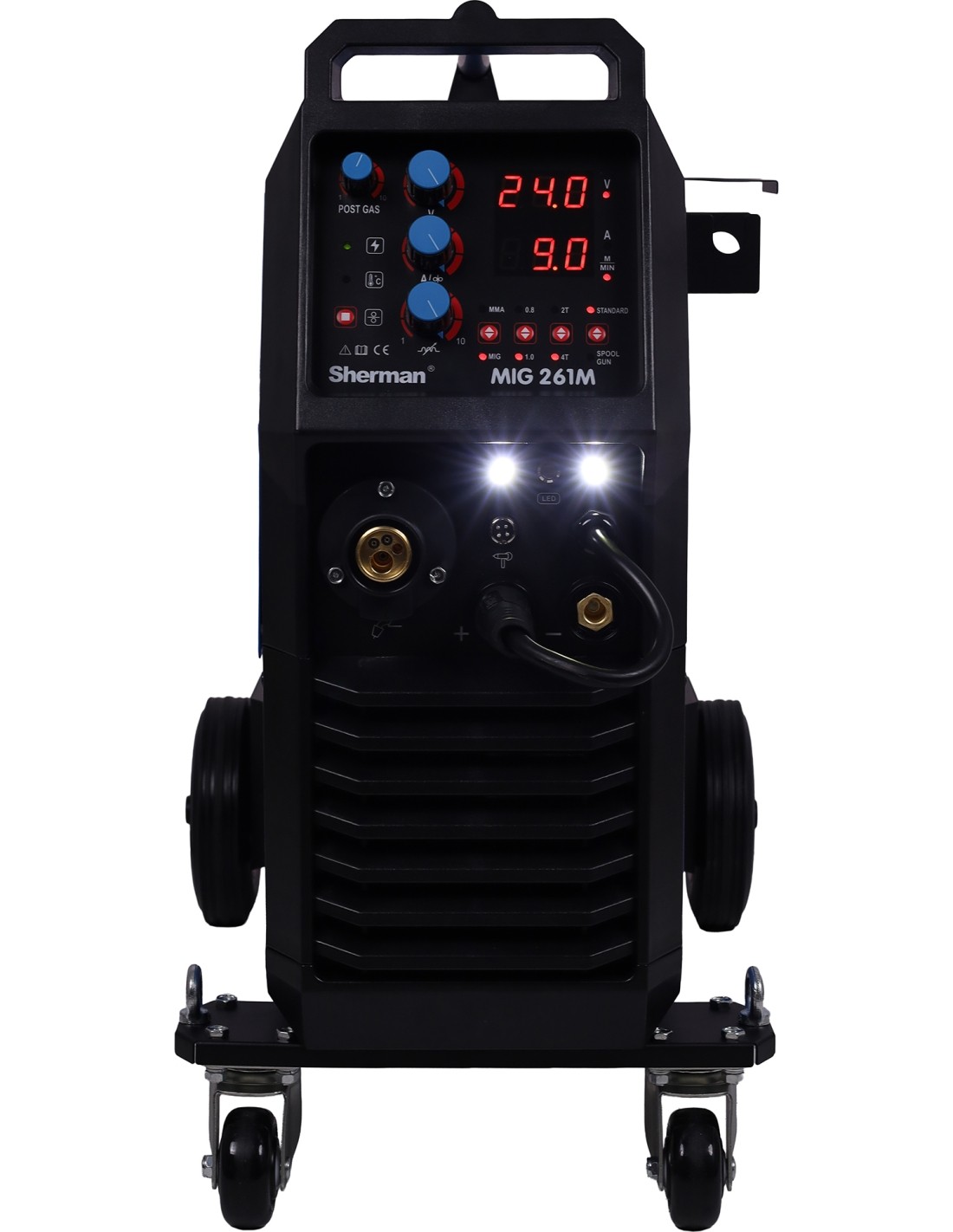

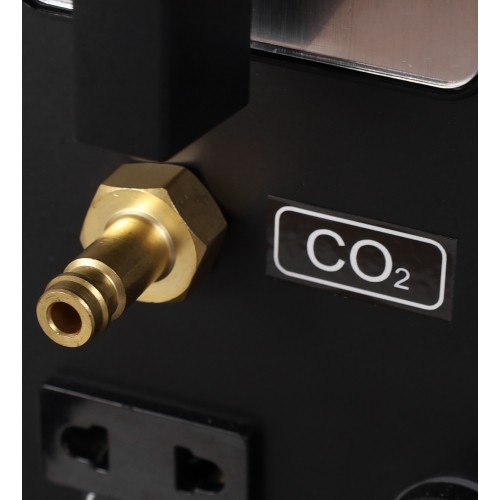

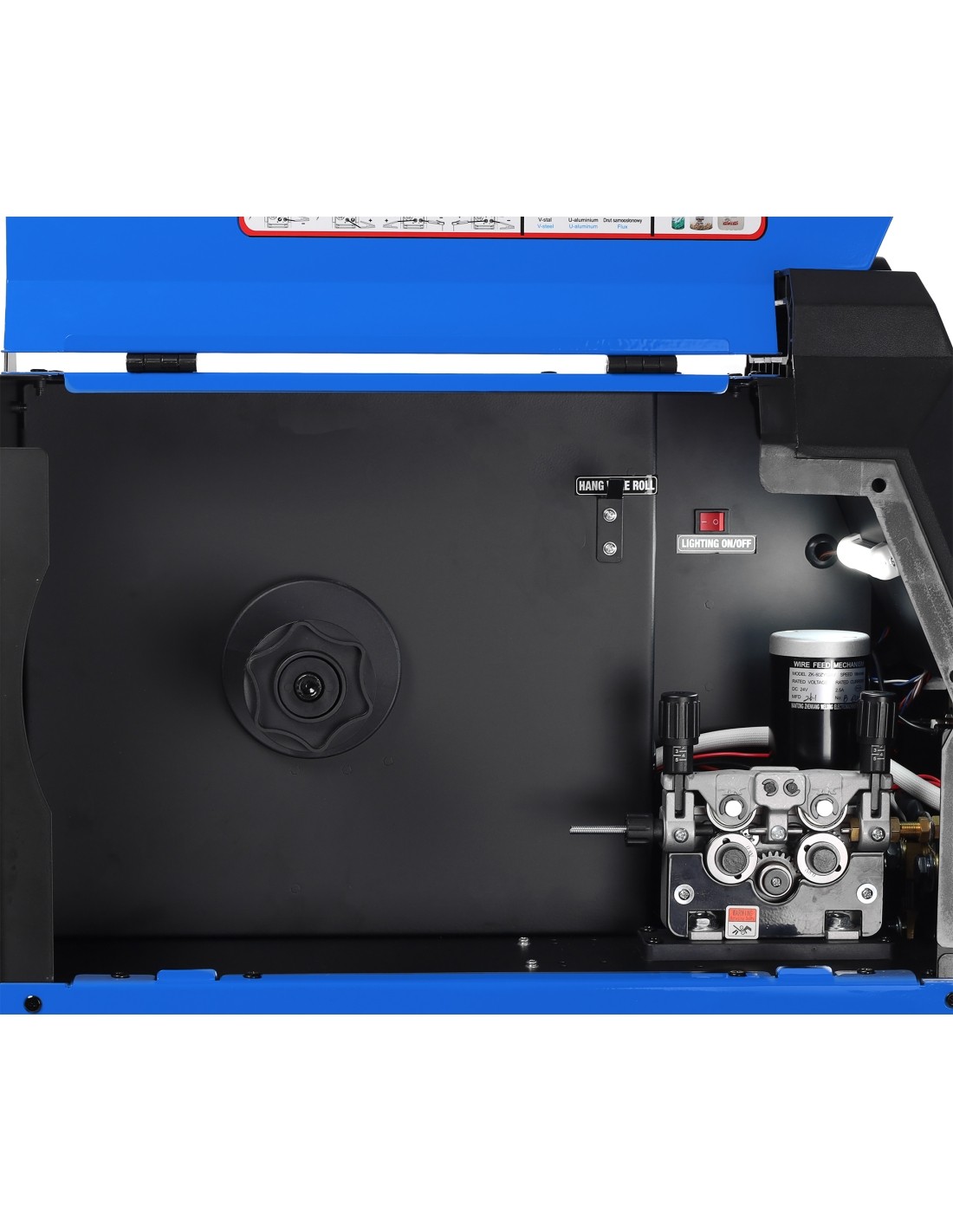

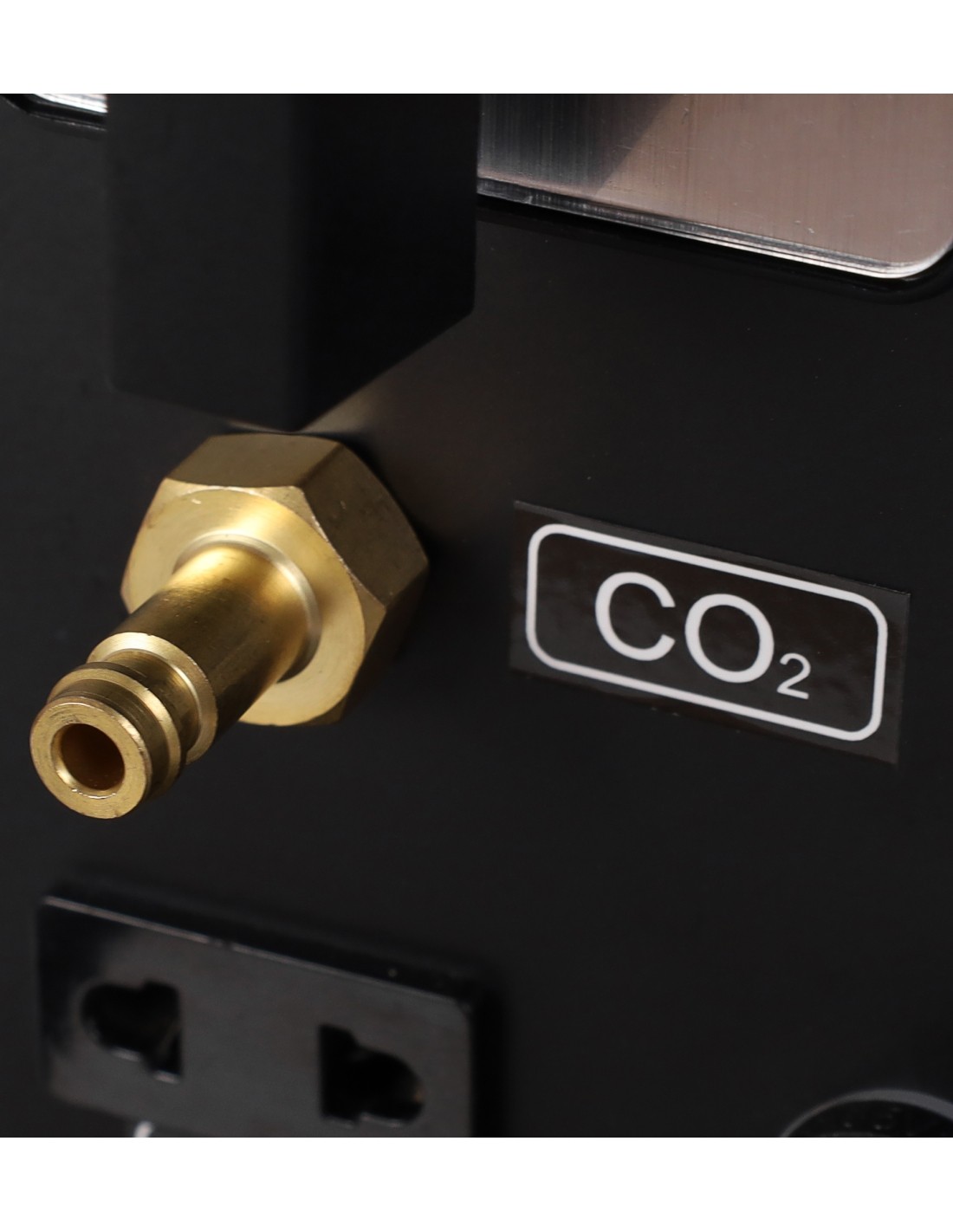

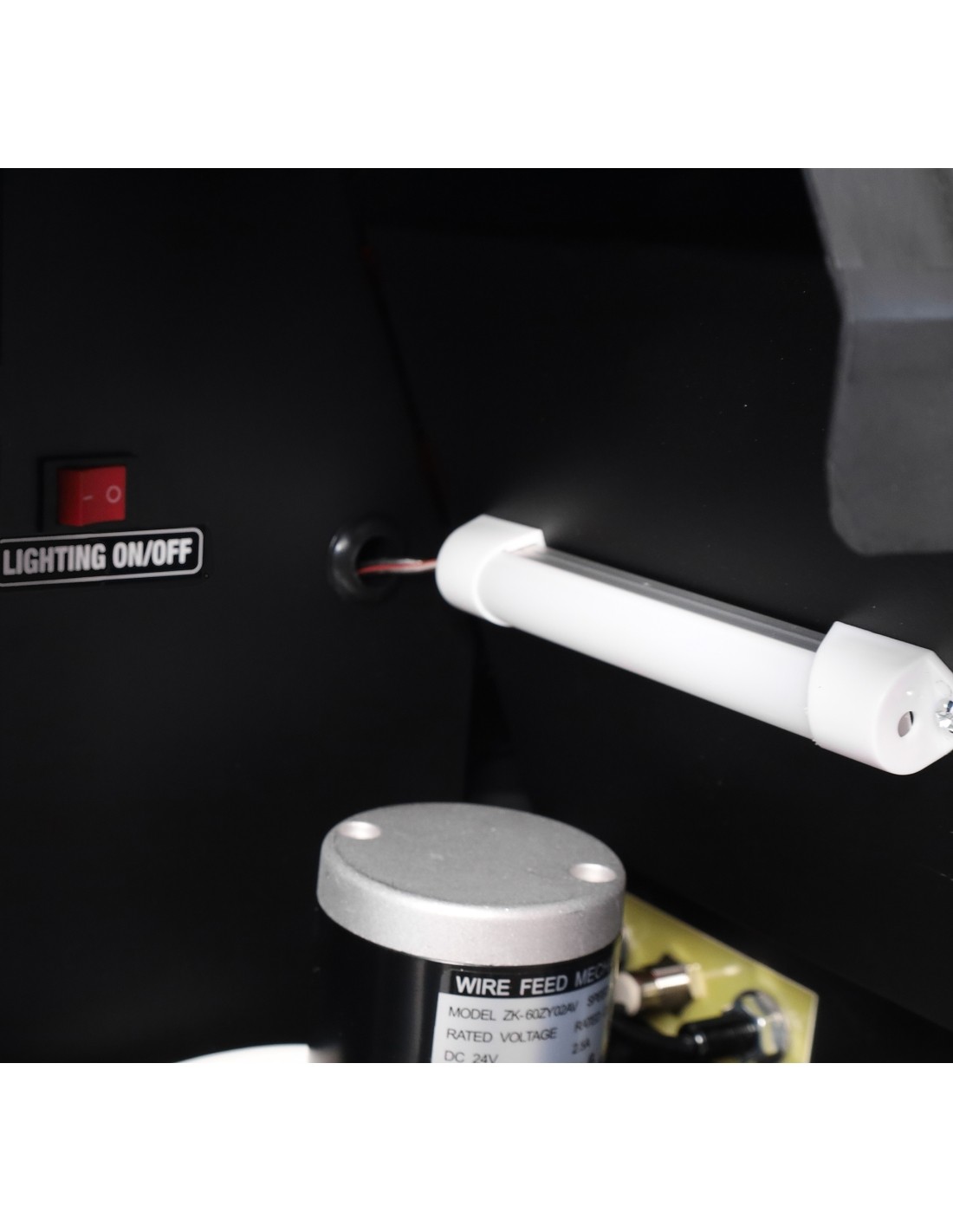

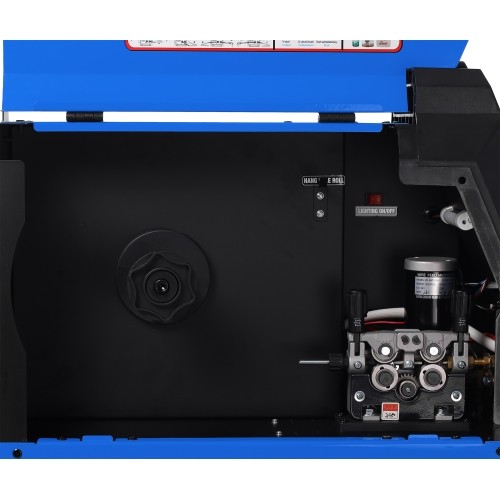

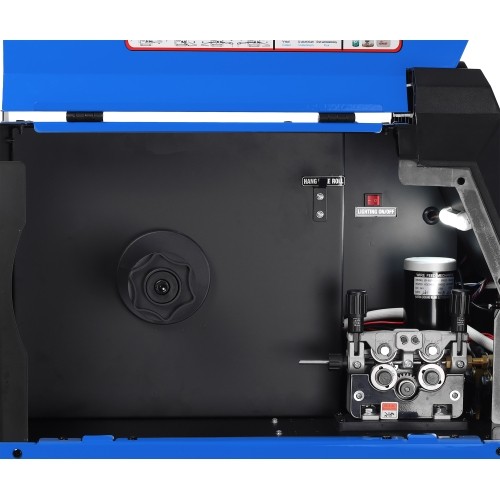

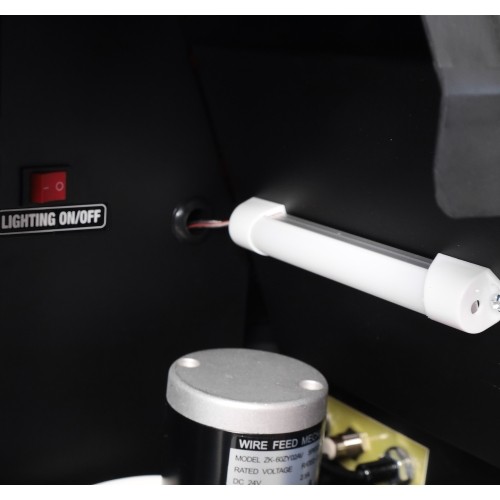

Feeder compartment lighting and a hanger for guide rollers make wire spool and roller replacement easier and help keep things tidy. The shielding gas inlet is ready for a quick coupler, which simplifies and speeds up changing the shielding gas. The Fan Stop function switches the fan off at low load to reduce noise and improve user comfort.

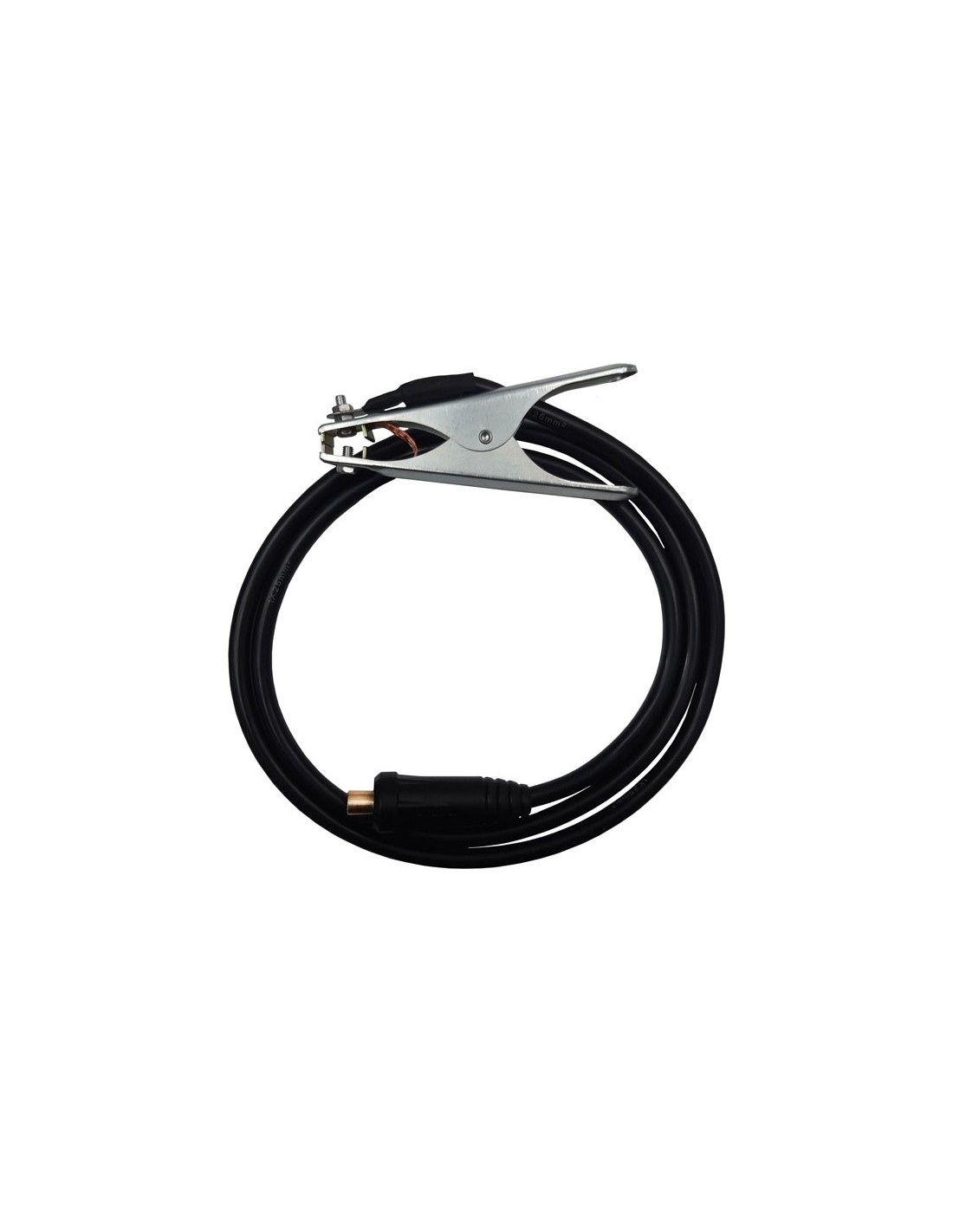

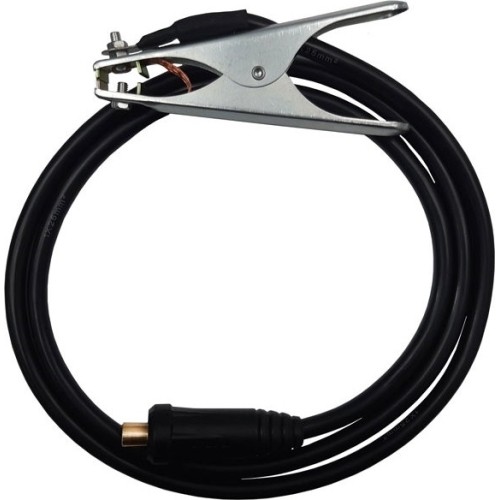

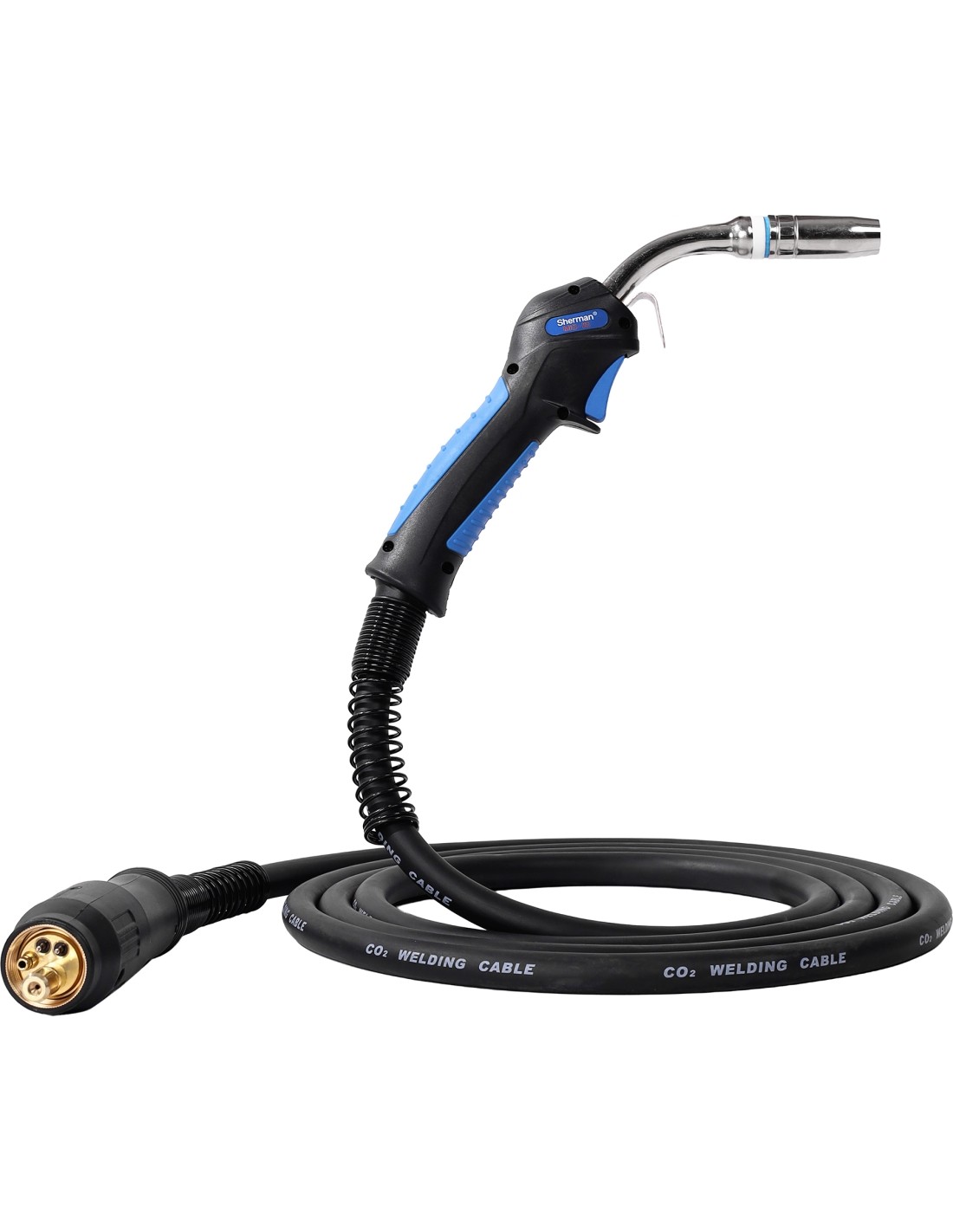

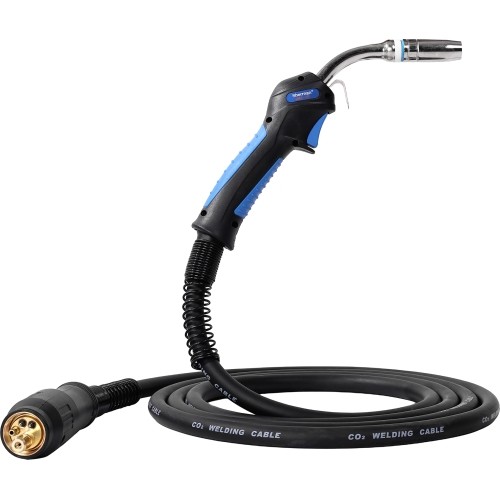

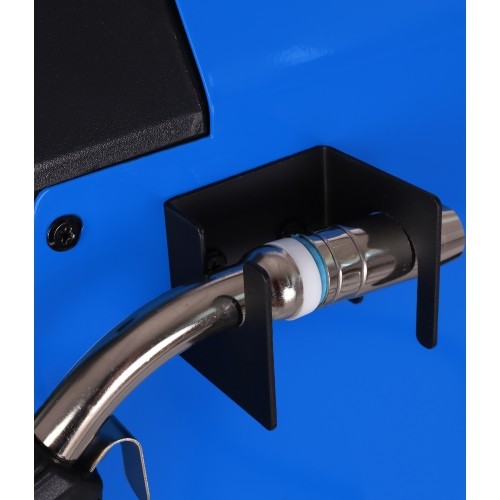

The set includes a 4 m TW‑25 MIG torch and a work lead with clamp.
