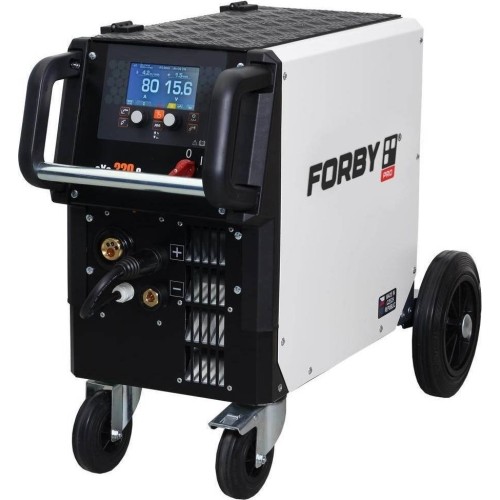

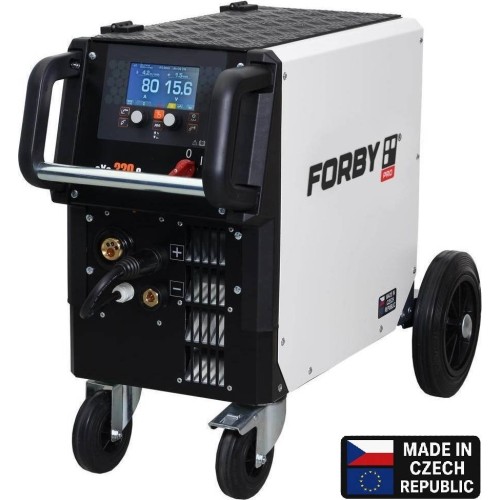

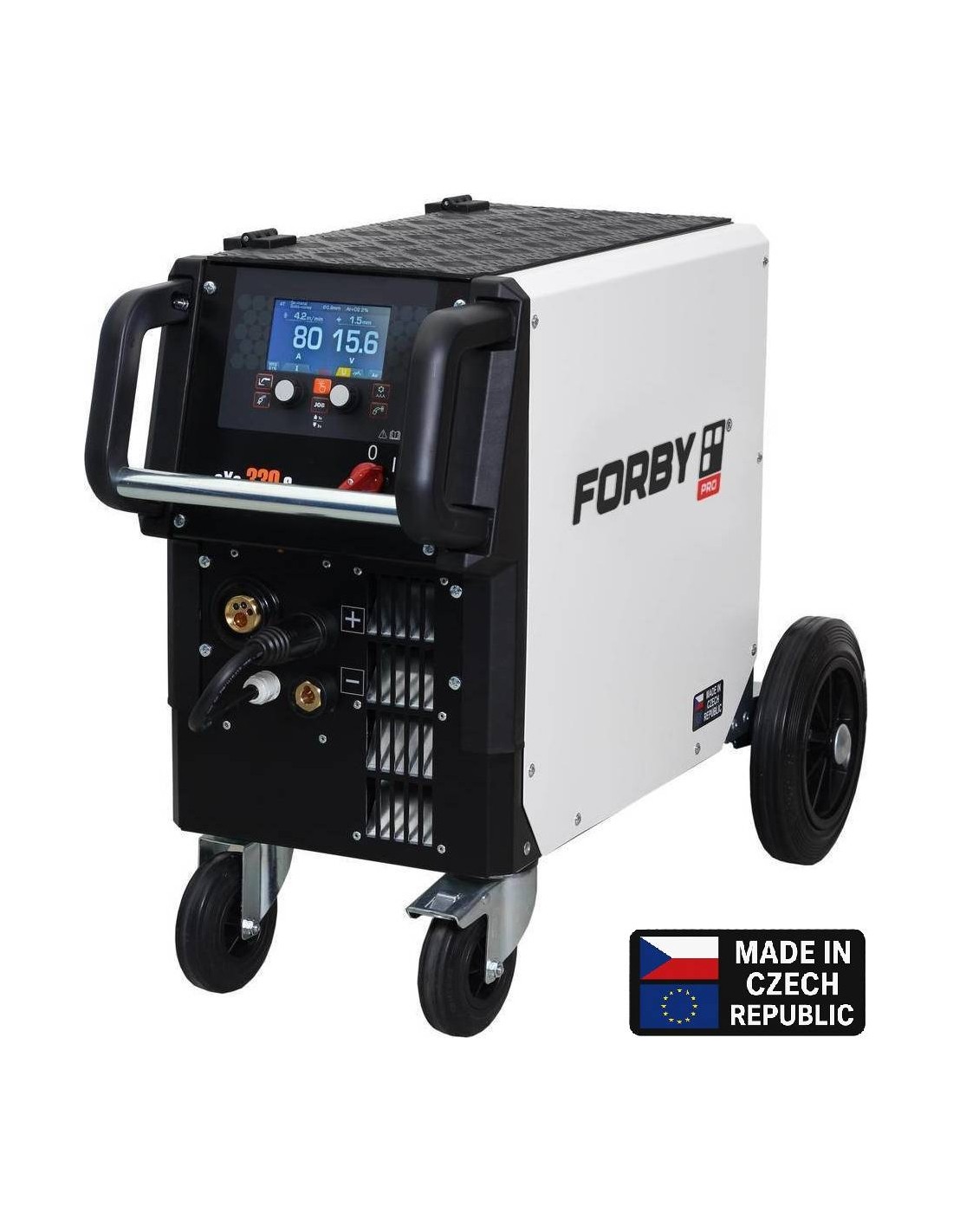

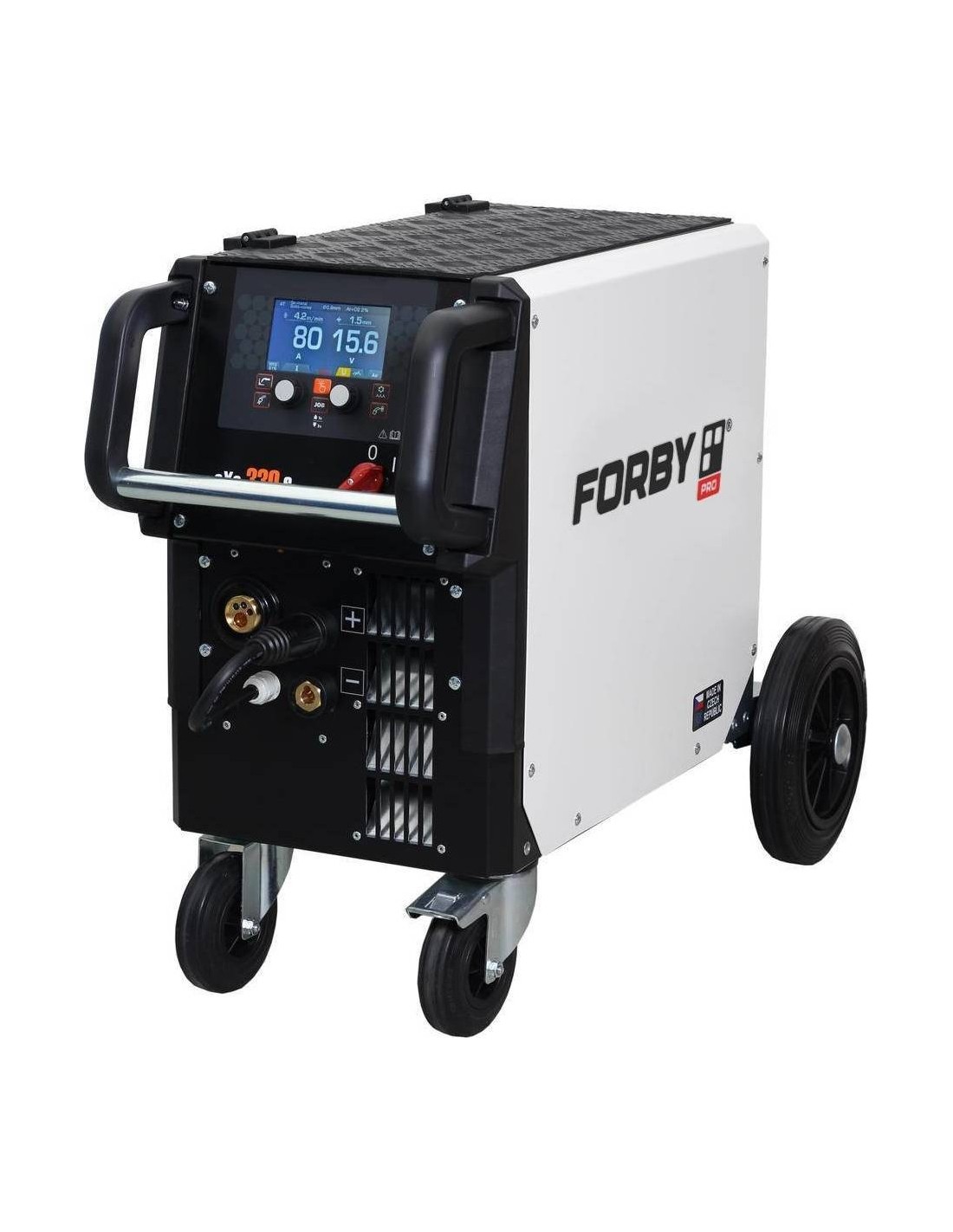

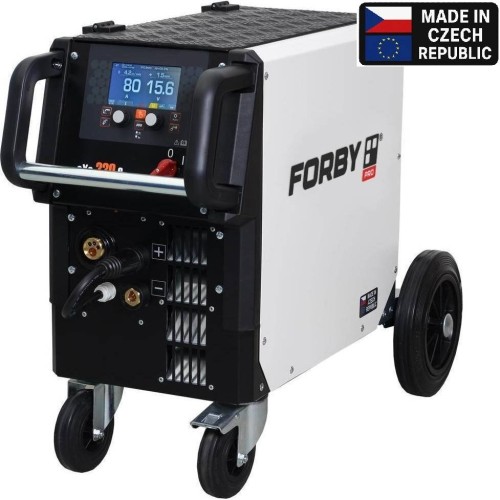

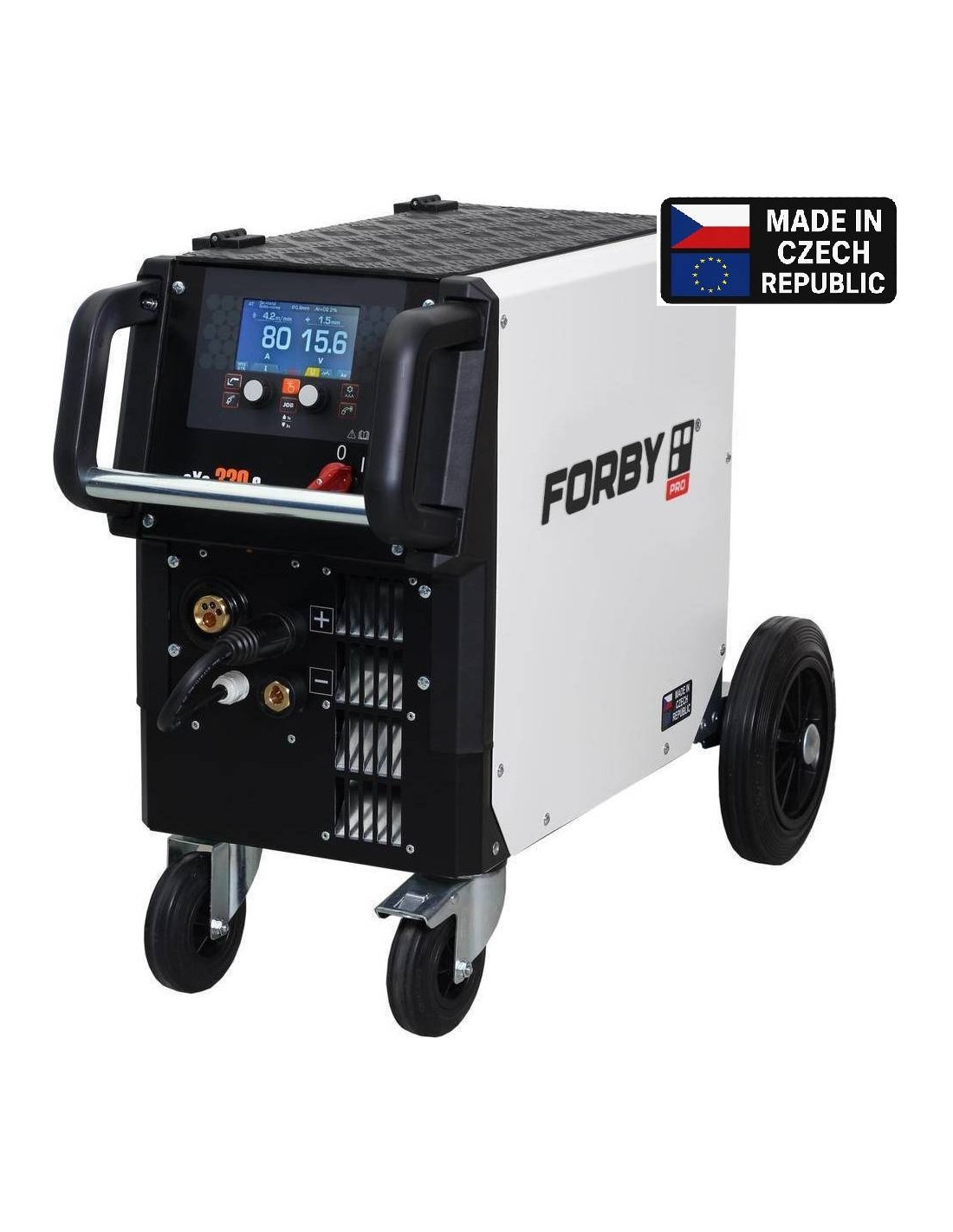

Welding machine FORBY® MIGMAN 330 S GAS (industrial) MADE IN THE CZECH REPUBLIC

MMA duty cycle [%].: 55
Standartai: ČSN EN IEC 60974-1, ČSN EN IEC 60974-10 cl. A
Apsaugos klasė: IP 23S
Izoliacija: F
Phase: Trifazis (400V)
Control: synergetic
User Level: Professional
Aušinimas: Oru
Weight, kg: 49
Wire spool size [kg]: 15
Apsauga: IP23S
PFC function: No
Išmatavimai [mm]: 474x911x670
Maximum current MMA [A]: 250
Maximum current MIG/MAG: 330
Suvirinimo srovės diapazonas (MIG/MAG) (A): 30 A / 15,5 V – 330 A / 30,0 V
30 A / 21,2 V – 250 A / 30,0 V
Vielos ritės diametras (mm): 300
Tuščios eigos įtampa: 76 V
Inverter technology: IGBT
Shielding Gas Requirement: Gas / Gasless
Number of wire feed rollers: 4
Torch length: -
Package Contents: additional wire feed roller(s)
gas hose
ground cable
welding machine
Ground cable connection: big (35 - 50 mm)
Torch connection in the machine: EURO
Functions: 2T / 4T
ARC FORCE
Burn-back control
Gas check
HOT START
indukcija
Memory for welding parameters
Post-gas regulation
Pre-gas adjustment
Spoolgun connection option
Wire inch
Welding methods: MIG/MAG welding
MMA (electrodes)
Tinklo apsauga: 16 A
Maks. efektyvi srovė (MIG/MAG): 12,9 A
Maks. efektyvi srovė (MMA): 13,7 A
Suvirinimo srovė (100 %) MIG/MAG: 210 A
Suvirinimo srovė (100 %) MMA: 200 A
Suvirinimo srovė (60 %) MIG/MAG: 250 A
Suvirinimo srovė (60 %) MMA: 240 A
Maks. srovė (darbinis ciklas): 330 A (30 %), 250 A (55 %)
Maks. įėjimo srovė: 23,5 A (MIG/MAG), 17,9 A (MMA)
Sumažinta tuščios eigos įtampa: 12,0 V

Brand

Welding machine FORBY® MIGMAN 330 S GAS (industrial) MADE IN THE CZECH REPUBLIC

Name: Welding machine FORBY® MIGMAN 330 S GAS (industrial) MADE IN THE CZECH REPUBLIC
Brand: FORBY® HD
SKU: 1543259

Reference 1543259

Ask for the price and delivery time by phone

You can buy our products from our partner stores

Interested in a B2B partnership?

b2b@tolas.lt +370 648 47770

Opens in a new window

Description

The FORBY® MIGMAN 330 S GAS welding machine (industrial) is a powerful, reliable and modern IGBT inverter welding machine designed for professional work in workshops and production. This model is air (gas) cooled, so it does not require an additional water cooling system - less maintenance, more simplicity.

Key advantages

MIG/MAG and MMA (stick electrode) welding
Synergic (MIG SYN) and manual (MIG MAN) modes
Power up to 330 A
4-roll wire feed - stable and precise operation
JOB memory (up to 10 programs)
Suitable for steel, stainless steel and aluminium

The machine delivers 250 A at 60% duty cycle and 210 A at 100% duty cycle in MIG/MAG mode, with an open-circuit voltage of 76 V. A 16 A mains fuse is required.

The FORBY® MIGMAN 330 S GAS welding machine has all the advanced functions needed for professional results:

Burnback - controlled wire retraction
Pre-gas / Post-gas - shielding gas before and after welding
2T / 4T modes - convenient work on longer seams
Inductance adjustment - stable arc
Hot Start & Arc Force (MMA) - easy ignition and stability
Spool Gun support - convenient for aluminium

Air (GAS) cooling - simple and reliable. This model is air cooled, which means:

no water pump or coolant required
lower risk of failure
easier maintenance
mobility and simplicity

It is the ideal choice if you do not need intensive water cooling as in the H2O model.

Where is it used?

Metal structure manufacturing
Car services and body repair
Industry and workshops
General welding work

The FORBY® MIGMAN 330 S GAS is a high-class welding machine that combines power, precision and reliability. No complex water cooling system - just what you need for efficient work.
