- Funkcijos
- 2T/4T, Fan Stop, Gniazdo zasilania AC 36 V, Hot Start, Mikrokontroler (MCU), Pamięć ustawień, Podajnik 2-rolkowy, Podwójny Puls, Powypływ gazu MIG, Przedwypływ gazu, Puls MIG, Puls TIG, Reg
- Vielos padavimo greitis m/min
- 3 - 18
- Phase
- Trifazis (400V)
- Weight, kg
- 72,8
- Suvirinimas / pjaustymas / kiti metodai
- Litavimas, MIG/MAG, DC MMA
- Wire spool size [kg]
- 5
15 - Gamybos technologija
- IGBT
- Maximum current MMA [A]
- 300
- MMA darbo ciklas [%].
- 60
- Įtampa be apkrovos [V].
- 59
- Maksimalus MMA suvartojamos galios kiekis [kVA}
- 10
- Pagrindinis metodas
- MIG/MAG
- Tinklo apsauga [A].
- 16
- Įmonių garantijos laikotarpis [metai].
- 1
- Maitinimo įtampa [V].
- AC 3x400
- Maximum current MIG/MAG
- 300
- MIG/MAG darbo ciklas [%]
- 60
- MIG suvirinimo įtampa [V].
- 16,5-29
- Maksimalus MIG/MAG sunaudojamas galingumas [kVA].
- 10
- Ritinio matmenys [mm].
- 30x10x12 4Rn
- MIG dujų srautas [s].
- 0-10
- Maitintuvo tipas
- 4RN
- Vielos ritės skersmuo ø [mm].
- 200, 300
- Inverter technology
- IGBT
- Shielding Gas Requirement
- Gas / Gasless

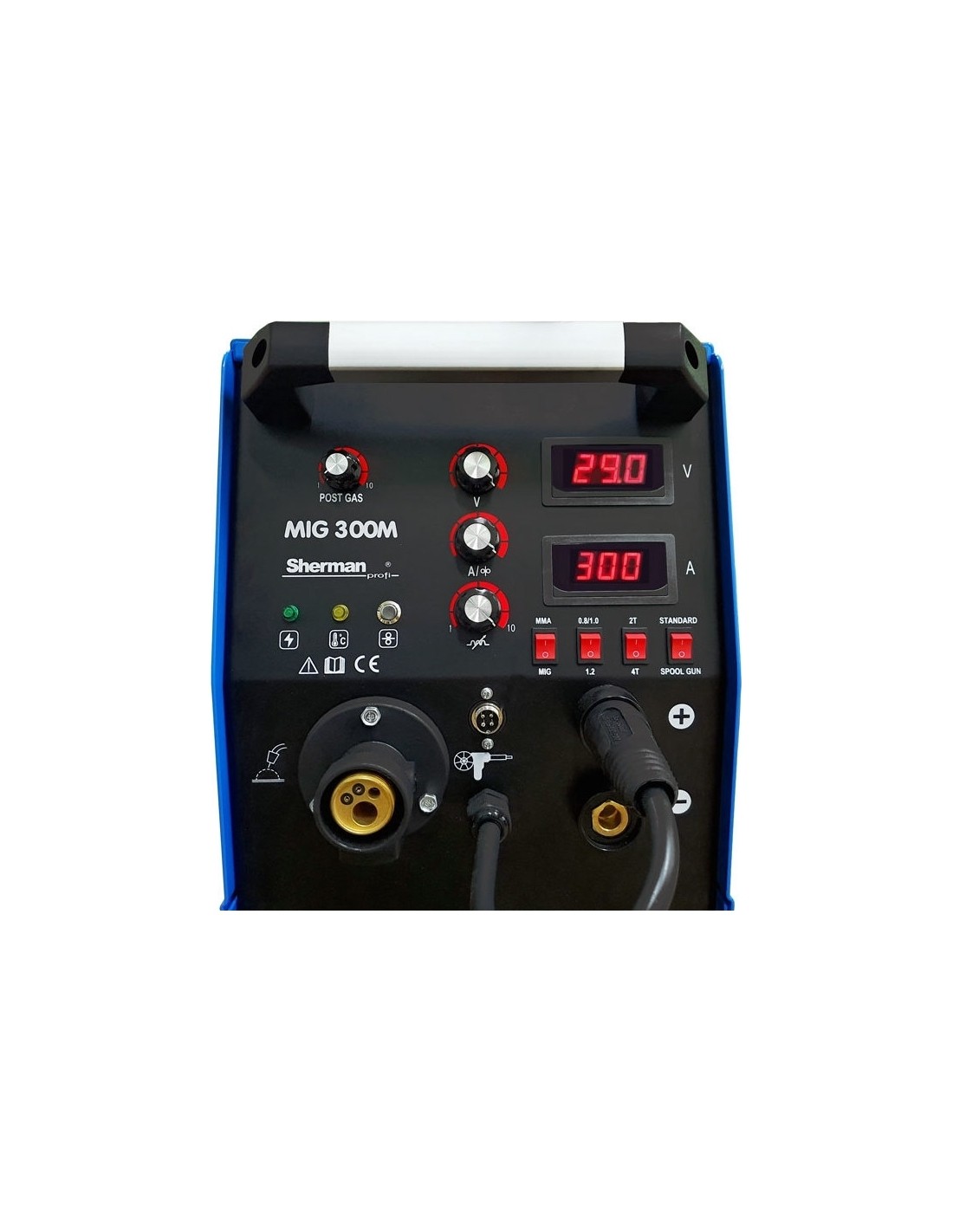

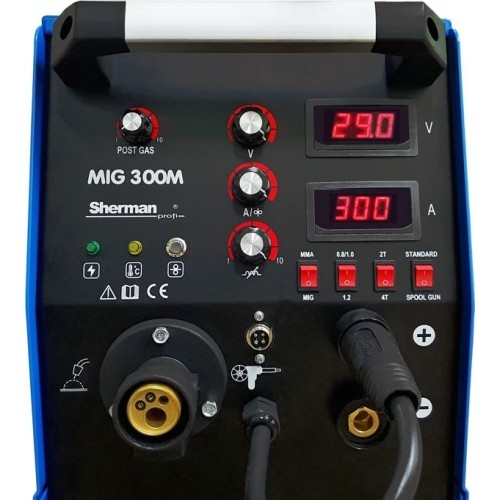

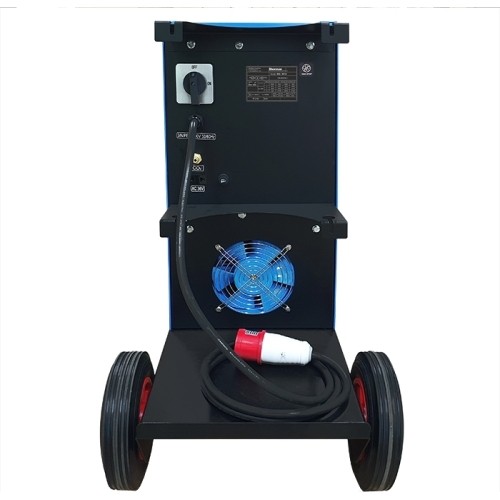

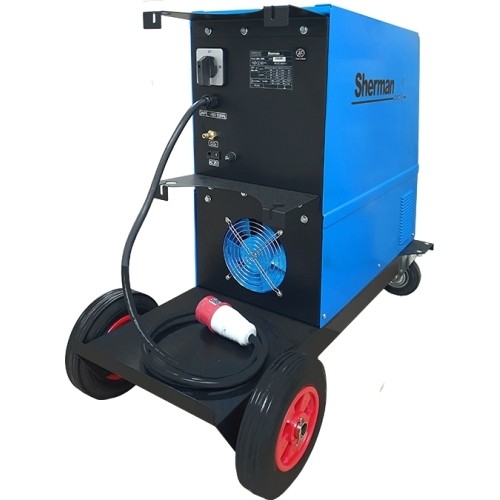

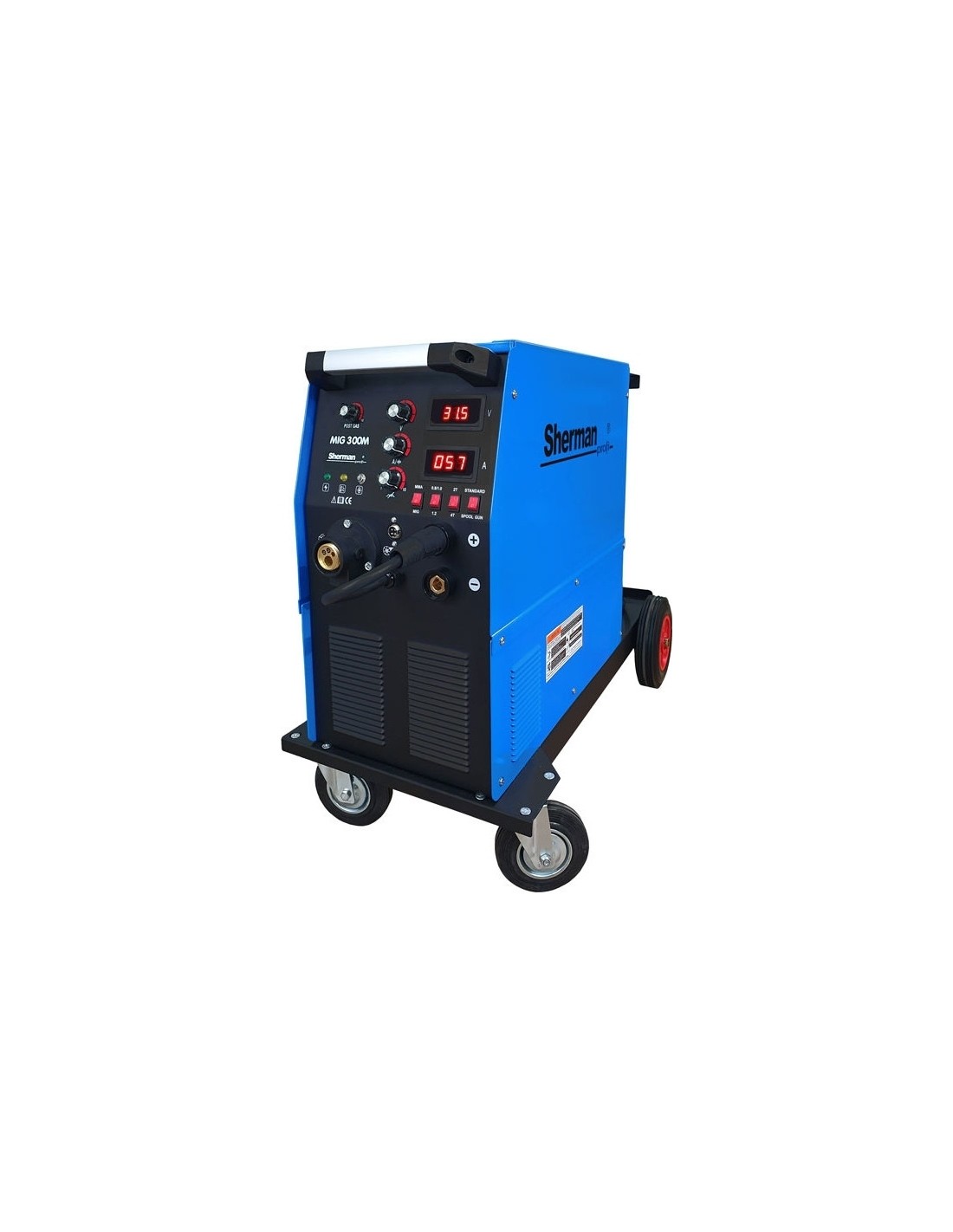

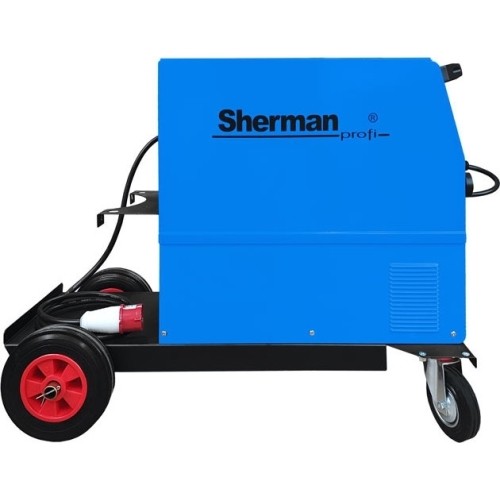

Inverter welder Sherman MIG 300M/4R
1051162
Price
€809.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
(2 pcs)
Delivery terms:
FREE pick up tomorrow, in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 72.8 kg.
We will deliver the product to you via: 1-2 w.d. Venipak
(€40.99) Weight: 72.8 kg.
Description

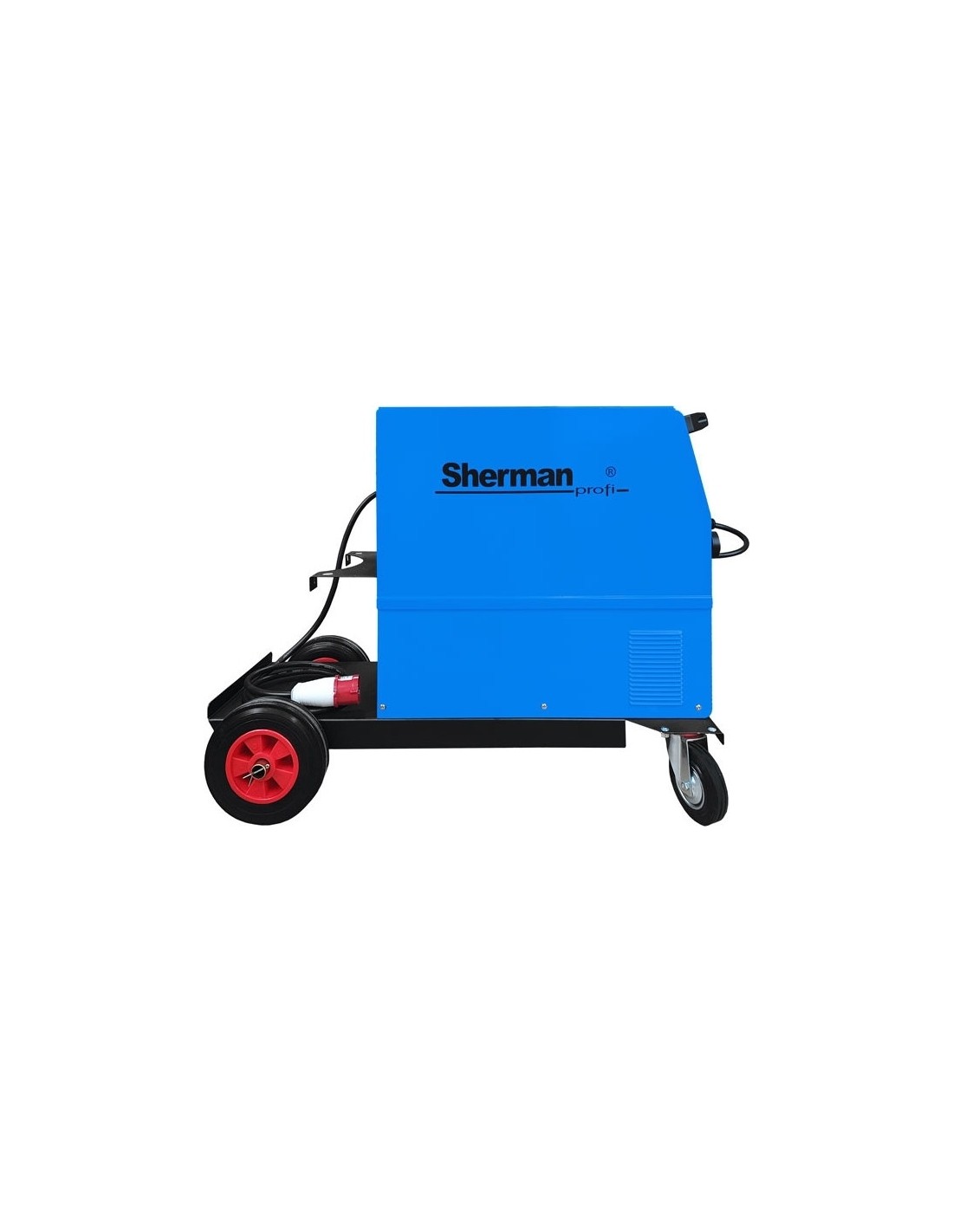

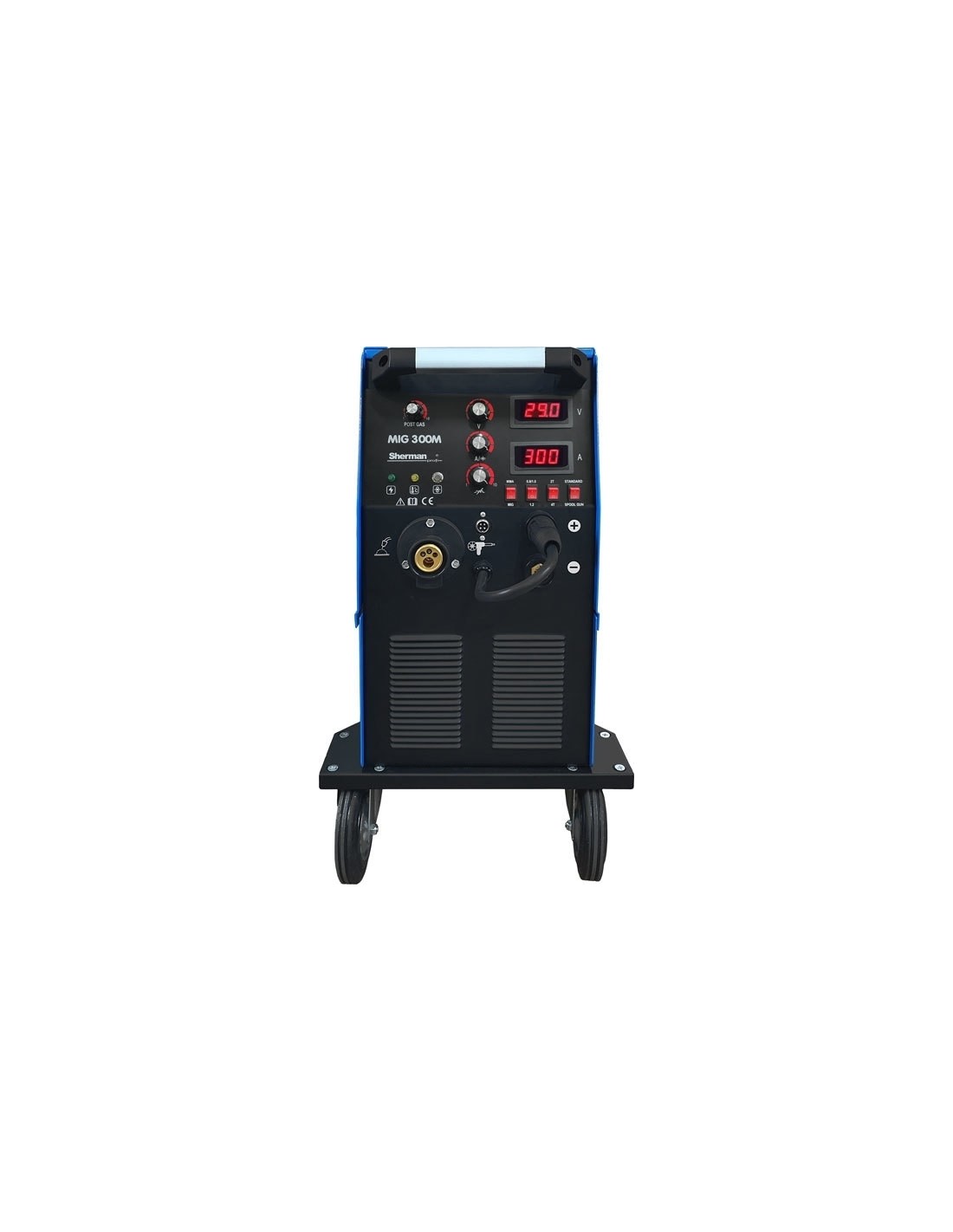

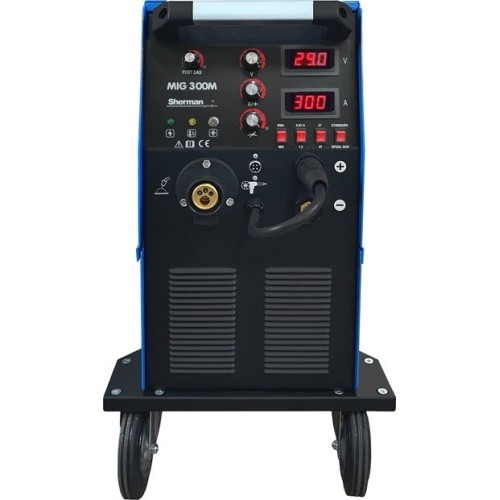

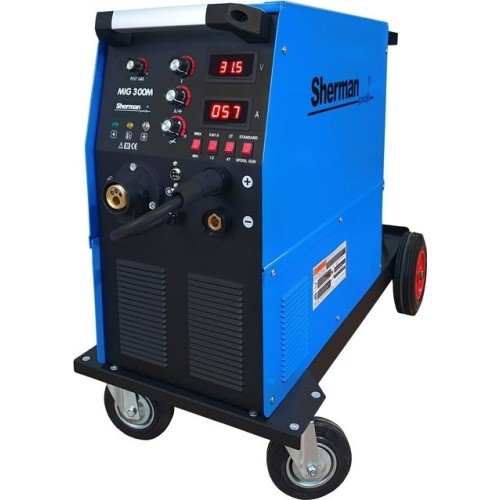

The MIG 300M is a second‑generation welding machine built with IGBT inverter technology. It is designed for manual welding of steel and non‑ferrous metals in shielding gas (MIG/MAG) and with coated electrodes (MMA). It can also be used for gasless welding with flux‑cored wire, and supports work with 100 mm wire spools using a welding torch.

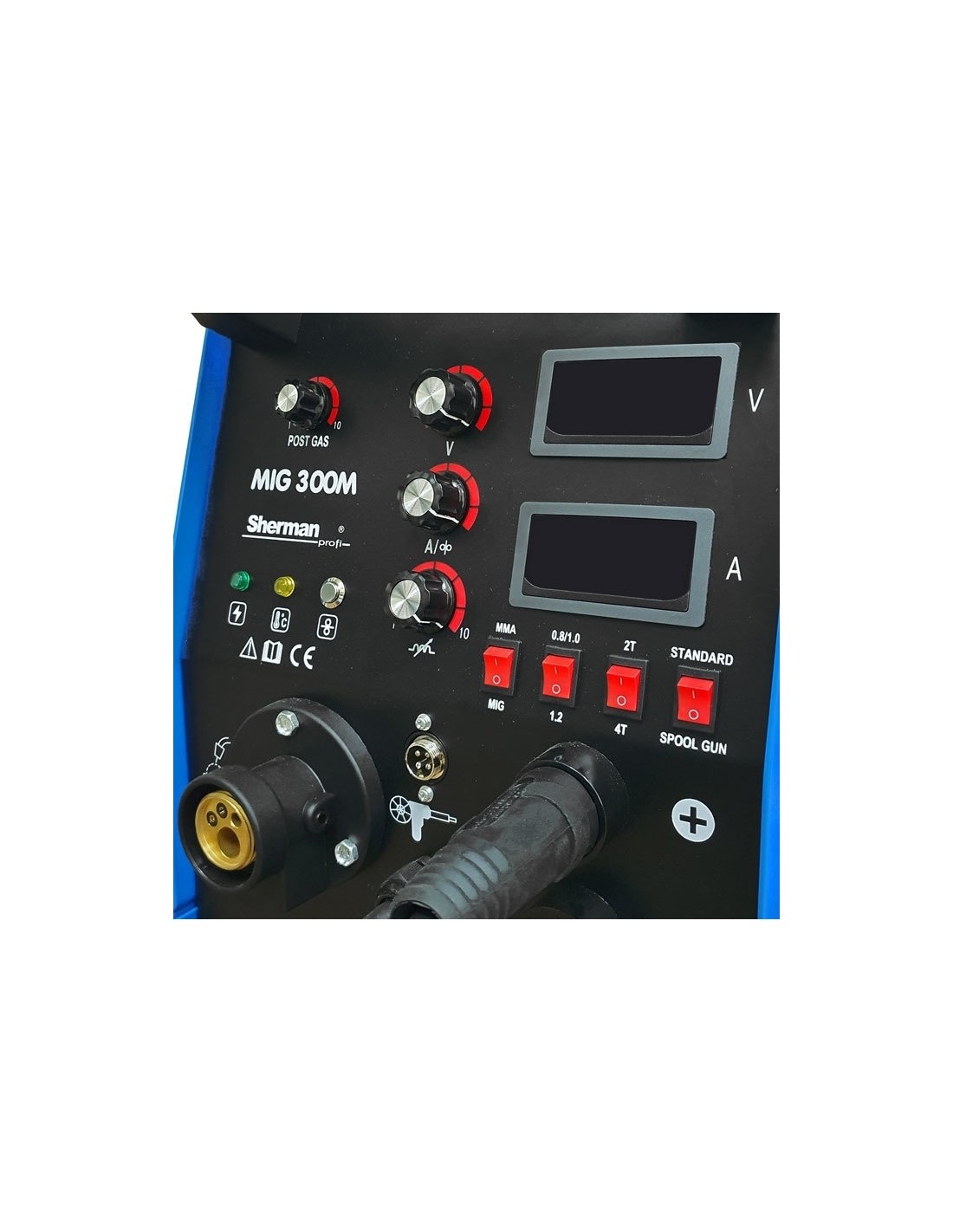

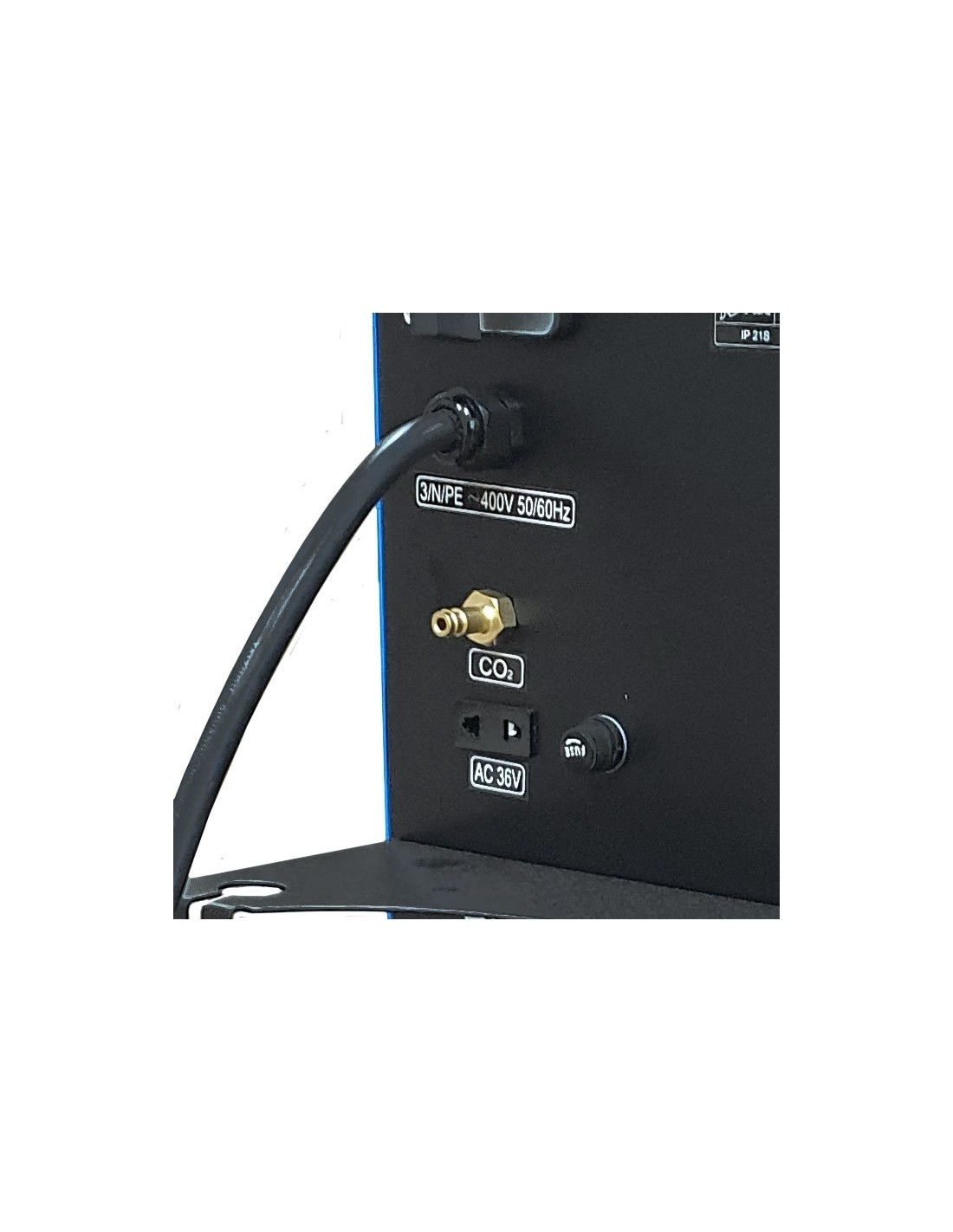

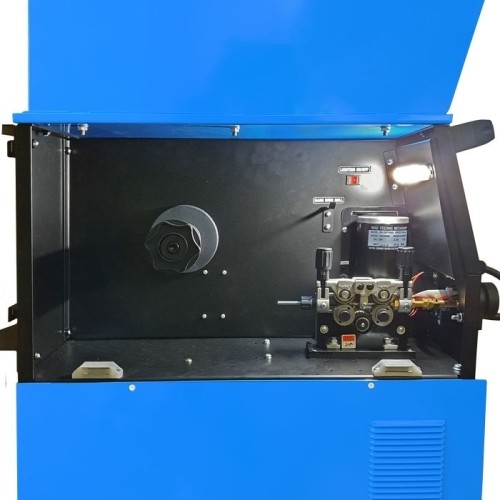

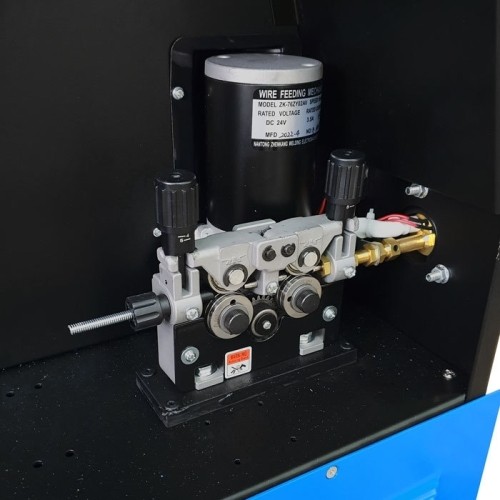

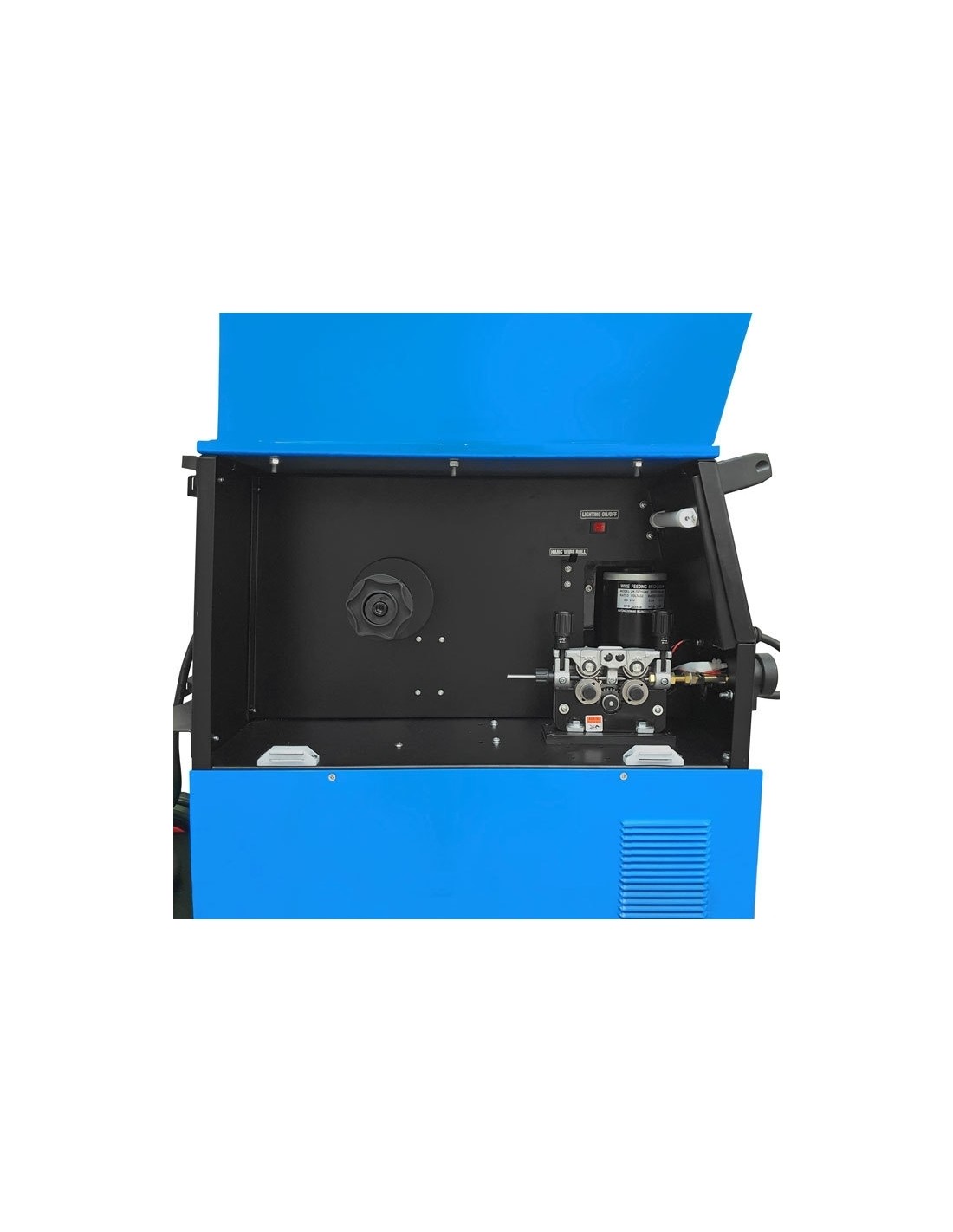

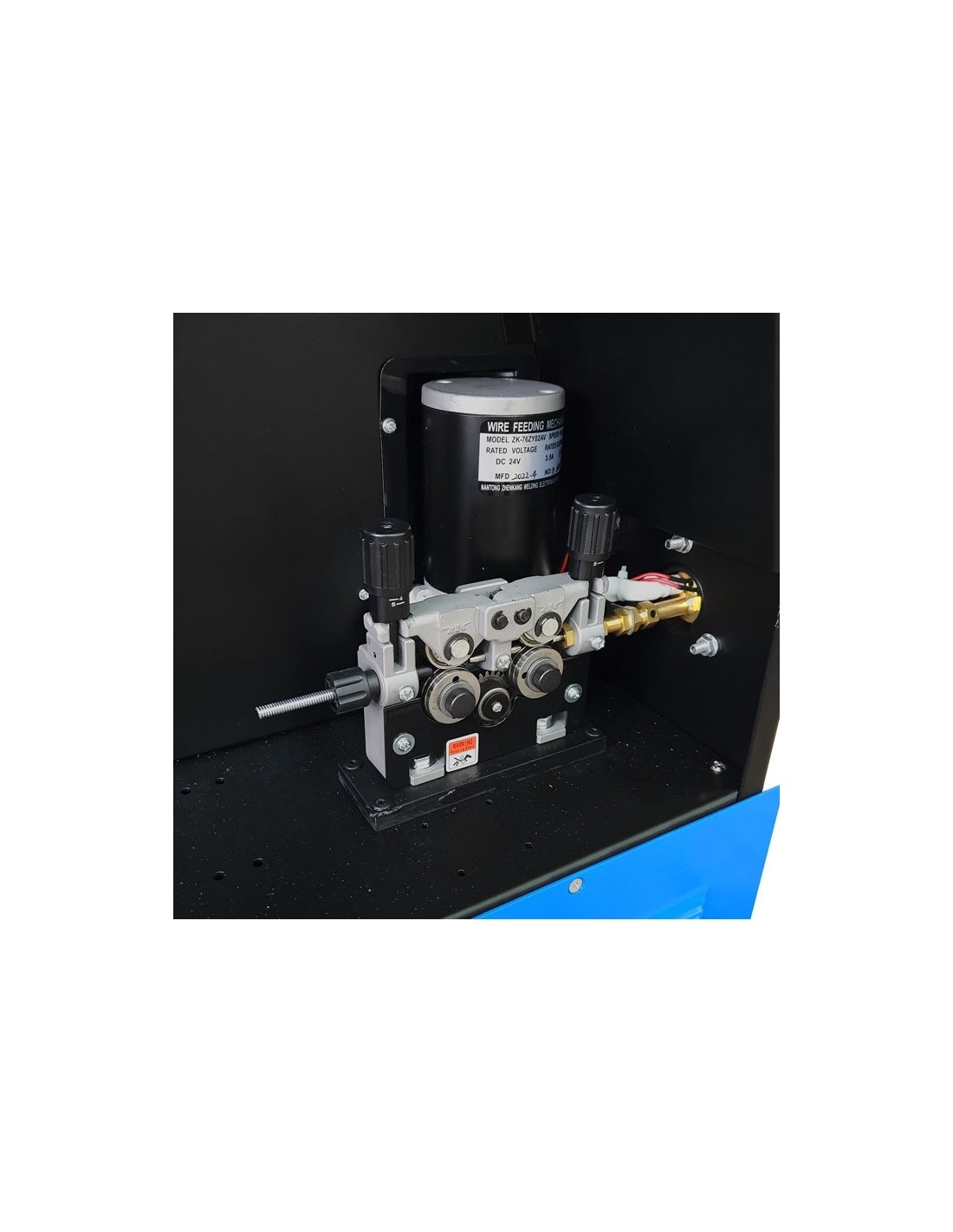

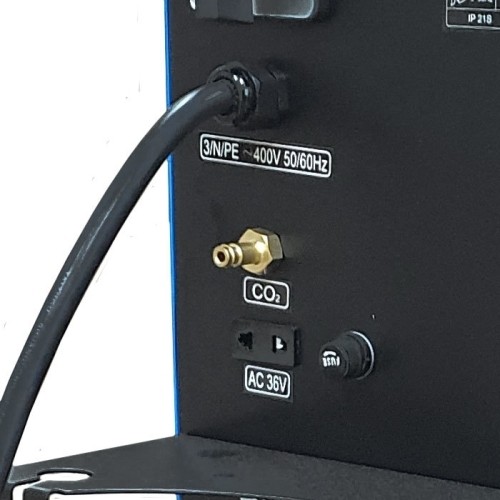

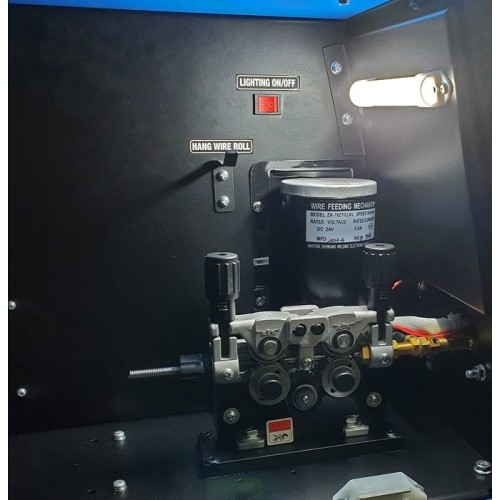

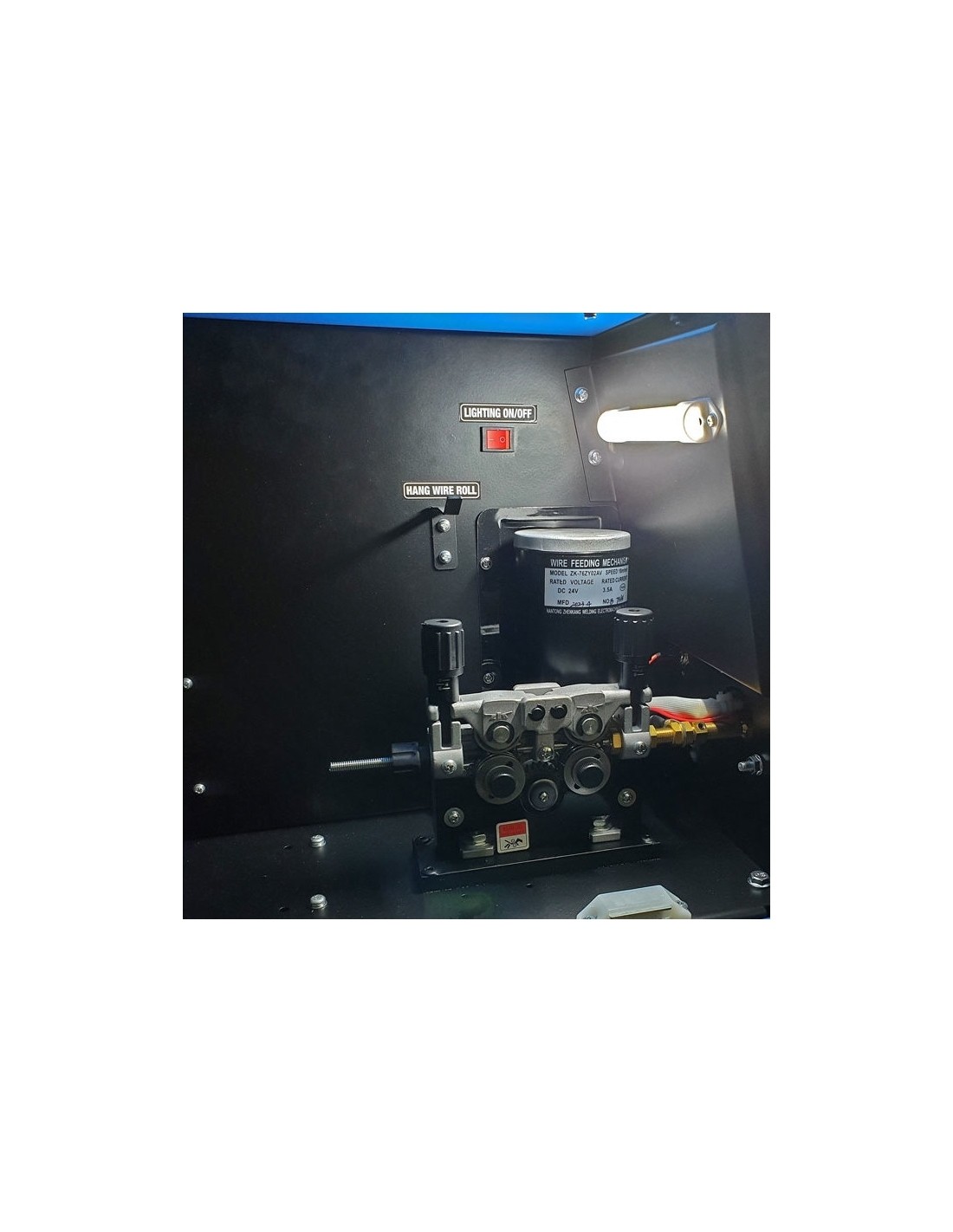

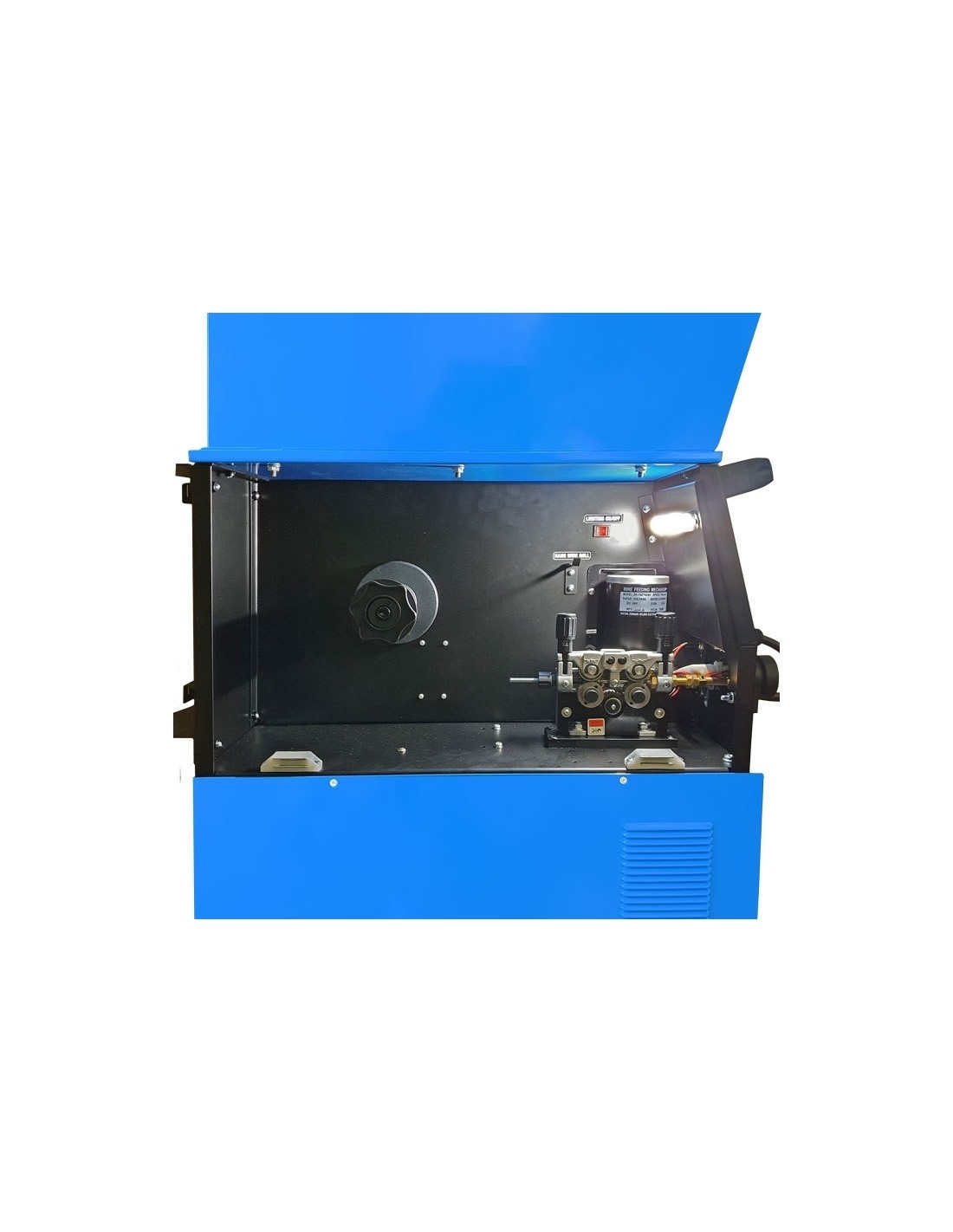

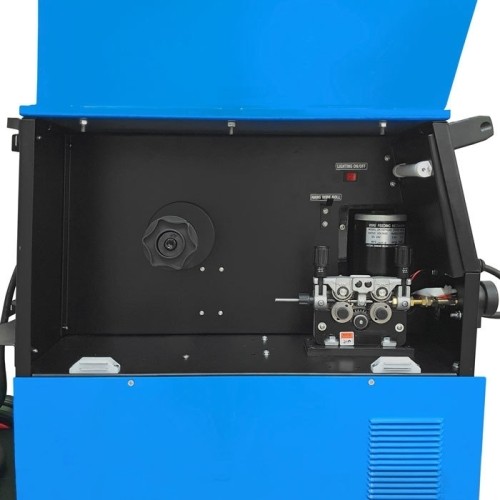

The unit is powered by a three‑phase 3x400 V supply. A professional 4‑roll wire feeder provides smooth, adjustable feed speed from 3 to 18 m/min. Welding voltage for MIG/MAG and welding current for MMA are steplessly adjustable. The machine offers 2T/4T trigger modes and inductance control, which is useful for thin sheet metal. Thermal overload protection safeguards the device. It works with K‑200 (5 kg) and K‑300 (15 kg) wire spools (Ø200/300 mm). Duty cycle is 60% up to 300 A, MIG voltage range 16.5–29 V, and open‑circuit voltage 59 V.
Included accessories: TW‑36 MIG torch 4 m, electrode holder cable, grounding cable with clamp, welding disc, and chipping hammer.
Included
- TW‑36 X60 Trafimet 4 m MIG torch
- Electrode holder cable

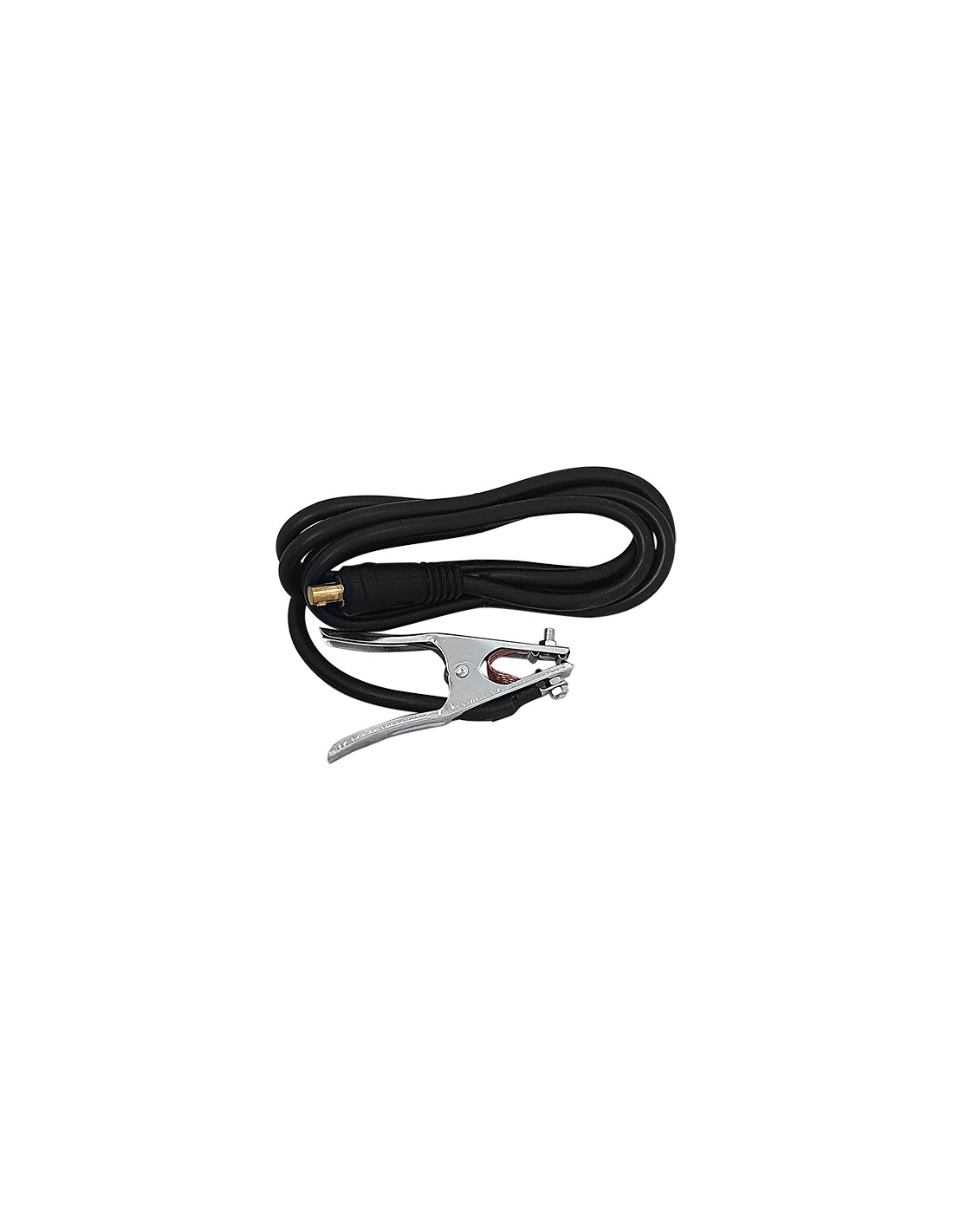

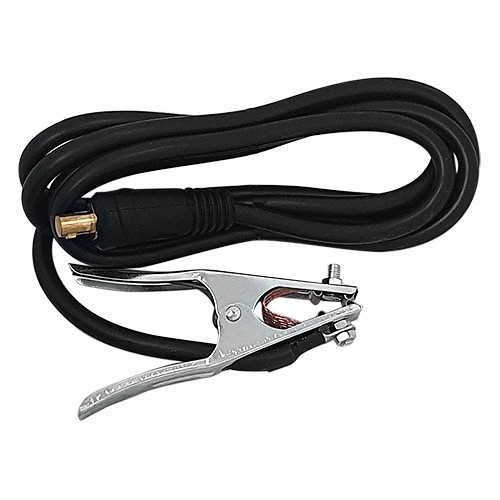

- Grounding cable
- Welding disc
- Chipping hammer
