- Best price
- Weight [kg]
- 48
- Welding/cutting/other methods
- Soldering, MIG/MAG, MMA DC, TIG Lift (by rubbing) DC.
- Manufacturing technology
- IGBT
- Max DC TIG welding current [A].
- 350
- MMA duty cycle [%].
- 60
- TIG duty cycle [%].
- 60
- No-load voltage [V].
- 70
- Feeder arrival speed
- 1-15
- MIG welding voltage [V].
- 15,5 – 31,5
- Welding voltage correction
- -50 - +50%
- Wire burning time [s]
- -50 - +50%
- Max MMA power consumption [kVA}
- 12,9
- Max TIG power consumption [kVA].
- 12,9
- Max MIG/MAG power consumption [kVA].
- 12,9
- Max MMA current consumption [A].
- 36,7
- Roll dimensions [mm].
- 30x22x10 2RA
- Features

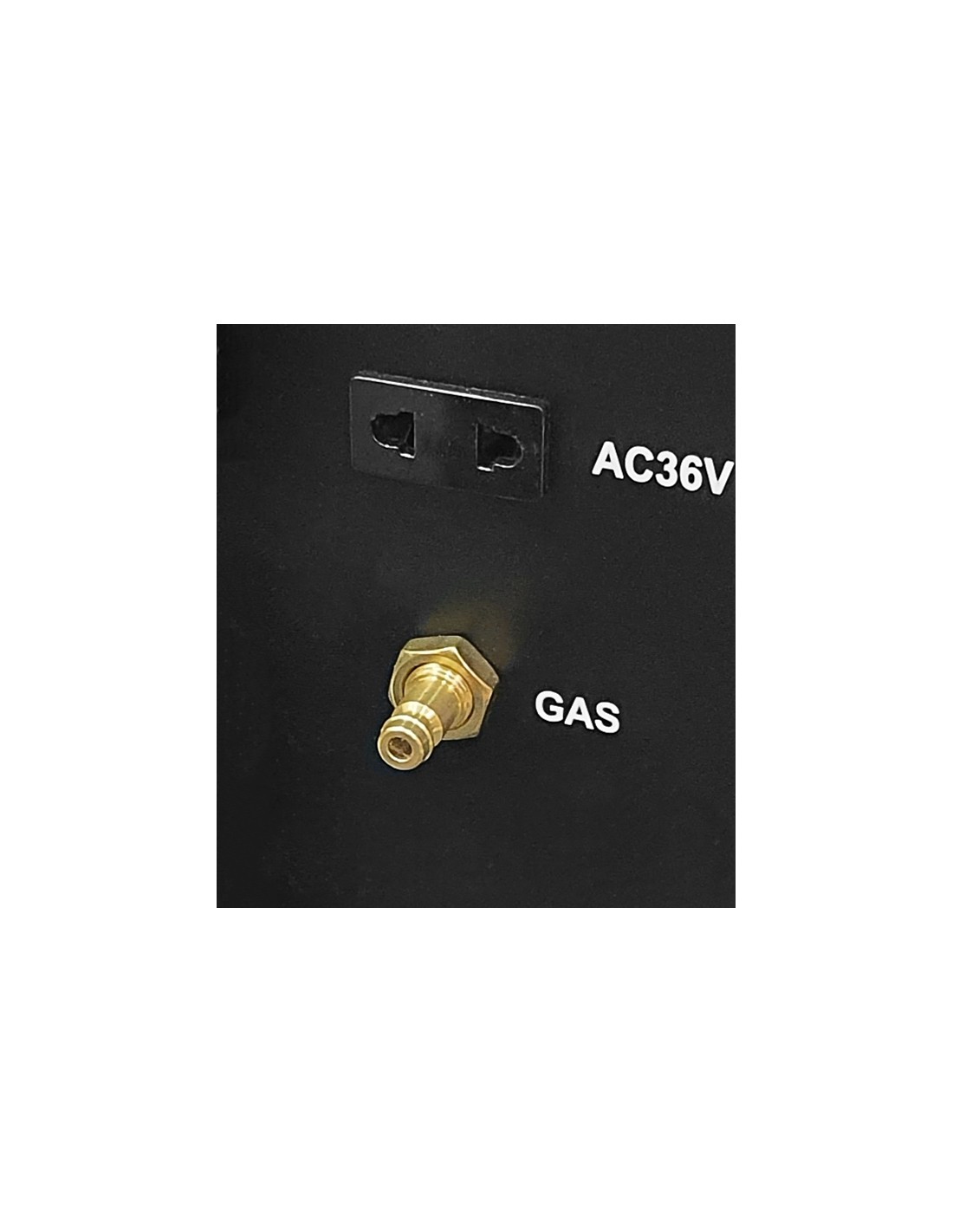

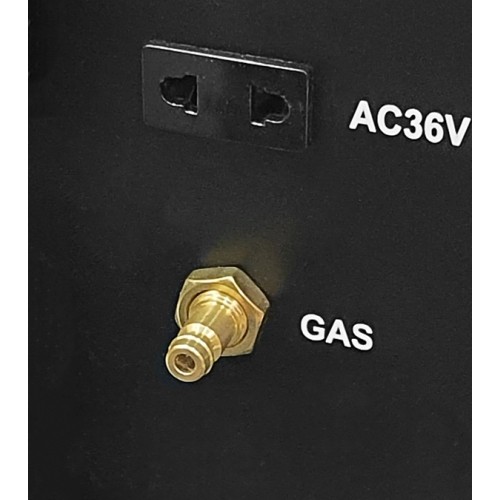

- 2T/4T, Fan Stop, Gniazdo zasilania AC 36 V, Hot Start, Mikrokontroler (MCU), Pamięć ustawień, Podajnik 2-rolkowy, Podwójny Puls, Powypływ gazu MIG, Przedwypływ gazu, Puls MIG, Puls TIG, Regu
- Network protection [A].
- 25
- Warranty period for companies [years].
- 1
- MIG gas flow [s].
- 0,1-50
- MIG spot welding time [s].
- 0,1-9,9
- Gas pre-flow [s].
- 0 - 10
- TIG pulse frequency [Hz].
- 0,1-99
- TIG pulse width [%].
- 5-95
- MIG pulse frequency [Hz].
- 0,5 - 5
- MIG pulse width [%].
- 20-80
- MIG pulse amplitude [%]
- 5-50
- Phase
- Trifazis (400V)
- Control
- synergetic
- User Level
- Professional
- Weight, kg
- 48
- Wire spool size [kg]
- 5
15 - Išmatavimai mm
- 98 x 38 x 75
- PFC function
- No
- Maximum current MMA [A]
- 350
- Maximum current TIG [A]
- 27,8
- Maximum current MIG/MAG
- 350
29,1 - MIG/MAG darbo ciklas [%]
- 60
- Vielos ritės skersmuo ø [mm].
- 200, 300
- Inverter technology
- IGBT
- Shielding Gas Requirement
- Gas / Gasless

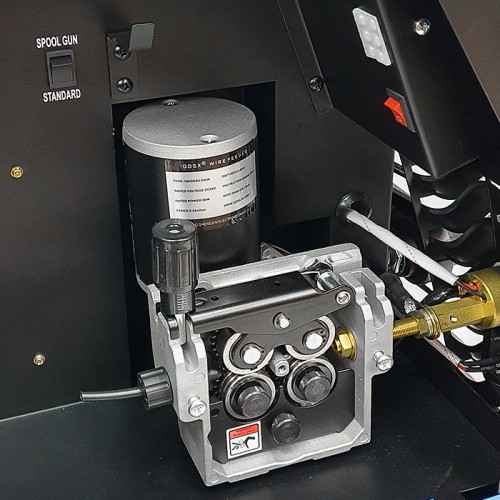

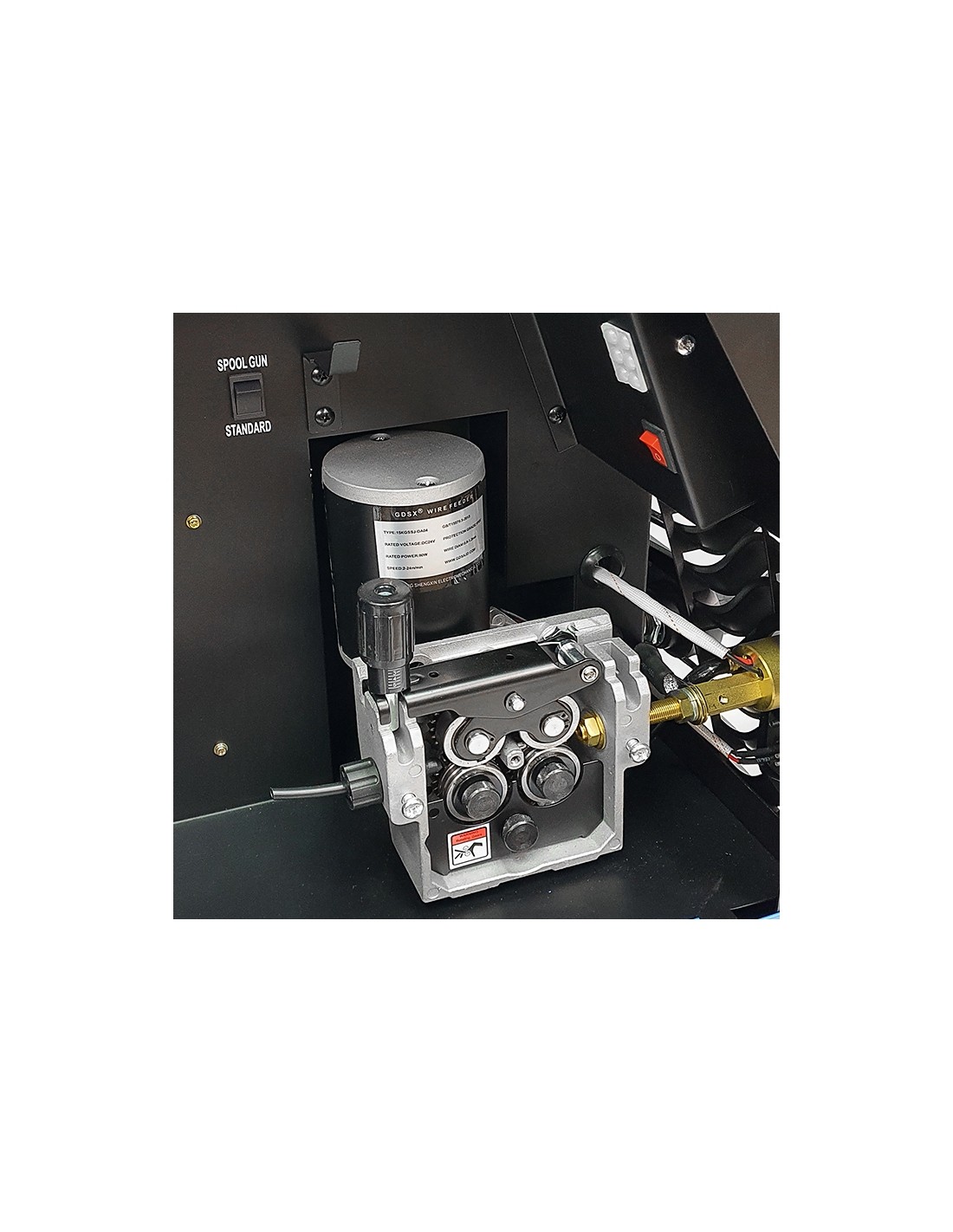

- Number of wire feed rollers
- 4
- Torch length
- 3 m
- Package Contents
- additional wire feed roller(s)
electrode cable
ground cable

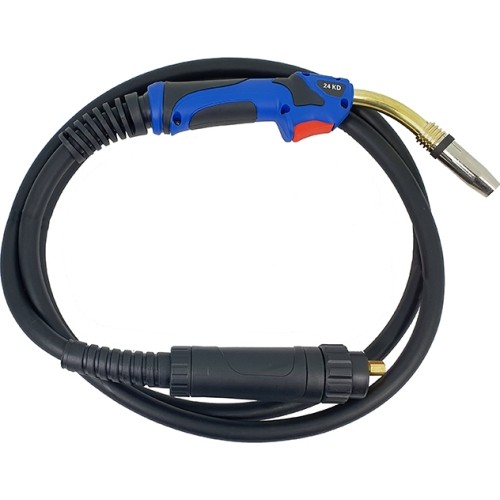

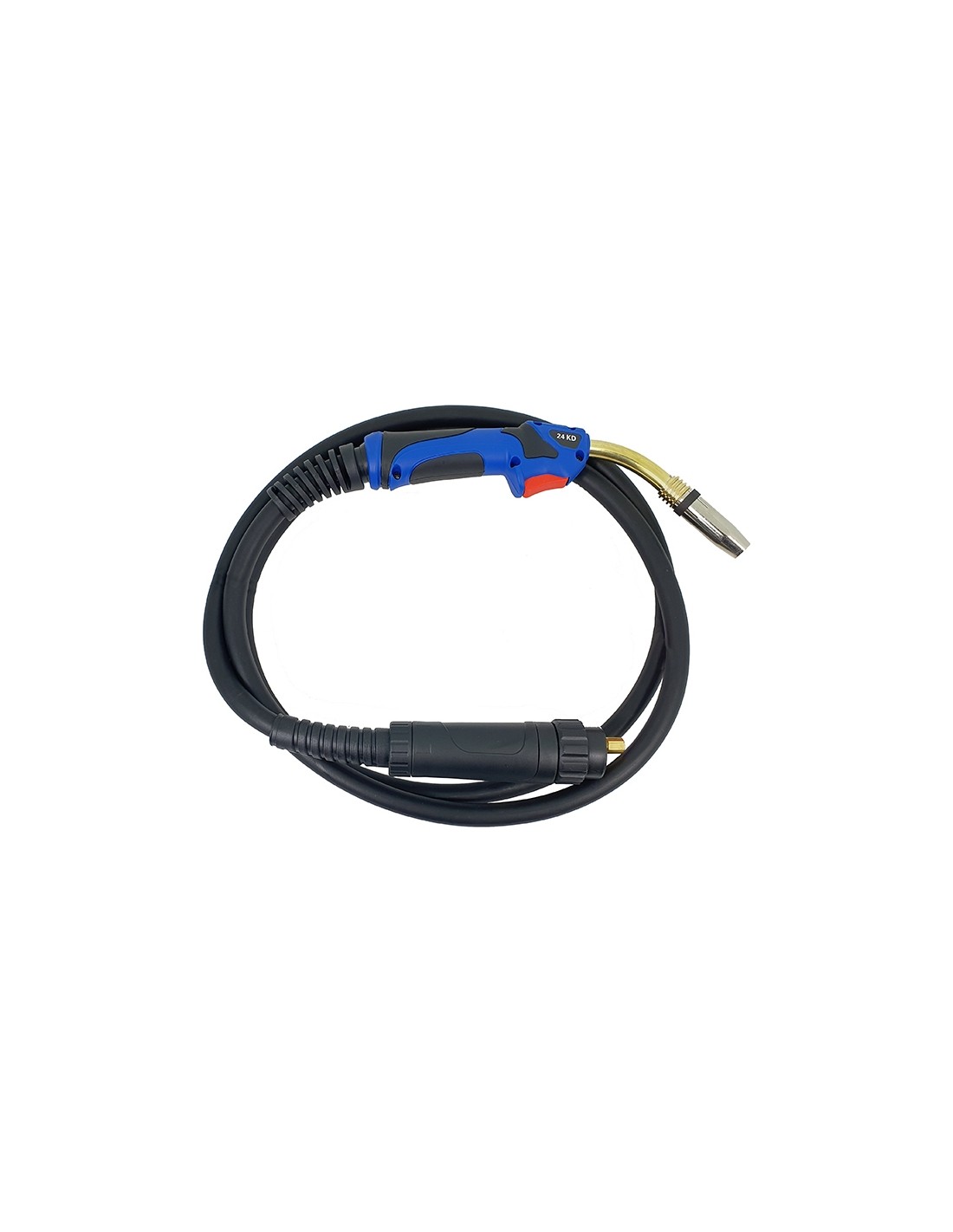

MIG / MAG burner
plieninis šarvas
teflono įdėklas
welding machine - Ground cable connection
- big (35 - 50 mm)
- Torch connection in the machine
- EURO
- Functions
- 2T / 4T

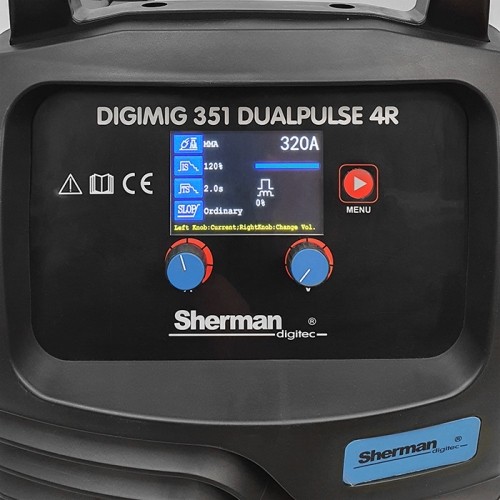

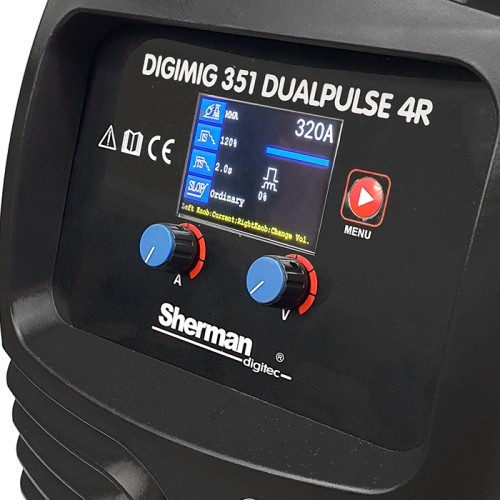

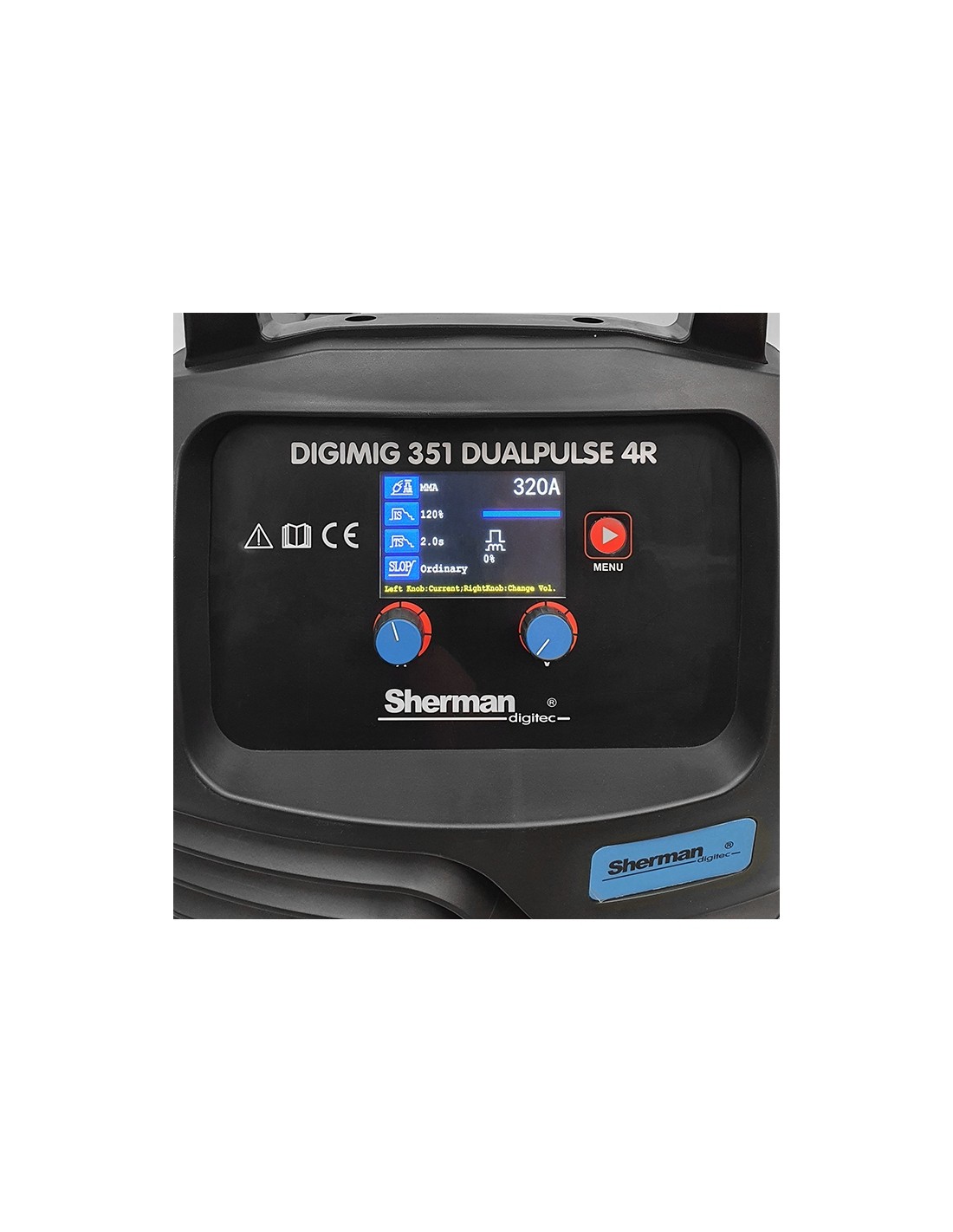

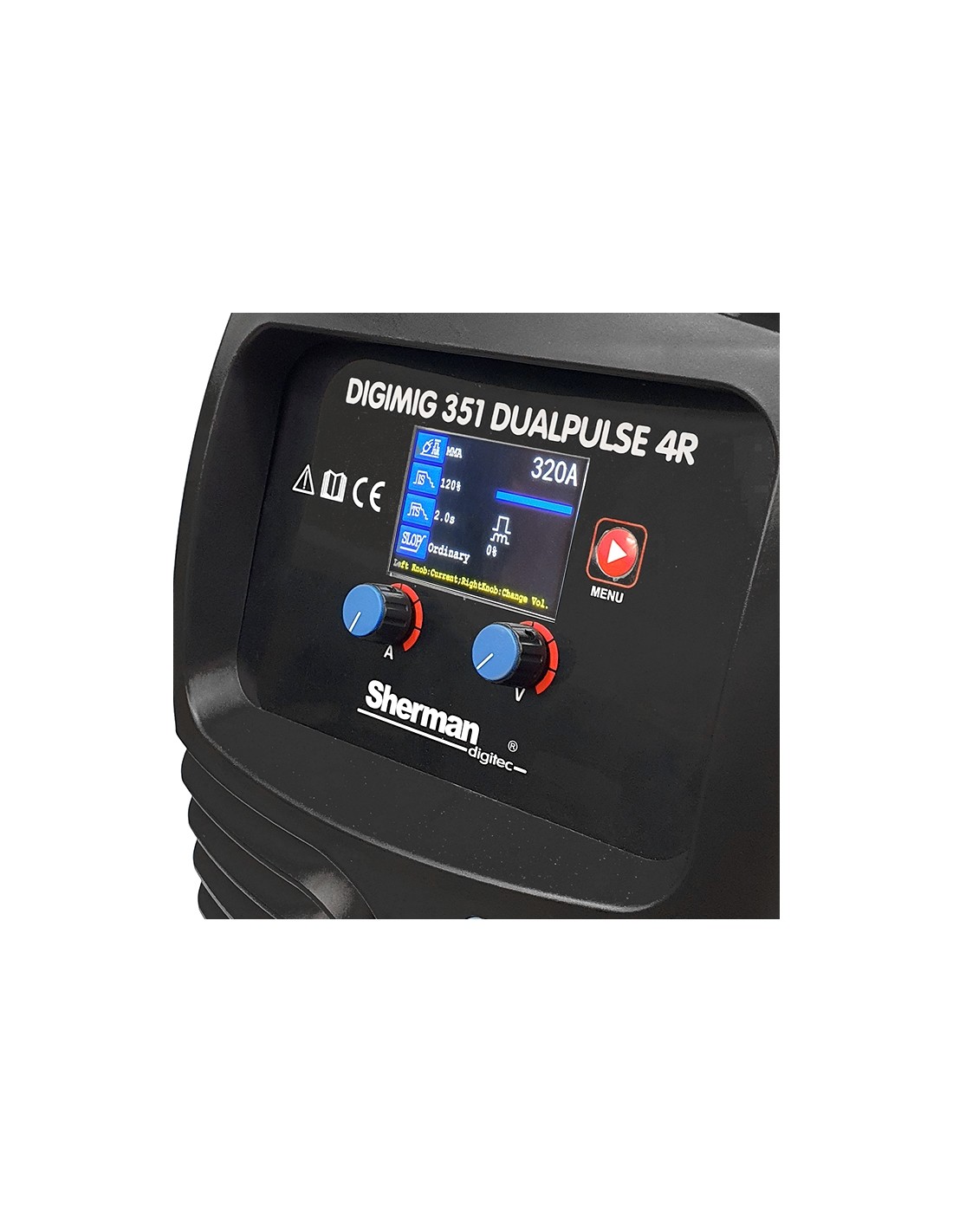

digital display
DOUBLE PULSE
Fan Stop
indukcija
Memory for welding parameters
Post-gas regulation
Pre-gas adjustment
Spoolgun connection option
VRD
1453264

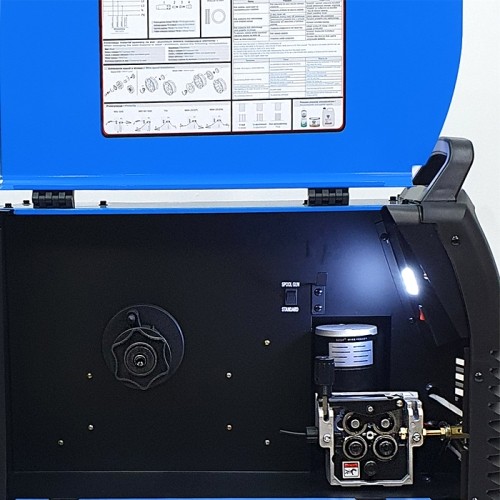

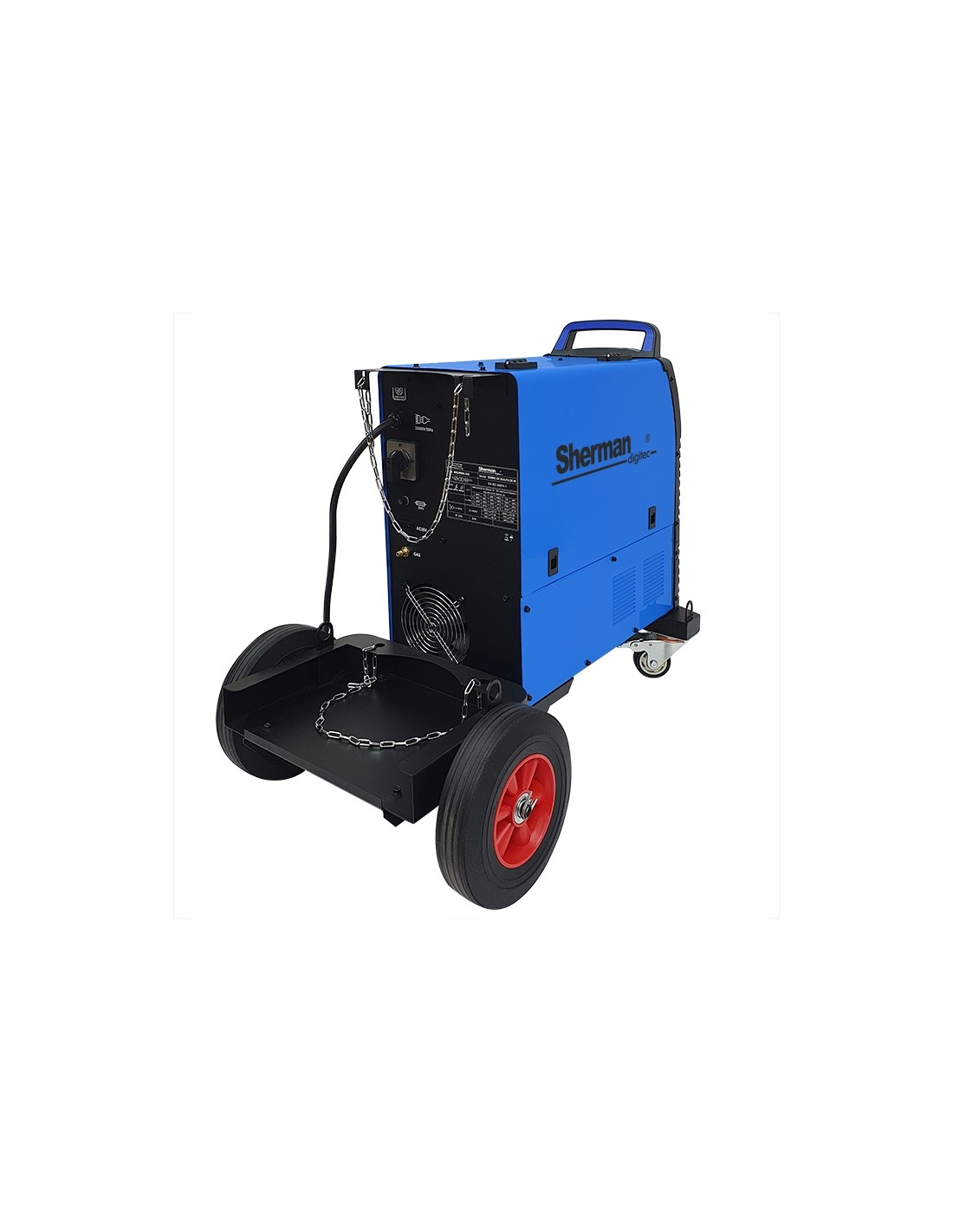

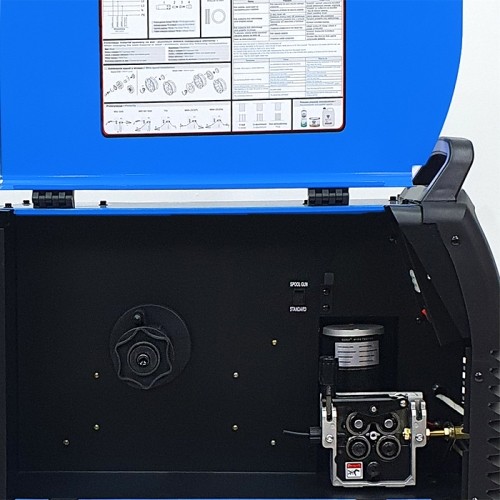

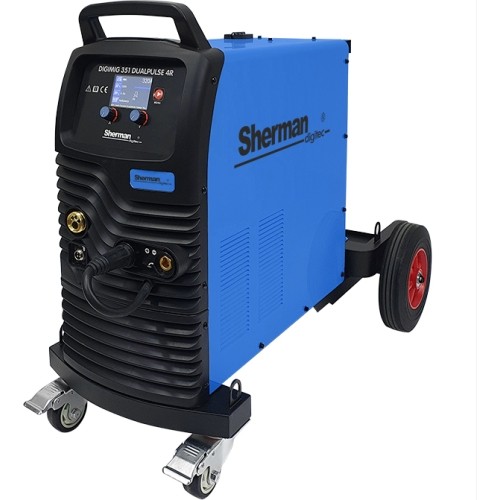

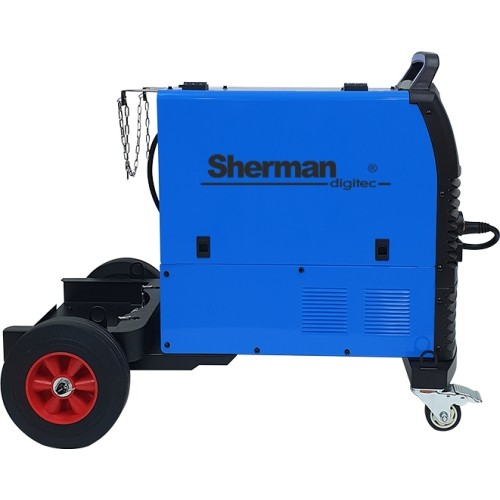

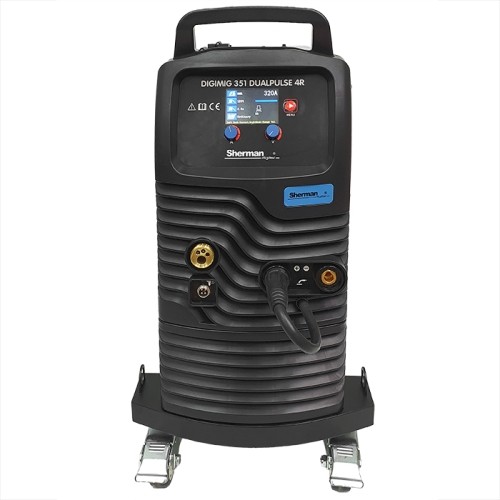

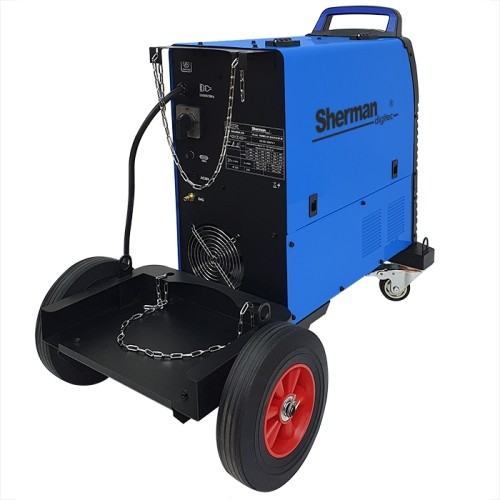

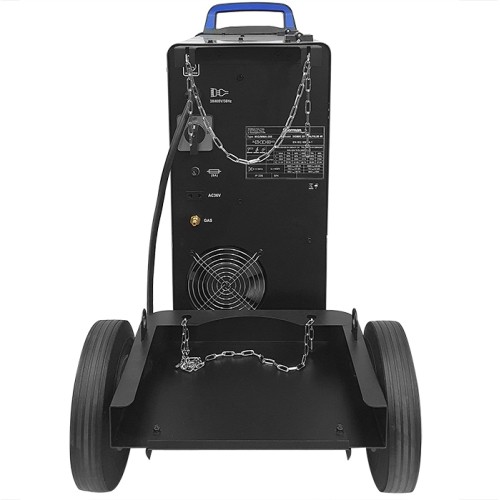

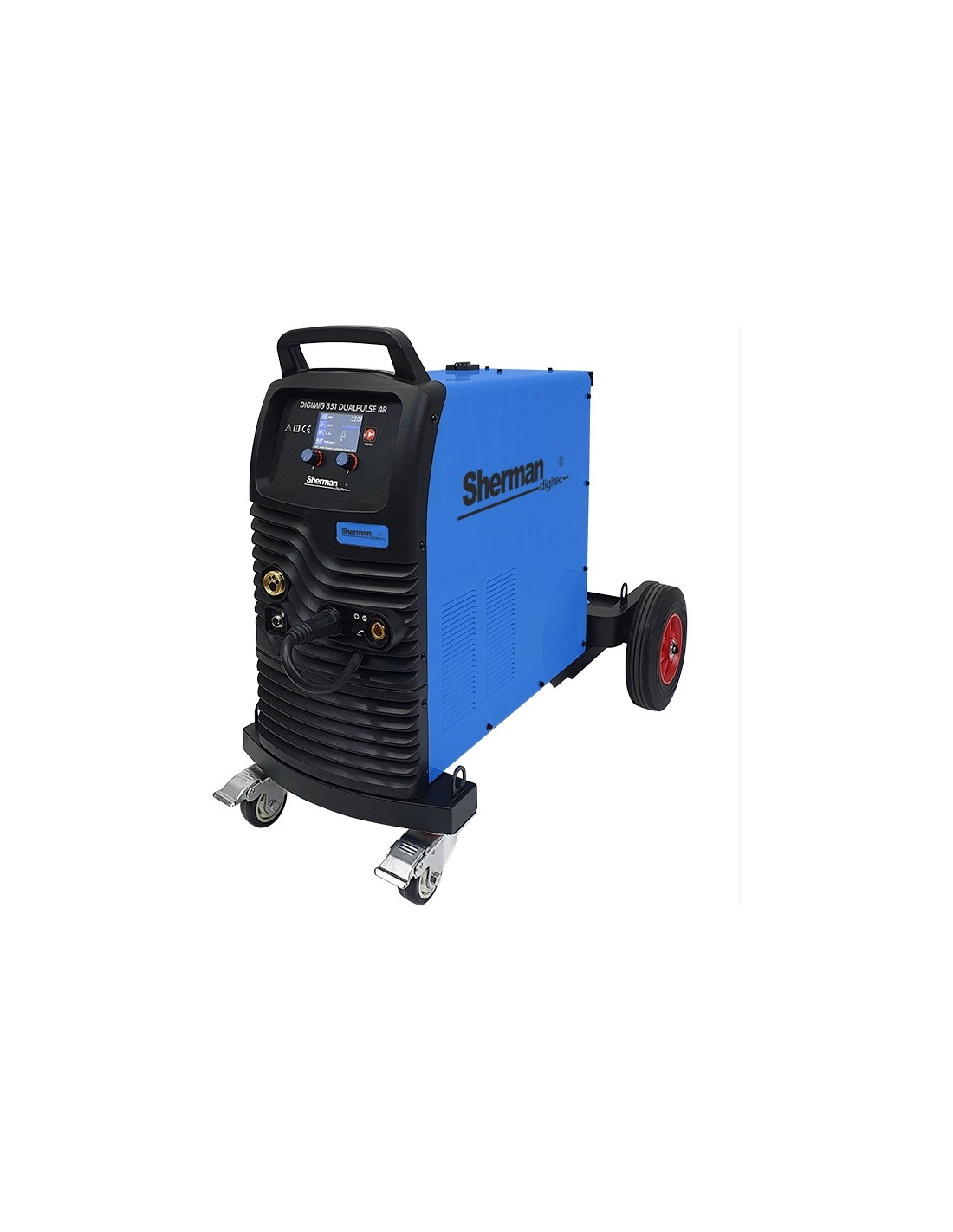

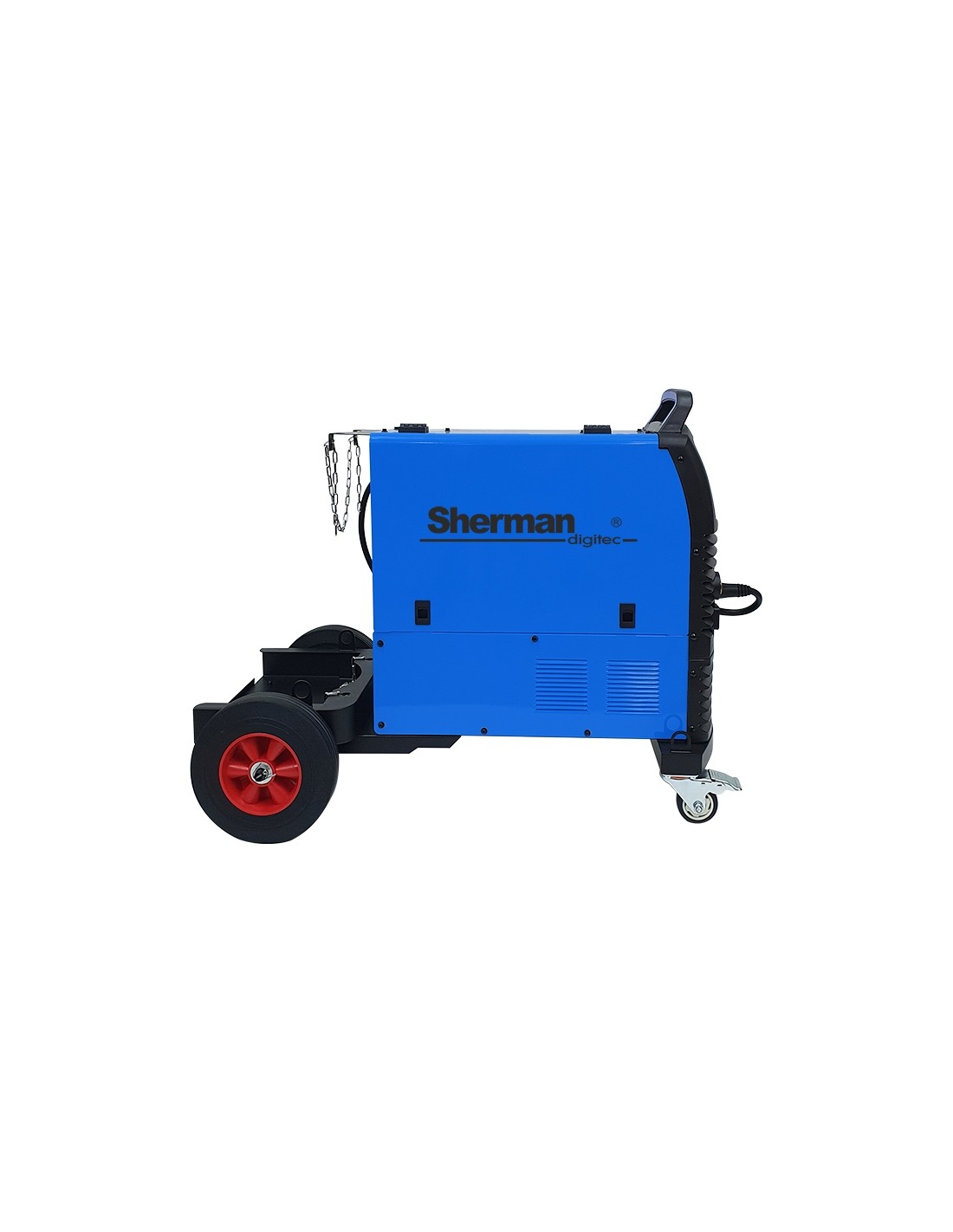

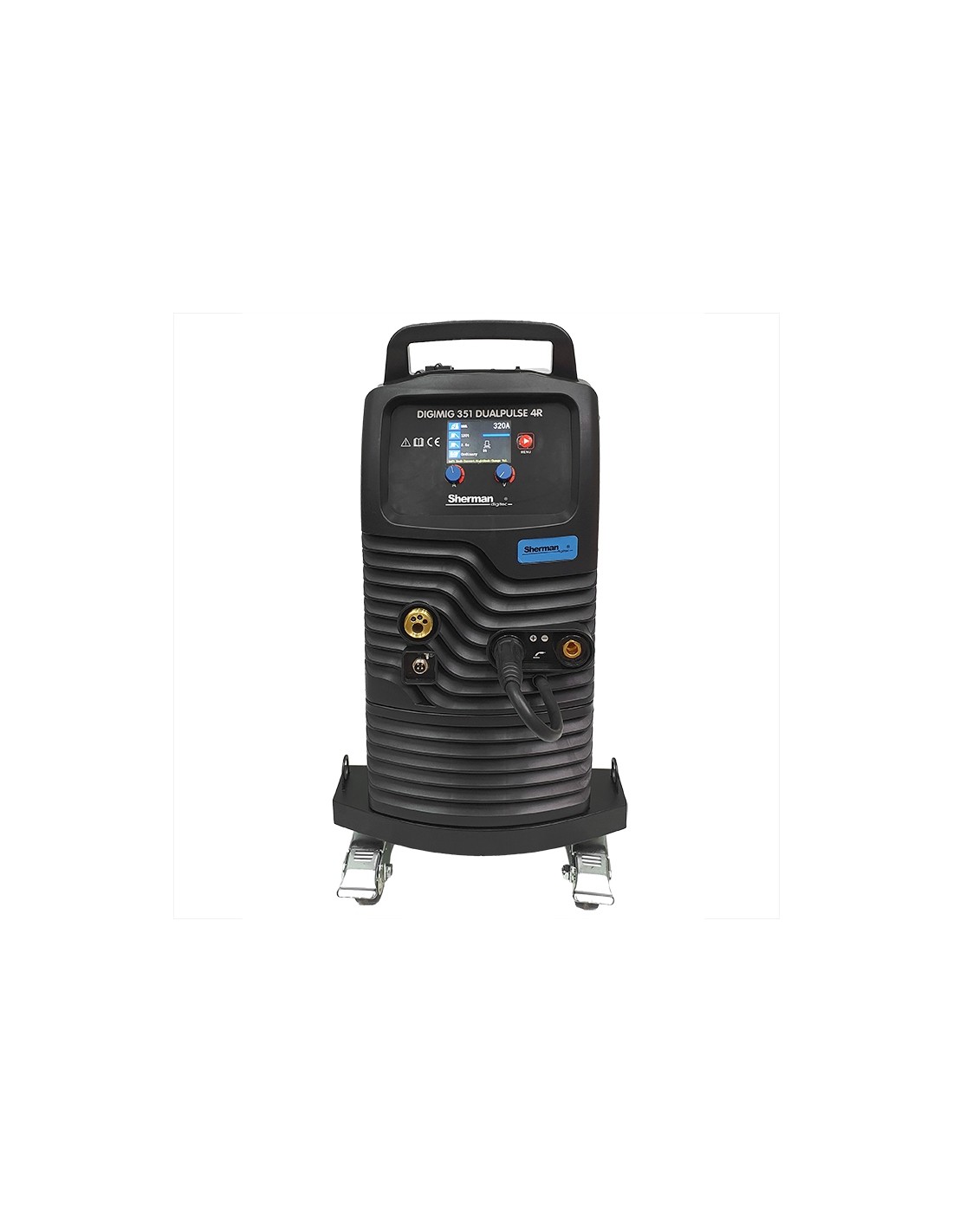

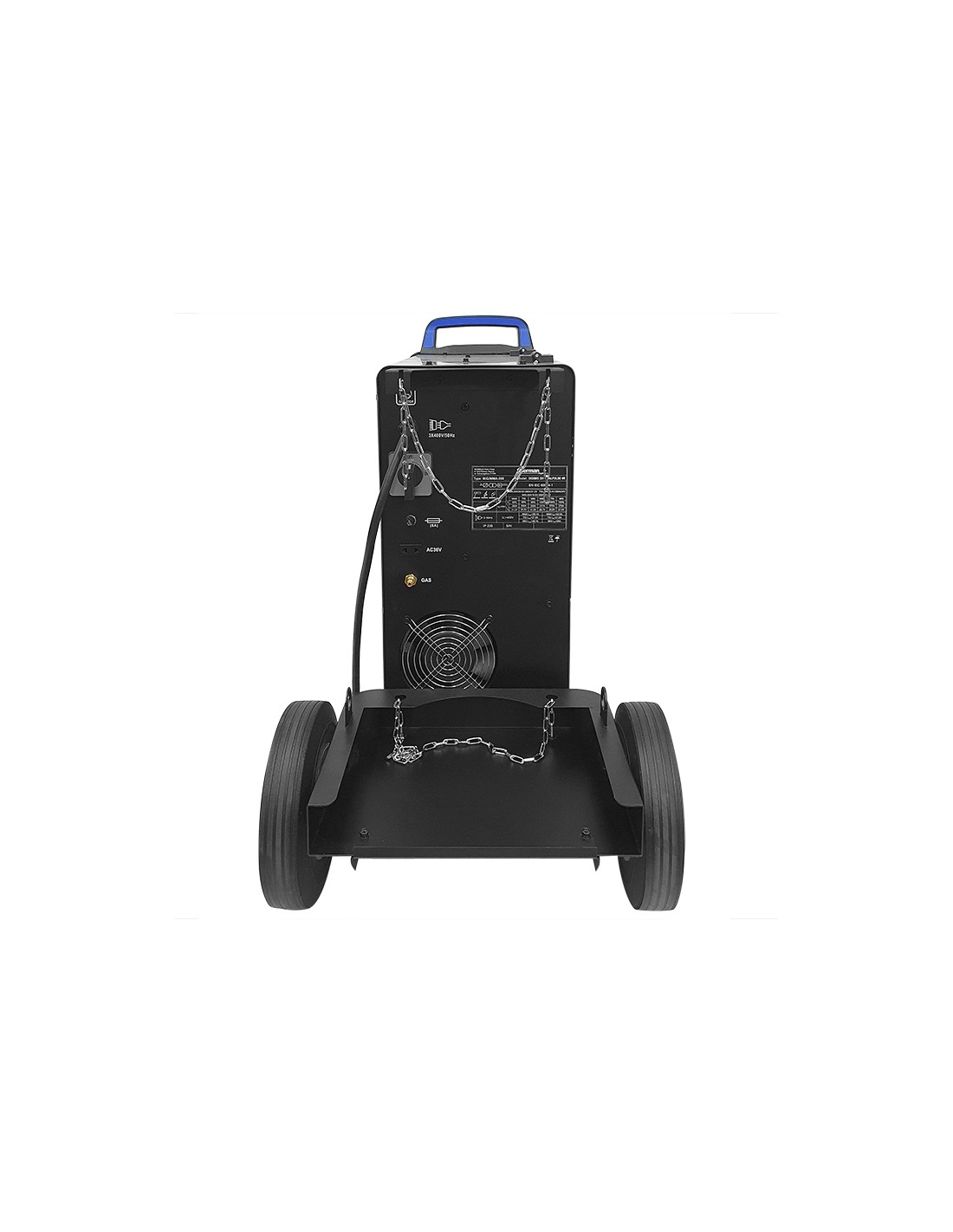

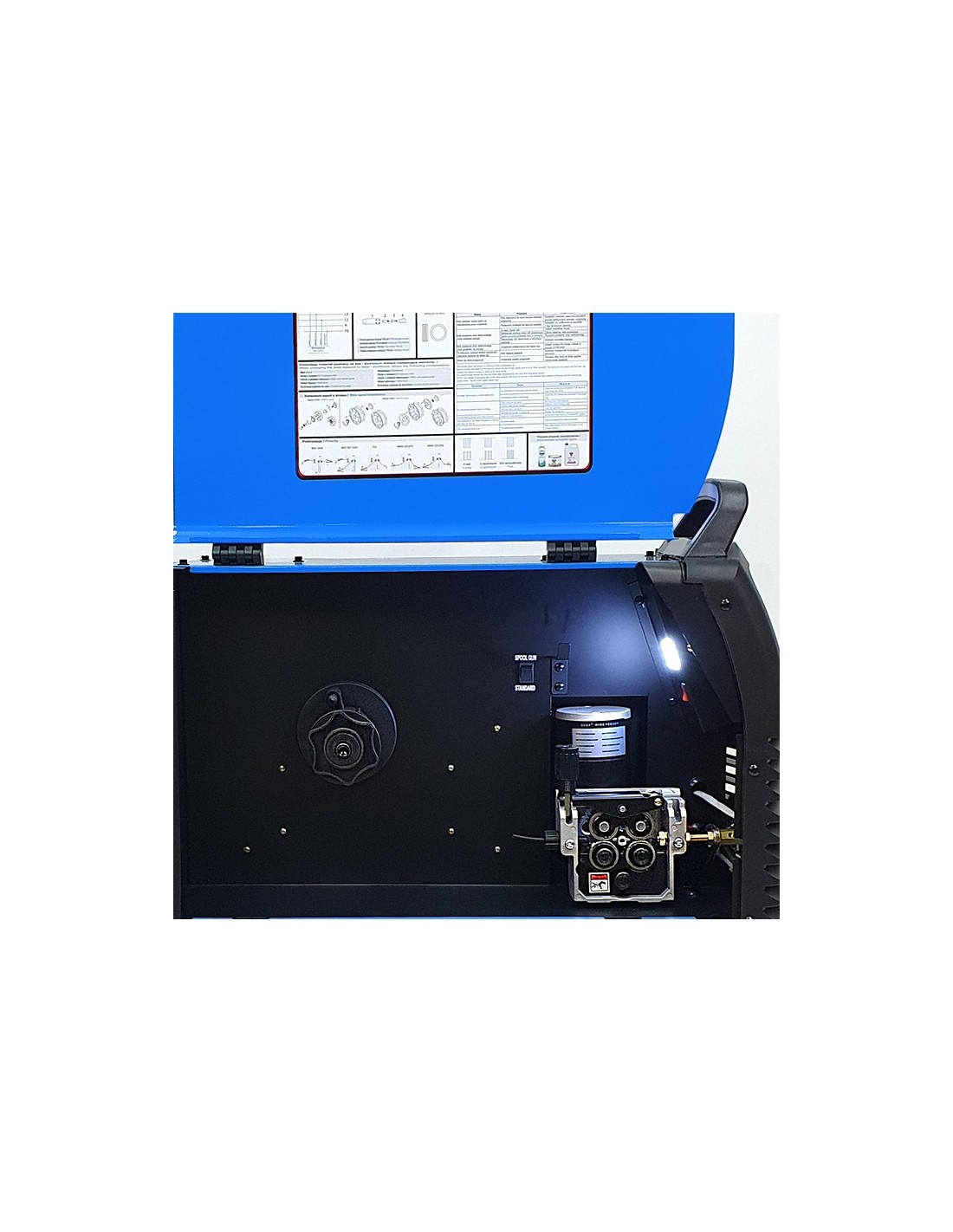

Inverter synergy welder DIGIMIG 351 DUALPULSE 4R
Ask for the price and delivery time by phone
