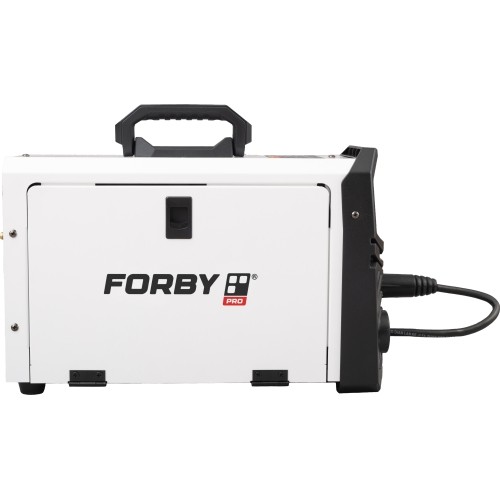

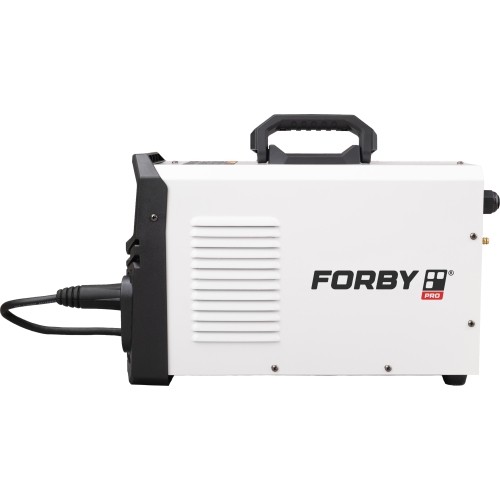

Professional welding machine MIG-210FX LED - a reliable work tool!
The MIG-210FX LED is a modern and powerful welding machine for professionals and hobbyists alike who want quality, efficiency and versatility in a single unit. It is a reliable and compact tool that lets you produce quality welds in a wide range of conditions.
Why choose the MIG-210FX LED?
- High performance and quality - stable arc, minimal spatter and excellent weld bead shape.
- Convenient and easy to use - intuitive controls with an LED display.
- Versatile - suitable for various metal types and welding processes.
- Lightweight and compact - easy to transport and use in different locations.
- Durability - a modern cooling system and durable materials ensure a long service life.
Who is this welding machine for?
- Professional welders who need a reliable and efficient tool.
- Car repair shops and metalworking companies.
- Hobbyists looking for a quality machine at a good price.
- Those working both outdoors and indoors, thanks to its compact size and easy transport.
The welding machine is an inverter type and uses advanced IGBT technology. The inverter converts the 50Hz/60Hz AC mains voltage into DC, which is then converted back into AC by a high-frequency (20 kHz) converter.
IGBT technology allows efficient adjustment of welding parameters, ensures a stable arc and reduces energy losses.
Welding modes and functions:
MIG/MAG mode
- Current: 50-200 A
- Wire diameter: 0.6 / 0.8 / 1.0 mm
- Suitable for welding both with gas and gasless (FLUX)
- Polarity change - quick switching between MIG and FLUX
MMA (stick electrode) mode
- Current: 10-160 A
- Supports: Ø2.0 / Ø2.5 / Ø3.2 / Ø4.0 mm electrodes
- Hot Start and Arc Force functions
Lift TIG mode
- Current: 10-200 A
- Requires a separate TIG torch and argon cylinder
Suitable for welding various metals - steel, stainless steel, aluminium (with the appropriate wire and gas).
The ability to weld with or without shielding gas (for mild steel) provides extra flexibility when working in various conditions.

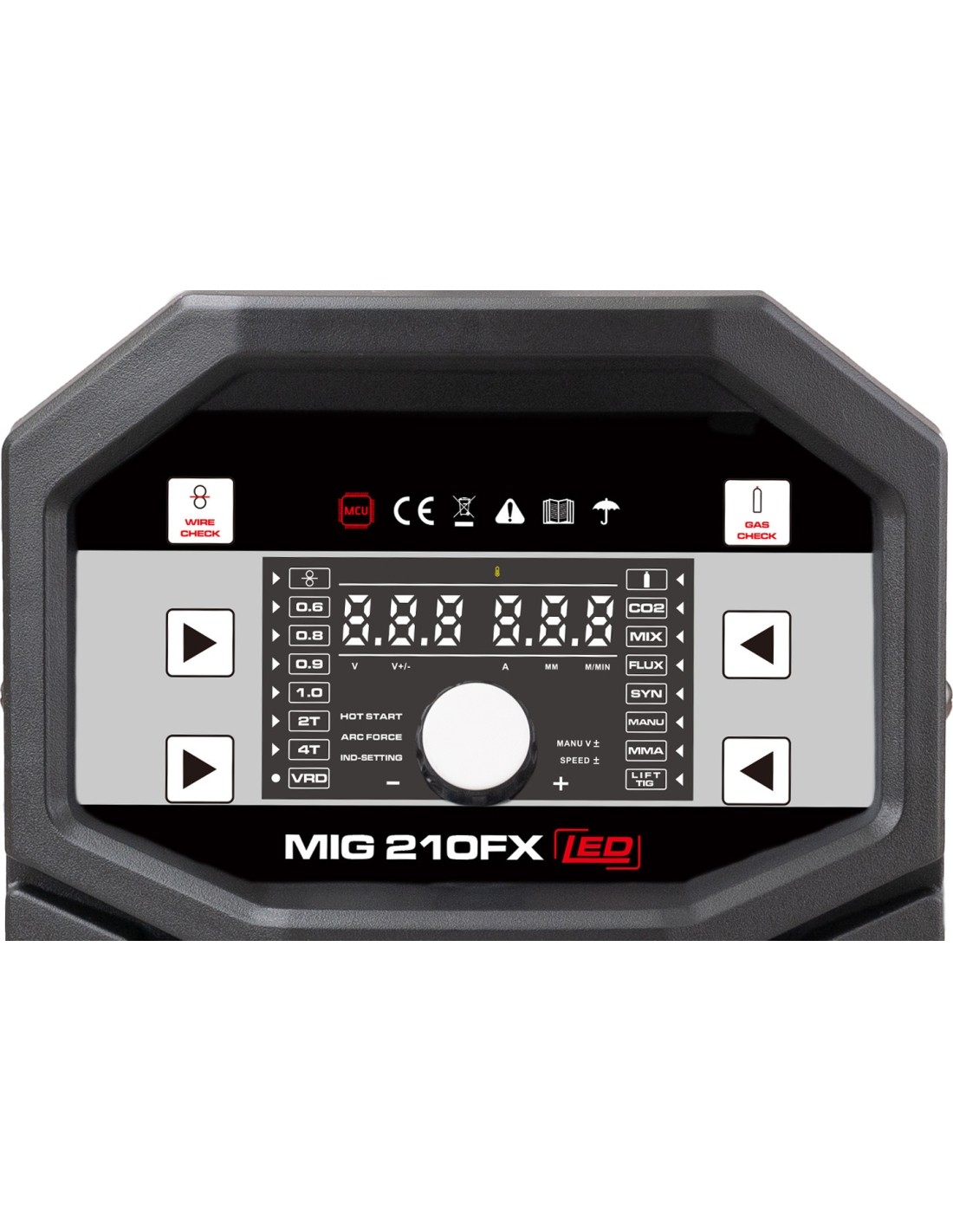

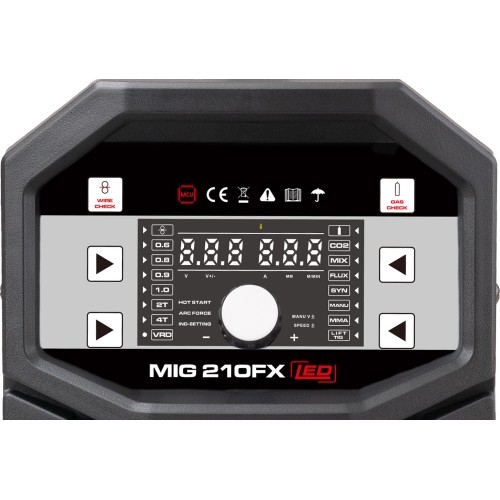

LED display with extremely simple controls:
- Synergic mode
- Manual mode
- Welding process selection - MIG/MAG (wire welding), MMA (stick electrode) and Lift TIG (with filler wire)
- Wire diameter selection
- Gas type selection
- 2T / 4T operating modes
- Inductance adjustment
- Wire feed and gas tests
- VRD function for MMA welding

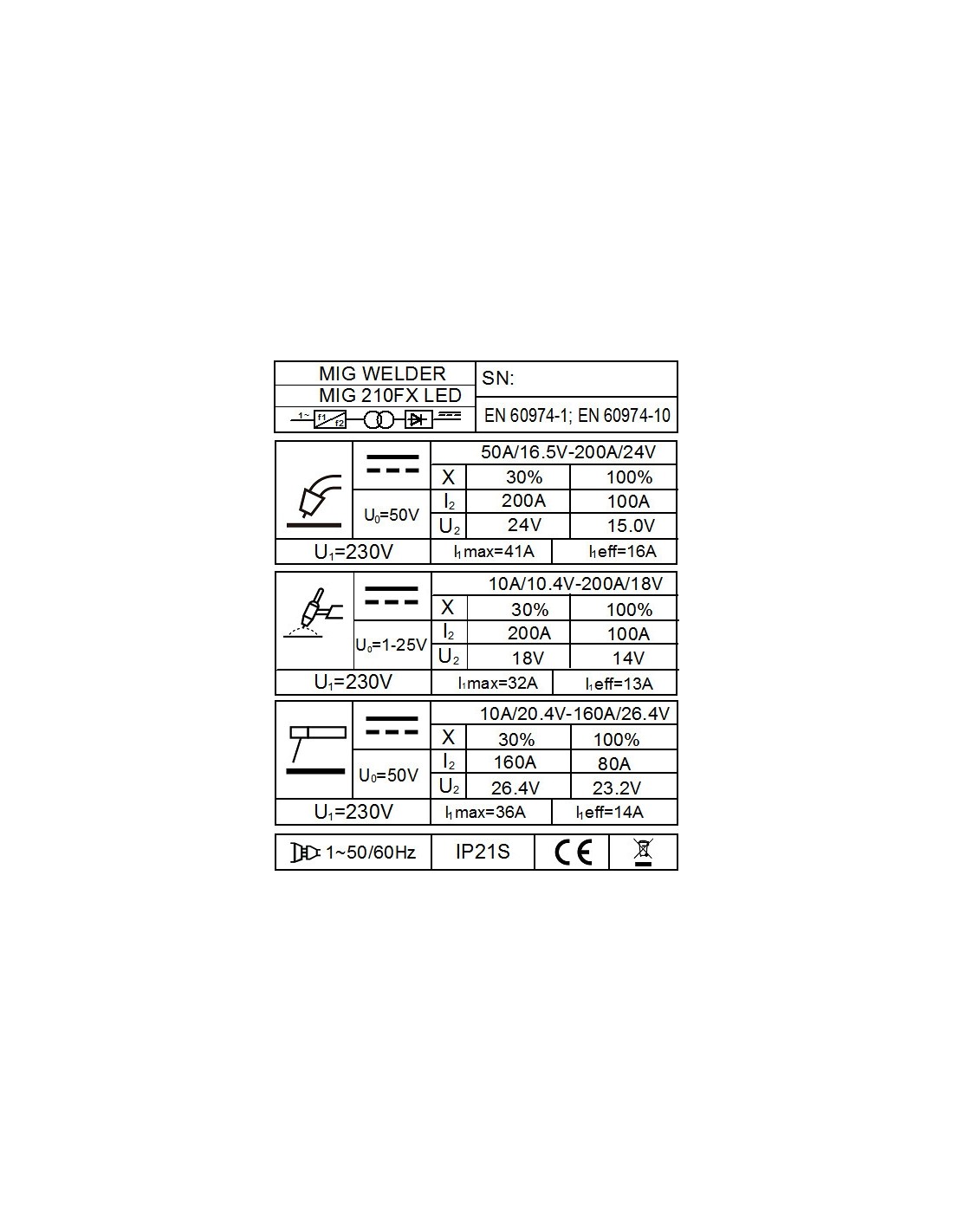

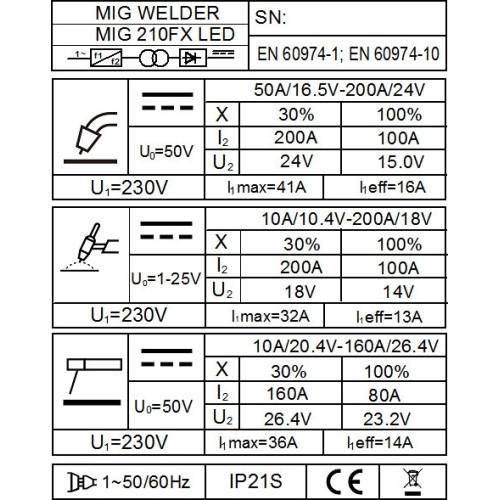

Main operating mode parameters:
MIG/MAG (gas-shielded) mode
- Maximum current (I₂) at 30% duty cycle: 200 A
- Current at 100% duty cycle: 100 A
- Voltage (U₂): 24 V @ 30% / 15.0 V @ 100%
- Maximum input current (Iᵢ max): 41 A
- Effective input current (Iᵢ eff): 16 A
MMA (stick electrode) mode
- Maximum current (I₂) at 30% duty cycle: 200 A
- Current at 100% duty cycle: 100 A
- Voltage (U₂): 18 V @ 30% / 14 V @ 100%
- Maximum input current (Iᵢ max): 32 A
- Effective input current (Iᵢ eff): 13 A
TIG (Lift-TIG) mode
- Current (I₂) at 30% duty cycle: 160 A
- Current (I₂) at 100% duty cycle: 80 A
- Voltage (U₂): 26.4 V @ 30% / 23.2 V @ 100%
- Maximum input current (Iᵢ max): 36 A
- Effective input current (Iᵢ eff): 14 A
Designed for 5 kg D200 welding wire spools. (With the main wire holder removed, it is also compatible with 1 kg D100 spools)

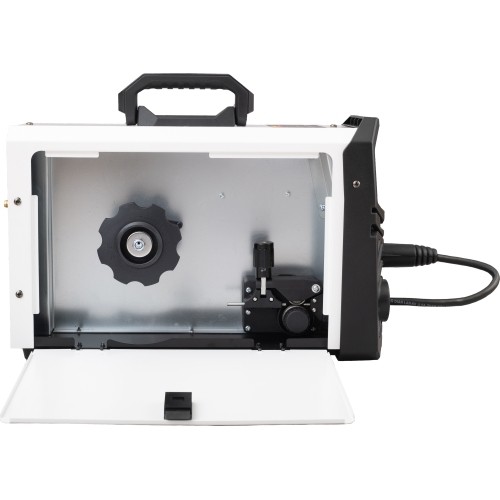

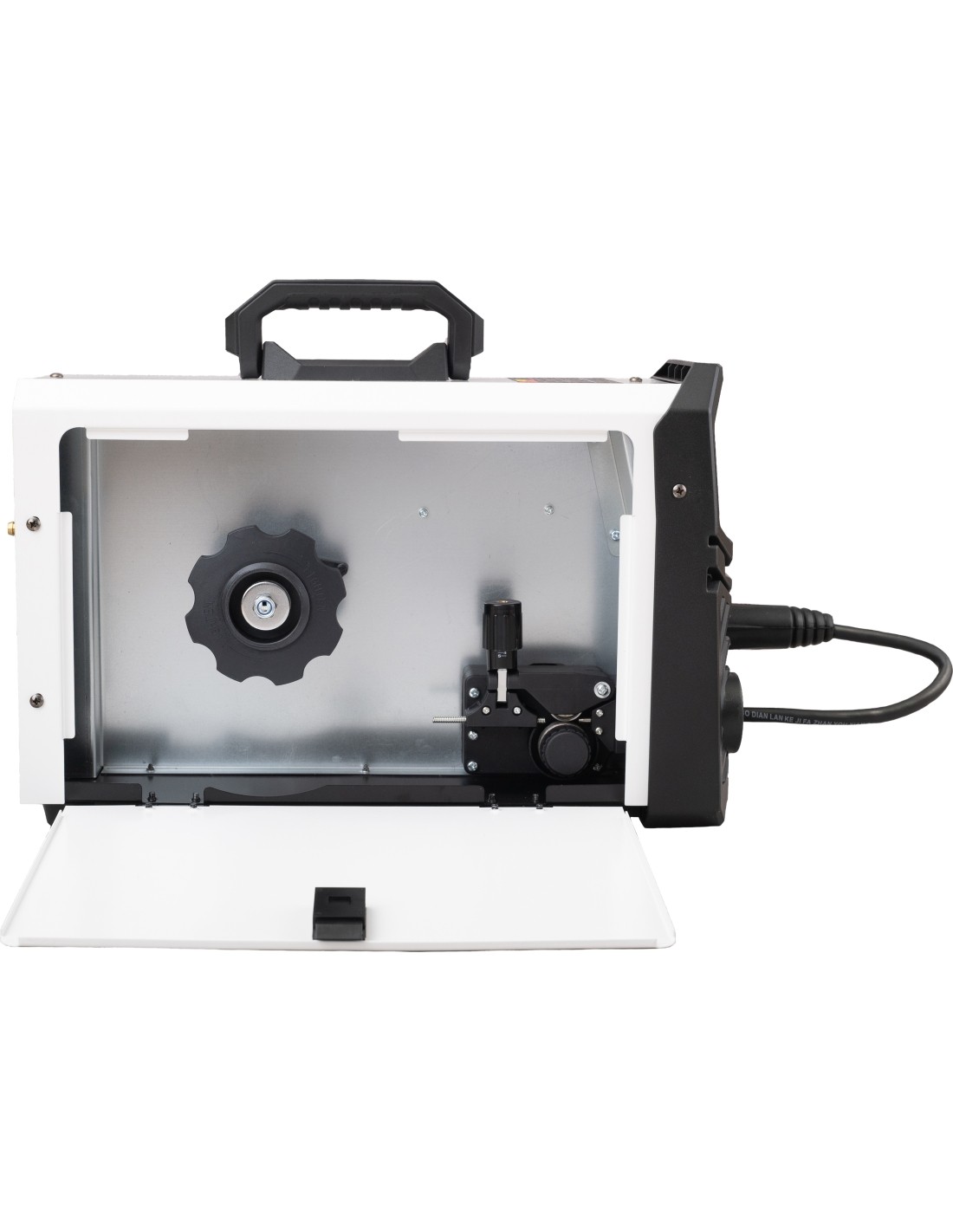

Easily accessible wire compartment - the wide opening compartment allows quick spool changes and convenient maintenance as well as wire threading.
Reliable 2-roll wire feed mechanism - ensures stable, smooth feeding and precise tension adjustment with anti-slip protection. Supplied with a 0.8mm / 1.0mm drive roll.

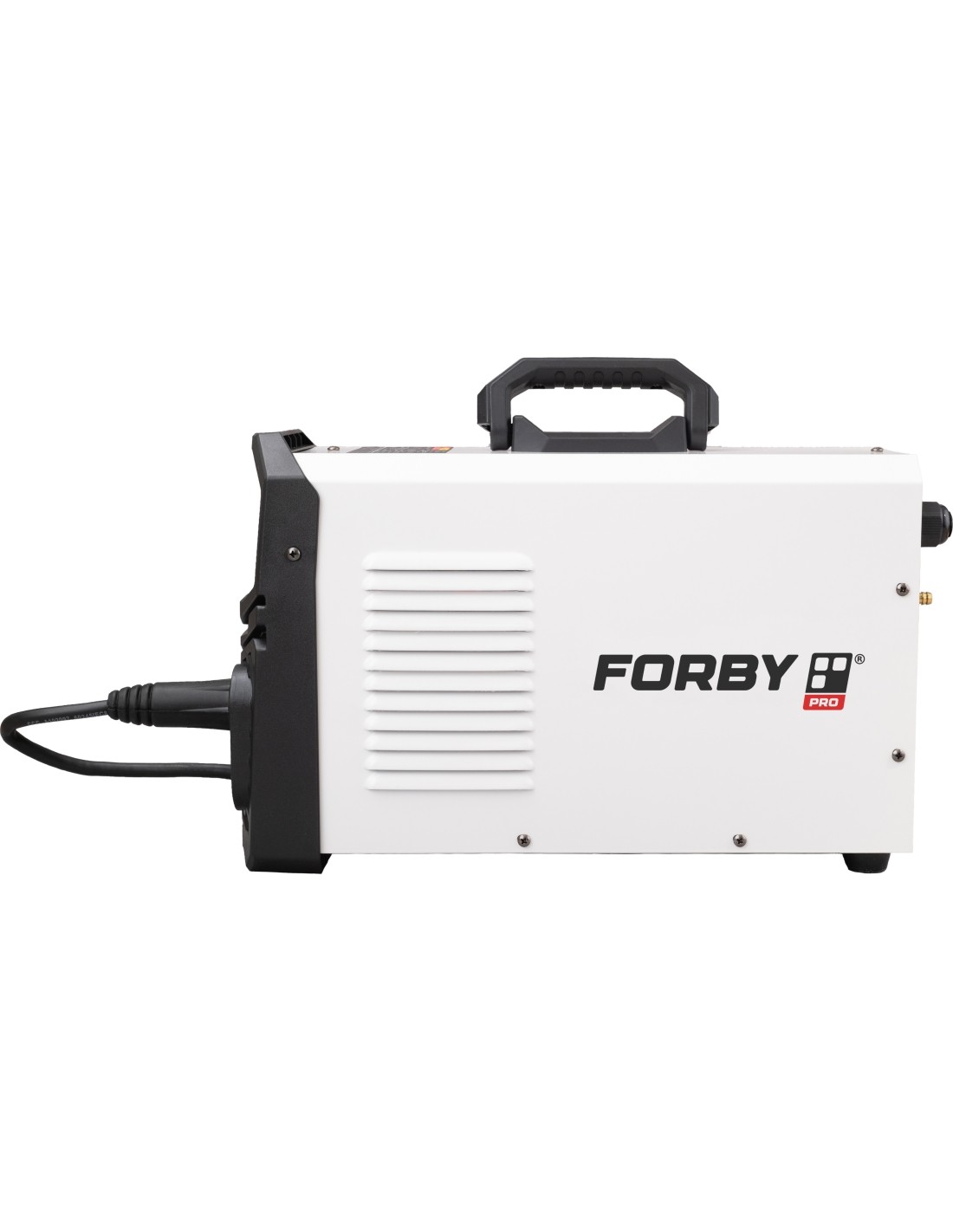

Key design advantages

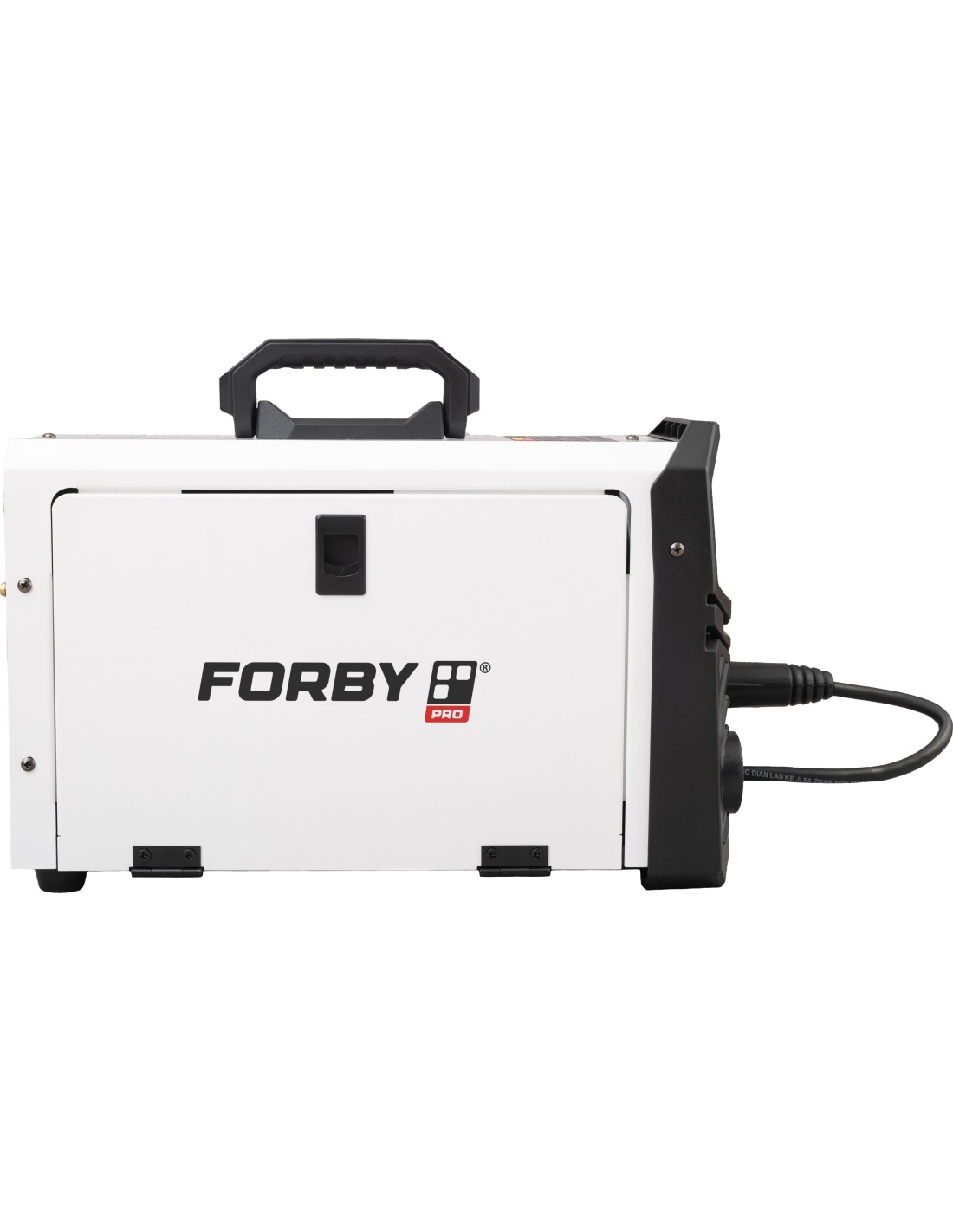

- Compact, sturdy and durable design - the powder-coated housing is more resistant to scratches, corrosion and intensive daily use.
- Solid design with no external protrusions - reduces the risk of impacts when working in tight spaces and makes transport easier.

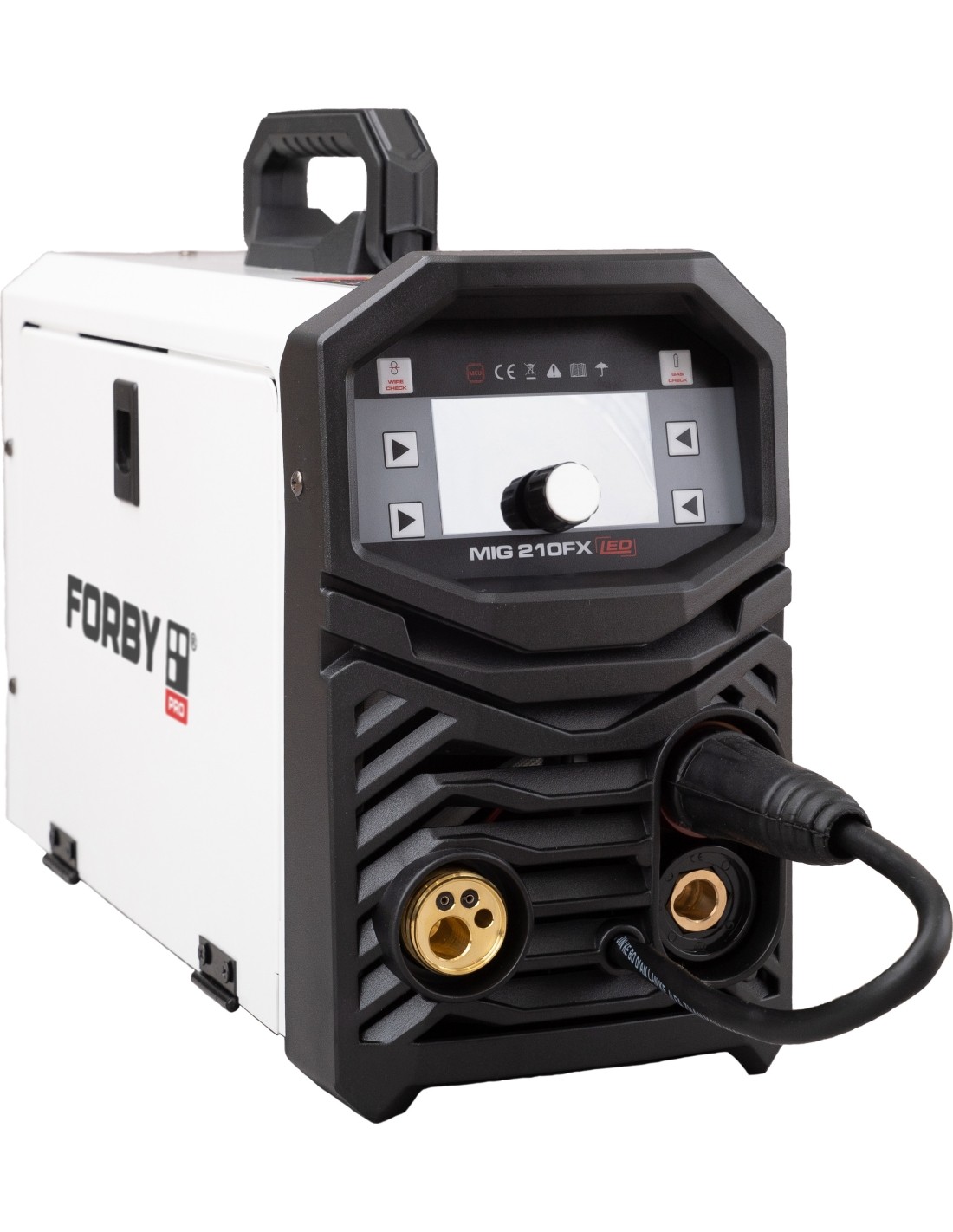

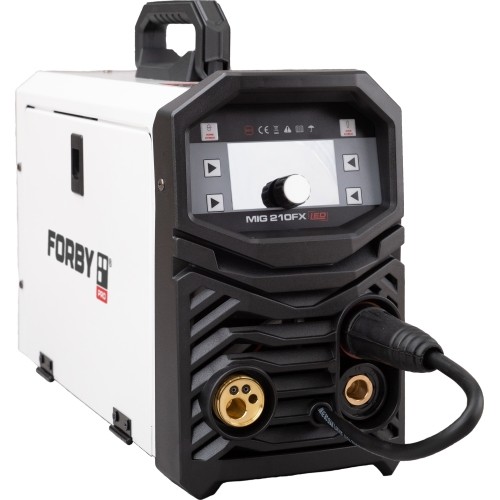

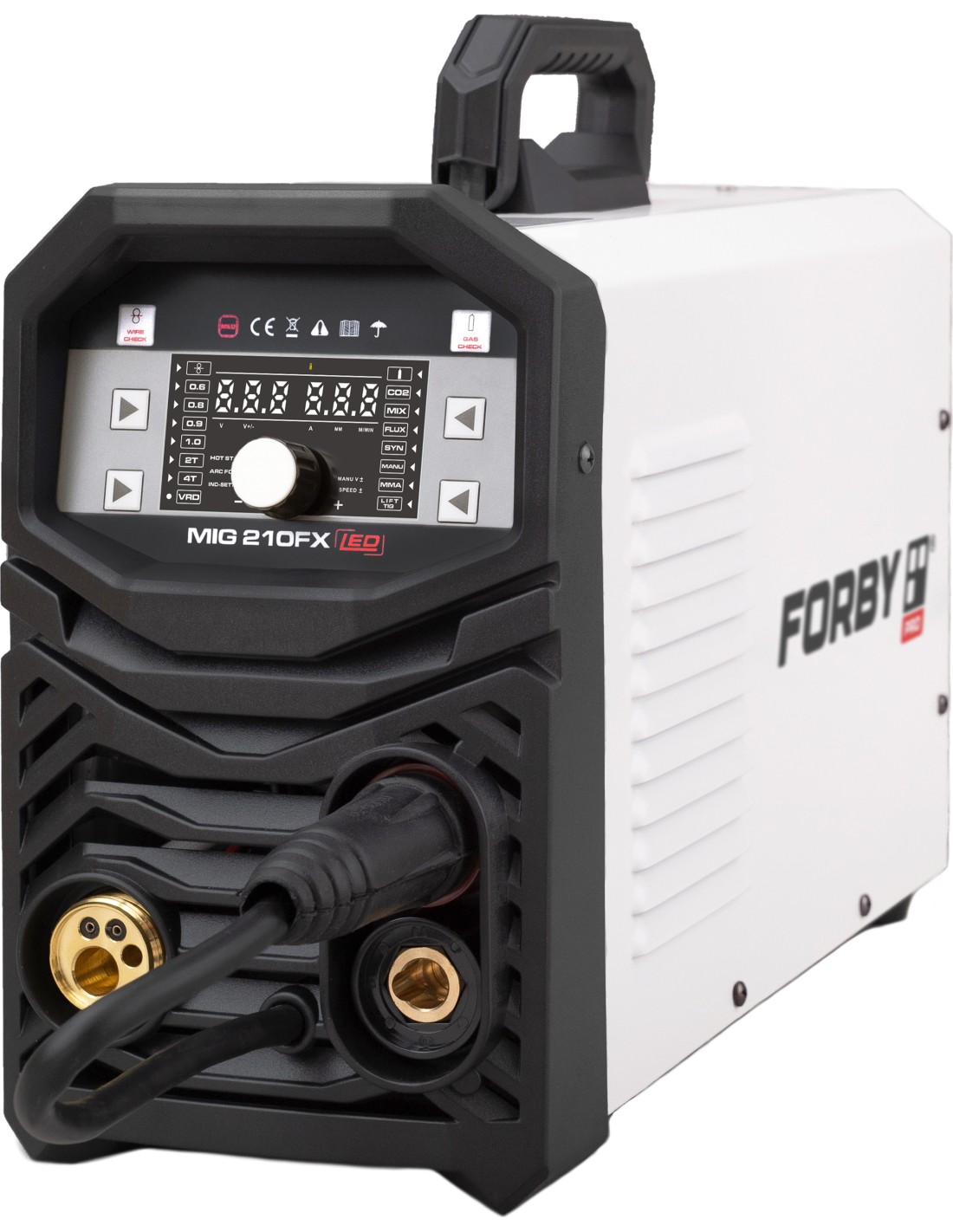

- Ergonomically designed control panel - clearly arranged buttons, synergic control and a bright LED display allow quick changes of settings.
- Convenient top carrying handle - the machine is lightweight (approx. 7.6 kg), so it is easy to carry between workplaces.
- Protected electronics zones - electronic components are separated from wire and dust entry areas, making the machine more reliable in long-term operation.
- Fan cooling and IP21S protection class - longer service life and protection against dust and moisture.
- Large 35/50 connectors - ensure even greater welding current stability.

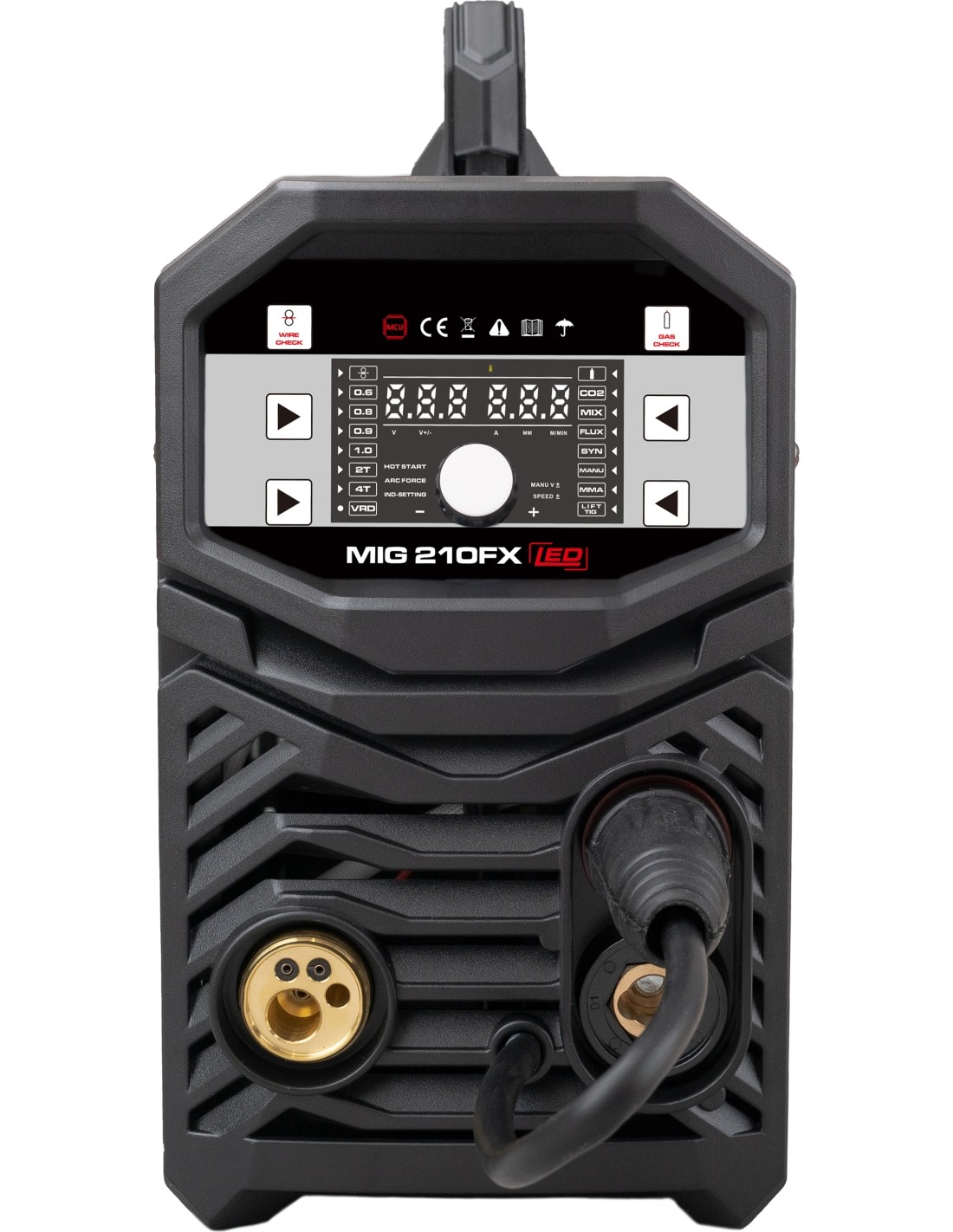

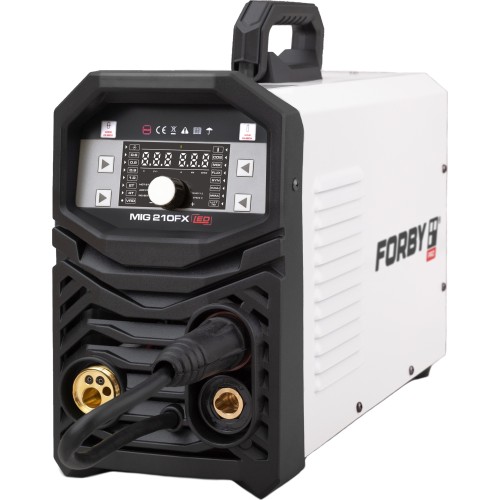

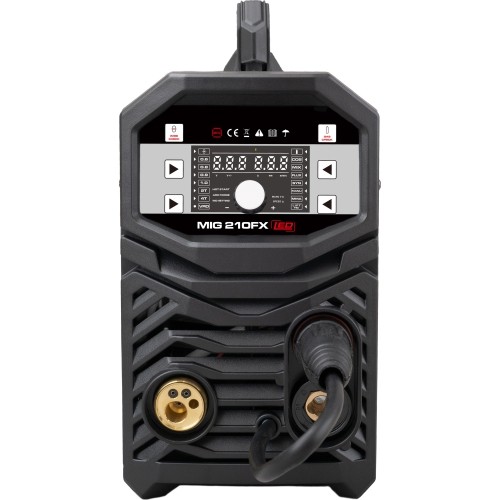

- Torch and ground clamp connection points - all necessary connections are ergonomically grouped at the front, making work neater and faster.

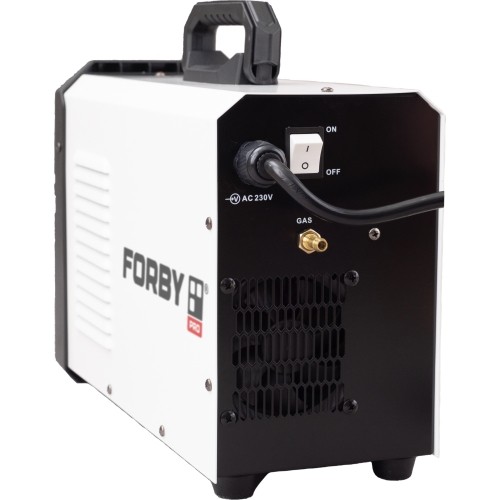

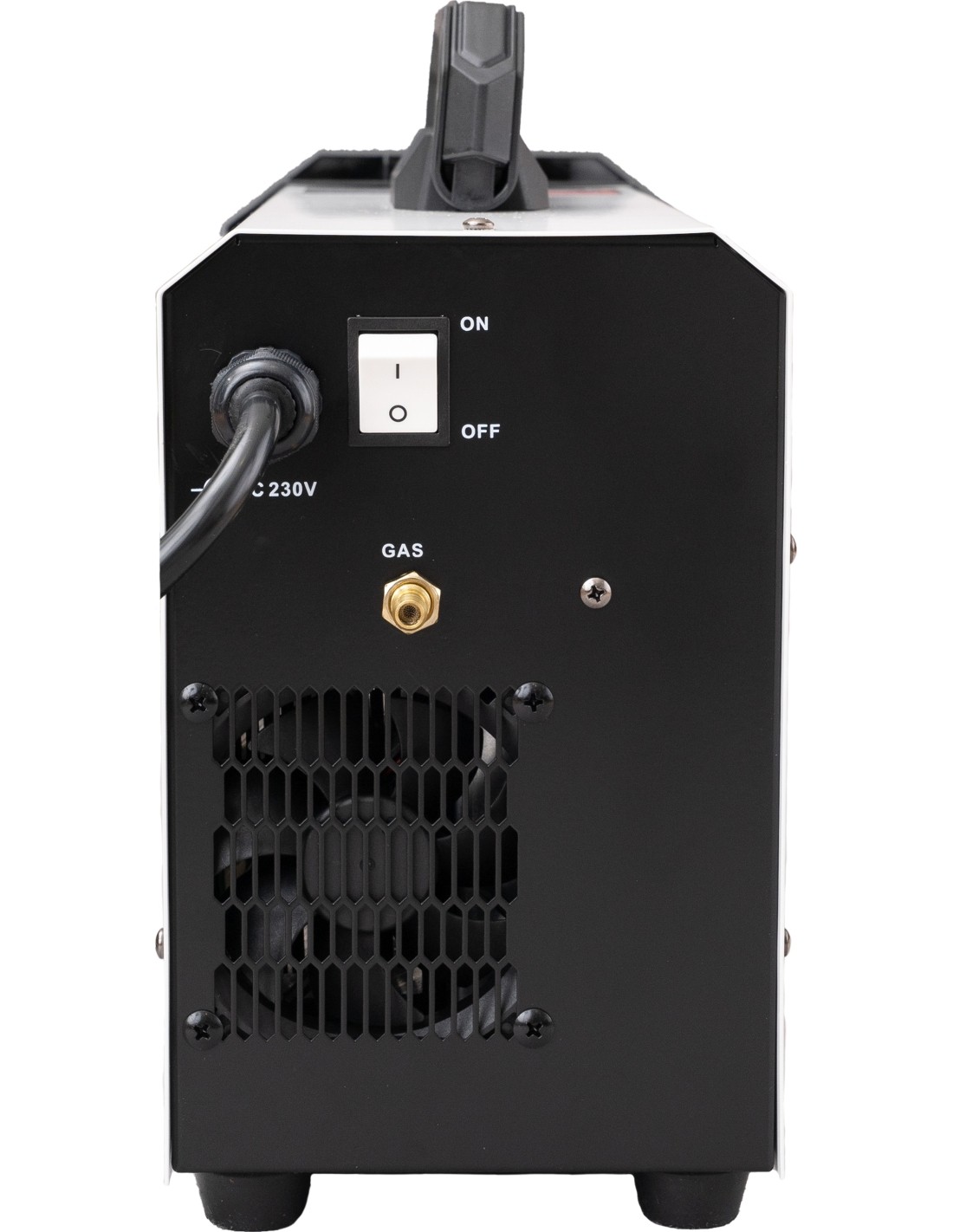

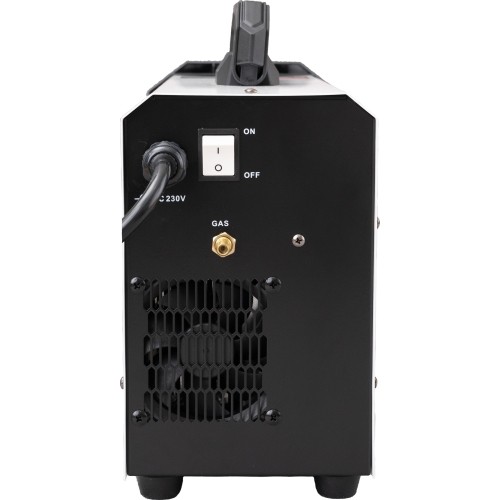

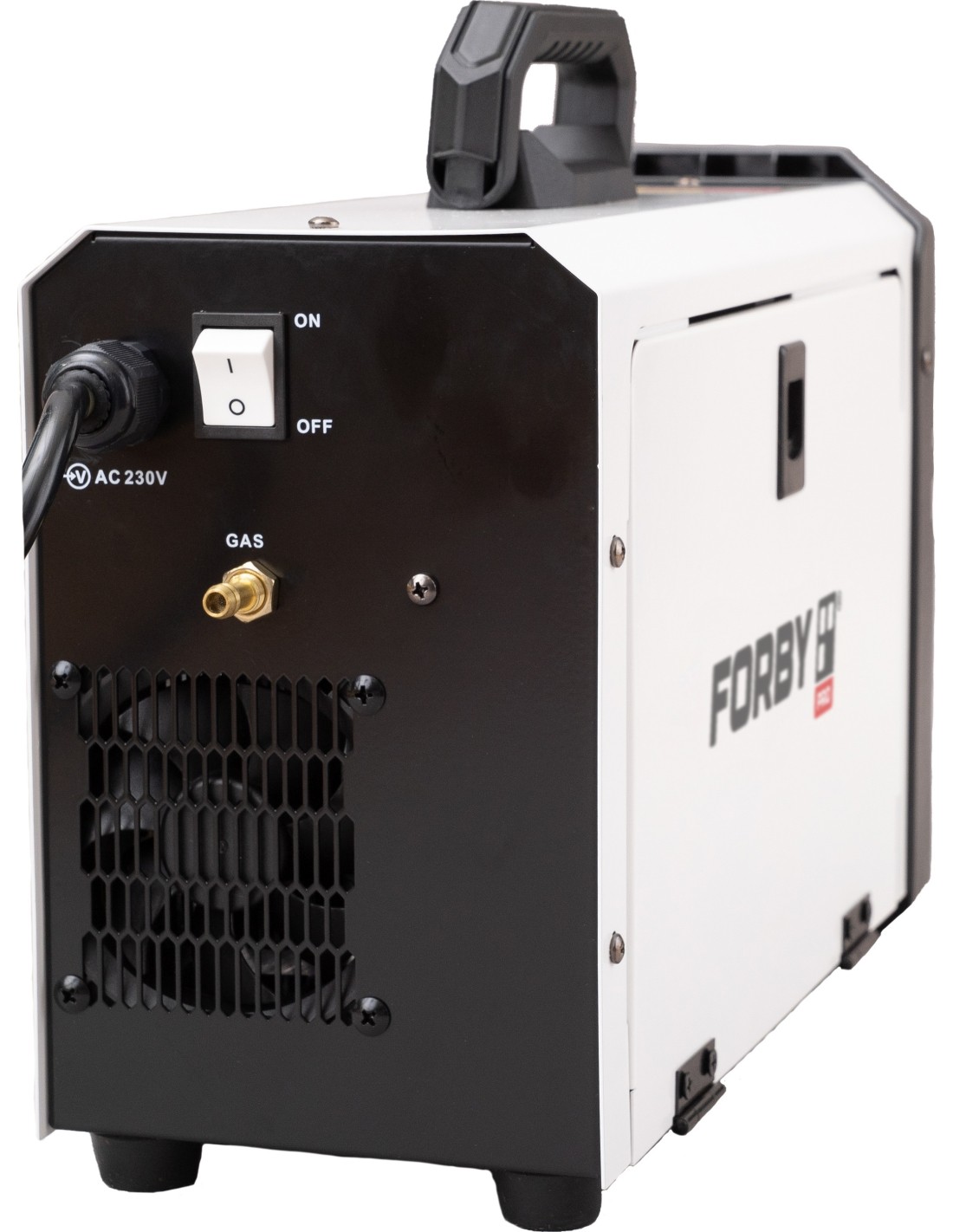

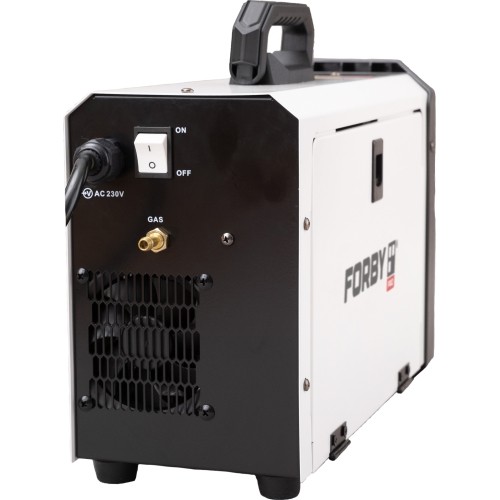

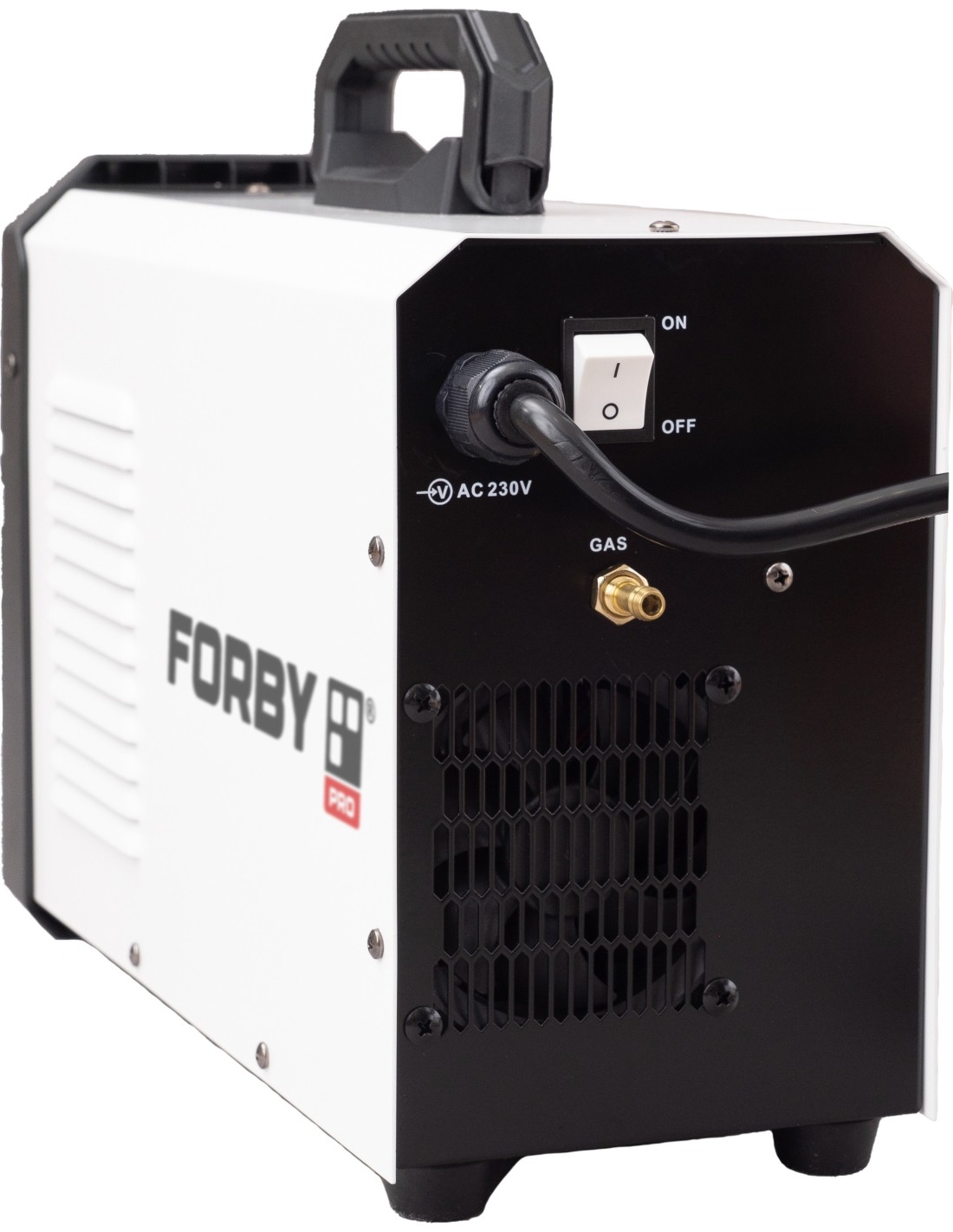

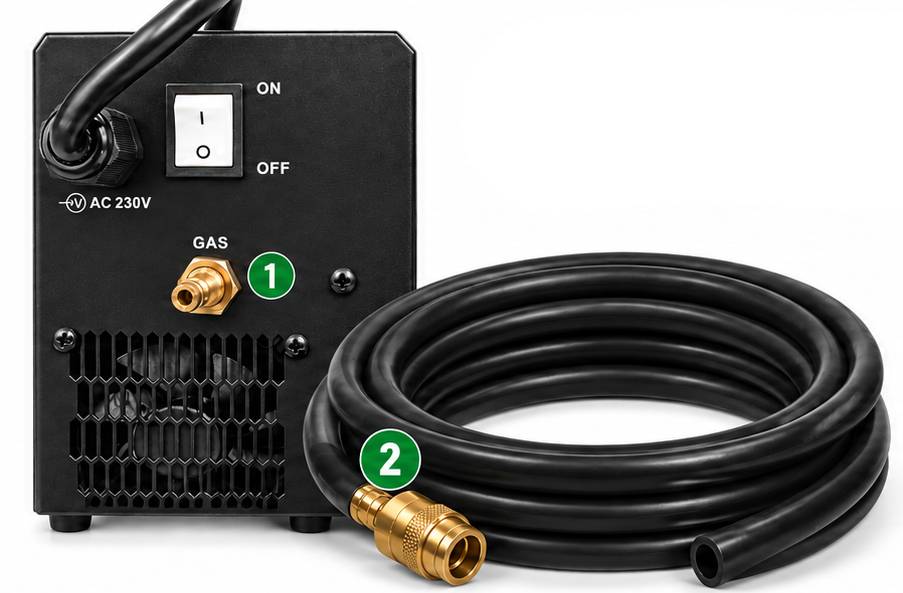

QUICK AND CONVENIENT GAS HOSE CONNECTION
1. The integrated quick gas coupling allows the gas hose to be connected or disconnected easily and quickly. This shortens the machine set-up time and makes moving and transporting it easier.
2. A 3-metre pressure-resistant gas hose is included with a quick coupling on the machine side. The optimal hose length gives more freedom to conveniently position the welding machine and the gas cylinder at the workplace.

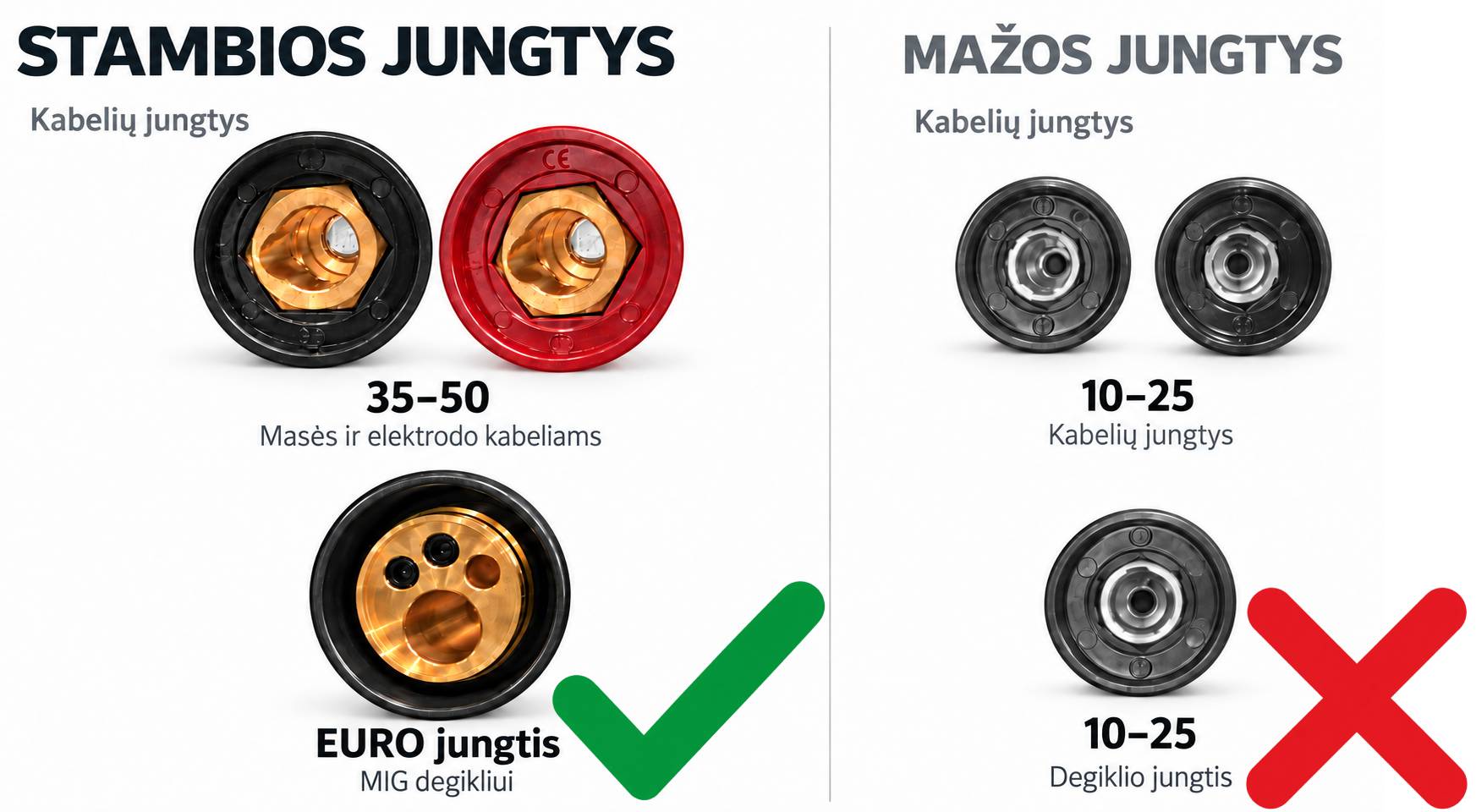

STURDY CONNECTORS DESIGNED FOR HIGHER LOADS
Large 35-50 welding cable connectors ensure reliable contact and stable current transfer. They are designed for higher loads and help reduce connector heating and energy losses. Compared to budget-class machines, which more often use 10-25 connectors, 35-50 welding cable connectors provide an additional reliability margin.
The standard EURO connector for the MIG torch combines the welding current, gas, wire feed and control contacts in a single connection. The torch can be quickly connected, disconnected or easily replaced with another compatible MIG torch, while the threaded lock ensures a secure connection during operation.
FORBY welding equipment focuses on quality, durability and ease of use, which is why even compact machines feature higher-specification solutions, such as large 35-50 cable connectors and a universal EURO connector for the MIG torch.

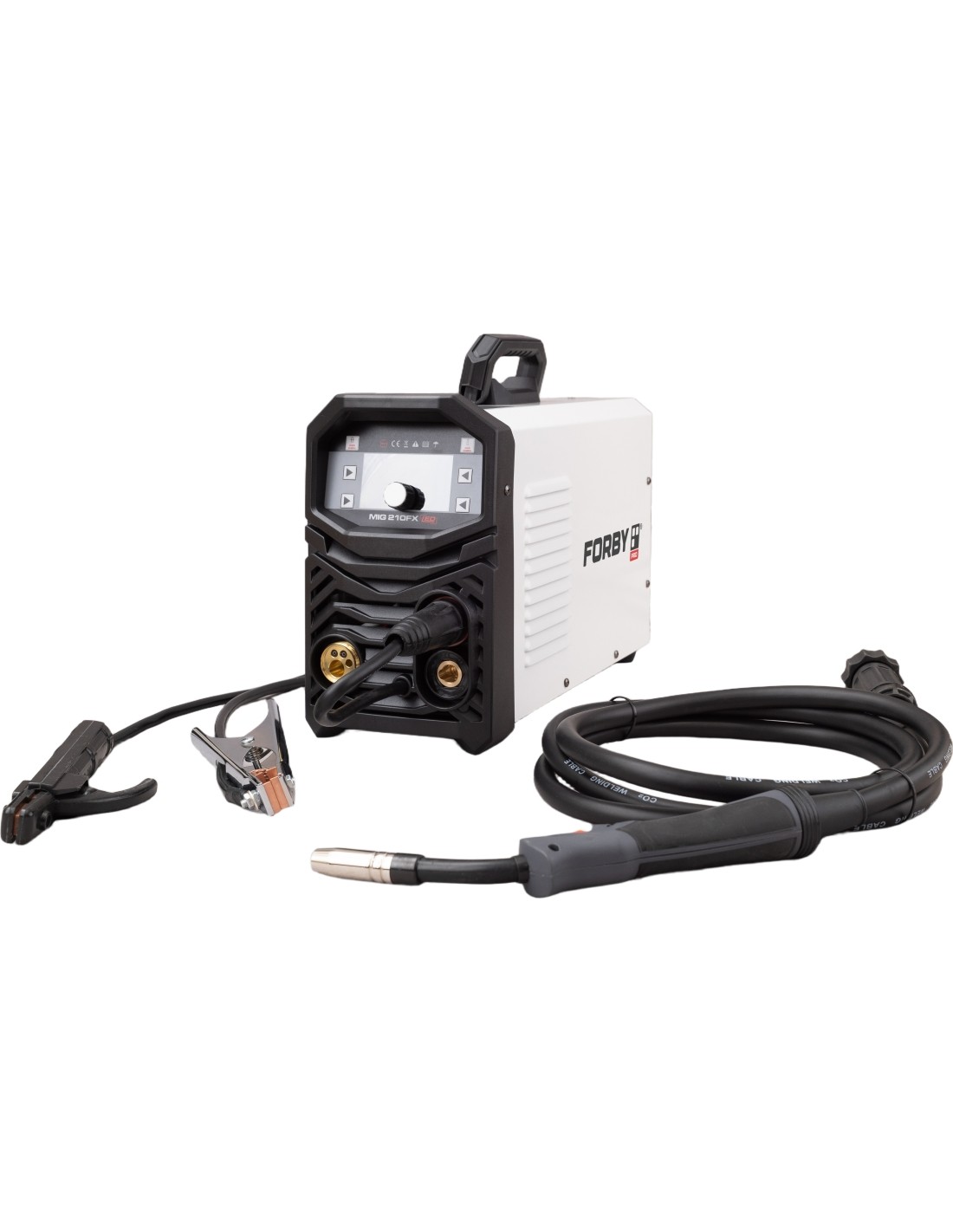

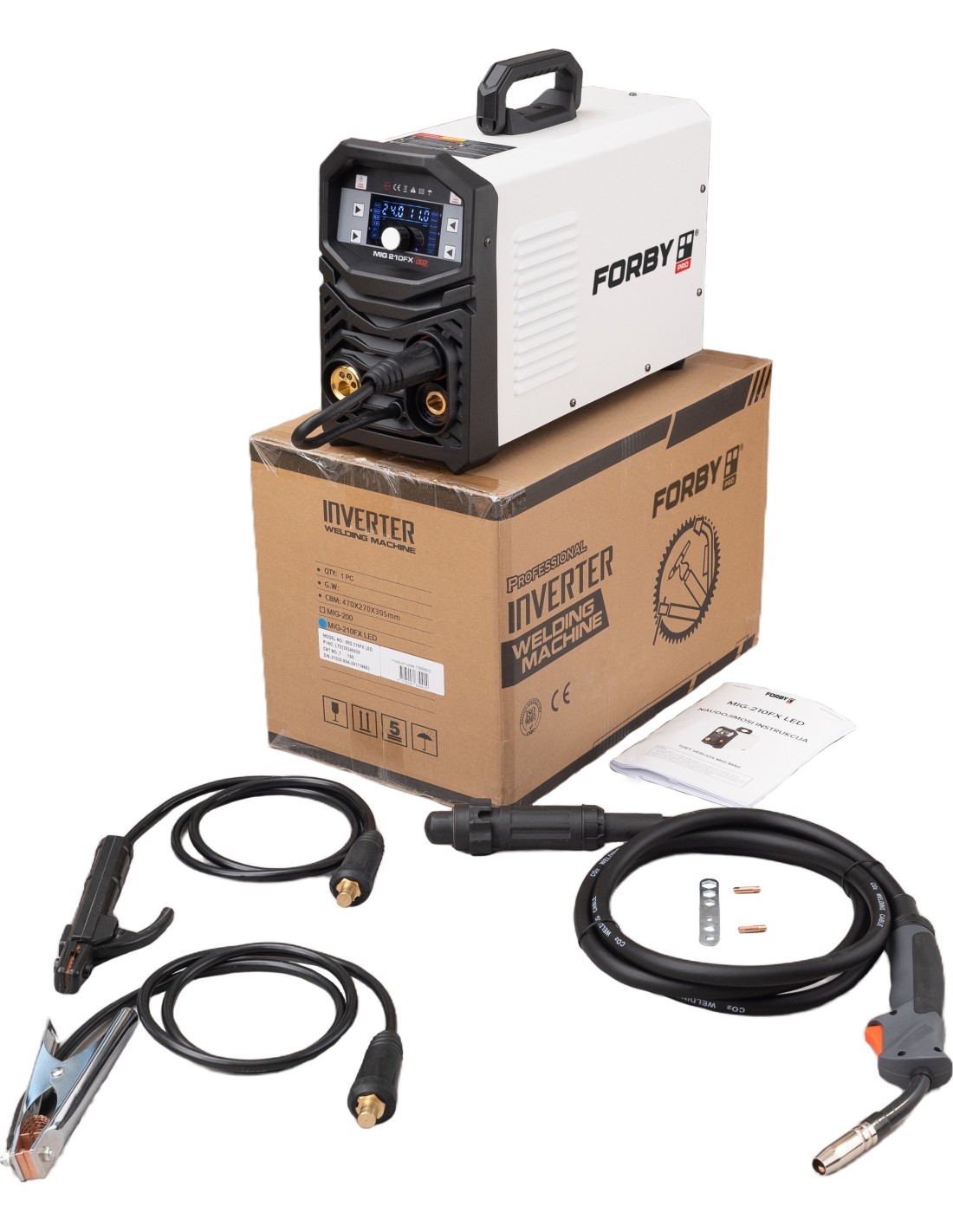

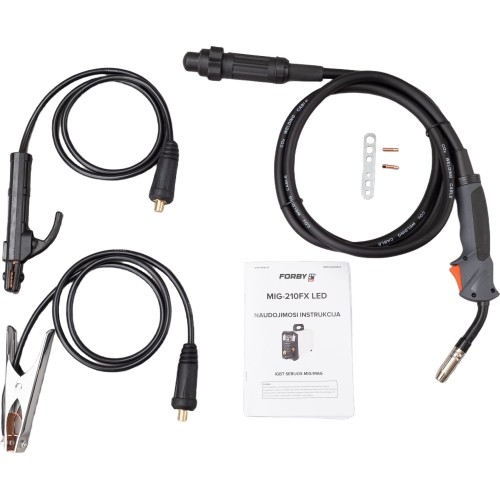

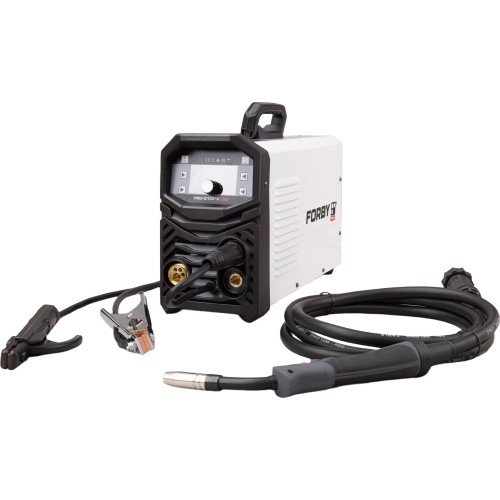

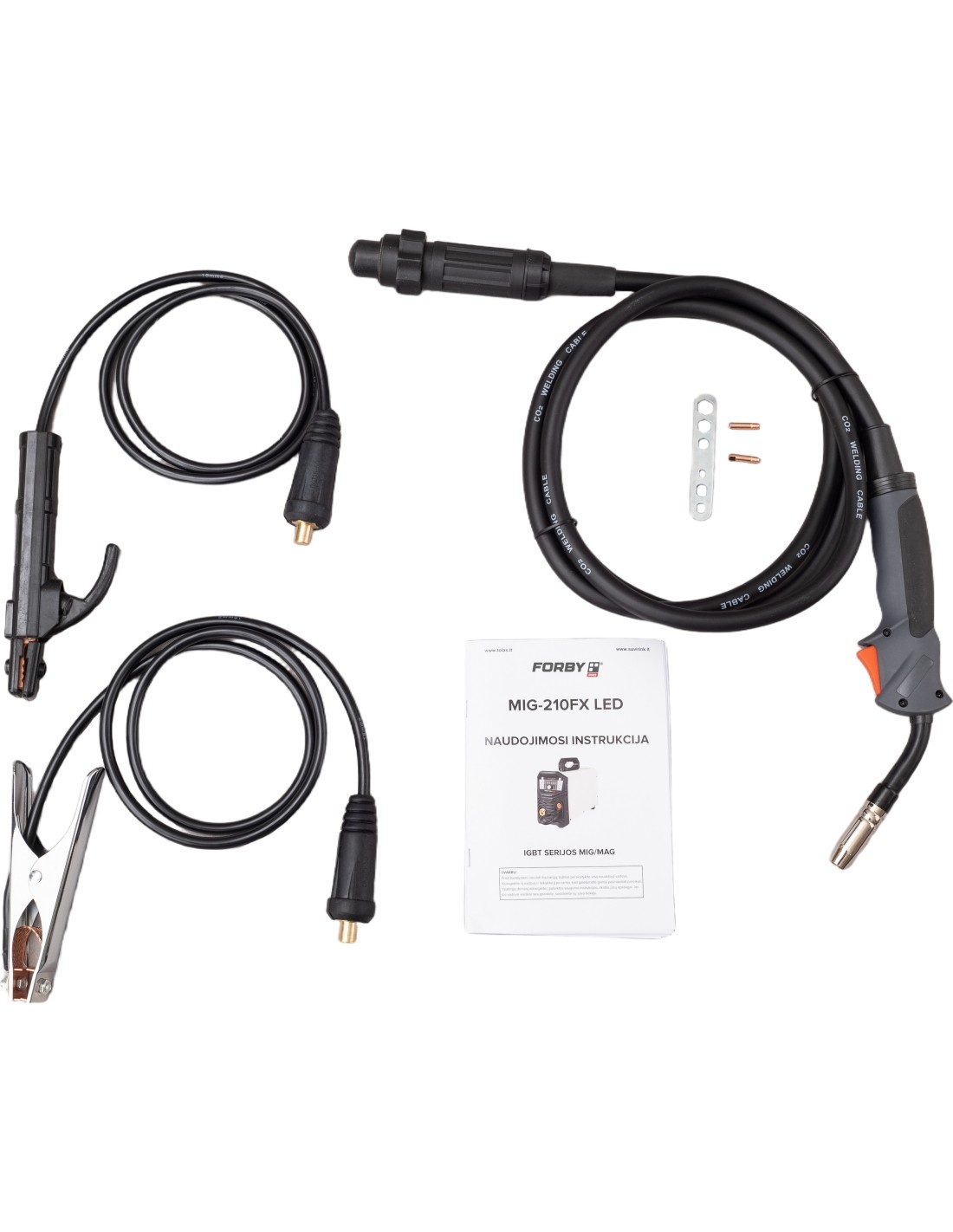

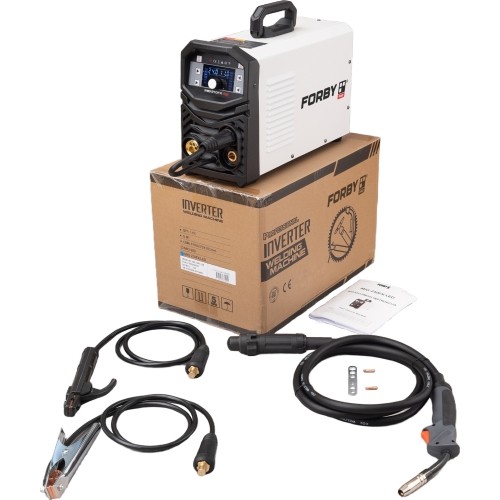

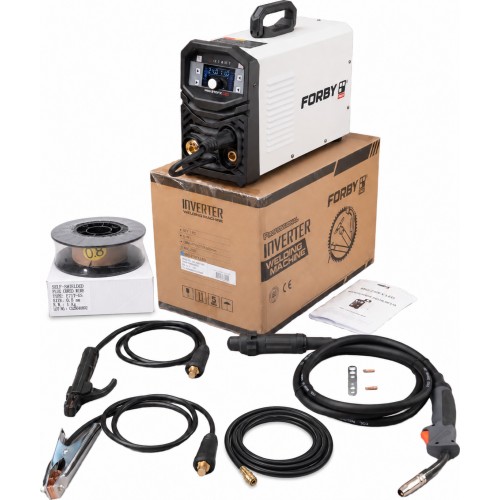

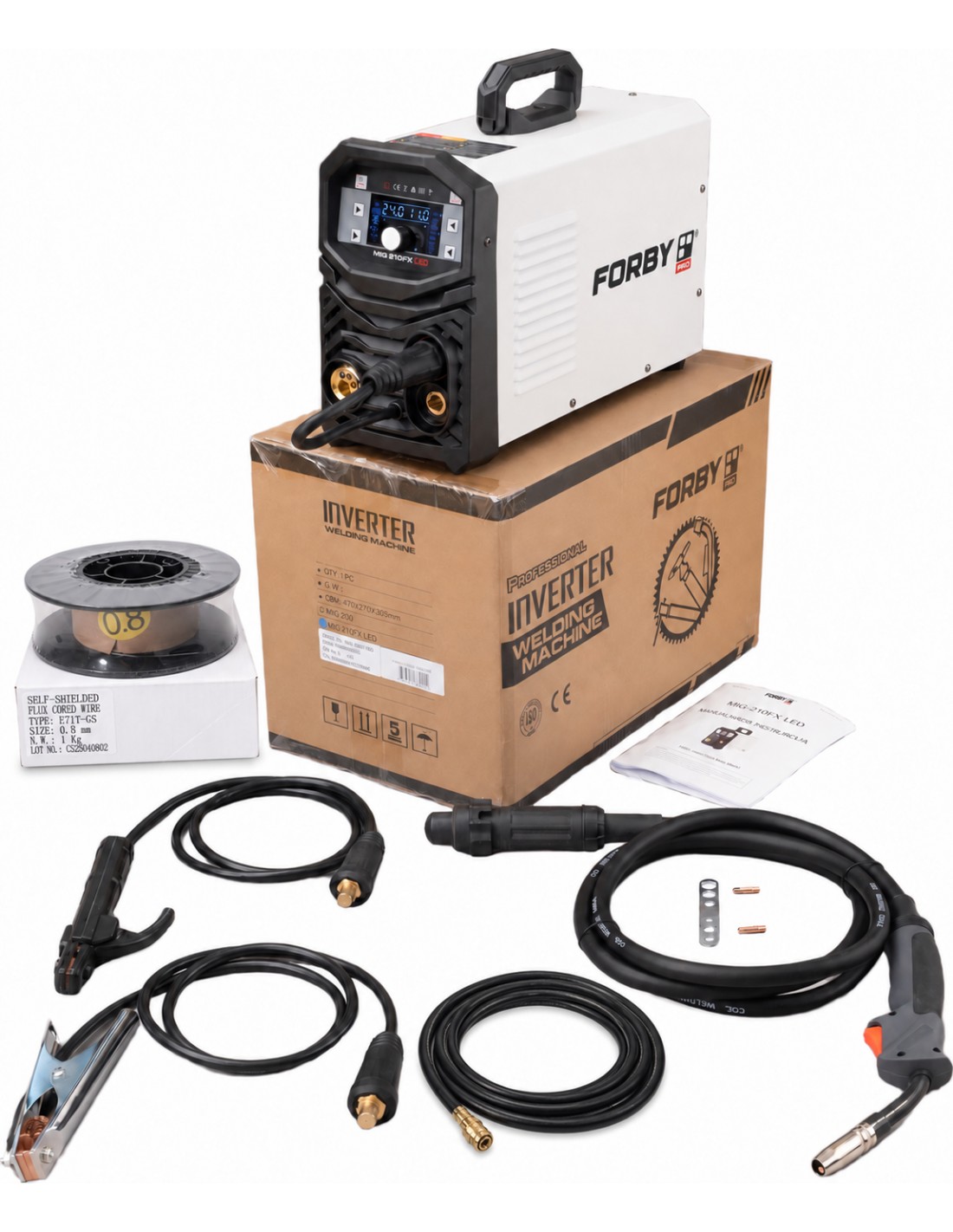

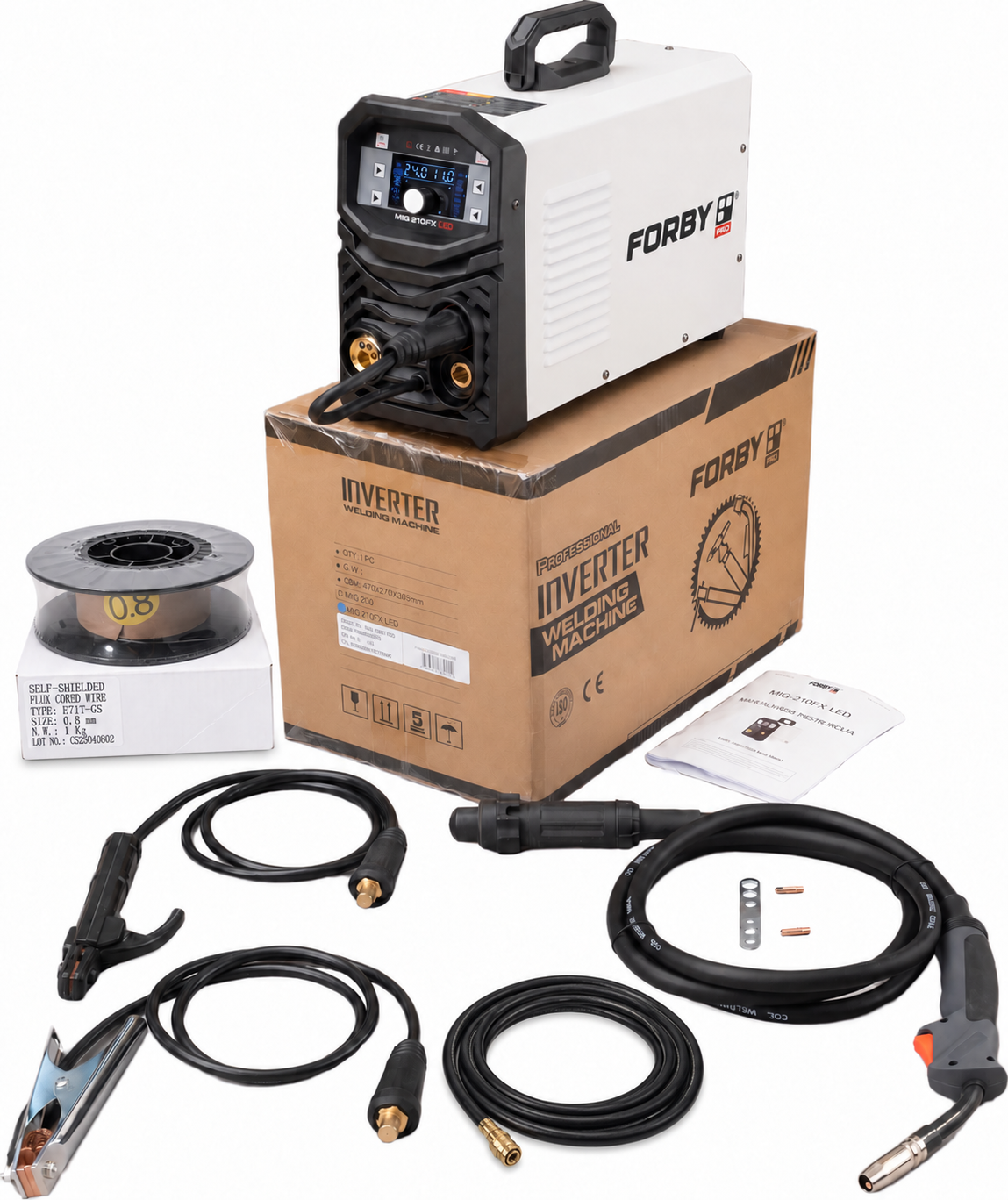

The set includes:
- Welding machine FORBY® MIG 210FX LED
- MIG torch F15, 3 metres (with consumables: nozzle, 0.8 mm contact tip, gas diffuser, steel liner)
- Electrode holder with 3-metre cable, 200 A (20 mm2 cable, 35-50 mm connector)
- Ground clamp with 3-metre cable, 300 A (20 mm2 cable, 35-50 mm connector)
- Spare wire contact tips (0.8 mm and 1.0 mm)

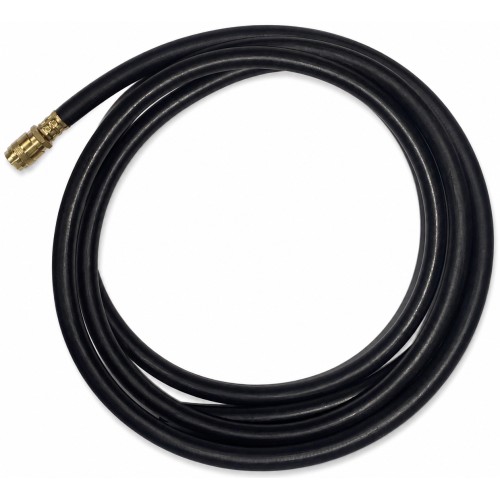

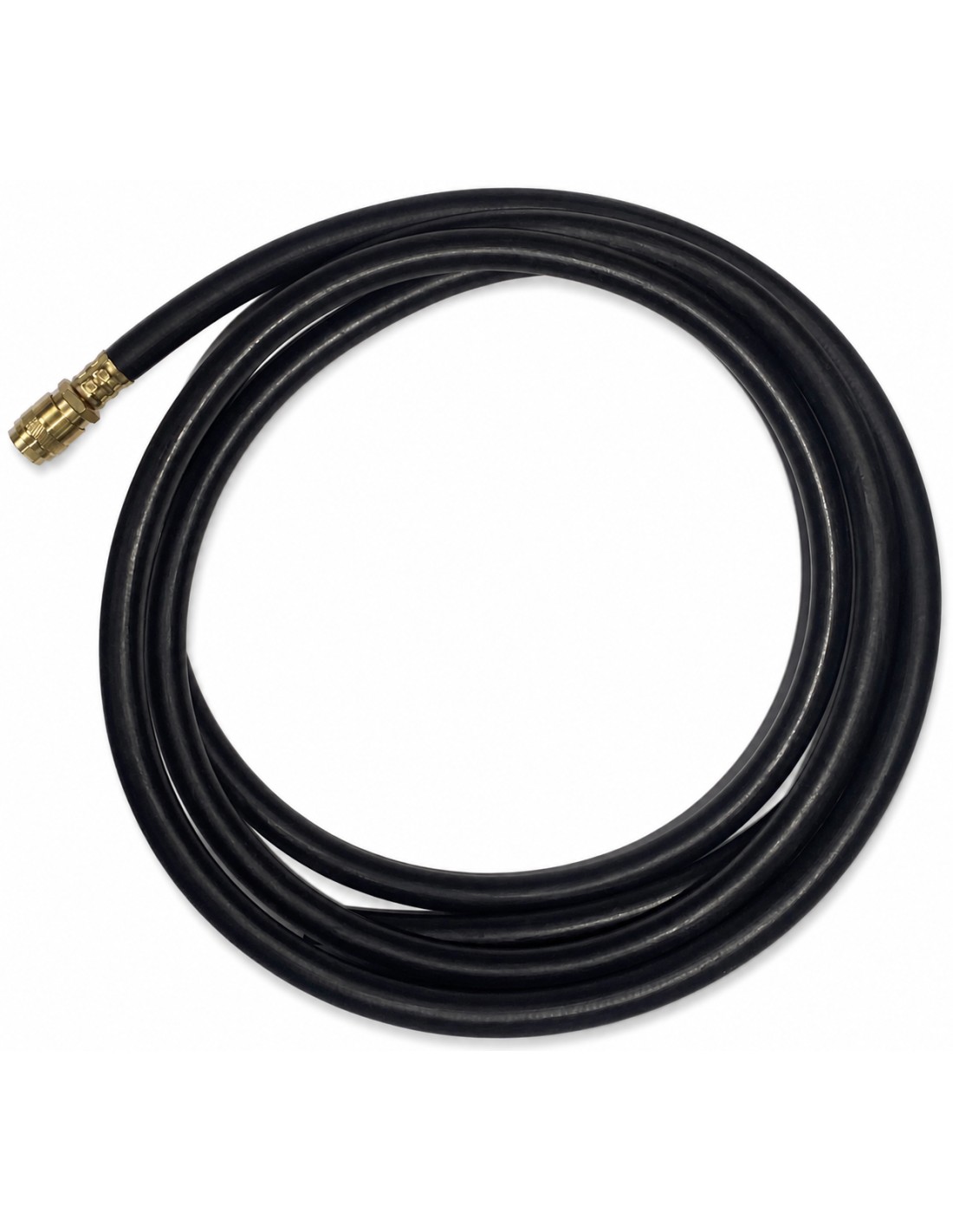

- Gas hose with connector (to the machine) - 3 metres

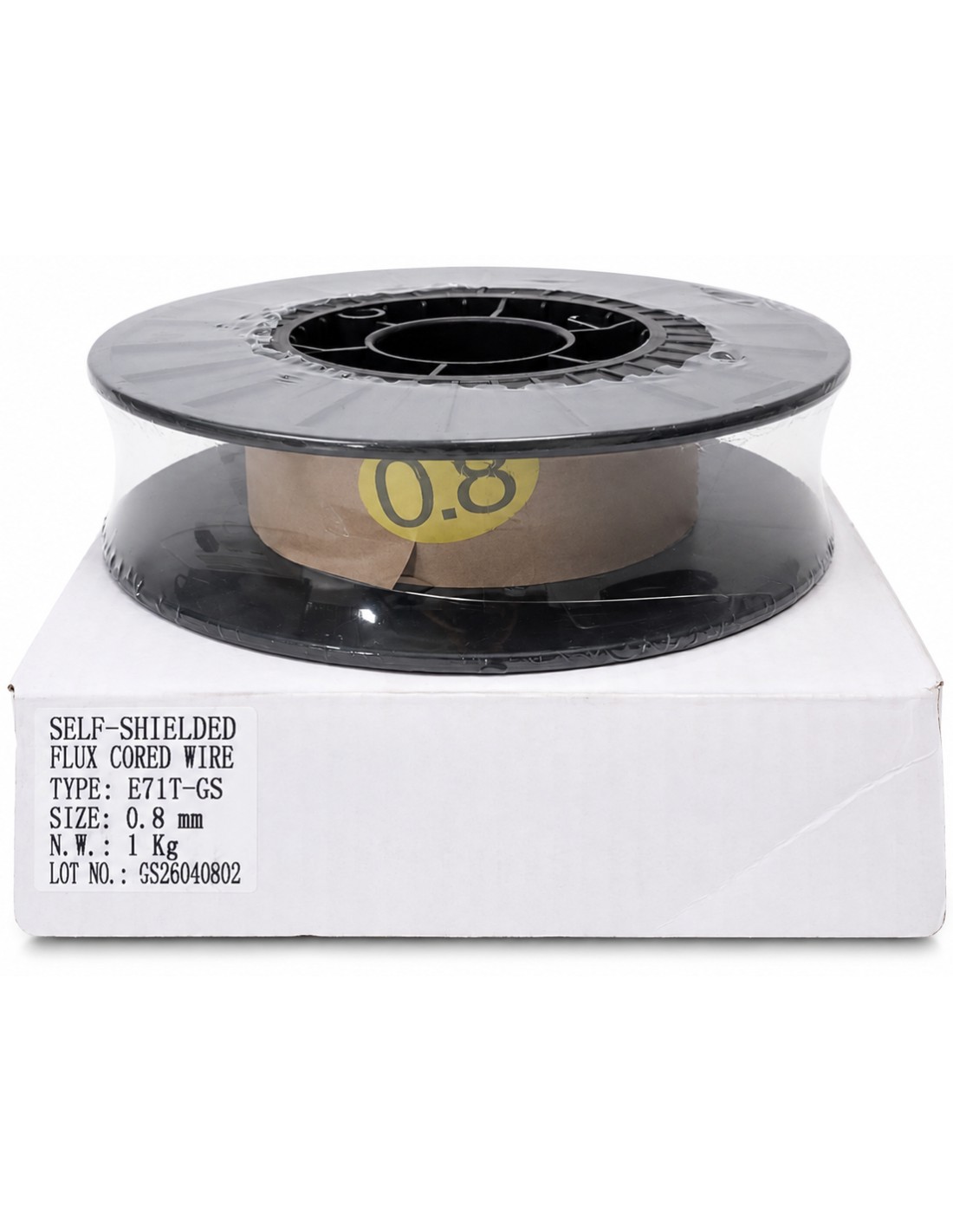

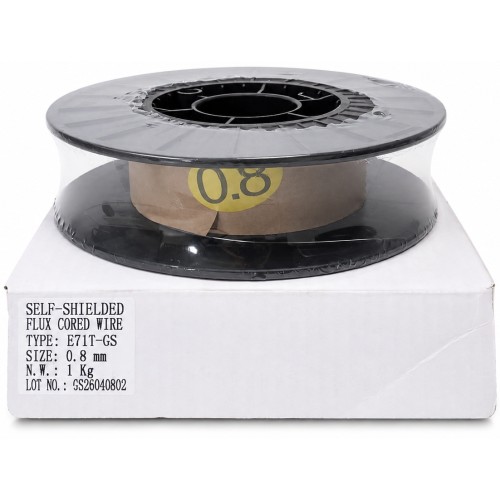

- Self-shielded welding wire D200 0.8 mm 1.0 kg
- Tightening tool
- User manual EN/LT
