WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Distance between centers
300 mm
Taper of tailstock sleeve
MT 2
Travel of tailstock sleeve
60 mm
Weight approx.
48 kg
Center height
90 mm
Swing over bed
180 mm
Swing over cross slide
110 mm
Spindle bore
20 mm
Longitudinal feed
0,1 / 0,2 mm/rev.
Metric thread
(9) 0,5 - 2,5 mm
Machine dimension (W x D x H)
820 x 310 x 300 mm
Motor power output S1 100%
0,40 kW
Motor power input S6 40%
0,55 kW
Taper at spindle bore
MT 3
Speed range, stepless
50 - 1100 / 120 - 2500 rpm

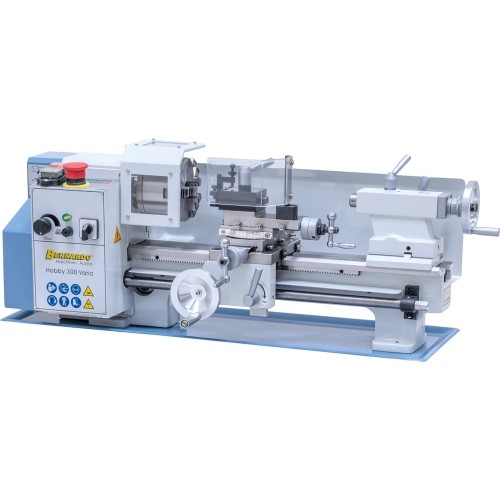

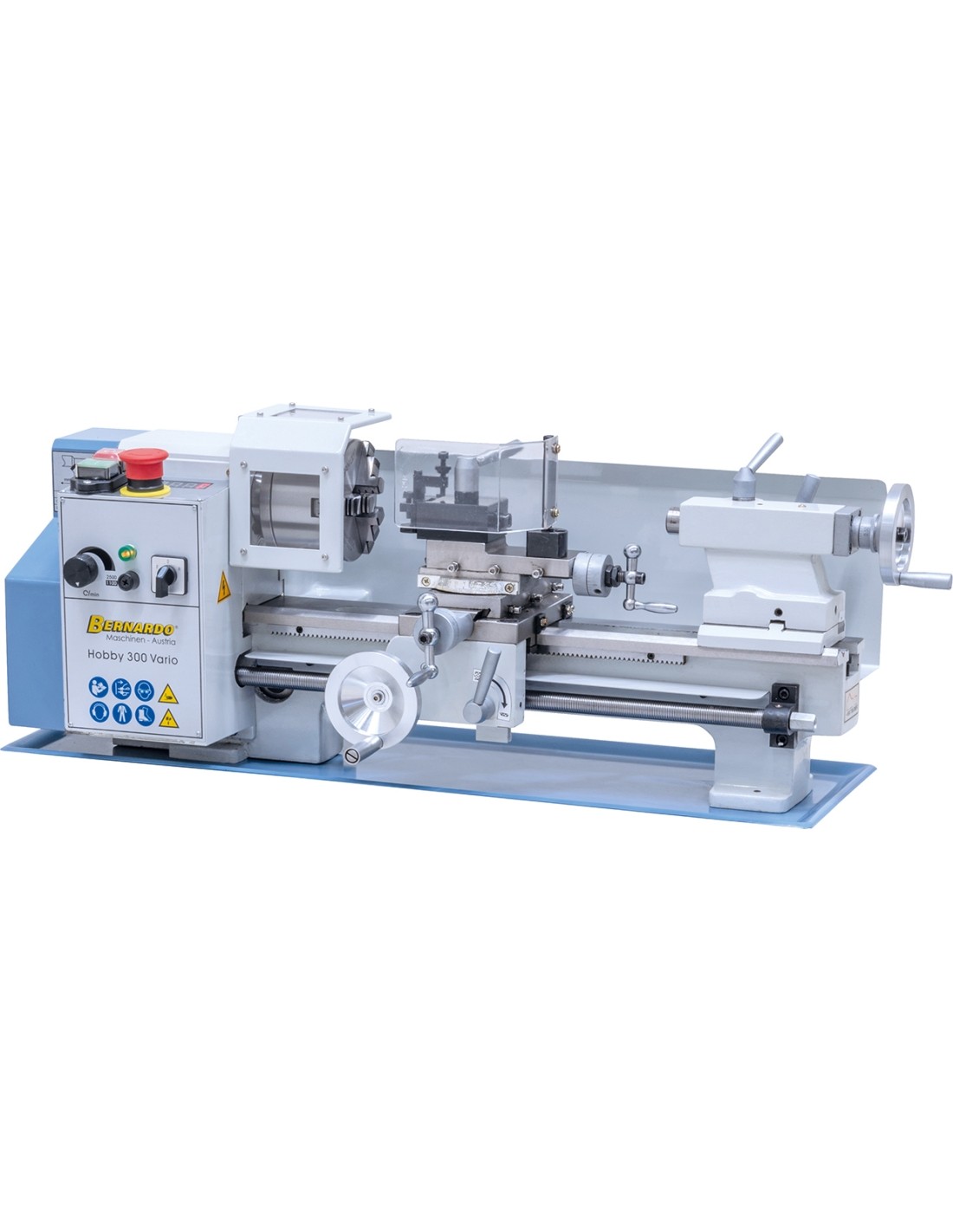

Hobby 300 Vario / 230 V

1305780
Price €1,285.00 Tax included

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite tuesday, april 8 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 48 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€7.66)
Weight: 48 kg.

Description

Properties

  • High-quality ball bearings guarantees high spindle concentricity (≤ 0.015 mm)
  • Various applications: thread cutting, longitudinal, face and internal turning etc.
  • Stepless speed adjustment of main spindle

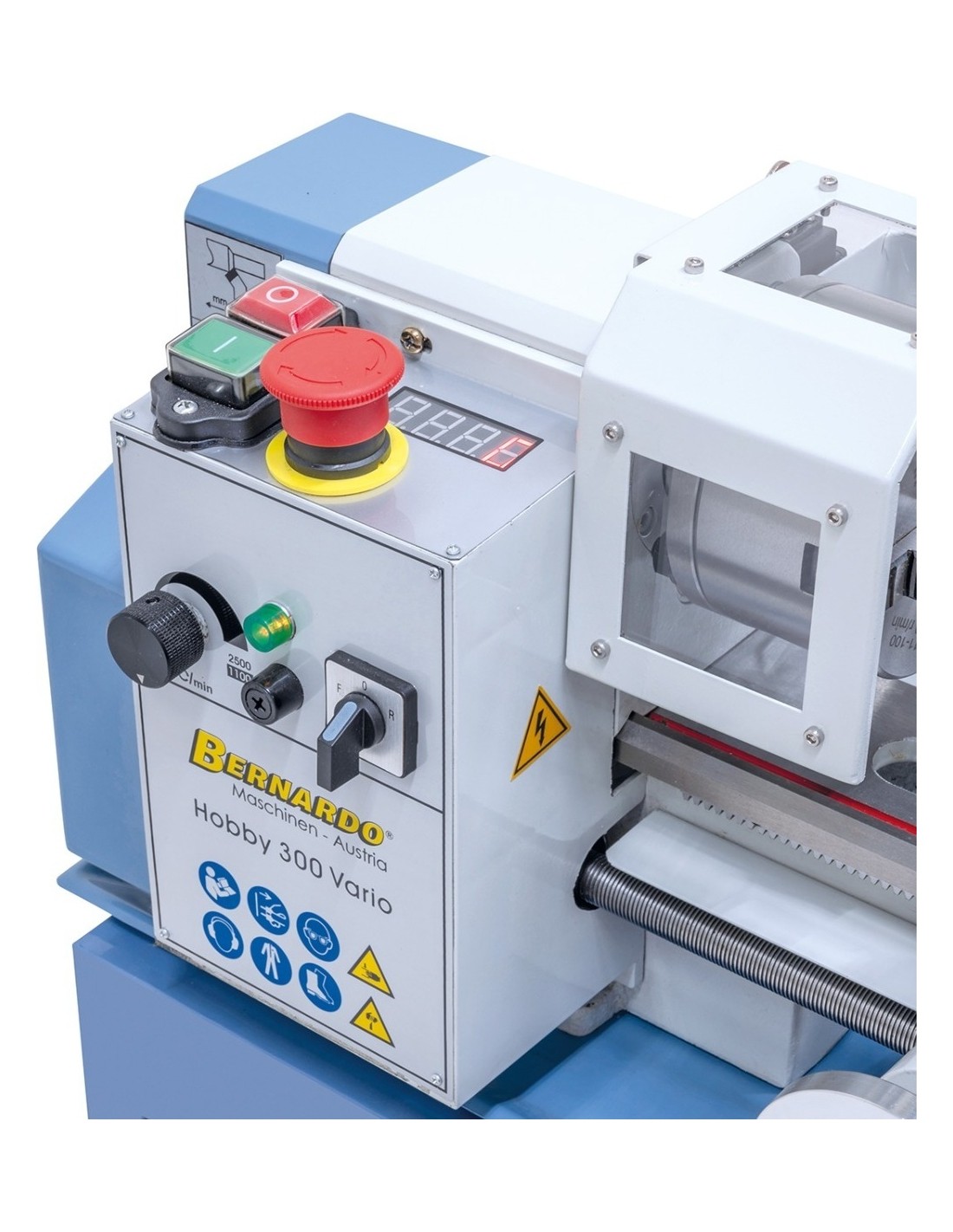

  • User-friendly arrangement of control elements
  • Leadscrew features automatic longitudinal feed
  • Guides adjustable by gibs
  • Compact, small construction, optimal price-performance ratio
  • Machine bed inductive hardened and polished
  • Adjustable tailstock allows taper turning

Standard accessories

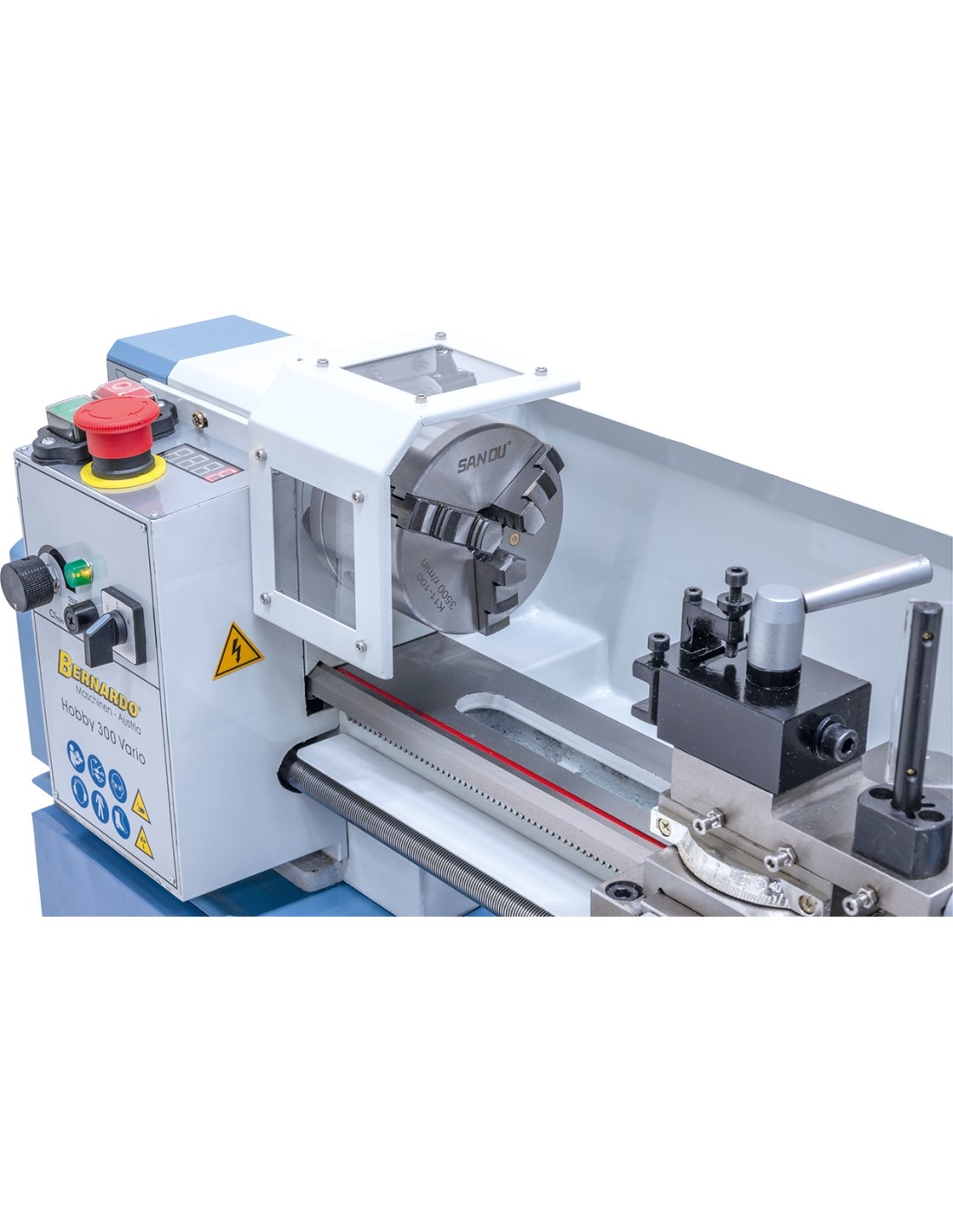

  • 3-jaw chuck 100 mm
  • Chuck guard

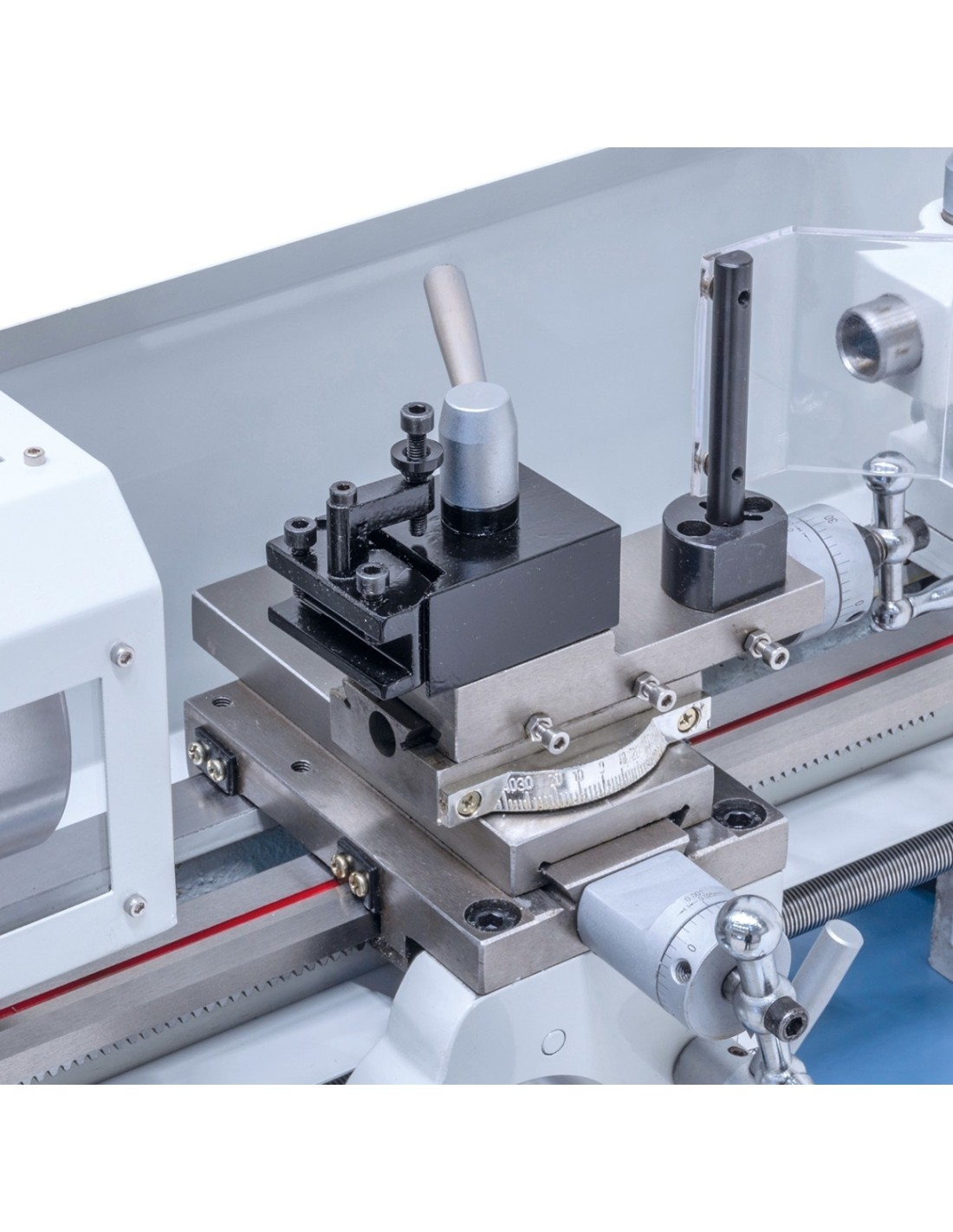

  • Quick change tool holder with 4 inserts

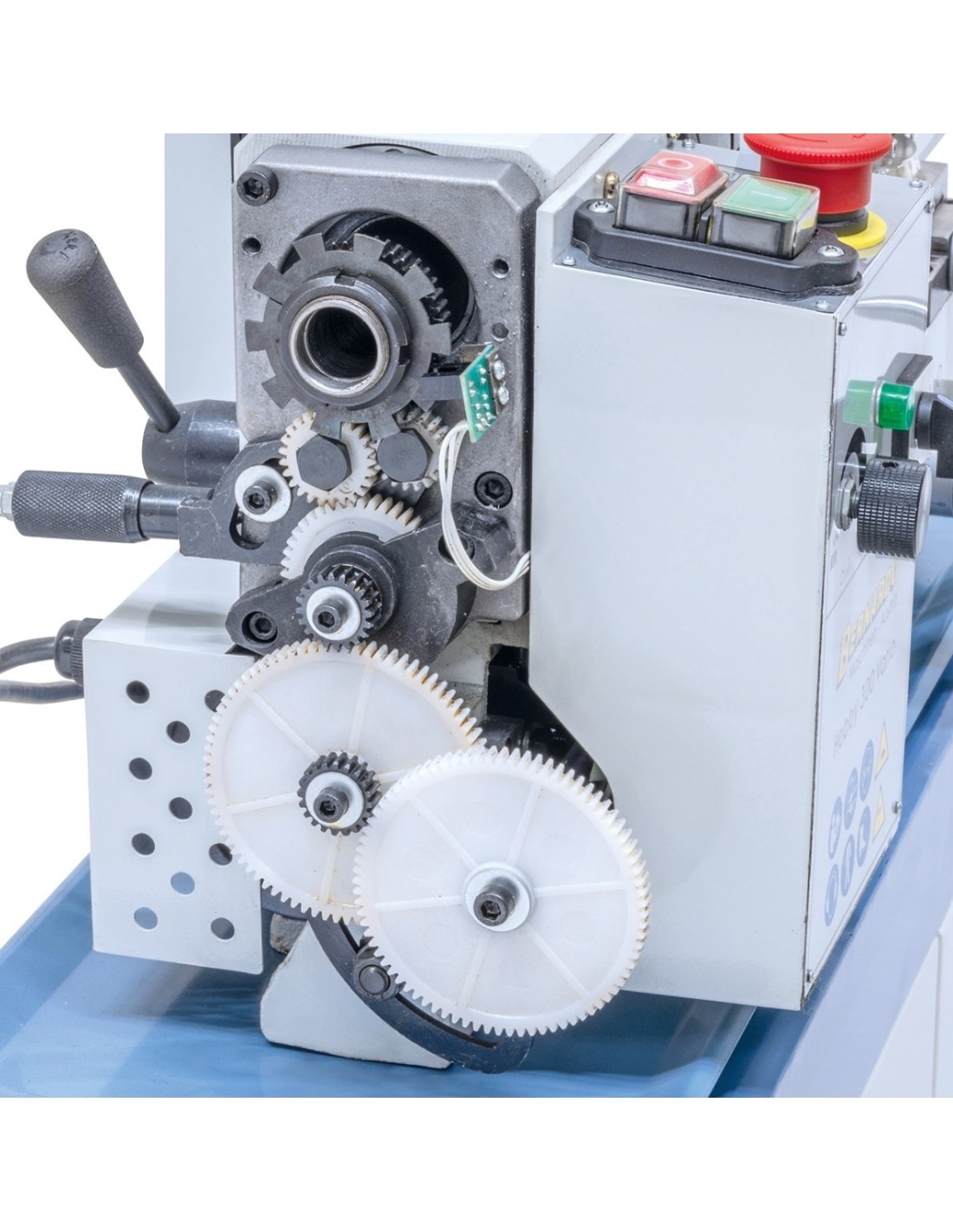

  • Change gears
  • Splash guard
  • Digital speed display
  • Hand wheels in metal execution
  • Dead centre
  • Tools
