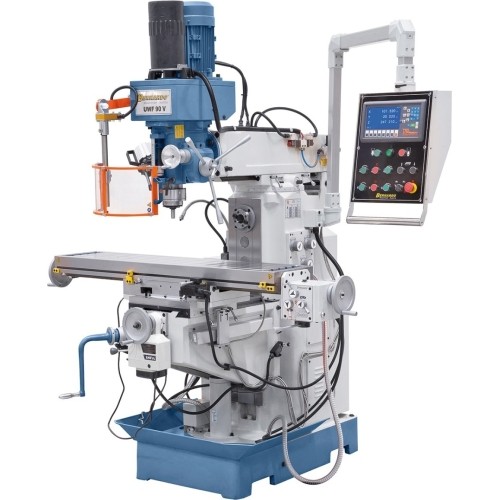

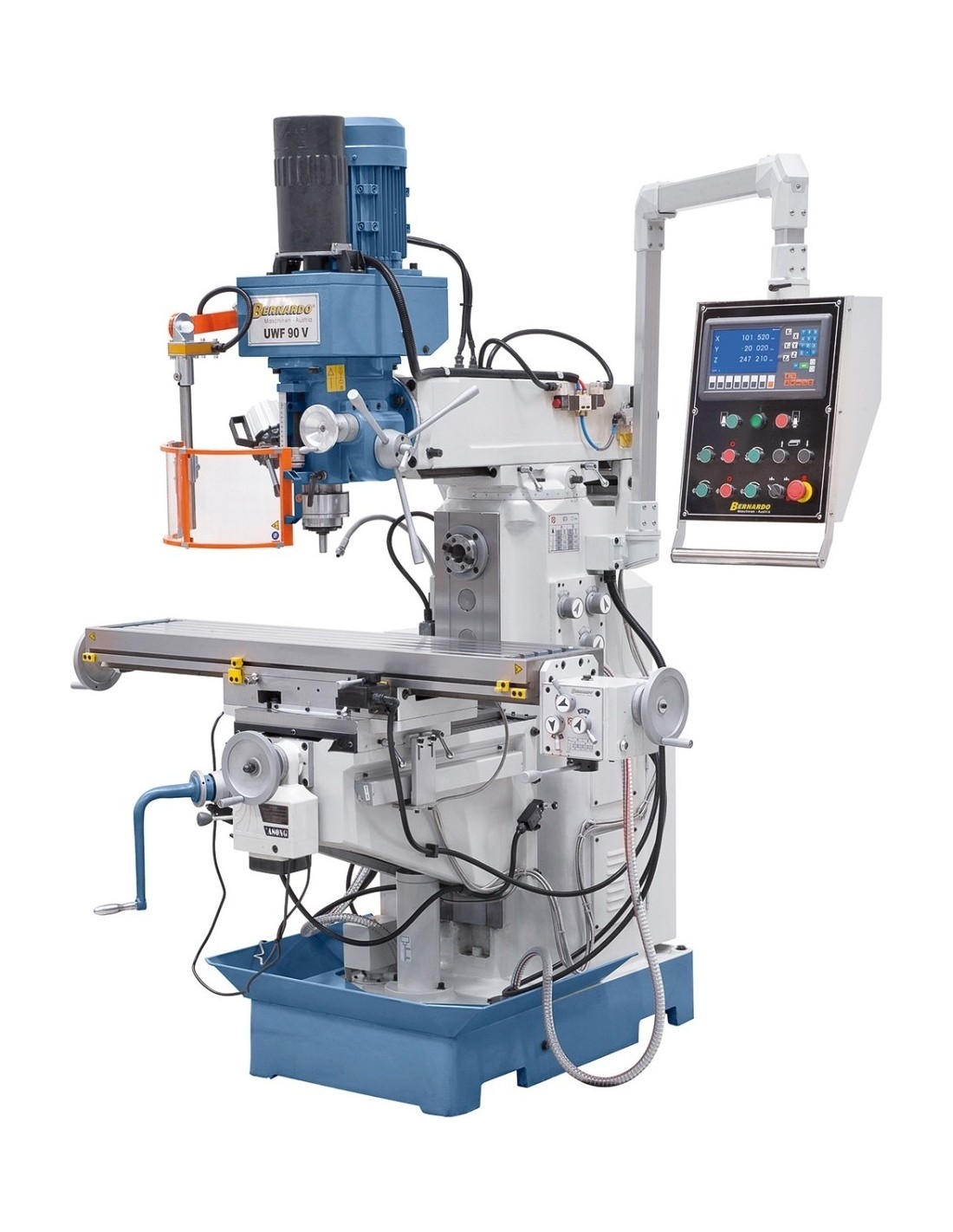

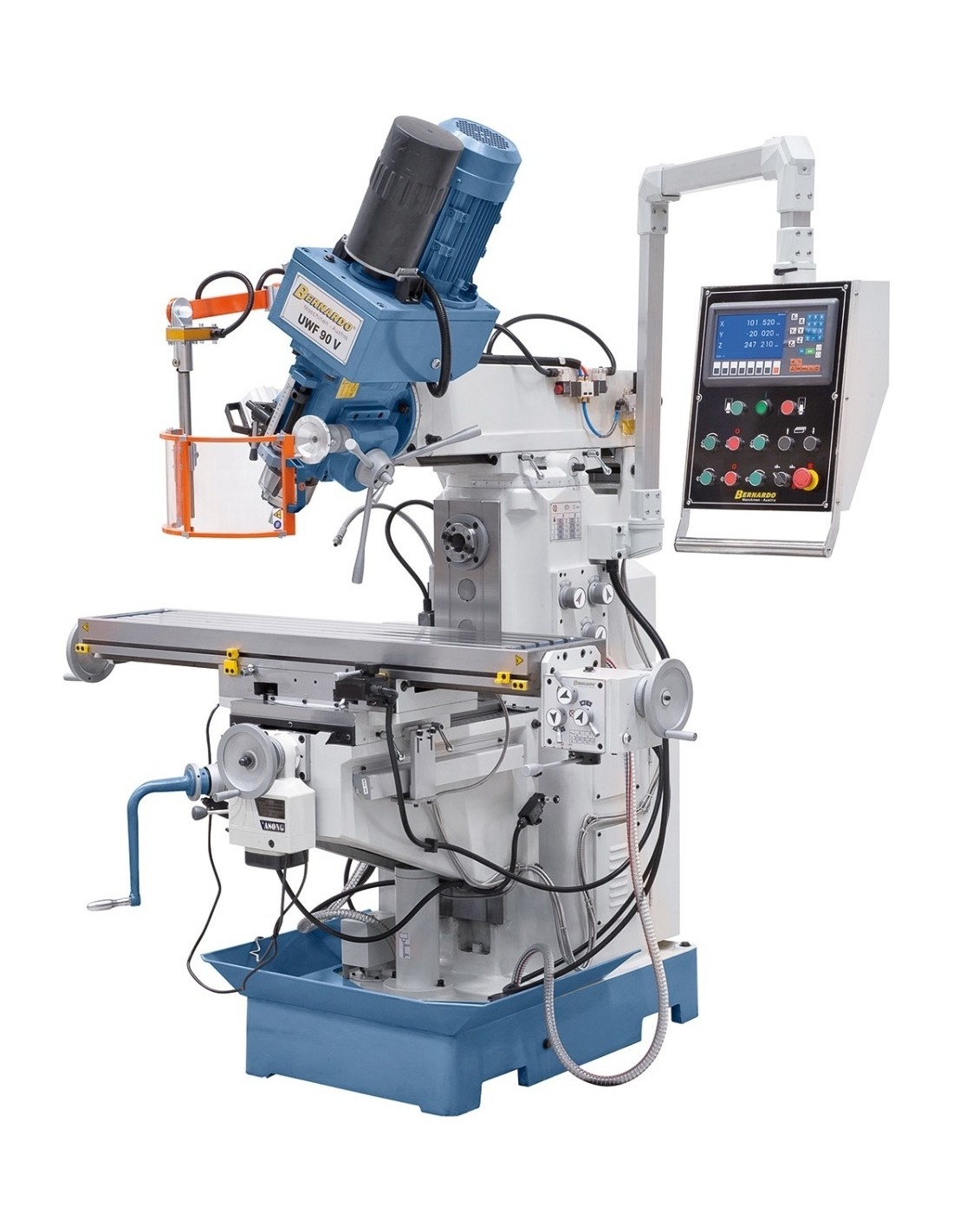

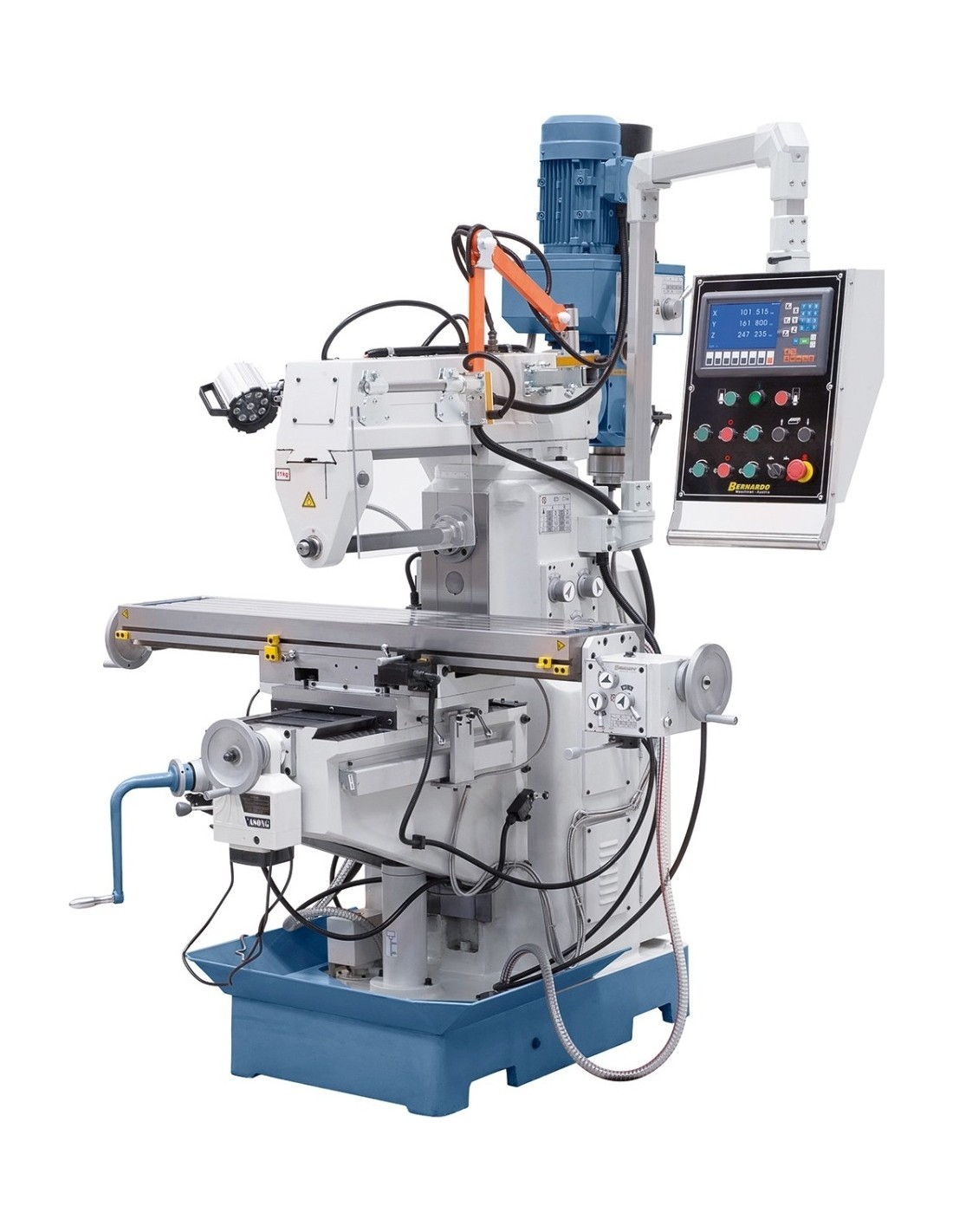

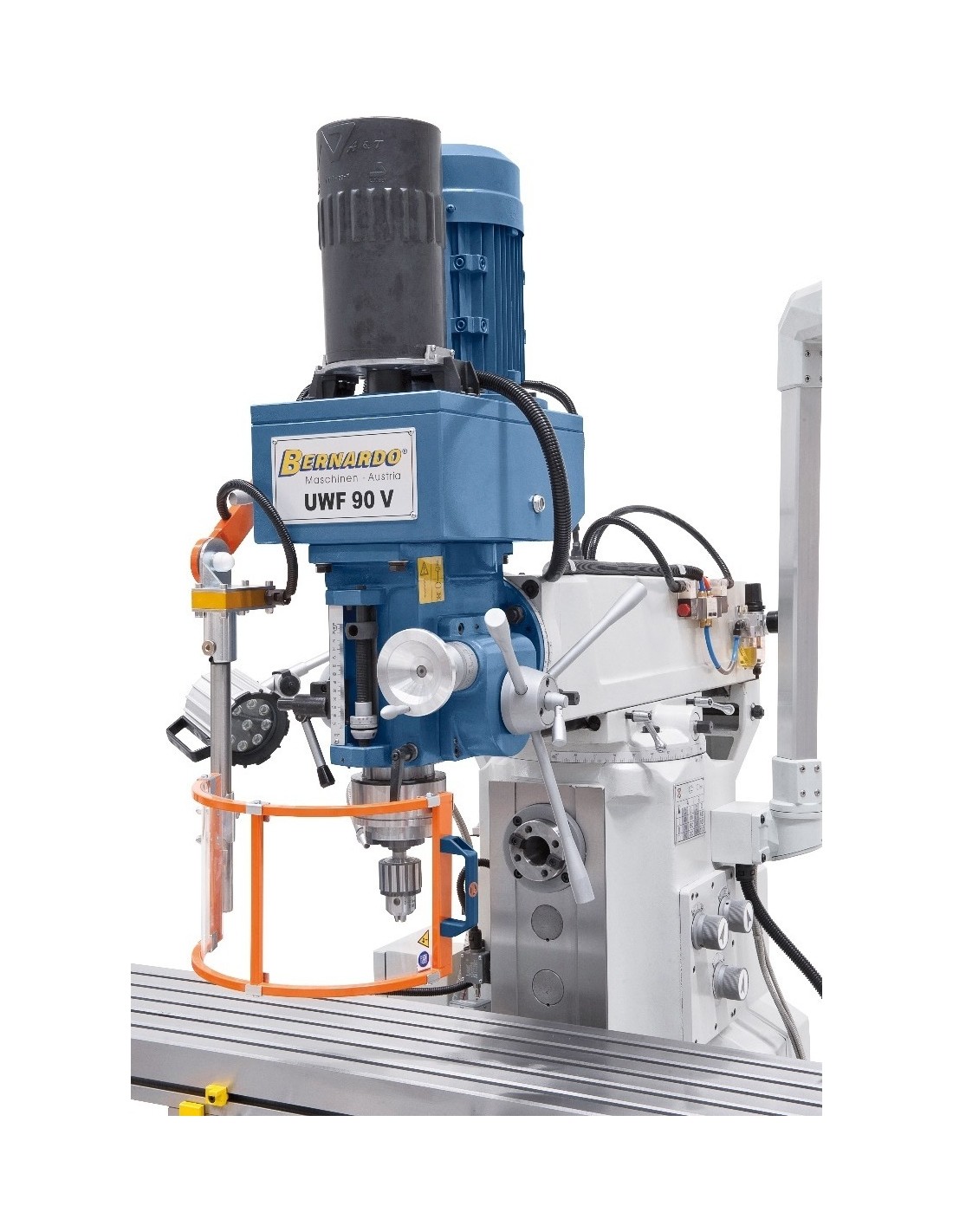

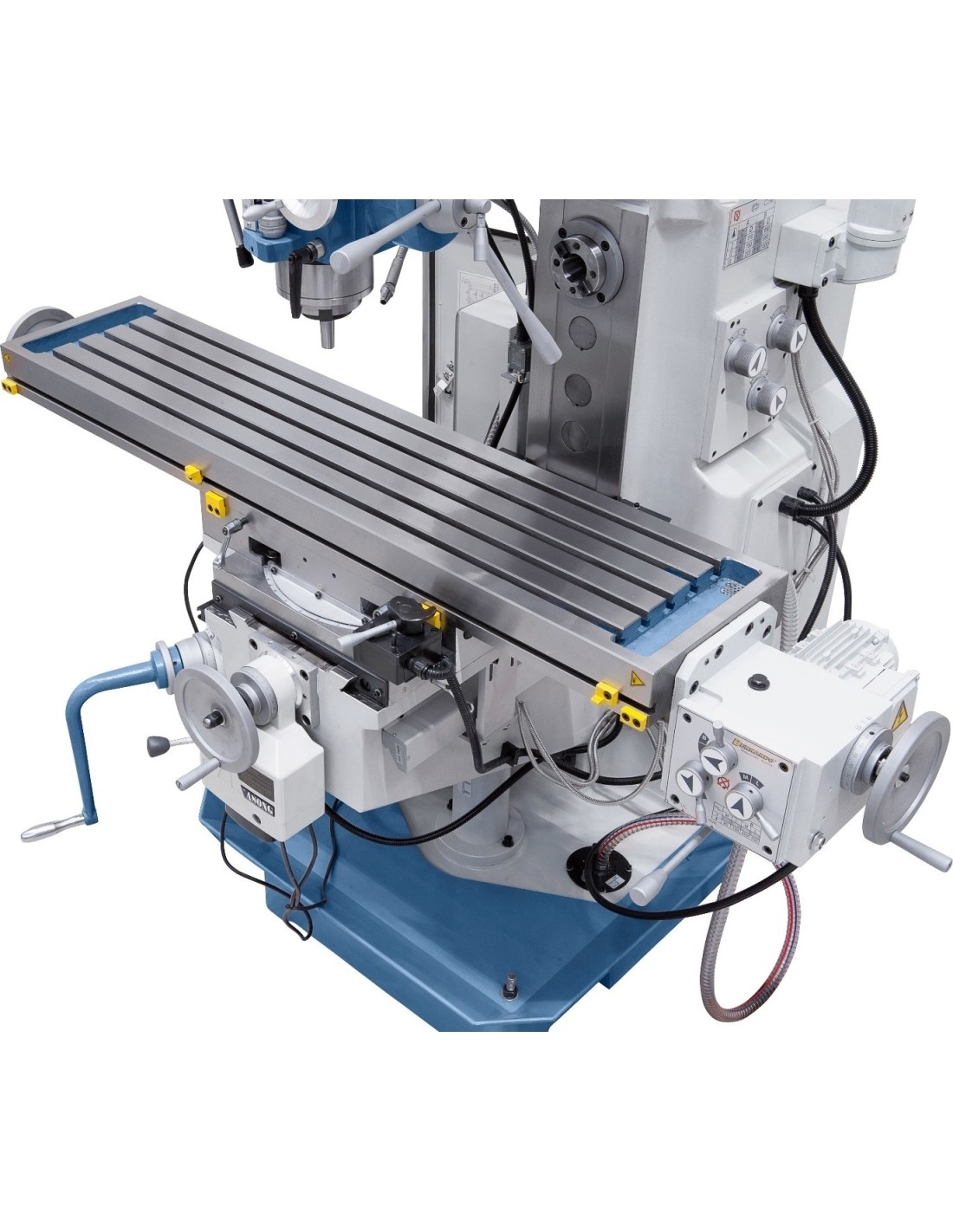

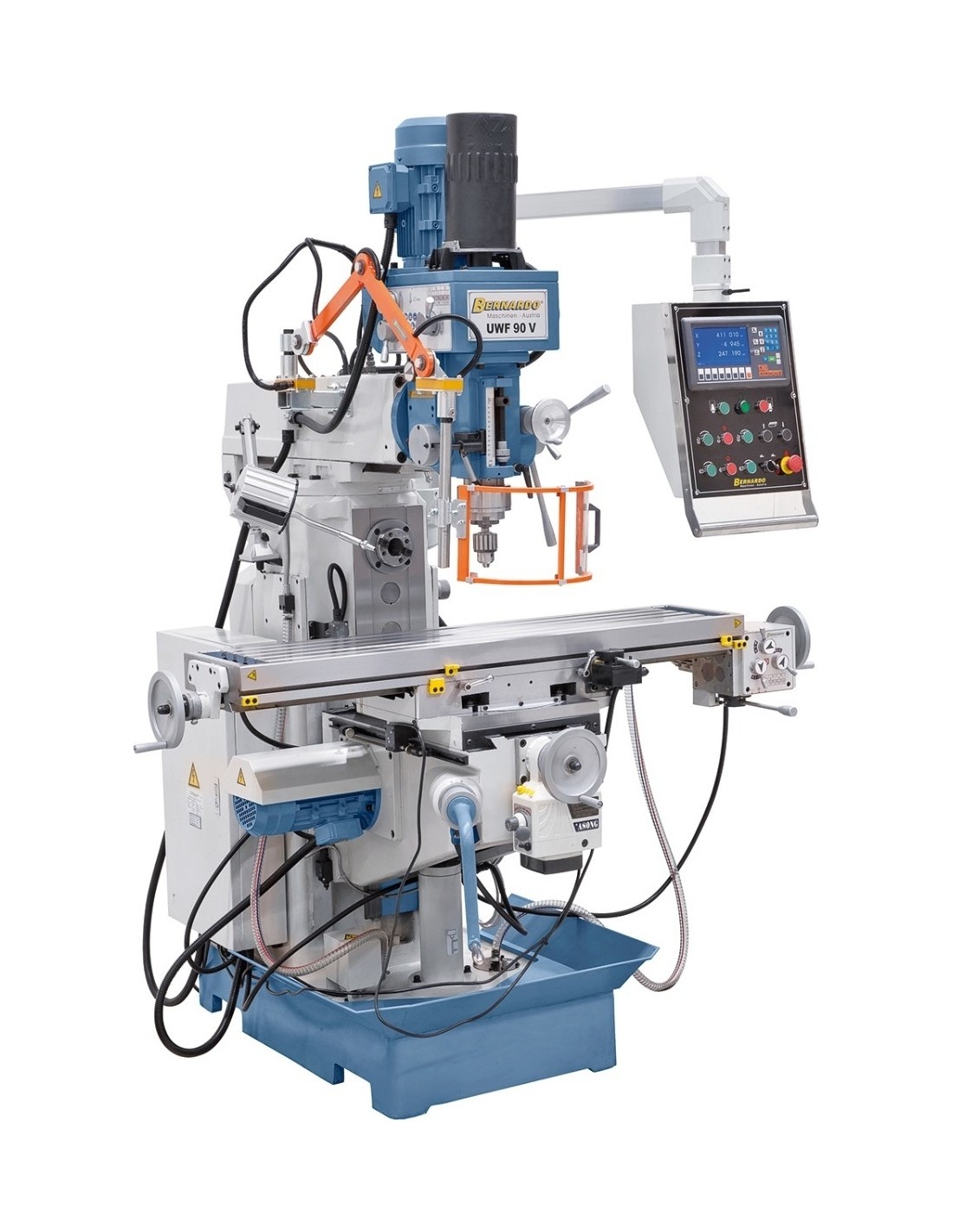

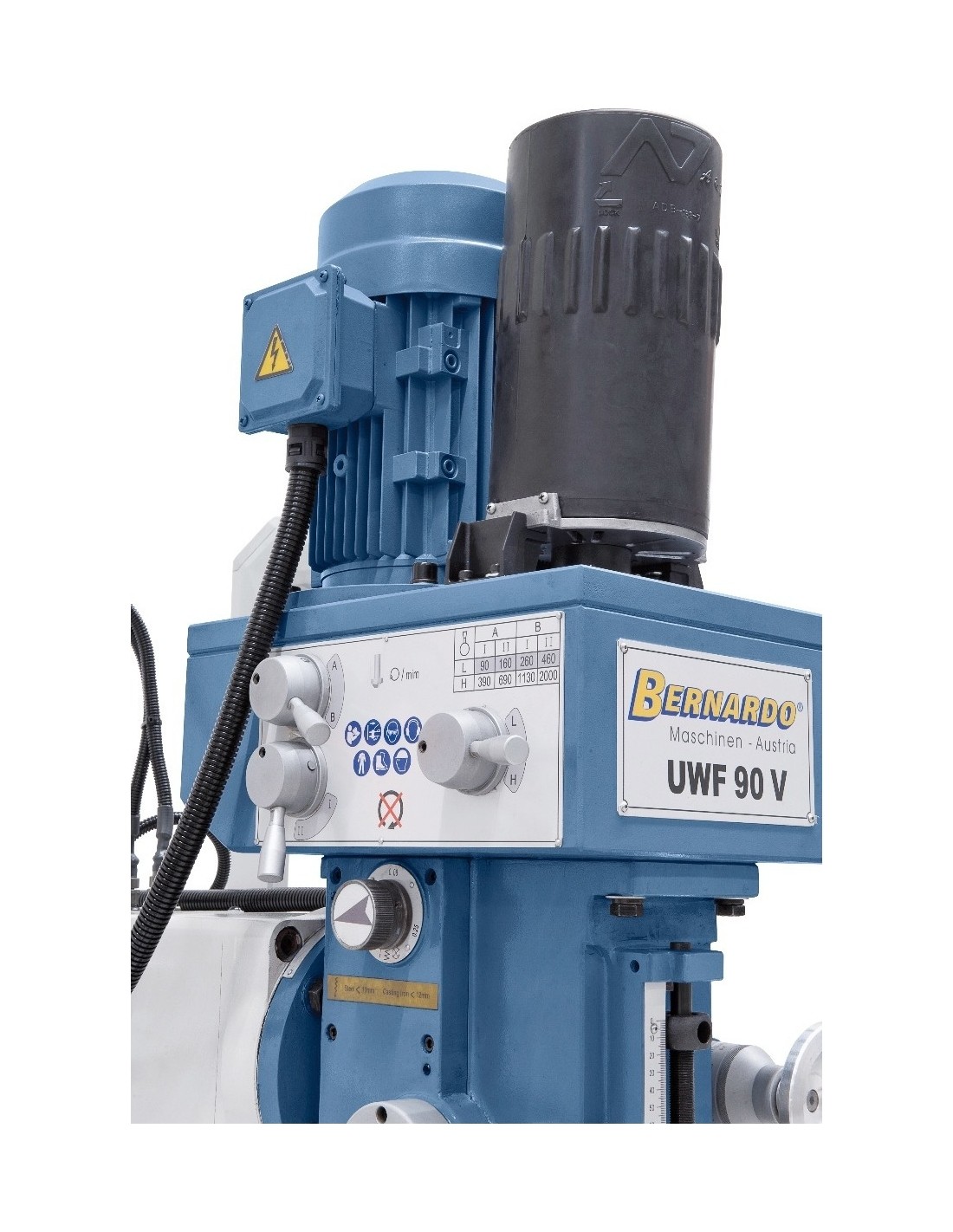

UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
  • Online only
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping
UWF 90 V with pneumatic tool clamping

Spindle taper
ISO 40
Weight approx.
1310 kg
Machine dimension (W x D x H)
1750 x 1500 x 2200 mm
Distance spindle to column
240 – 740 mm
Spindle stroke
120 mm
T-slot size
14 mm

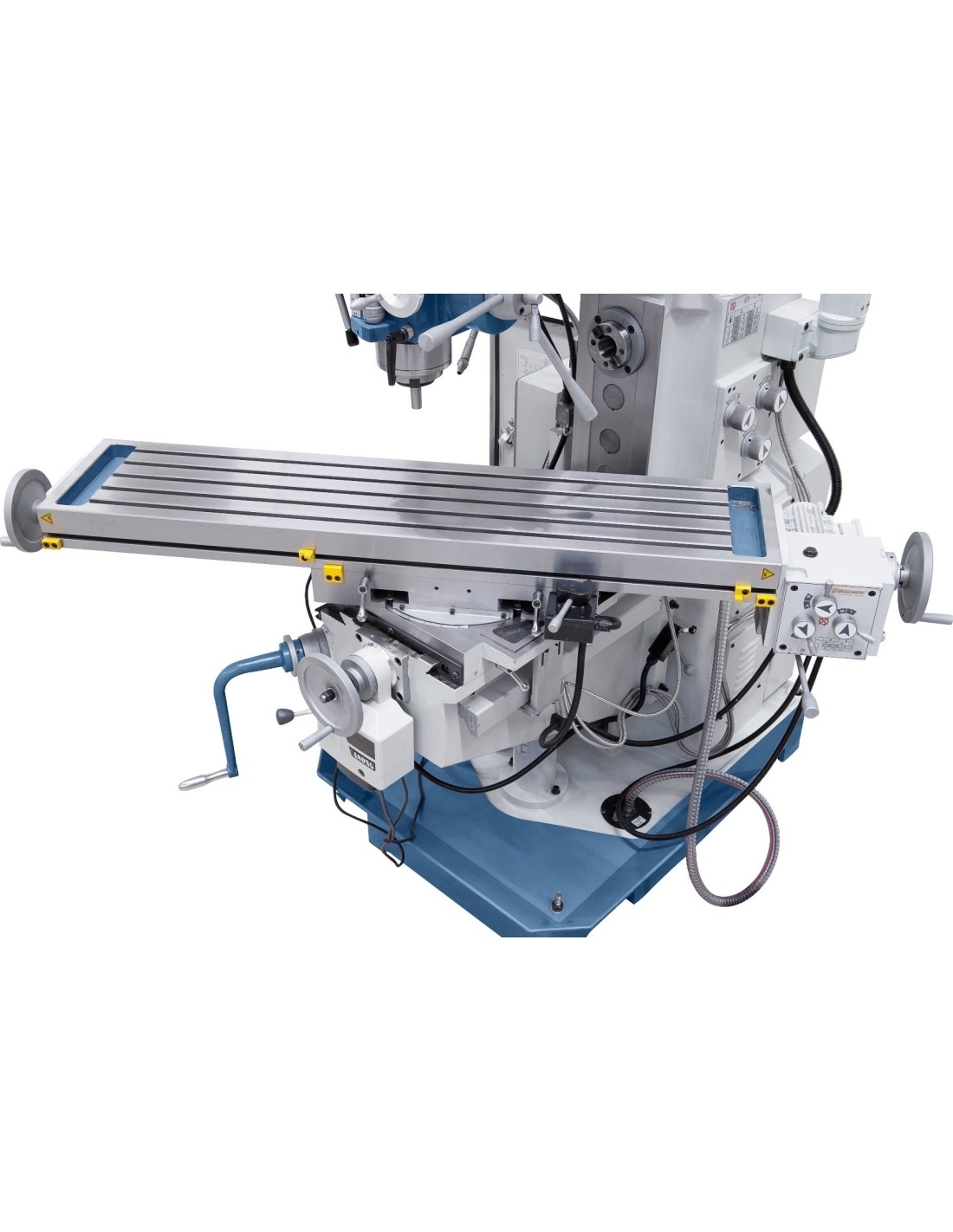

Table size
1270 x 280 mm
Table tiltable
-45° to +45°
Distance spindle to table
125 – 425 mm
Travel longitudinal (x)
750 mm*
Travel cross (y)
230 mm
Travel vertical (z)
300 mm
Spindle speed vertical
(8) 90 – 2000 rpm
Spindle speed horizontal
(12) 40 – 1300 rpm
Spindle head tilting range
-90° to +90°
Feed range longitudinal
(8) 32 – 700 mm/min
Motor power vertical
2,2 kW
Motor power horizontal
2,2 kW
Rapid feed z-axis
660 mm/min
Pinolenvorschub
0,08 / 0,15 / 0,25 mm/rev.

UWF 90 V with pneumatic tool clamping

1092065
Price €22,641.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up wednesday, august 5 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1310 kg.

Description

Properties

  • Pneumatic tool clamping device allows for convenient tool change
  • Wide range of applications in general machine engineering, manufacturing, production of single parts

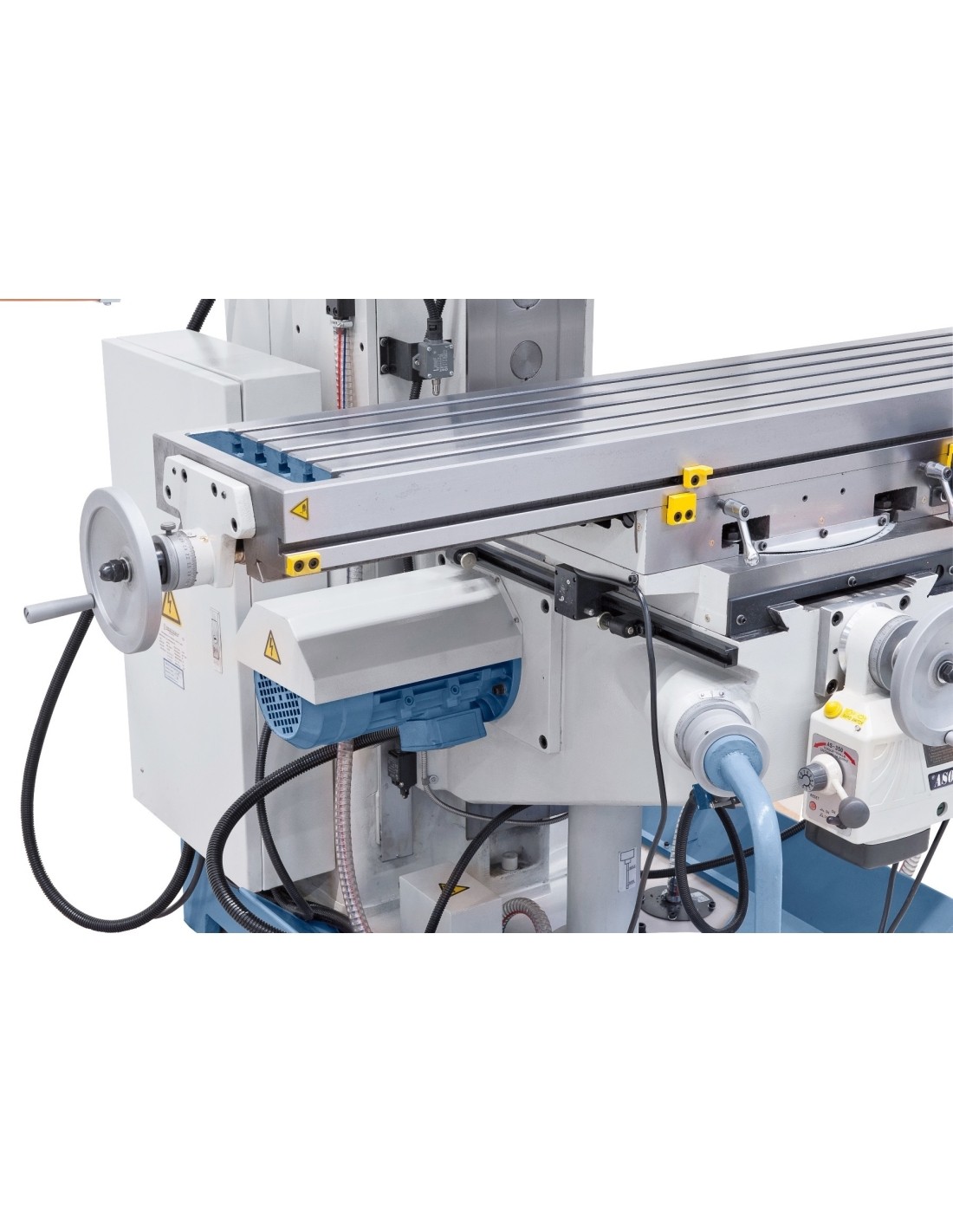

  • Complete with automatic table feed in x- and y-axis including rapid feed
  • Positioning motor for z–axis comes standard
  • Automatic spindle feed (0,08 - 0,25 mm) comes standard
  • Heavy cast-iron machine stand eliminates vibrations
  • Complete with 3-axis digital readout for maximum productivity
  • Polished gear wheels, in oil bath, ensure smooth running
  • Ideal for single and small-series production

Standard accessories

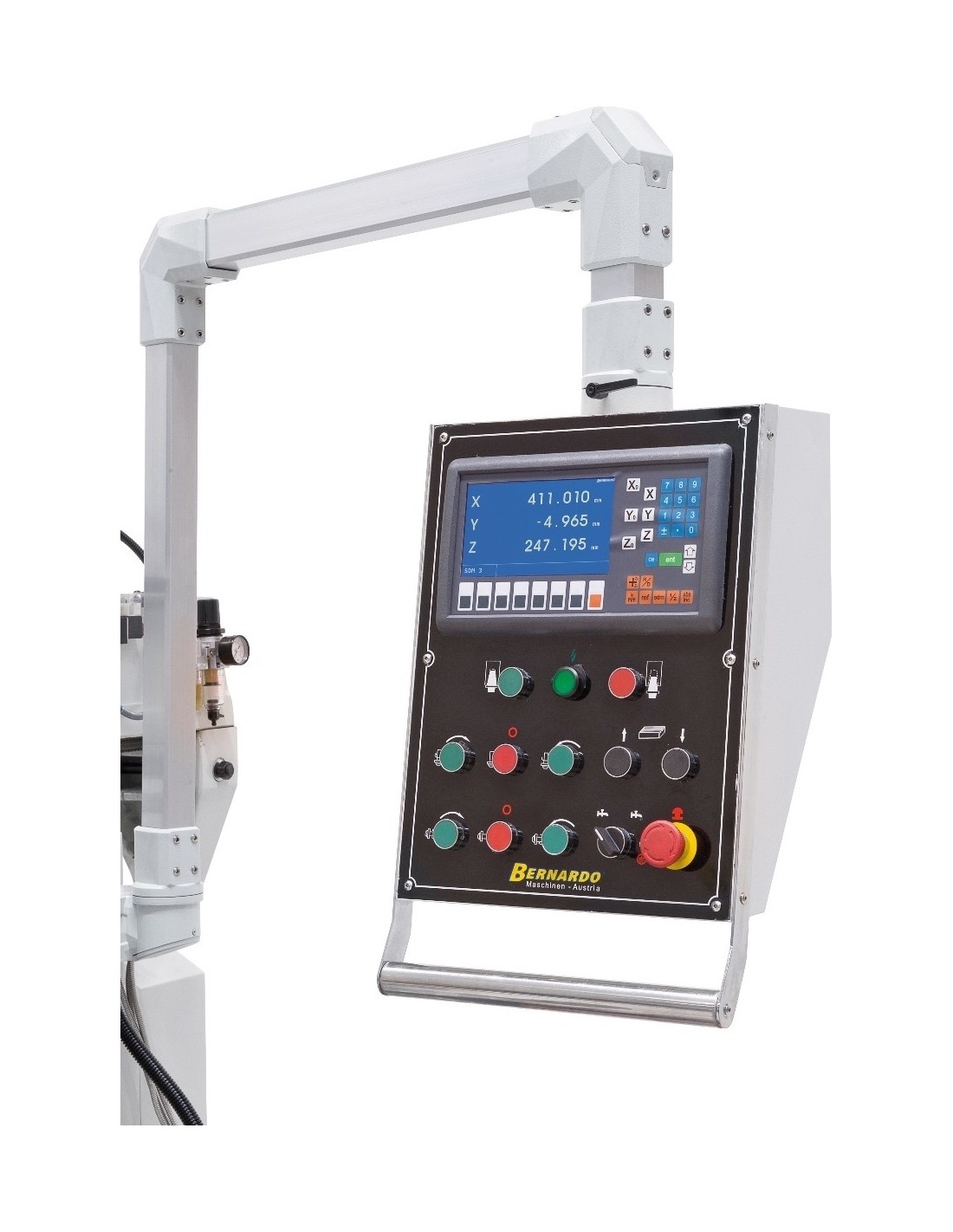

  • 3-axis digital readout ES-12 H with LCD-display

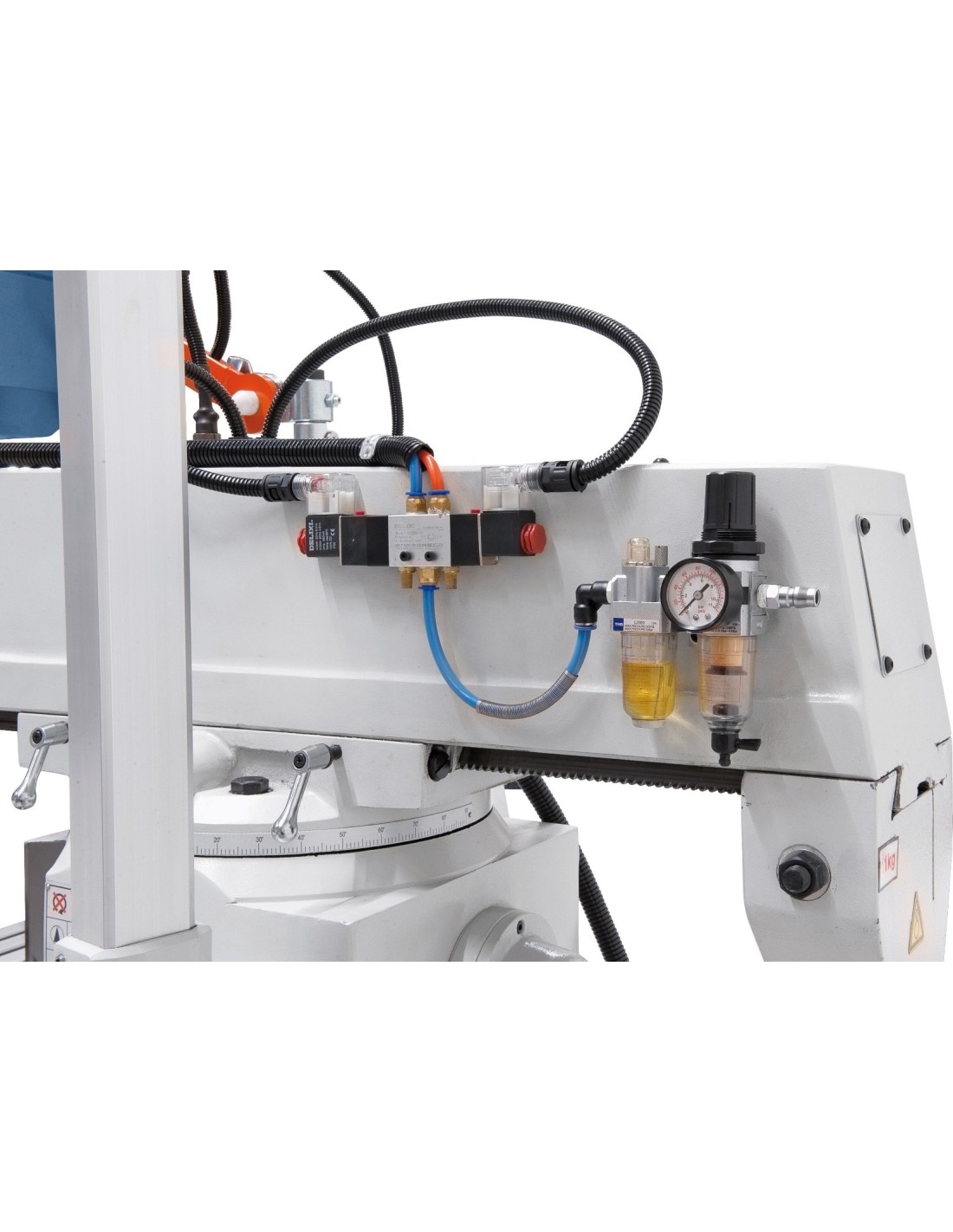

  • Pneumatic tool clamping (DIN 2080)
  • Drawbar M 16

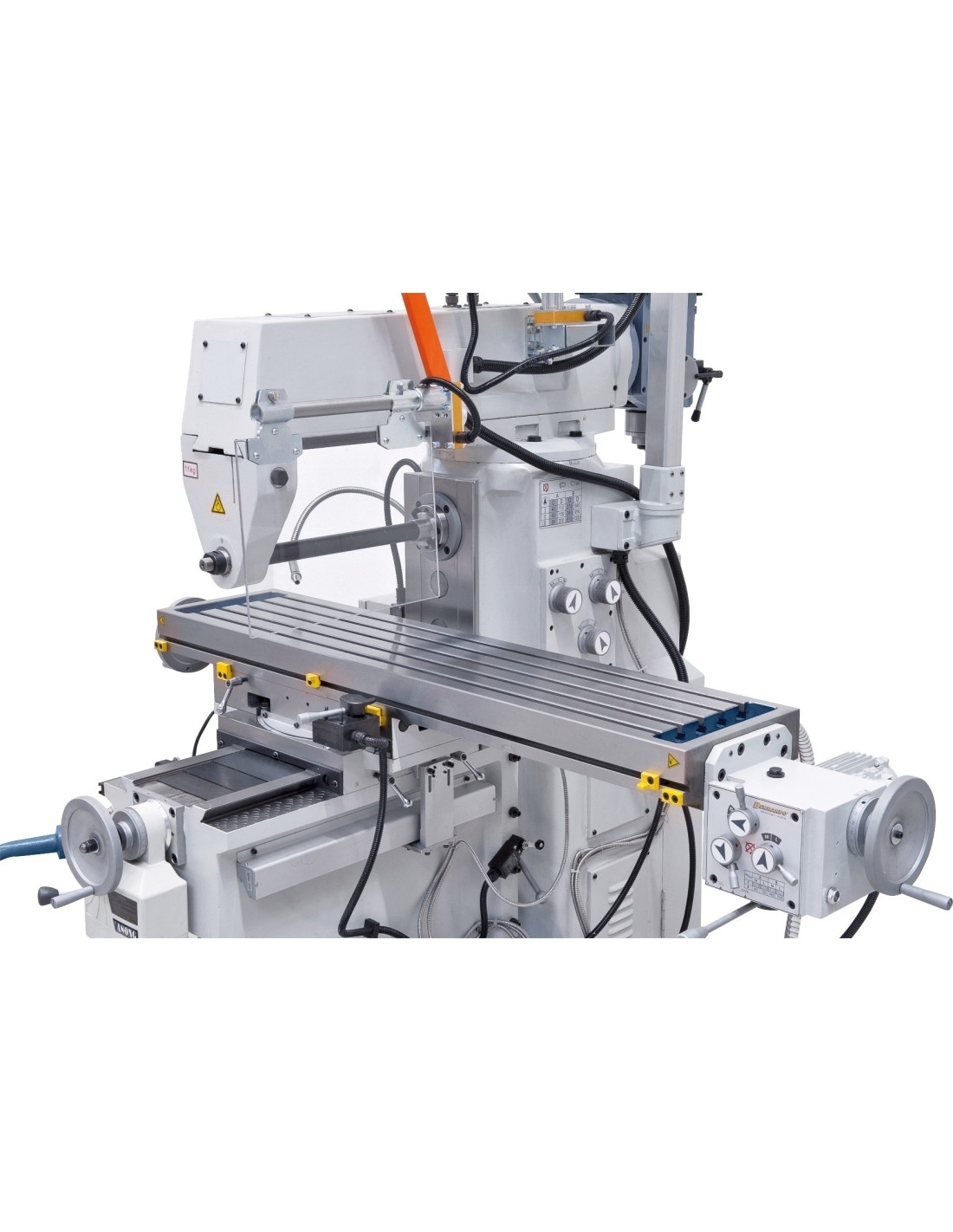

  • Horizontal counter bearing
  • Adjustable protective device
  • Protective cover for horizontal milling
  • Adapter ISO 40 / B18, ISO 40/MT 3
  • Morse taper drill sleeve MT 3 / 2
  • Long milling arbor ISO 40/27 mm, ISO 40/32 mm
  • Coolant device
  • LED machine light
  • Tools
