WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Spindle taper
ISO 40
Weight approx.
1300 kg
Machine dimension (W x D x H)
1750 x 1500 x 2200 mm
Distance spindle to column
170 - 750 mm
Spindle stroke
125 mm
T-slot size
14 mm
Table size
1270 x 280 mm

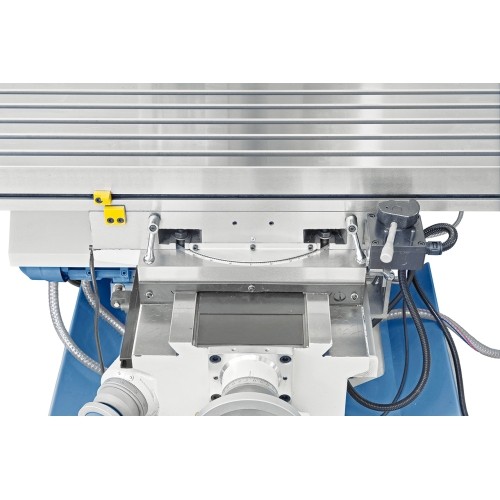

Table tiltable
-45° to +45°
Distance spindle to table
35 - 350 mm
Spindle speed vertical
(8) 115 - 1750 rpm
Spindle speed horizontal
(12) 40 – 1300 rpm
Spindle head tilting range
-90° to +90°
Feed range longitudinal
(8) 32 – 700 mm/min

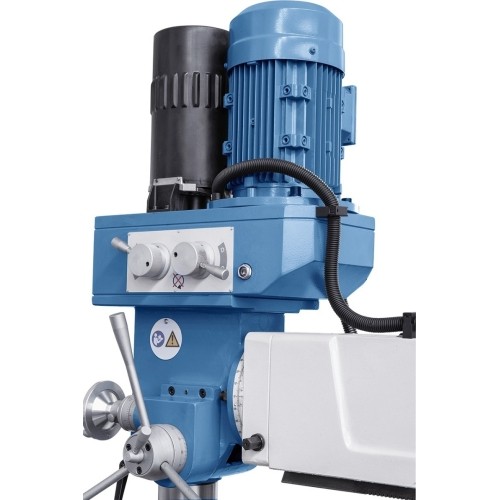

Motor power vertical
0,85 / 1,5 kW
Motor power horizontal
2,2 kW
Rapid feed z-axis
660 mm/min
Travel (x / y / z)
750 mm * / 230 mm / 300 mm

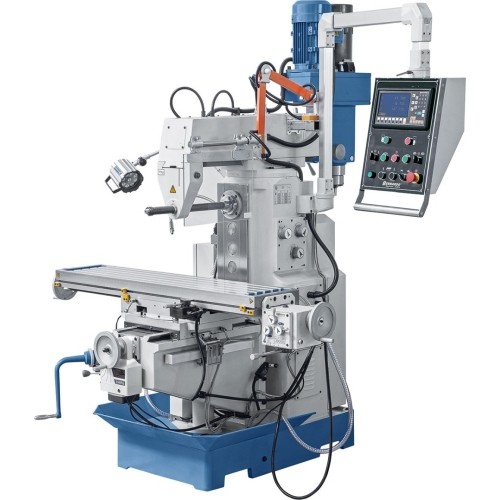

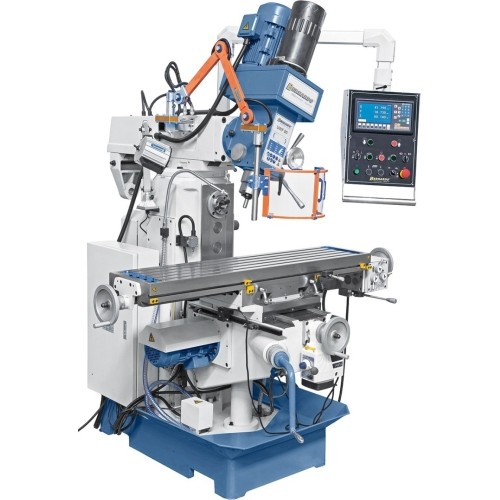

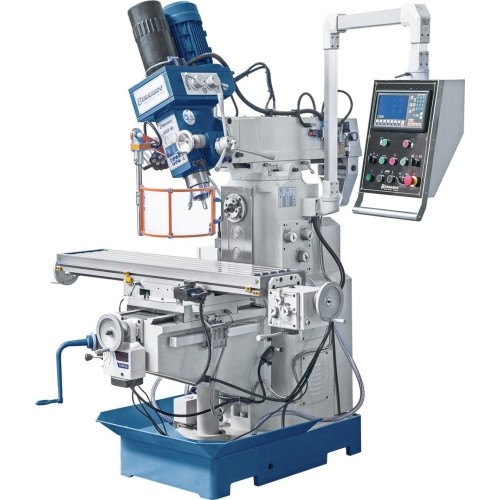

UWF 90 incl. 3-axis digital readout ES-12 H and pneumatic tool clamping

1092067
Price €22,457.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up friday, august 29 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1300 kg.

Description

Properties

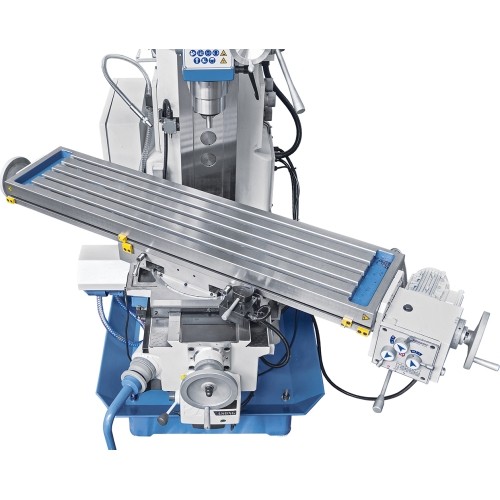

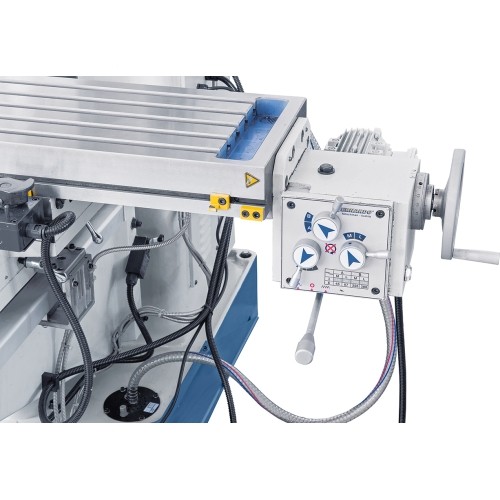

  • Complete with automatic table feed in x- and y-axis including rapid feed
  • Surface treated, large table includes T-slots
  • Heavy cast-iron machine stand eliminates vibrations
  • Dovetail guiding in all three axis – adjustable by gibs
  • Positioning motor for z–axis comes standard
  • Wide speed and feed range
  • Ideal for single and small-series production
  • Tapered roller bearings ensure high concentricity
  • Left and right rotation allows thread cutting

Standard accessories

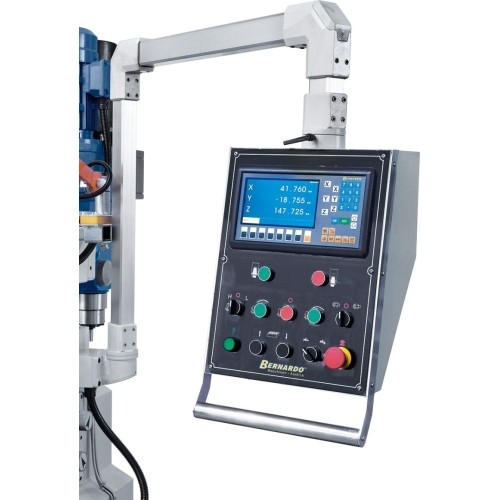

  • 3-axis digital readout ES-12 H with LCD-display
  • Drawbar M 16
  • LED machine light
  • Coolant device

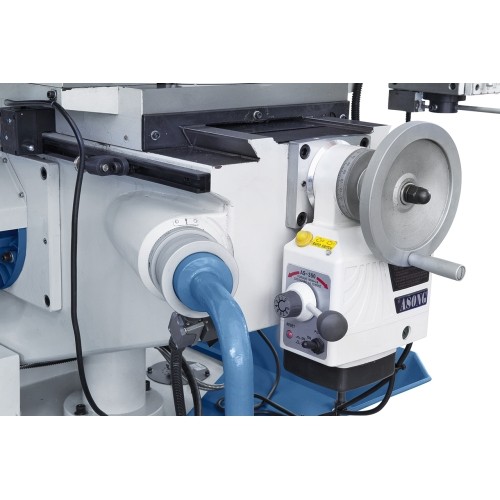

  • Automatic table feed in x- and y-axis
  • Positioning motor for  z-axis
  • Adapter ISO 40 / B 18, ISO 40 / MT 3
  • Morse taper drill sleeve MT 3/2

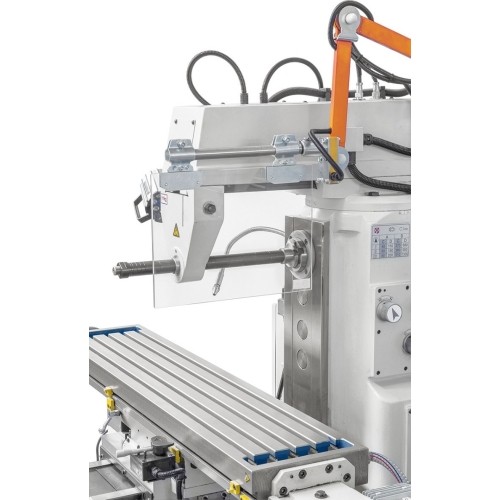

  • Long milling arbor 27 mm
  • Horizontal counter bearing

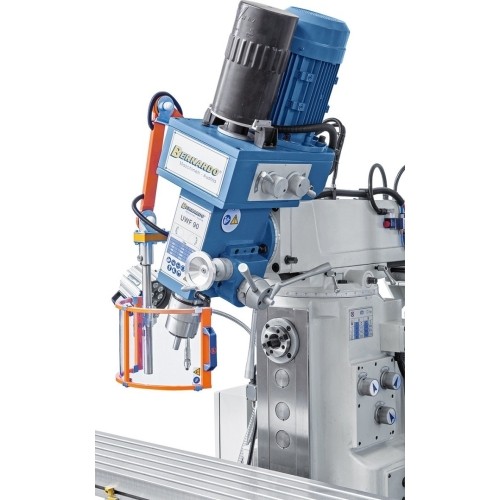

  • Adjustable protective device
  • Protective cover for horizontal milling
  • Tools
