Weight approx.
2250 kg
Distance spindle to column
230 - 900 mm
T-slot size
14 mm
Table size
1650 x 360 mm
Machine dimensions (W x D x H)
2250 x 2000 x 1995 mm
Table tiltable
-45° to +45°
Distance spindle to table
160 - 550 mm
Travel longitudinal (x)
1350 mm
Travel cross (y)
290 mm
Travel vertical (z)
390 mm
Spindle speed vertical
(12) 60 - 1750 U/min
Spindle speed horizontal
(12) 58 - 1800 U/min
Motor power vertical
4,0 kW
Motor power horizontal
4,0 kW
Spindle taper horizontal
ISO 50
Spindle taper vertical
ISO 50
Feed range longitudinal / cross
(8) 22 - 420 / (8) 22 - 393 mm/min
Feed range vertical
(8) 10 - 168 mm/min
Rapid feed x-, y- and z-axis
1290 / 1208 / 513 mm/min

UWF 150

1092063
Price €37,318.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 2250 kg.

Description

Properties

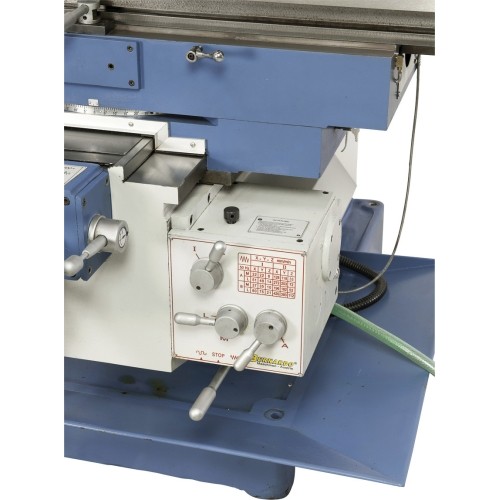

  • Complete with 8 automatic feeds in all three axes

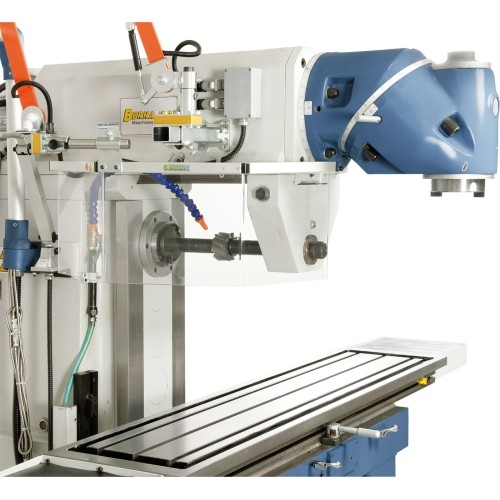

  • Horizontal spindle extends range of applications

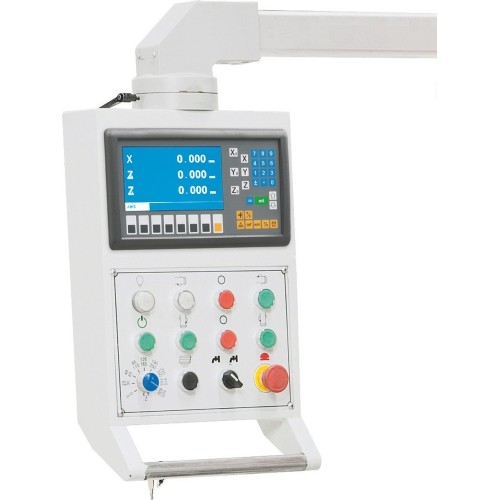

  • Clearly arranged switches on swivelling control panel

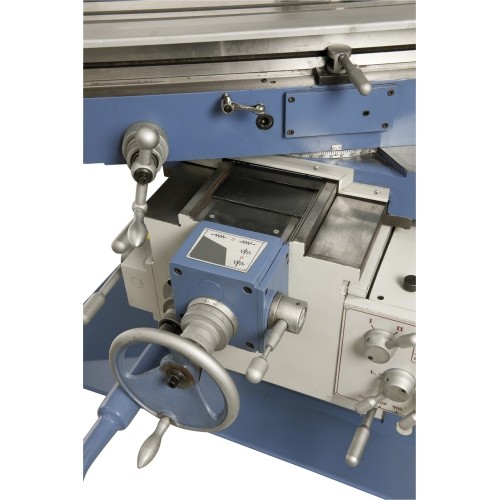

  • x-axis table adjustment is made from front of machine
  • Polished gears, in oil bath, guaranteed smooth running
  • Surface treated, large table featuring T-slots
  • 3-axis digital readout comes standard
  • Solid cast iron construction of machine stand eliminates vibrations
  • Rectangular guiding in y- and z-axis increases stability

Standard accessories

  • 3-axis digital readout ES-12 H with LCD-display
  • Drawbar M 24
  • LED machine light
  • Coolant device
  • Horizontal counter bearing
  • Universal protective device
  • Coolant tray
  • Tools
  • Power feed for x-, y- and z-axis
  • Long milling arbor ISO 50/27 mm, ISO 50/32 mm
  • Taper shell end mill holder ISO 50/32 mm
  • Central lubrication for x-, y- and z-axis
