Distance between centers
900 mm
Spindle taper
MT 2
Taper of tailstock sleeve
MT 3
Travel of tailstock sleeve
100 mm
Weight approx.
303 kg
Center height
160 mm
Swing over bed
320 mm
Spindle bore
38 mm
Spindle nose fixture
DIN 55029, D1-4
Longitudinal feed
(15) 0,07 – 1,0 mm/rev.
Cross feed
(15) 0,017 – 0,25 mm/rev.
Metric thread
(18) 0,2 - 3,5 mm
Inch thread
(21) 8 – 56 Gg/1“
Machine dimension (W x D x H)
1650 x 650 x 1120 mm
Face mill capacity max.
63 mm
End mill capacity max.
20 mm
Distance spindle to column
170 mm
Spindle speed, stepless
50 - 2250 rpm
Mill head tiltable
-90° to +90°
Height adjustment of mill head
260 mm
Motor power output S1 100%
0,60 kW / 230 V
Motor power input S6 40%
0,90 kW / 230 V
Speed range, stepless
75 – 500 / 300 – 2000 rpm
Drilling capacity max.
20 mm
T-slot size at cross slide
12 mm

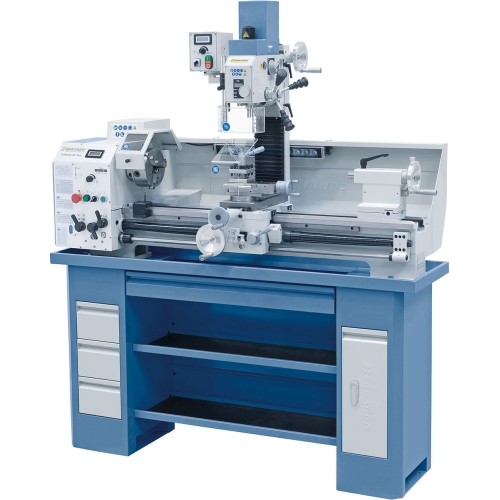

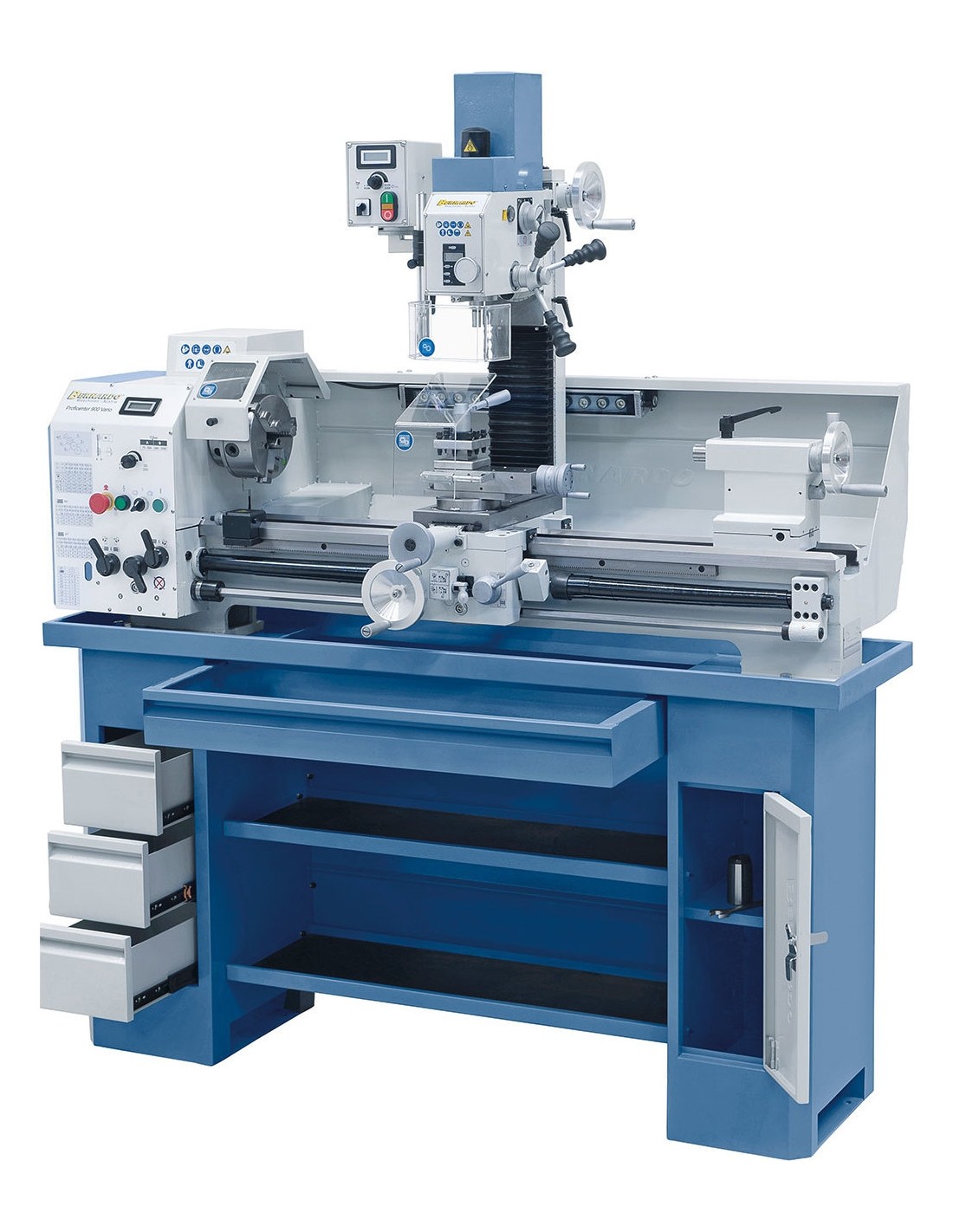

Proficenter 900 Vario - 400 V

1092098
€5,782.00
Tax included
Monthly payment from 142.13€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 303 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 303 kg.

Description

Properties

  • Three -phase motor with frequency inverter for higher performance and high torque
  • Complete with 38 mm spindle bore to allow processing of large shaft diameters
  • Wide range of applications: precision mechanics, training and education, etc.

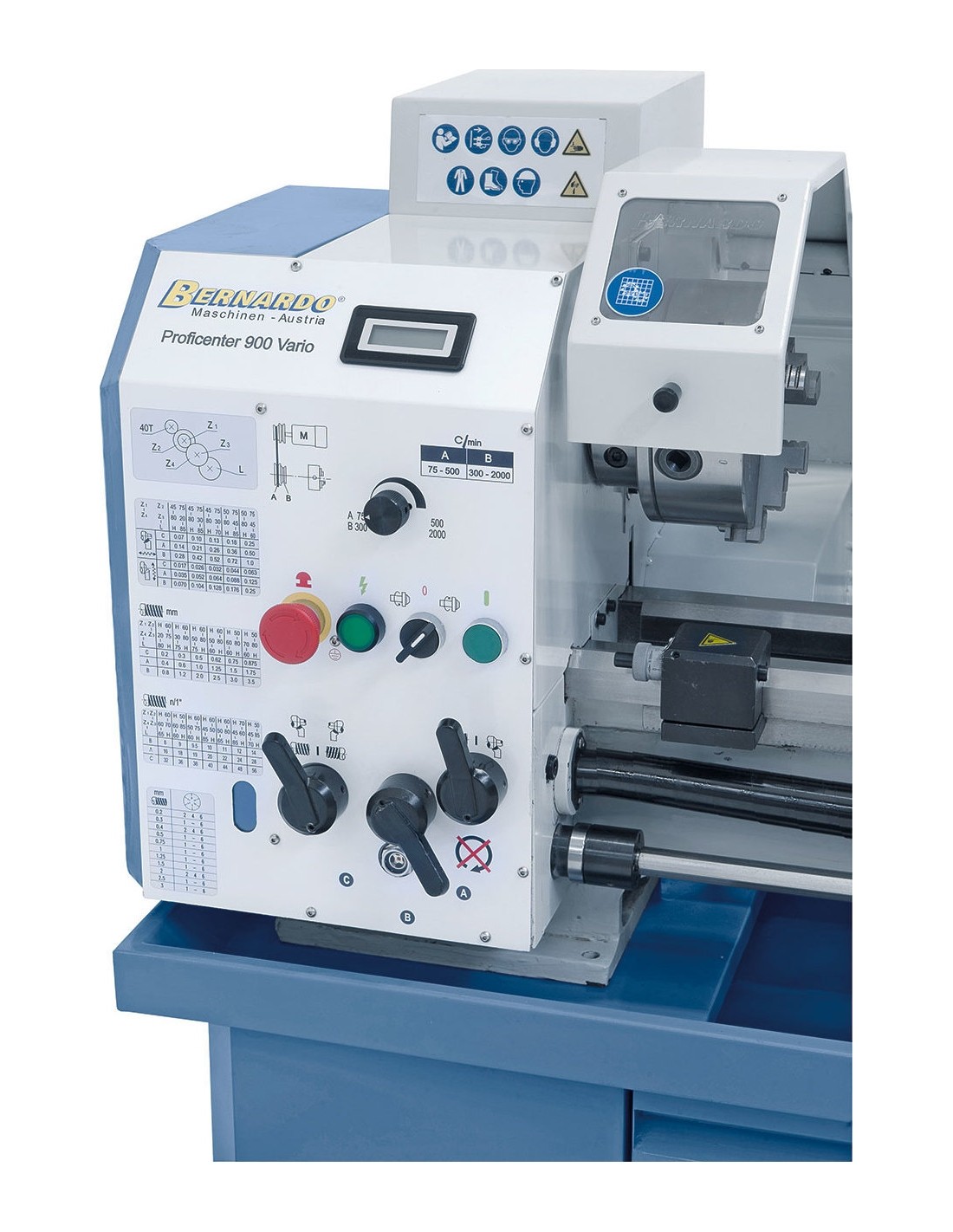

  • Stepless speed adjustment as part of standard accessories, set speed can be read on digital display
  • Feed settings are logically arranged, easy to control with top accuracy
  • Suitable for processing of steel, non-ferrous metals and plastics
  • Prism bed with large support surface, inductively hardened and polished
  • Precise spindle bearing with two adjustable precision taper roller bearings

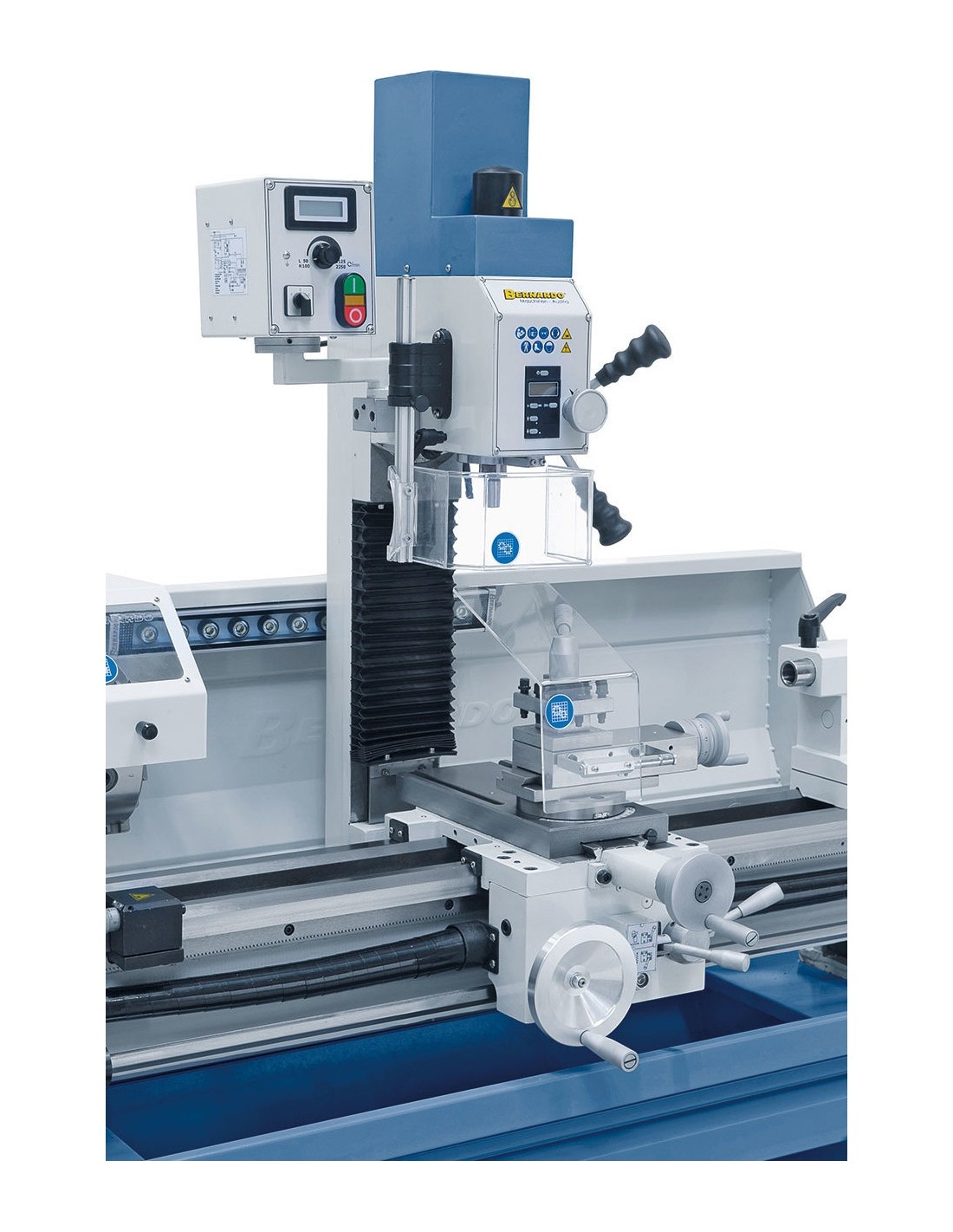

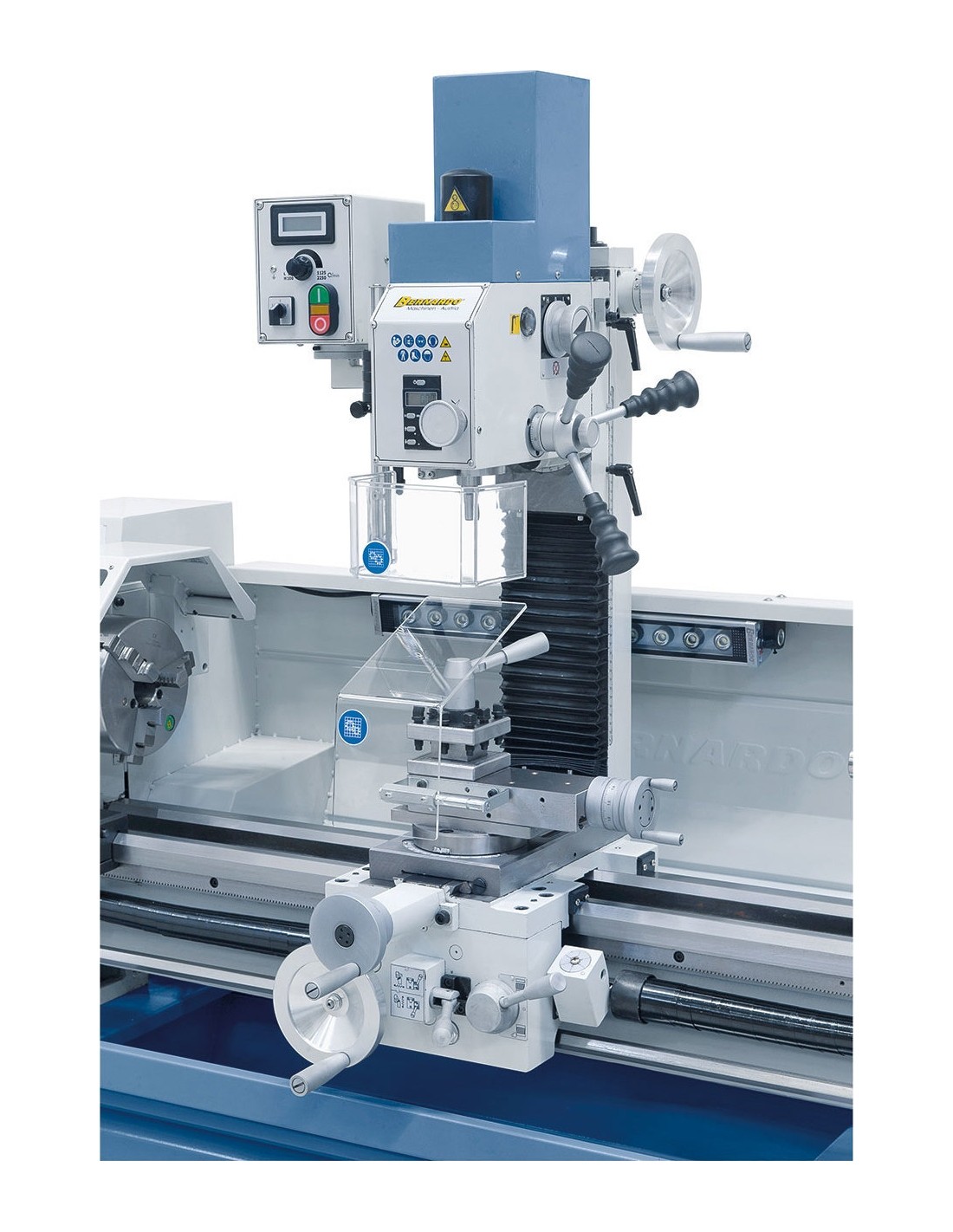

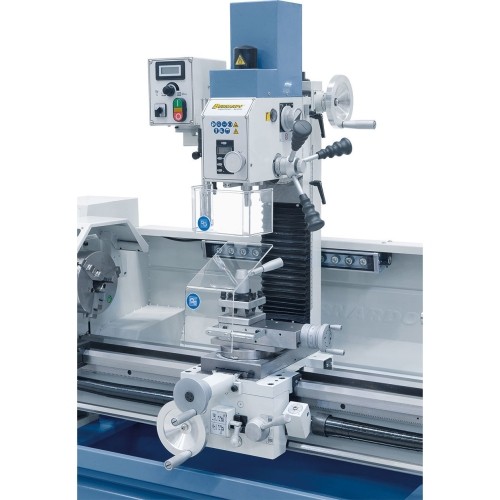

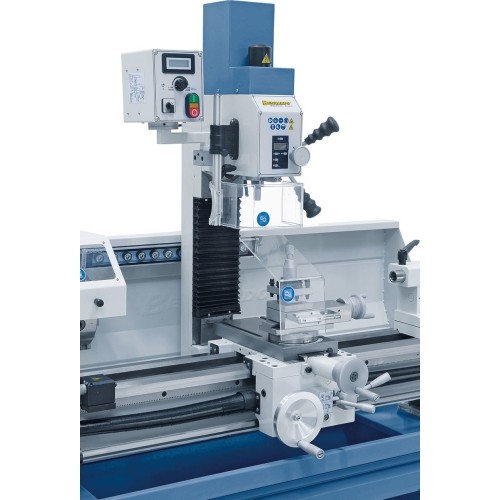

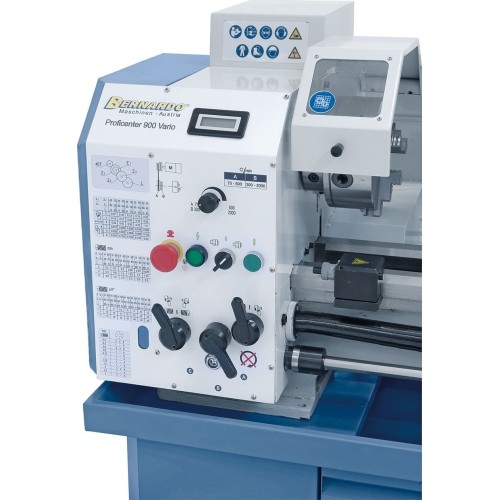

  • Mill head with digital display for spindle stroke and speed

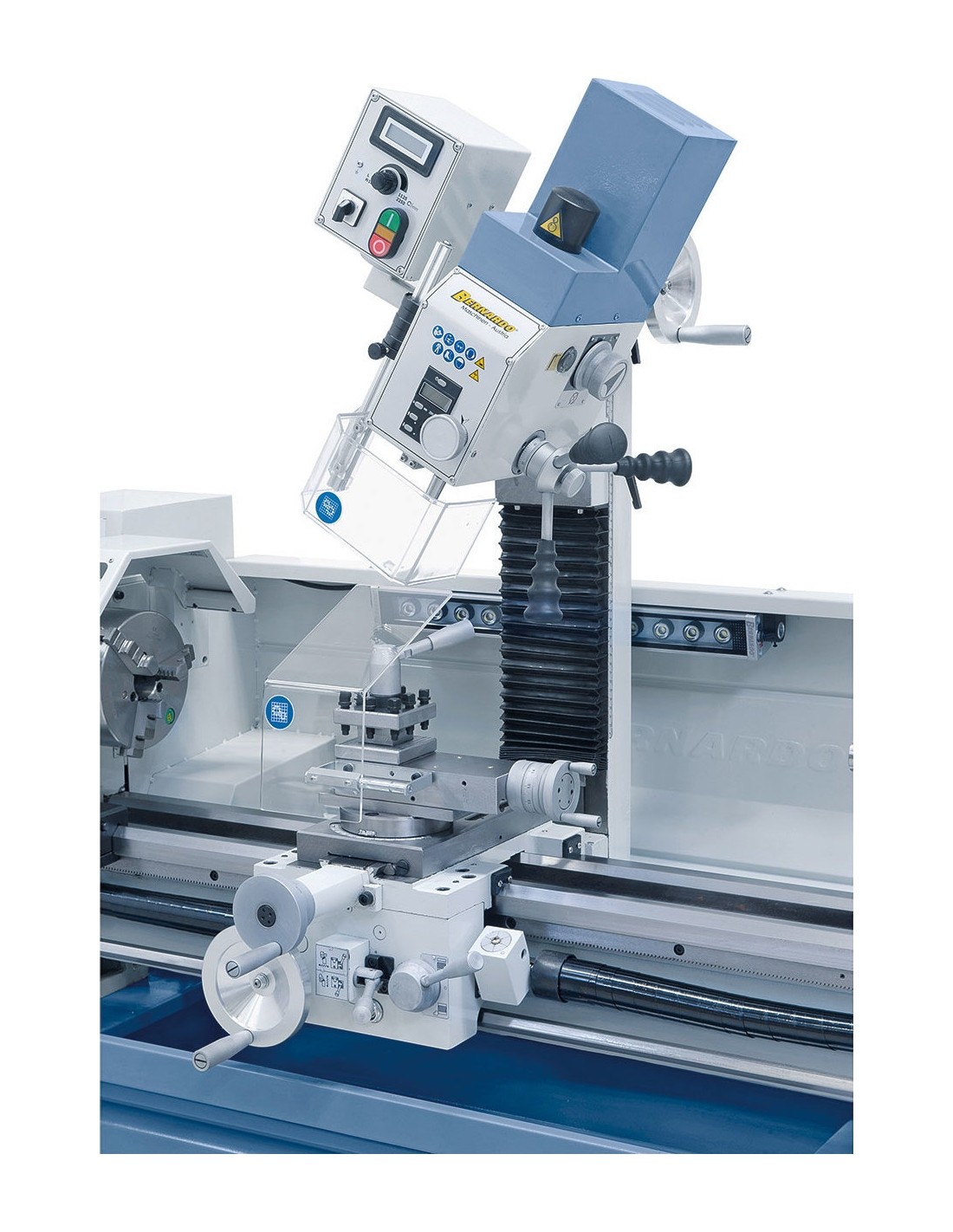

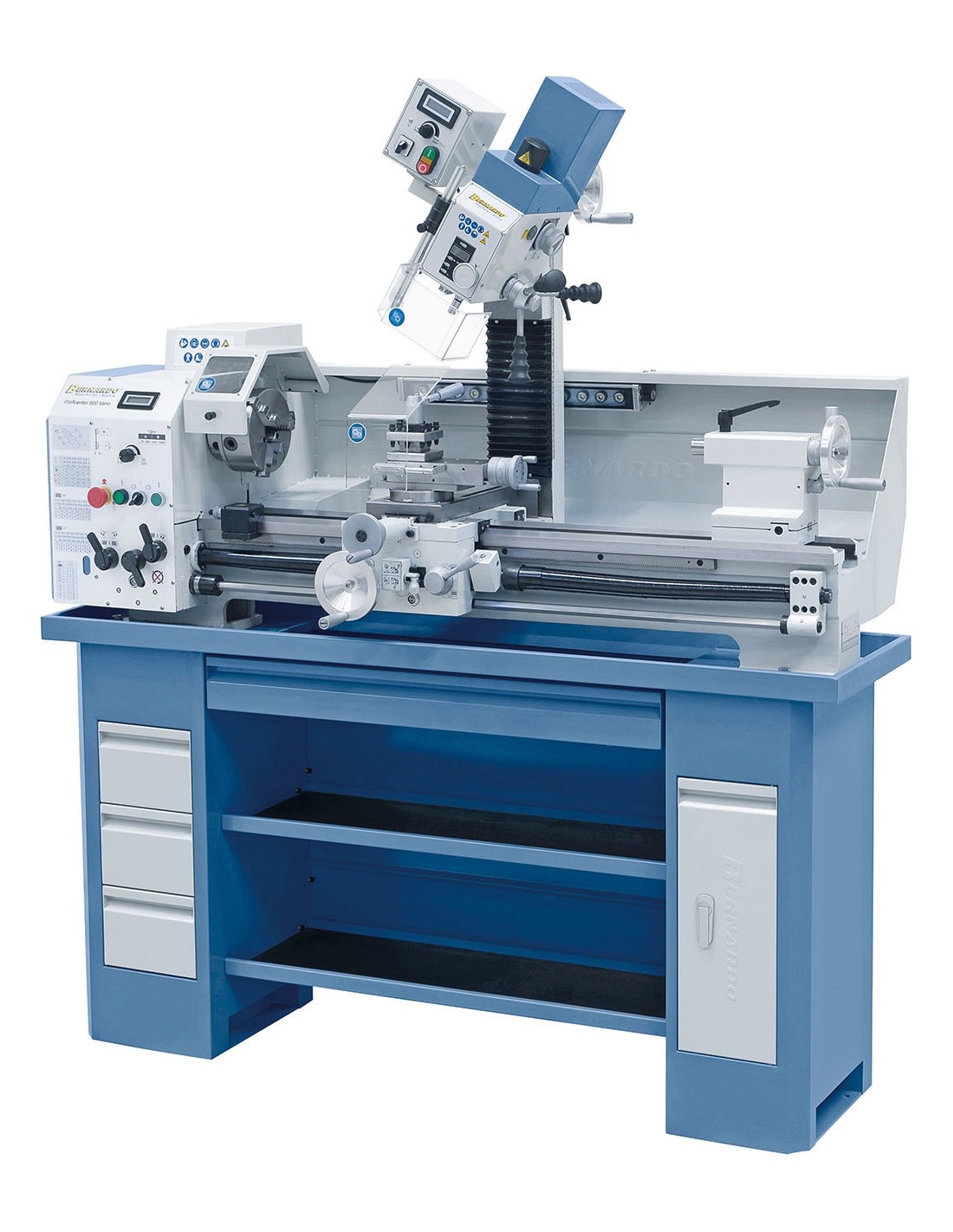

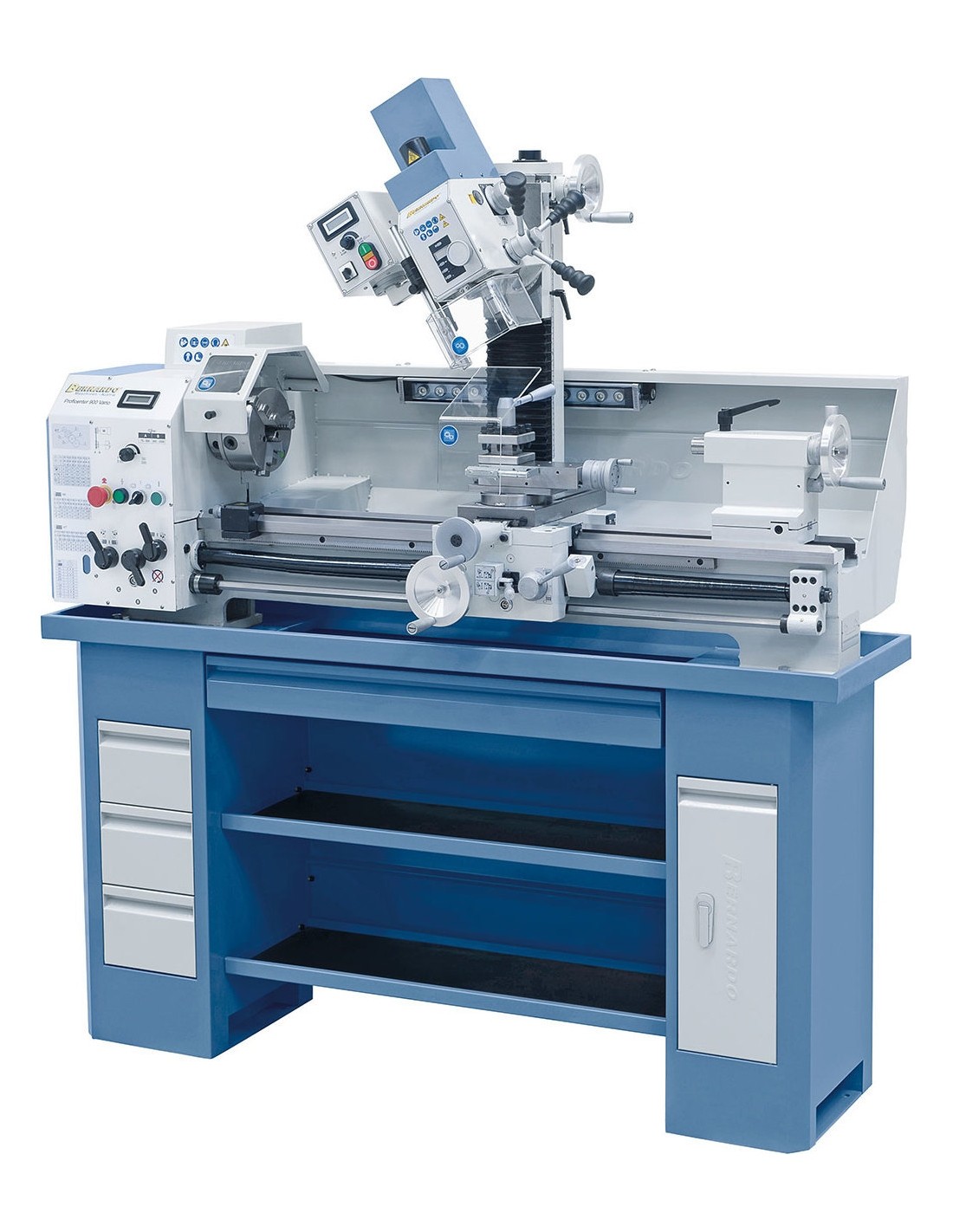

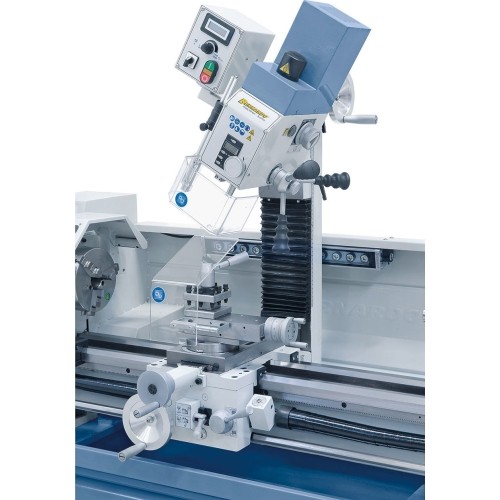

  • Mill head tilts to both sides allowing angular boring, milling of bevels etc

Standard accessories

  • 3-jaw chuck DK11-160 mm / D4
  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 2 / B 16
  • Dead centers

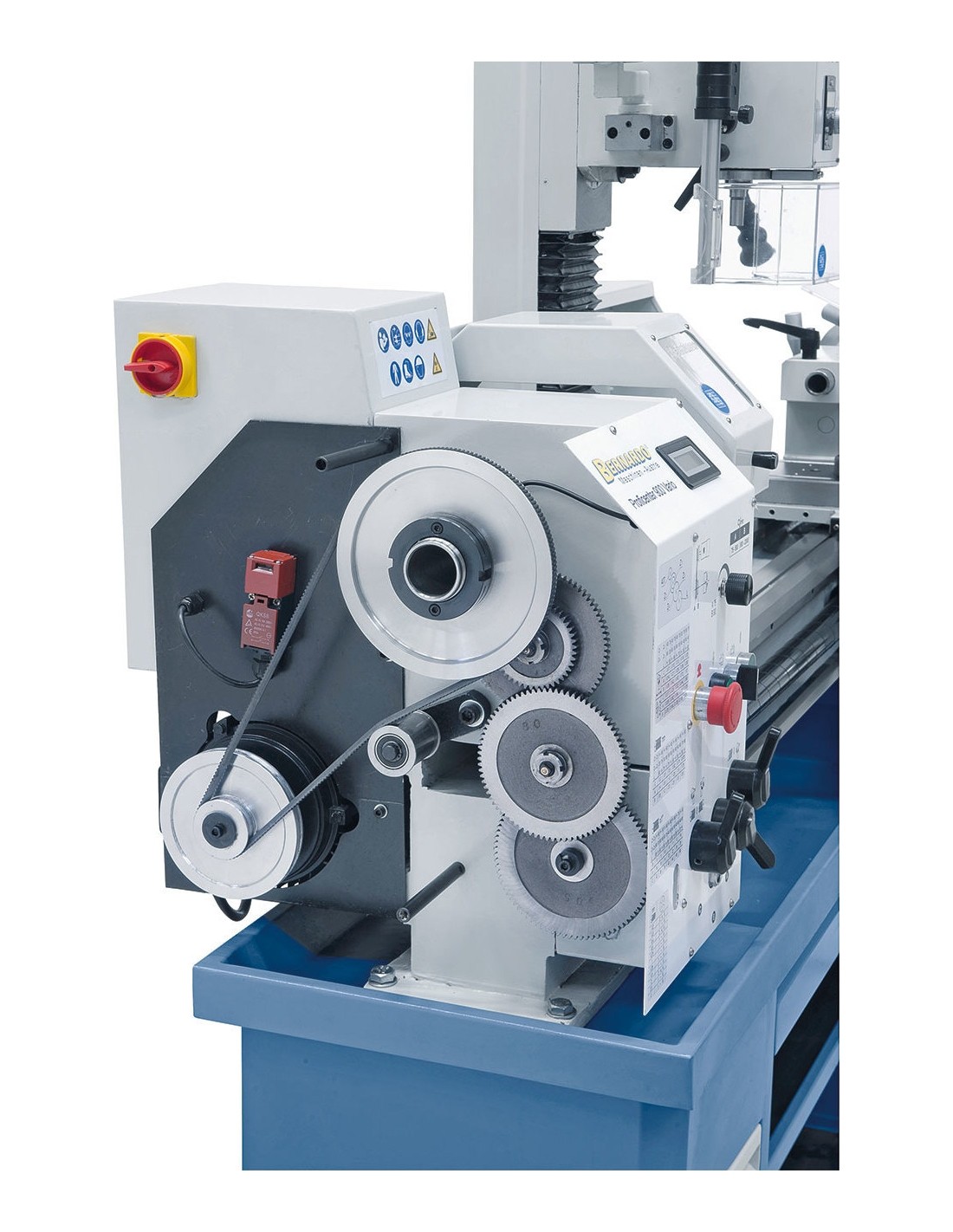

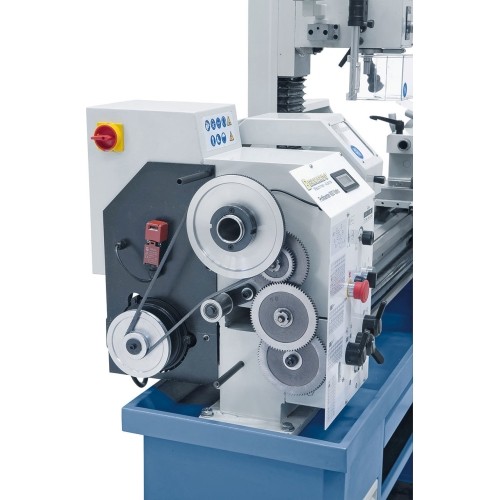

  • Change gears

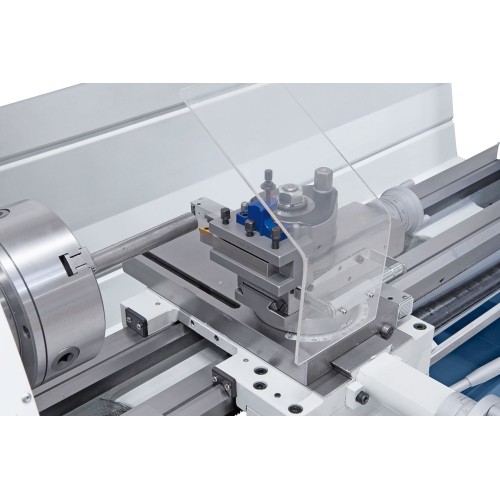

  • 4-way tool post holder

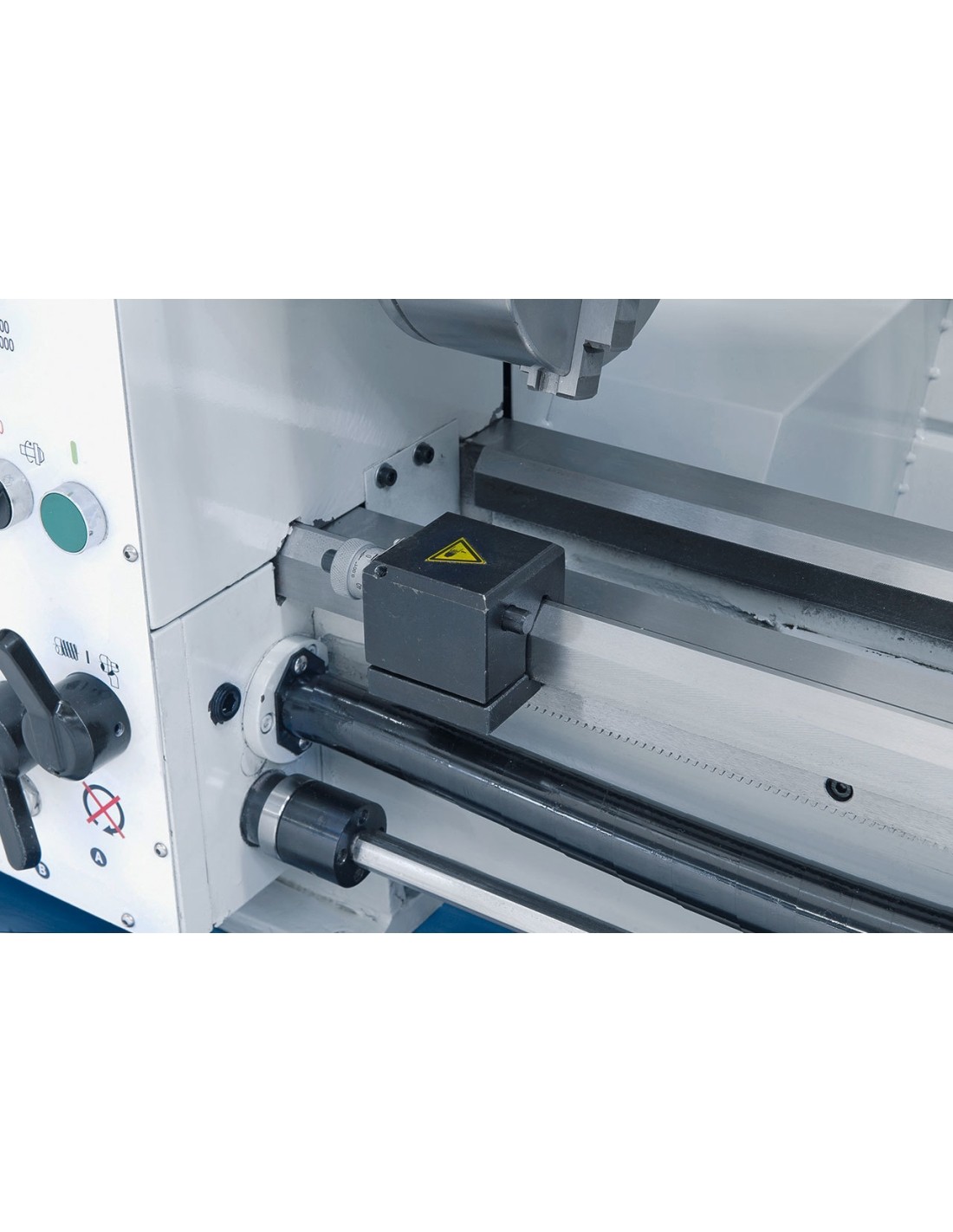

  • Safety clutch
  • Micrometer longitudinal fence

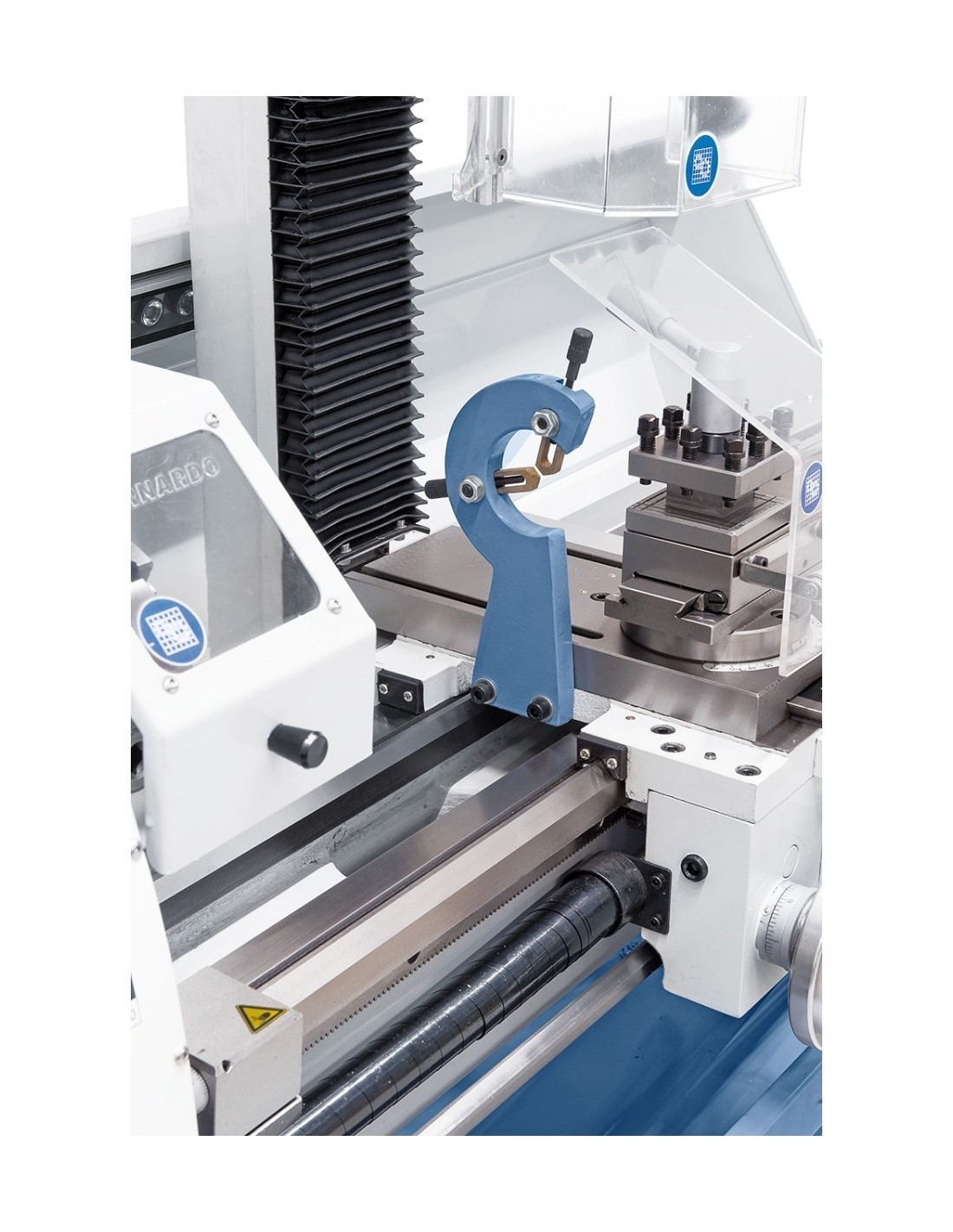

  • Cross slide with top support
  • Frequency inverter
  • Drawbar M 10
  • Digital spindle stroke indication
  • Digital speed indication
  • Thread dial
  • LED machine light

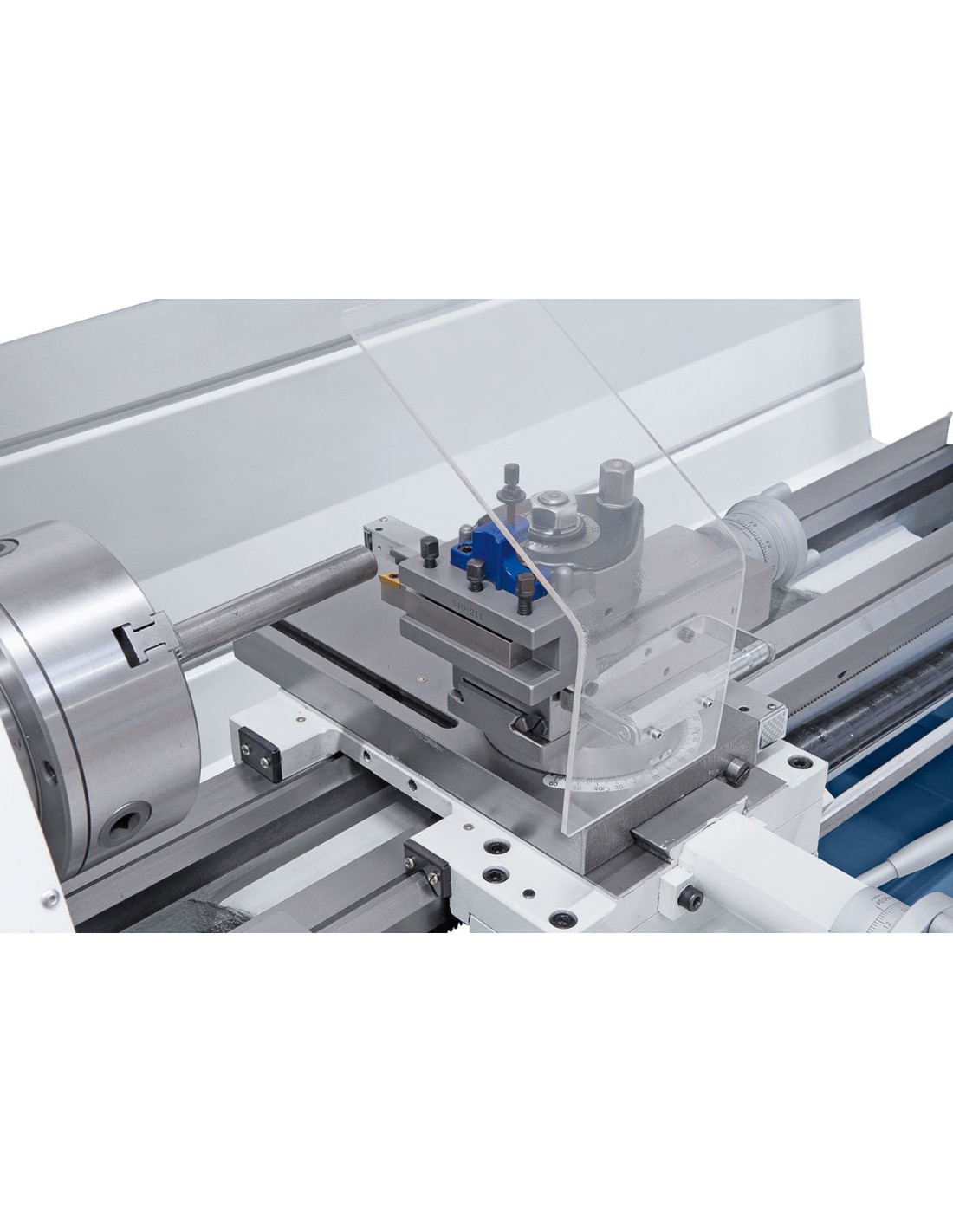

  • Chuck guard
  • Leadscrew cover
  • Splash guard
  • Tools
