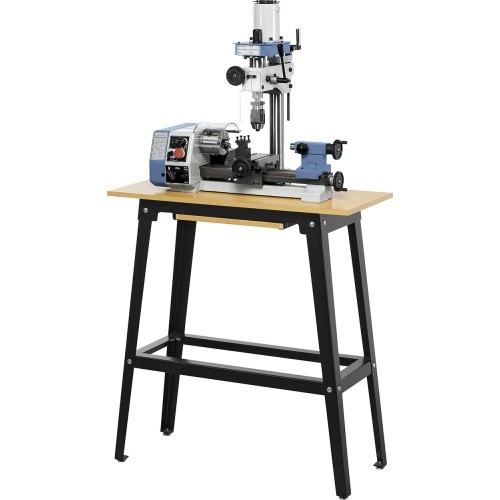

Proficenter 250
Proficenter 250
Proficenter 250
Proficenter 250
Proficenter 250
  • Online only
Proficenter 250
Proficenter 250
Proficenter 250
Proficenter 250
Proficenter 250

Distance between centers
250 mm
Spindle taper
MT 2
Taper of tailstock sleeve
MT 1
Travel of tailstock sleeve
25 mm
Weight approx.
39 kg
Center height
75 mm
Swing over bed
150 mm
Spindle bore
10 mm
Metric thread
(5) 0,5 - 1,25 mm
Inch thread
(5) 16 - 24 threads/1"
Machine dimension (W x D x H)
650 x 350 x 520 mm
Drilling capacity in steel
10 mm
Face mill capacity max.
20 mm
Distance spindle to column
105 mm
Spindle stroke
30 mm
Spindle speed, stepless
100 - 1000 / 100 - 2000 rpm
Motor power output S1 100%
0,15 kW / 230 V
Motor power input S6 40%
0,25 kW / 230 V
Speed range, stepless
100 - 2000 rpm
Mill head height adjustable
130 mm

Proficenter 250

1092097
Price €1,698.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 39 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€10.00)
Weight: 39 kg.

Description

Properties

  • Electronic, stepless adjustable drive
  • High-quality ball bearings guarantee high concentricity

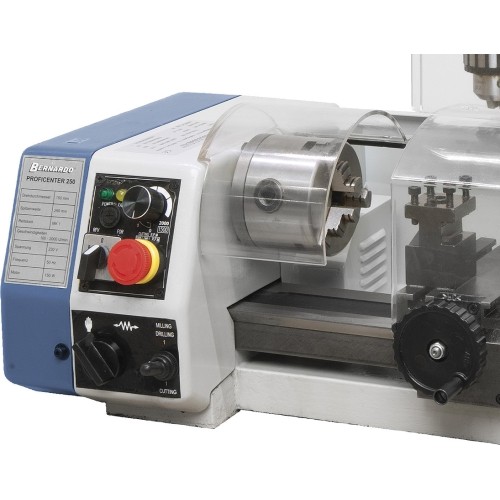

  • User-friendly arranged control elements
  • Straightforward speed change
  • Inductive hardened, polished machine bed
  • Leadscrew features automatic feed

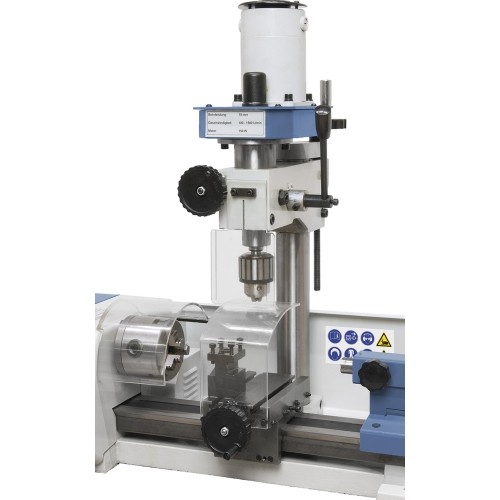

  • Milling attachment includes precise fine adjustment
  • Spindle with clamp device ensures accurate results

Standard accessories

  • 3-jaw chuck 80 mm
  • Chuck cover
  • 2-way tool post holder

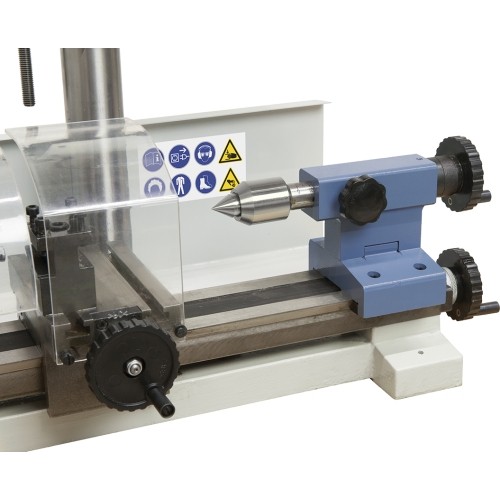

  • Live center MT 1
  • Drill chuck 1 - 10 mm / B 12
  • Tools
