Distance between centers
650 mm
Spindle taper
MT 2
Taper of tailstock sleeve
MT 3
Travel of tailstock sleeve
105 mm
Weight approx.
256 kg
Center height
140 mm
Swing over bed
280 mm
Spindle bore
26 mm
Speed Range
(12) 70 - 2000 rpm
Longitudinal feed
(15) 0,036 - 0,364 mm/rev.
Cross feed
(15) 0,019 - 0,188 mm/rev.
Metric thread
(27) 0,25 - 5 mm
Inch thread
(20) 6 - 96 threads/1“
Machine dimension (W x D x H)
1400 x 720 x 970 mm
Drilling capacity in steel
16 mm
Face mill capacity max.
50 mm
End mill capacity max.
16 mm
Distance spindle to column
150 mm
Spindle speed, stepless
50 - 2250 rpm
Mill head tiltable
-90° to +90°
Height adjustment of mill head
195 mm
Motor power output S1 100%
0,50 kW / 230 V
Motor power input S6 40%
0,75 kW / 230 V
Taper at spindle bore
MT 4
Bed width
160 mm

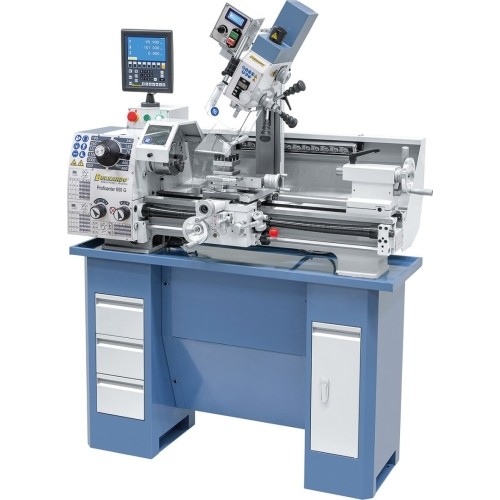

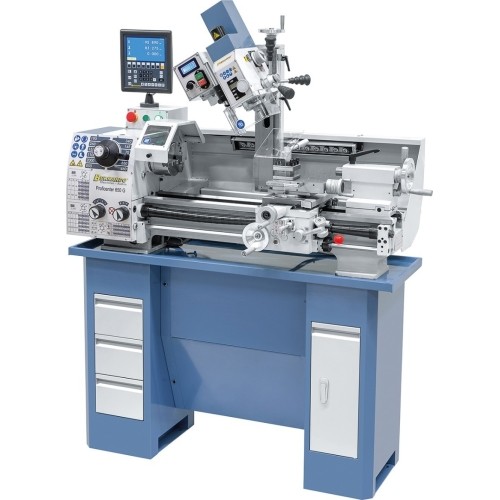

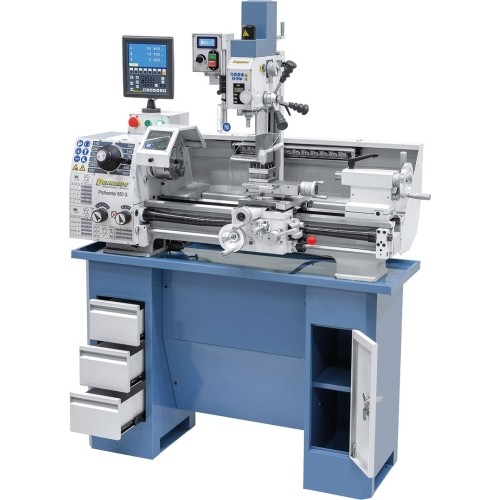

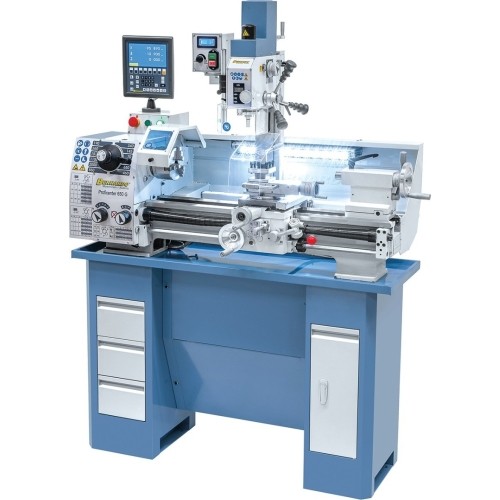

Proficenter 650 G / 230 V incl. 2-axis digital readout ES-12 V

1253313
€5,623.00
Tax included
Monthly payment from 138.05€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 256 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 256 kg.

Description

Properties

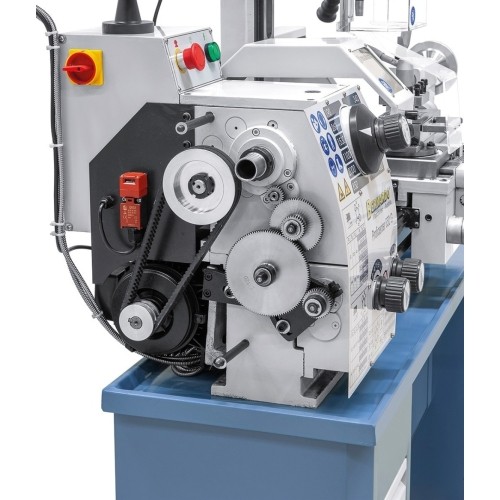

  • Control gear allows easy and quick speed change
  • High-quality tapered rollerbearings ensure high concentricity of spindle nose (≤ 0,009 mm)
  • Powerful motor for high torque, speed range 70 – 2000 rpm
  • Wide range of applications: precision mechanics, training and education, etc.
  • Logically arranged feed setting allows easy, smooth adjustment
  • Solid machine bed with inductive hardened and polished guideways
  • Ideal for processing steel, non-ferrous metals and plastics

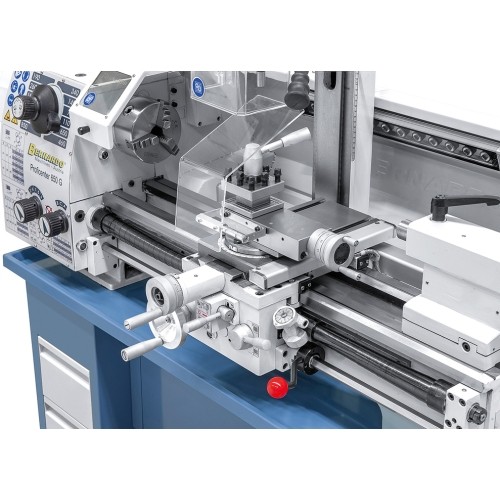

  • Comes complete with leadscrew for thread cutting and automatic longitudinal and cross feed

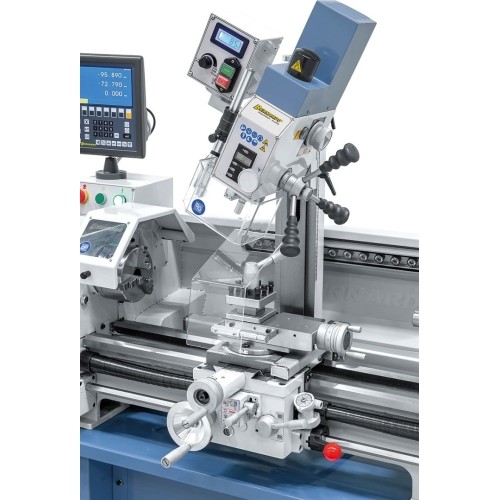

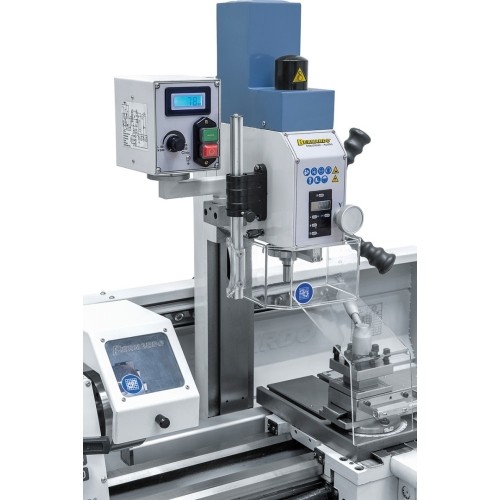

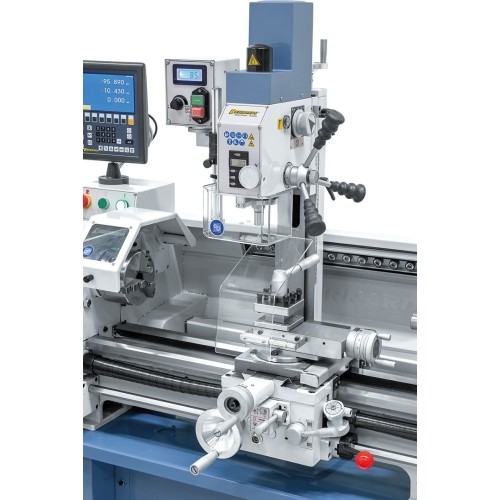

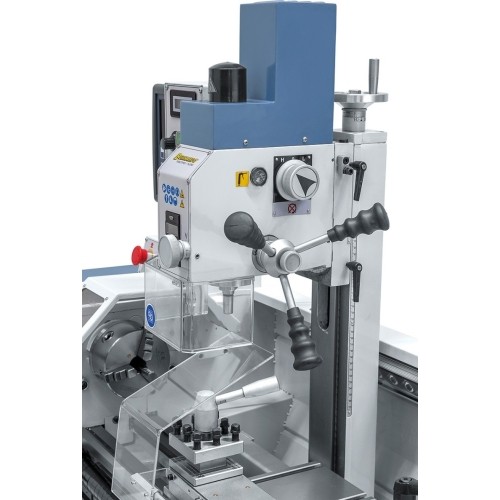

  • Mill head tilts to both sides allowing angular boring, milling of bevels etc.
  • Right and left milling spindle rotation comes standard

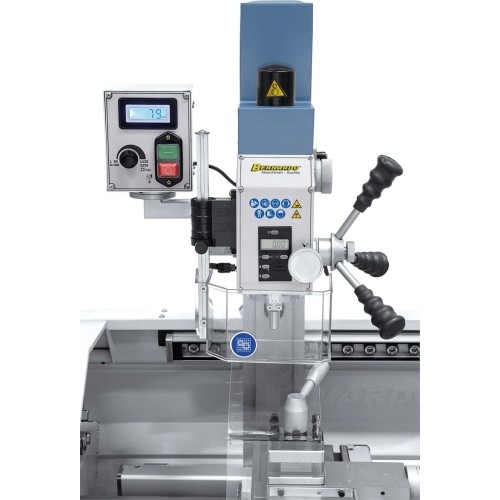

  • Handwheel allows fine spindle feed when milling

Standard accessories

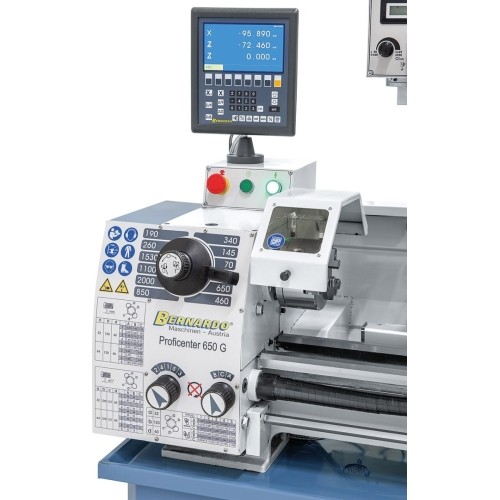

  • 2-axis digital readout ES-12 V with LCD-display
  • 3-jaw chuck 125 mm
  • Flange 125 mm
  • Drill chuck 1 – 13 mm / B 16
  • Drill chuck arbor MT 2 / B 16
  • Dead centers
  • Thread dial
  • LED machine light
  • Change gears
  • 4-way tool post holder
  • Cross slide with top support
  • Digital spindle stroke display
  • Digital speed display
  • Drawbar M 10
  • Chuck guard
  • Leadscrew cover
  • Splash  guard
  • Tools
