Properties
- Complete with 38 mm spindle bore to allow processing of large shaft diameters
- Strongly reinforced machine bed featuring induction-hardened, polished guide
- Universal in use: longitudinal turning, facing, profiling, thread cutting etc.

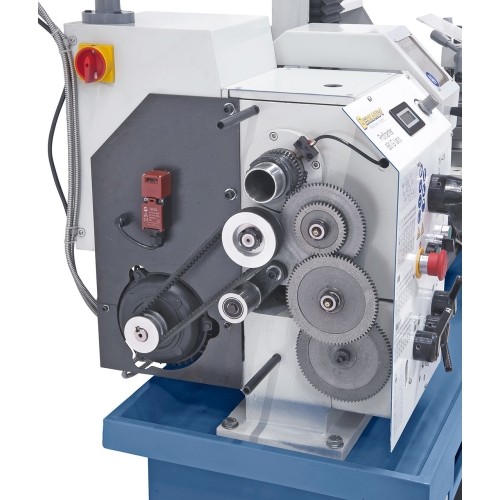

- Change gears for cutting of metric threads are part of the standard accessories
- Serially with Delta frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads
- Main spindle features adjustable tapered roller bearings in P5 quality

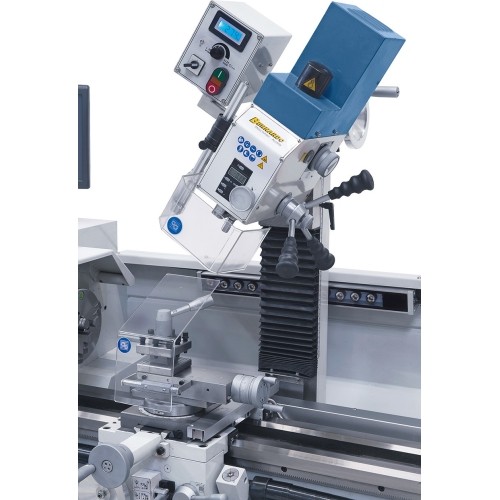

- Mill head with digital display for spindle stroke and speed

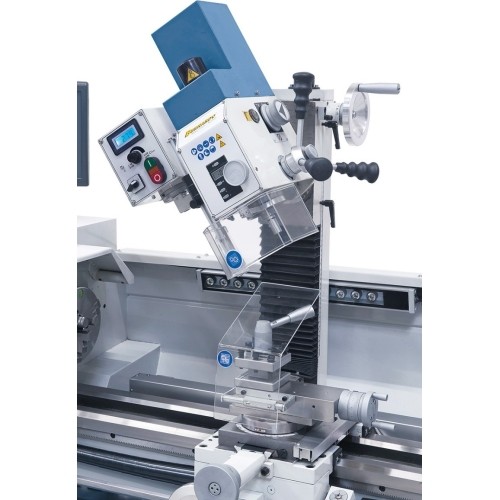

- Mill head tilts to both sides allowing angular boring, milling of bevels etc.
- Suitable for processing of steel, non-ferrous metals and plastics
- User-friendly arrangement of control elements on gear head
- Tailstock features single-lever clamping, adjustable for taper turning
Standard accessories

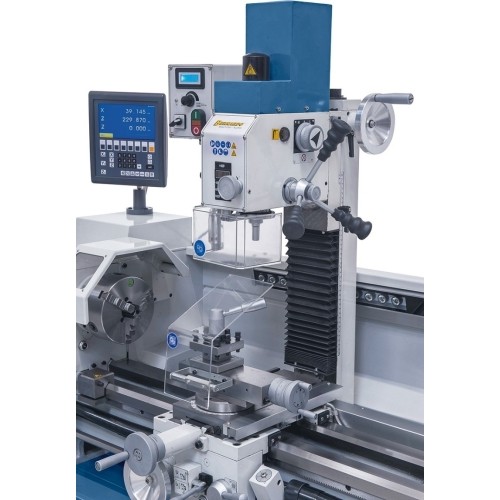

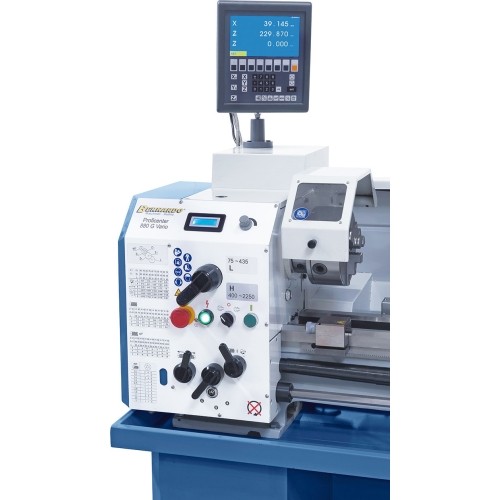

- 2-axis digital readout ES-12 V with LCD-display

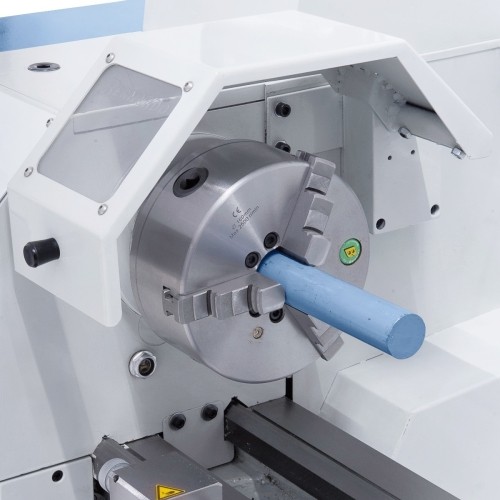

- 3-jaw chuck DK11-160 mm / D4
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 2 / B 16
- Dead centers
- Change gears
- 4-way tool post holder
- Safety clutch
- Micrometer longitudinal fence

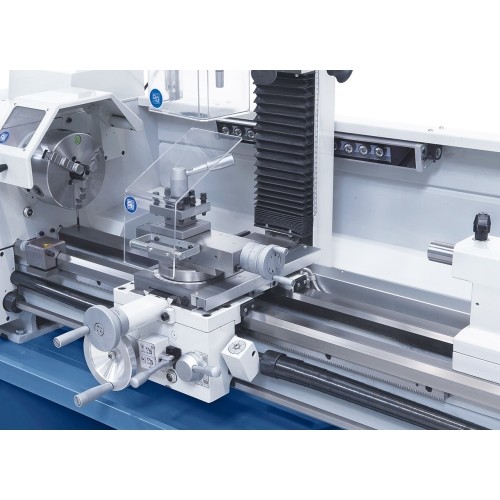

- Cross slide with top support
- Frequency inverter
- Drawbar M 10
- Digital spindle stroke indication
- Digital speed indication
- Thread dial

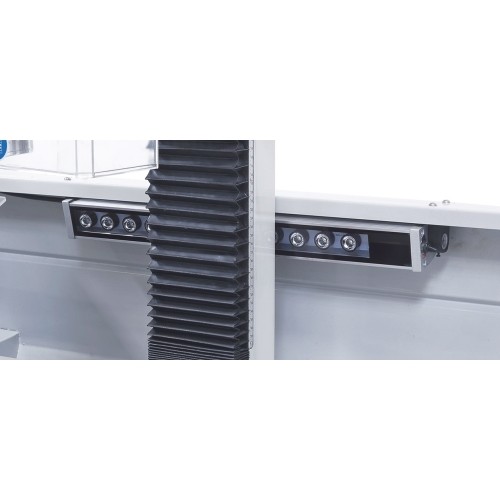

- LED machine light
- Chuck guard
- Leadscrew cover
- Splash guard
- Tools
