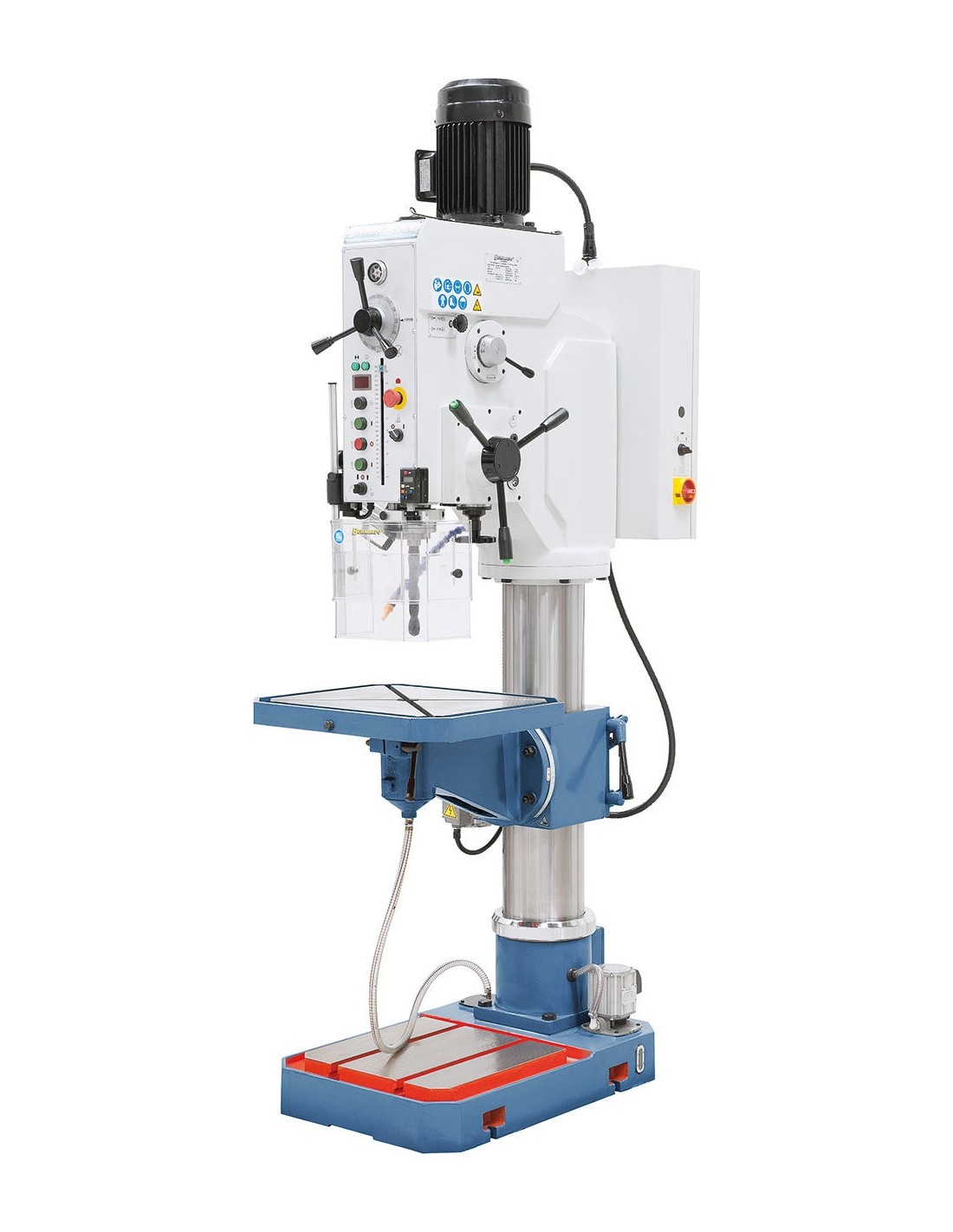

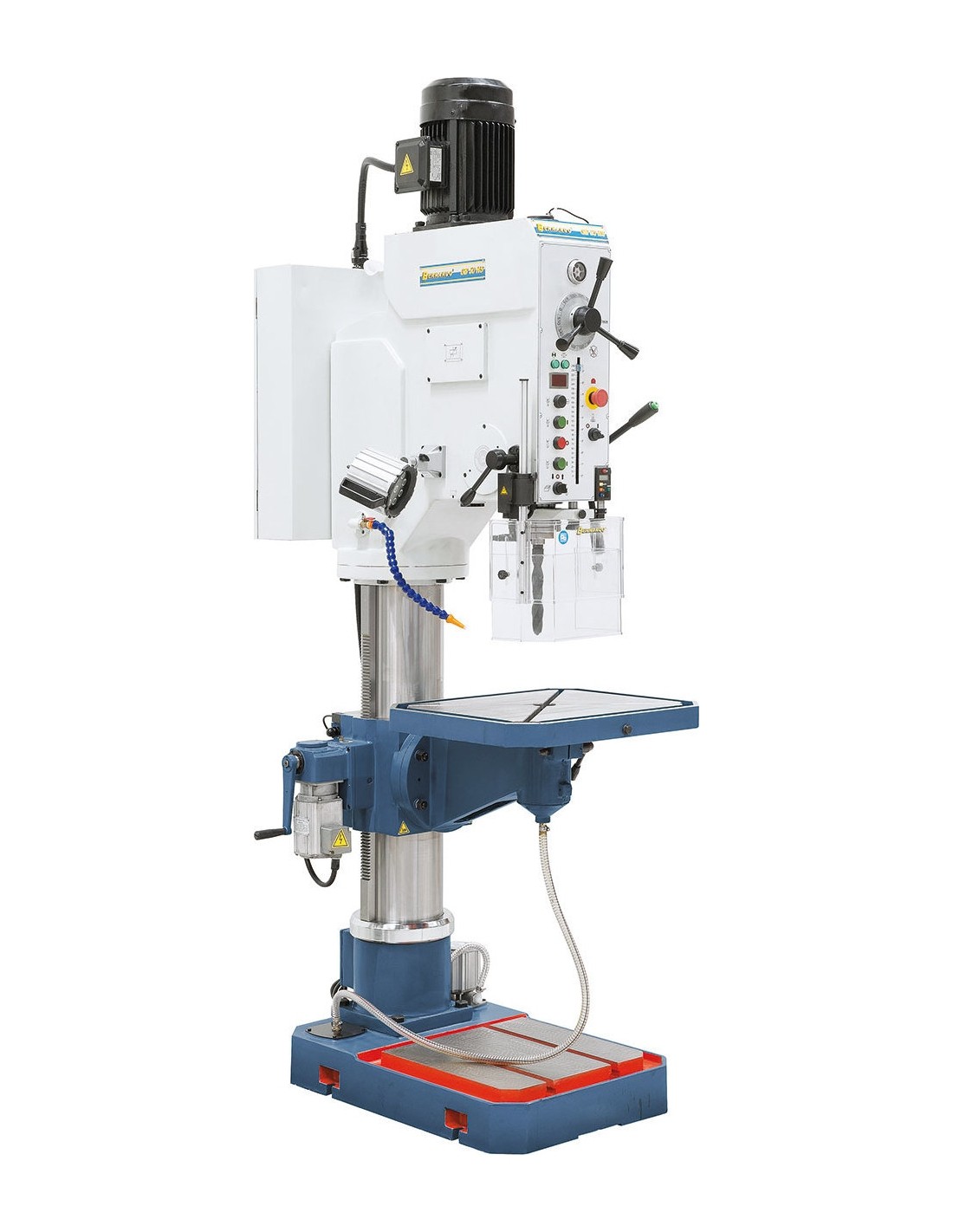

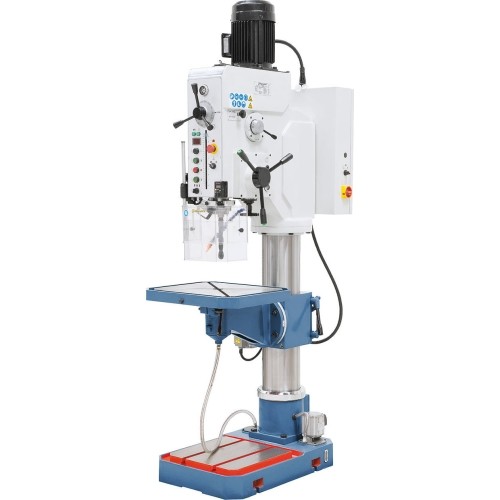

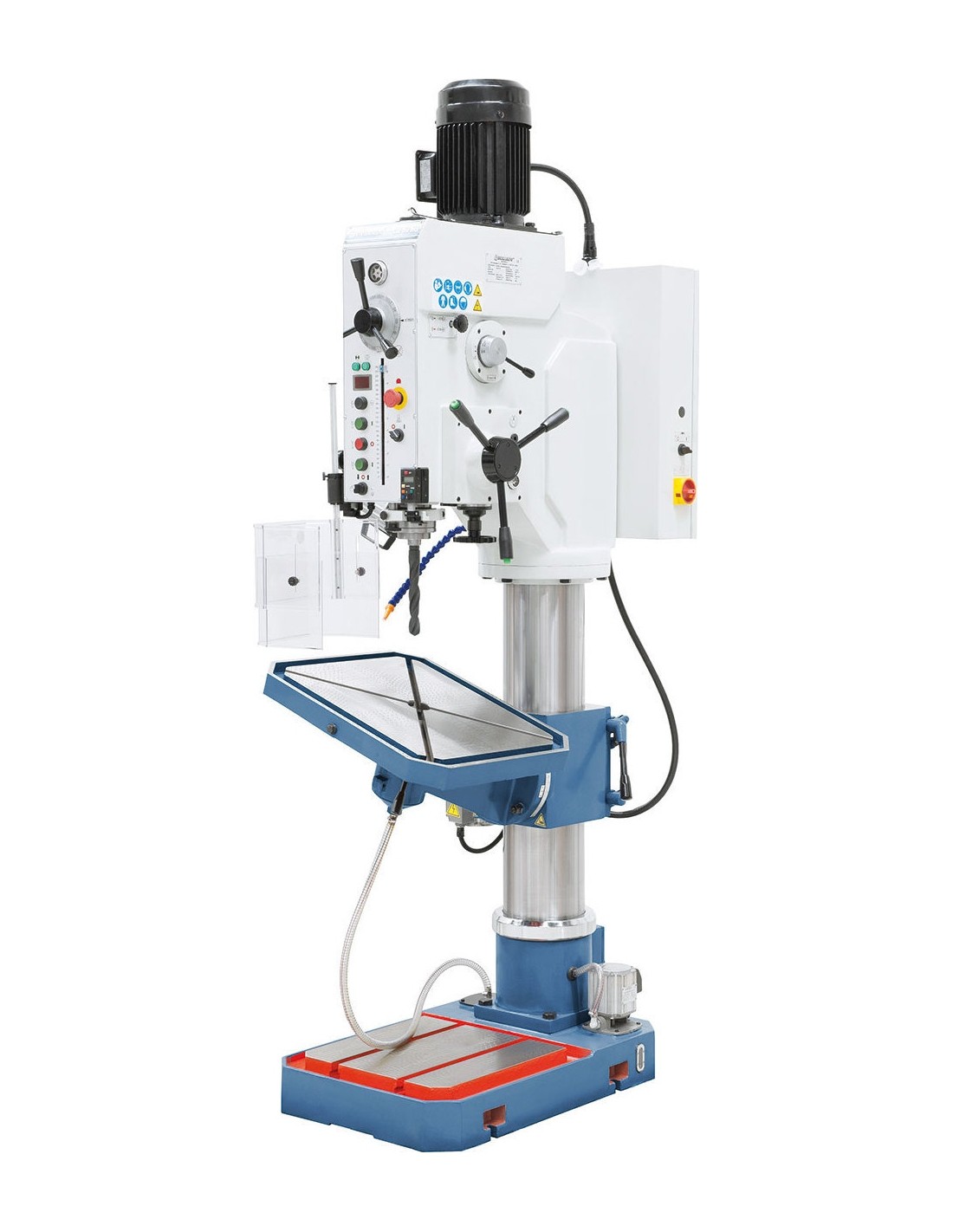

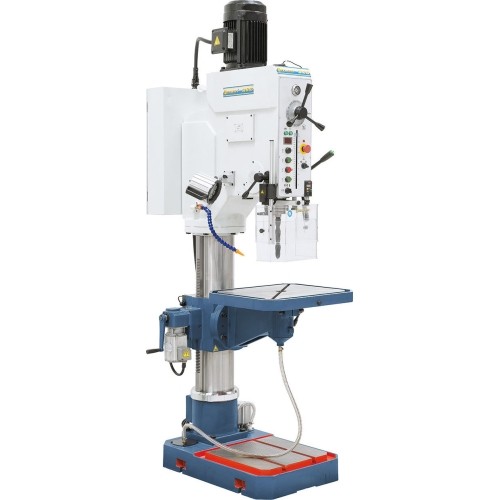

Koloninės gręžimo staklės Bernardo GB 50 HS
Koloninės gręžimo staklės Bernardo GB 50 HS
Koloninės gręžimo staklės Bernardo GB 50 HS
Koloninės gręžimo staklės Bernardo GB 50 HS
Koloninės gręžimo staklės Bernardo GB 50 HS
Koloninės gręžimo staklės Bernardo GB 50 HS
  • Online only
Koloninės gręžimo staklės Bernardo GB 50 HS
Koloninės gręžimo staklės Bernardo GB 50 HS
Koloninės gręžimo staklės Bernardo GB 50 HS
Koloninės gręžimo staklės Bernardo GB 50 HS
Koloninės gręžimo staklės Bernardo GB 50 HS
Koloninės gręžimo staklės Bernardo GB 50 HS

Weight approx.
670 kg
Motor power
2,2 / 2,8 kW
Machine dimension (W x D x H)
700 x 1050 x 2350 mm
Drilling capacity in steel
50 mm
Distance spindle to column
370 mm
Spindle stroke
250 mm
Thread cutting max.
M42
Morse taper
MT 4
Feed range
0,1 / 0,2 / 0,3 / 0,4 mm/rev.
Distance spindle to base
1190 mm
Distance spindle to table max.
600 mm
Table size / T-slot size
600 x 500 mm / 14 mm
Drill chuck
1 - 13 mm / B 16
Column diameter
200 mm
Drilling capacity in cast iron
60 mm
Spindle speeds / steps
40 - 2100 rpm / 12

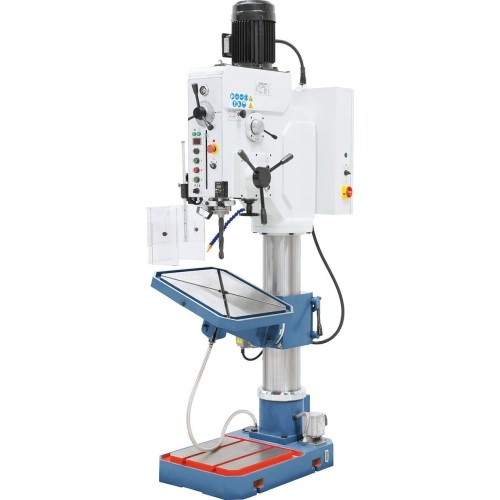

Koloninės gręžimo staklės Bernardo GB 50 HS

1055691
Price €12,969.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, august 31 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 670 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 670 kg.

Description

Properties

  • Motorized table stroke reduces non-production times
  • Thread cutting device and automatic tool release device as standard
  • Solid, vibration-free construction ensures  accurate results
  • Solid, polished steel column suitable for heavy workload

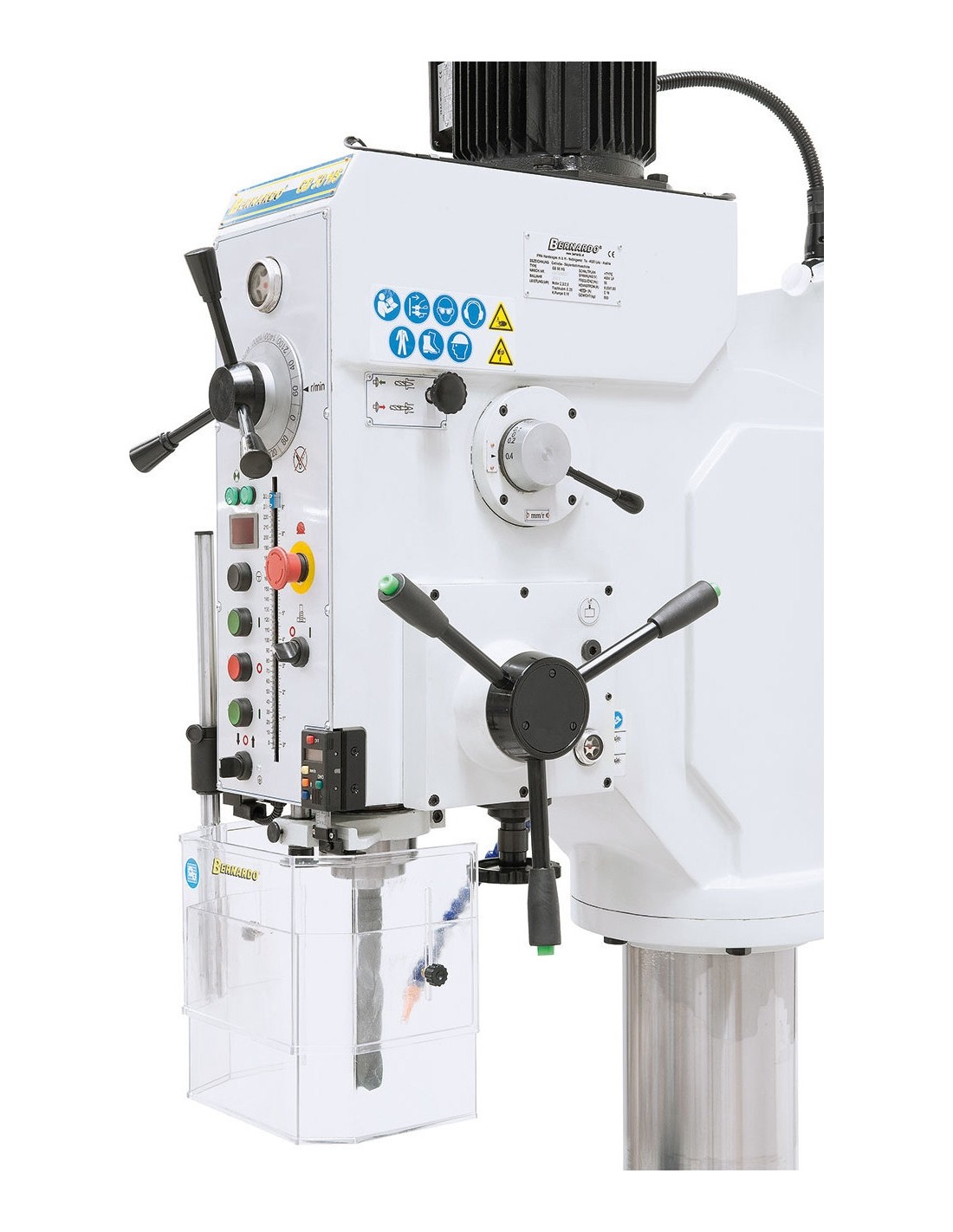

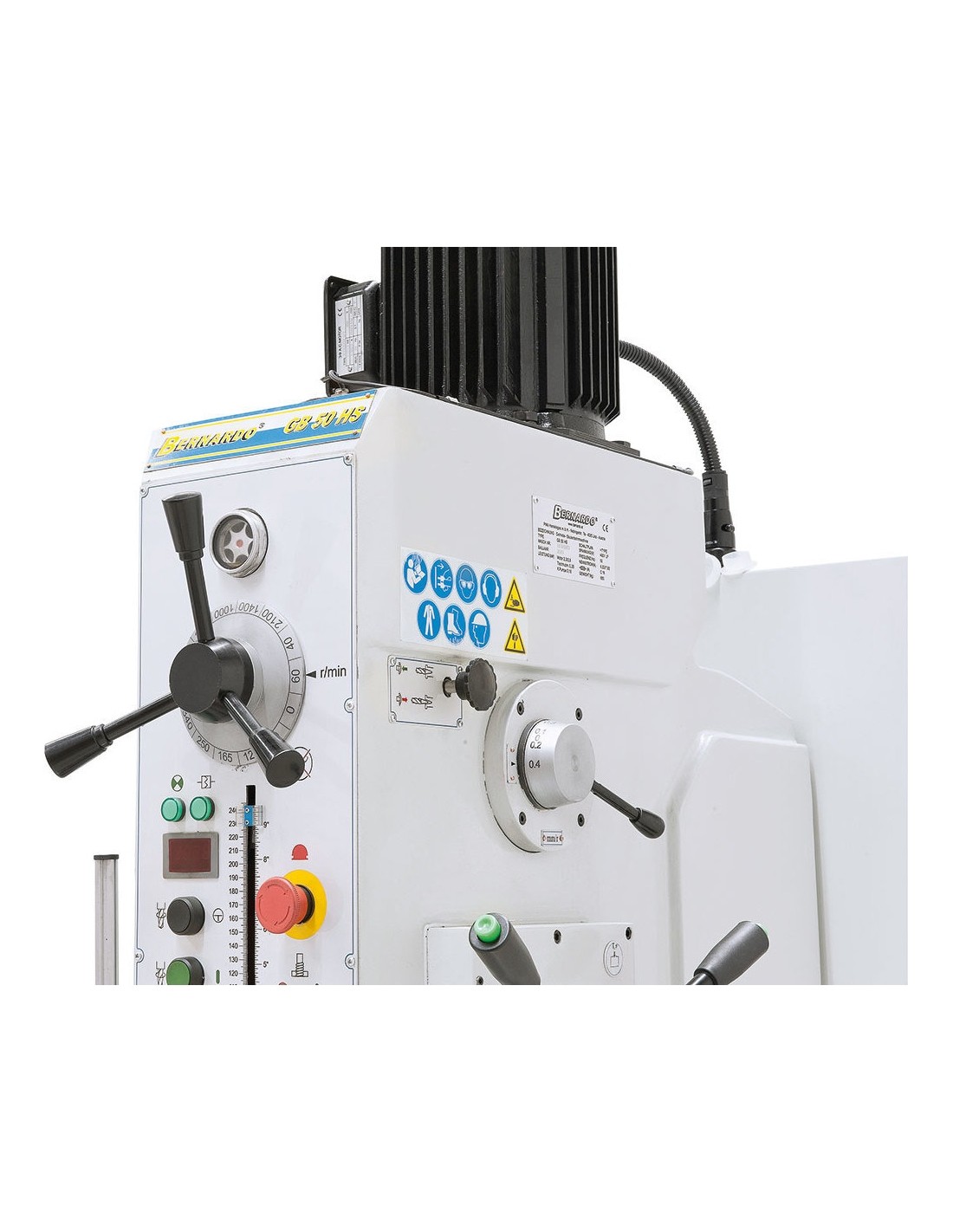

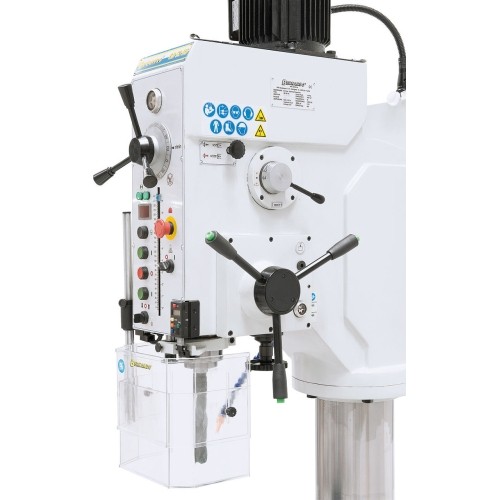

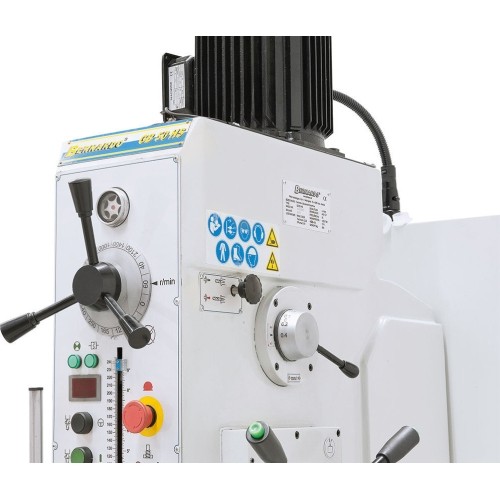

  • Digital displays for speed and drill depth

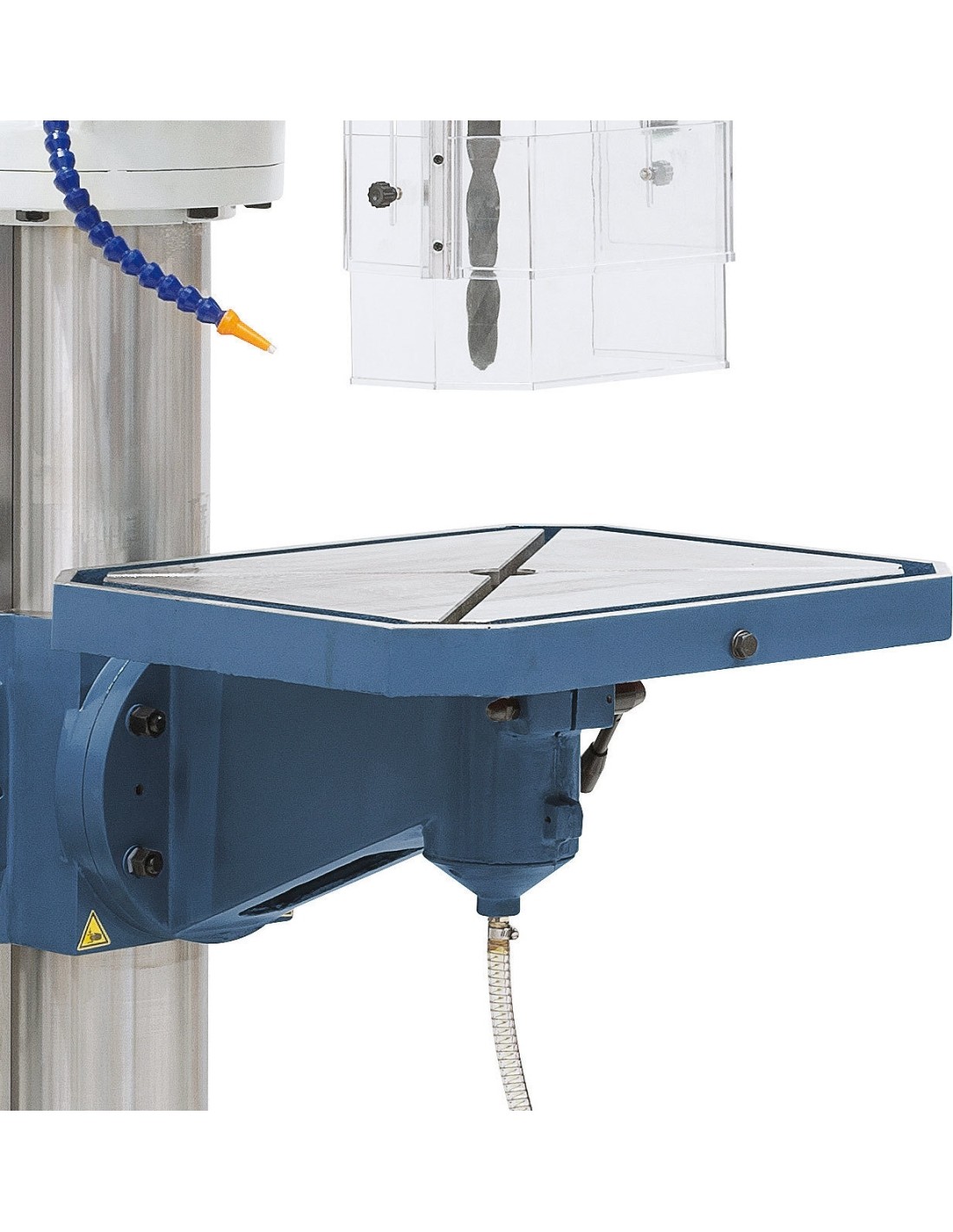

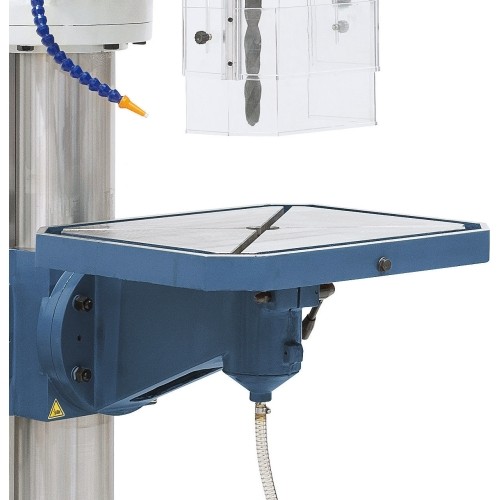

  • Solid grey cast iron table with tilt- and rotatable support
  • Wide range of standard equipment increases efficiency
  • Hardened and polished gear wheels ensure smooth running
  • 4 automatic spindle feeds via electromagnetic clutch

Standard accessories

  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 4 / B 16
  • Morse taper drill sleeve MT 4 /3, MT 4 /2
  • Motoric table stroke
  • Coolant pump
  • Electromagnetic spindle feed
  • Thread cutting device
  • Automatic tool release device
  • LED machine light
  • Initial filling with Shell Tellus 46
  • Digital readout of speeds
  • Digital readout of drill depth
  • Height adjustable protective cover
