- Weight approx.
- 335 kg
- Machine dimension (W x D x H)
- 630 x 700 x 2050 mm
- Distance spindle to column
- 295 mm
- Spindle stroke
- 125 mm
- T-slot size
- 14 mm
- Motor power output S1 100%
- 1,1 / 1,5 kW (400 V)
- Motor power input S6 40%
- 1,5 / 2,2 kW (400 V)
- Drilling capacity max.
- 32 mm
- Morse taper
- MT 4
- Spindle speeds
- (12) 75 - 3200 rpm
- Distance spindle to base
- 1185 mm
- Distance spindle to table max.
- 775 mm
- Drill chuck
- 1 - 16 mm / B 16
- Column diameter
- 115 mm
- Working surface of base
- 375 x 365 mm
- Table size
- 500 x 455 mm

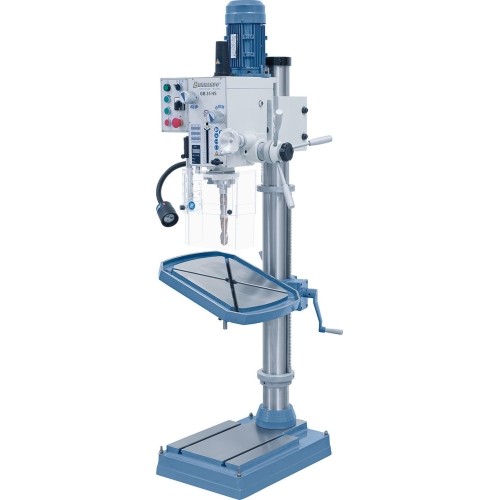

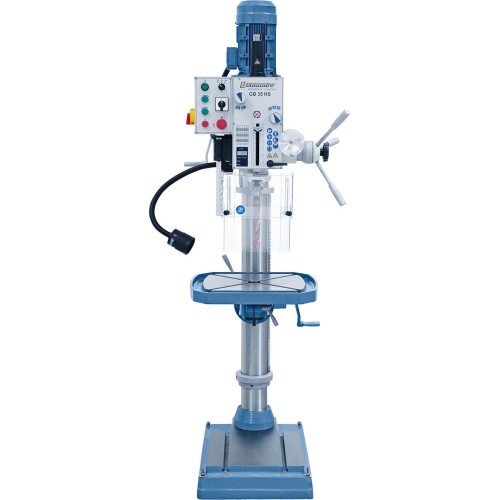

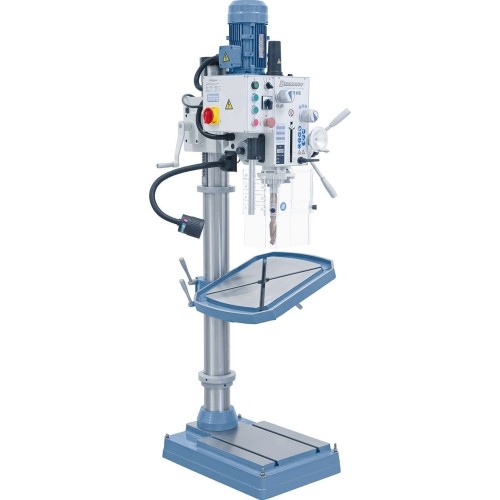

Koloninės gręžimo staklės Bernardo GB 35 HS
1055684
Price
€4,761.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up thursday, may 14 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 335 kg.
We will deliver the product to you via: 5-11 w.d. Venipak
(€40.99) Weight: 335 kg.
Description
Properties

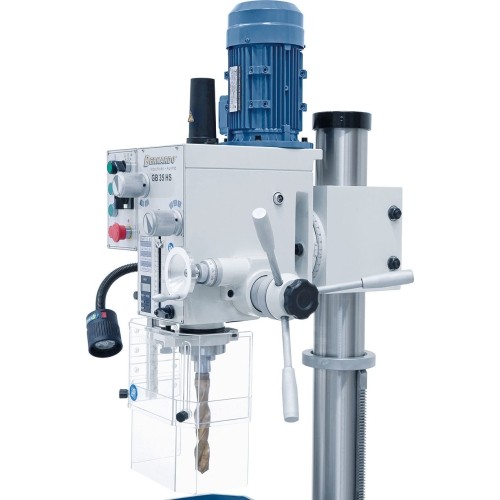

- 2-speed motor with 12 adjustable speeds, speed range 75 - 3200 rpm
- Serially equipped with keyless drill chuck 1 - 16 mm / B 16

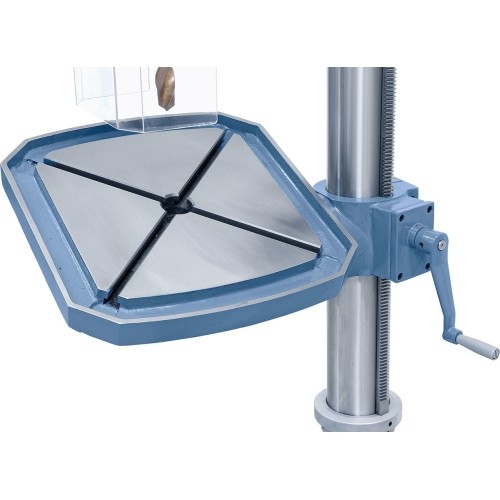

- Large drill table features T-slots and coolant grooves

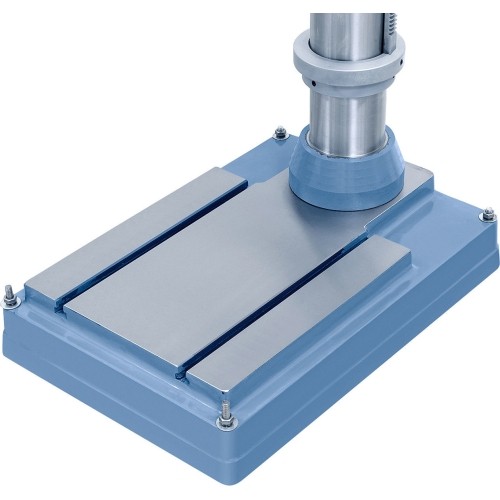

- Machine base designed to mount oversized workpieces
- Lever allows quick and easy speed change

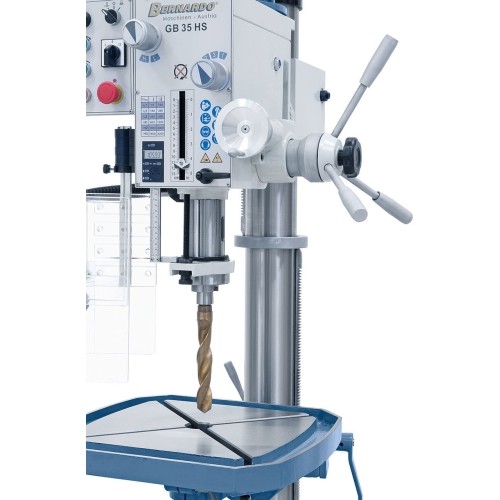

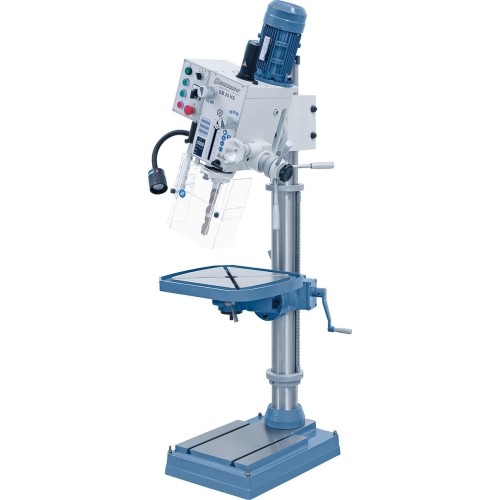

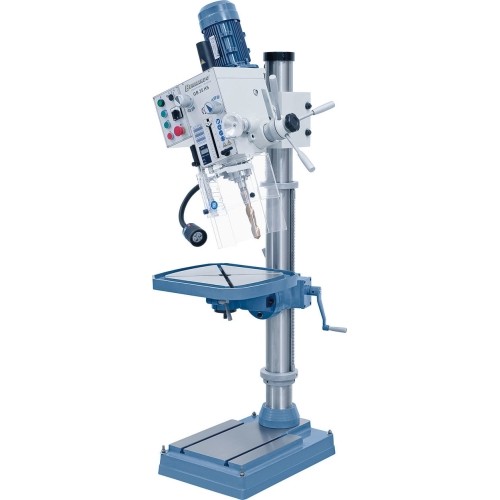

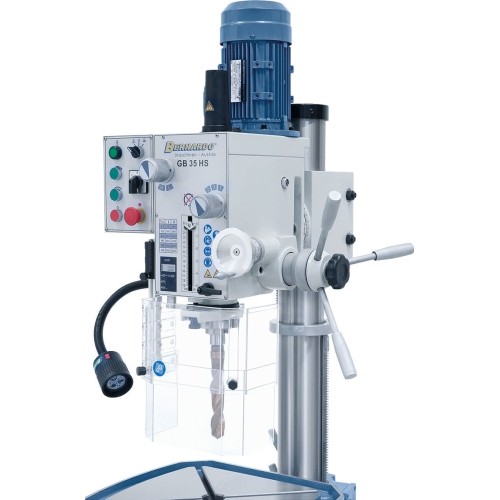

- Gear head is height adjustable, tilts 180˚ and rotates 360˚
- Polished gear wheels, in oil bath, guarantees smooth running
- Clutch allows change from manual to fine feed
- Right and left turning for thread cutting
- Digital display for spindle feed included
Standard accessories
- Keyless drill chuck 1 - 16 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Morse taper drill sleeve MT 4 / 3

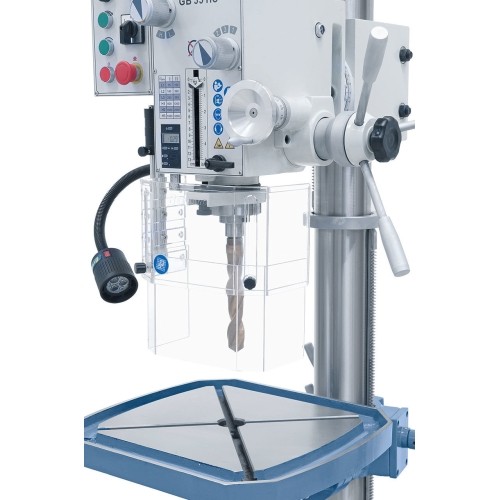

- Height adjustable protective cover
- Digital drill depth indication
- Thread cutting device
- LED machine light
- Tools
