Weight approx.
215 kg
Machine dimension (W x D x H)
450 x 600 x 2020 mm
Distance spindle to column
250 mm
Spindle stroke
130 mm
Motor power input S6 40%
1,1 / 1,5 KW (400 V)
Drilling capacity max.
28 mm
Thread cutting max.
M12
Morse taper
MT 3
Spindle speeds
(12) 75 - 3200 rpm
Distance spindle to base
1210 mm
Distance spindle to table max.
810 mm
Table size / T-slot size
375 x 375 mm / 14 mm
Drill chuck
1 - 13 mm / B 16
Column diameter
100 mm
Working surface of base
325 x 330 mm
Motor power putput S1 100%
0,85 / 1,1 kW (400 V)

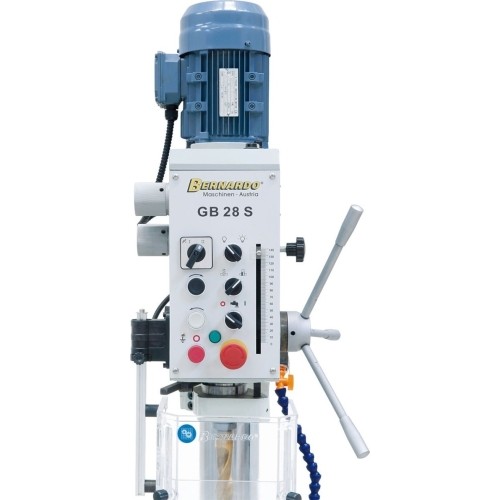

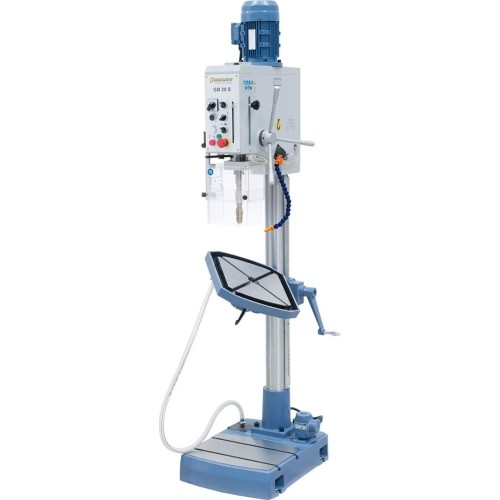

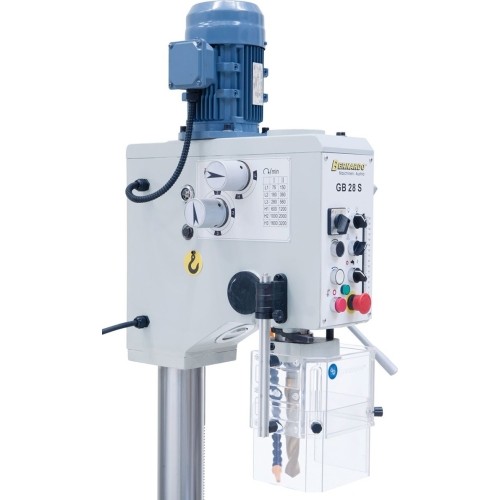

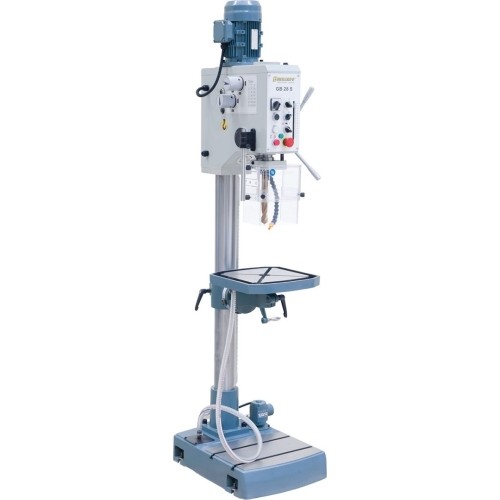

GB 28 S incl. coolant device

1091985
Price €4,316.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 215 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 215 kg.

Description

Properties

  • Powerful 2-step drive motor allows for 12 different speed setting
  • Rotation switch for right and left turning for thread cutting

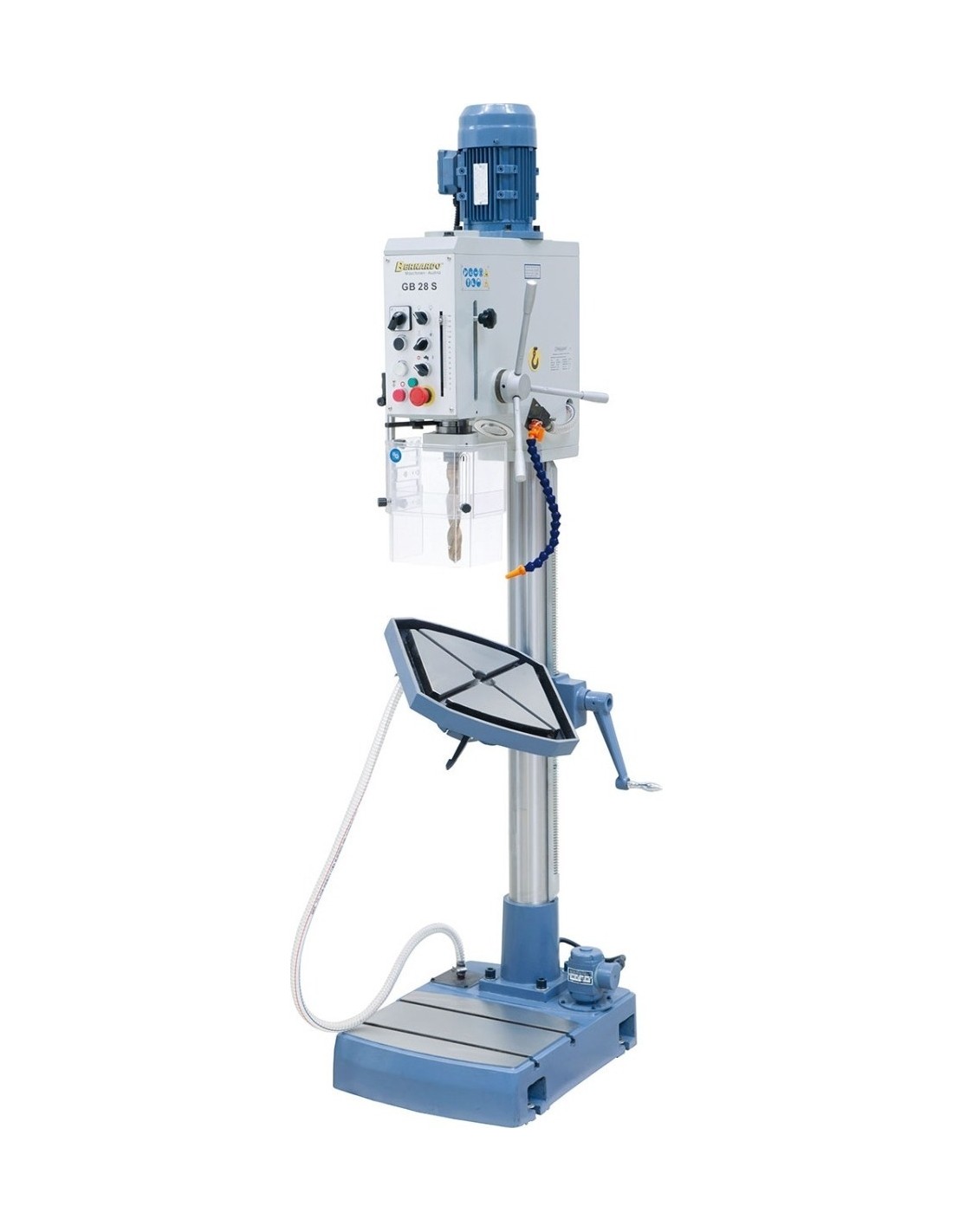

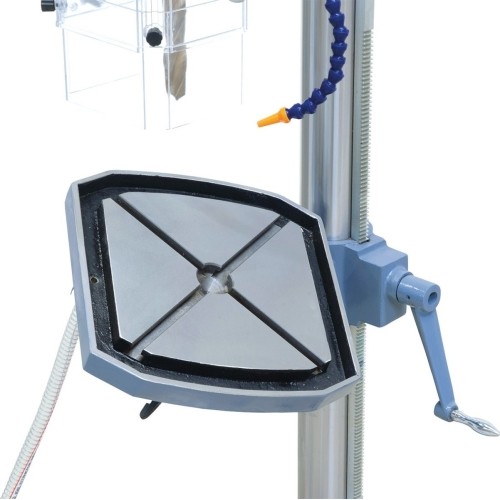

  • Solid work table (360° turnable), tiltable from -45° to +45°

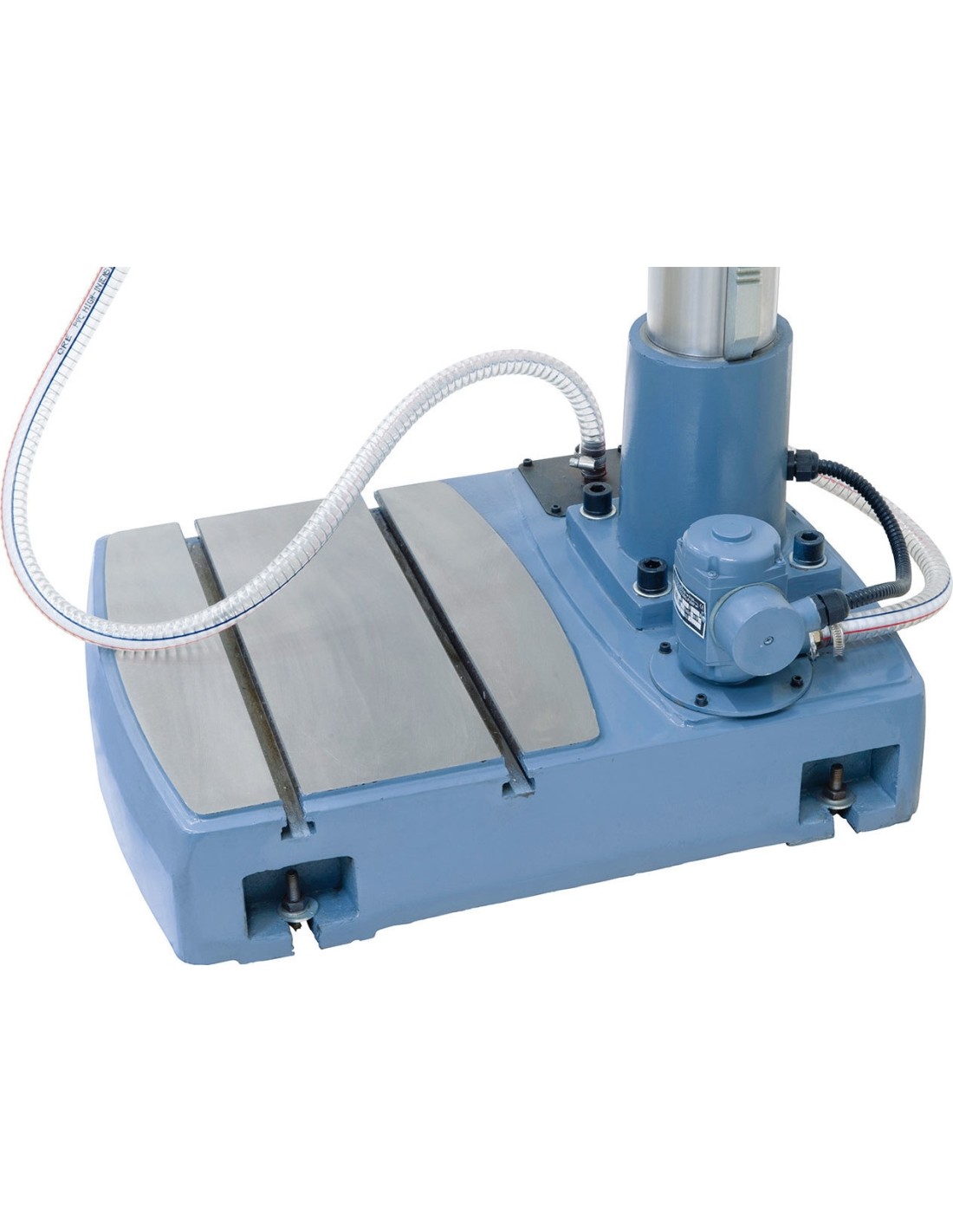

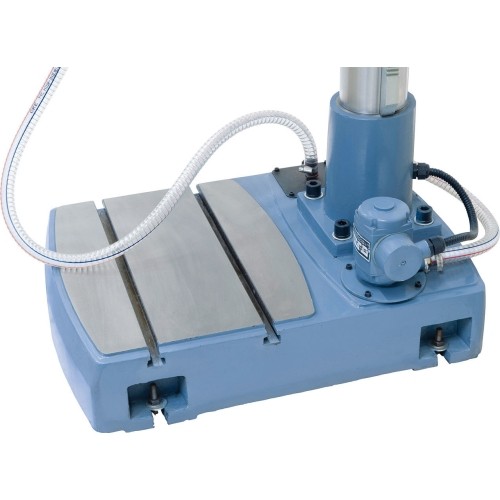

  • Treated machine base for clamping of extraordinary oversize workpieces
  • High-quality ball bearings allow for high concentricity
  • Automatic tool release device allows easy tool change
  • Adjustable drill depth stop, drill depth can be read on scale
  • Solid, polished steel column suitable for heavy workload
  • Polished gear wheels ensure smooth run
  • Height adjustable protective cover with micro switch for increased safety

Standard accessories

  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Morse taper drill sleeve MT 3 / 2

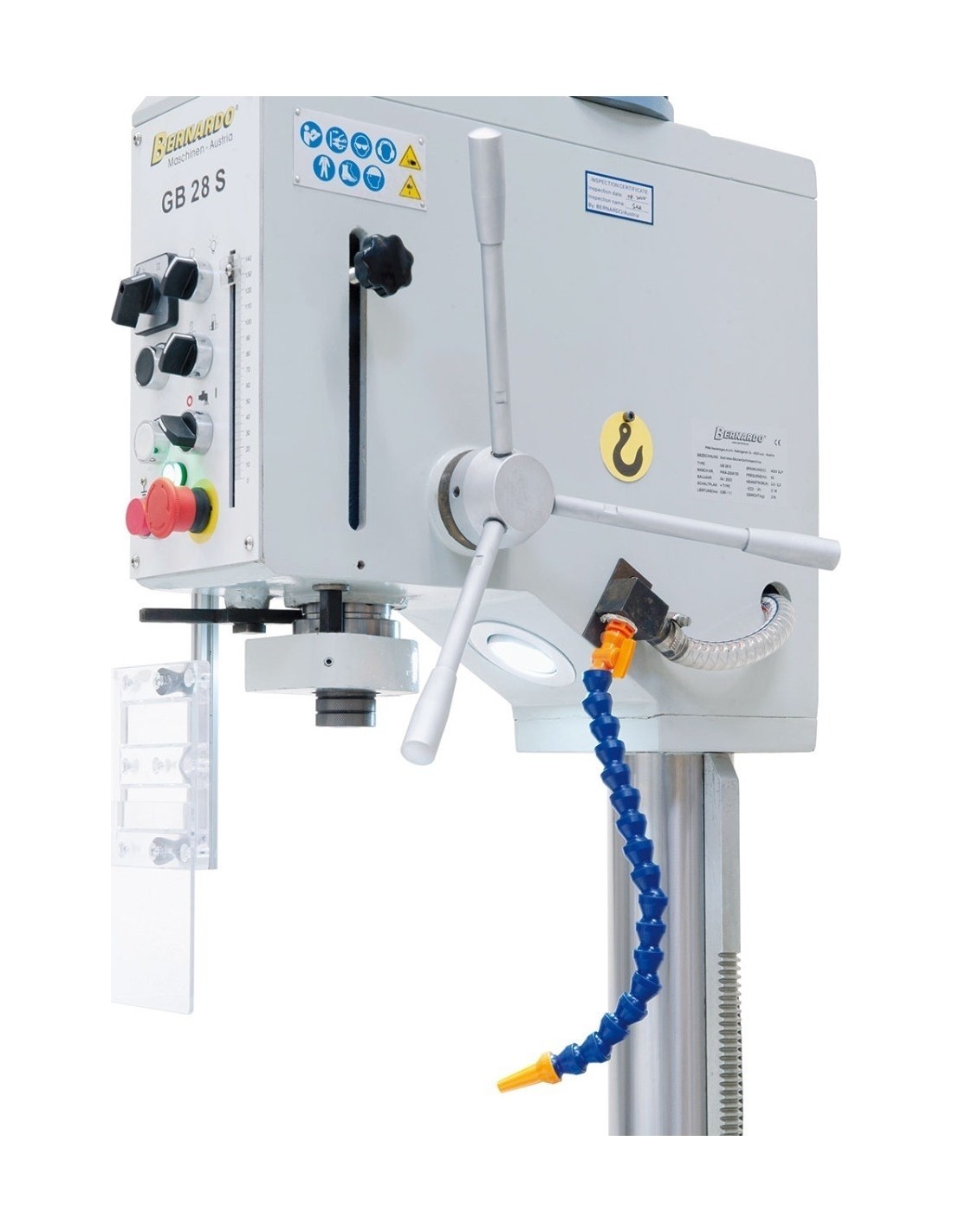

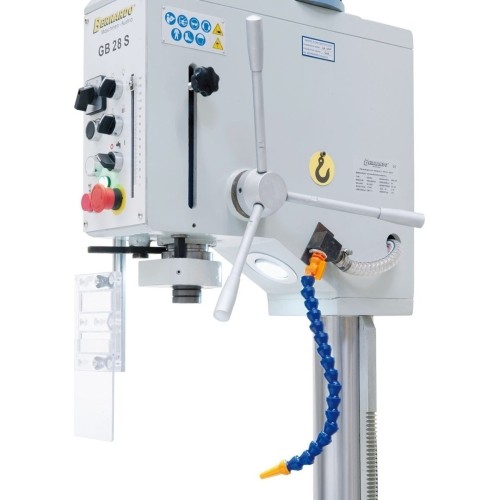

  • Coolant device
  • Automatic tool release device
  • Thread cutting device
  • Left and right turning
  • Height adjustable protective cover
  • LED machine light
