WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Weight approx.
415 kg
Drilling capacity in steel
32 mm
Distance spindle to column
325 mm
Spindle stroke
160 mm
Motor power output S1 100%
1,0 / 1,2 kW
Motor power input S6 40%
1,5 / 1,8 kW
Thread cutting max.
M20
Morse taper
MT 4
Distance spindle to base
1250 mm
Distance spindle to table max.
690 mm
Table size / T-slot size
500 x 420 mm / 14 mm
Drill chuck
1 - 13 mm / B 16
Column diameter
120 mm
Working surface of base
365 x 370 mm
Machine dimensions (W x D x H)
570 x 900 x 2200 mm
Drilling capacity in cast iron
35 mm
Spindle speeds / steps
125 - 3030 rpm / 12
Feed area
0,1 / 0,2 / 0,3 mm/rev

GB 32 STi

1092003
€6,640.00
Tax included
Monthly payment from 163.39€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 415 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 415 kg.

Description

Properties

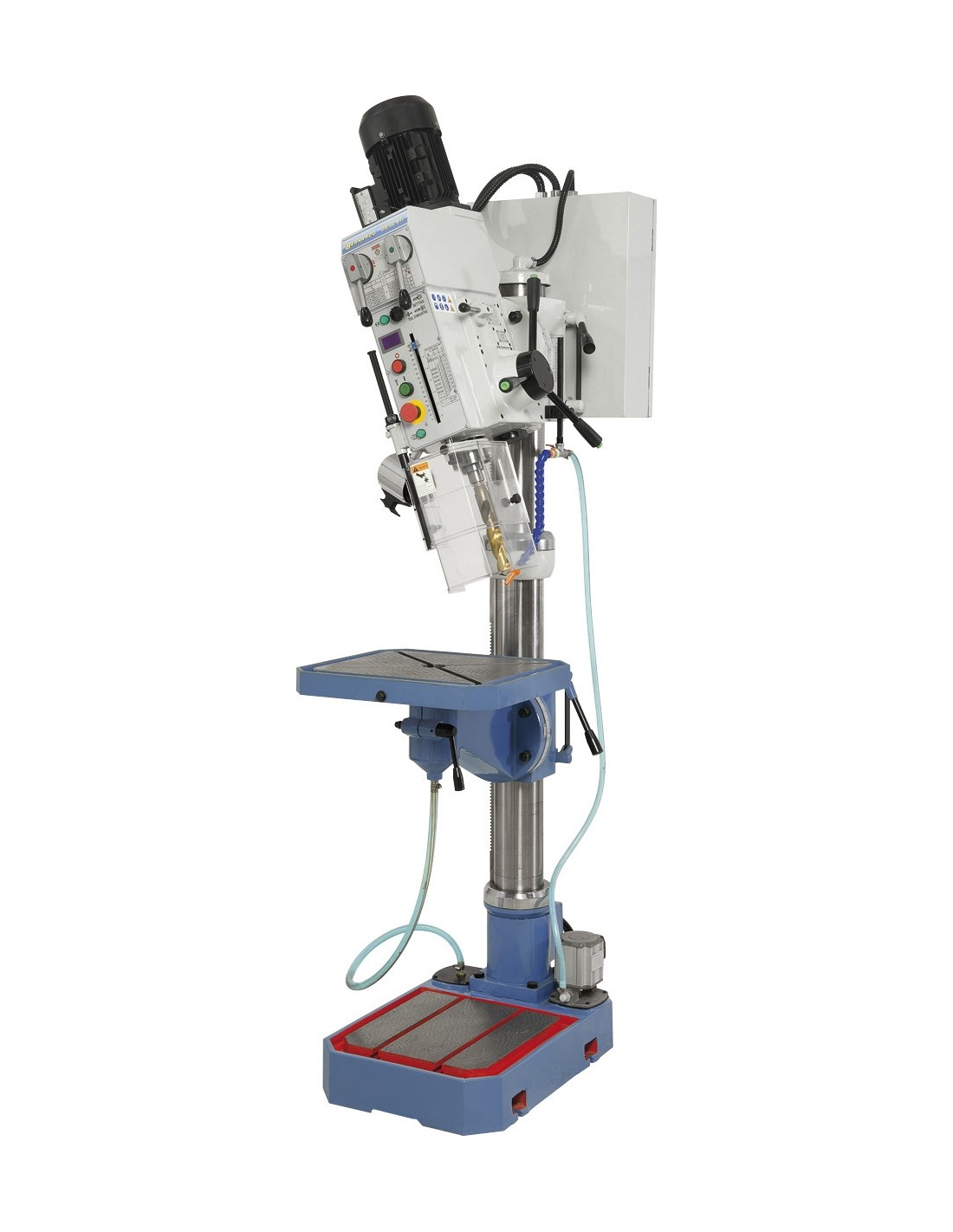

  • Tiltable drill head (-45° to +45°) increases range of applications

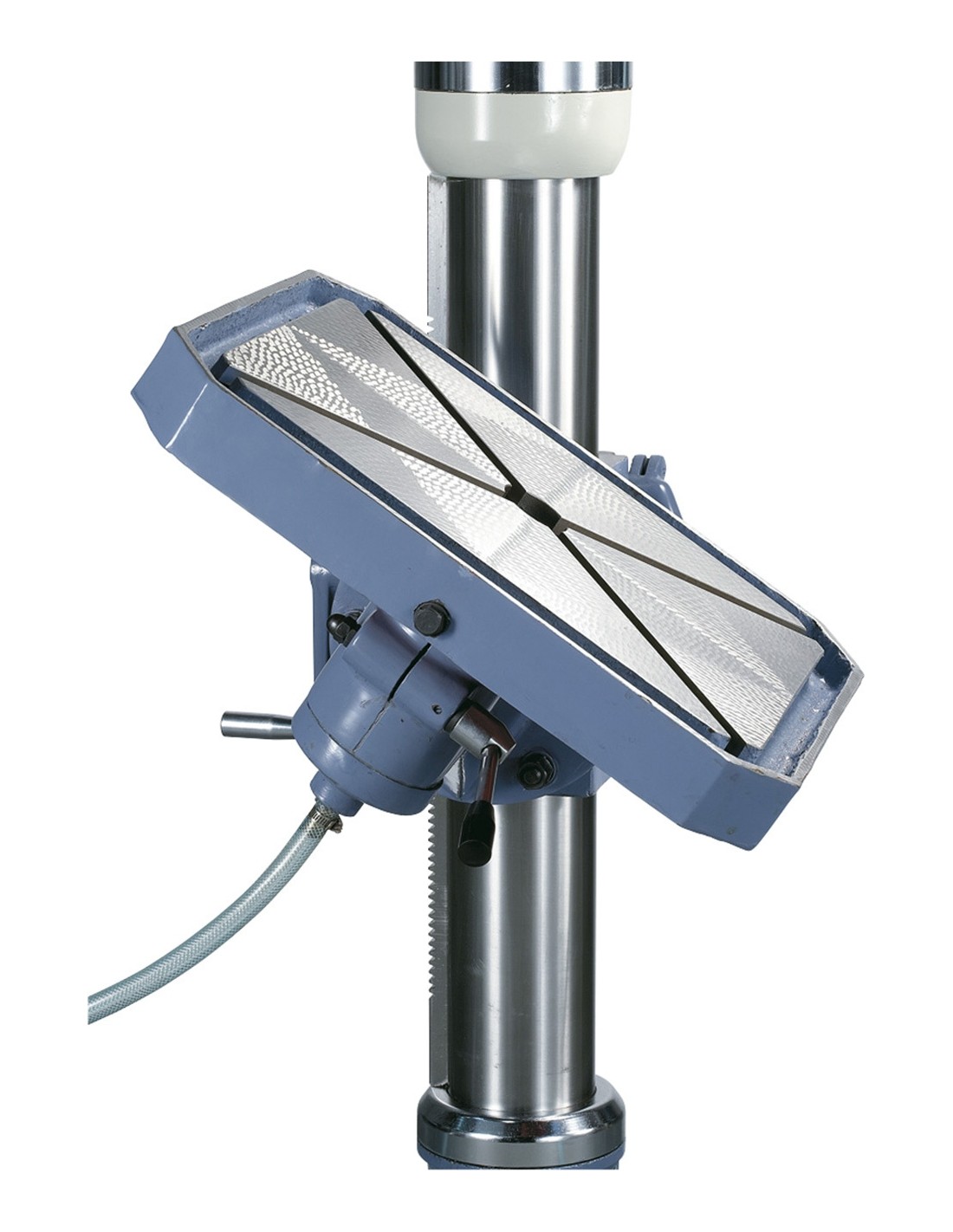

  • Tiltable work table (-45° to +45°) features diagonal T-slots and coolant grooves
  • Digital display allows easy readout of speed
  • Precision made machine base features T-slots and coolant pump
  • Gears running in oil bath ensure smooth run

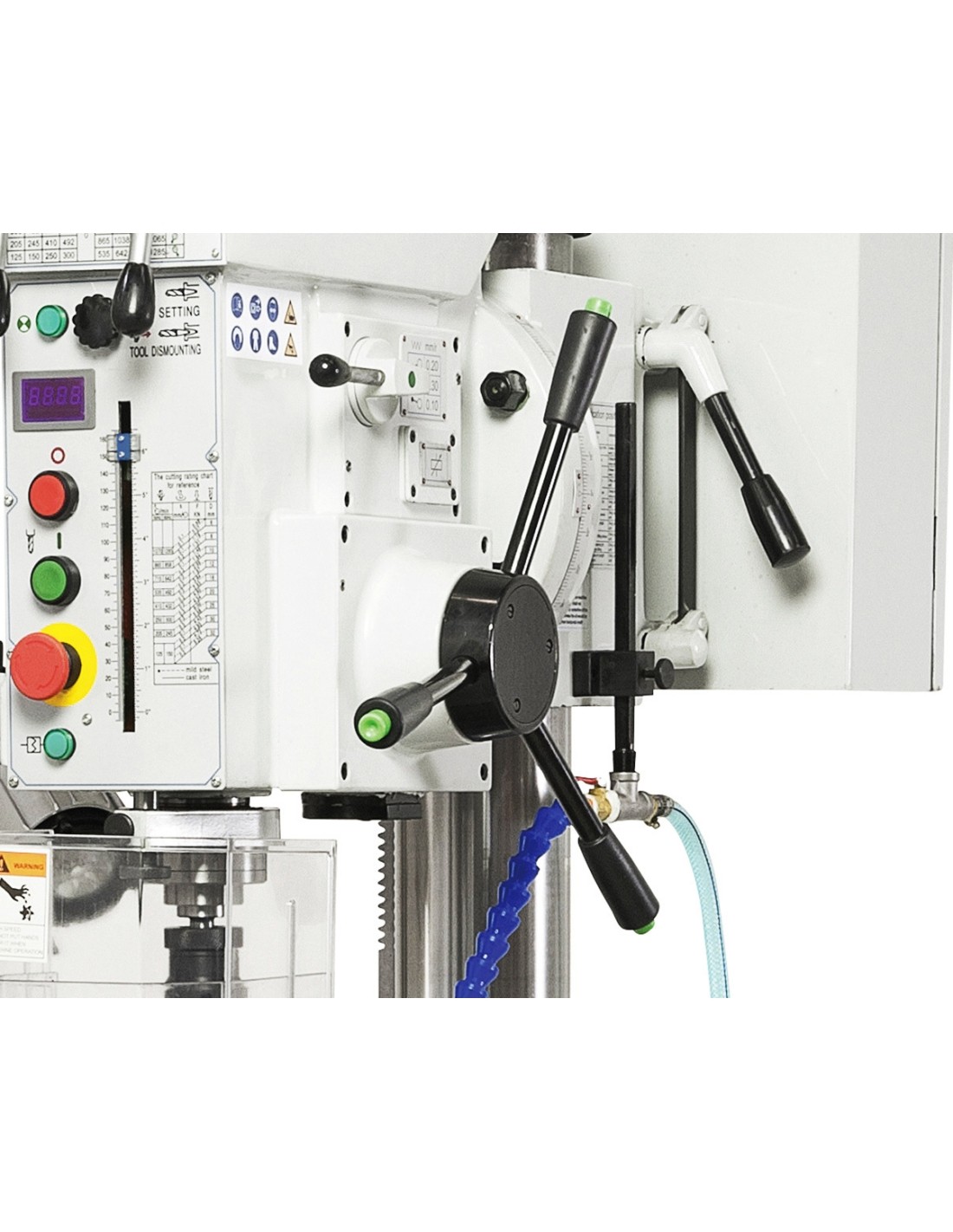

  • Serially equipped with electro-magnetic spindle feed to achieve accurate results
  • Powerful 2-step drive motor is designed for continuous use
  • Hardened and polished gear wheels

Standard accessories

  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 4 / B 16
  • Morse taper drill sleeve MT 4 / 3, MT 4 / 2
  • Coolant pump
  • Electromagnetic spindle feed
  • Thread cutting device
  • Automatic tool release device

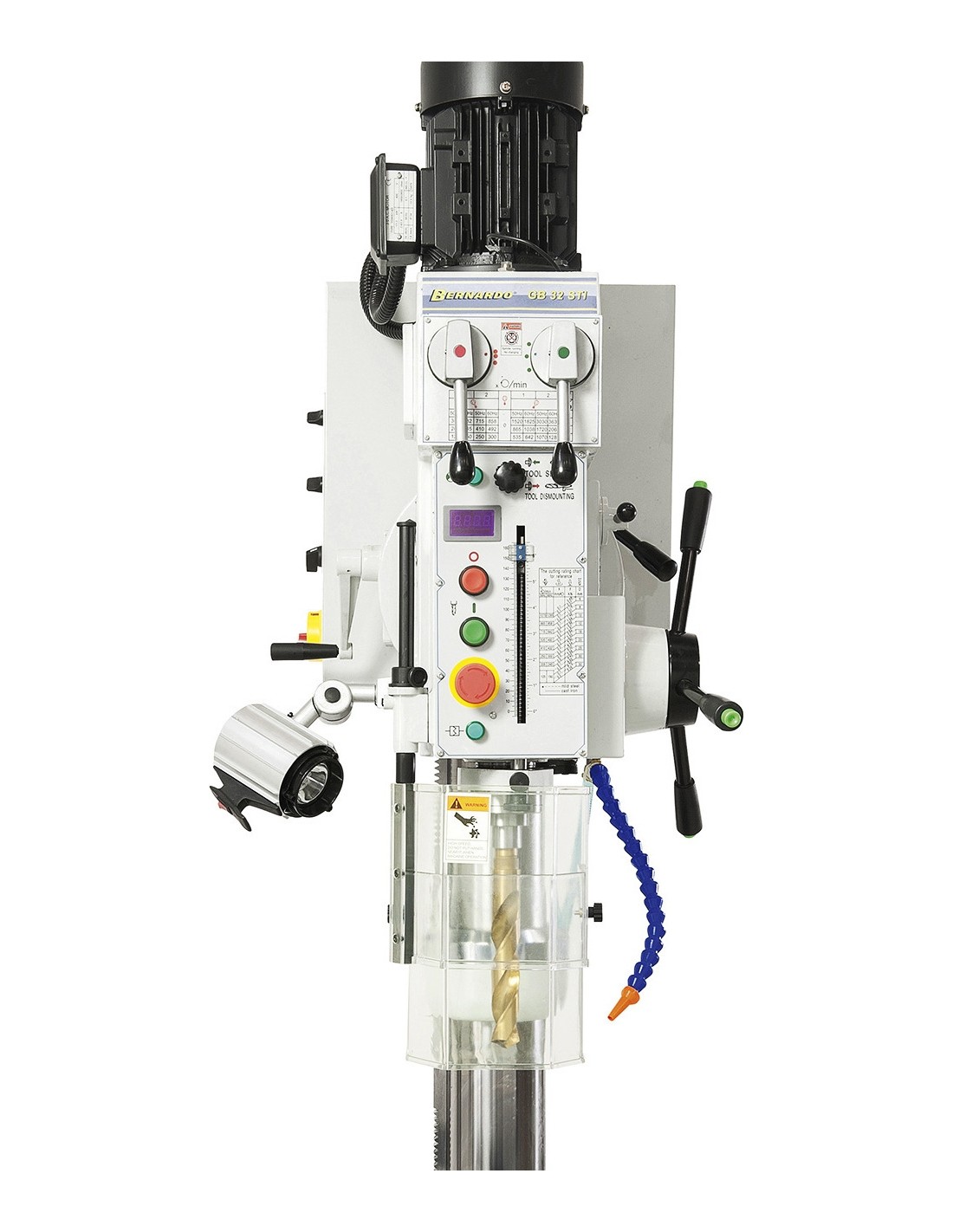

  • LED working light
  • Digital readout of speeds
  • Initial filling with Shell Tellus 46
  • Height adjustable protective cover
