Weight approx.
550 kg
Cutting capacity round / square 90°
140 mm / 140 x 140 mm
200 mm / 170 x 170 mm
230 mm / 210 x 210 mm
270 mm / 260 x 260 mm
Cutting capacity flat 90°
350 x 240 mm
Cutting capacity flat 45° R
230 x 150 mm
Cutting capacity flat 45° L
200 x 140 mm
Working height
975 mm
Cutting speeds
20 – 80 m/min

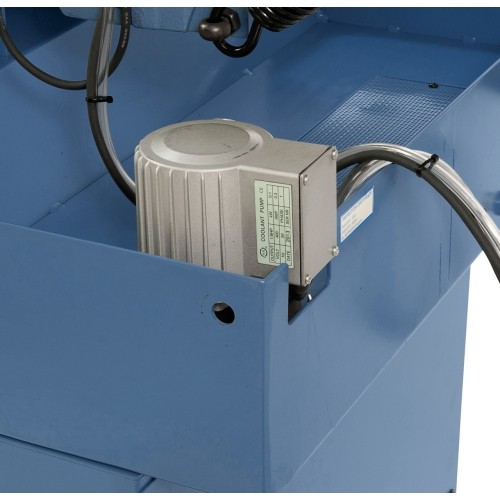

Coolant pump
100 W
Motor power output S1 100%
1,9 kW
Motor power input S6 40%
2,8 kW
Machine dimensions (L x D x H)
2000 x 1300 x 2000 mm
Bandsaw blade dimensions
2925 x 27 x 0,9 mm
Phase
Trifazis (400V)

MBS 350 DG-VR PRO

1092203
Price €10,660.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up tuesday, august 4 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 550 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 550 kg.

Description

Properties

  • Professional bandsaw for locksmith shops, engine construction, tool shops, ...
  • Torsion-free, strong spheroidal cast iron saw frame
  • Stepless cutting speed allows for ideal adjustment to each workpiece (20 - 80 m/min)

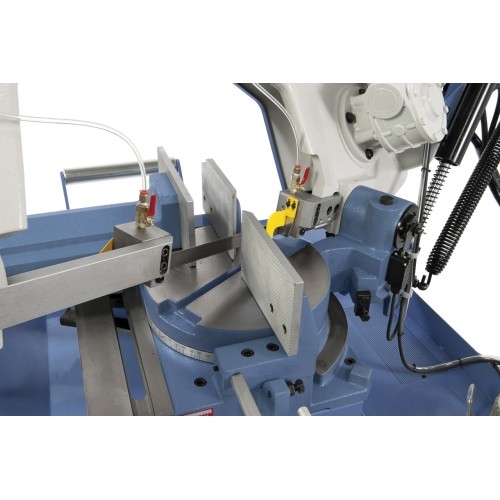

  • The cutting groove in the rotary table moves in conjunction with the swivelling of the saw arm therefore the table suffers no damage when cutting angles

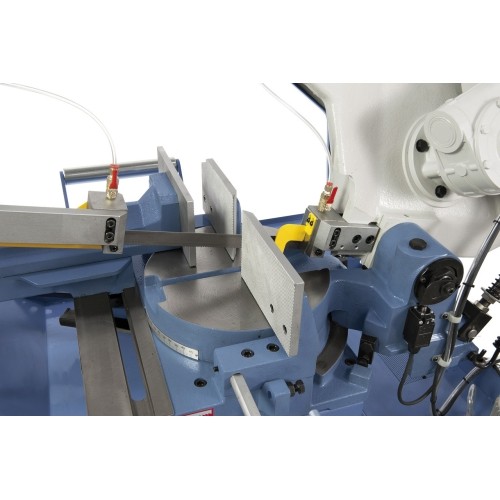

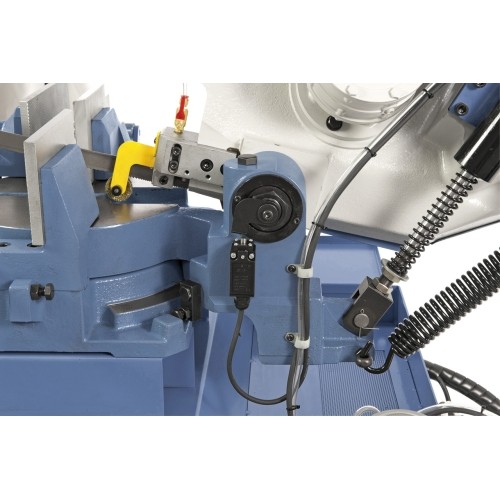

  • Bandsaw blade guiding via combined roll-jaw guide system with carbide inserts
  • Robust construction ensures smooth, vibration-free run

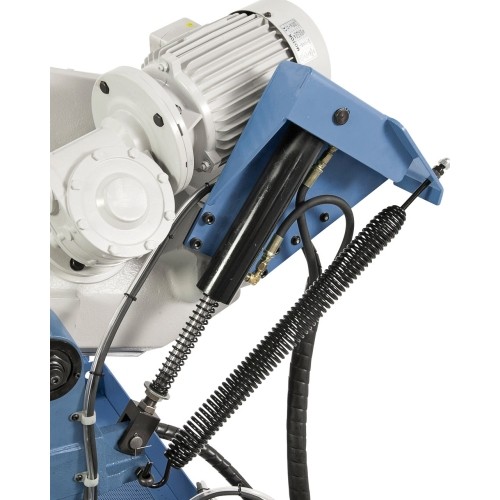

  • Stepless lowering of saw frame via hydraulic cylinder
  • Gear unit complete with hardened, polished worm shaft and bronze worm gear

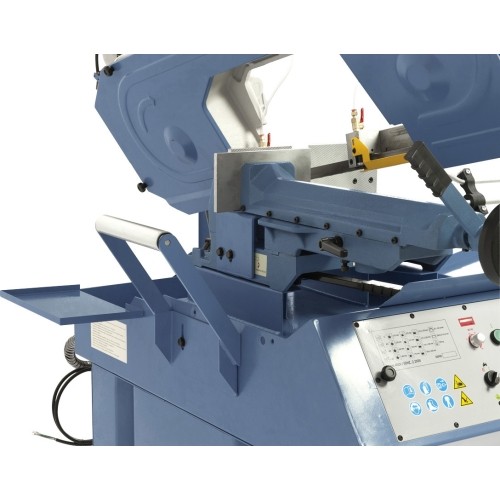

  • Robust cast iron vice with material fence, ideal for serial section
  • Automatic shut-down at cutting end
  • For mitre cutting the saw frame tilts 45° to the left and 60° to the right

Standard accessories

  • Bandsaw blade

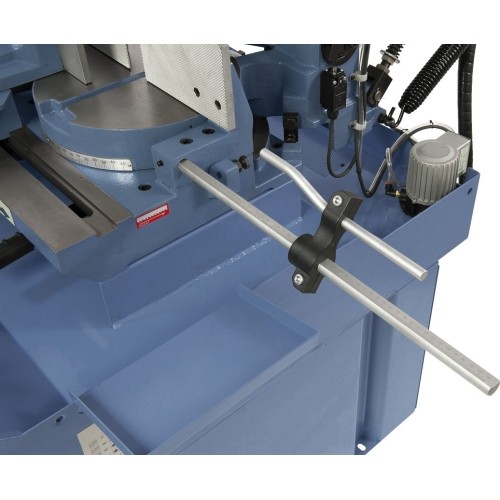

  • Material fence
  • Stand

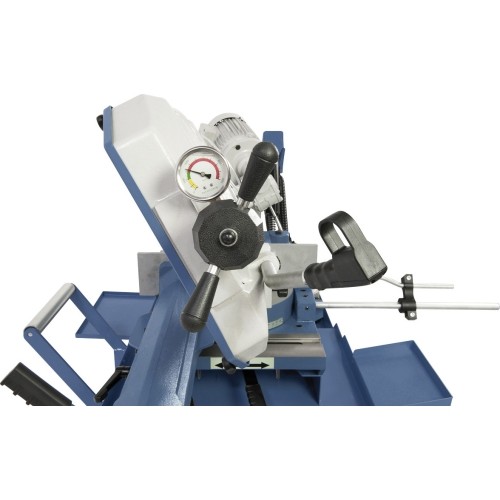

  • Manometer for blade tension
  • Bandsaw blade guiding with carbide inserts

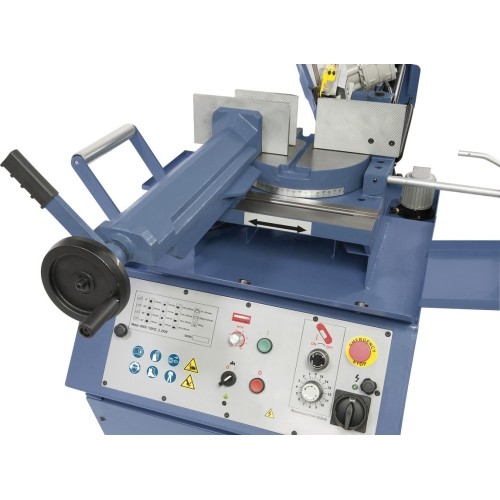

  • Quick clamping vice
  • Coolant device
  • Hydraulic cylinder

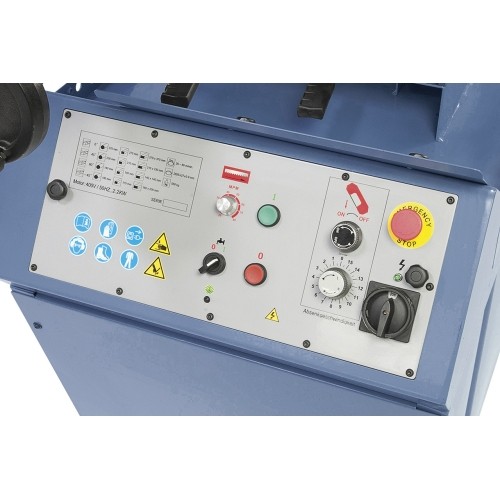

  • Motor protective switch
  • Automatic shut-down
