Weight approx.
555 kg
Cutting capacity round / square 90°
230 mm / 180 x 180 mm
300 mm / 270 x 270 mm
355 mm / 280 x 280 mm
Cutting capacity flat 90°
490 x 280 mm
Cutting capacity flat 45° R
340 x 280 mm
Cutting capacity flat 45° L
250 x 250 mm
Working height
870 mm
Bandsaw blade dimension
3770 x 34 x 1,1 mm
Cutting speeds
35 / 70 m/min
Coolant pump
100 W
Machine dimension (L x D x H)
2200 x 1400 x 1500 mm
Motor power output S1 100%
1,9 kW
Motor power input S6 40%
2,8 kW
Phase
Trifazis (400V)

MBS 530 DG

1092202
Price €10,567.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 555 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 555 kg.

Description

Properties

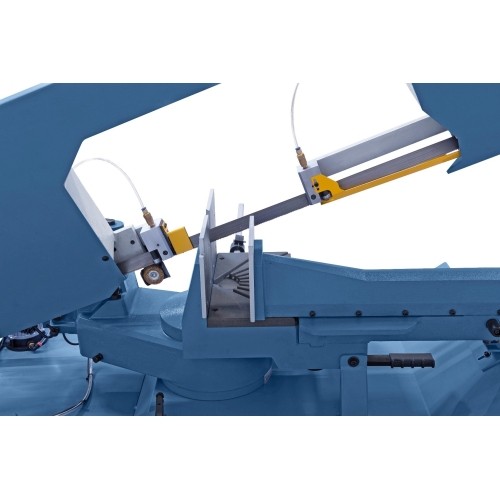

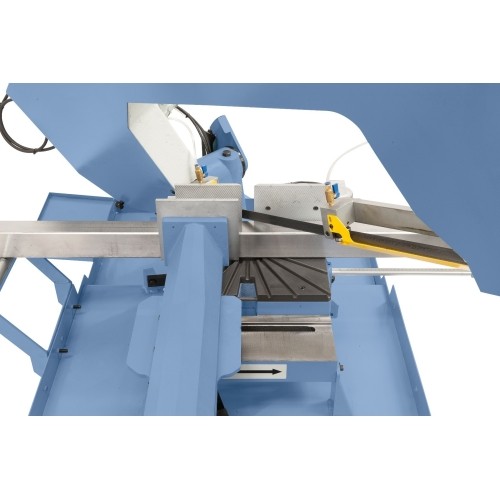

  • Bandsaw blade guiding via combined roll-jaw guide system with carbide inserts

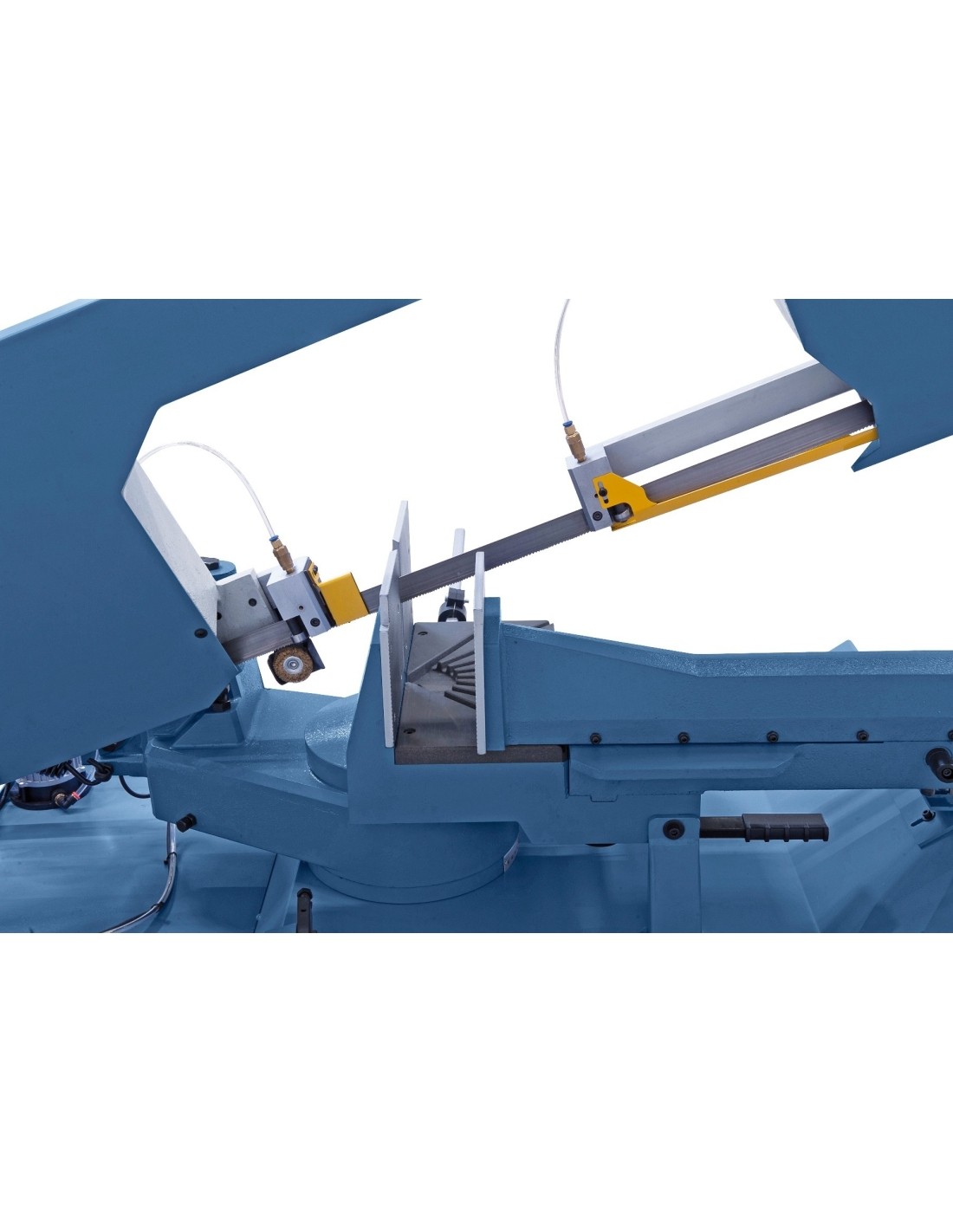

  • For mitre cutting the saw frame tilts 45° to the left and 60° to the right
  • 2 speed settings (35 / 70 m/min) for optimal cutting results
  • Robust construction ensures smooth, vibration-free run
  • Professional bandsaw with unbeatable price-to-performance ratio
  • Optimal power transmission to the wheel via hardened and ground worm shaft and bronze worm gear

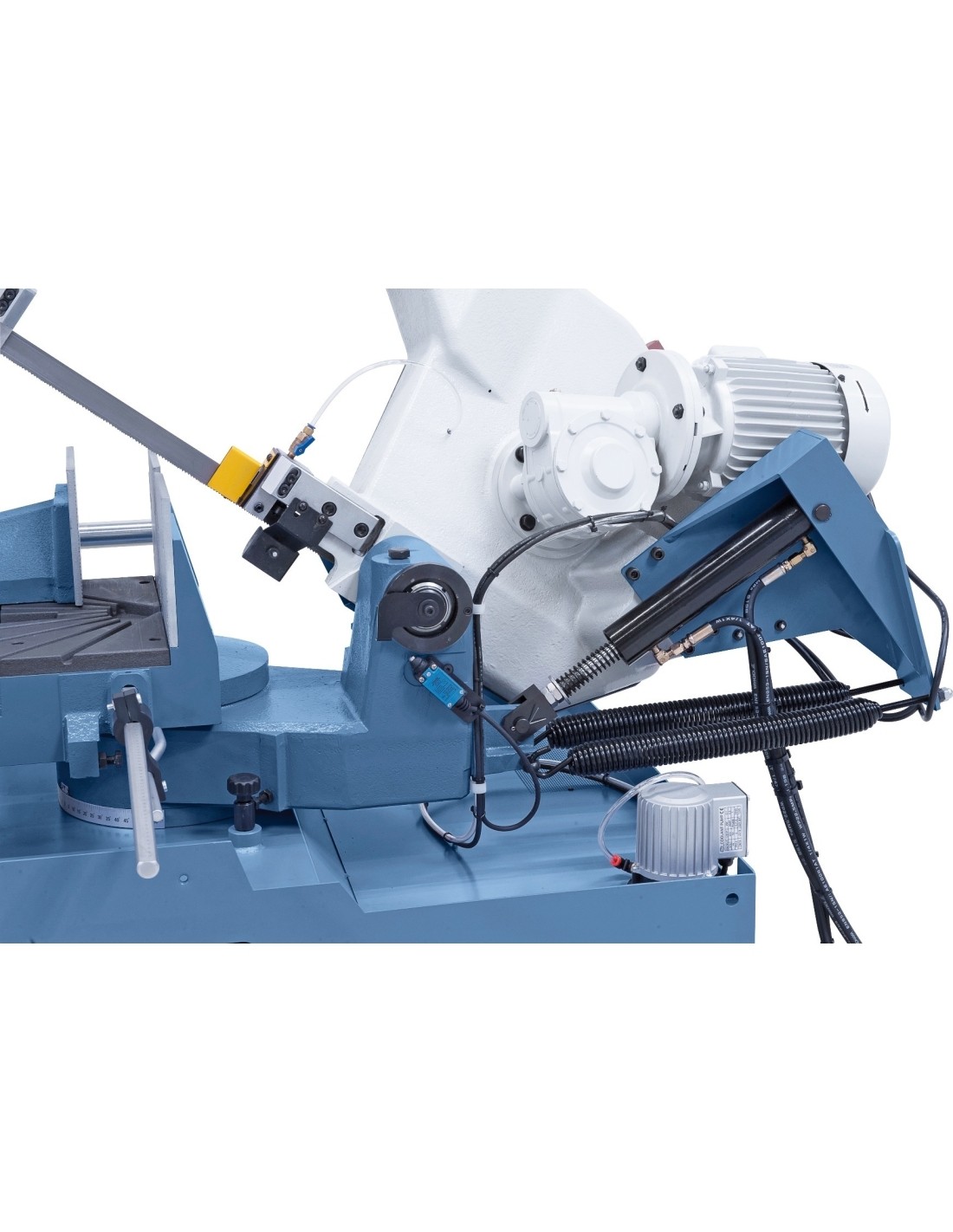

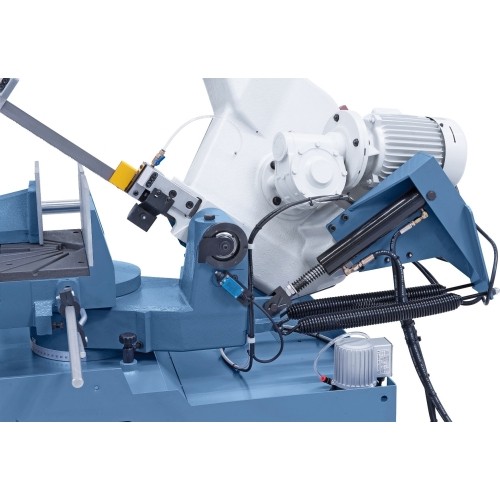

  • Saw frame pressure regulated by adjustable hydraulic cylinder

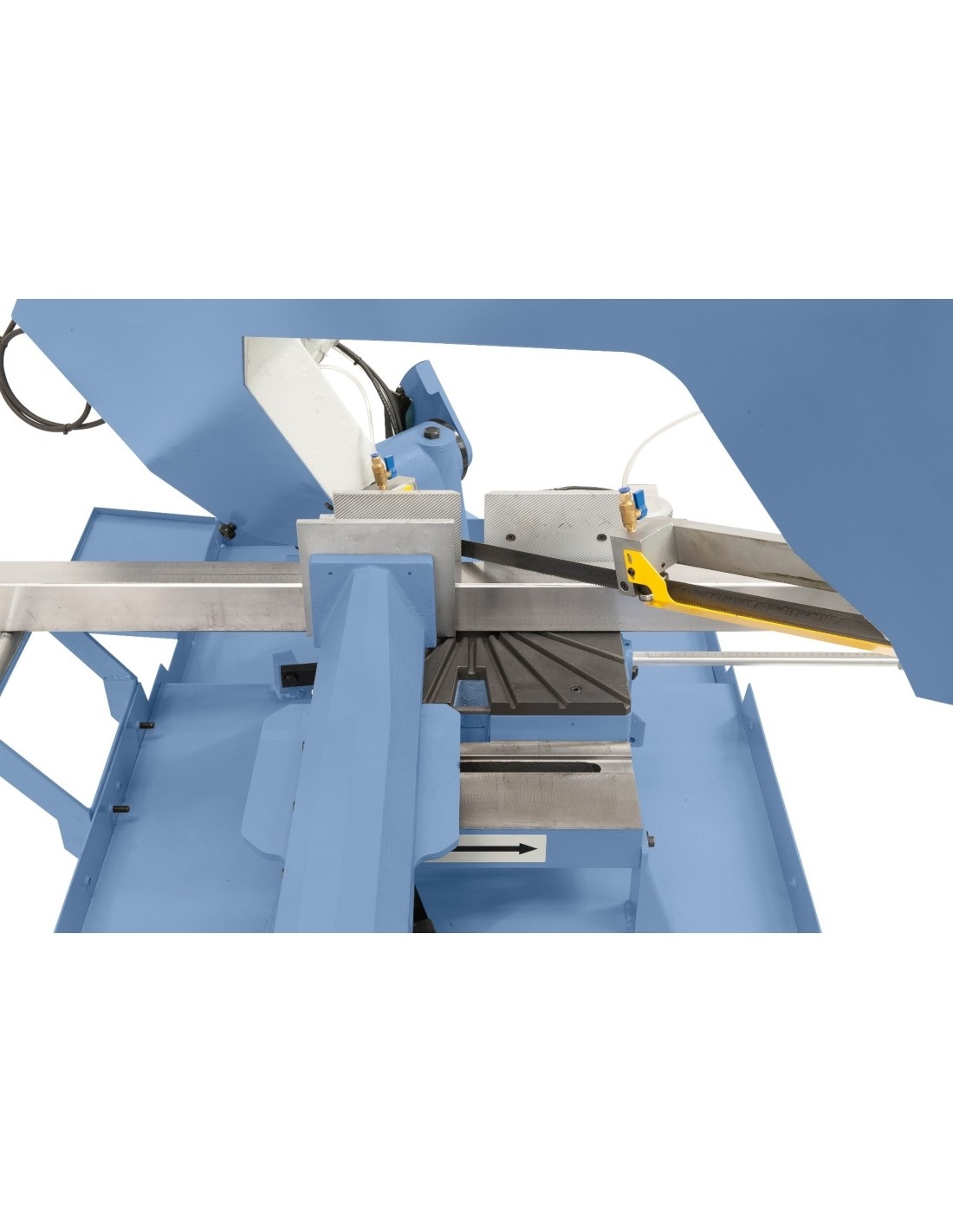

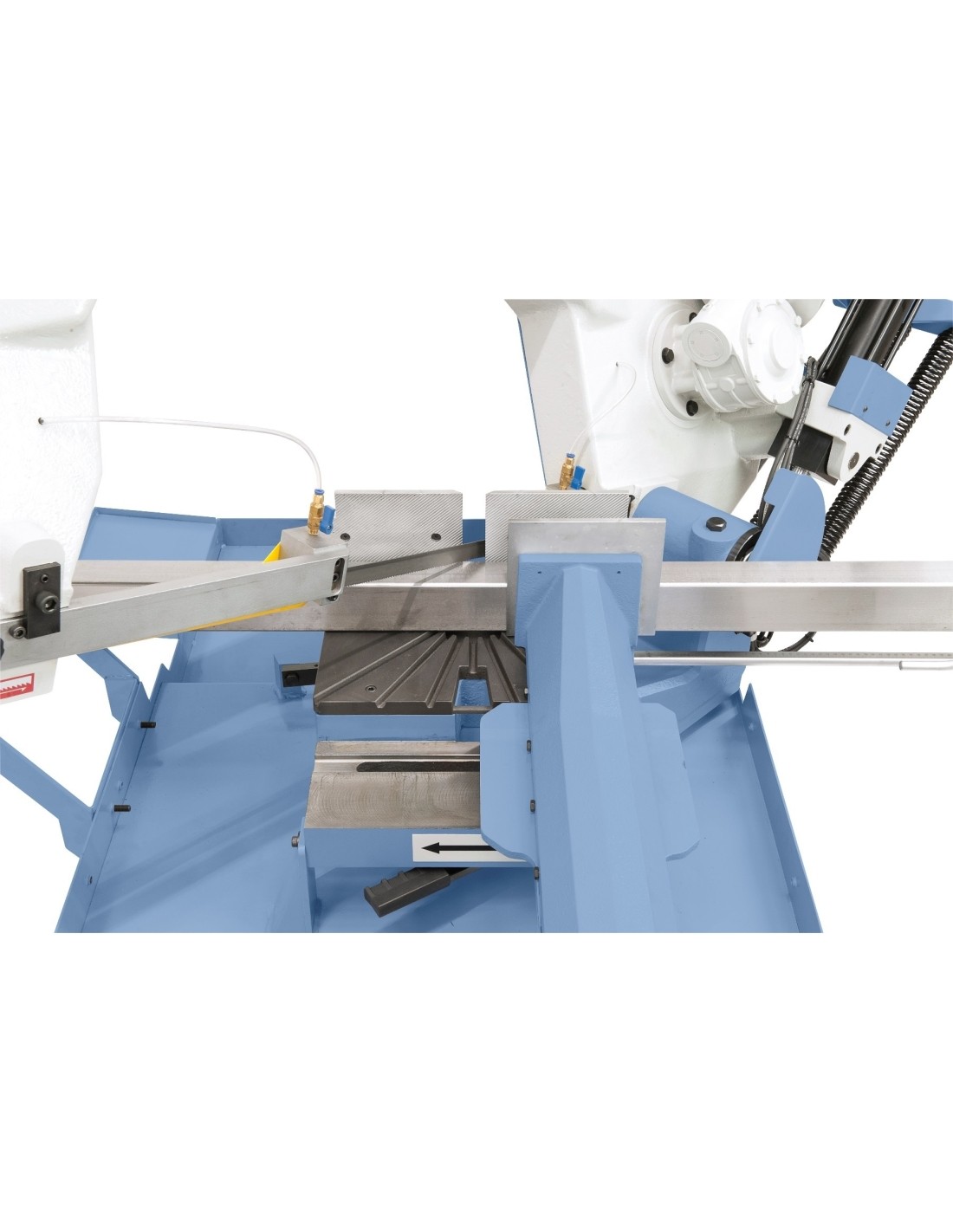

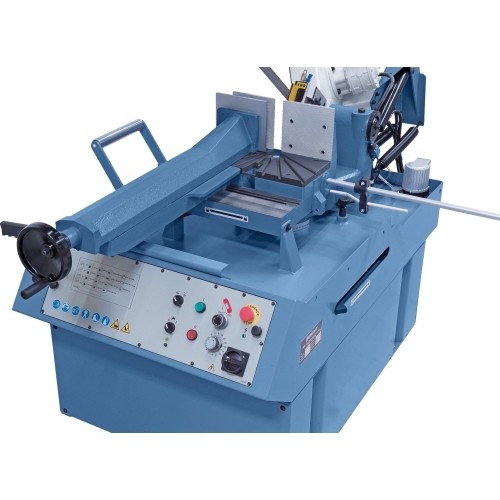

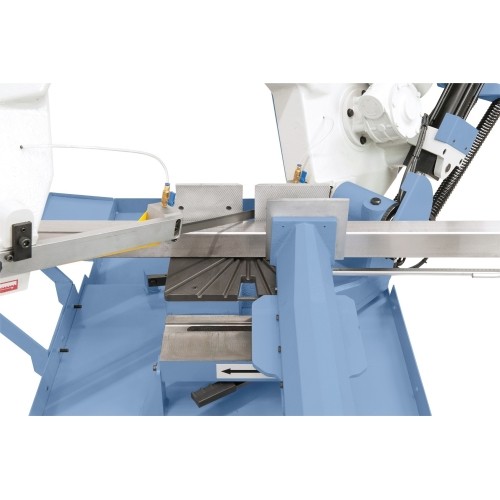

  • Robust cast iron vice with material fence, ideal for serial section
  • Suitable for cutting of profiles, pipes, full iron materials and non-ferrous metals

Standard accessories

  • Bandsaw blade
  • Material fence
  • Stand

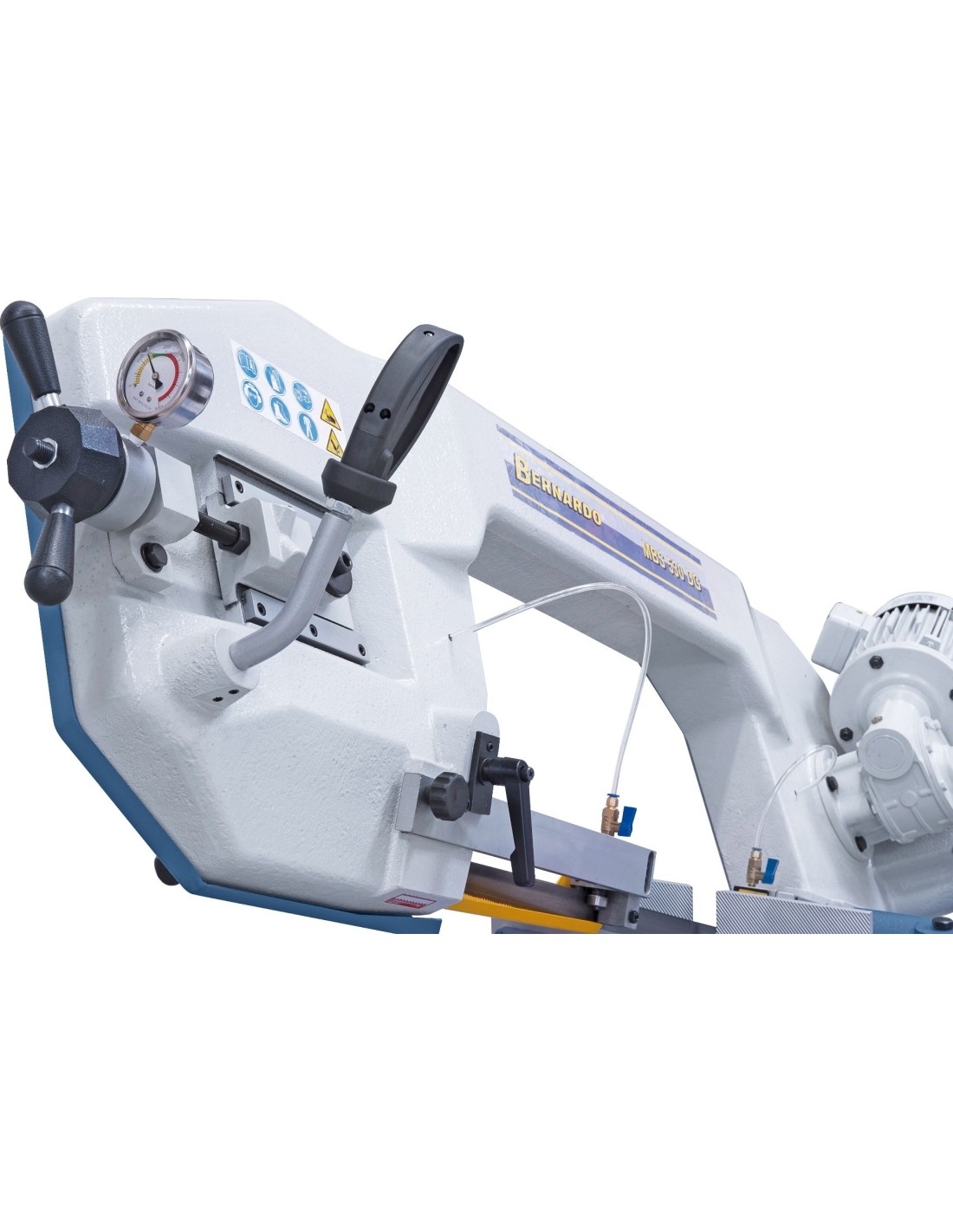

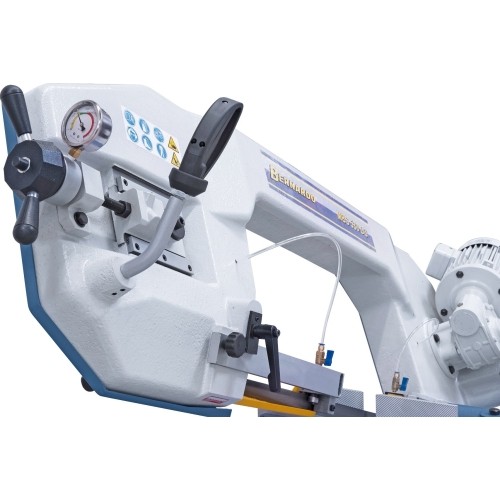

  • Manometer for blade tension
  • Bandsaw blade guiding with carbide inserts
  • Quick clamping vice
  • Coolant device
  • Hydraulic cylinder

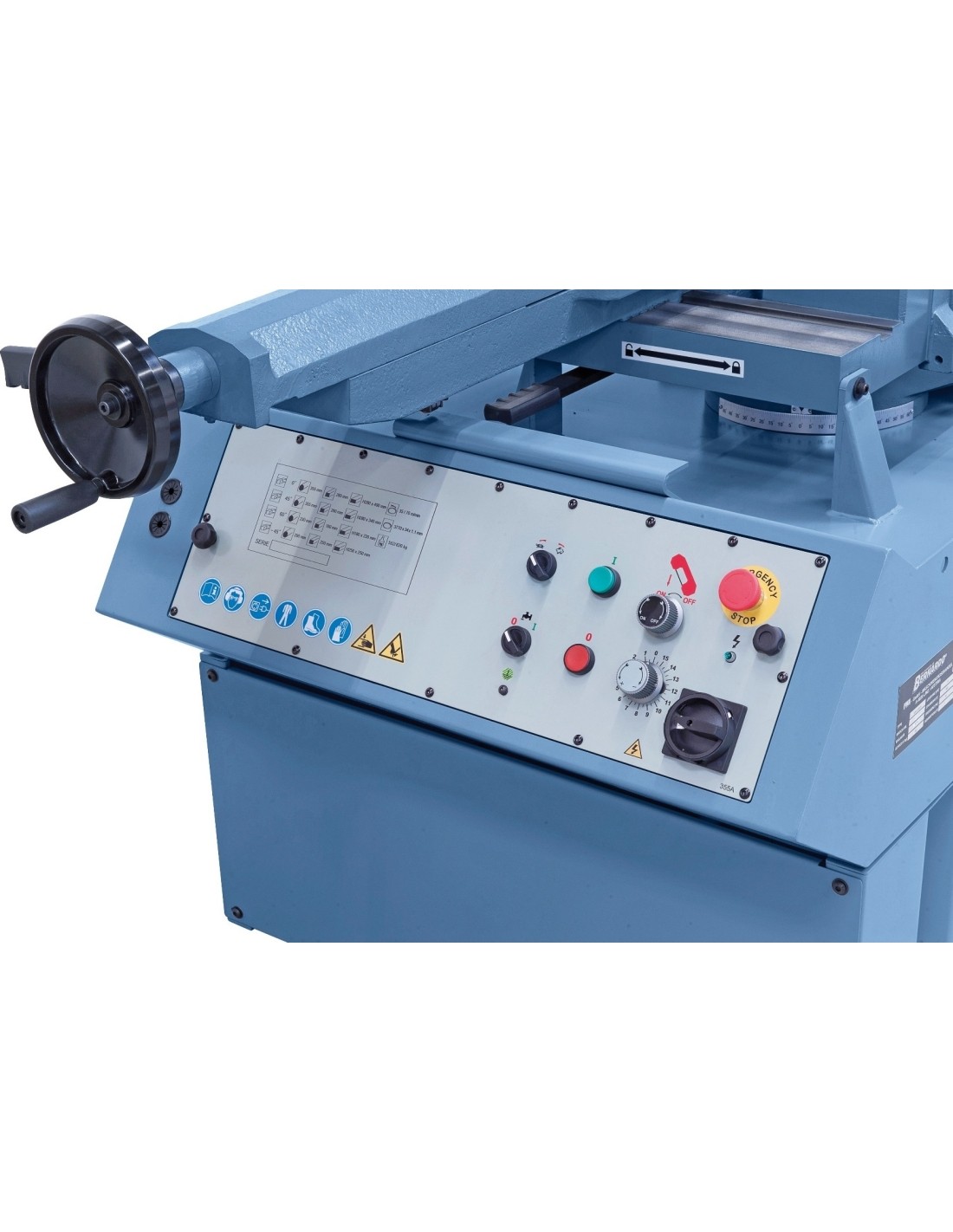

  • Motor protective switch
  • Automatic shut-down
