Weight approx.
85 kg
Cutting capacity flat 90°
100 x 150 mm
Working height
740 mm
Bandsaw blade dimension
1638 x 13 x 0,65 mm
Cutting speeds
24 / 35 / 55 m/min
Machine dimension (L x D x H)
1000 x 550 x 1100 mm
Motor power output S1 100%
0,55 kW
Motor power input S6 40%
0,75 kW
Voltage
230 V
Cutting capacity round 90°
125 mm
Cutting capacity round 45°
95 mm
Cutting capacity flat 45°
95 x 76 mm
Cutting capacity round 60°
50 mm
Cutting capacity flat 60°
50 x 56 mm

EBS 128 CL - 230 V

1092185
Price €1,311.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up monday, july 20 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 85 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 85 kg.

Description

Properties

  • Suitable for cutting profiles, pipes, solid iron, non-ferrous metals, plastics etc.
  • Sawframe swings left (-60°) and right (+45°) for double mitre cutting
  • Automatic shut-down at cutting end
  • Torsion-free, solid saw frame
  • 3 speed setting adjustable by v-belt
  • Solid construction allowing smooth running free of vibrations
  • Equipped with machine base and coolant device

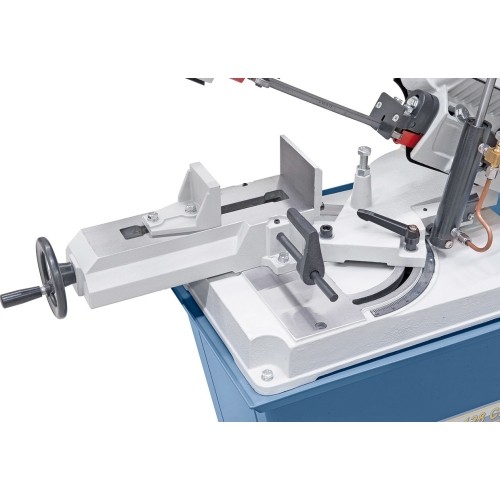

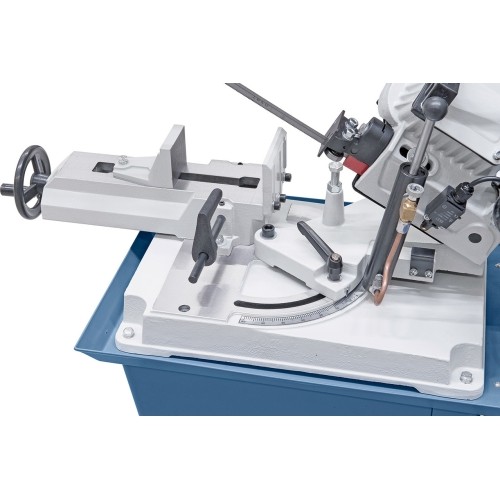

  • Quick clamping vice and material fence included

Standard accessories

  • Bandsaw blade
  • Coolant device
  • Quick clamping vice
  • Material fence
  • Automatic shut-down
  • Mobile machine base

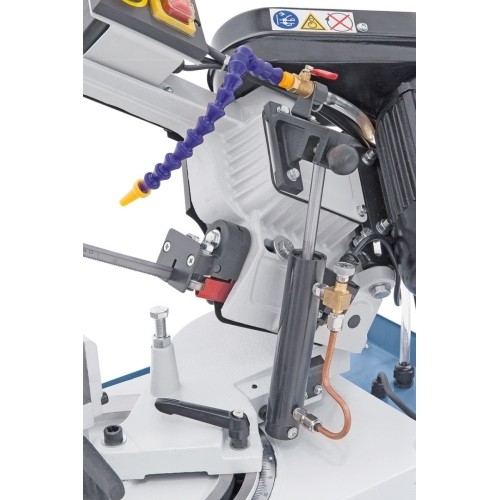

  • Hydraulic cylinder

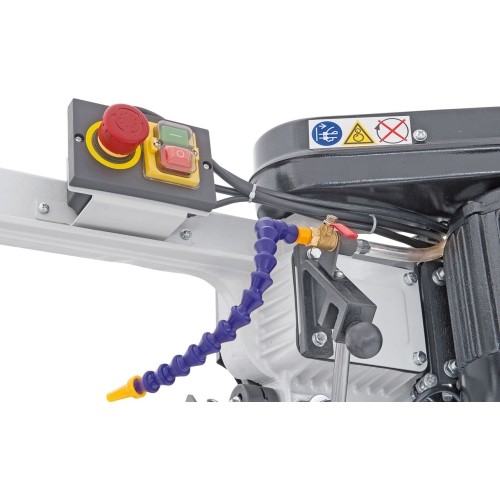

  • Separate emergency stop button according CE
