Weight approx.
390 kg
Cutting capacity round / square 90°
115 mm / 115 x 115 mm
180 mm / 160 x 160 mm
195 mm / 190 x 190 mm
255 mm / 230 x 230 mm
Cutting capacity flat 90°
315 x 230 mm
Cutting capacity flat 45° R
195 x 230 mm
Cutting capacity flat 45° L
160 x 160 mm
Working height
985 mm
Bandsaw blade dimension
2750 x 27 x 0,9 mm

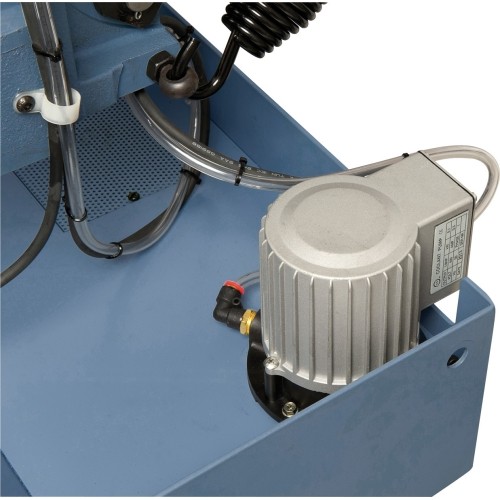

Coolant pump
100 W
Machine dimension (L x D x H)
2000 x 1300 x 1900 mm
Motor power output S1 100%
1,5 kW
Motor power input S6 40%
2,2 kW
Cutting capacity flat 60° R
115 x 160 mm
Cutting speed, stepless
20 - 80 m/min
Phase
Trifazis (400V)

MBS 315 DG-VR Pro

1092200
Price €9,533.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up tuesday, august 4 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 390 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 390 kg.

Description

Properties

  • The cutting groove in the rotary table moves in conjunction with the swivelling of the saw arm therefore the table suffers no damage when cutting angles

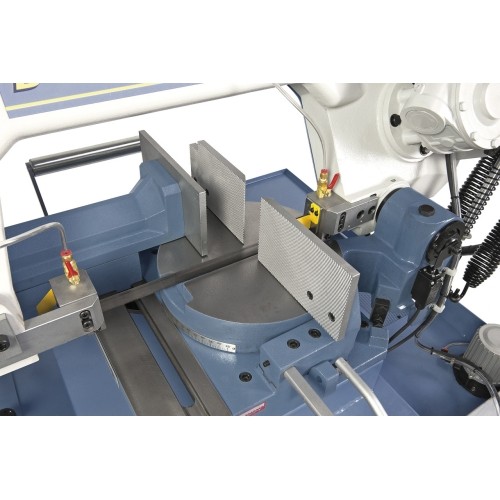

  • Quick clamping vice can be moved for double mitre cuts
  • Bandsaw blade guiding with carbide inserts and integrated coolant device
  • Oversize vice with quick clamping lever and work piece rest – ideal for a series of cuts

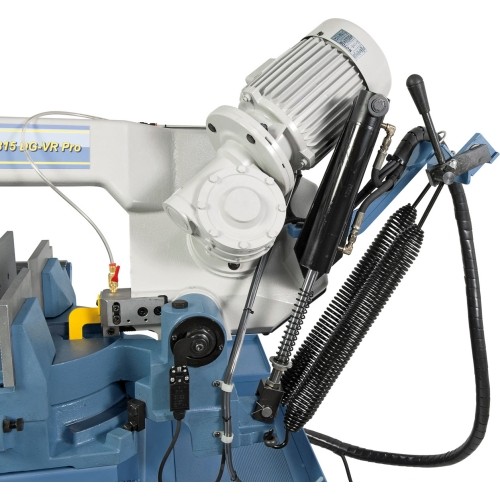

  • Drive features hardened and polished gear worm shaft and bronze worm wheel
  • Suitable for cutting of profiles, pipes, full iron materials and non-ferrous metals
  • Torsion-free , rigid grey cast-iron saw arm
  • Automatically shuts off when cut is finished
  • Stepless cutting speed allows for ideal adjustment to each work piece
  • Saw arm tilts left (-45°) and right (+60°) for double mitre cuts

Standard accessories

  • Bandsaw blade
  • Material fence
  • Stand

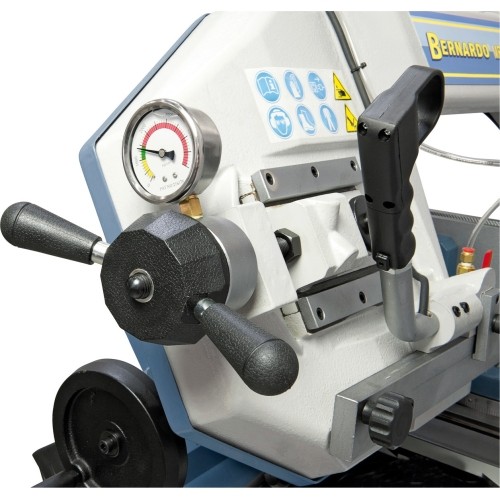

  • Manometer for blade tension
  • Bandsaw blade guiding with carbide inserts
  • Quick clamping vice
  • Coolant device
  • Hydraulic cylinder
  • Motor protective switch
  • Automatic shut-down
