- Weight approx.
- 190 kg
- Cutting capacity flat 90°
- 245 x 150 mm
- Working height
- 910 mm
- Coolant pump
- 100 W
- Motor power output S1 100%
- 1,1 kW
- Motor power input S6 40%
- 1,5 kW
- Voltage
- 230 V
- Machine dimensions (L x D x H)
- 1430 x 720 x 1700 mm
- Cutting capacity round 90°
- 225 mm
- Cutting capacity round 45°
- 160 mm
- Cutting capacity round 60°
- 100 mm
- Bandsaw blade dimensions
- 2480 x 27 x 0,9 mm
- Cutting capacity square 90°
- 200 x 200 mm
- Cutting capacity square 45°
- 160 x 160 mm
- Cutting capacity square 60°
- 100 x 100 mm
- Cutting speed 230 V
- 72 m/min
Juostinės pjovimo staklės Bernardo HBS 275 - 230V
1052411
Price
€3,695.00
Tax included
Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite wednesday, april 9 d., parduotuvėje, Raudondvario pl. 141, Kaunas
(€0.00)
Weight: 190 kg.
Weight: 190 kg.
Prekę pristatysime Jums per: 5-11 d.d. Venipak
(€40.99)
Weight: 190 kg.
Weight: 190 kg.
Description
Properties
- Ideal for cutting profiles, tubes, solid iron materials and non-iron materials
- For mitre cutting the saw frame tilts up to 60°
- Stepless lowering of saw frame by hydraulic cylinder
- Torsion-free, strong cast iron saw frame
- Robust construction, thereby smooth and vibration-free running
- Automatic shut-down at cutting end

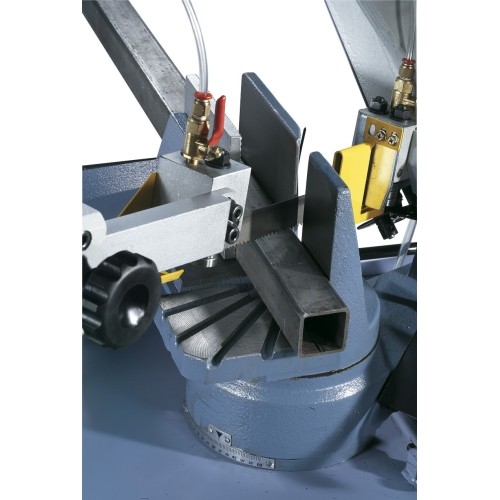

- Robust cast iron vice with quick adjustment
- 2 speed settings for optimal cutting results (400 V)
- Bandsaw blade guiding features ball bearings with quick adjustment to the workpiece, guaranteeing optimal cutting results
Standard accessories
- Bandsaw blade

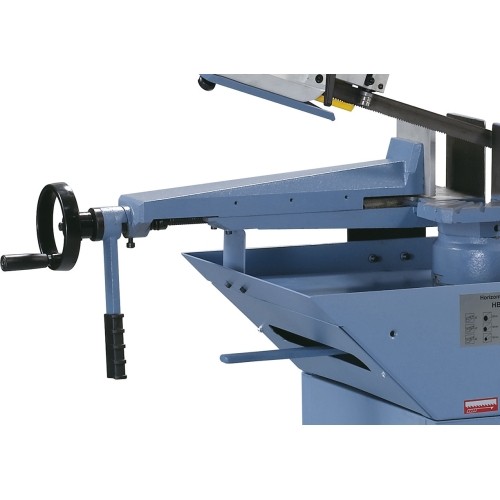

- Material fence
- Stand

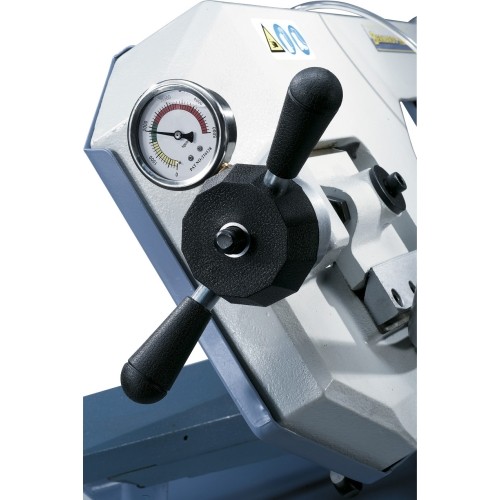

- Manometer for blade tension
- Vice with quick adjustment
- Coolant device

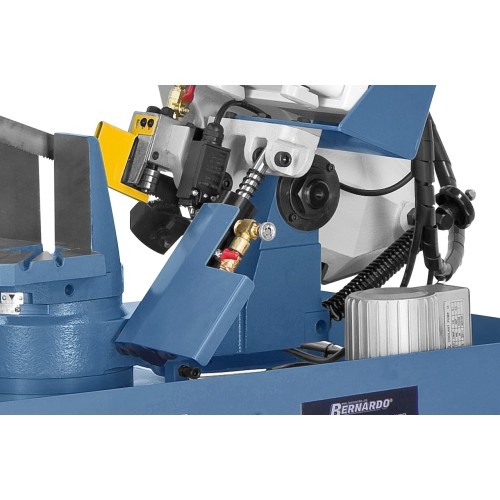

- Hydraulic cylinder
- Motor protective switch
- Automatic shut-down
