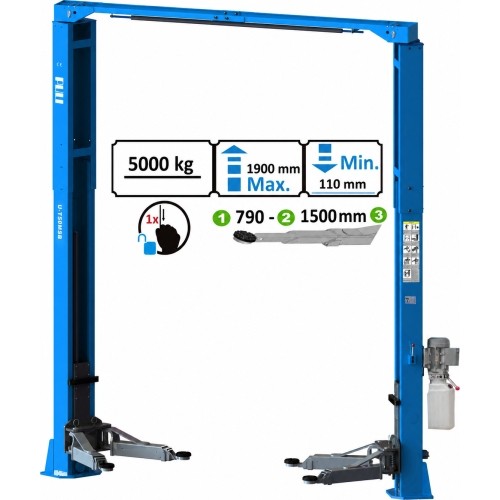

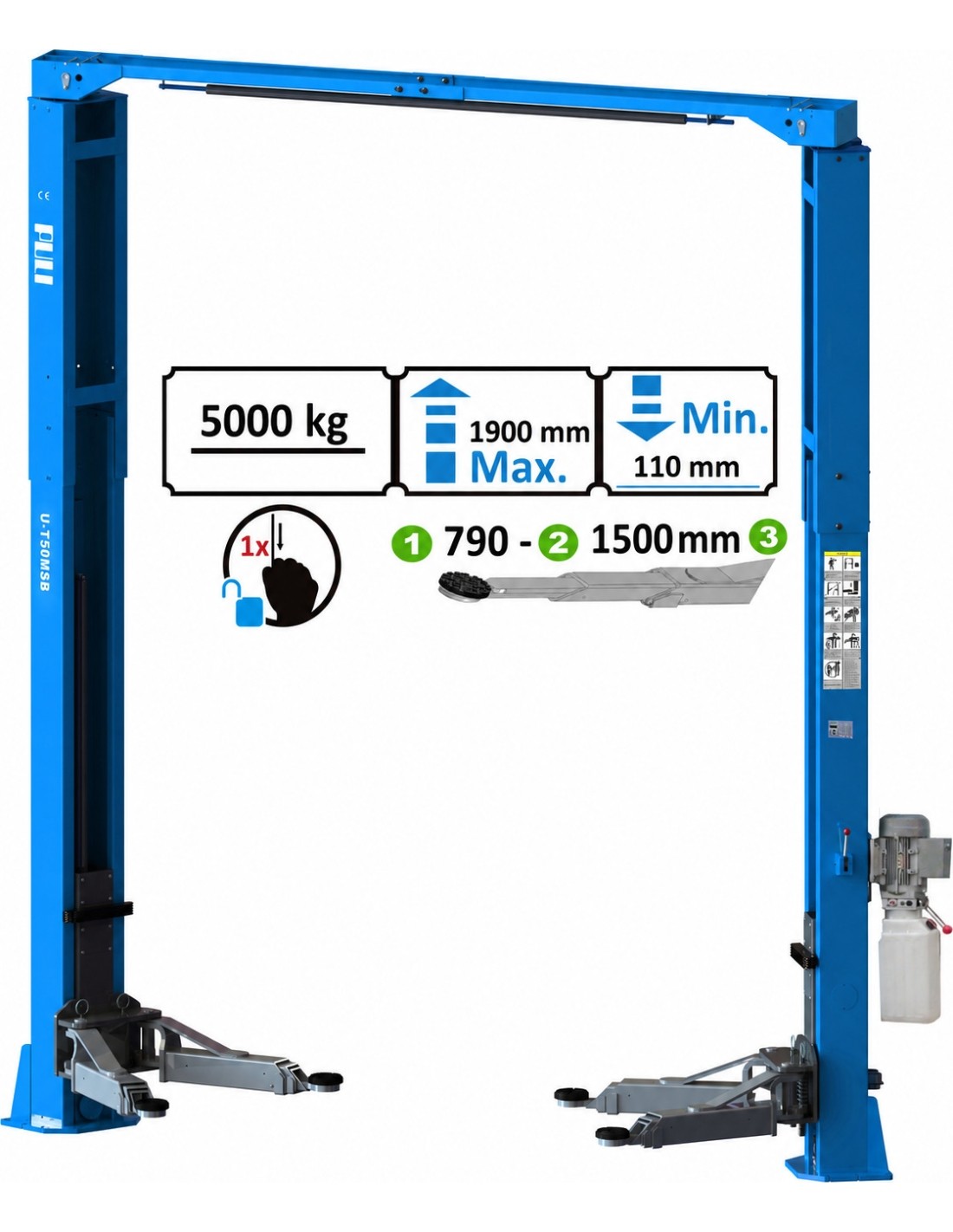

Two post clear floor type lift with single side lock release(asymetric columns) 5t, 380V
Two post clear floor type lift with single side lock release(asymetric columns) 5t, 380V
Two post clear floor type lift with single side lock release(asymetric columns) 5t, 380V
Two post clear floor type lift with single side lock release(asymetric columns) 5t, 380V
  • New
Two post clear floor type lift with single side lock release(asymetric columns) 5t, 380V
Two post clear floor type lift with single side lock release(asymetric columns) 5t, 380V
Two post clear floor type lift with single side lock release(asymetric columns) 5t, 380V
Two post clear floor type lift with single side lock release(asymetric columns) 5t, 380V

Keliamoji galia
5 t
Specifikacija
Sinchronizacija viršuje su mechaniniais fiksatoriais
Kėlimo aukštis (+išsukti padukai)
1900 mm
Min aukštis (+ išsukti padukai)
110 mm
Ilgosios letenos ilgis
790 - 1500 mm (3 pakopų), tiesi, prailginta
Rėmo aukštis x plotis
4250 x 3795 mm
Pakėlimo/nuleidimo laikas
55 s
Variklis
3.0 kW / 380 V / 3 Ph
Alyvos talpa
16 l
Svoris
916 kg
CE
Taip
Garantija
12 mėn

Two post clear floor type lift with single side lock release(asymetric columns) 5t, 380V

1574030
Price €2,579.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
In Manufacturer / Supplier warehouse
(3 pcs)
Delivery terms:
FREE pick up monday, august 3 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
We will deliver the product to you via: 1-2 w.d. Venipak (€3.00)

Description

Capacity 5.0 t

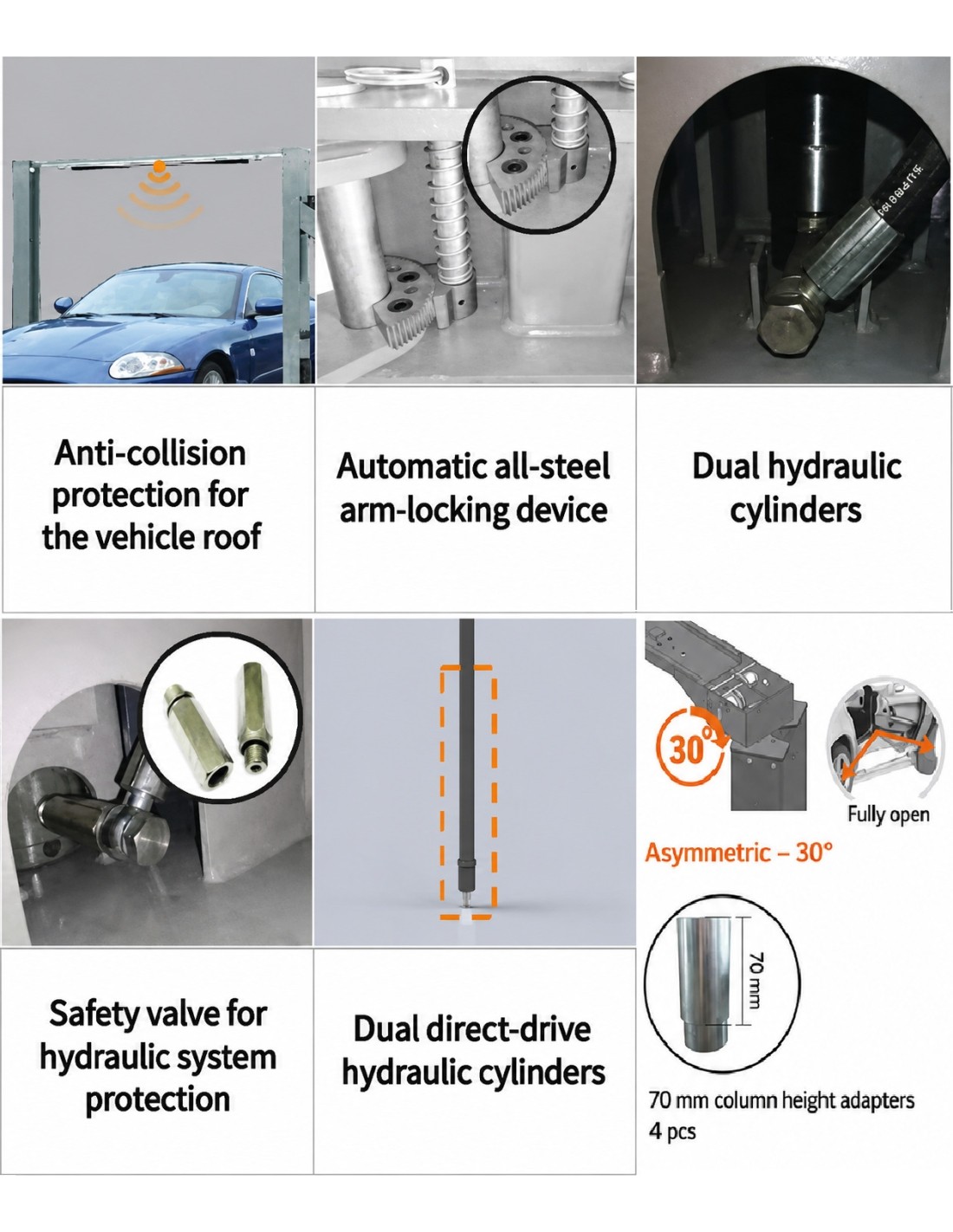

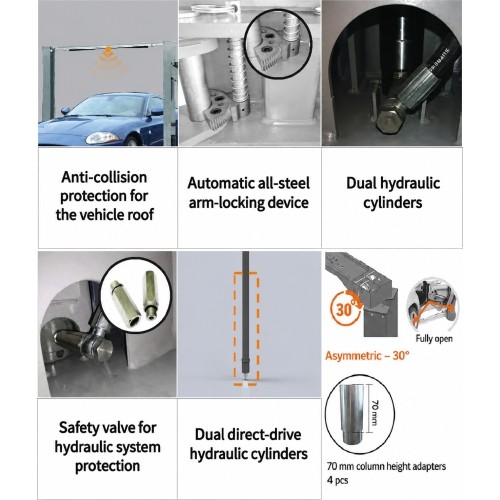

Mechanical safety release (1 side release) with synchronization at the top ("Clear floor")
Lifting height 1900 mm
Max height limit switch
Min height 110 mm

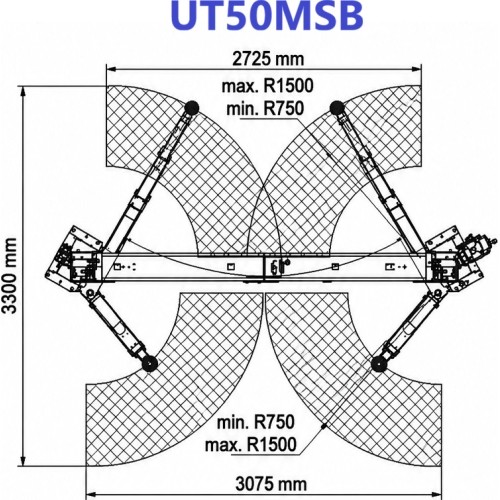

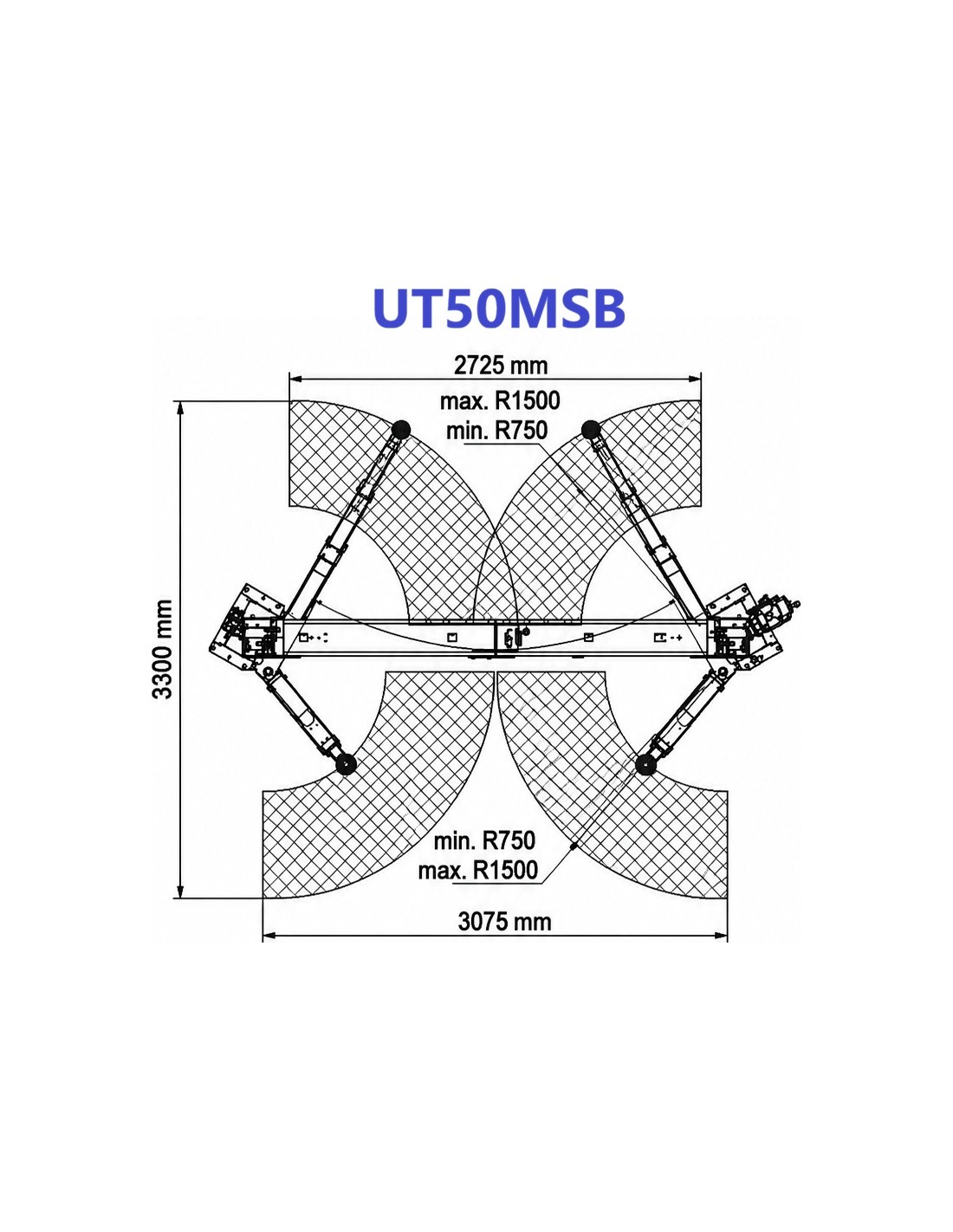

Extended straight arms lengths 790 - 1500 mm (3 stages)
Rise/drop time 55 s
Motor power 3.0 kW, 380 V (3/N/PE 16 A)

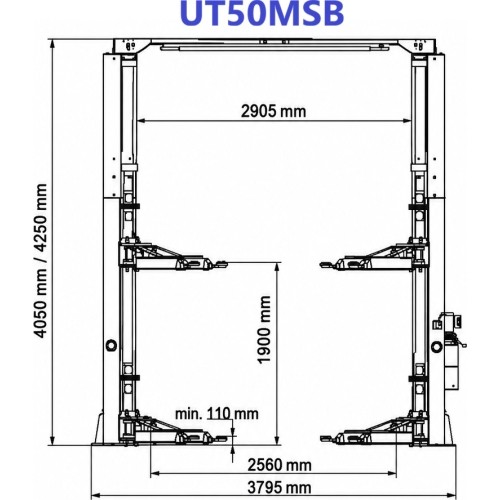

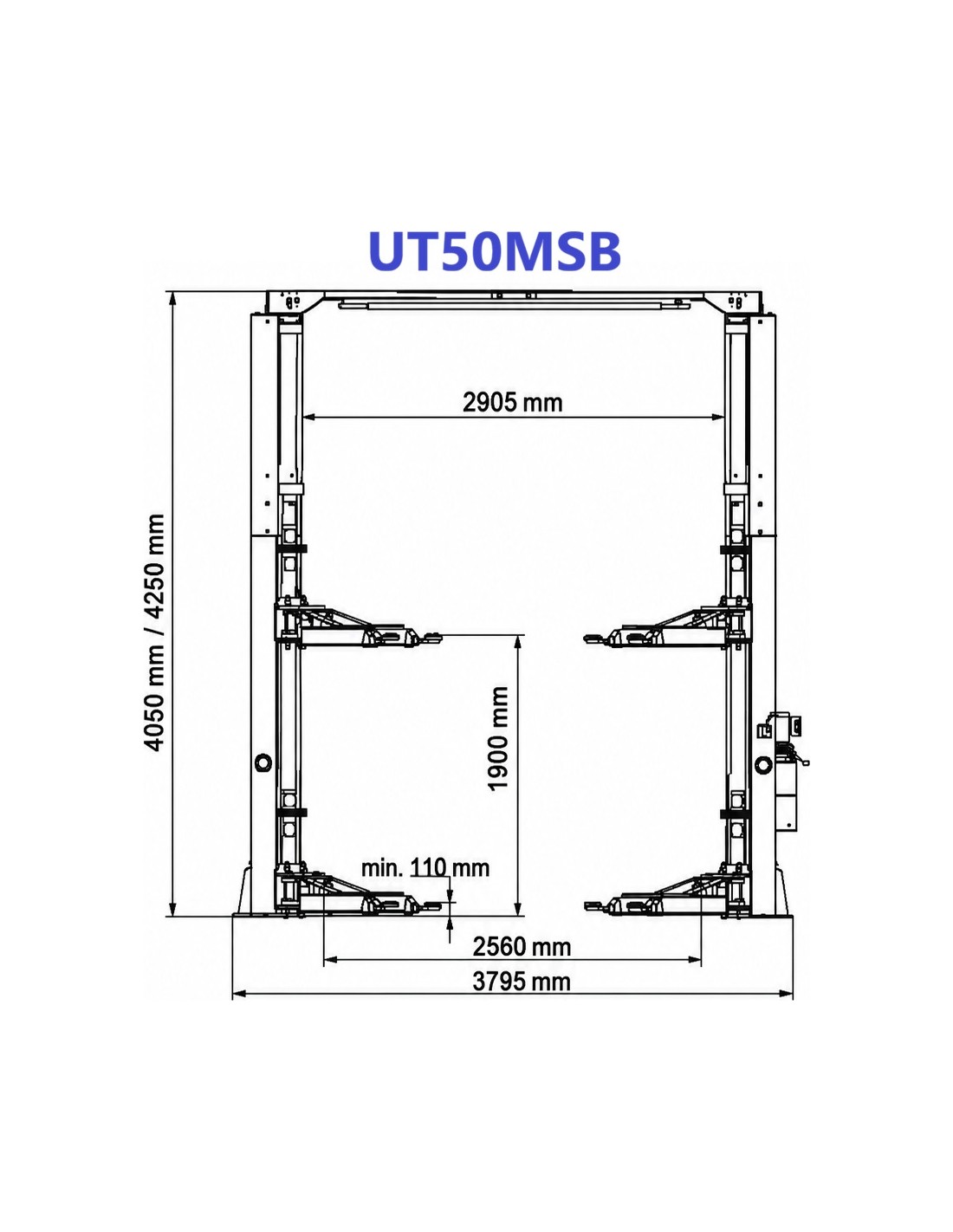

Frame height x width 4250 x 3795 mm
Oil capacity and type 16 l ISO VG 32/46
Weight 916 kg
CE conformity
12-month warranty
