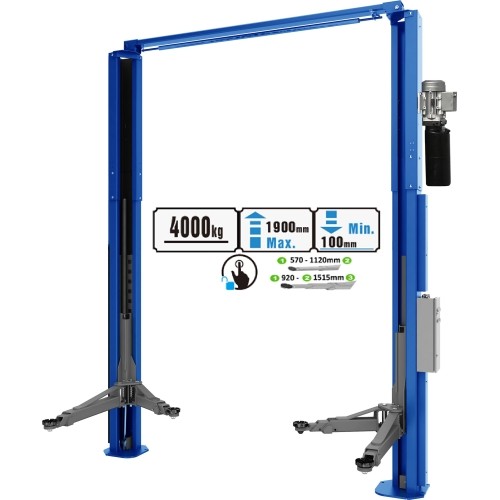

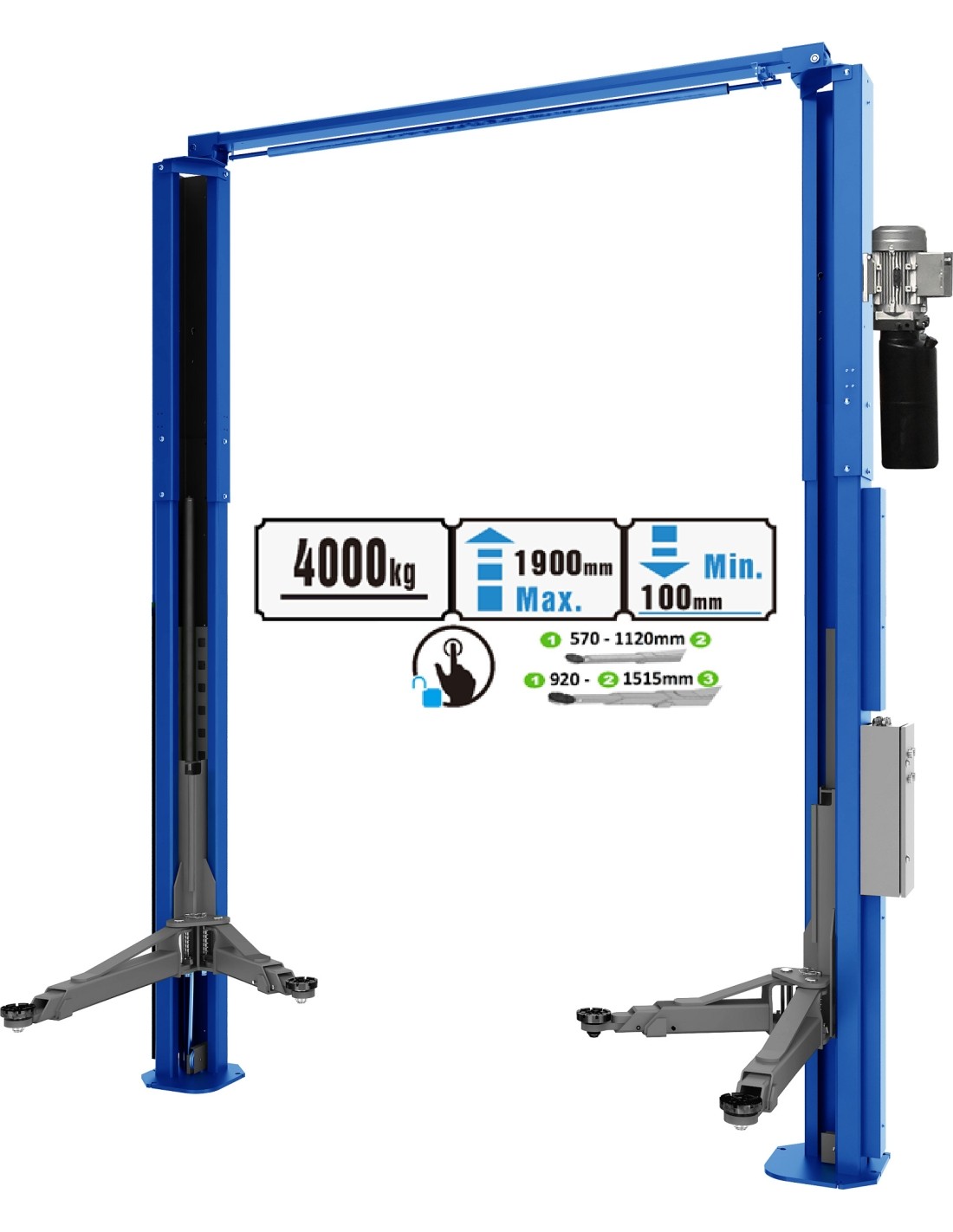

Clearfloor 2-post lift with electromagnetic release, 4.0t
Clearfloor 2-post lift with electromagnetic release, 4.0t
Clearfloor 2-post lift with electromagnetic release, 4.0t
Clearfloor 2-post lift with electromagnetic release, 4.0t
Clearfloor 2-post lift with electromagnetic release, 4.0t
Clearfloor 2-post lift with electromagnetic release, 4.0t

Weight
700 kg
Keliamoji galia
4 t
CE
Taip
Pakėlimo/nuleidimo laikas
35 / 30 s
Variklis
3.0 kW / 380 V / 3 Ph
Garantija
12 mėn.
Alyvos talpa
12l
Specifikacija
Sinchronizacija viršuje su elektromagnetiniais fiksatoriais
Sujungimas
Per viršų
Kėlimo aukštis (+išsukti padukai)
1900 (+45) mm
Min aukštis (+ išsukti padukai)
100 mm
Guminiai padukai
Įstatomi ir įsukami (galimybė naudoti paaukštinimus)
Ilgosios letenos ilgis
920 - 1515 mm (3 pakopų), tiesi
Trumposios letenos ilgis
570 - 1120 mm (2 pakopų), tiesios

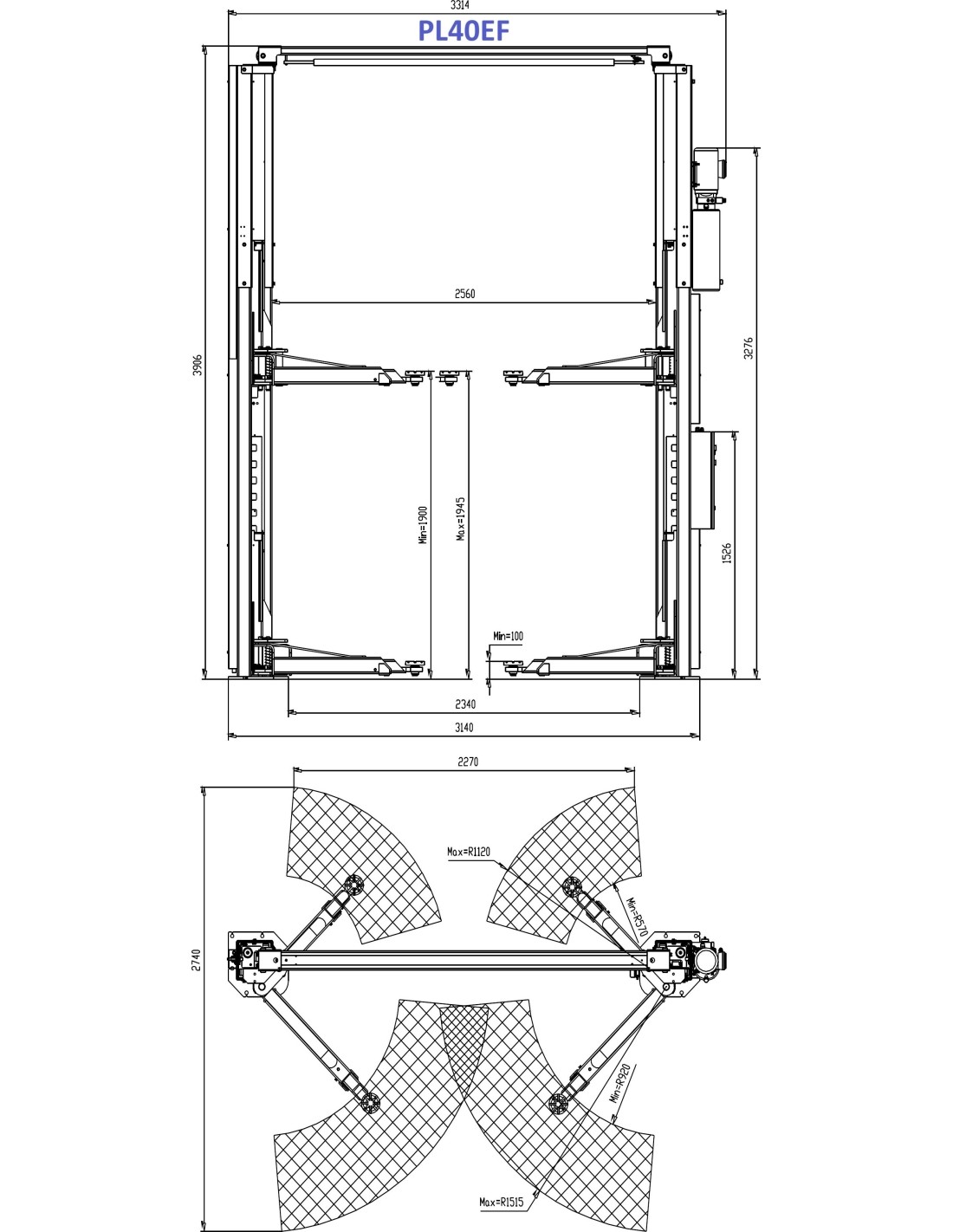

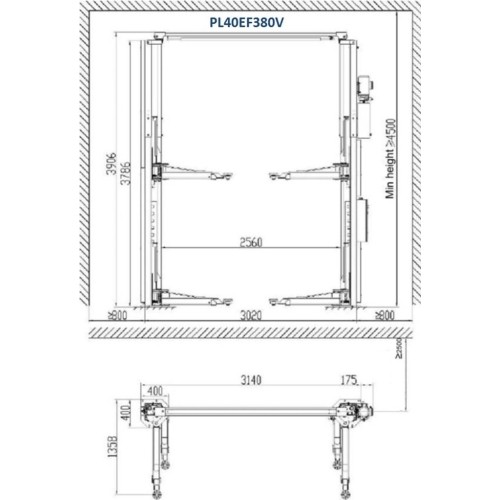

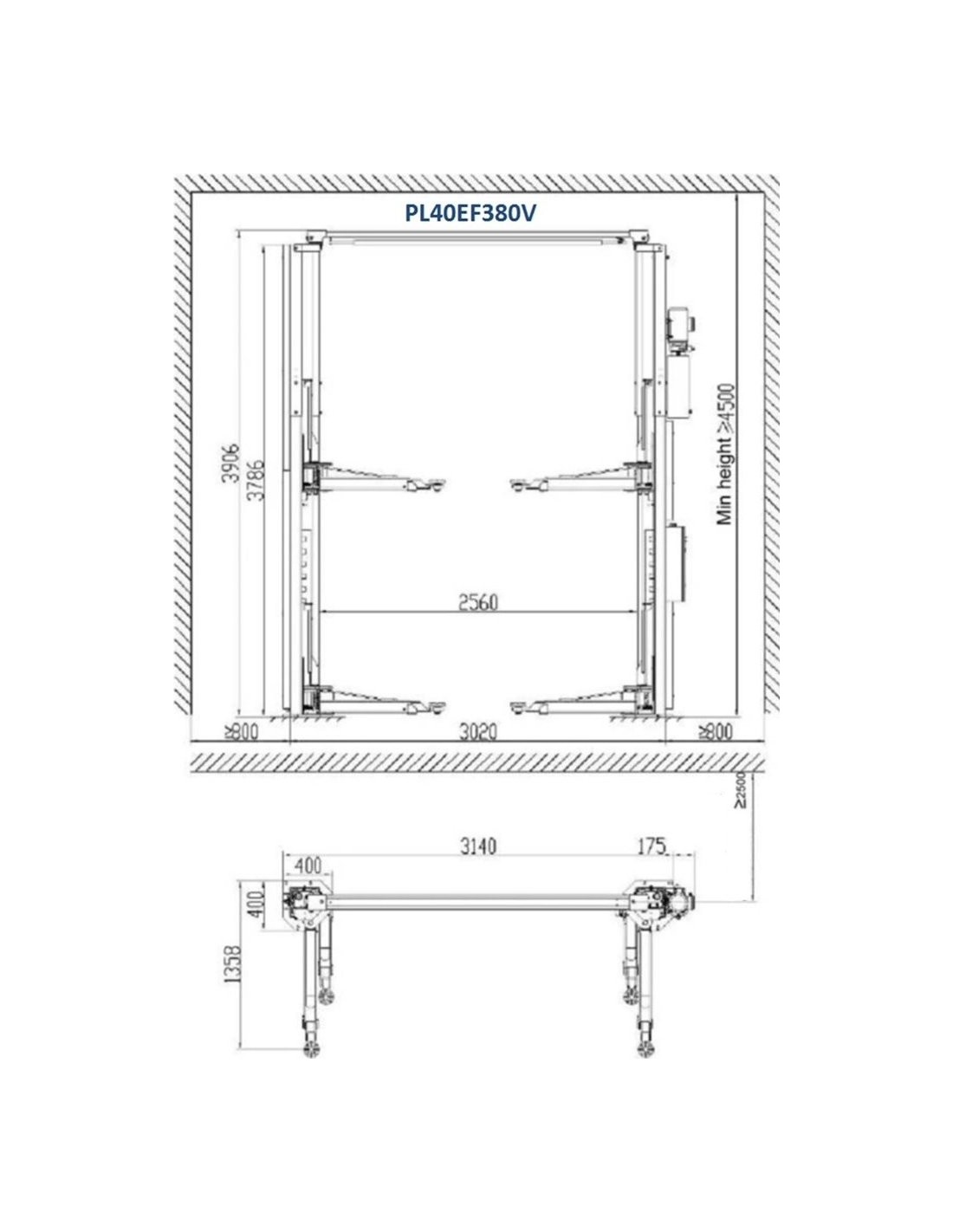

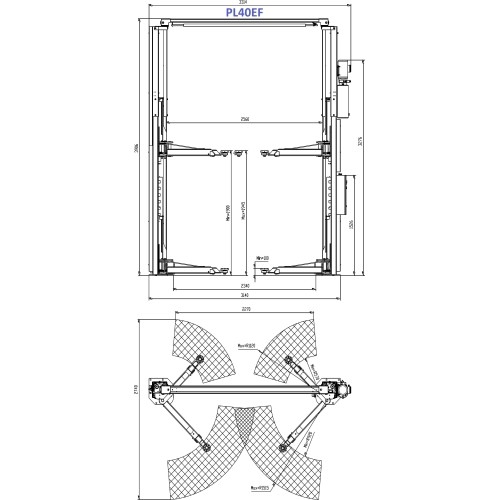

Rėmo vidinis aukštis x plotis
3906 x 2560 mm

Clearfloor 2-post lift with electromagnetic release, 4.0t

1322438
Price €2,369.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
In Manufacturer / Supplier warehouse
(4 pcs)
Delivery terms:
FREE pick up monday, july 20 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 705.65 kg.
We will deliver the product to you via: 1-2 w.d. Venipak (€40.99)
Weight: 705.65 kg.

Description

Capacity 4.0 t
Electromagnetic release with synchronization at the top("Clear floor")
Lifting height 1900(+45) mm
Max height limit switch
Min height 100 mm
Short straight arm length 570 - 1120 mm (2 stages)
Long straight arm length 920 - 1515 mm (3 stages)
Rubber pads are inserted and screwed (there is the possibility to use long sleeve)
Frame height x width 3906 x 2560 mm
Rise / drop time 35 / 30 s
Motor power 3.0 kW, 380 V
Oil capacity 12 l
Weight 700 kg
CE conformity
12 month warranty
