Funkcijos
2T/4T, lanko jėga, elektrodų valymo funkcija, karštas paleidimas, srovės didinimas, srovės mažinimas, nustatymų atmintis, TIG dujų didinimas, išankstinis dujų srautas, TIG impulsas, skaitme
Phase
Vienfazis (230V)
Weight, kg
21,64
Suvirinimas / pjaustymas / kiti metodai
MMA DC, TIG HF AC, TIG HF DC
Išmatavimai mm
45,5 x 19,5 x 41,5 x 41,5
Gamybos technologija
IGBT
Maximum current MMA [A]
180
Maximum current TIG [A]
200
MMA darbo ciklas [%].
40
TIG darbo ciklas [%].
40
Įtampa be apkrovos [V].
59
Maksimalus MMA suvartojamos galios kiekis [kVA}
6,6
Maksimalus TIG sunaudojamas galingumas [kVA].
4,2
Maksimalus MMA srovės suvartojimas [A].
36,5
Maksimalus TIG srovės suvartojimas [A].
26,8
Pagrindinis metodas
TIG
Tinklo apsauga [A].
25
Įmonių garantijos laikotarpis [metai].
2
Maksimali TIG suvirinimo kintamąja srove srovė [A].
200
Srovės kilimo laikas [s]
0 - 10
Pradinė srovė [A].
10-200
Bazinė srovė [A].
5+-95 % suvirinimo srovės
Dabartinis kritimo laikas [s]
0-25
Kraterio srovė [A].
10-200
Išankstinis dujų srautas [s].
0,1 - 1
TIG dujų srautas [s].
0 - 15
TIG impulsų dažnis [Hz].
0,5 - 200
TIG impulsų plotis [%].
10-90
Kintamosios srovės dažnis [Hz].
40 - 200
Kintamosios srovės balansas [%]
30-70
Maximum cutting current [A]
200 A 40%
Current type
AC / DC
Suitable for welding
Aluminum and its alloys
Non-ferrous and other rare metals (Titanium, Copper, Brass, Nickel)
Stainless steel (Inox)
Structural steel
Inverter technology
IGBT

Inverter welder Sherman DIGITIG pulse AC/DC 200GD

1051866
Price €720.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
(1 pcs)
Delivery terms:
FREE pick up today, in the store, Raudondvario pl. 141, Kaunas (€0.00)
We will deliver the product to you via: 1-2 w.d. Venipak (€8.00)
We will deliver the product to you via: 1-2 w.d. Venipak pickup (paštomatas) (€8.00)

Description

Description

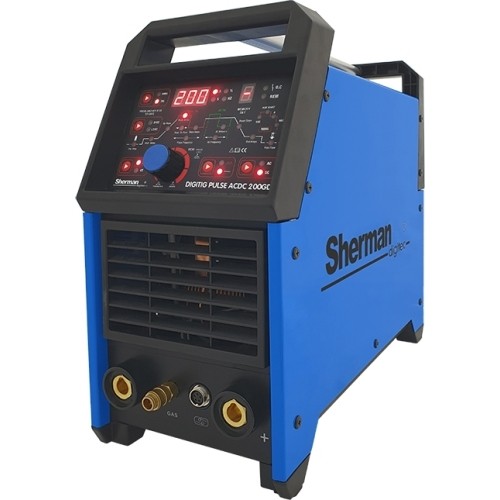

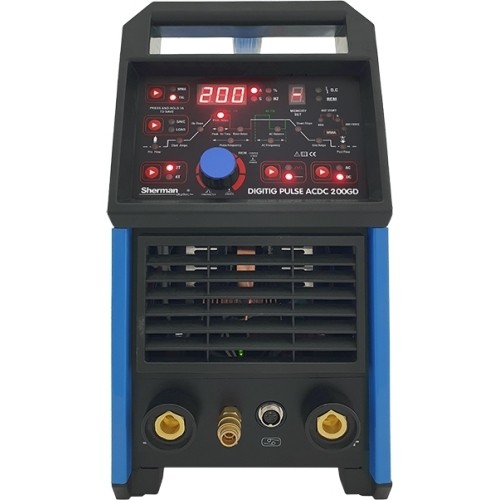

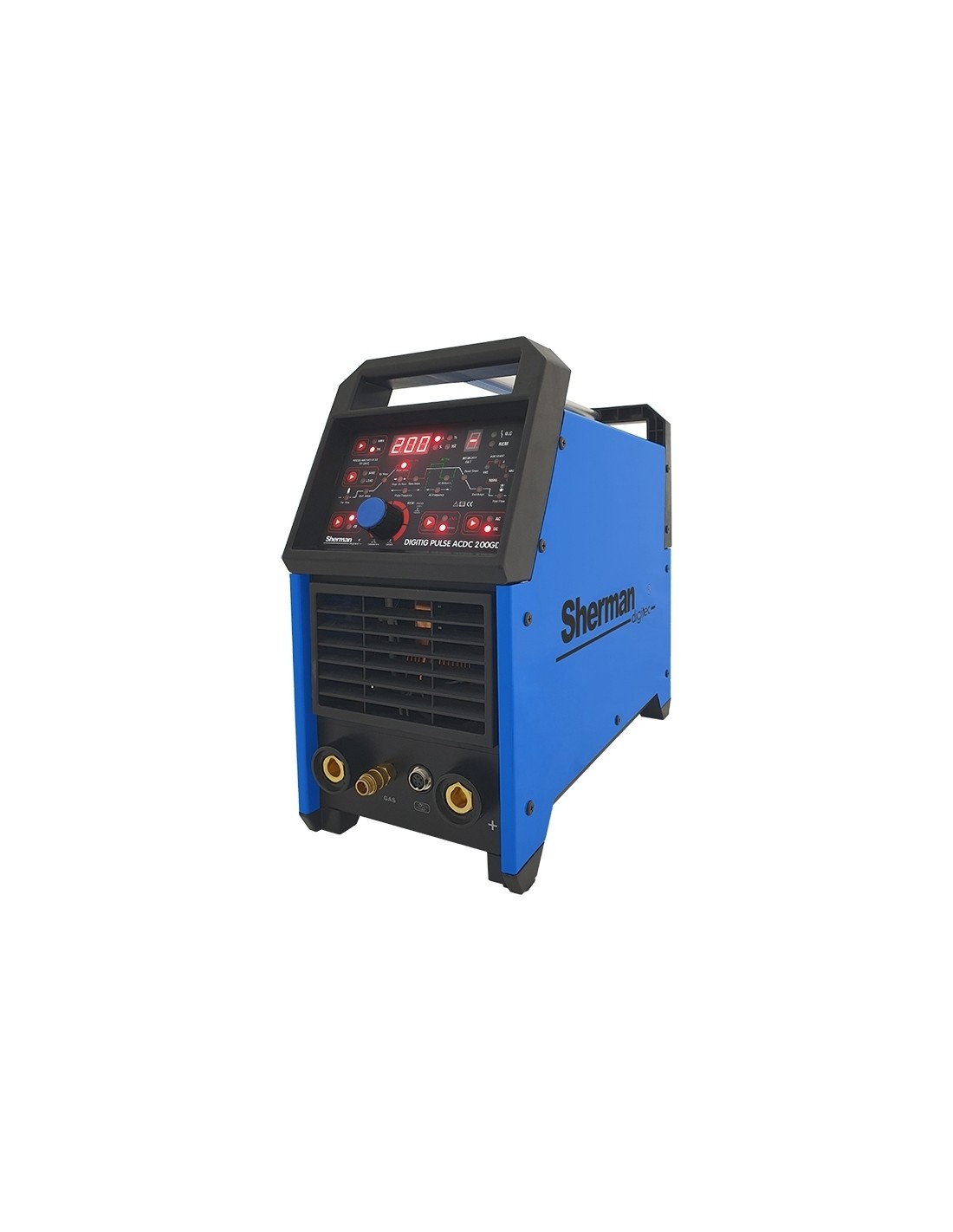

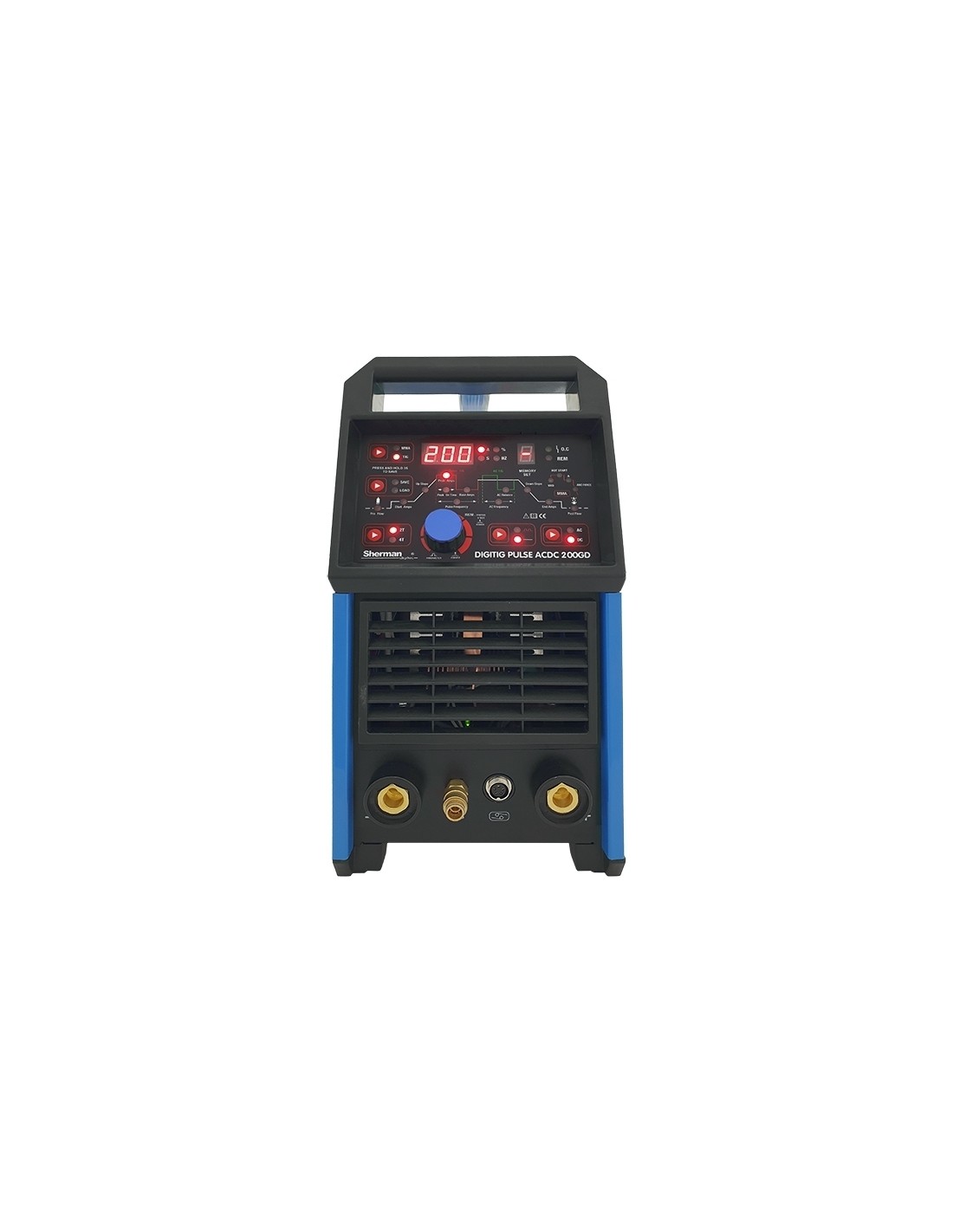

The digital welder DIGITIG PULSE AC/DC 200GD is a latest-generation unit designed for professional use. Built with IGBT inverter technology and digital control, it is intended for manual TIG welding of steel and non‑ferrous metals with both direct and alternating current. The machine also supports MMA (shielded metal arc) welding. Suitable for both production and service tasks, it delivers up to 200 A in TIG and 180 A in MMA with a 40% duty cycle.

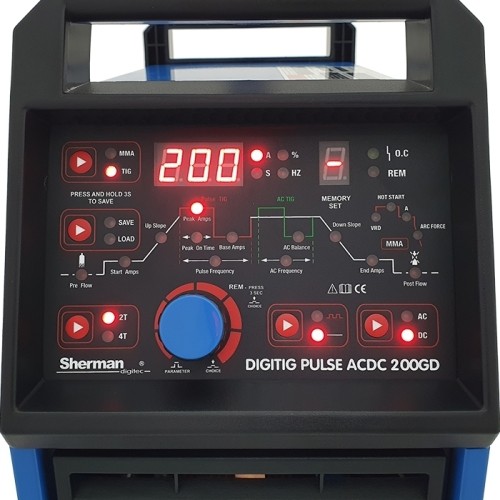

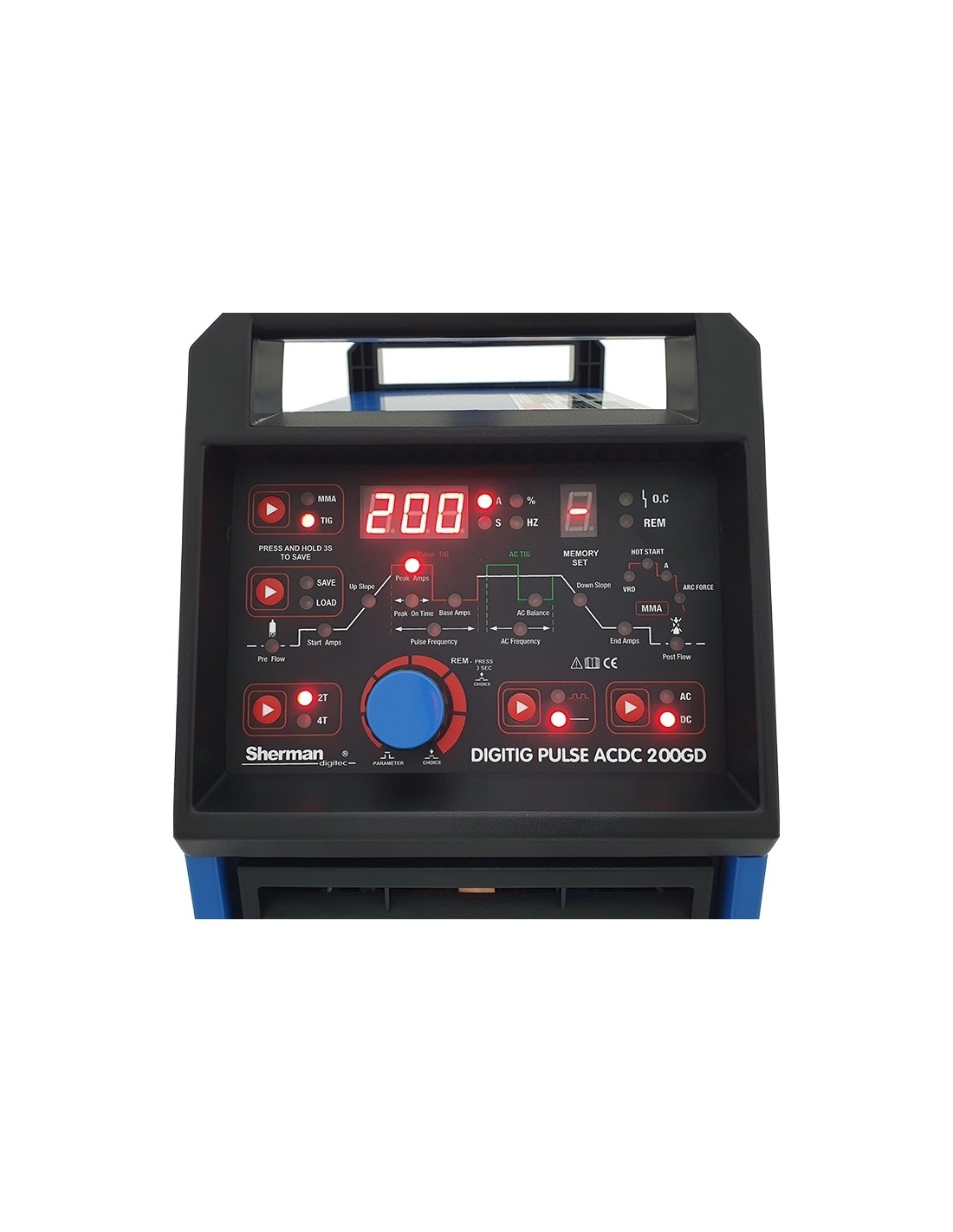

The welder enables full digital adjustment and control of arc characteristics and pulse parameters. It features HF ignition, VRD, ARC FORCE, HOT START, 2T/4T modes, and a display indicating the welding current. The unit offers last-setting memory—restoring parameters after power cycling—and the ability to store up to 10 sets of pulse and welding current settings.

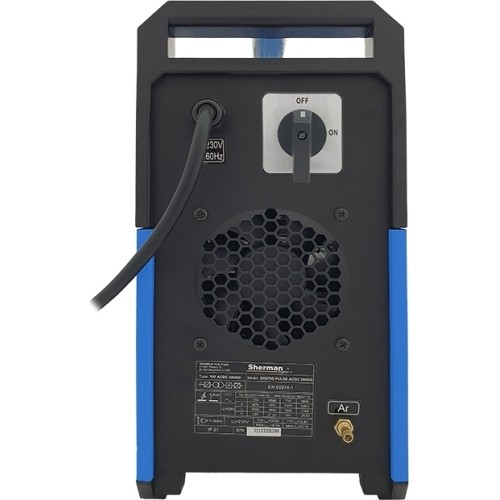

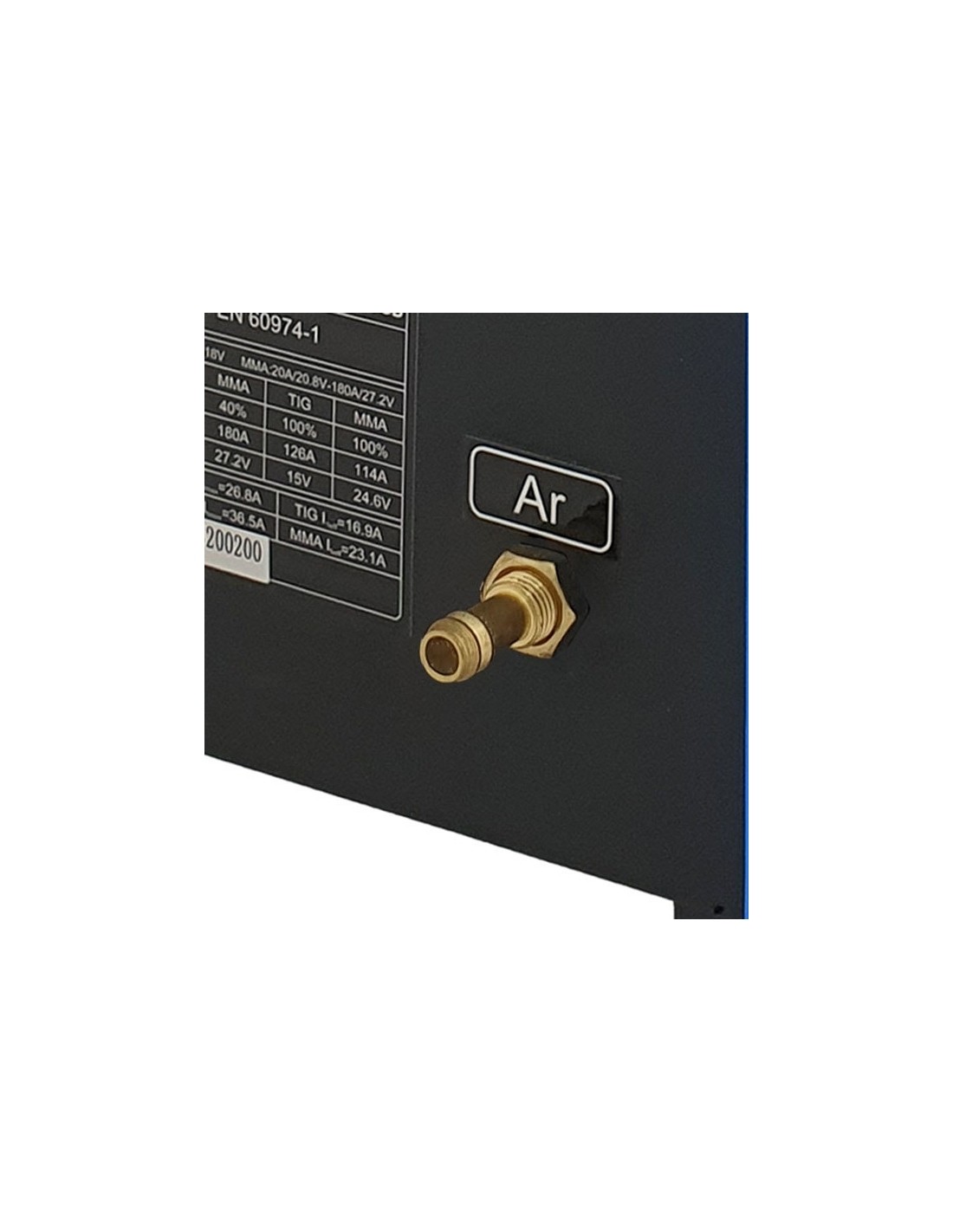

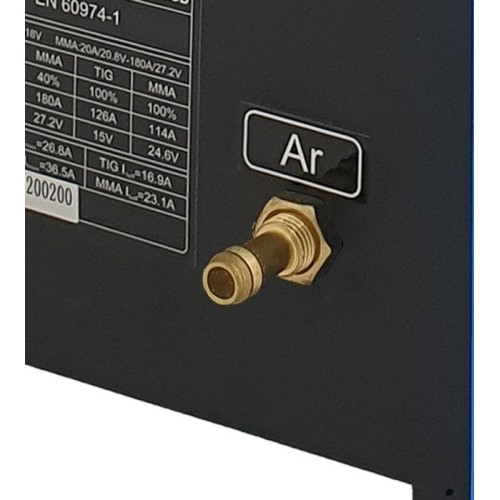

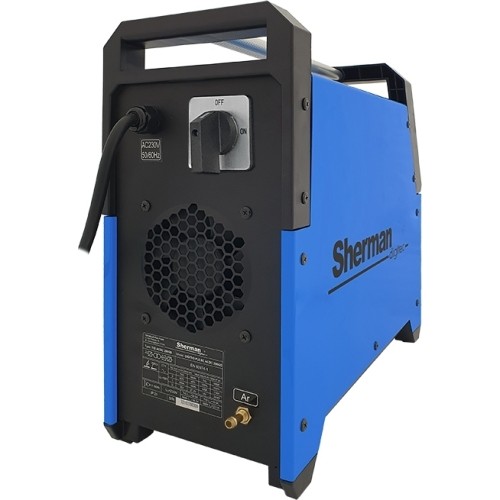

A R21 quick connector for the shielding gas inlet makes connecting the protective gas simple and fast.

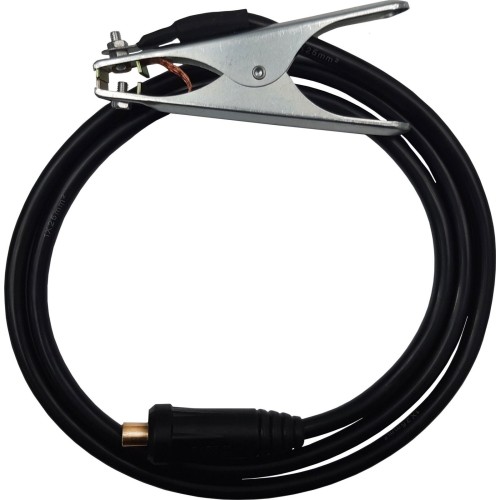

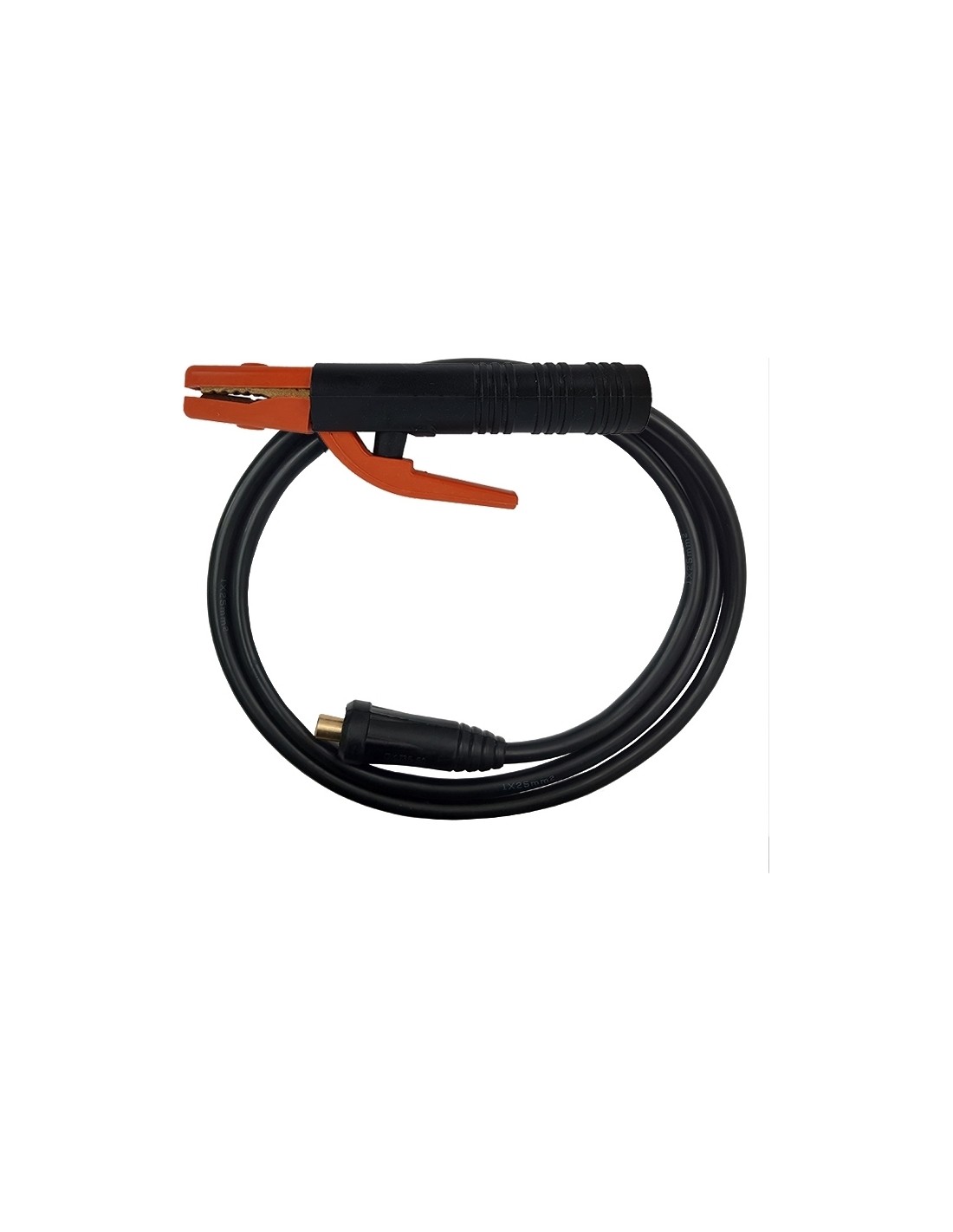

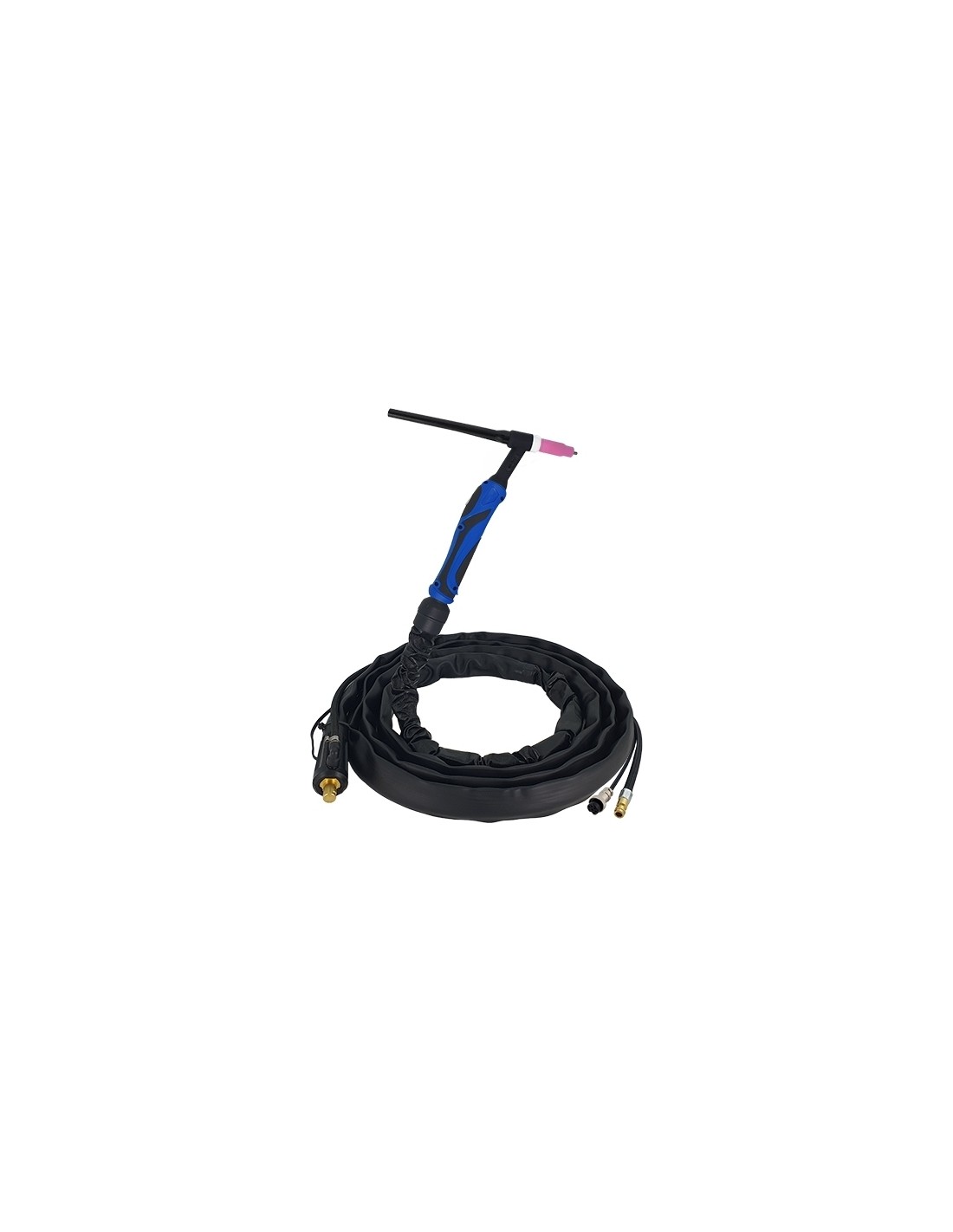

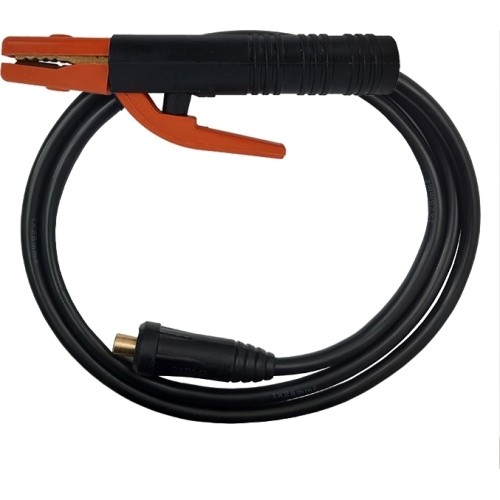

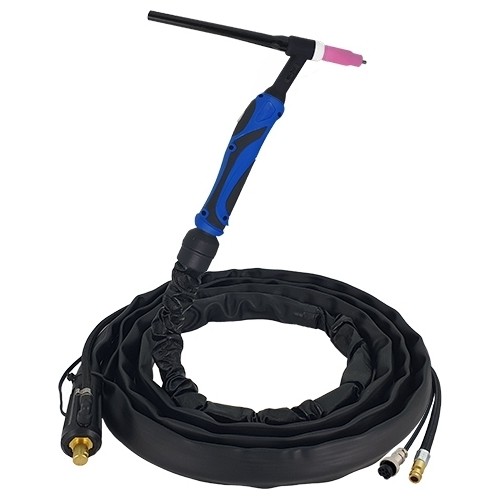

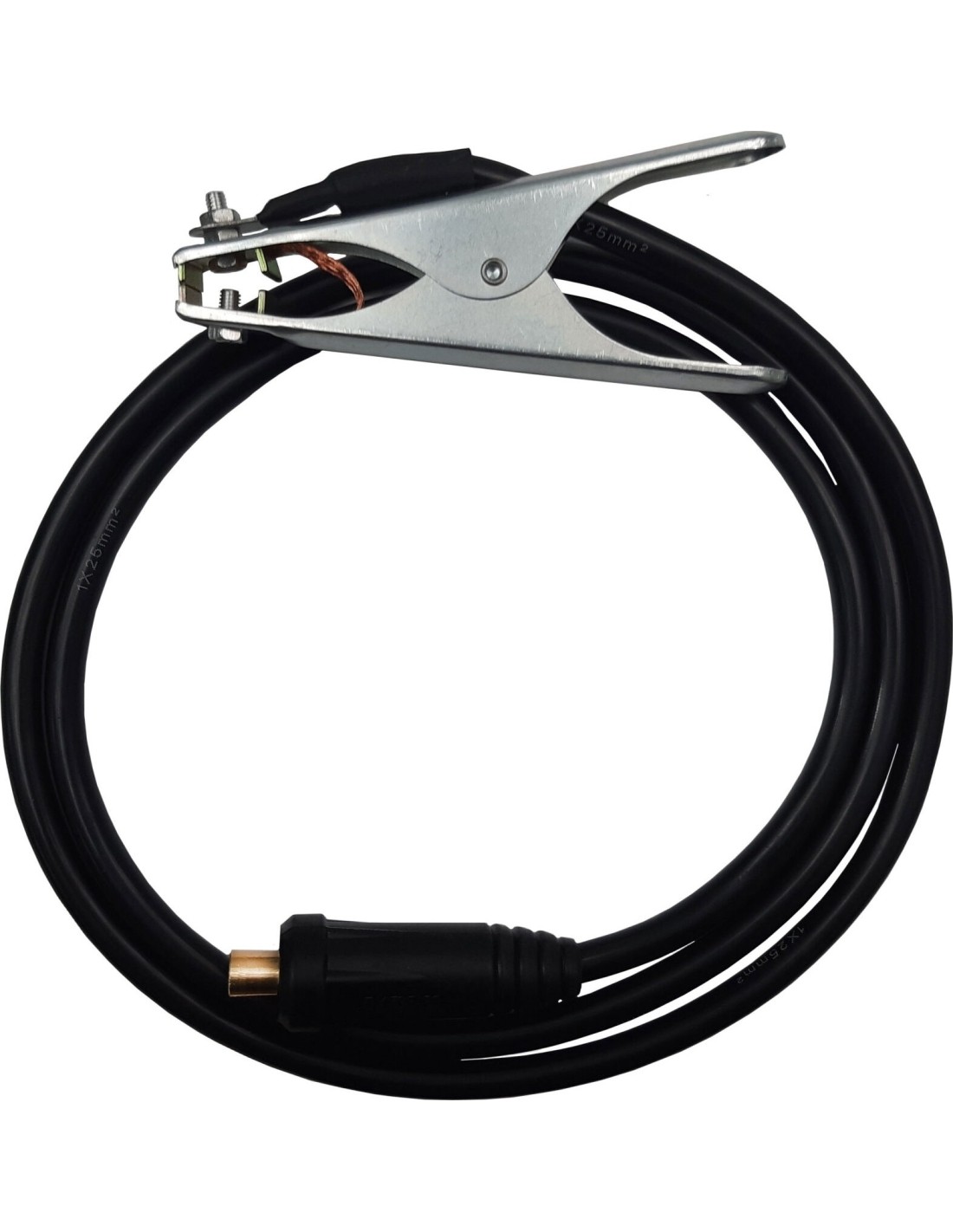

Included: TIG welding torch, electrode cable, and work/ground cable.
