Description

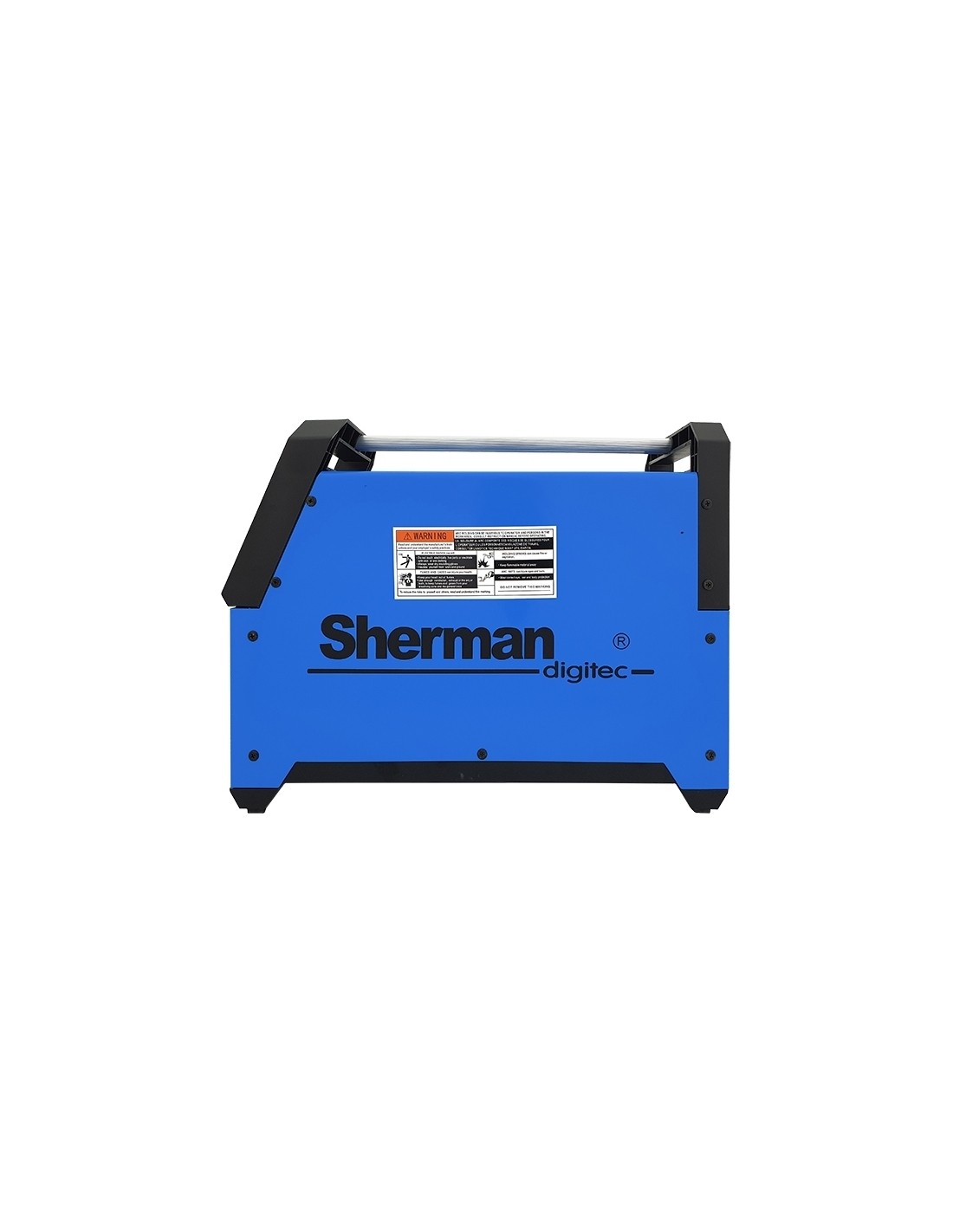

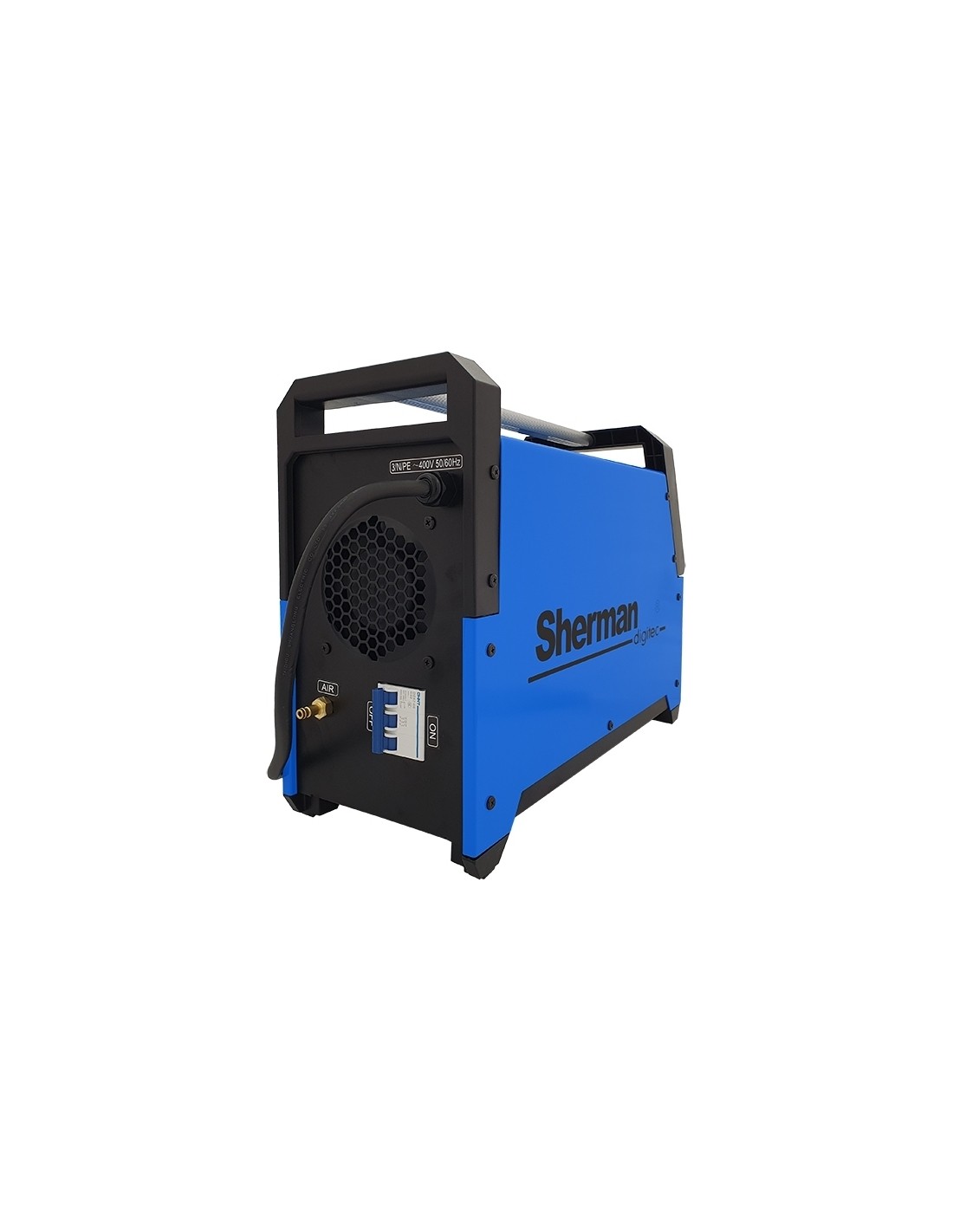

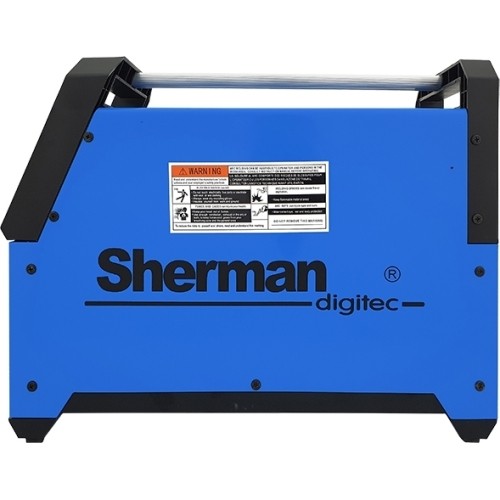

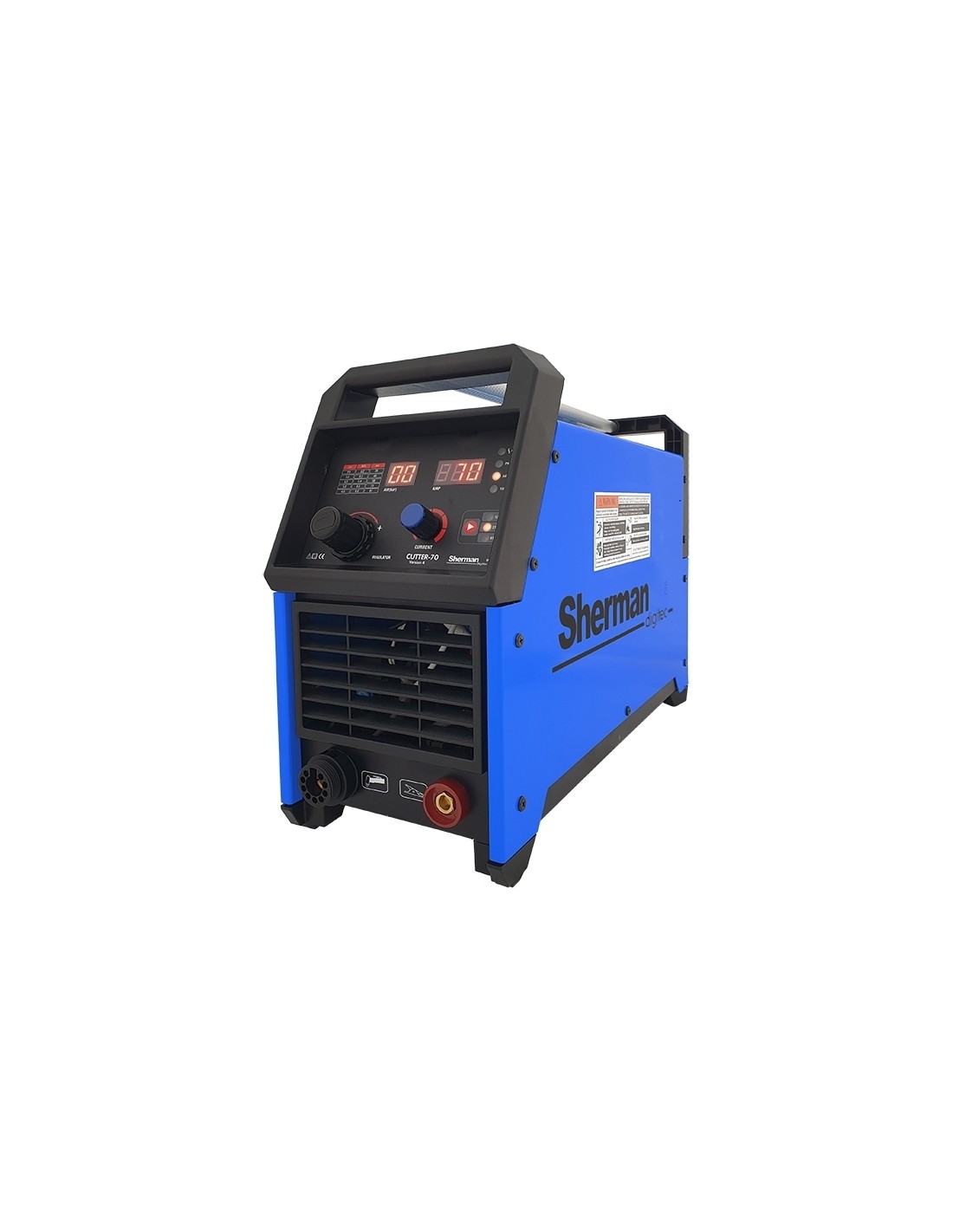

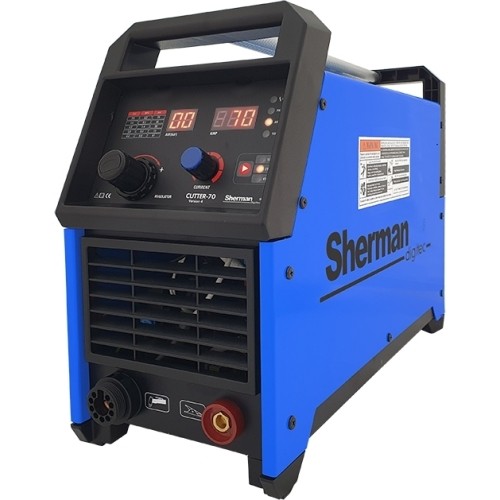

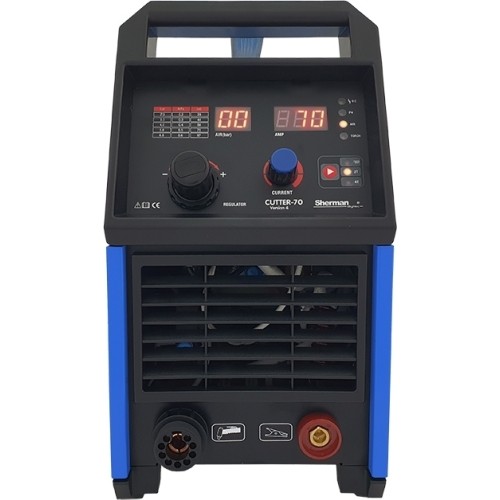

CUTTER 70 plasma cutter is part of a new series built on 200 kHz IGBT inverter technology for air-plasma cutting of steel, aluminum, and copper sheets and components. It is aimed at professional users and is intended for operation in indoor or covered areas, protected from direct weather exposure.

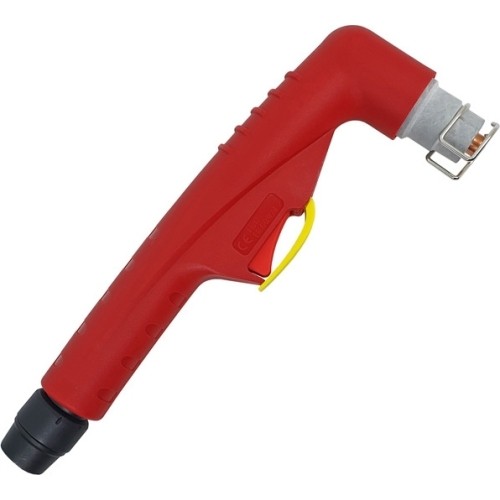

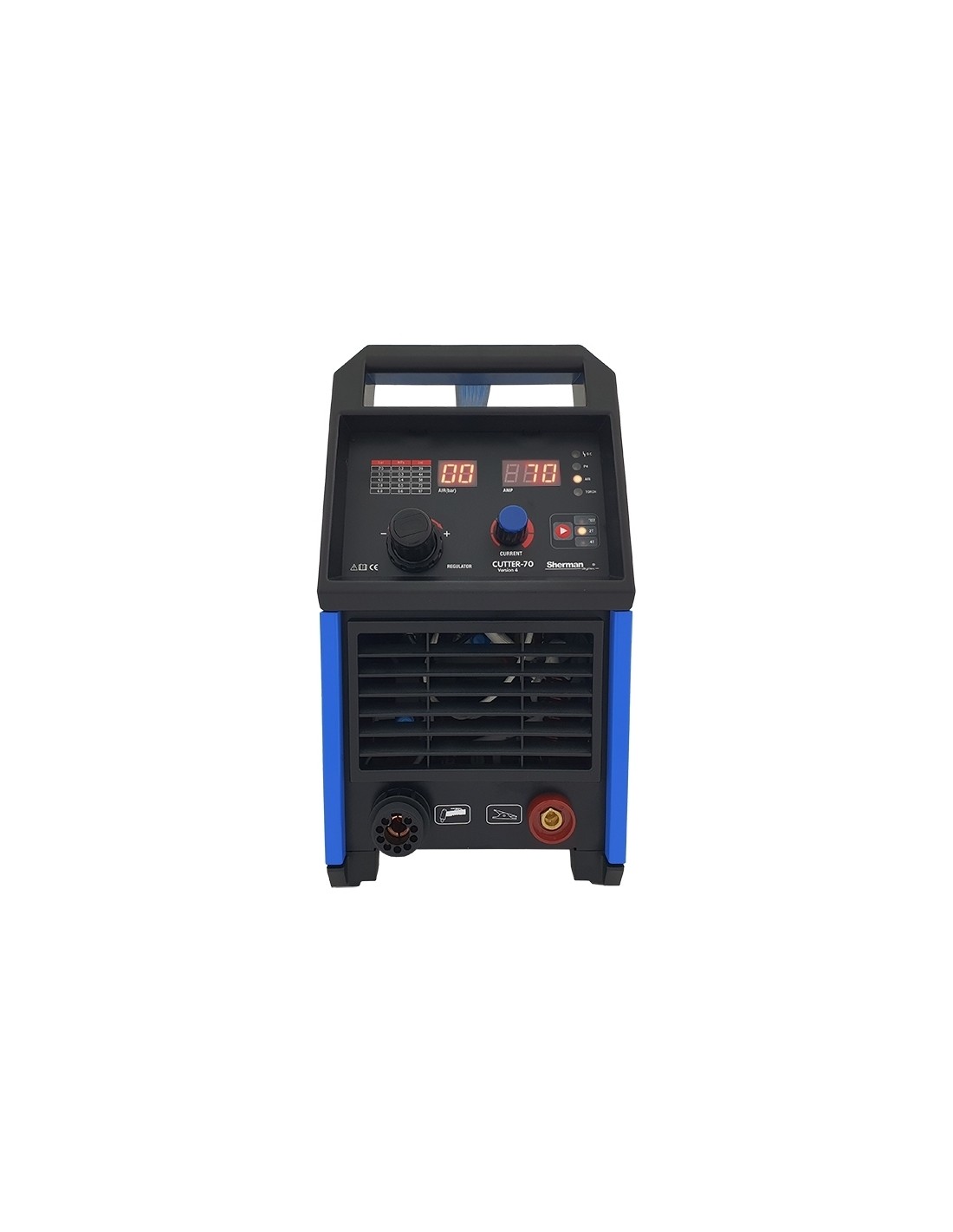

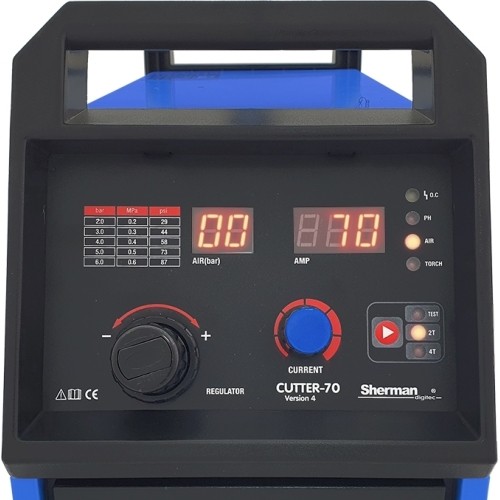

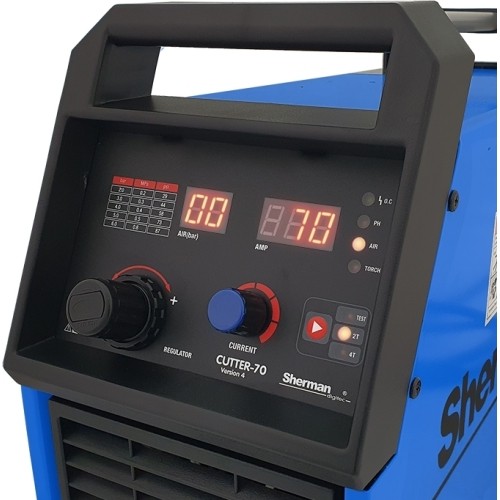

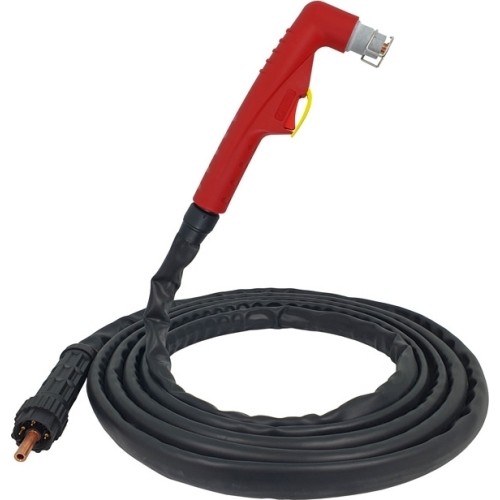

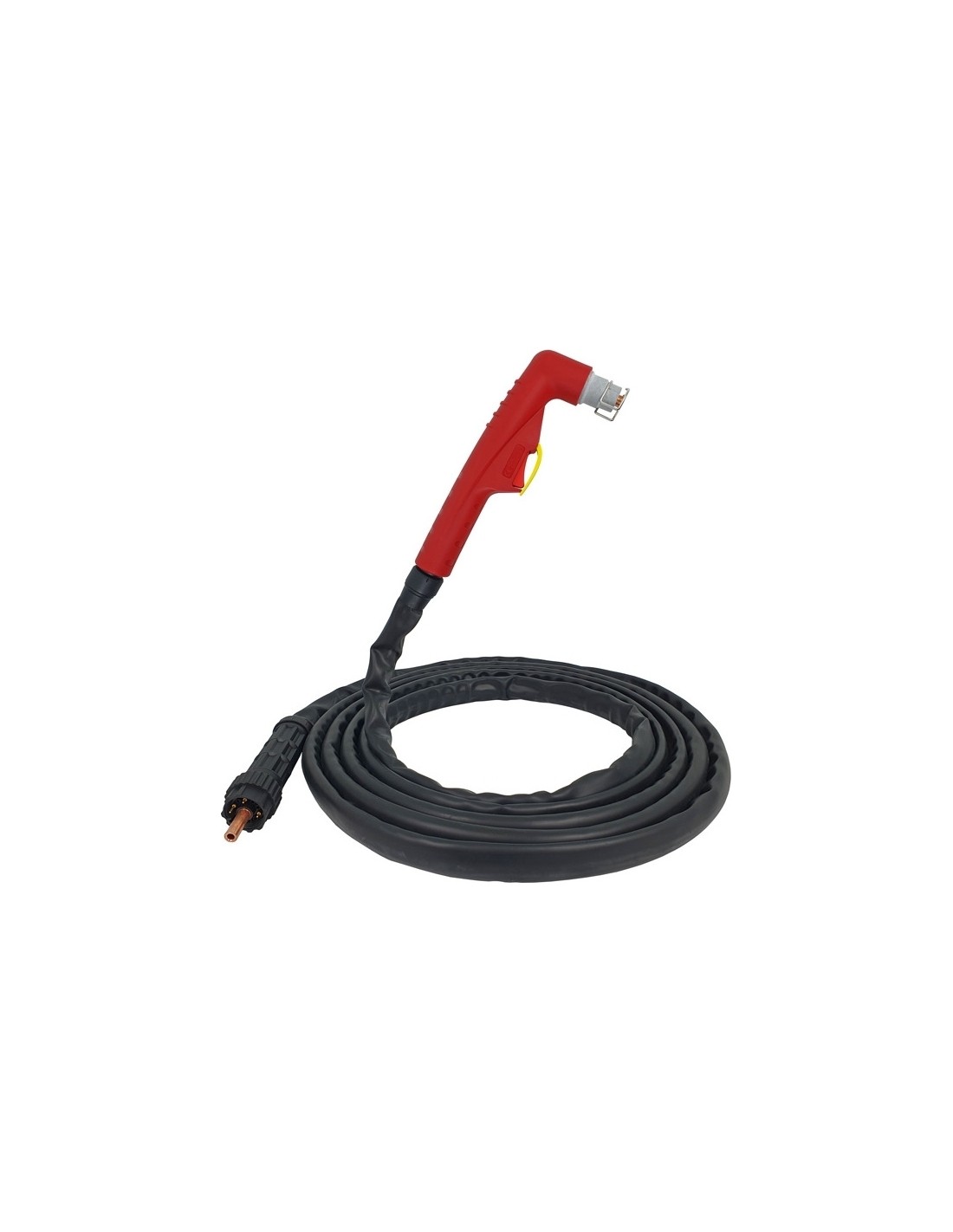

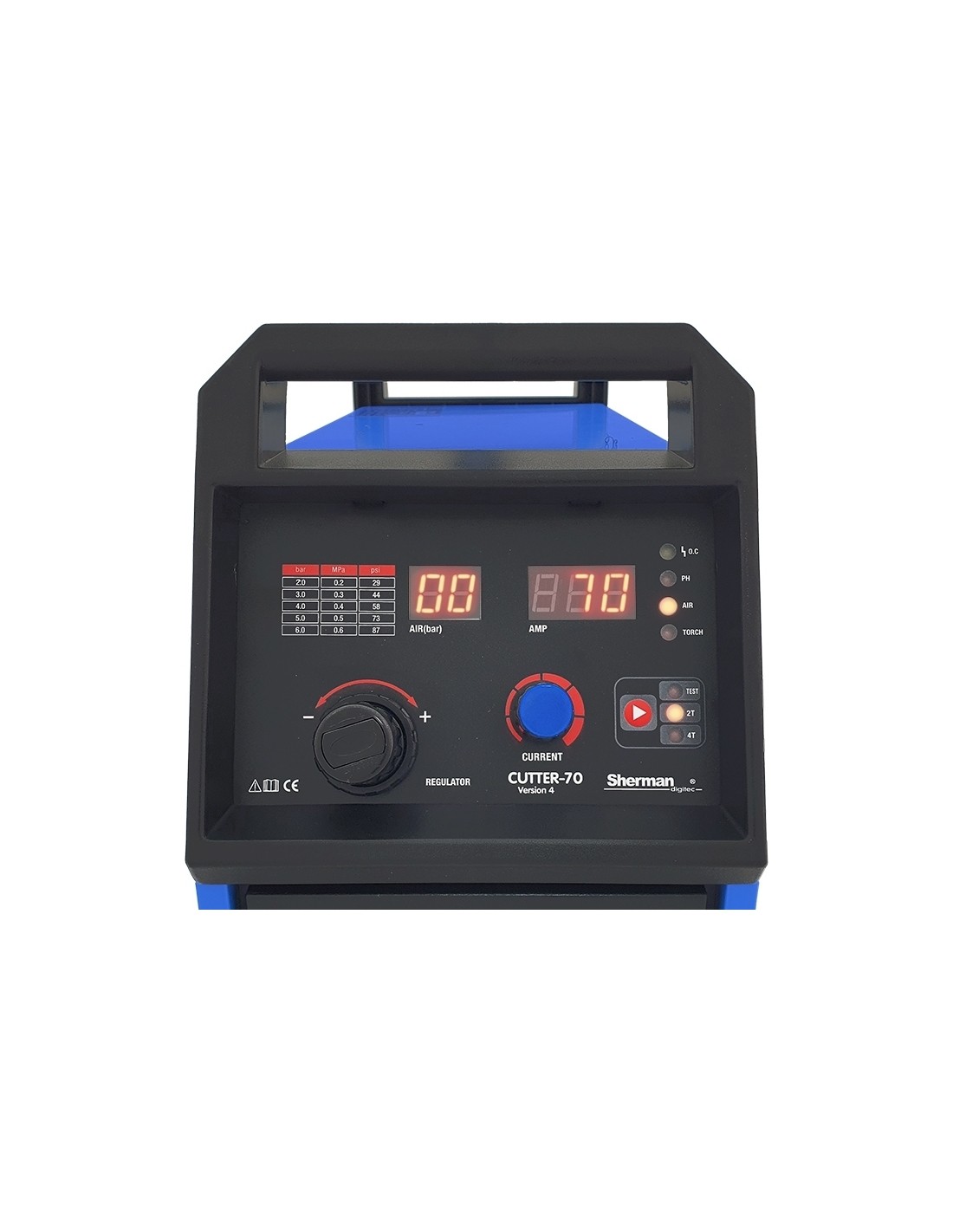

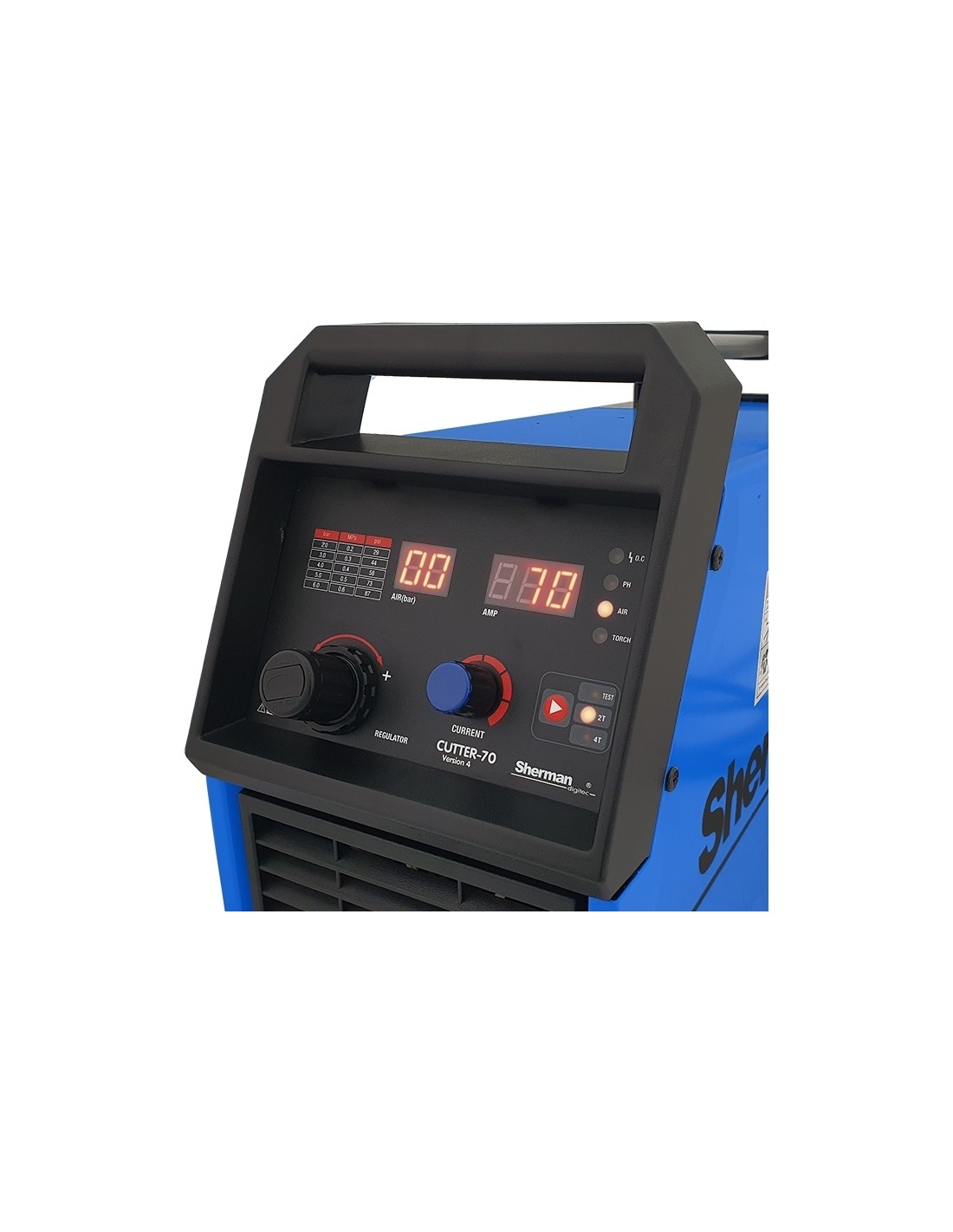

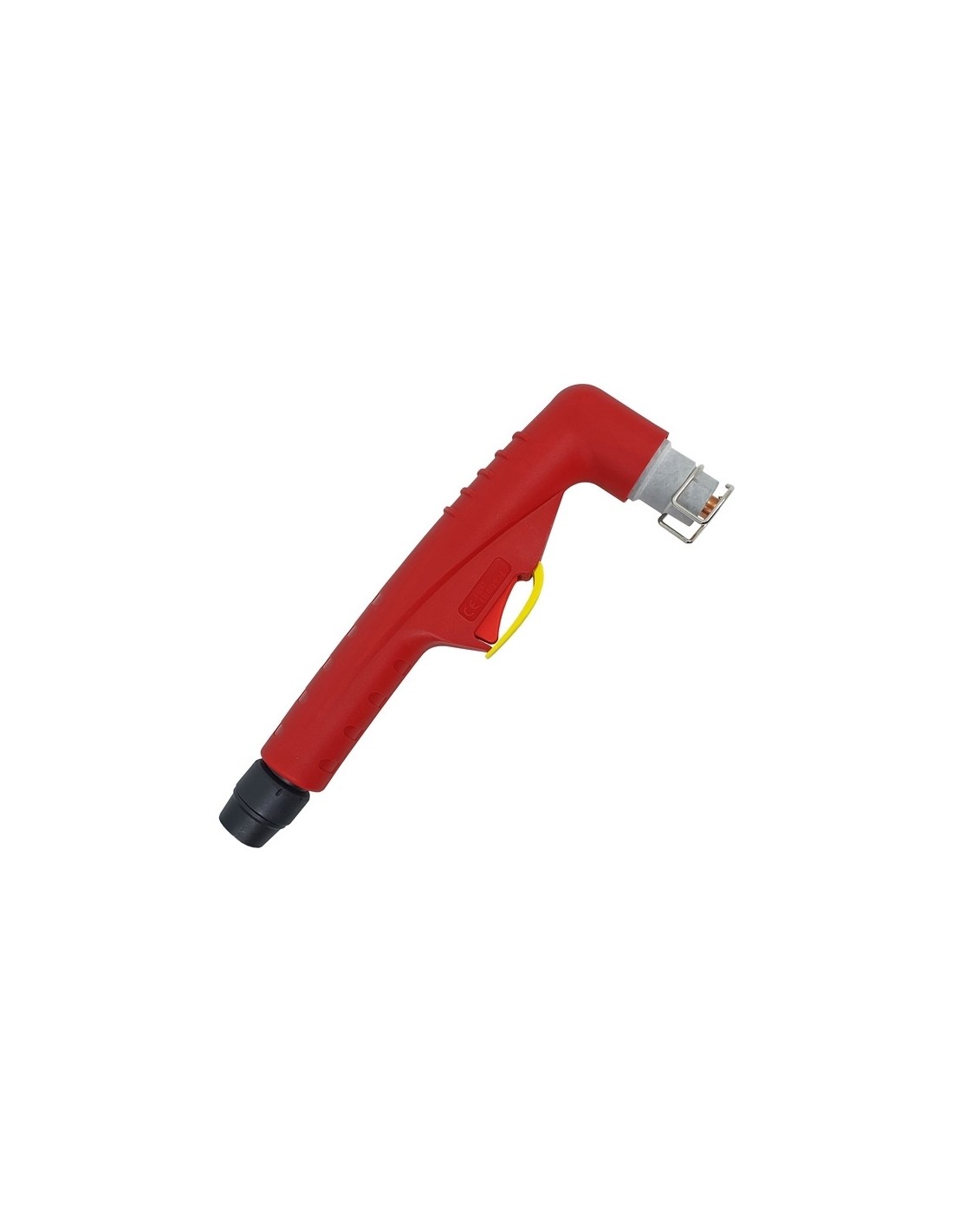

The unit comes with a 6 m TRAFIMET-standard torch featuring HF ionized pilot arc ignition, plus an integrated air preparation system with a reducer and a digital pressure display for convenient adjustment and monitoring from the control panel.

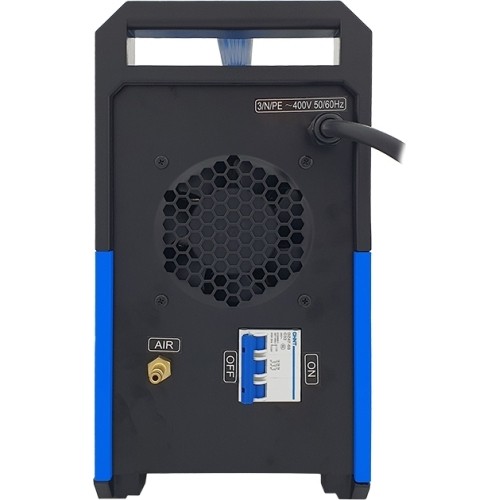

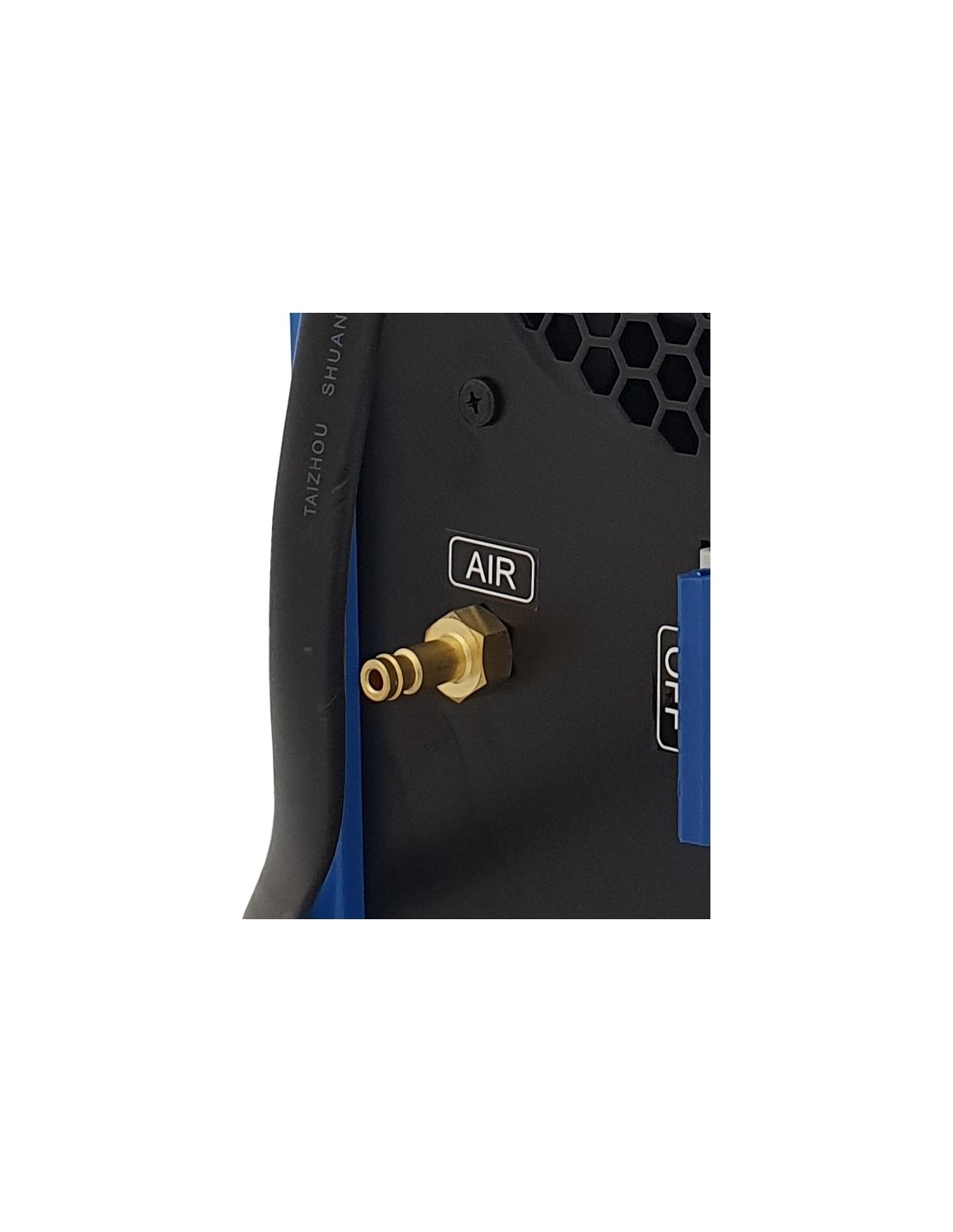

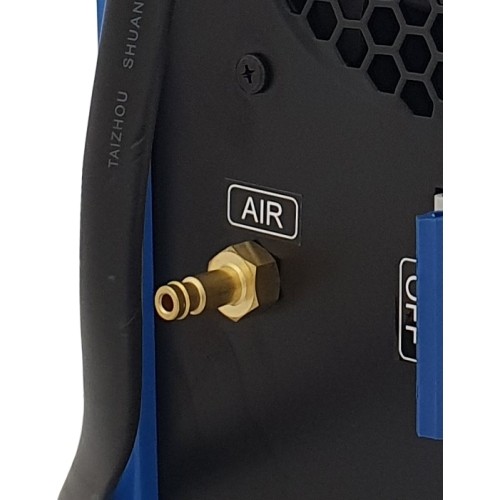

It is equipped with a 2T/4T switch, a TEST function for checking and purging the air line, and a Fan Stop feature that reduces noise at low load. A R21 quick coupling simplifies connection to the compressed-air system. The set includes a work lead with clamp.

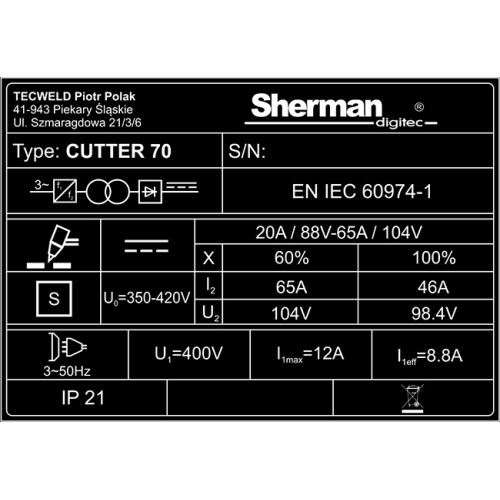

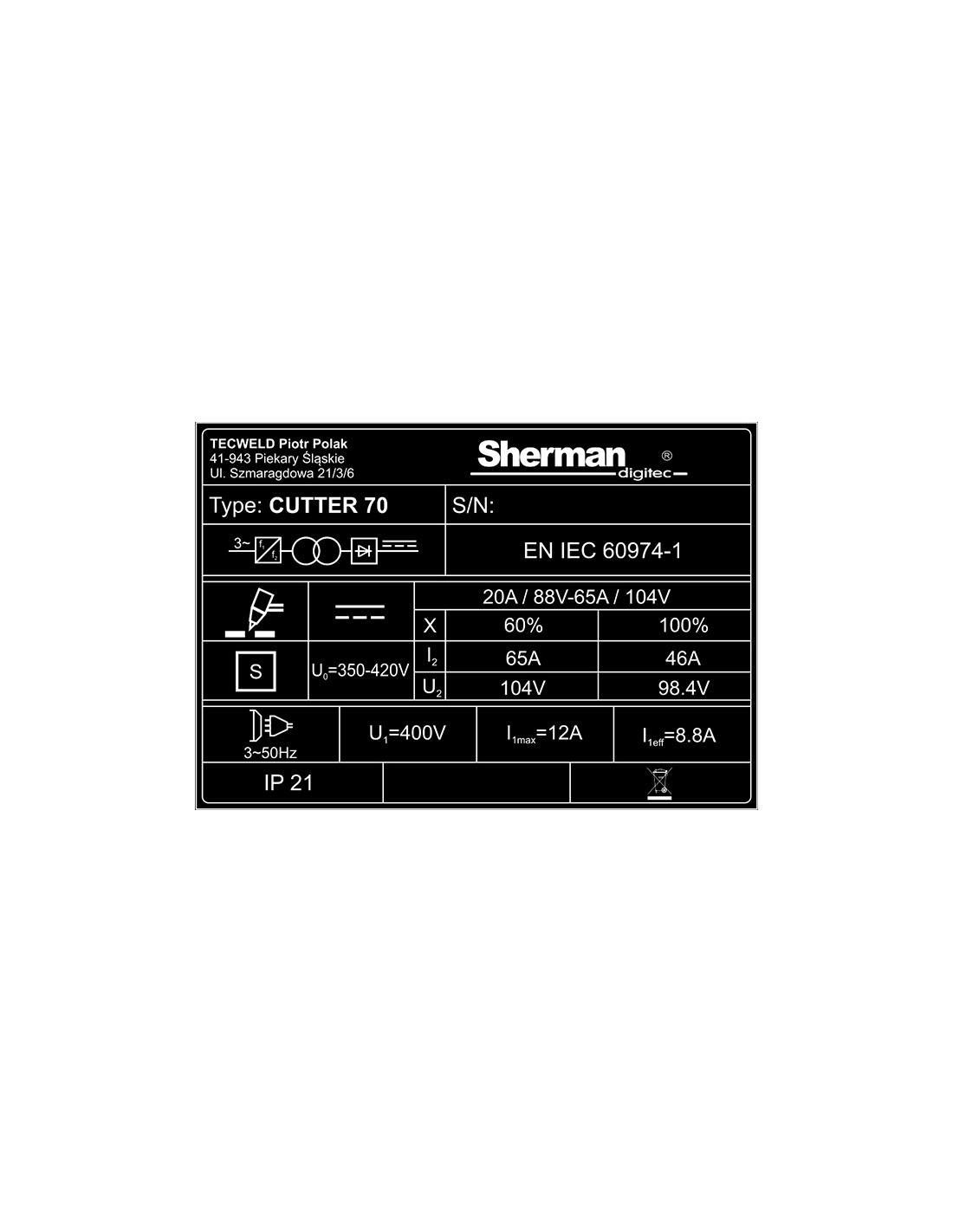

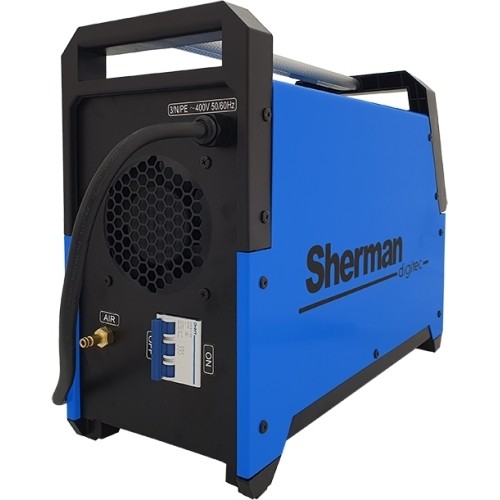

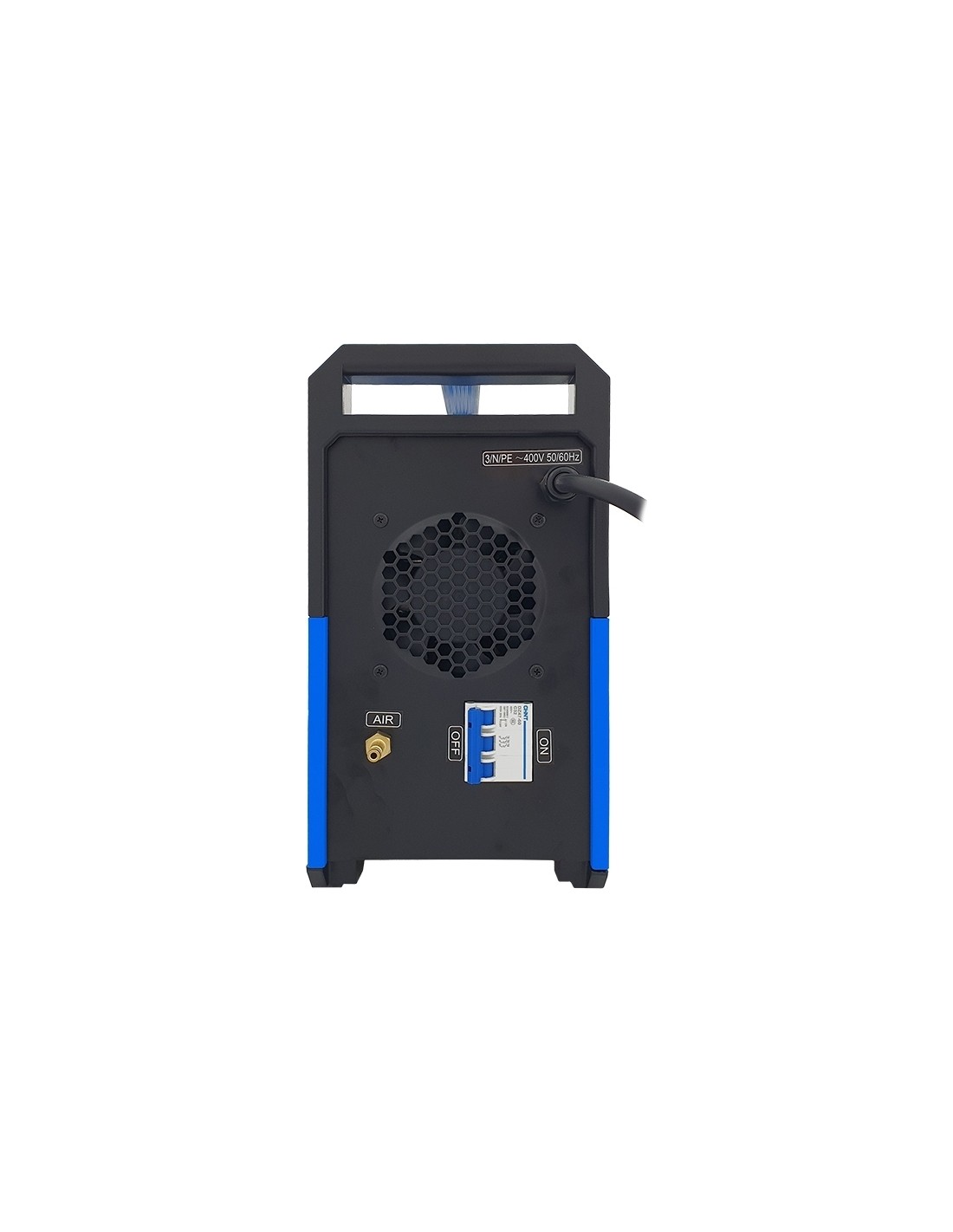

For efficient performance, the machine offers a 60% duty cycle and operates on a three‑phase 400 V supply, with power consumption up to 6.9 kVA. Air demand is approximately 0.25 m³/min. The robust build weighs about 21.32 kg and is covered by a 1‑year warranty.
