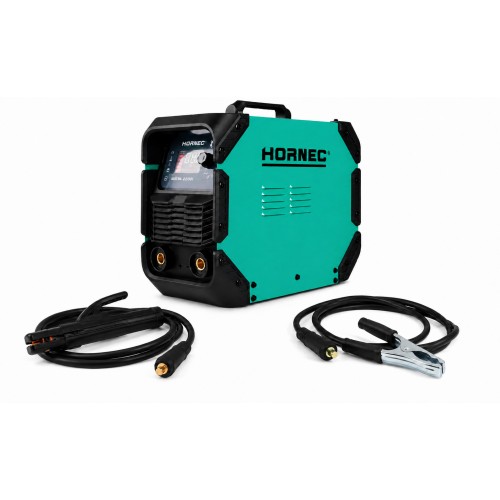

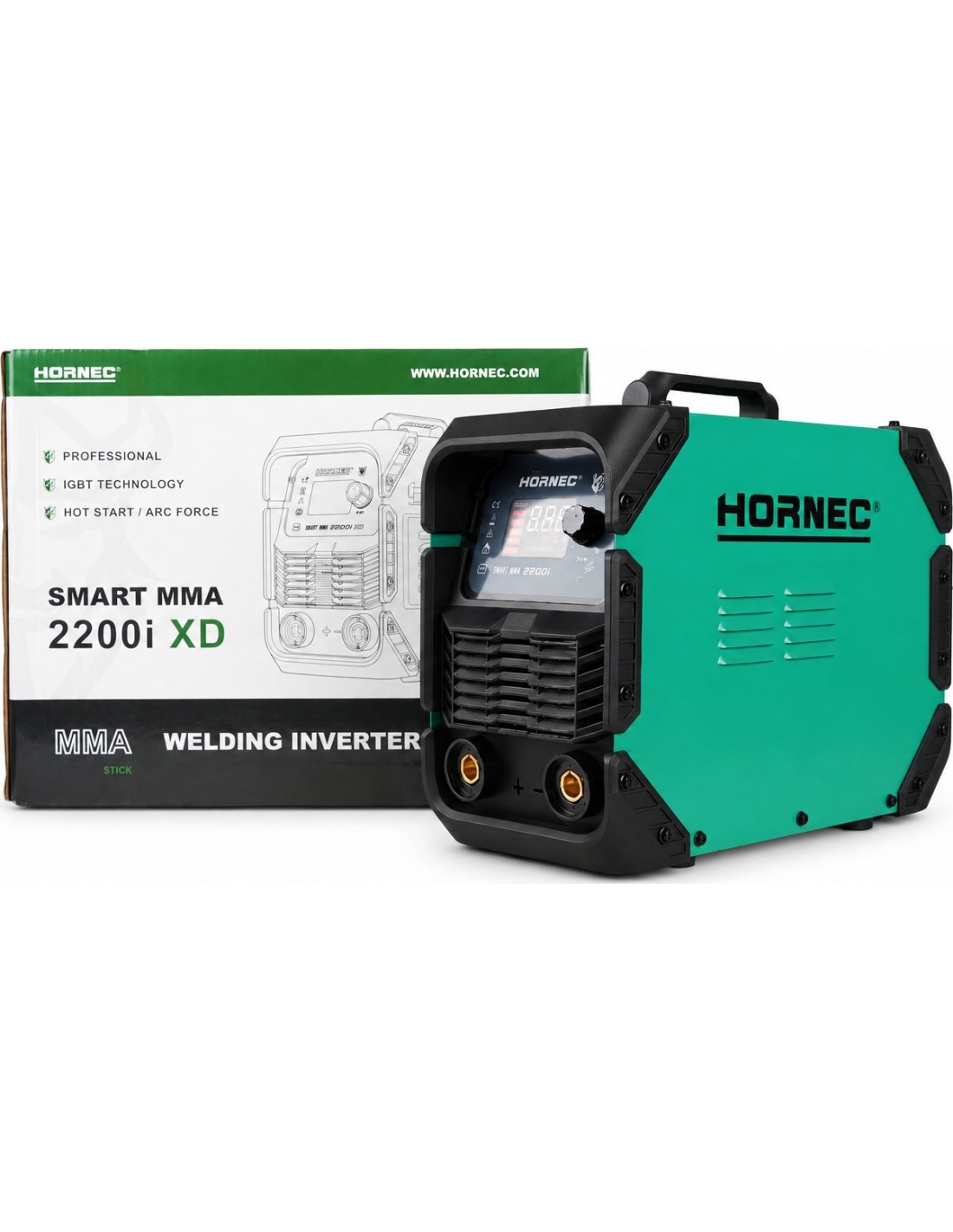

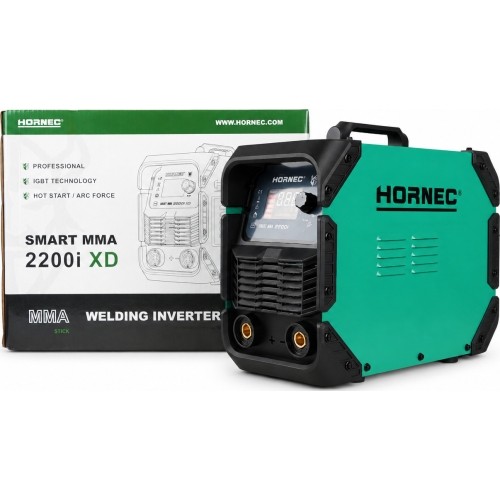

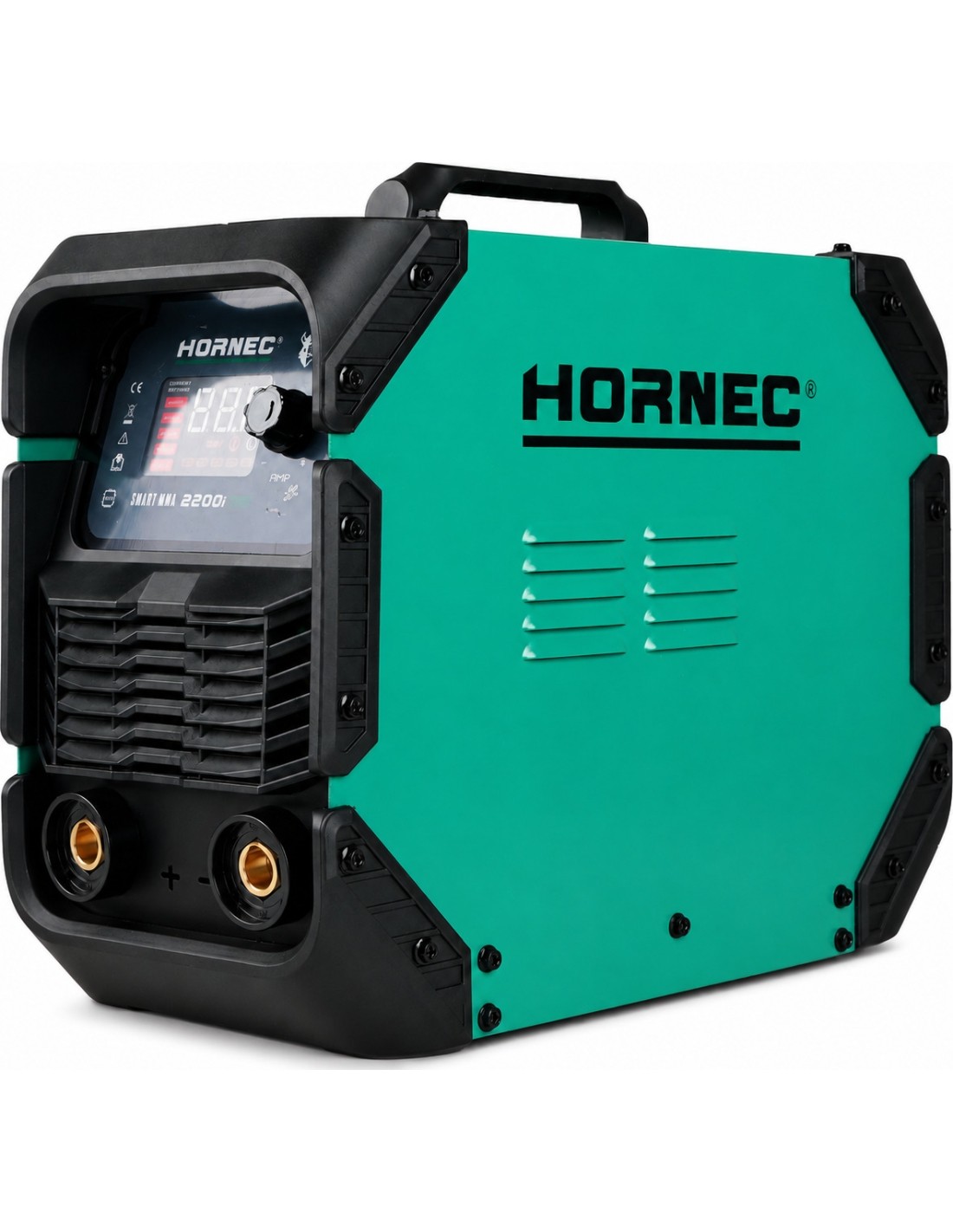

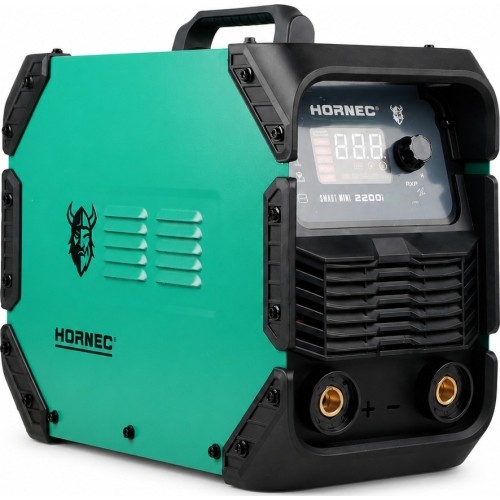

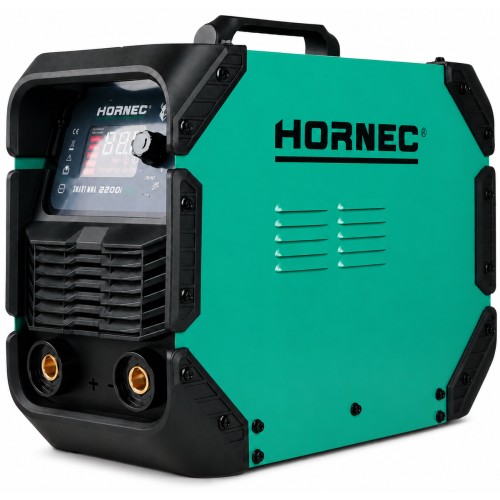

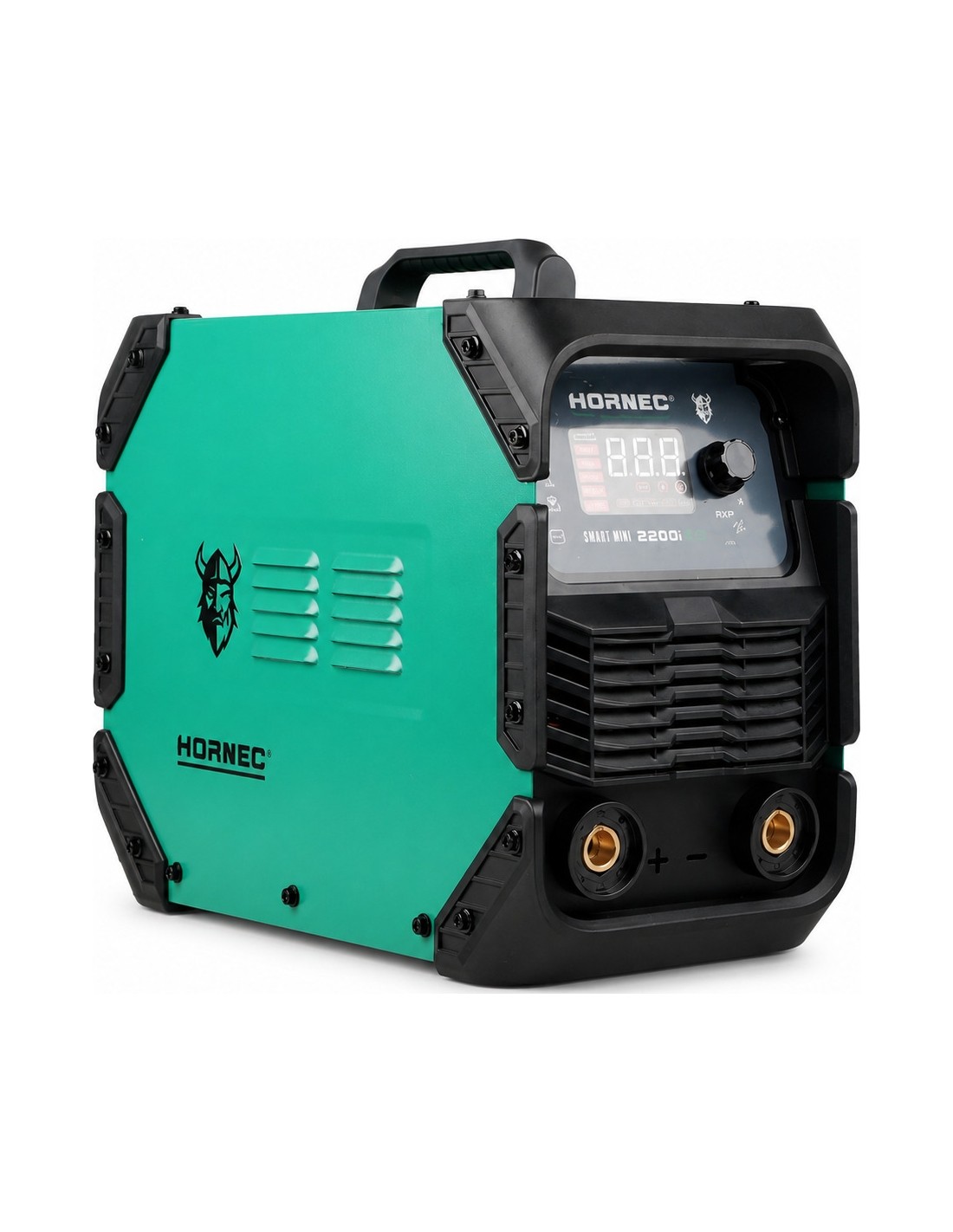

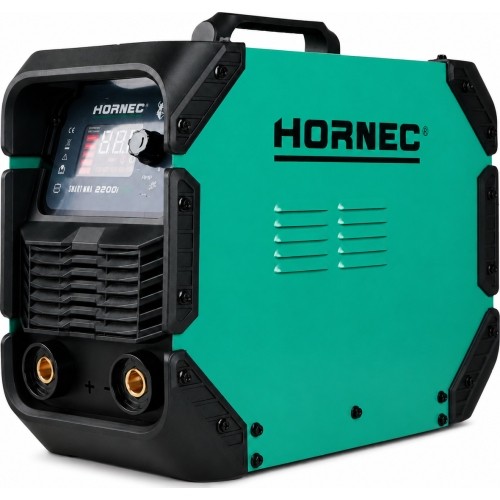

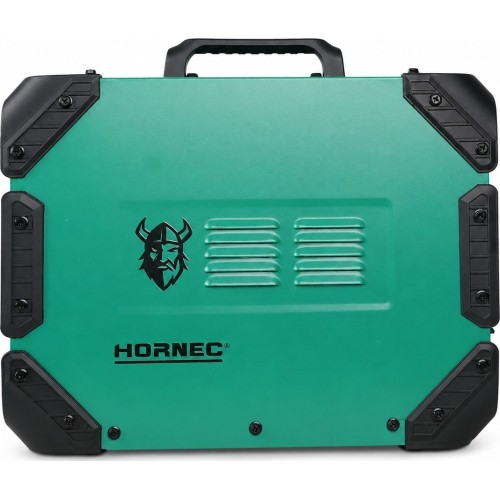

Welding machine Hornec® smart MMA 2200i XD

Phase: Vienfazis (230V)
User Level: Hobbyist / Home user
PFC function: No
Maximum current MMA [A]: 180
MMA darbo ciklas [%].: 60
Inverter technology: IGBT
Package Contents: 2 in 1 hammer/brush
electrode cable
ground cable
Mini shield for welding
welding machine
Functions: Anti-Shock
Anti‑Stick
ARC FORCE
HOT START
Welding methods: MMA (electrodes)

Brand

Welding machine Hornec® smart MMA 2200i XD

Name: Welding machine Hornec® smart MMA 2200i XD
Brand: Hornec
SKU: 1544249

Reference 1544249

Ask for the price and delivery time by phone

You can buy our products from our partner stores

Interested in a B2B partnership?

b2b@tolas.lt +370 648 47770

Opens in a new window

Description

Suvirinimo aparatas HORNEC smart MMA 2200i XD

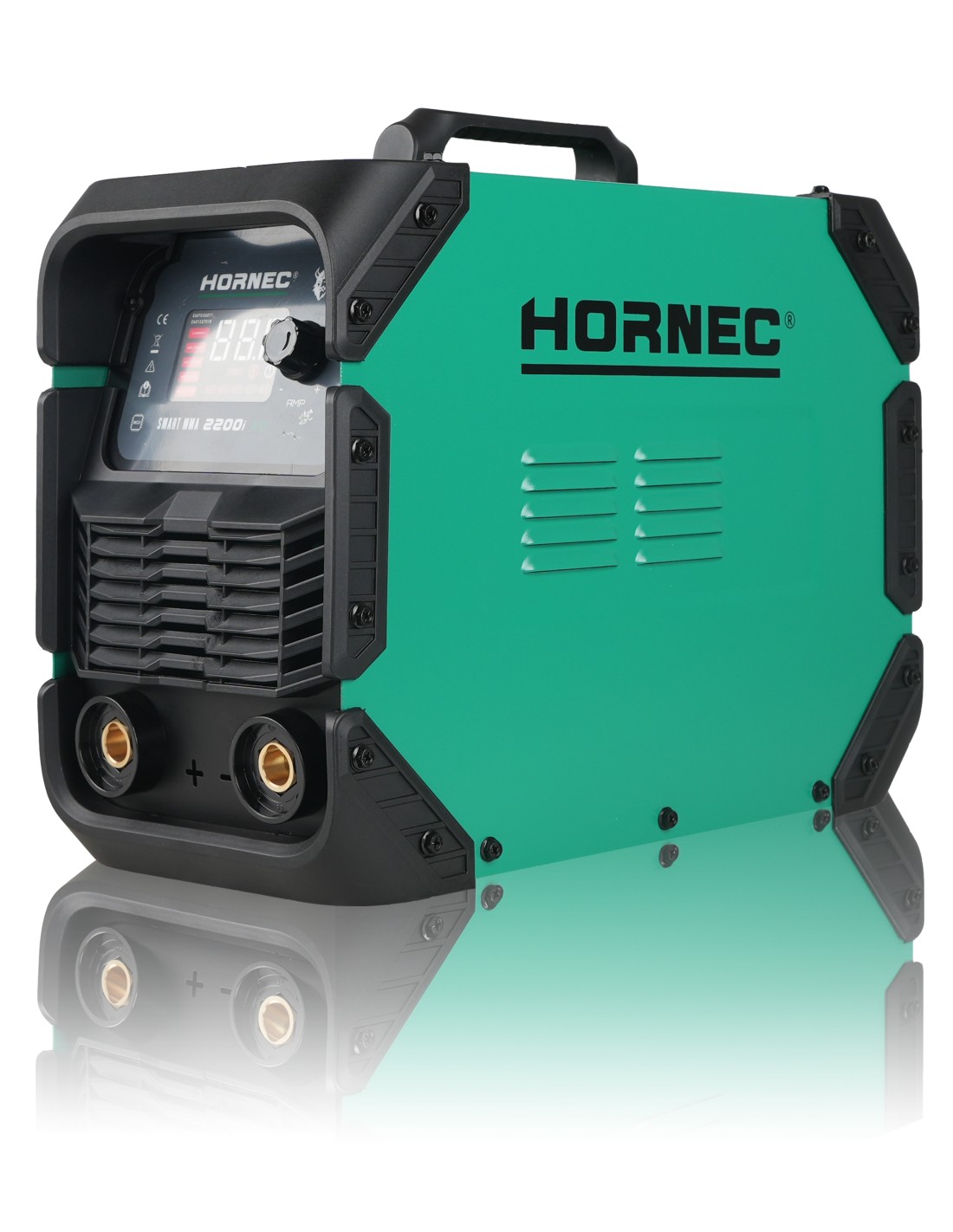

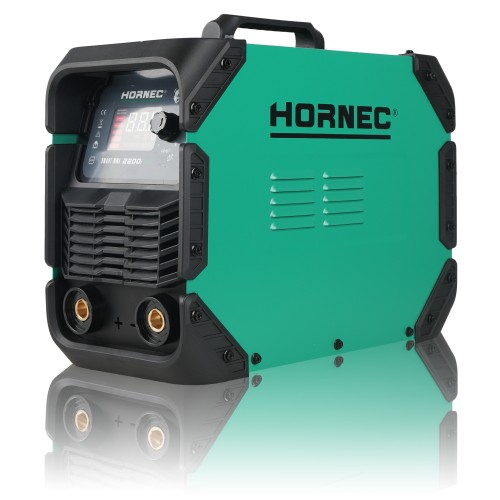

Welding machine HORNEC® smart MMA 2200i XD

Compact DC inverter MMA machine with digital control

HORNEC® smart MMA 2200i XD is a direct current stick (electrode) welding machine designed for portable repair work, home workshops and small projects. The lightweight IGBT inverter design, digital display and convenient parameter selector help you get the machine ready for work quickly.

Why choose this model?

adjustable welding current up to 180 A;
digital display and clear controls;
Hot Start, Arc Force, Anti-Stick and Anti-Shock functions;
suitable for 2.5-5.0 mm electrodes;
compact housing with integrated carrying handle.

Advanced IGBT inverter technology

The IGBT inverter design allows precise adjustment of the welding current and helps maintain a stable direct current arc. Active cooling and integrated protections help safeguard the machine's electronics during operation.

stable direct current (DC) arc;
digital ammeter;
overload and temperature indicators;
overheating and overcurrent protection;
active fan cooling.

HORNEC smart MMA 2200i XD suvirinimo aparatas

Functions for more convenient MMA welding

Hot Start

Briefly increases the ignition current, making it easier to strike the electrode at the start of work.

Arc Force

Automatically adjusts the current as the arc shortens and helps maintain more stable welding.

Anti-Stick

Reduces the current when the electrode sticks to the workpiece, making it easier to detach the electrode.

Anti-Shock

A safety function that reduces the risk posed by the output voltage when no welding is taking place.

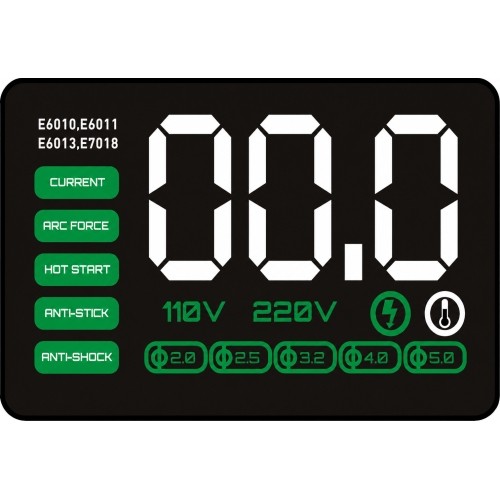

HORNEC smart MMA 2200i XD skaitmeninis valdymas

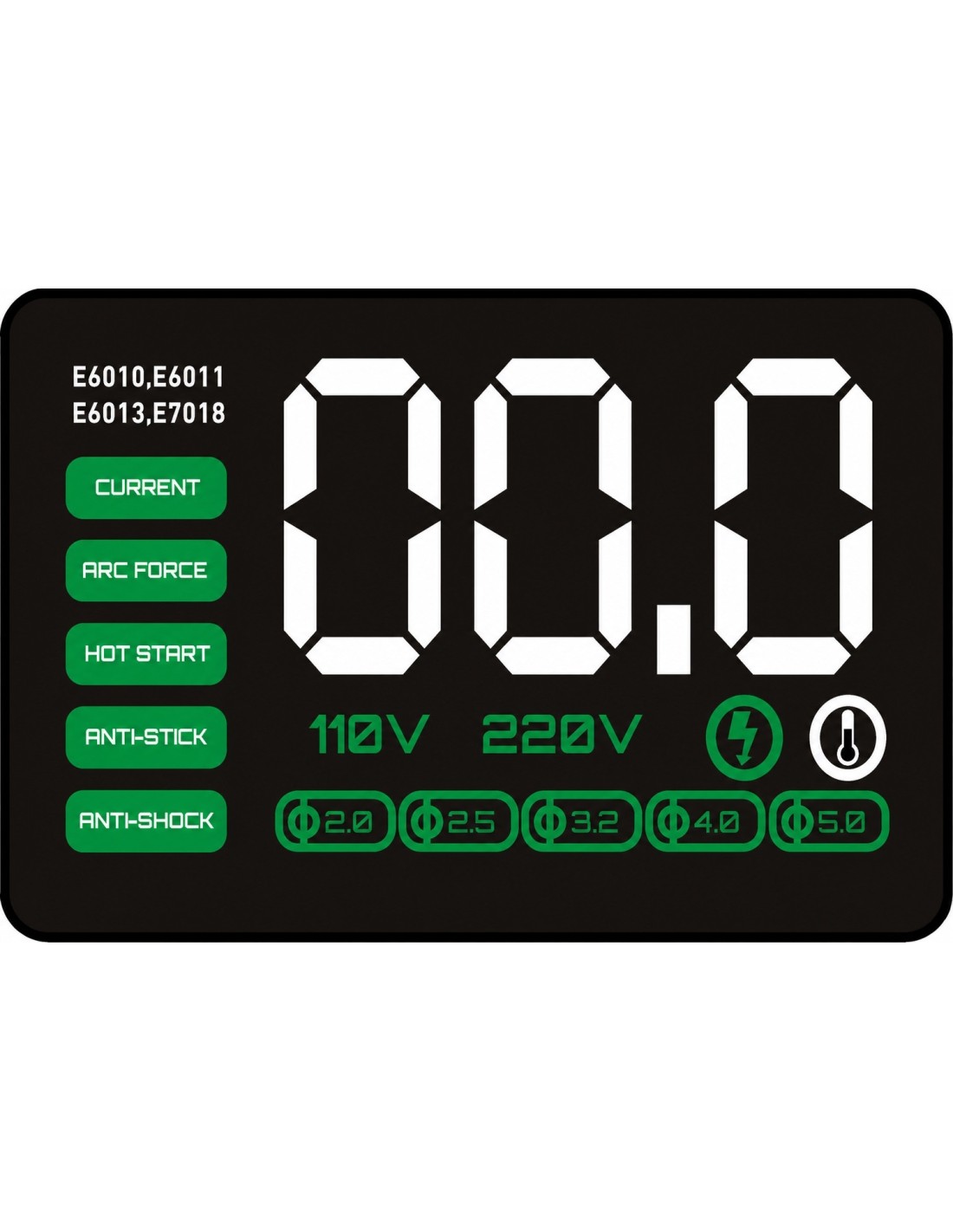

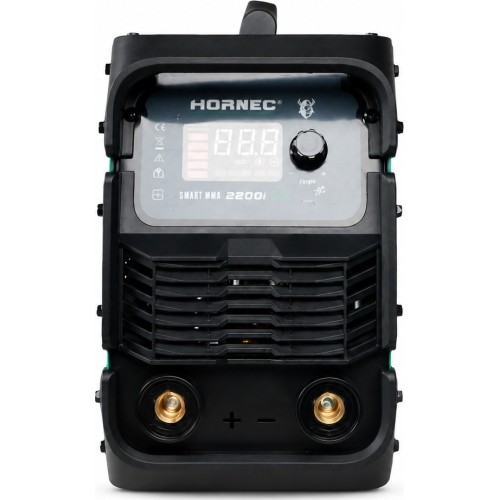

Clear digital control

The front control panel features a large digital display, a current adjustment knob and a parameter selector. The selected settings are clearly visible on the display, while separate overload and temperature indicators help monitor the machine's status.

Current range: 15-180 A.
Electrode selection: 2.5 / 3.2 / 4.0 / 5.0 mm.
Electrode types: E6010, E6011, E6013 and E7018.
Indicators: overload and temperature.

Welding with coated electrodes

The MMA process is suitable for simple repair, installation and small steel structure work. Before starting, select the correct polarity and current for the electrode according to the electrode manufacturer's technical data.

supports 2.5-5.0 mm diameter electrodes;
suitable for E6010, E6011, E6013 and E7018 types;
10-25 mm quick-connect sockets;
direct or reverse polarity can be selected according to the electrode;
the machine is not intended for welding aluminium.

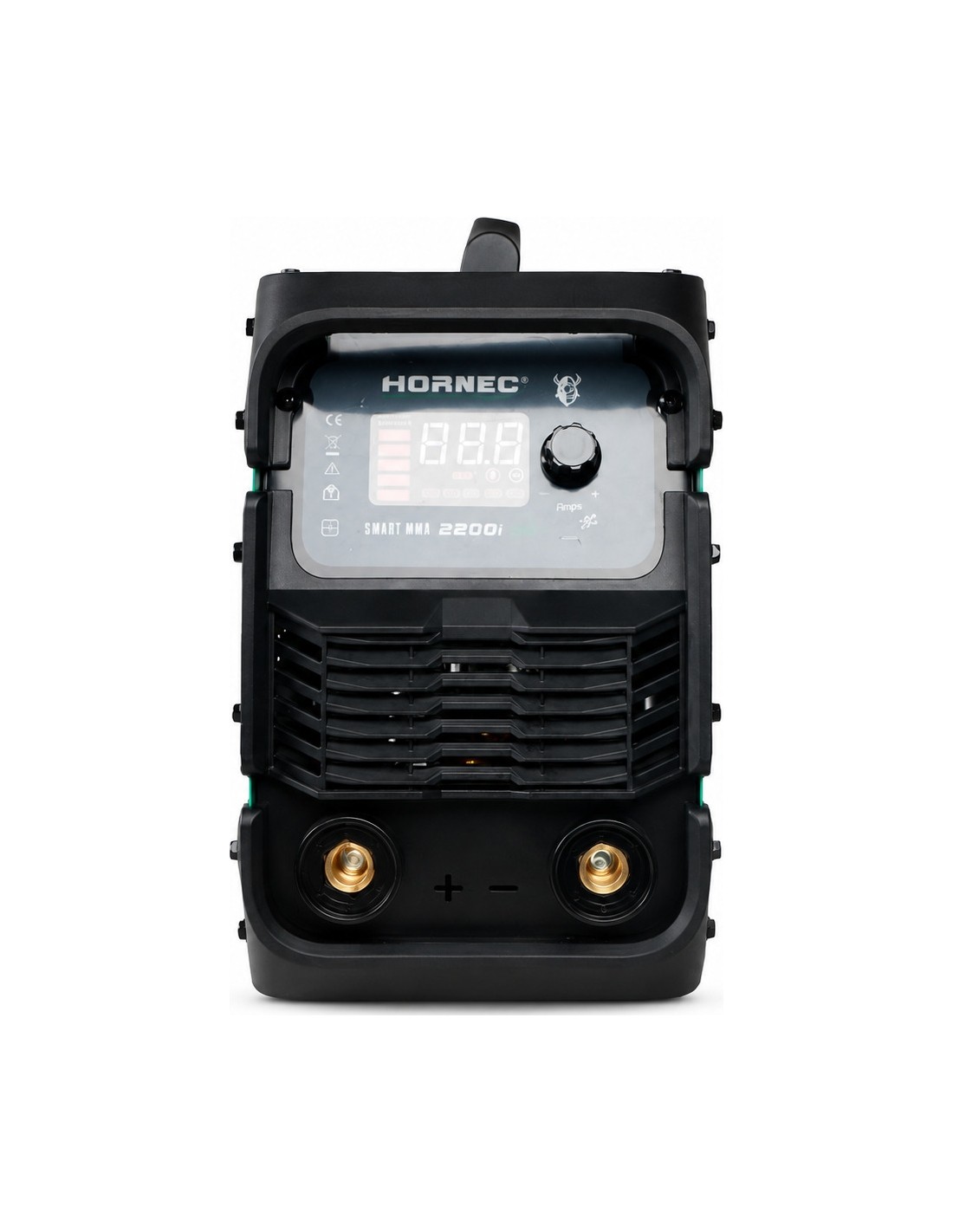

HORNEC smart MMA 2200i XD jungtys ir elektrodų pasirinkimas

Duty cycle

Process	Current range	Maximum output current	Duty cycle
MMA	15-180 A	180 A / 26.3 V	60 %

Duty cycle is calculated over a 10-minute period at an ambient temperature of 40 °C. A 60 % duty cycle means up to 6 minutes of welding with the remaining time for cooling. If the machine overheats, stop welding and leave it switched on so the fan can cool the electronics; the manual recommends allowing at least 15 minutes for safe cooling.

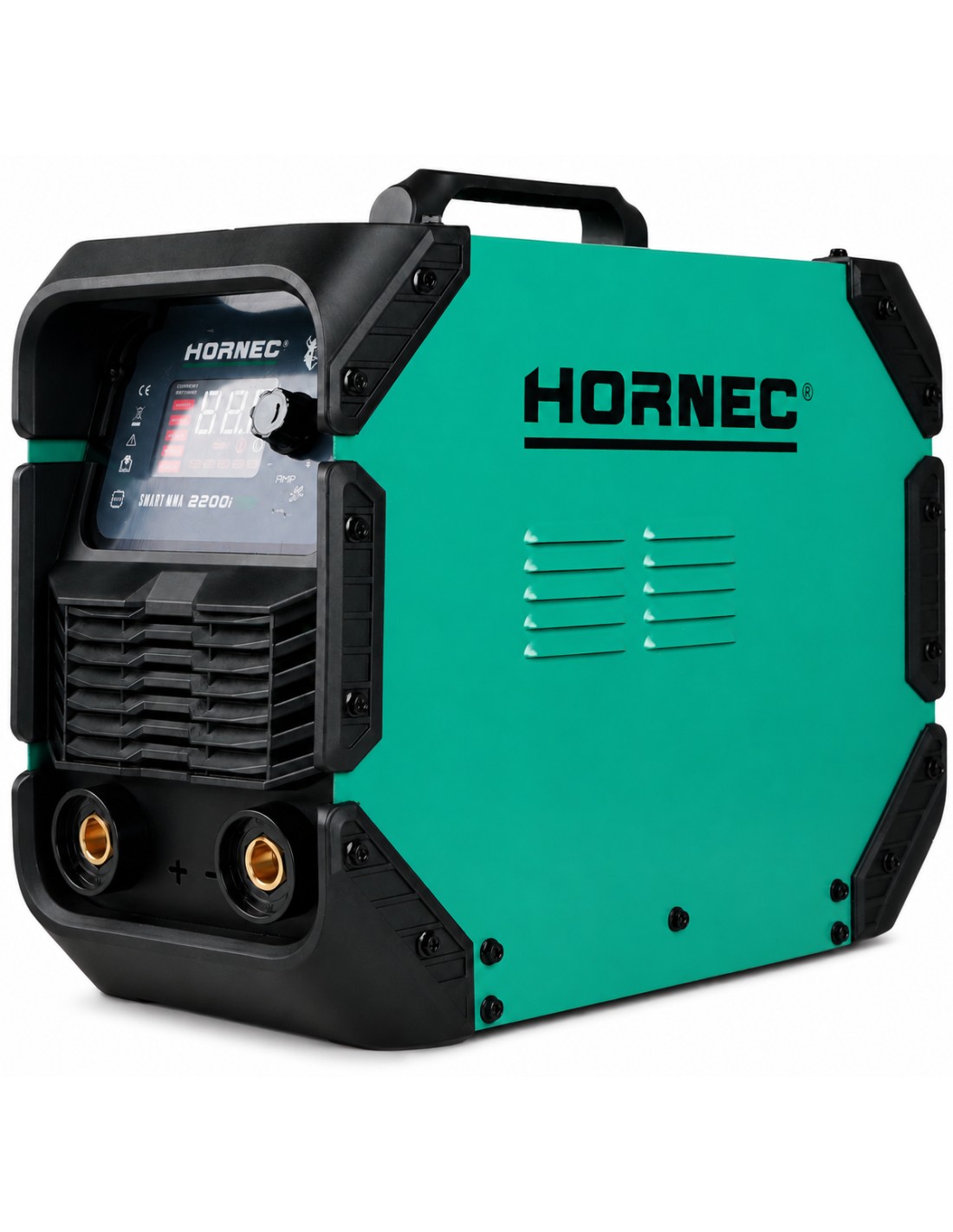

HORNEC smart MMA 2200i XD konstrukcija

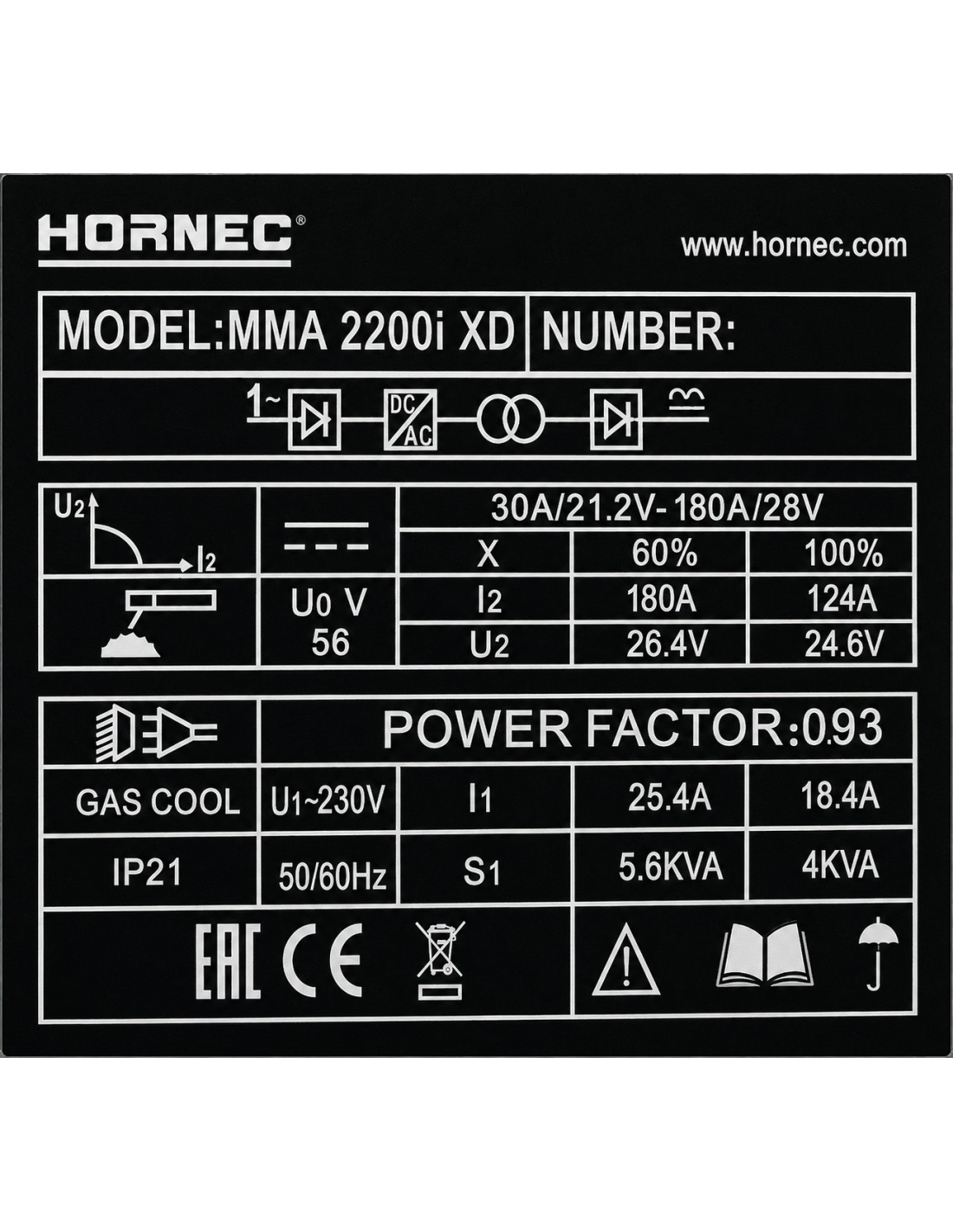

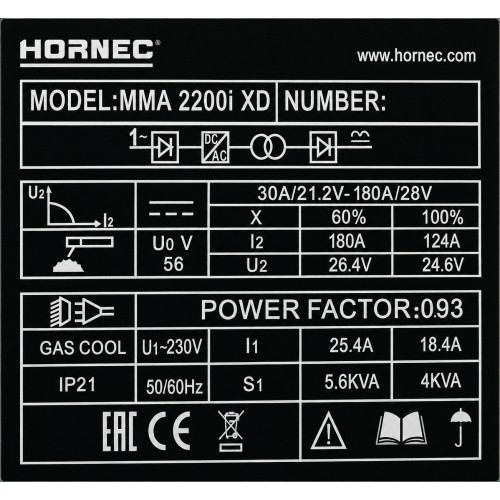

Main technical specifications

Model	HORNEC® smart MMA 2200i XD
Welding process	MMA (DC)
Power supply	220 V / 50-60 Hz
Welding current range	15-180 A
Maximum output current	180 A / 26.3 V
Duty cycle	60 %
No-load voltage	67 V
Insulation class	F
Protection class	IP21S
Ammeter	digital
Electrode diameter	2.5-5.0 mm
Electrode types	E6010 / E6011 / E6013 / E7018

HORNEC smart MMA 2200i XD detalės

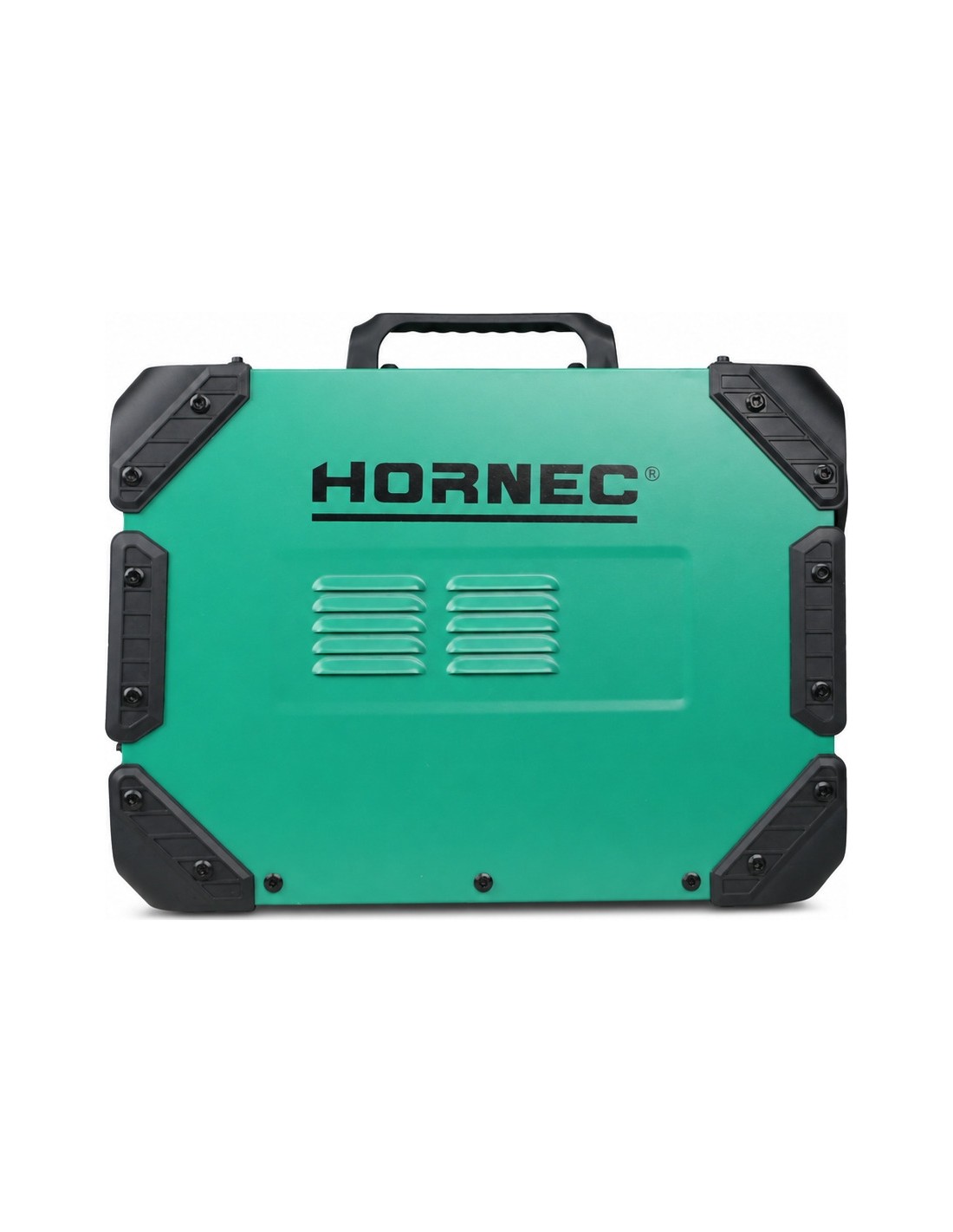

Practical for small repair jobs

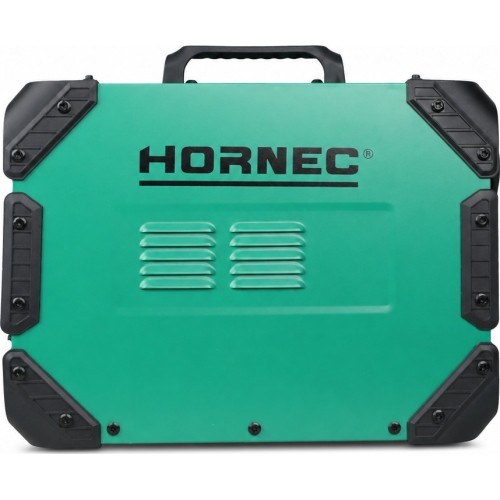

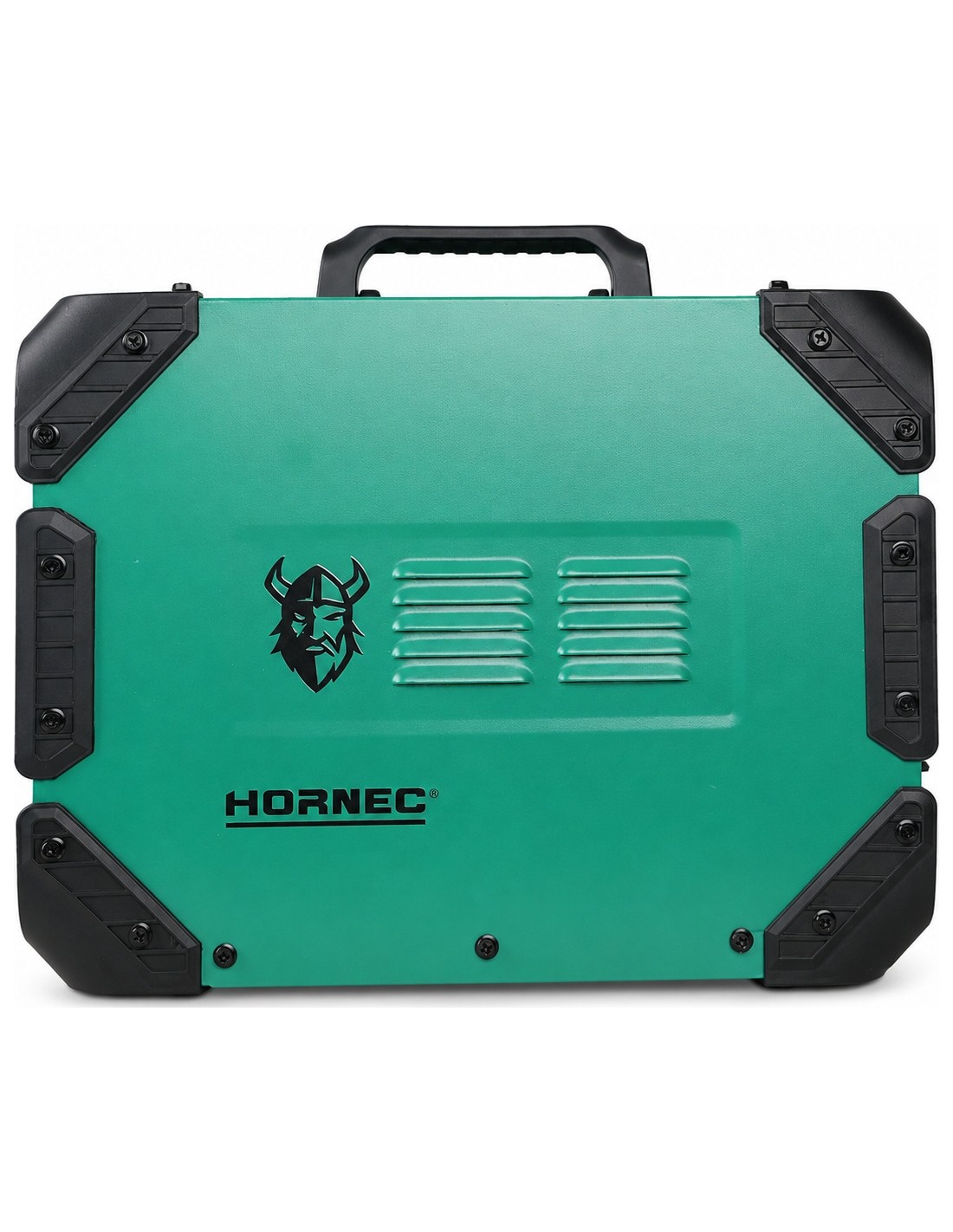

Integrated handle makes it easier to move the machine.
Digital display clearly shows the selected parameters.
Quick-connect sockets allow convenient connection of the electrode and ground cables.
Compact housing suits garages, country houses and home workshops.

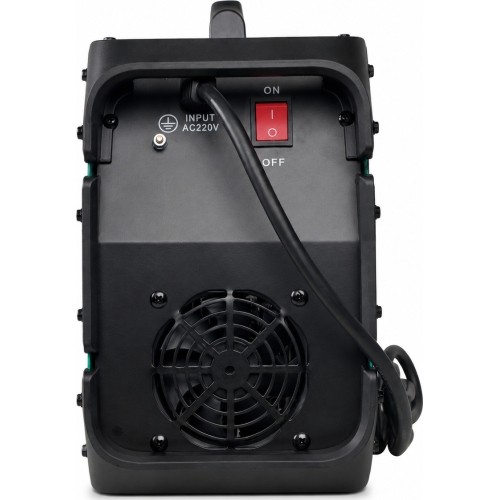

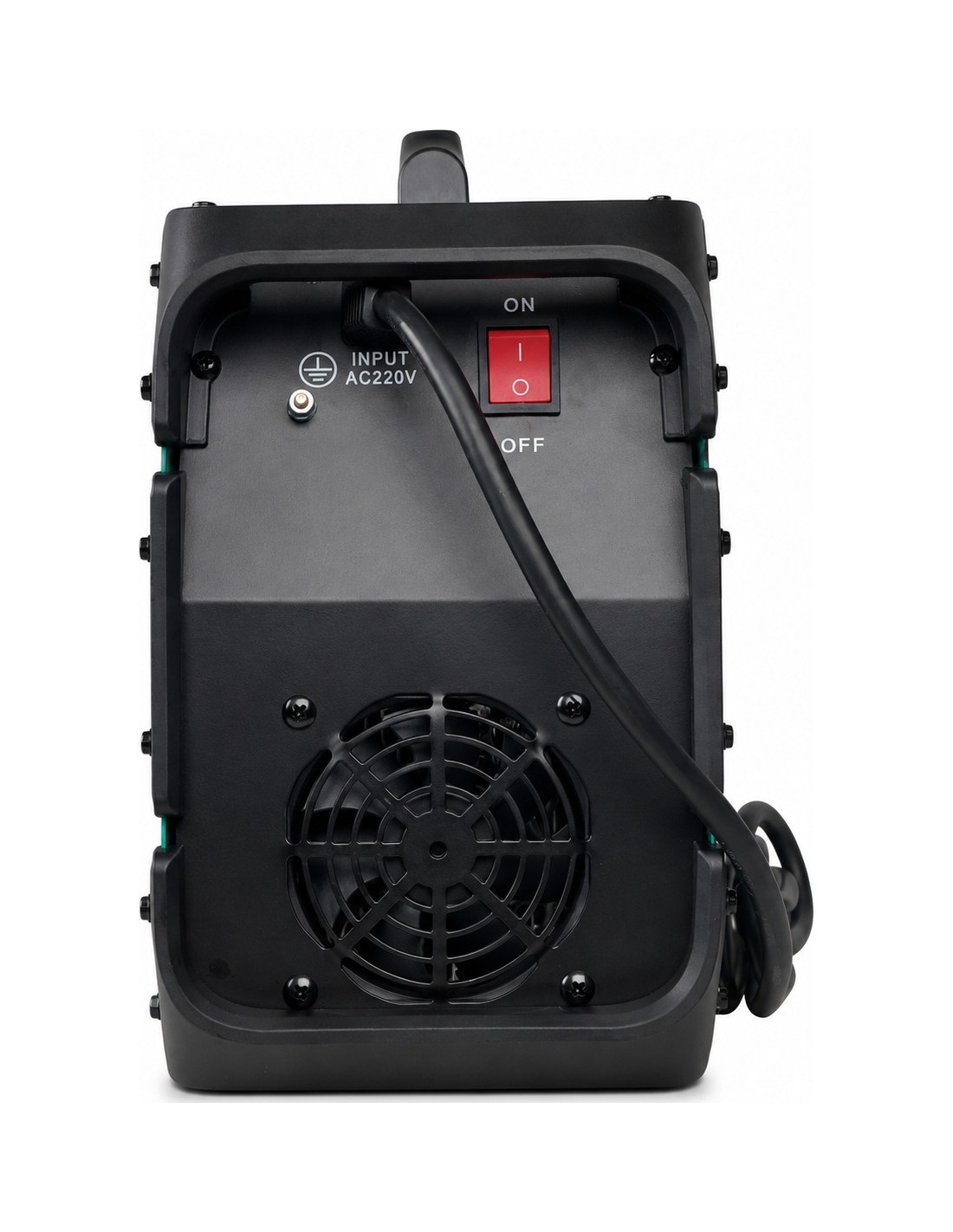

Active cooling helps remove heat generated during operation.
IGBT technology ensures precise current adjustment.

Important before starting work

Read the manual before use and select the correct polarity and current for the electrode.
Use appropriate eye, face, hand and body protection.
Work in a well-ventilated, dry environment protected from rain.
Do not cover the ventilation openings; leave at least 45 cm of free space around the machine.
Do not exceed the duty cycle, and if the machine overheats, let it cool down with the fan running.
Disconnect the machine from the mains before changing connections or performing maintenance.

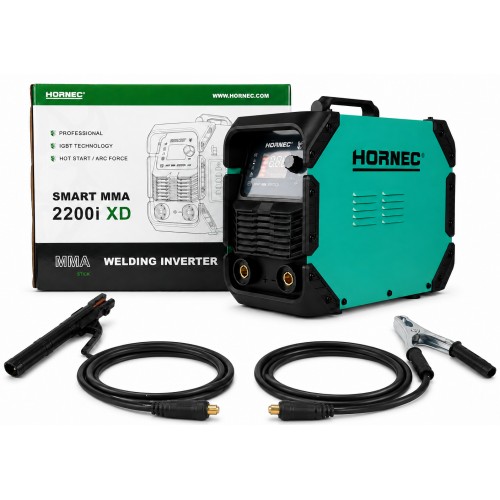

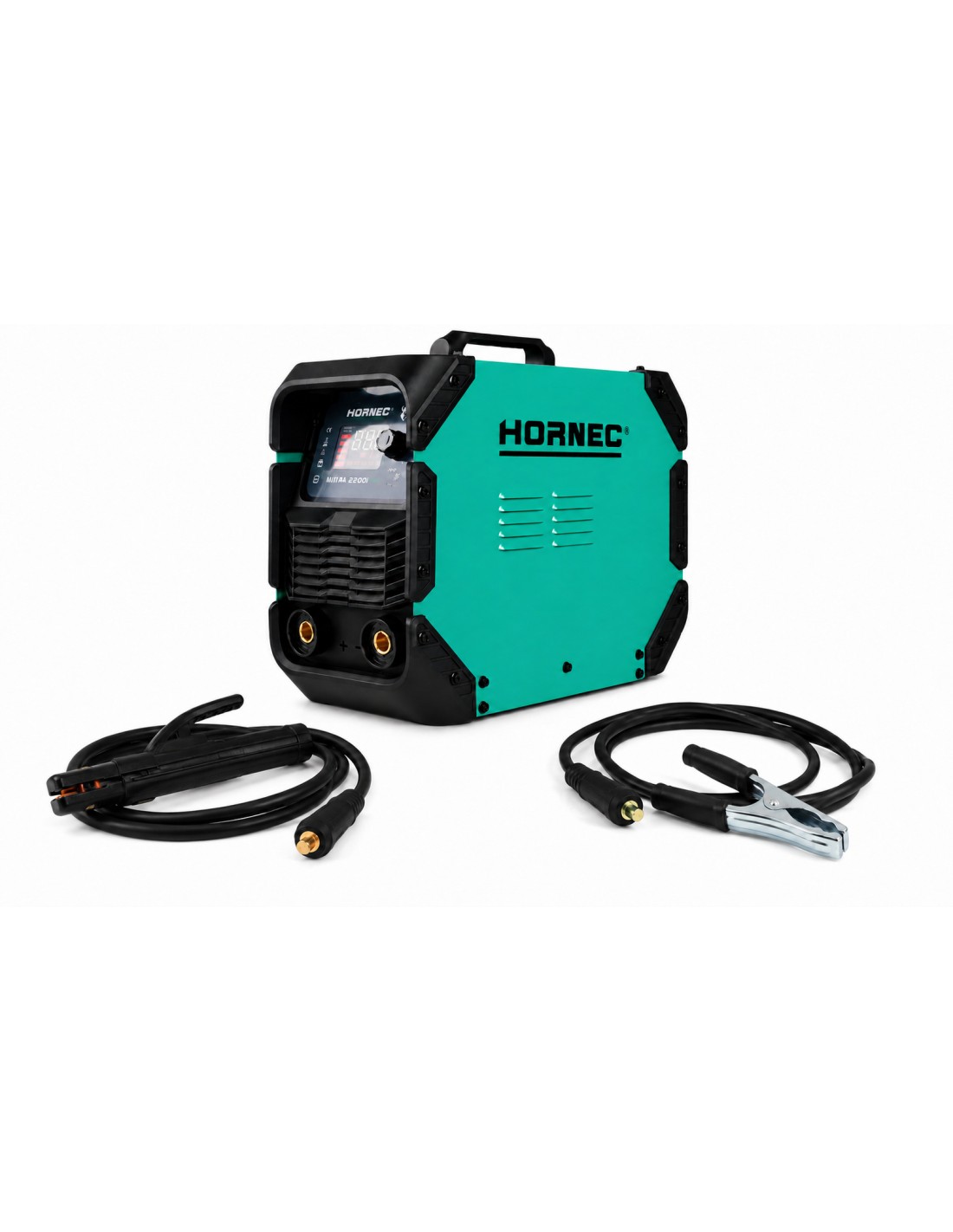

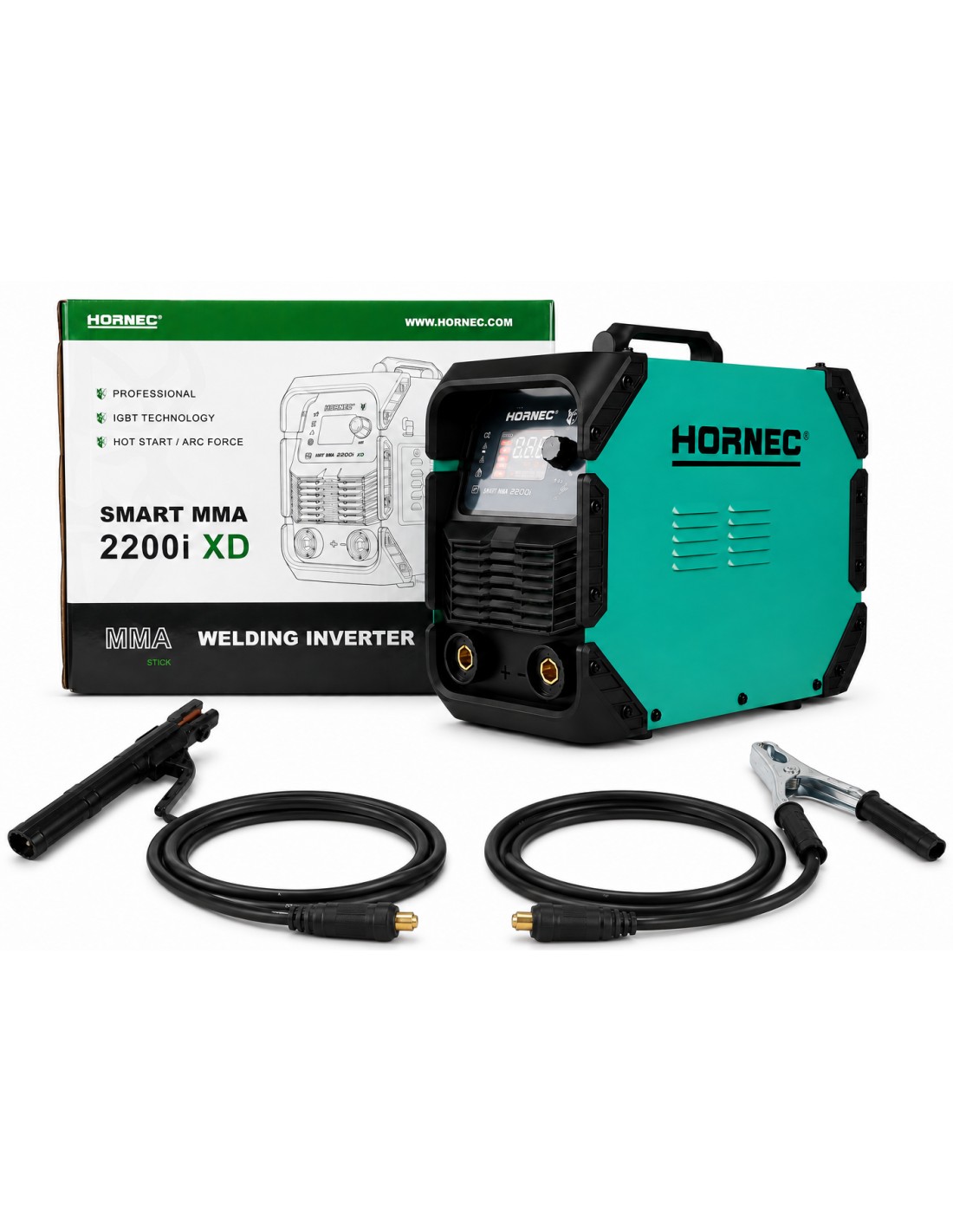

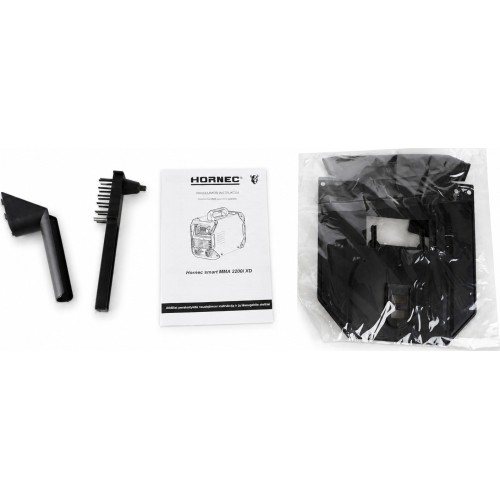

Package contents

HORNEC® smart MMA 2200i XD welding machine

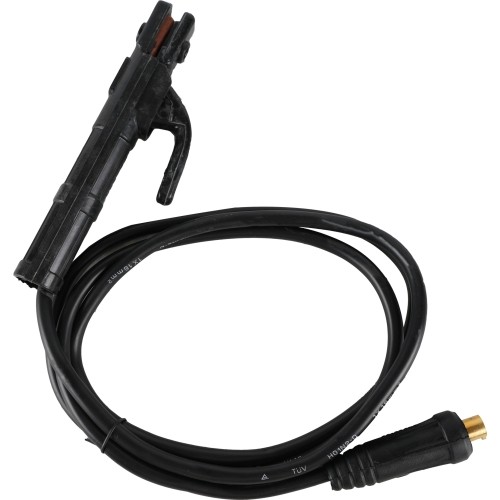

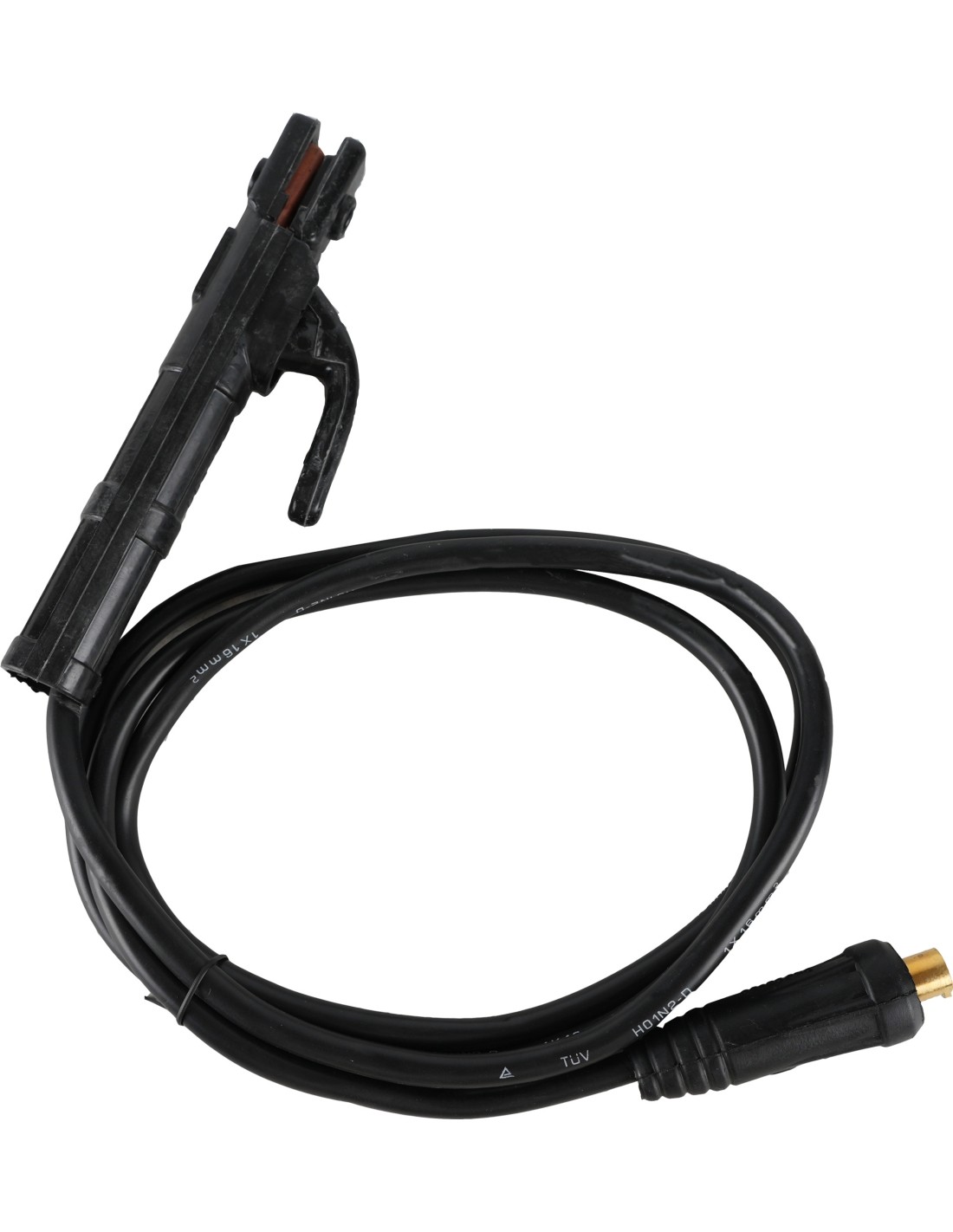

electrode holder with 2 m cable (16 mm² cable, 35-30 mm connector)

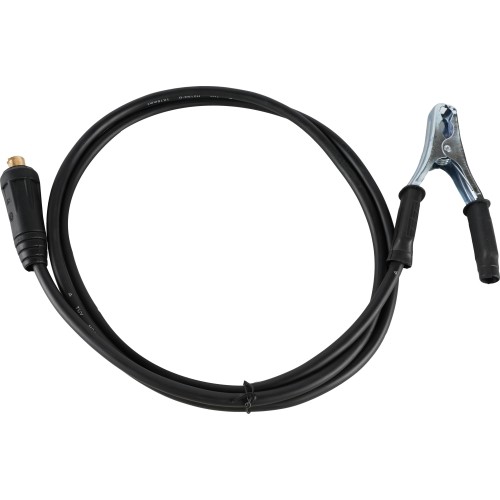

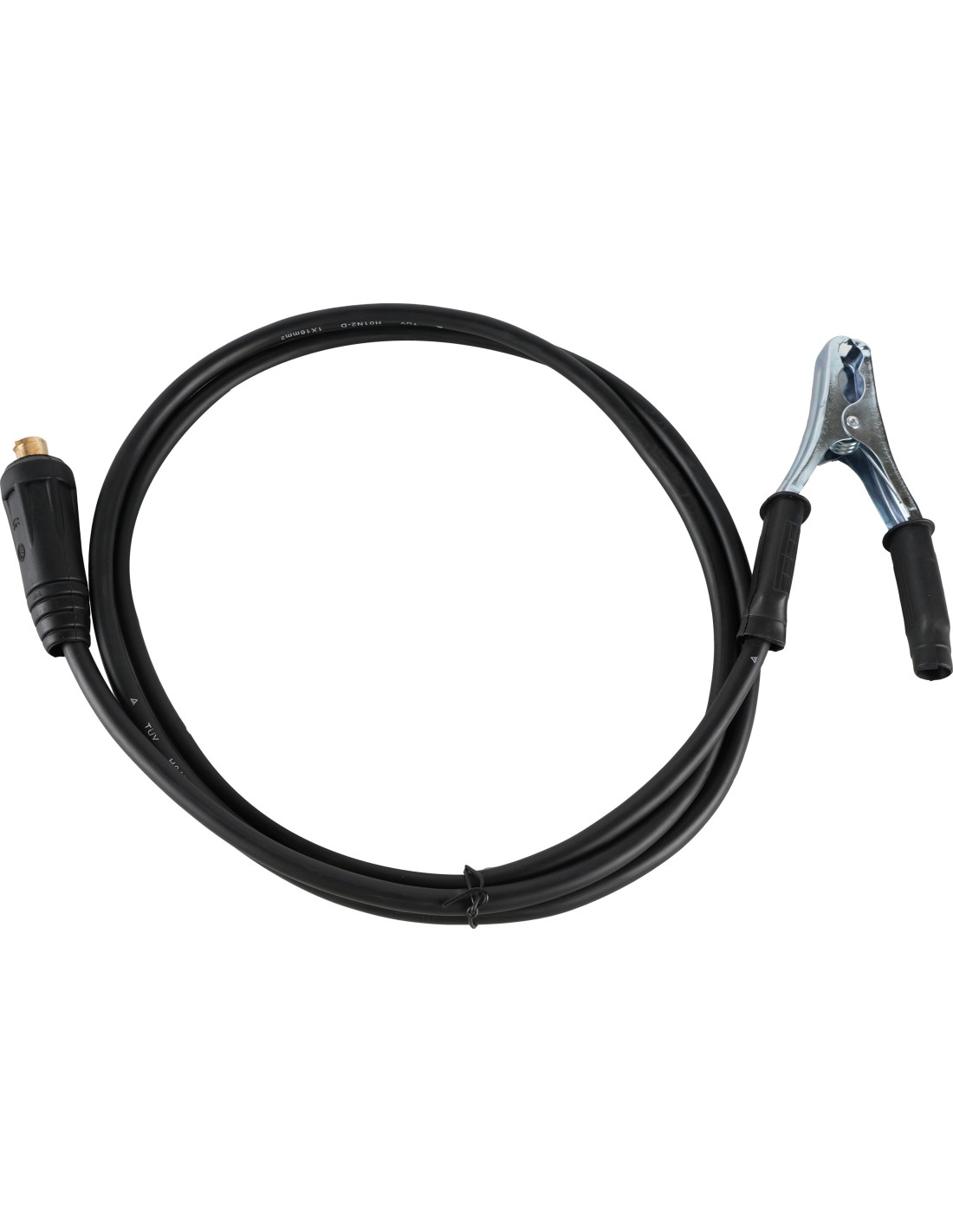

ground clamp with 2 m cable (16 mm² cable, 35-30 mm connector)
machine power cord, 2 m

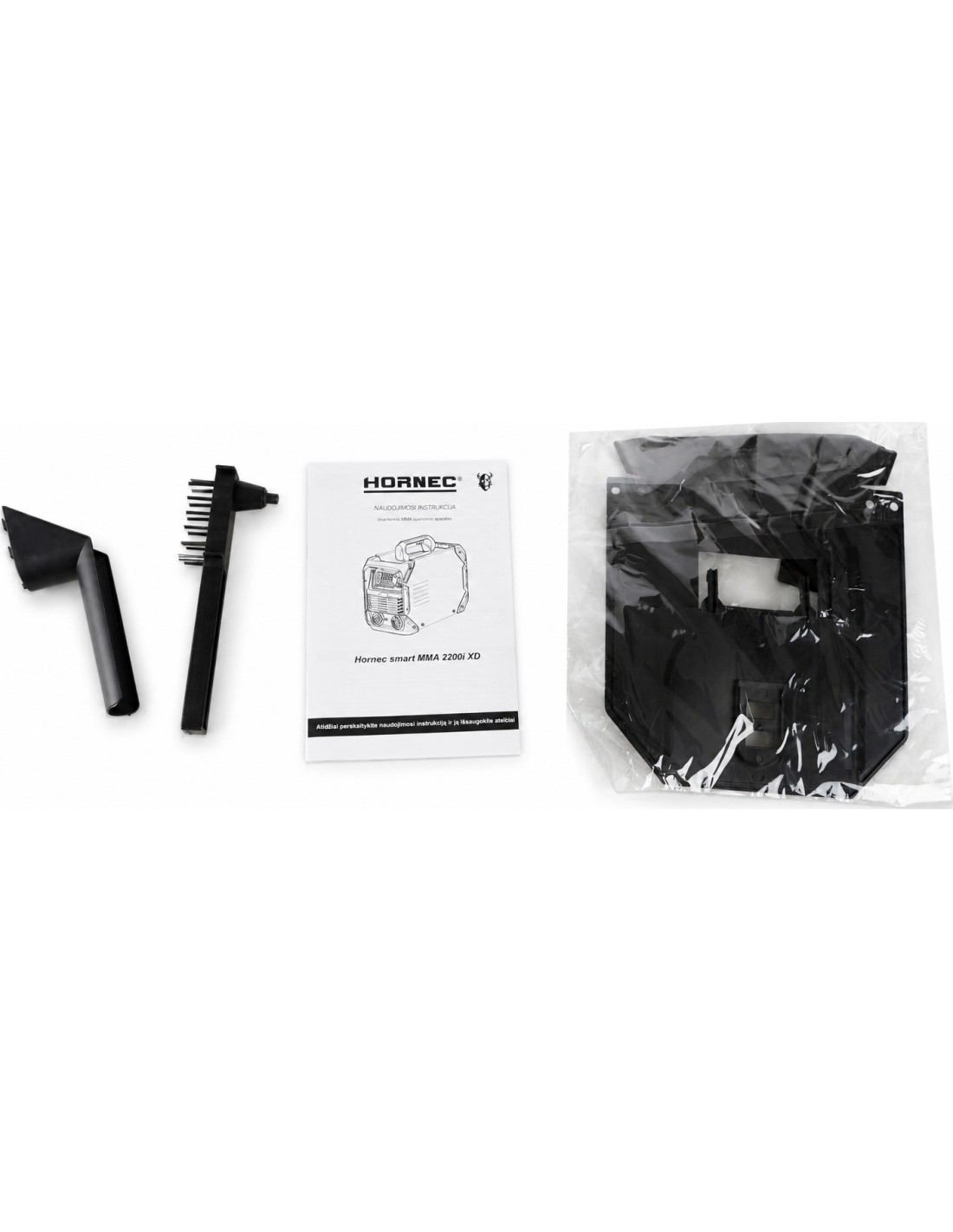

protective welding shield / mask
2 in 1 metal cleaning chipping hammer-brush
user manual EN / LT

The appearance of the package contents and the quantity of small consumable parts may vary depending on the specific product batch.

Compact inverter MMA welding machine

If you are looking for a compact machine for stick welding in a home workshop, garage or country house, HORNEC® smart MMA 2200i XD offers adjustable current up to 180 A, digital control and useful arc control functions. The machine is designed for 2.5-5.0 mm electrodes and for small repair and light structure work.
