Width
1665 mm
Weight approx.
970 kg
Depth
865 mm
Height
2140 mm
Motor power
2,2 kW
Table width
425 mm
Forward speed
7,5 mm/sec.
Return speed
9,06 mm/sec.
Pressure force
100 to
Passage between stand
1100 mm
Piston stroke
380 mm
Piston diameter
90 mm
Max pressure
258 bar
Max. working height
930 mm
Working speed
2,47 mm/sec.

HWP 100

1305860
Price €12,745.00 VAT incl.

Stock Quantity:
Kaunas Shop not available
Central warehouse not available
Delivery terms:
FREE pick up wednesday, june 24 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 970 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 970 kg.

Description

Properties

  • Ideal for assembly and straightening work, but also ideal for setting up tools, during load tests and for workpiece checks

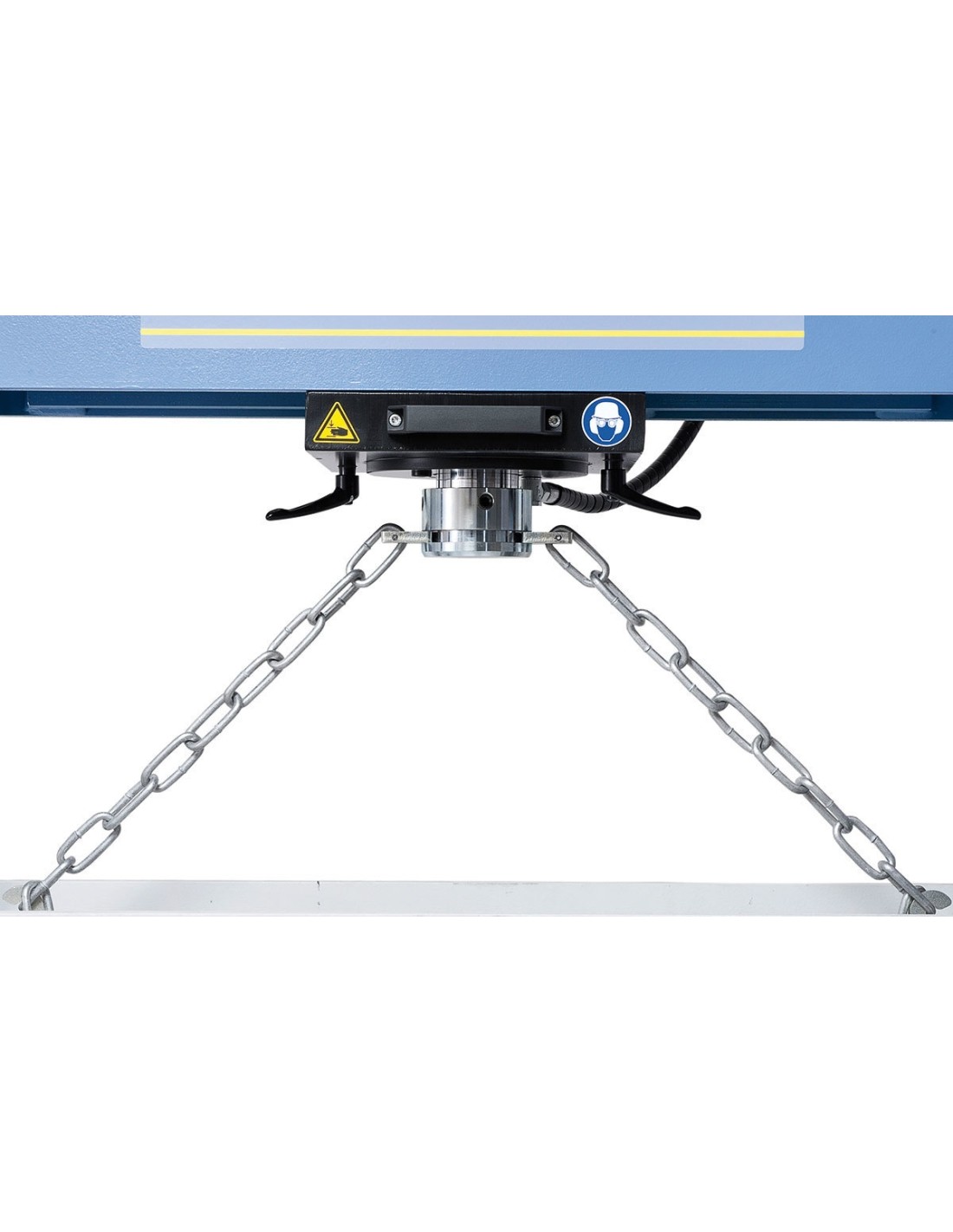

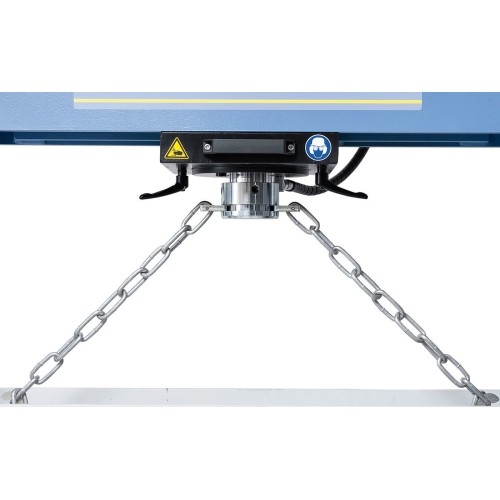

  • Table height adjustment by means of chain and working cylinder

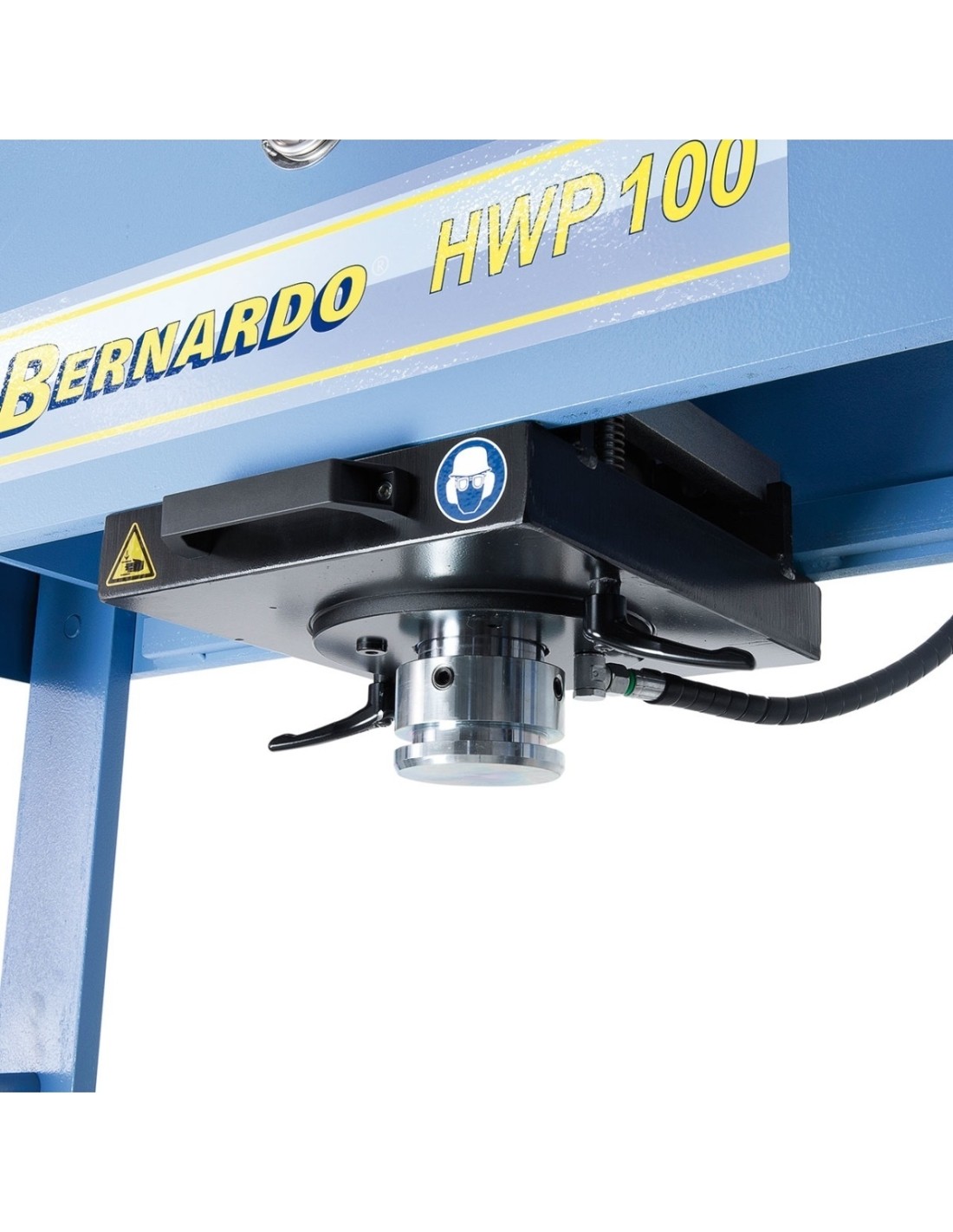

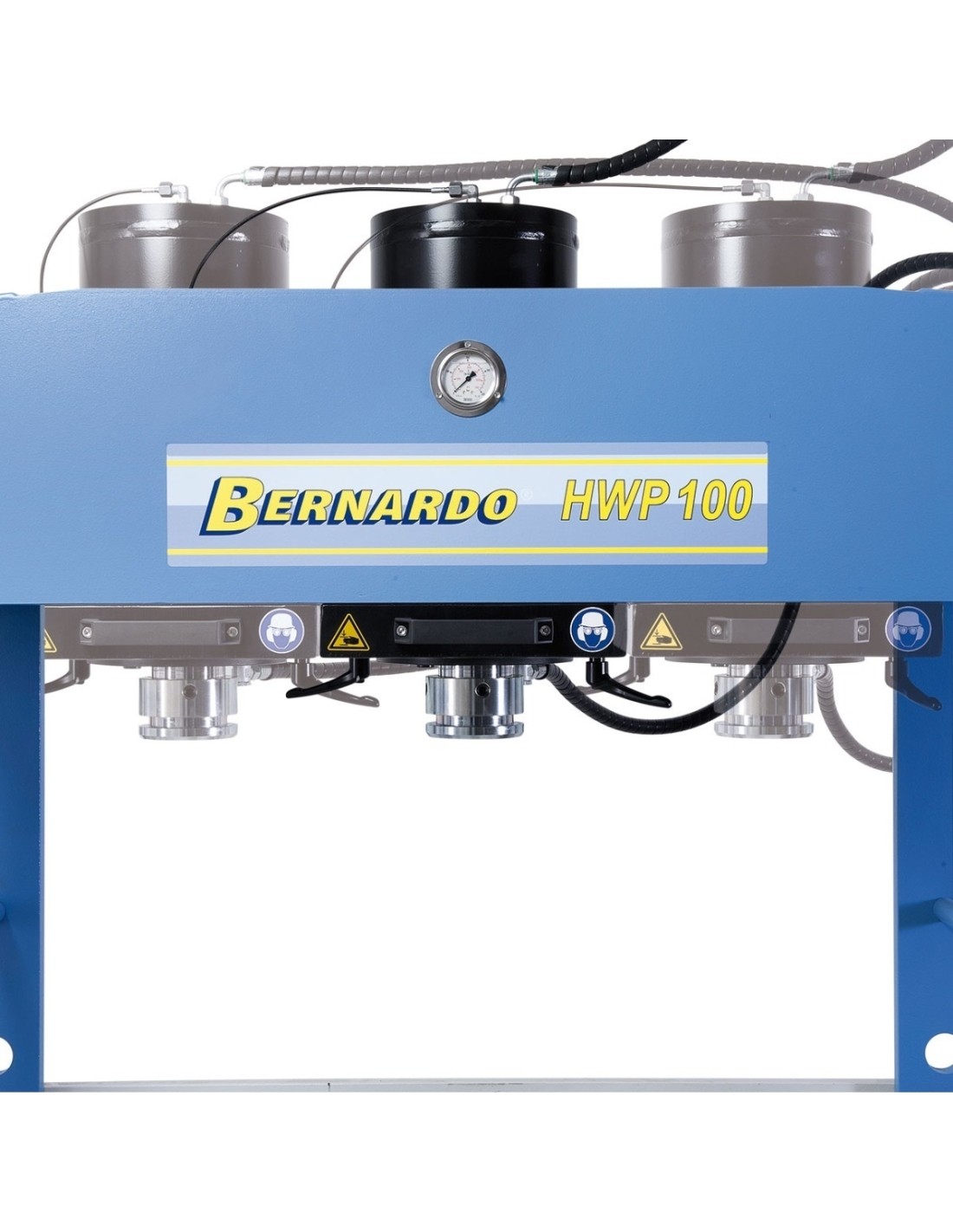

  • Equipped as standard with a laterally movable cylinder

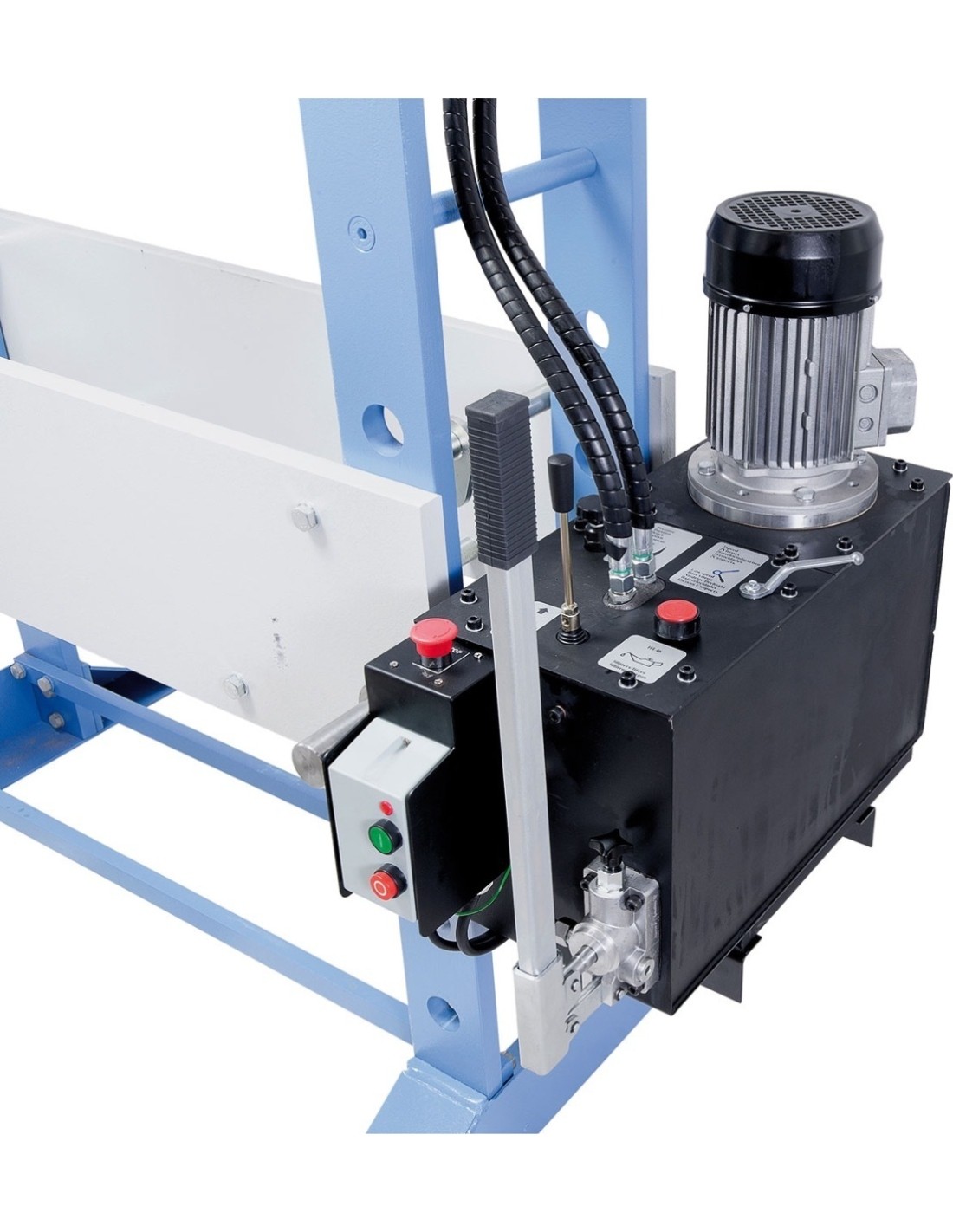

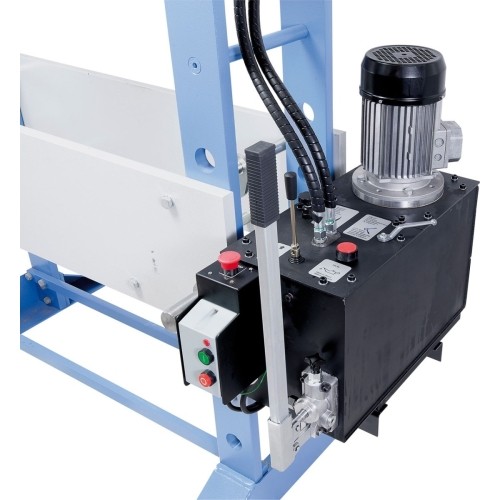

  • Piston feed either trough hand lever or sensitive hydraulic pump
  • Fast forward and return speeds for efficient work
  • Powerful workshop presses for craft and repair shops
  • Piston can be stopped in any position

Standard accessories

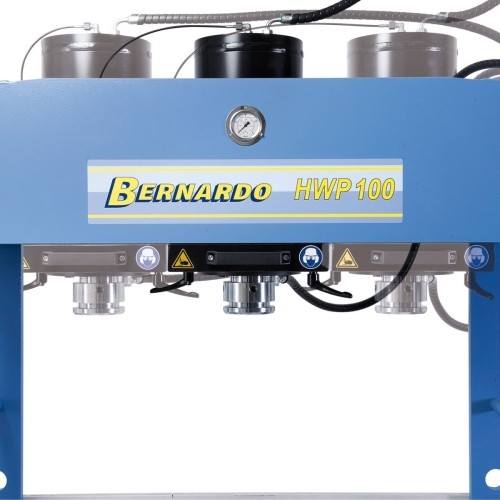

  • Pressure gauge

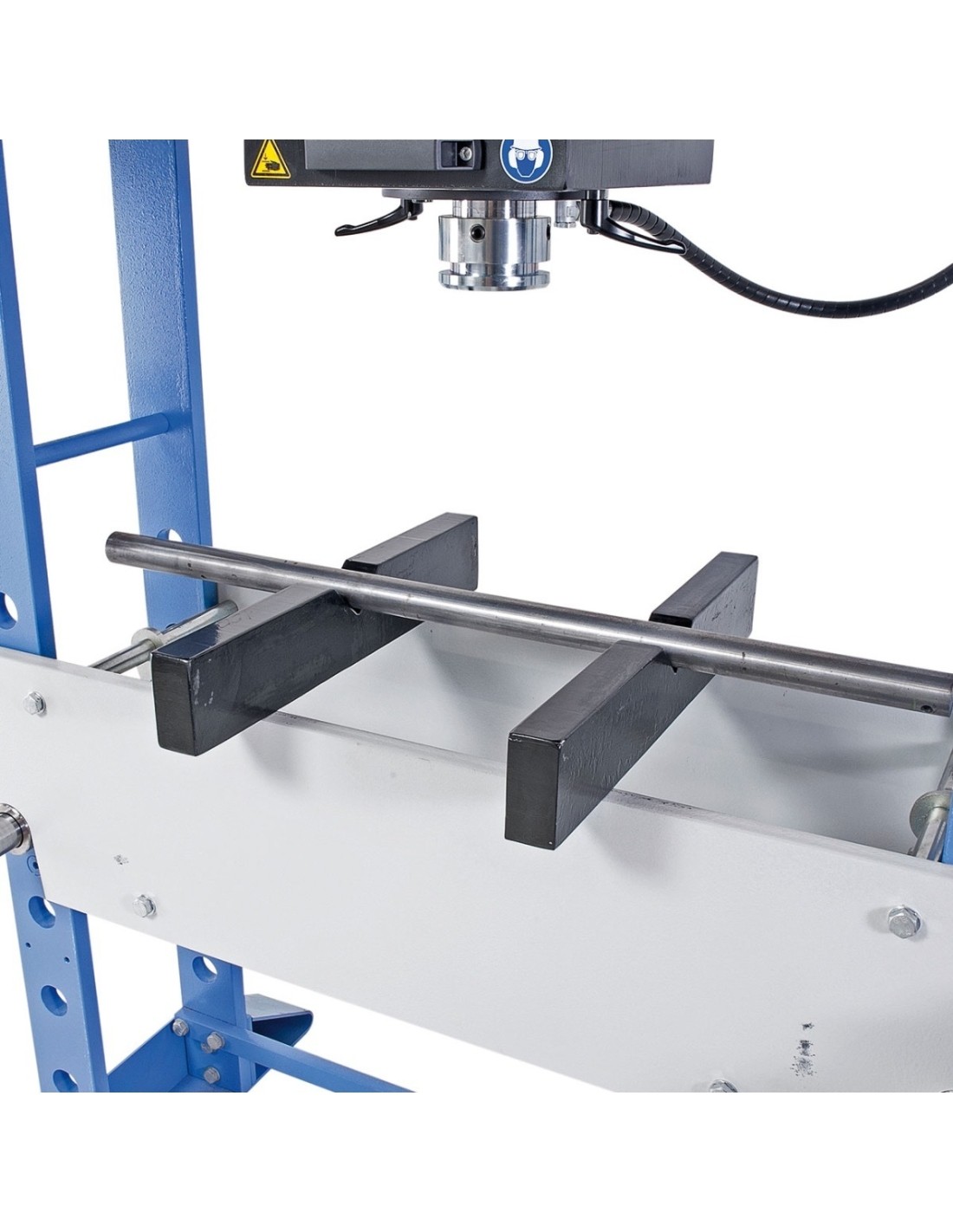

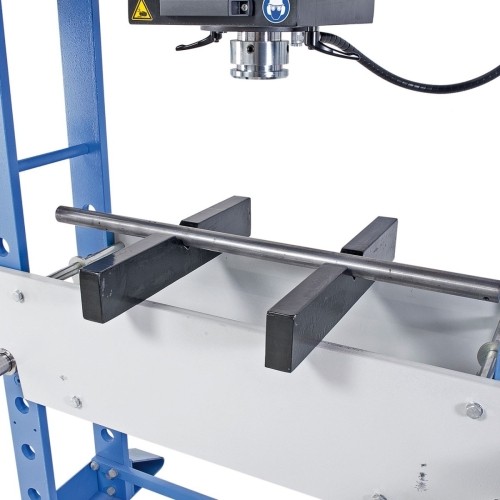

  • Height adjustable work table
  • Overload valve

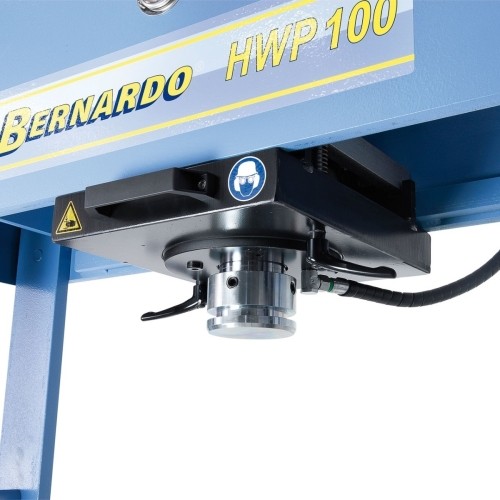

  • Moveable cylinder
