- Funkcijos
- 2T/4T, apsauga nuo prilipimo, lanko jėga, karštas paleidimas, mikrovaldiklis (MCU), ritės pistoleto parinktis, dviejų ritinėlių tiektuvas, induktyvumo valdymas, suvirinimas be dujų, MIG taš
- Vielos padavimo greitis m/min
- 2 - 15
- Phase
- Vienfazis (230V)
- Control
- synergetic
- User Level
- for workshops and small businesses
- Weight, kg
- 15,38
- Suvirinimas / pjaustymas / kiti metodai
- Litavimas, MIG/MAG, MMA DC, TIG Lift (trinant) DC.
- Wire spool size [kg]
- 5
- Išmatavimai mm
- 48 x 21 x 33
- PFC function
- No
- Gamybos technologija
- IGBT
- Maximum current MMA [A]
- 180
- Maximum current TIG [A]
- 200
- MMA darbo ciklas [%].
- 60
- TIG darbo ciklas [%].
- 60
- Įtampa be apkrovos [V].
- 9
- Maksimalus MMA suvartojamos galios kiekis [kVA}
- 6,6
- Maksimalus TIG sunaudojamas galingumas [kVA].
- 6,6
- Pagrindinis metodas
- MIG/MAG
- Tinklo apsauga [A].
- 25
- Įmonių garantijos laikotarpis [metai].
- 1
- Maximum current MIG/MAG
- 200
- MIG/MAG darbo ciklas [%]
- 45
- MIG suvirinimo įtampa [V].
- 15,5 - 24
- MIG taškinio suvirinimo laikas [s].
- 0-10
- Maksimalus MIG/MAG sunaudojamas galingumas [kVA].
- 6,6
- Ritinio matmenys [mm].
- 30x10x10
- Suvirinimo įtampos korekcija
- -5 - +5
- Vielos degimo laikas [s]
- 0-10
- Vielos ritės skersmuo ø [mm].
- 100, 200
- Inverter technology
- IGBT
- Shielding Gas Requirement
- Gas / Gasless

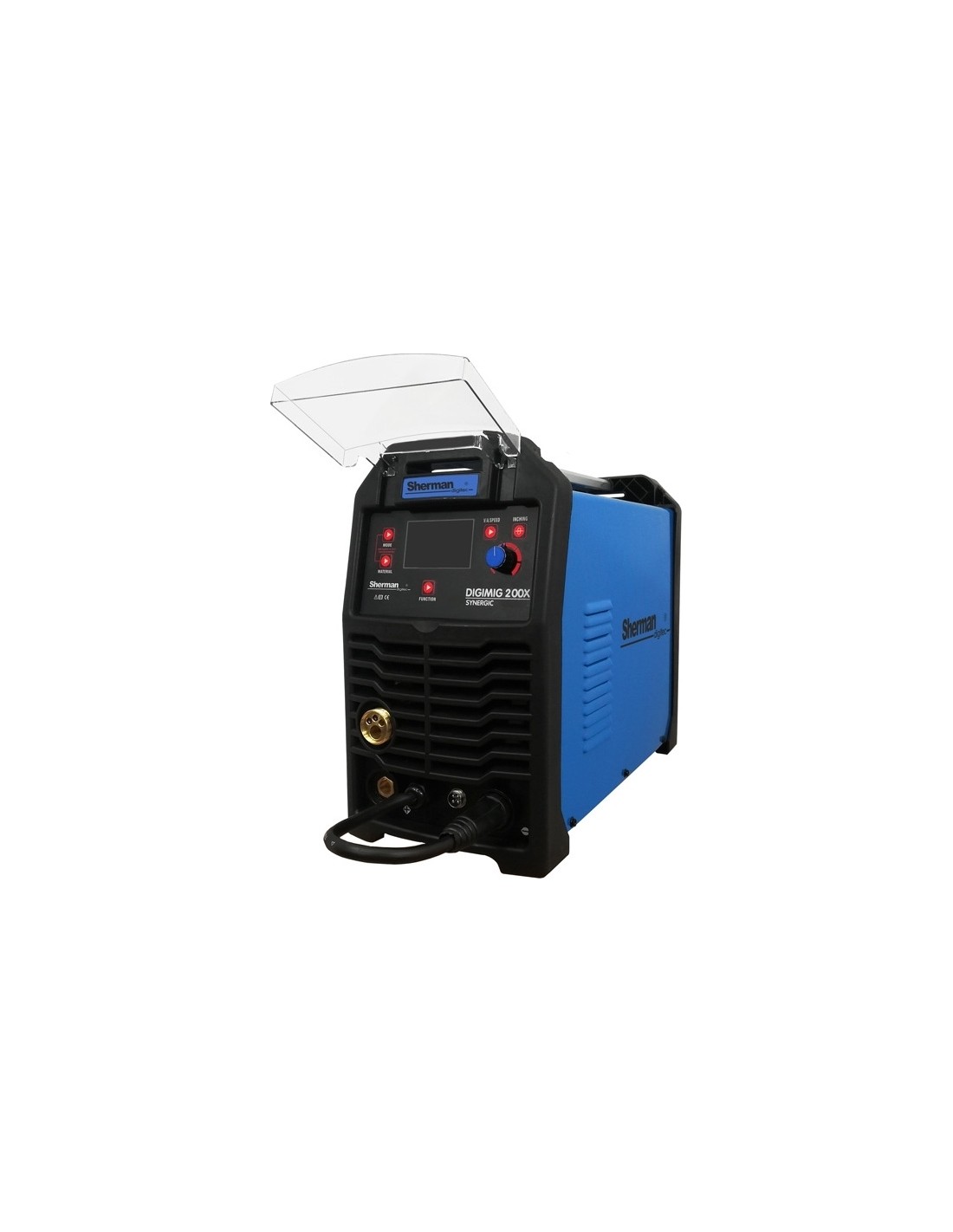

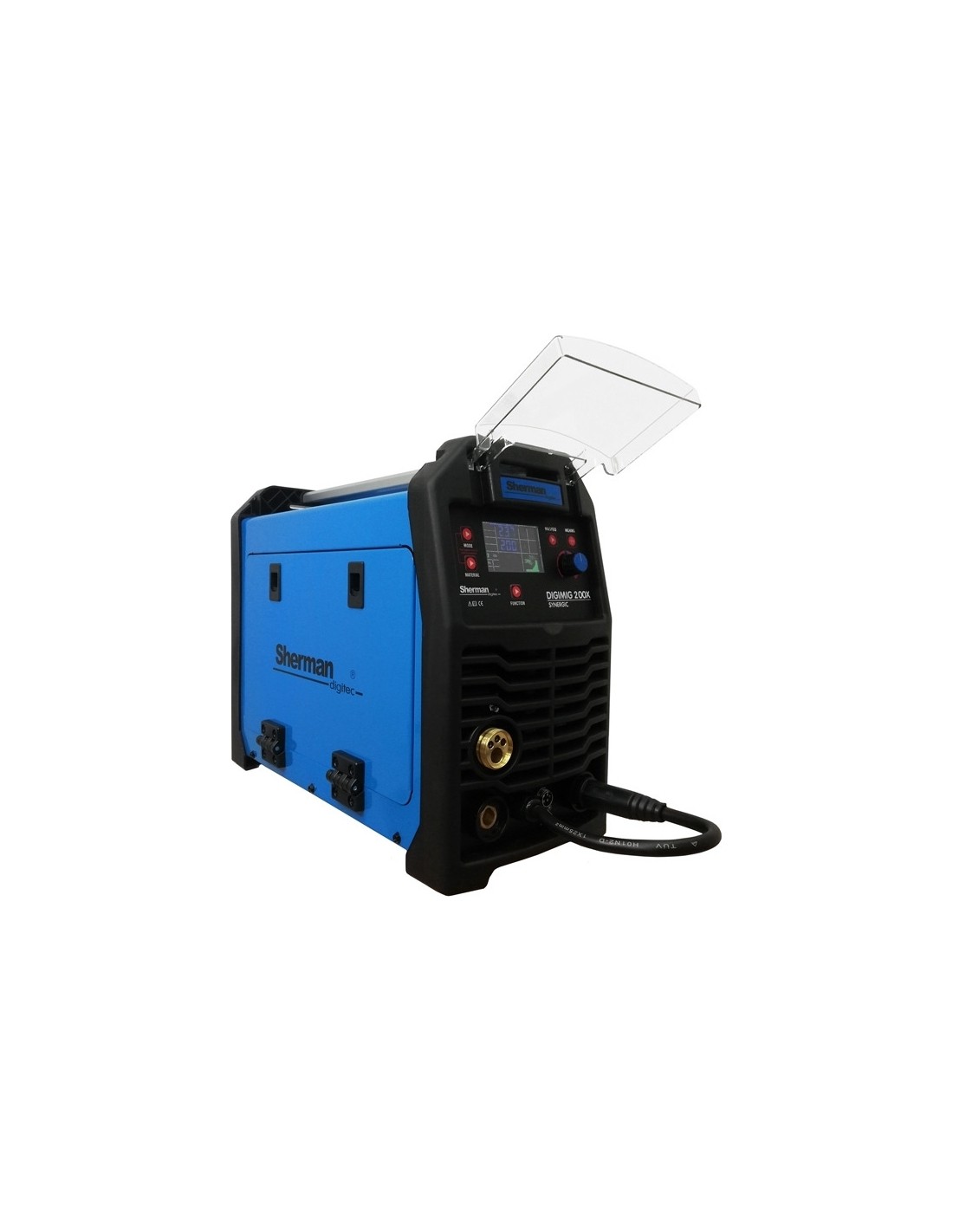

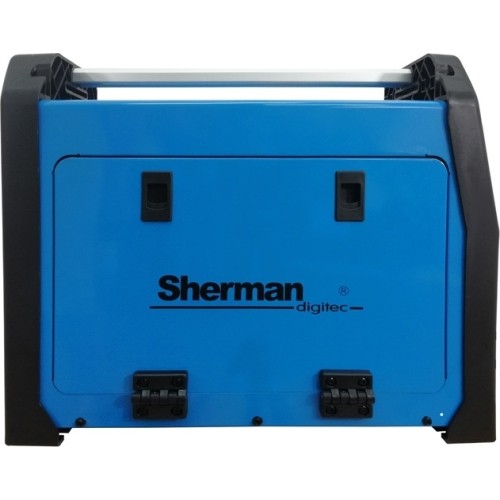

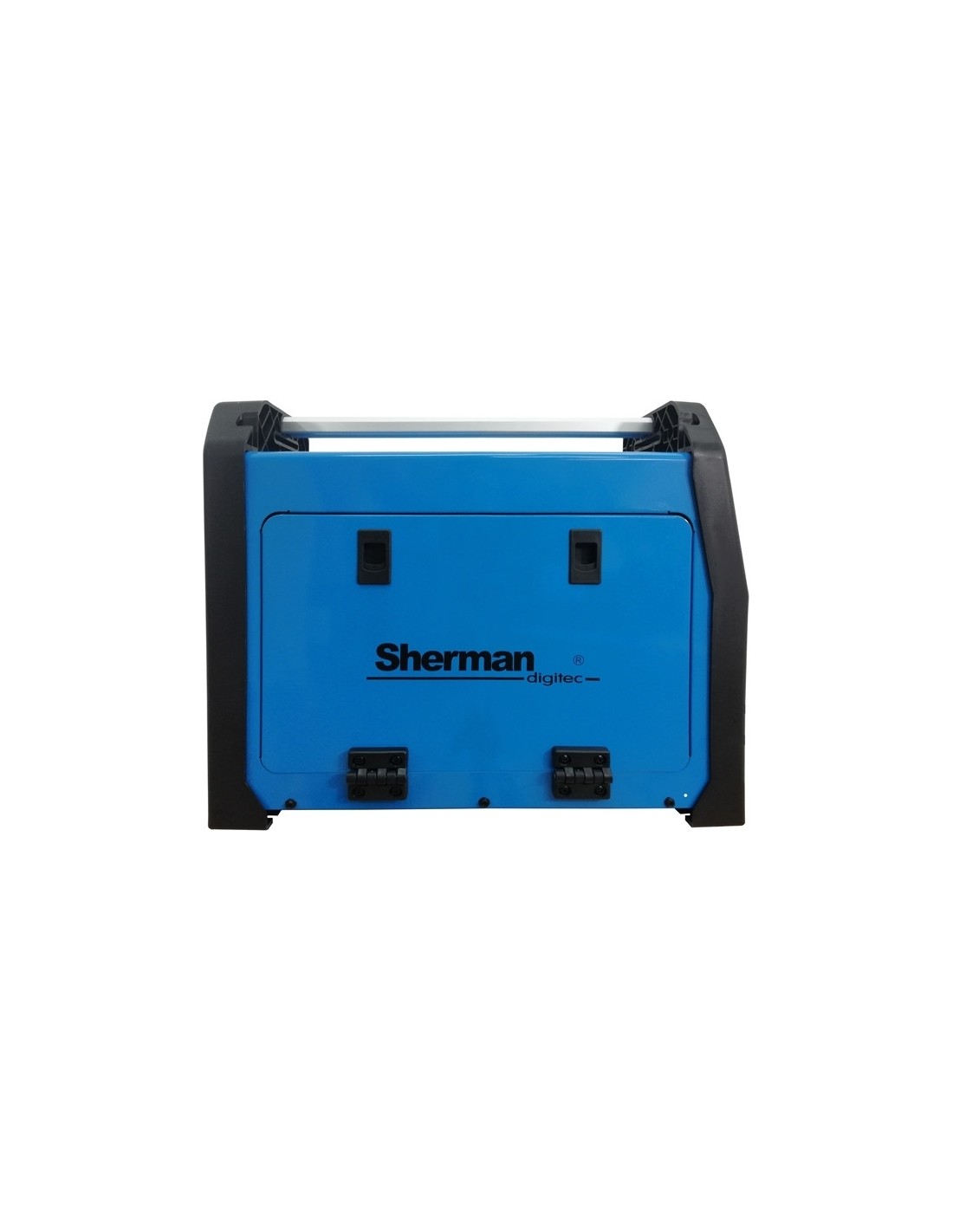

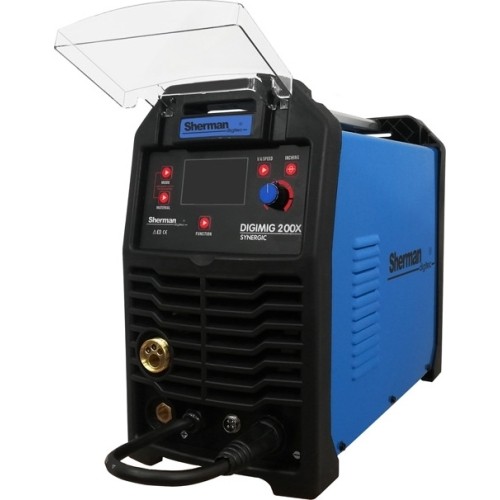

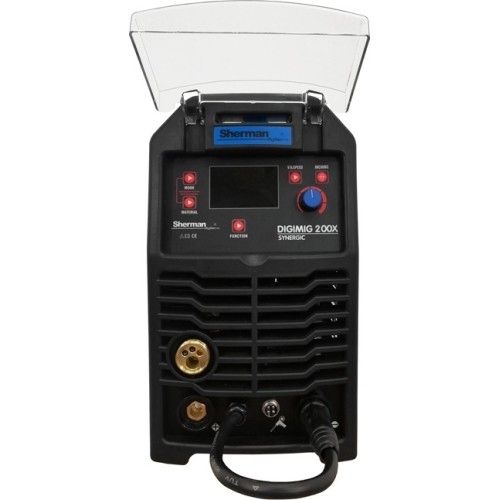

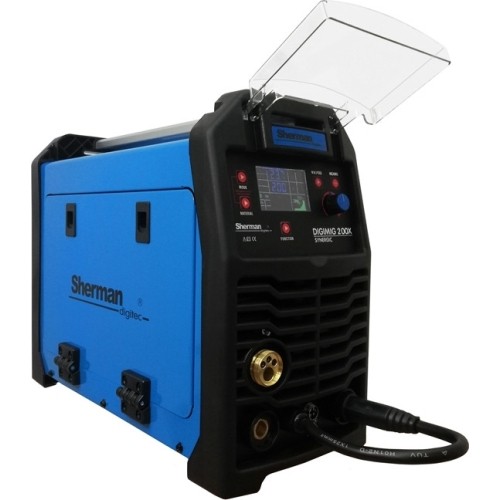

Sherman DIGIMIG 200X synchronous inverter welder
1056084
Price
€427.00
VAT incl.
Stock Quantity:
Kaunas Shop
(1 pcs)
Central warehouse
not available
Delivery terms:
FREE pick up tomorrow, in the store, Raudondvario pl. 141, Kaunas
(€0.00)
We will deliver the product to you via: 1-2 w.d. Venipak
(€6.00)
We will deliver the product to you via: 1-2 w.d. Venipak pickup (paštomatas)
(€8.00)
Spare parts
Description
The synergic welder DIGIMIG 200X Synergic is an innovative machine for manual welding of steel and non‑ferrous metals using the MIG/MAG, MMA (covered electrode) and Lift TIG methods. It can also be used for brazing thin (up to 3 mm) galvanized sheets. The welder supports self‑shielded flux‑cored wire (without shielding gas) and connection of a Spool Gun (SG) torch. It is intended for professionals who value high quality and reliability.
Digital control allows full adjustment of parameters, arc dynamics, characteristics, and selection of manual or synergic operating modes in MIG/MAG. Synergic settings for mild steel, stainless steel and aluminum alloys significantly simplify operation, making the machine suitable for less experienced users and hobbyists.
In MMA mode, adjustable ARC FORCE and HOT START functions are available, with the option to enable VRD and ANTI STICK.

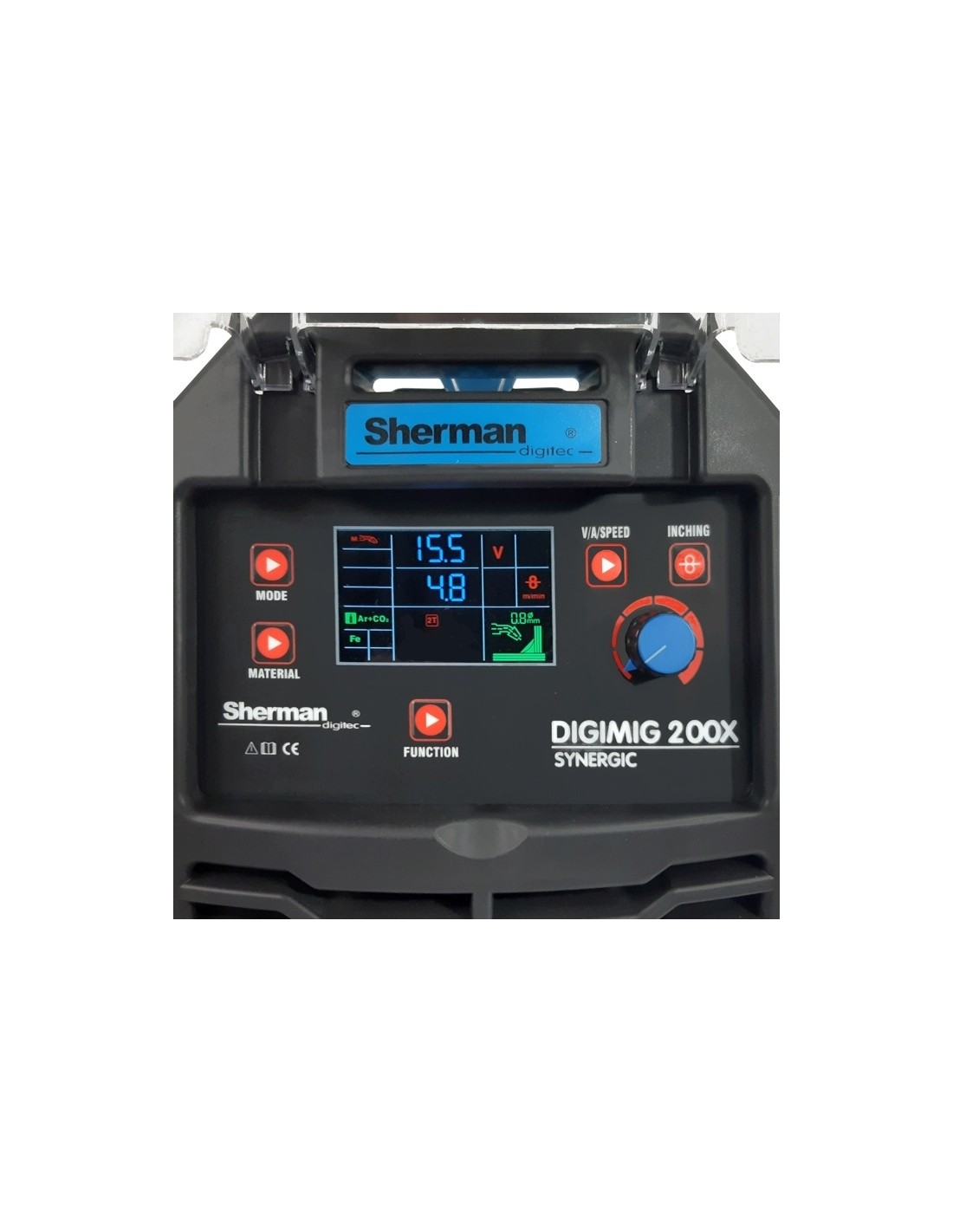

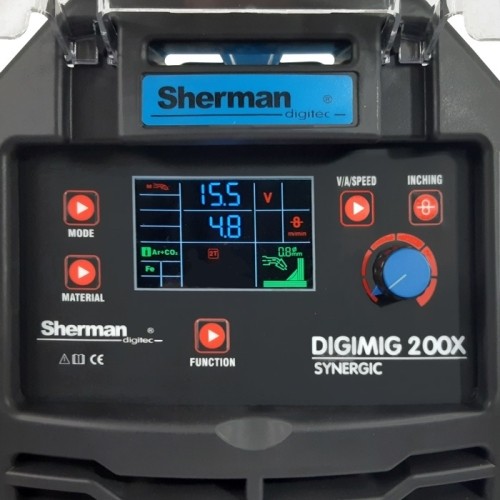

The welder offers multiple operating modes, including a spot‑welding option, and features a last‑setting memory that restores the previously used parameters after power cycling. A clear, color display makes operation straightforward.
Built on IGBT inverter technology and powered from a single‑phase 230 V supply, the unit delivers up to 200 A in MIG/MAG and TIG and 180 A in MMA. It supports gas or gasless welding, 2T/4T trigger modes, inductance control, a two‑roller wire feeder, adjustable spot‑weld time (0–10 s) and a wire feed speed range of 2–15 m/min.
Included: MIG torch, work (ground) cable and electrode holder lead.
