- Funkcijos
- 2T/4T, apsauga nuo prilipimo, lanko jėga, karštas paleidimas, mikrovaldiklis (MCU), ritės pistoleto parinktis, dviejų ritinėlių tiektuvas, induktyvumo valdymas, suvirinimas be dujų, MIG taš
- Vielos padavimo greitis m/min
- 2 - 20
- Phase

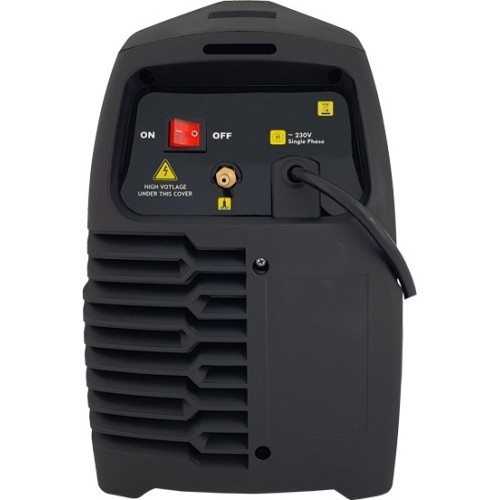

- Vienfazis (230V)
- Control
- synergetic
- User Level
- Hobbyist / Home user
- Weight, kg
- 16,5
- Suvirinimas / pjaustymas / kiti metodai
- Litavimas, MIG/MAG, MMA DC, TIG Lift (trinant) DC.
- Wire spool size [kg]
- 1
5 - Išmatavimai mm
- 49 x 22 x 37,5
- PFC function
- No
- Gamybos technologija
- IGBT
- Maximum current MMA [A]
- 200
- Maximum current TIG [A]
- 200
- MMA darbo ciklas [%].
- 40
- TIG darbo ciklas [%].
- 35
- Įtampa be apkrovos [V].
- 63
- Maksimalus MMA suvartojamos galios kiekis [kVA}
- 7,1
- Maksimalus TIG sunaudojamas galingumas [kVA].
- 7,1
- Pagrindinis metodas
- MIG/MAG
- Tinklo apsauga [A].
- 25
- Įmonių garantijos laikotarpis [metai].
- 1
- Maximum current MIG/MAG
- 200
- MIG/MAG darbo ciklas [%]
- 35
- MIG suvirinimo įtampa [V].
- 14,5 - 24
- MIG taškinio suvirinimo laikas [s].
- 0-10
- Maksimalus MIG/MAG sunaudojamas galingumas [kVA].
- 7.1
- Ritinio matmenys [mm].
- 30x10x10
- Suvirinimo įtampos korekcija
- -3,0 - +3,0
- Padavėjo atvykimo greitis
- 0-10
- Vielos degimo laikas [s]
- 0-10
- MIG dujų srautas [s].
- 0-2
- Vielos ritės skersmuo ø [mm].
- 100, 200
- Inverter technology
- IGBT
- Shielding Gas Requirement
- Gas / Gasless

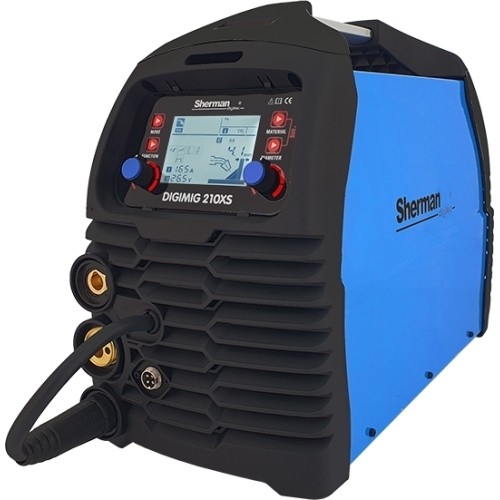

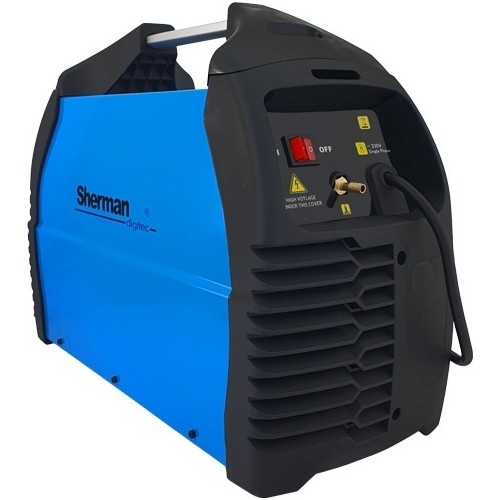

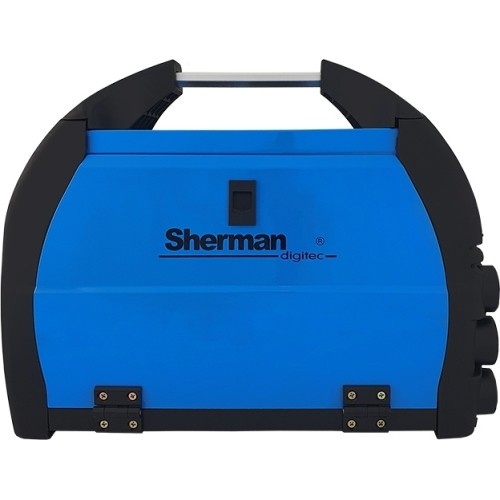

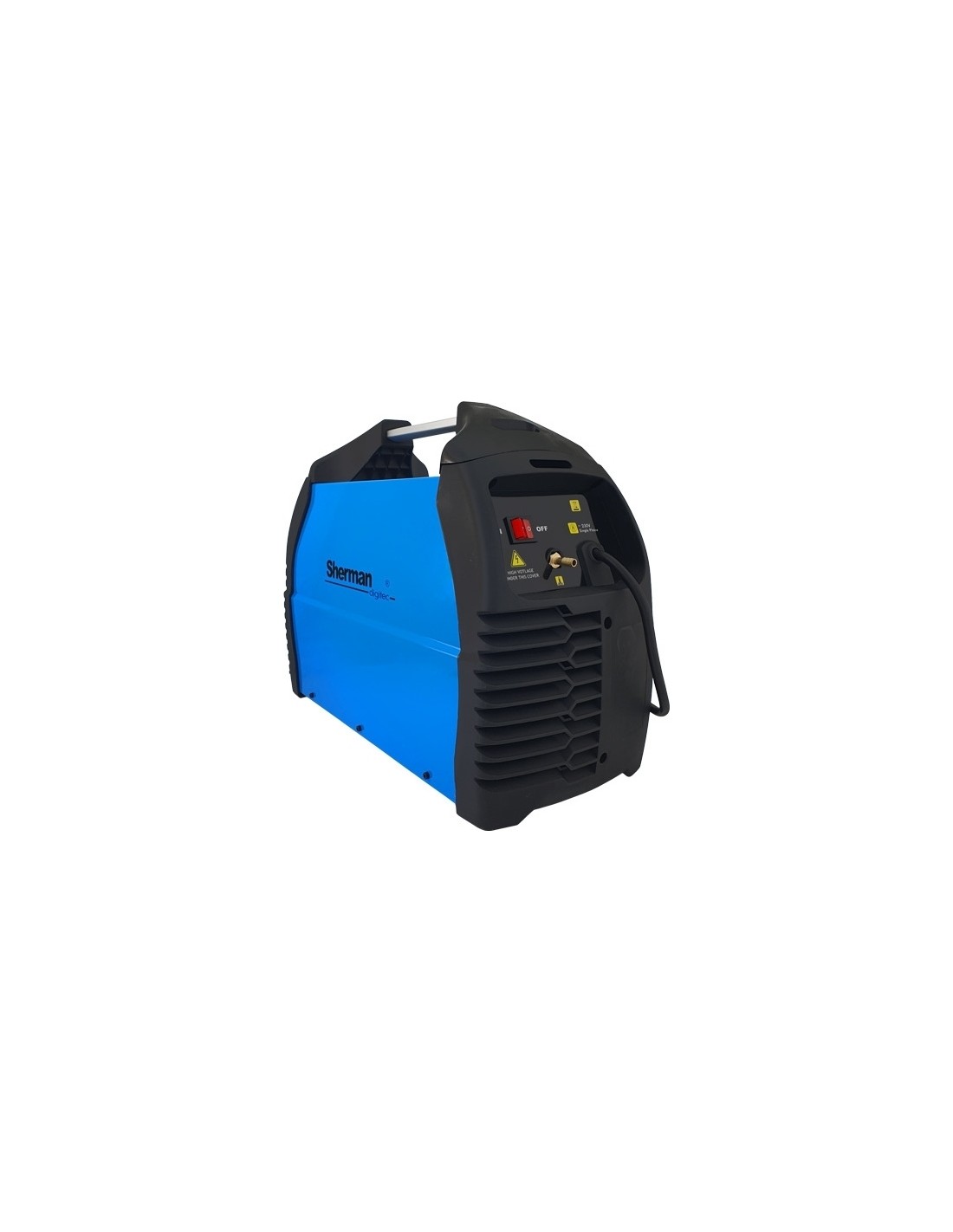

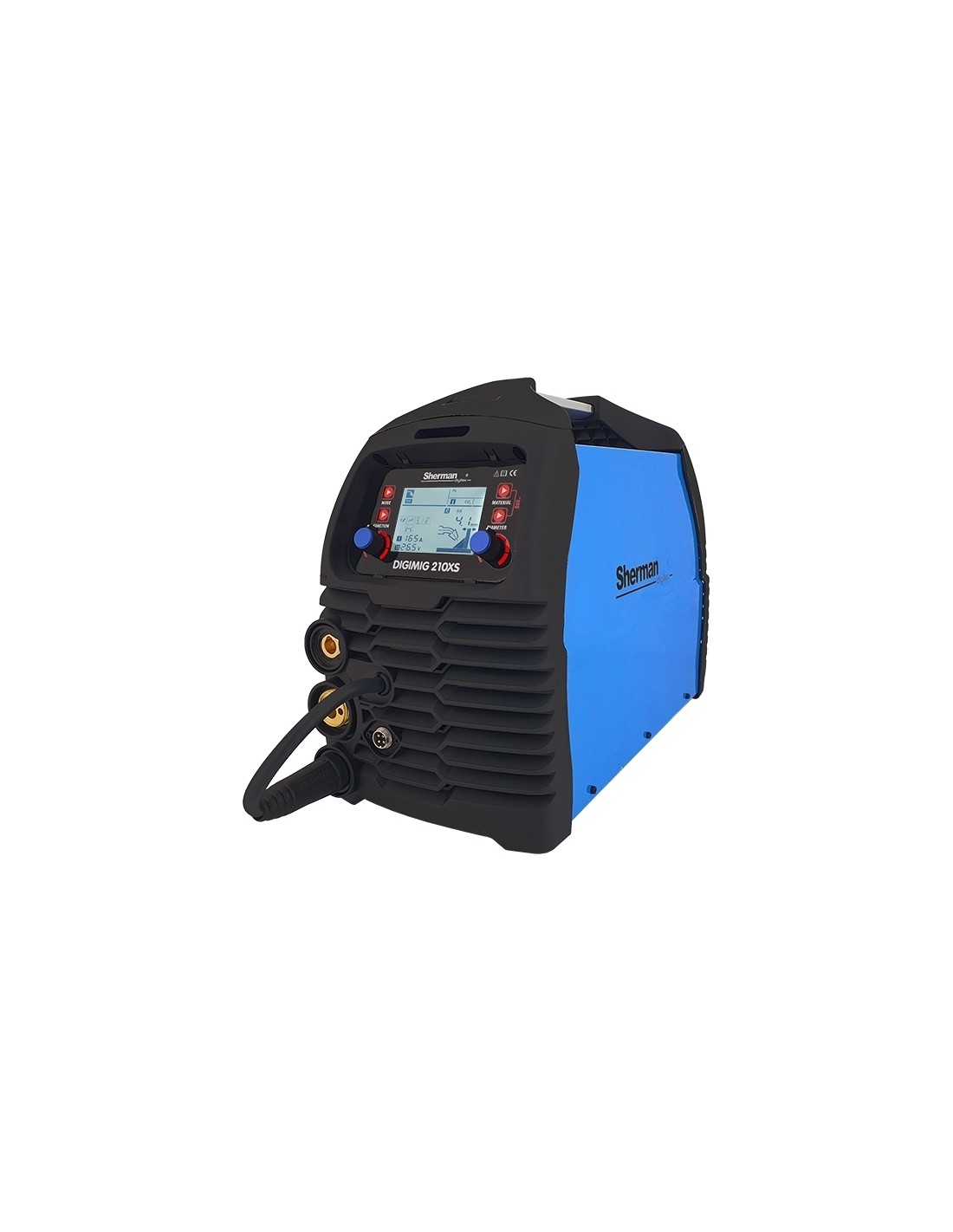

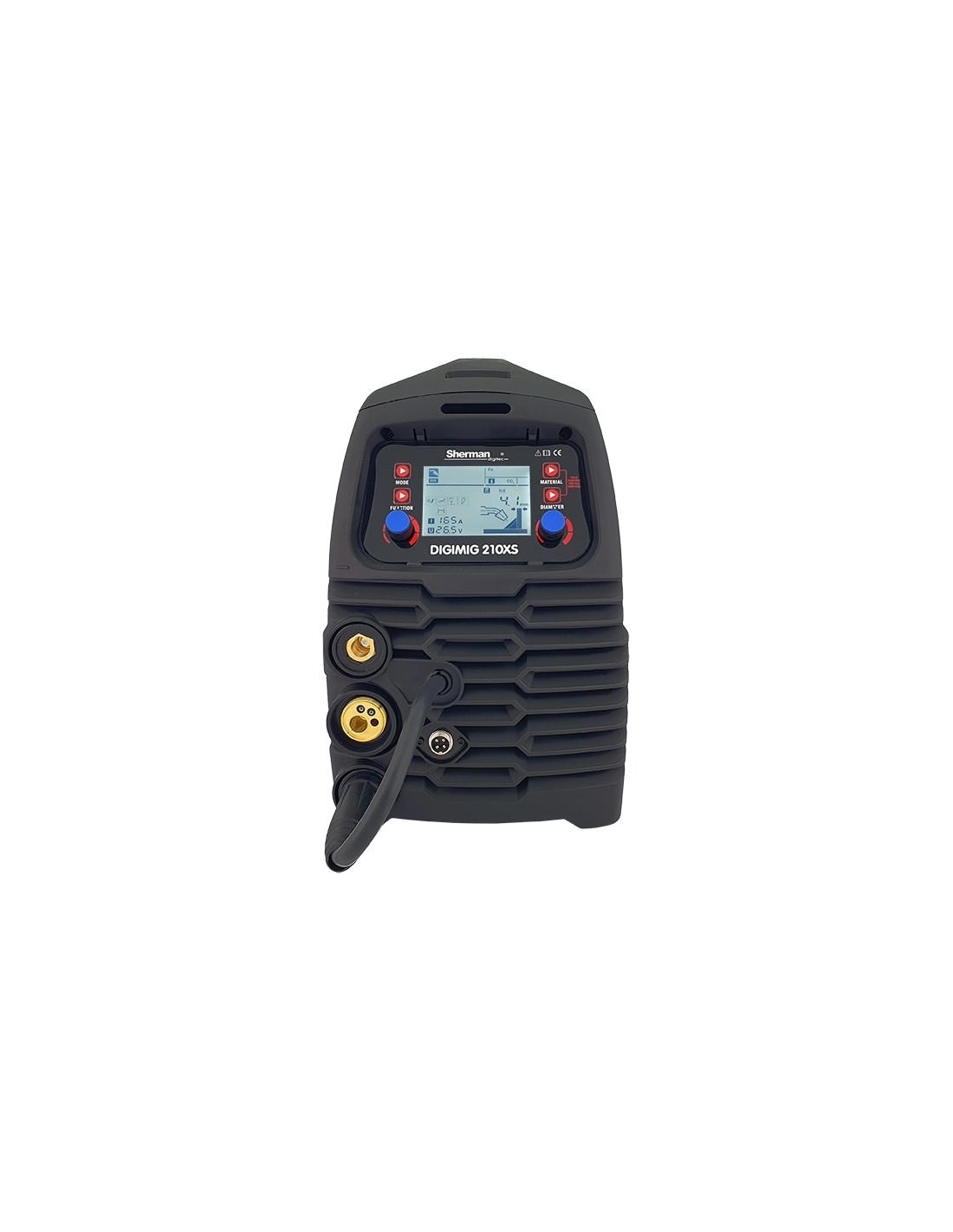

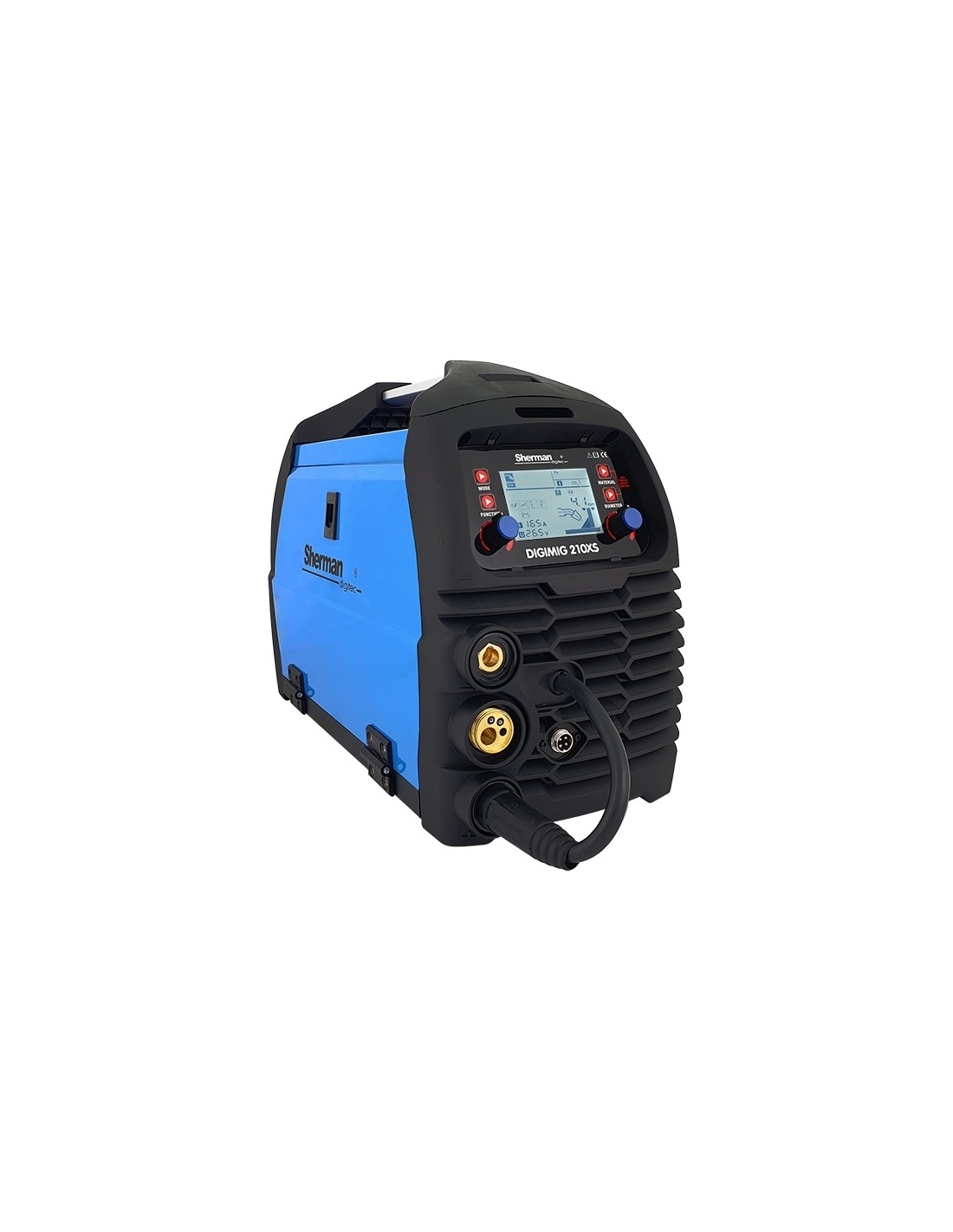

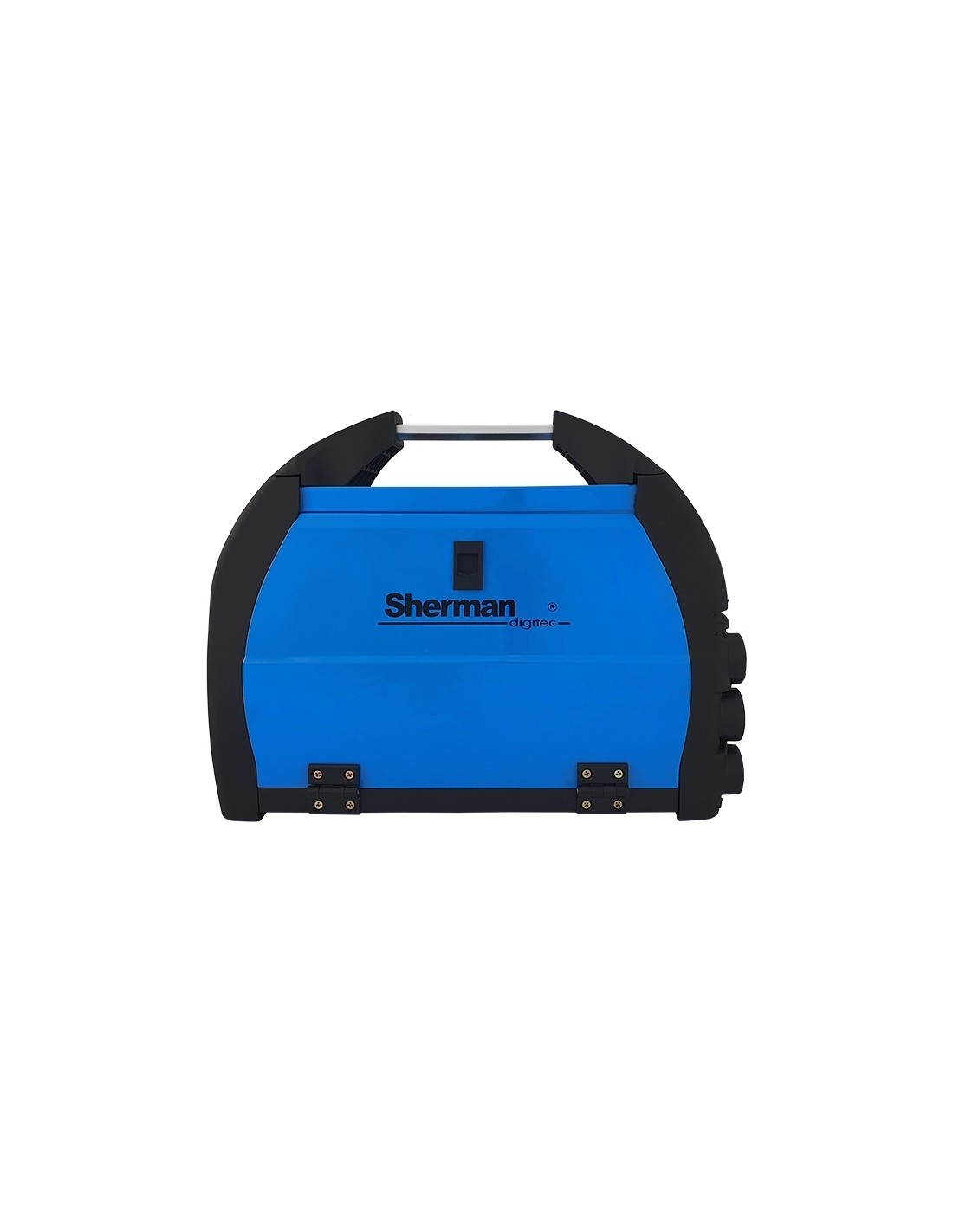

Inverter welder Sherman DIGIMIG 210XS
Spare parts
Description
The synergic welder DIGIMIG 210XS is designed for manual welding of steel and non‑ferrous metals. It supports MMA (covered electrode), TIG Lift, and MIG/MAG methods. MIG/MAG can be used in manual or synergic mode, simplifying setup and making the machine suitable for less experienced users and hobbyists. Thanks to polarity change, you can weld in MIG/MAG with standard solid wires in shielding gas as well as with self‑shielded flux‑cored wires. The unit offers a maximum welding current up to 200 A (MIG/MAG, MMA, TIG) with adjustable wire feed speed from 2 to 20 m/min.

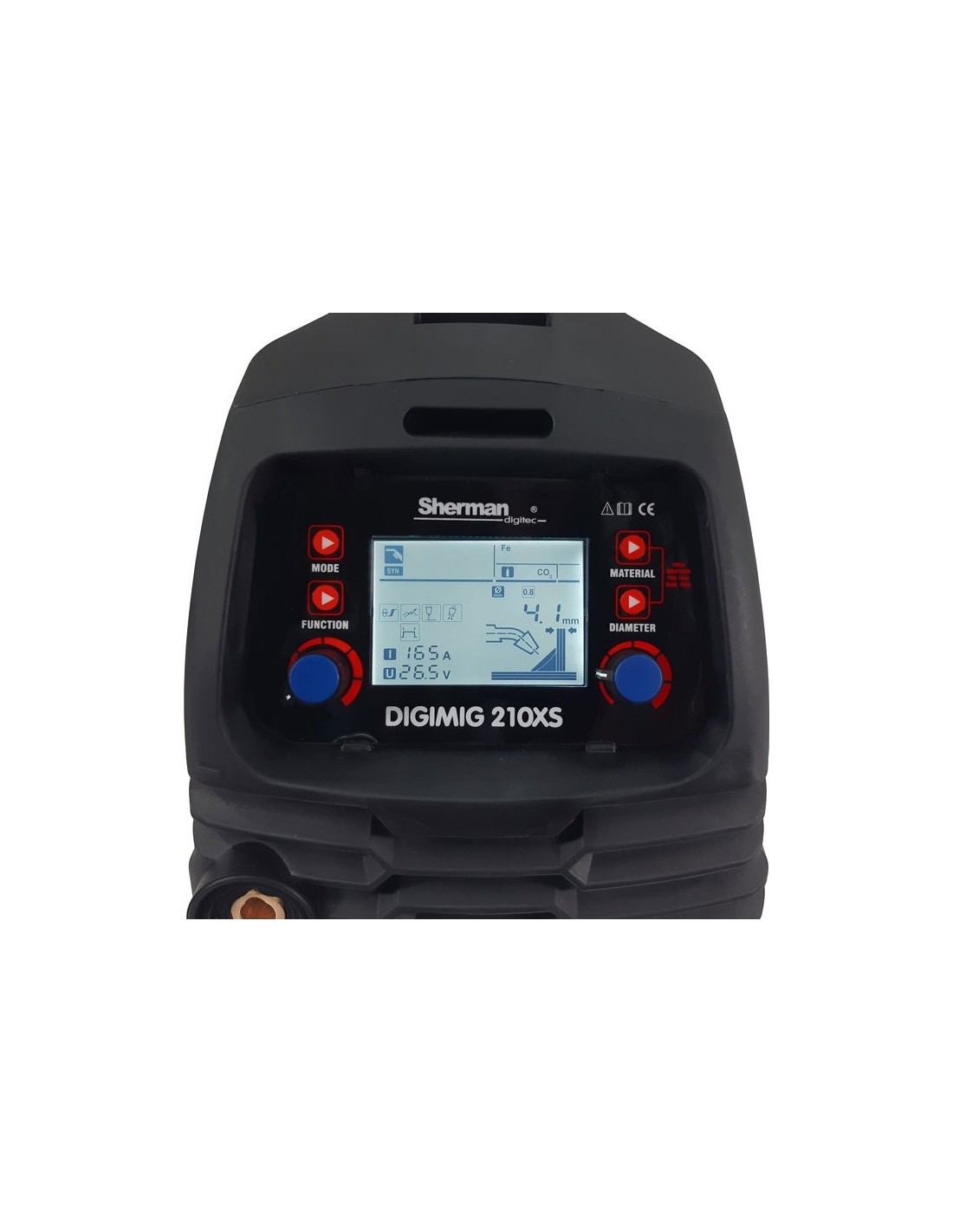

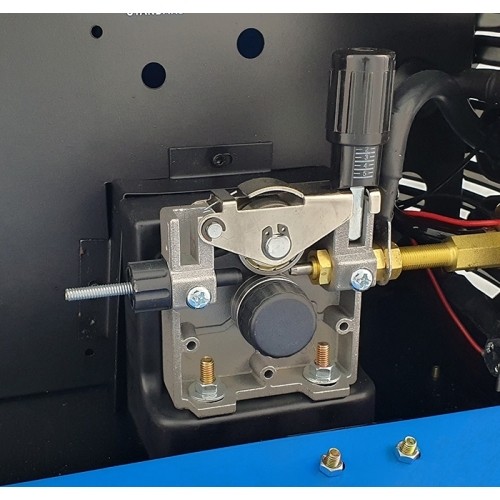

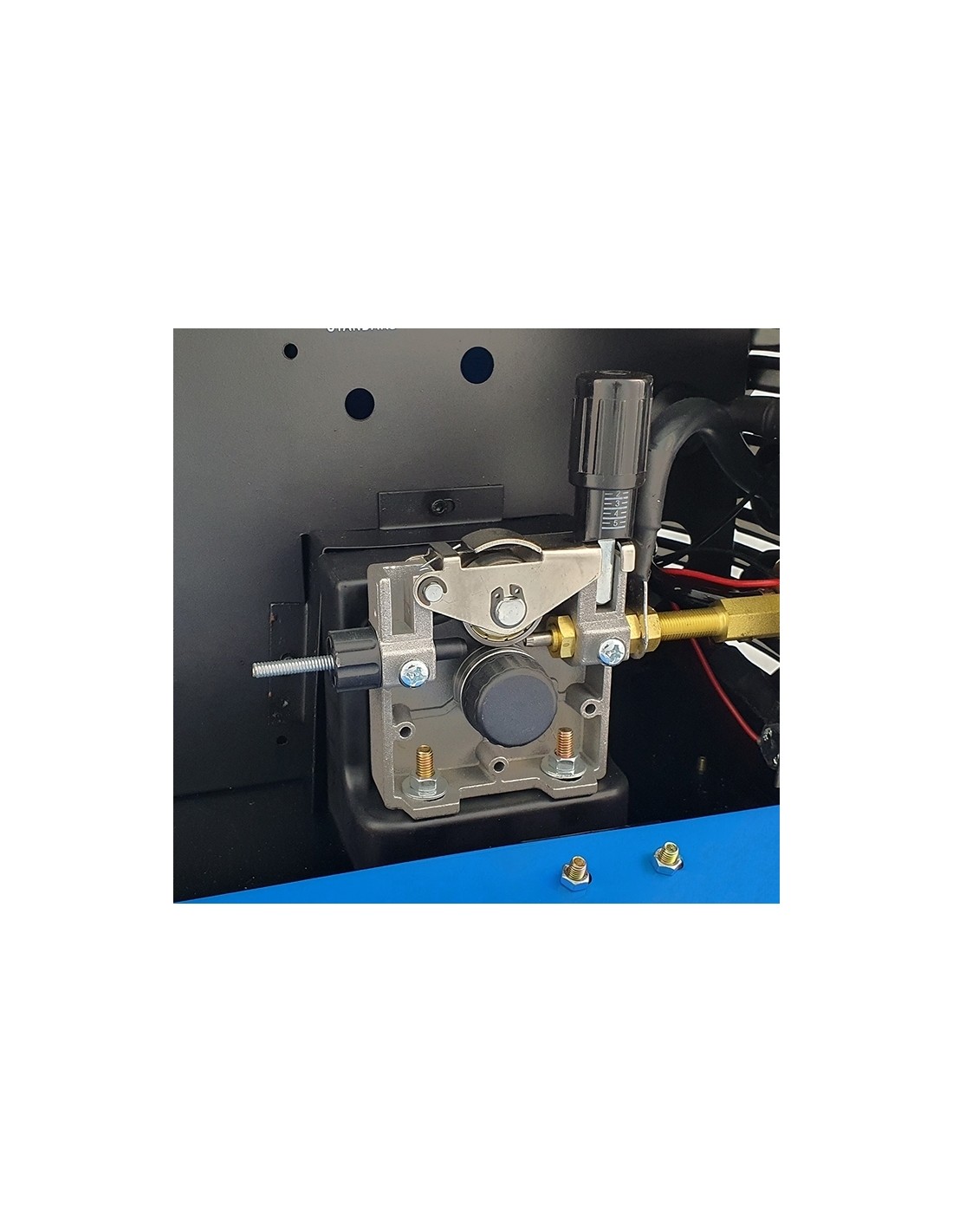

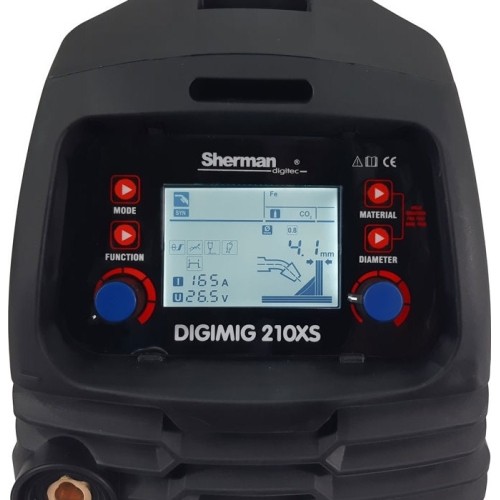

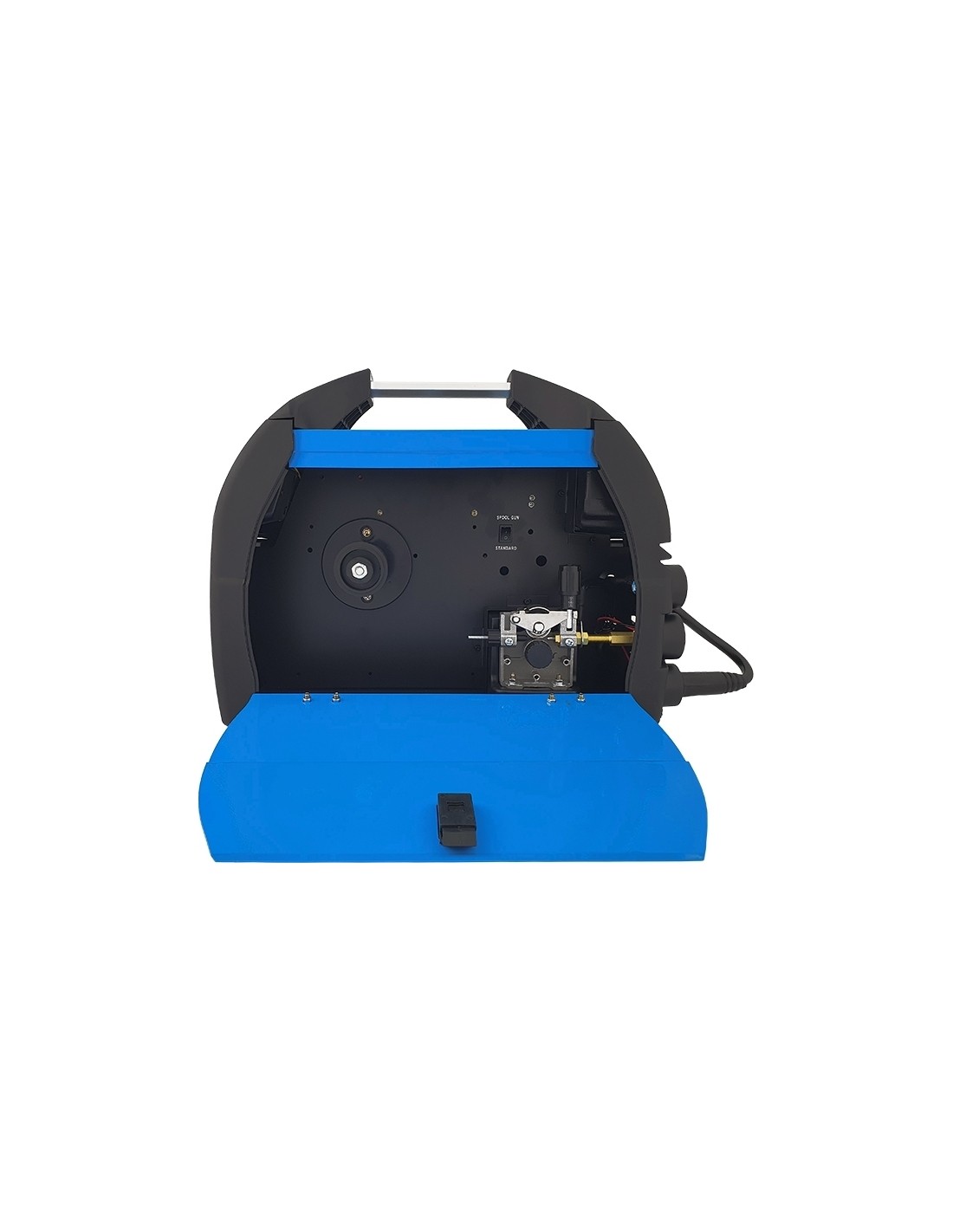

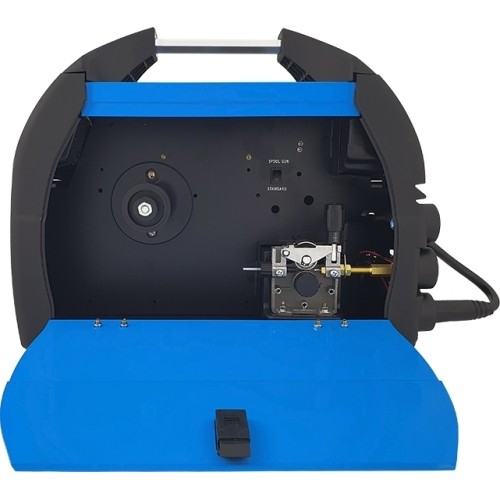

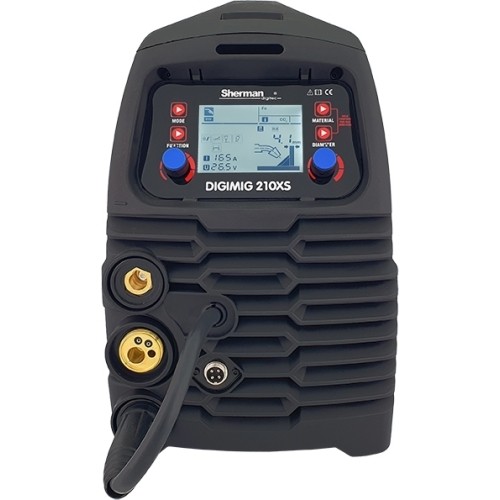

The machine allows connection of a Spool Gun (SG) with a built‑in mini wire feeder and a D100 spool of steel or non‑ferrous wire. Digital control provides full adjustment of parameters, arc dynamics, characteristics, and operating modes. The applied synergic settings significantly simplify operation and speed up configuration for repeatable results.
Built with IGBT inverter technology, the welder offers reduced weight and size with higher efficiency and lower energy consumption. It can be used indoors or in sheltered areas, protected from direct atmospheric influences.

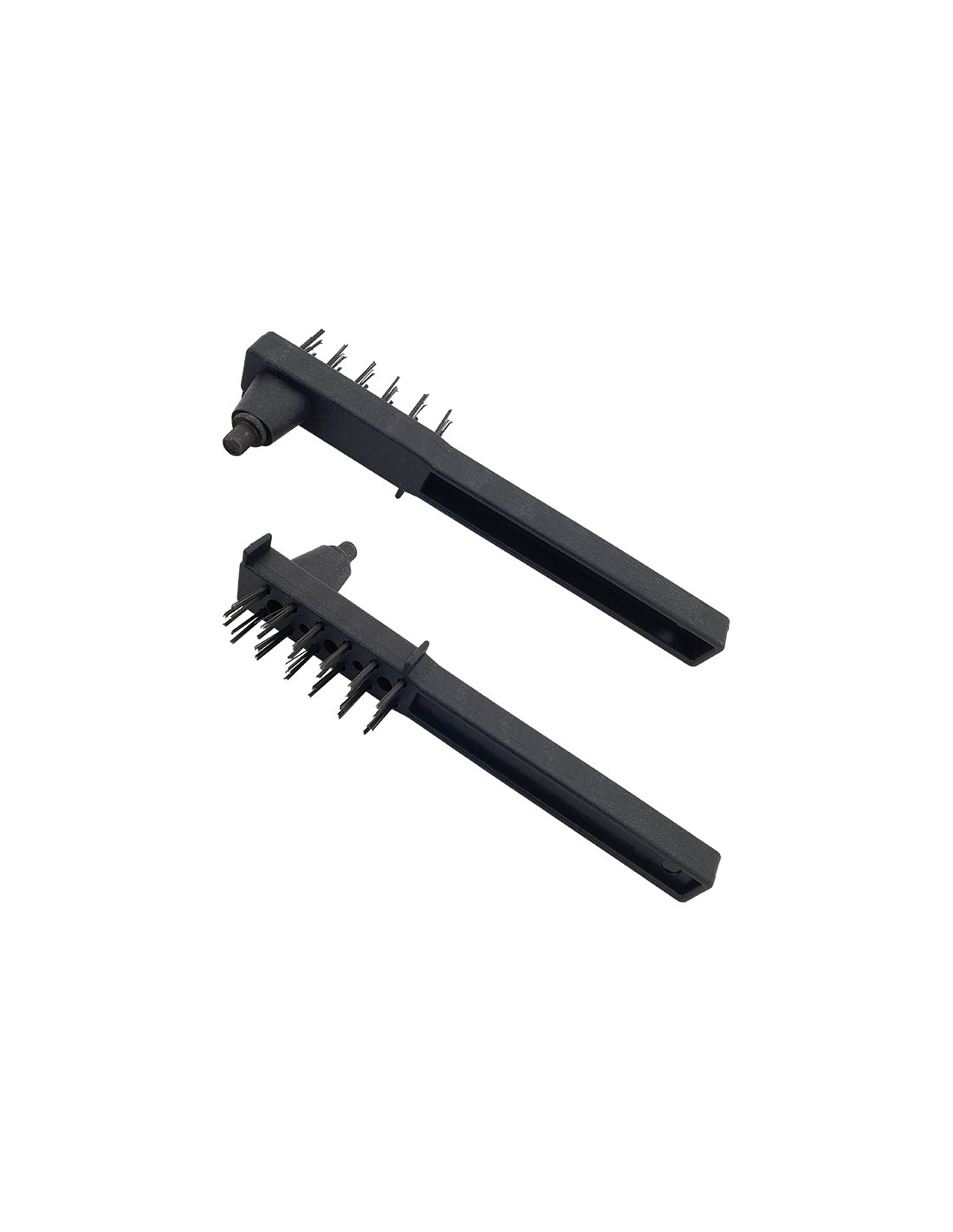

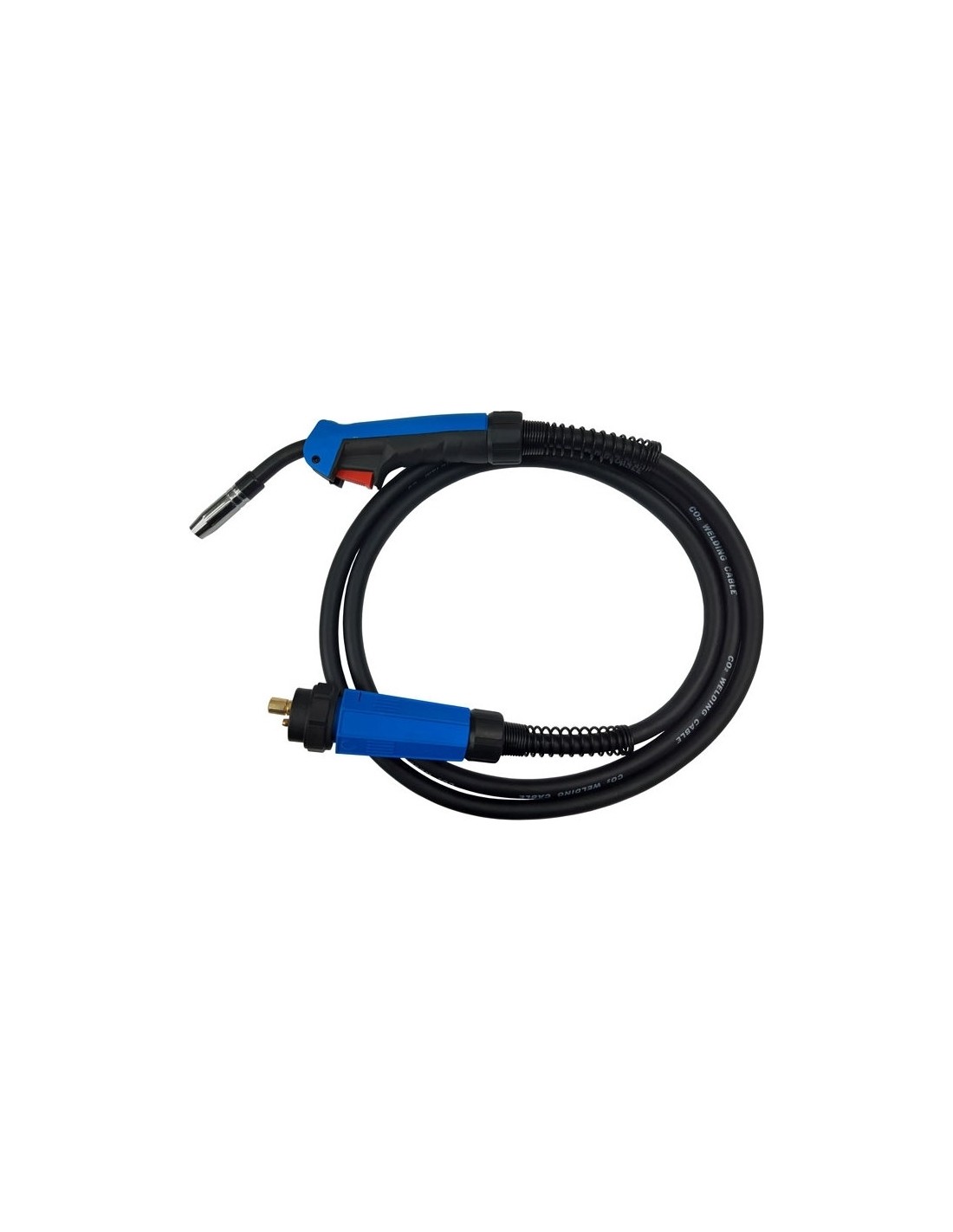

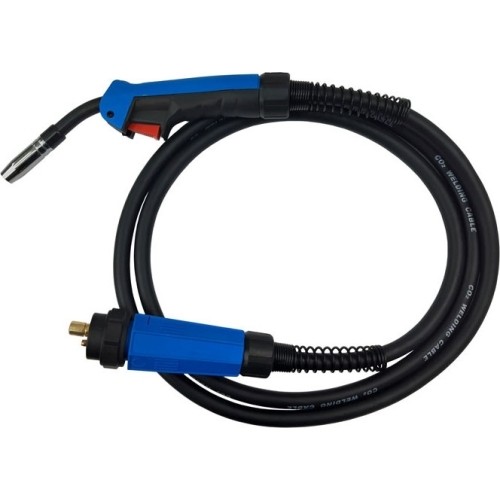

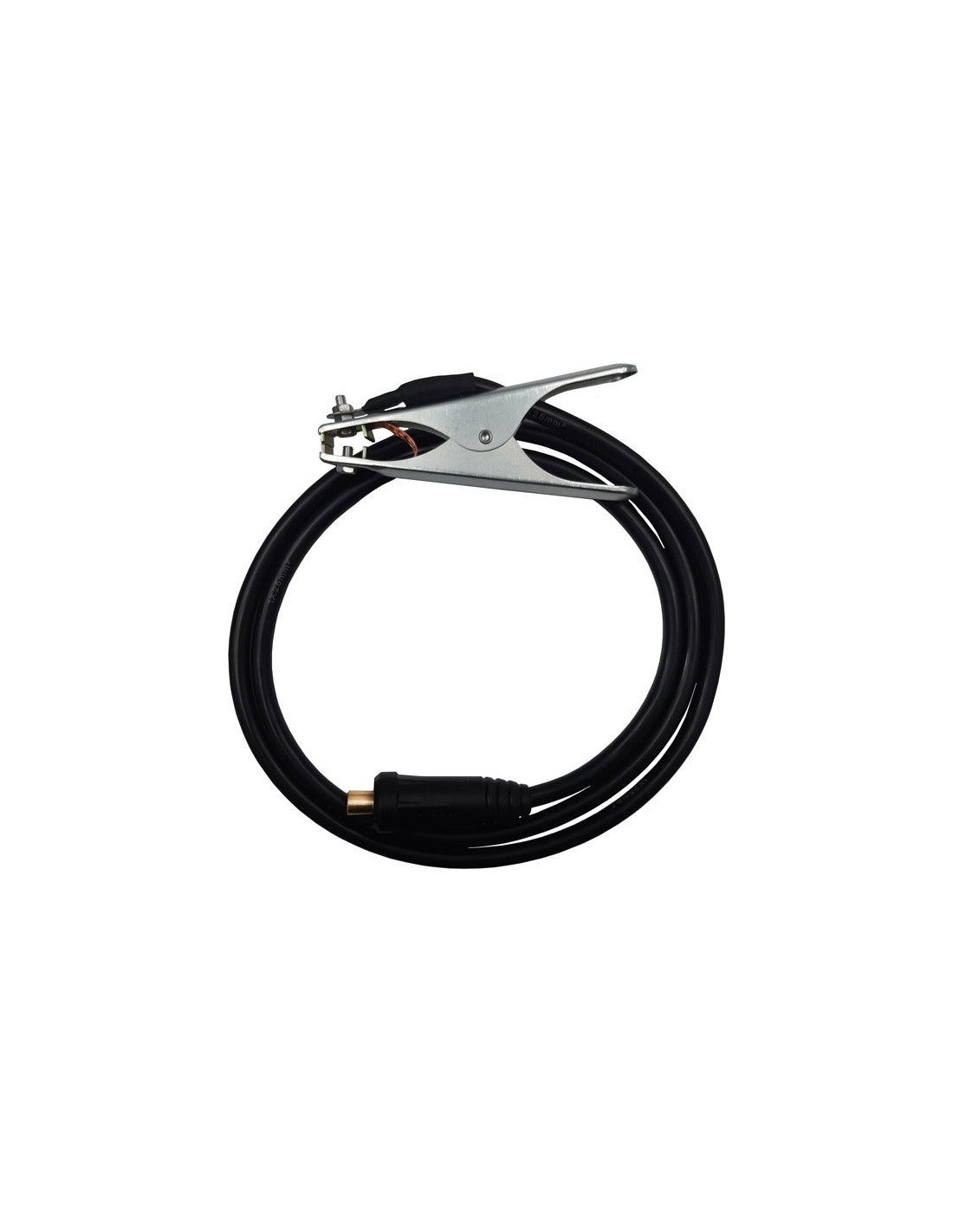

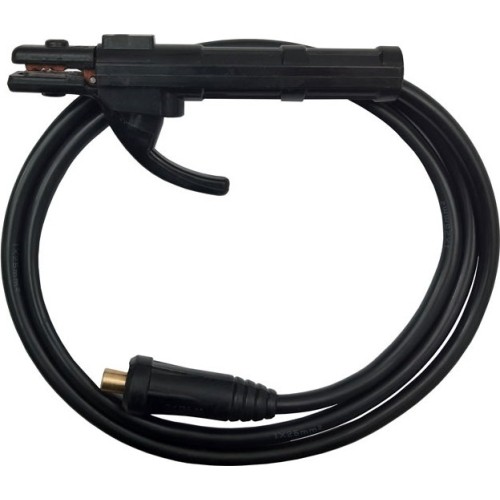

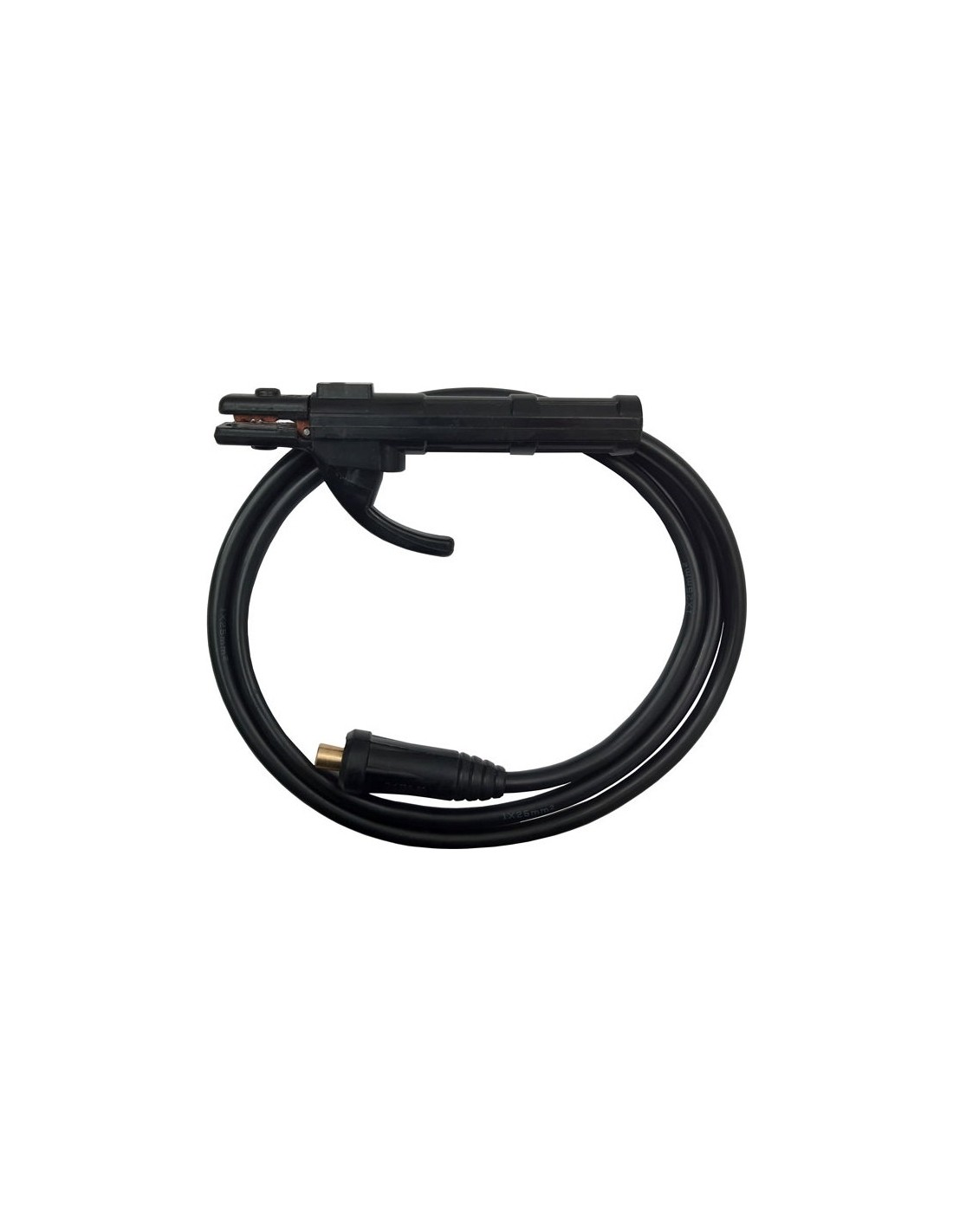

Included: MIG welding torch, electrode holder lead, work (ground) lead, and a hand welding shield with brush.
