- Funkcijos
- 2T/4T, lanko jėga, ventiliatoriaus stabdymas, dujų testas, 36 V kintamosios srovės maitinimo lizdas, karštas paleidimas, mikrovaldiklis (MCU), ritės pistoleto parinktis, 4 ritinių tiektuvas
- Vielos padavimo greitis m/min
- 2 - 14
- Phase
- Vienfazis (230V)
- Control
- synergetic
- User Level
- for workshops and small businesses
- Weight, kg
- 17,48
- Suvirinimas / pjaustymas / kiti metodai
- Litavimas, MIG/MAG, MMA DC, TIG Lift (trinant) DC.
- Wire spool size [kg]
- 1
5 - Išmatavimai mm
- 49,5 x 21 x 34,5
- PFC function
- No
- Gamybos technologija
- IGBT
- Maximum current MMA [A]
- 200
- Maximum current TIG [A]
- 200
- MMA darbo ciklas [%].
- 60
- TIG darbo ciklas [%].
- 60
- Įtampa be apkrovos [V].
- 9
- Maksimalus MMA suvartojamos galios kiekis [kVA}
- 7,7
- Maksimalus TIG sunaudojamas galingumas [kVA].
- 7,7
- Pagrindinis metodas
- MIG/MAG
- Tinklo apsauga [A].
- 25
- Įmonių garantijos laikotarpis [metai].
- 1
- Išankstinis dujų srautas [s].
- 0 - 10
- TIG impulsų dažnis [Hz].
- 0,1 - 99
- TIG impulsų plotis [%].
- 5-95
- Maximum current MIG/MAG
- 200
- MIG/MAG darbo ciklas [%]
- 60
- MIG suvirinimo įtampa [V].
- 15,4-22
- MIG taškinio suvirinimo laikas [s].
- 0,1-9,9
- Maksimalus MIG/MAG sunaudojamas galingumas [kVA].
- 7,7
- Ritinio matmenys [mm].
- 30x10x10
- Padavėjo atvykimo greitis
- 1-15
- Vielos degimo laikas [s]
- -50 - +50%
- MIG dujų srautas [s].
- 0,1-50
- MIG impulsų dažnis [Hz].
- 0,5 - 5
- MIG impulsų plotis [%].
- 20-80
- MMA impulsų dažnis [Hz].
- 0,1 - 99
- MMA impulsų plotis [%].
- 9-95
- MIG taškinio suvirinimo pertraukos laikas [s].
- 0,1 - -25,5
- Vielos ritės skersmuo ø [mm].
- 100, 200
- Inverter technology
- IGBT
- Shielding Gas Requirement
- Gas / Gasless

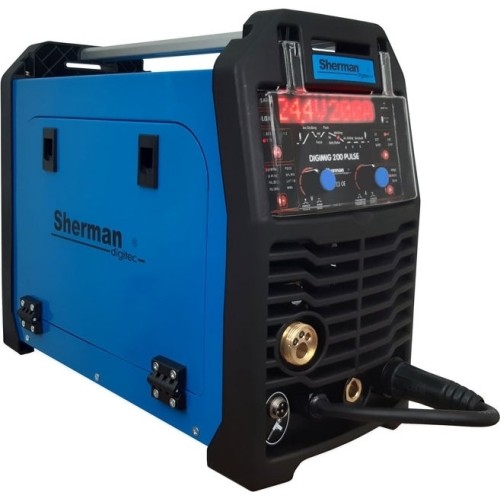

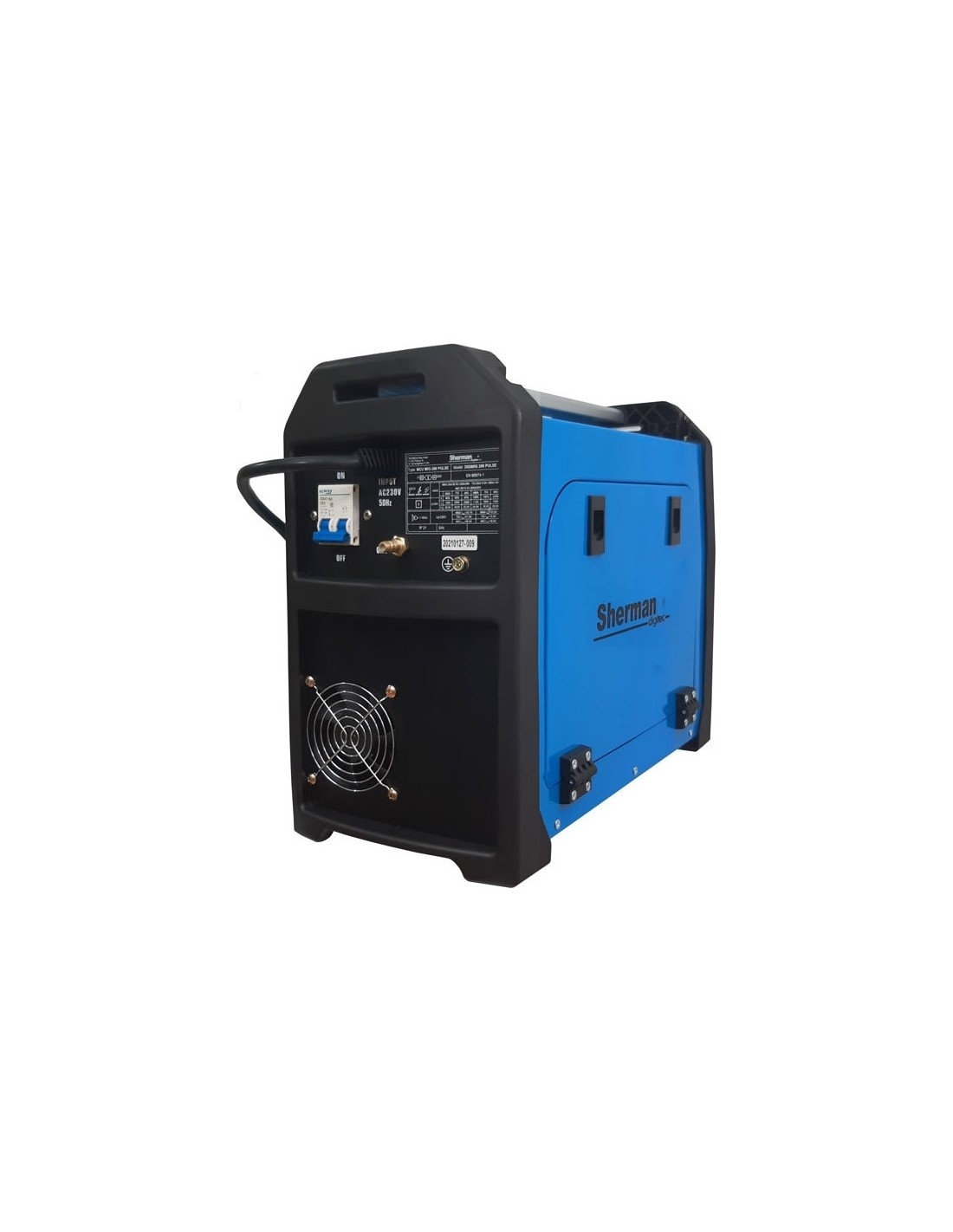

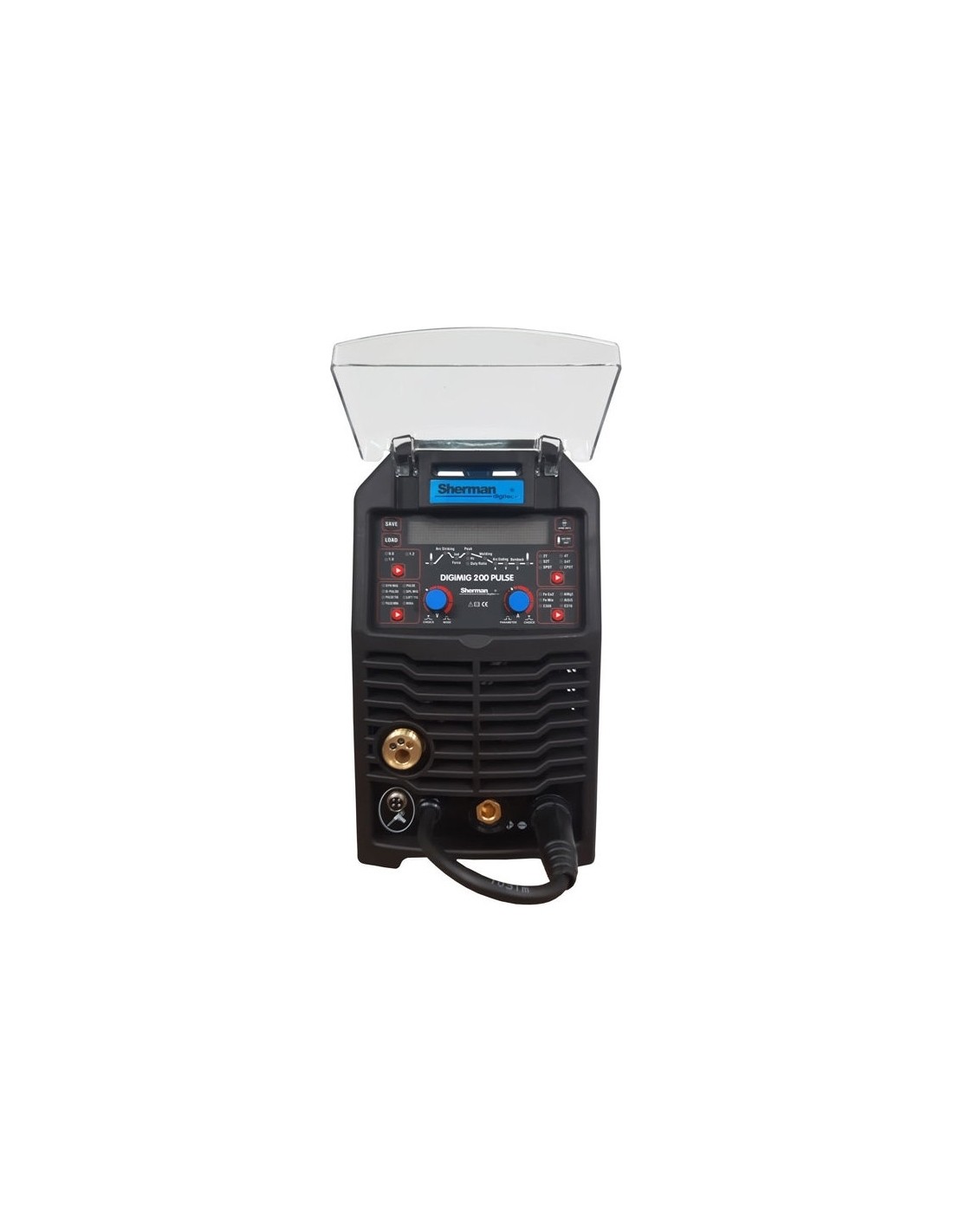

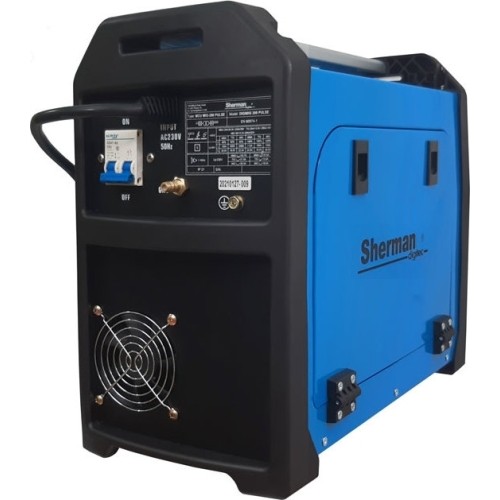

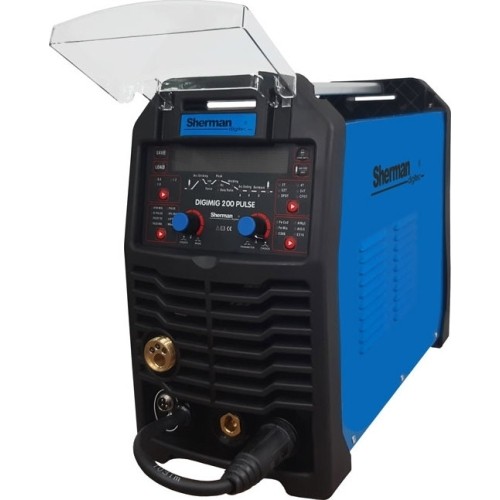

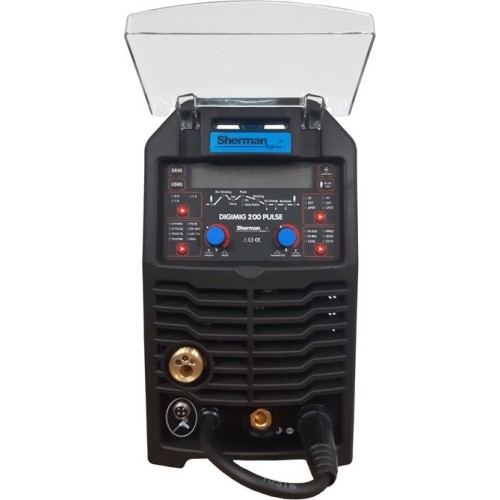

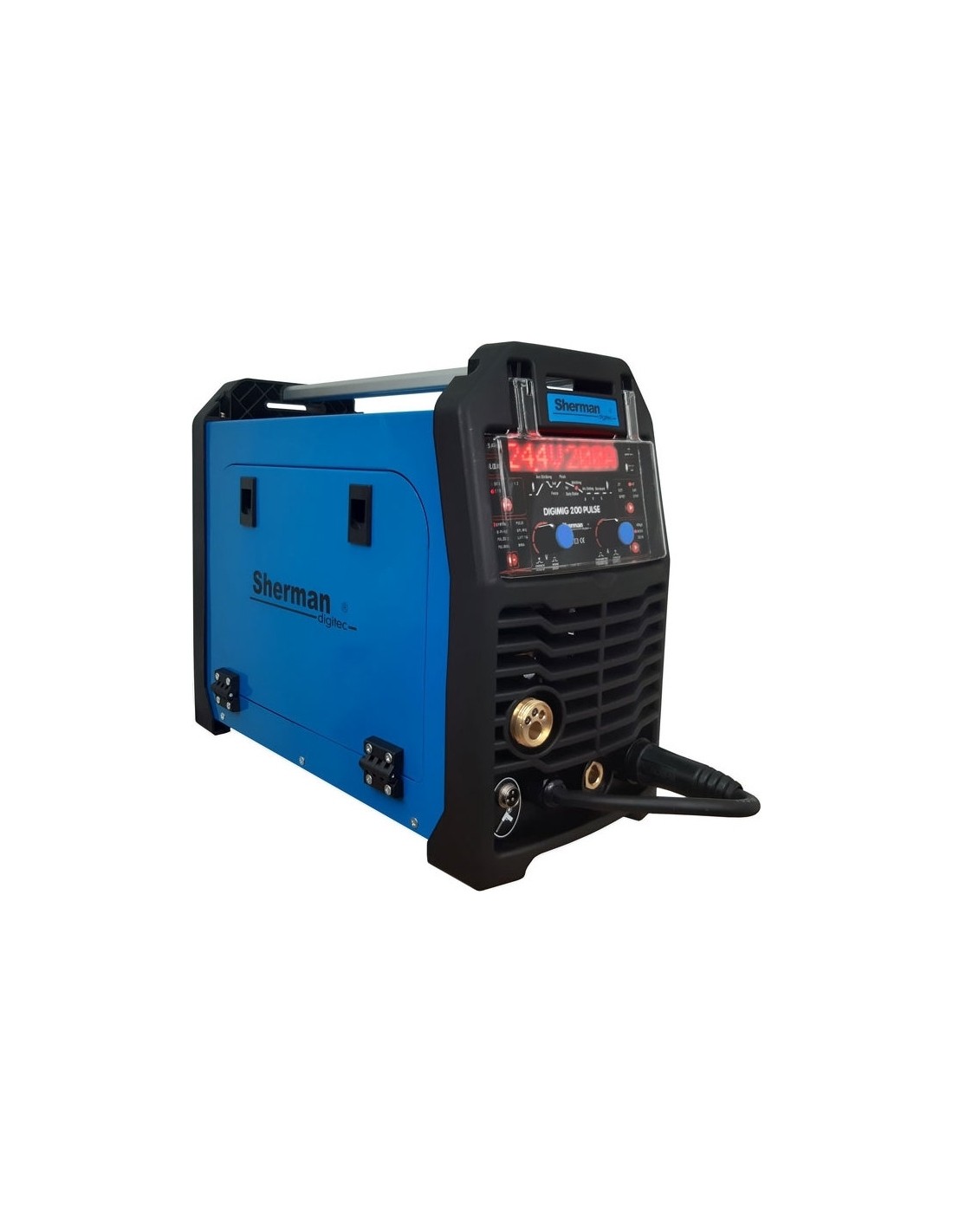

Inverter welder Sherman DIGIMIG 200 Pulse
1056045
Price
€445.00
VAT incl.
Stock Quantity:
Kaunas Shop
(2 pcs)
Central warehouse
not available
Delivery terms:
FREE pick up tomorrow, in the store, Raudondvario pl. 141, Kaunas
(€0.00)
We will deliver the product to you via: 1-2 w.d. Venipak
(€6.00)
We will deliver the product to you via: 1-2 w.d. Venipak pickup (paštomatas)
(€8.00)
Spare parts
Description

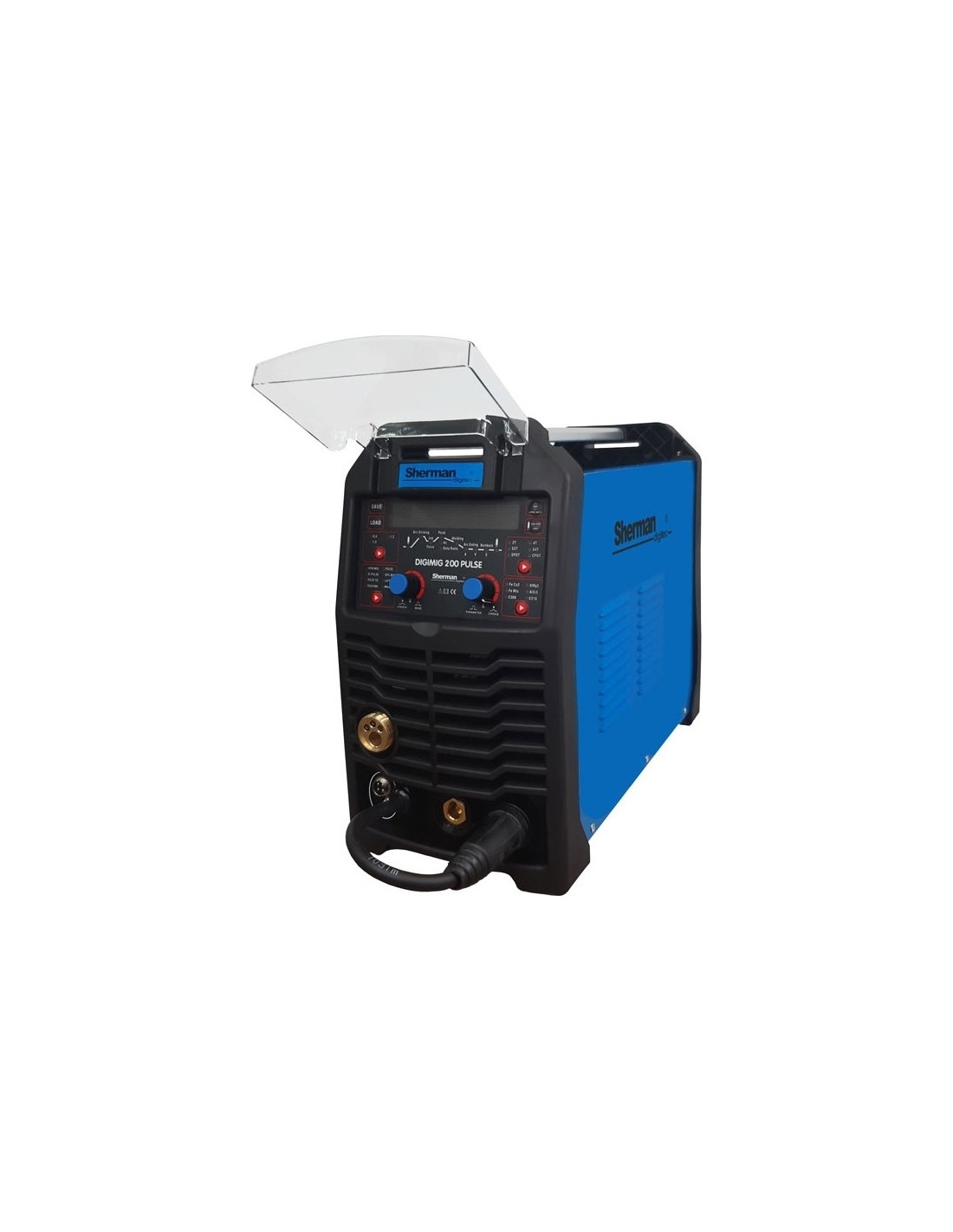

The synergic welder DIGIMIG 200 Pulse is an innovative machine for manual welding of steel and non‑ferrous metals using the MIG/MAG, MMA (shielded metal arc) and Lift TIG methods. It is designed for professionals who value high quality and reliability. It can also be used for brazing thin (up to 3 mm) galvanized sheets. The welder allows connection of a Spool Gun (SG) torch.

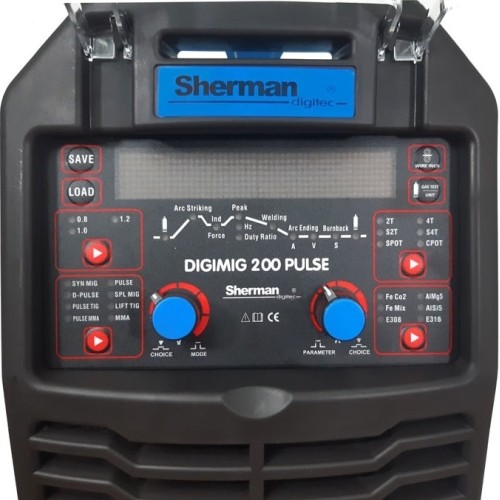

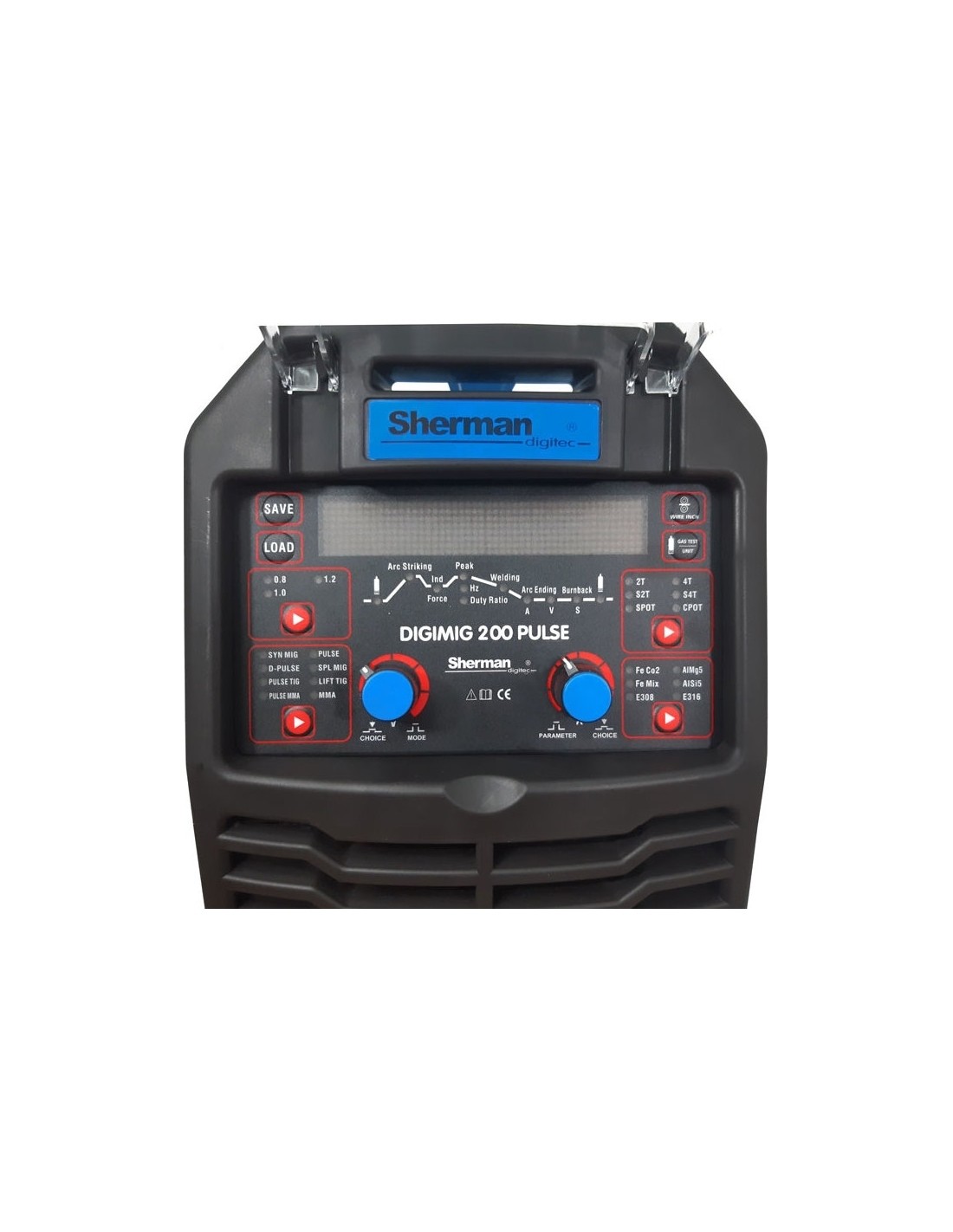

Digital control enables full adjustment of parameters, arc dynamics, characteristics, and selection of manual or synergic operation in the MIG/MAG process. Synergic settings for mild steel, stainless steel, and aluminum alloys greatly simplify operation, making the unit suitable for less experienced users and hobbyists. Using pulse or double pulse allows for higher weld quality and excellent appearance with very high productivity.
The unit supports standard MMA welding or MMA with pulsing for improved weld quality. In MMA mode you can adjust ARC FORCE and HOT START, as well as disable VRD.

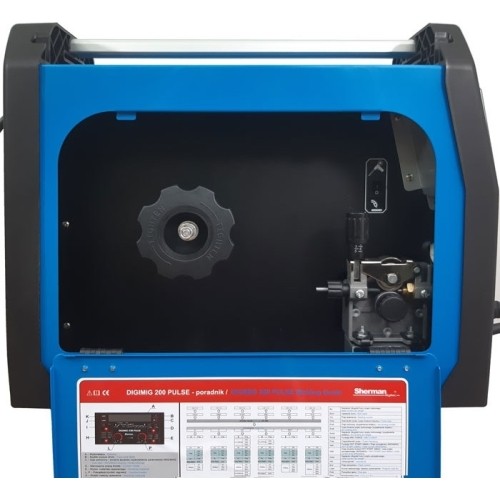

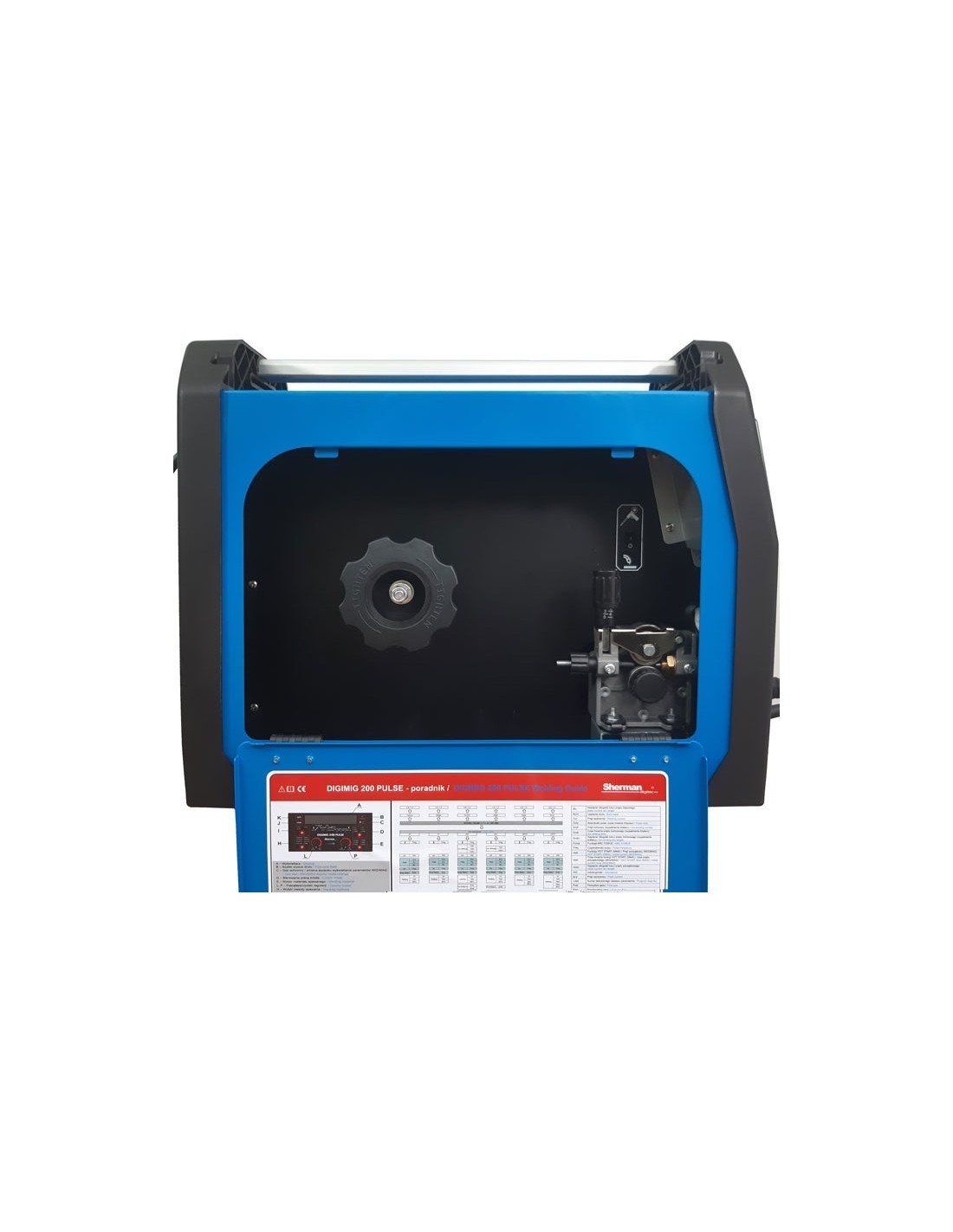

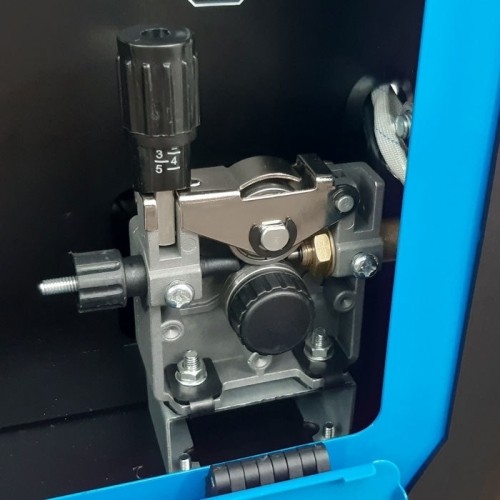

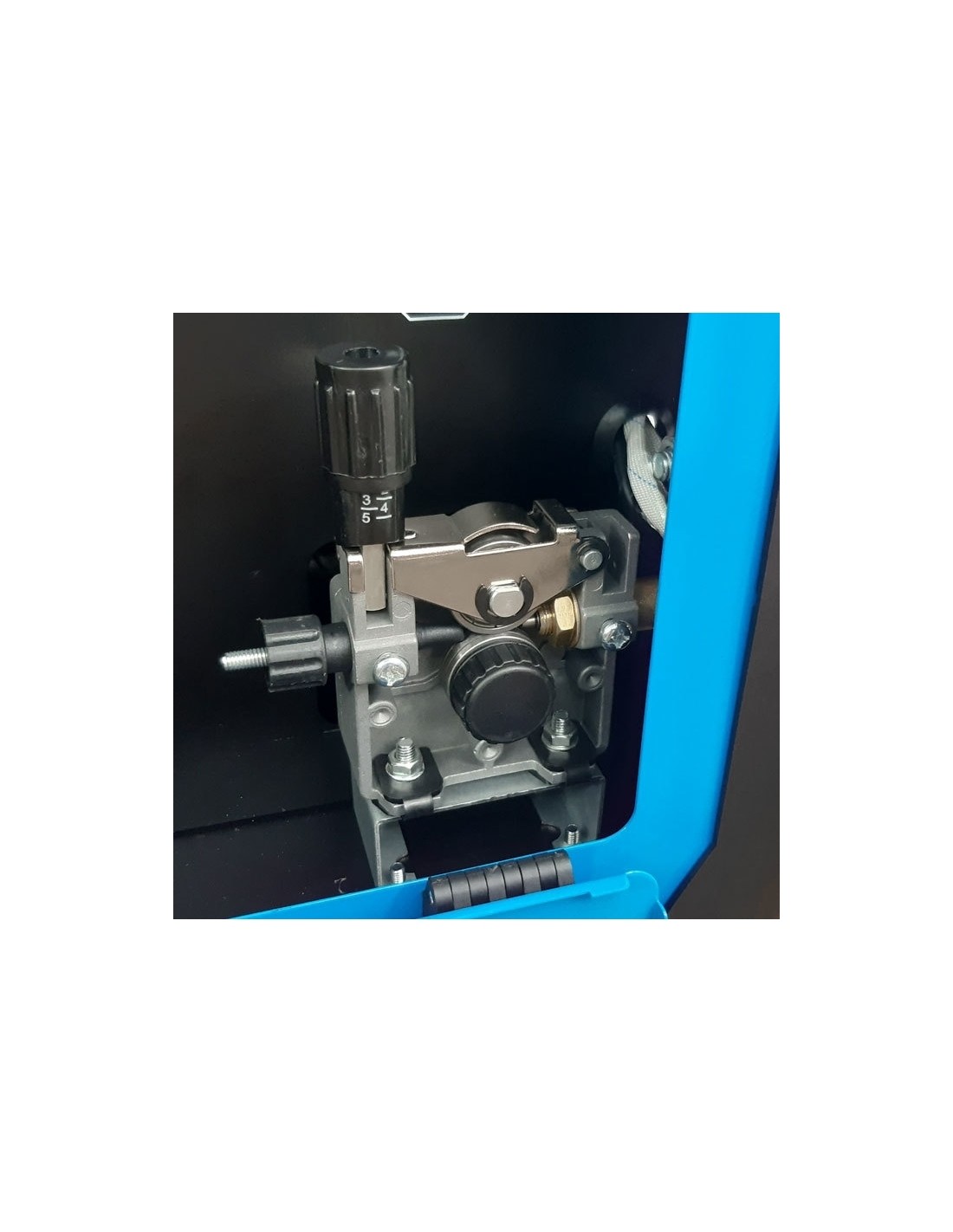

The DIGIMIG 200 Pulse also enables DC TIG with pulsing and adjustable pulse characteristics. The welder offers several operating modes, including a spot welding option. The unit features last-setting memory, so the most recent parameters are restored after power-off and restart. You can also store 35 sets of settings with easy access to save/recall. The machine is equipped with wire feeder chamber lighting, which significantly facilitates and speeds up installing and replacing the wire spool, especially in poorly lit work areas. On the inside of the spool chamber cover there is a concise welder’s guide that assists daily operation, with a detailed description of how to access adjustable parameters.

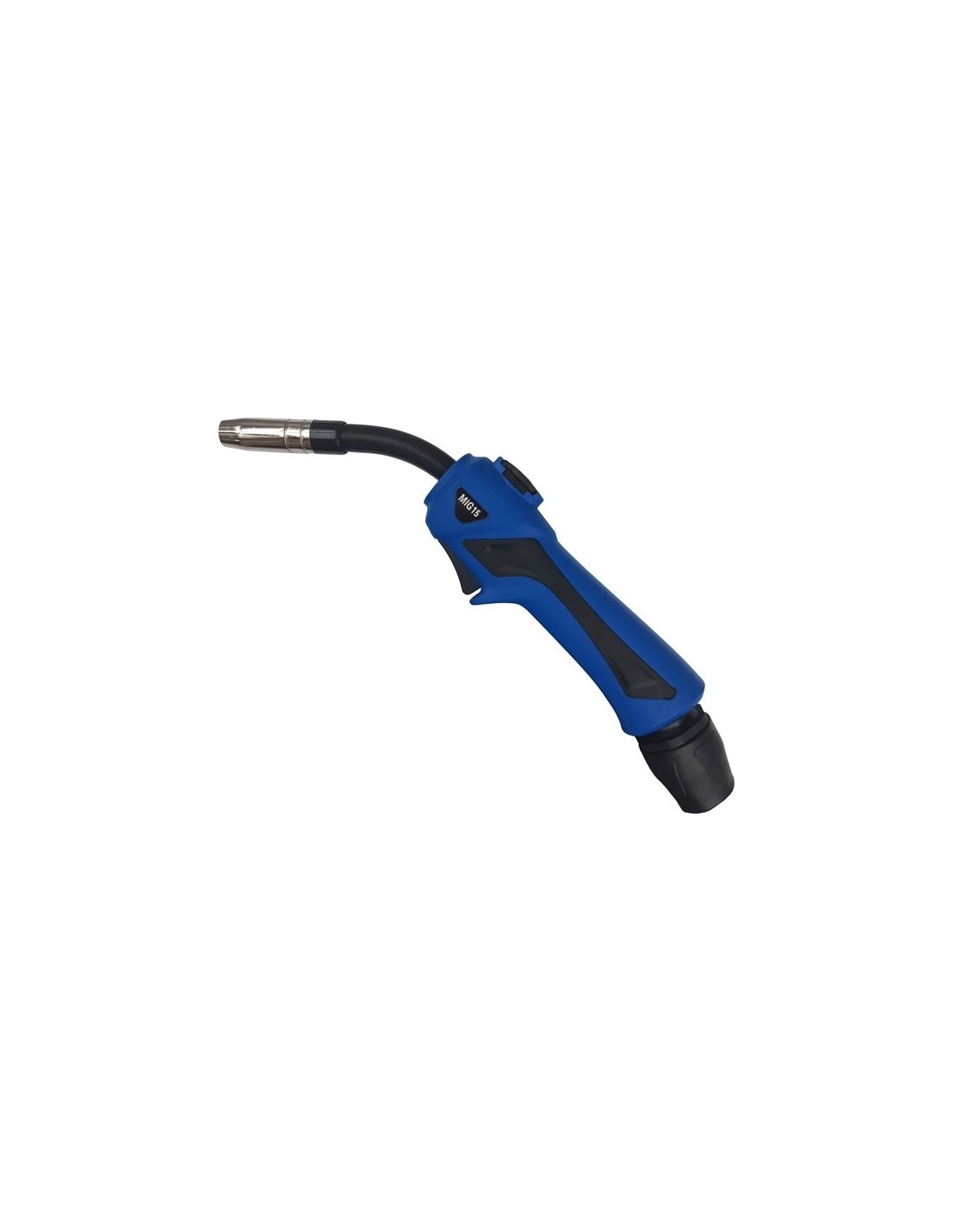

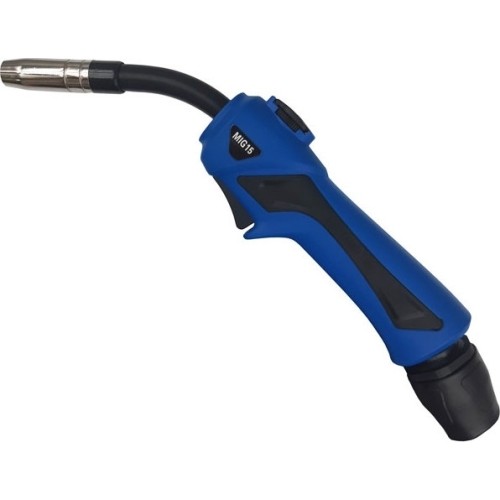

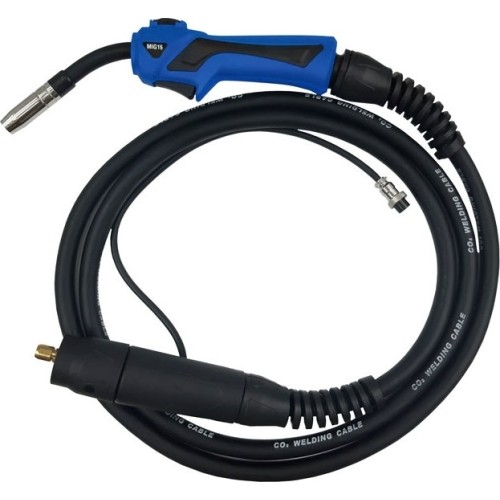

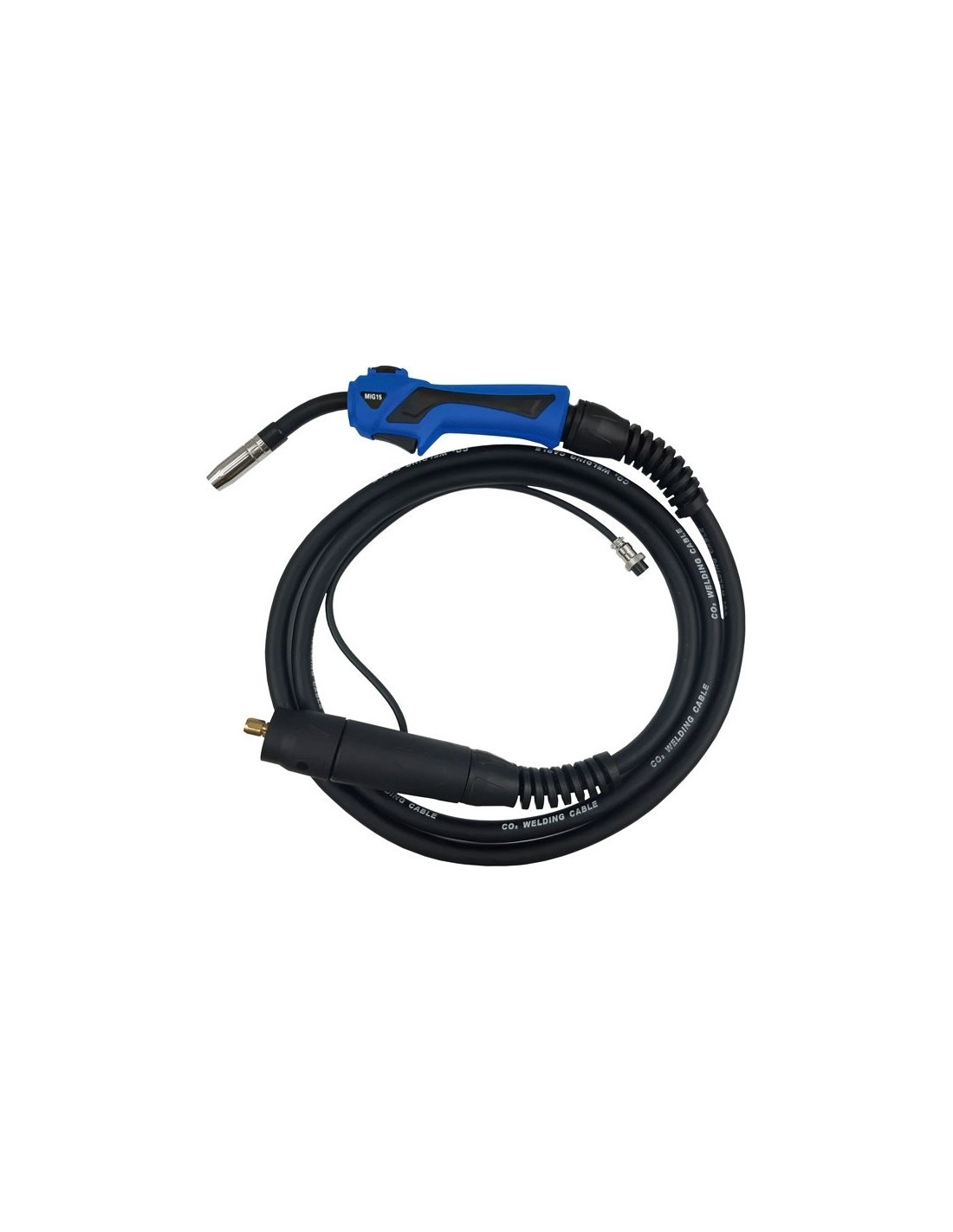

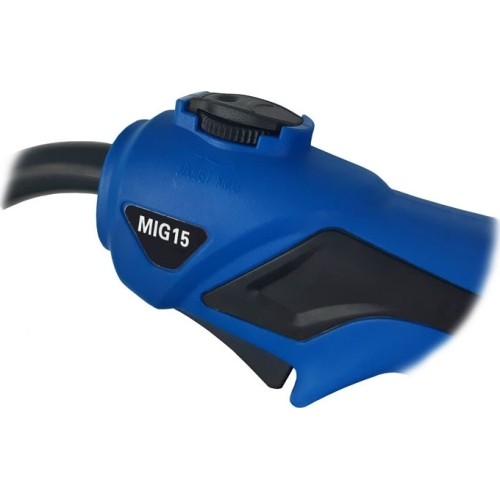

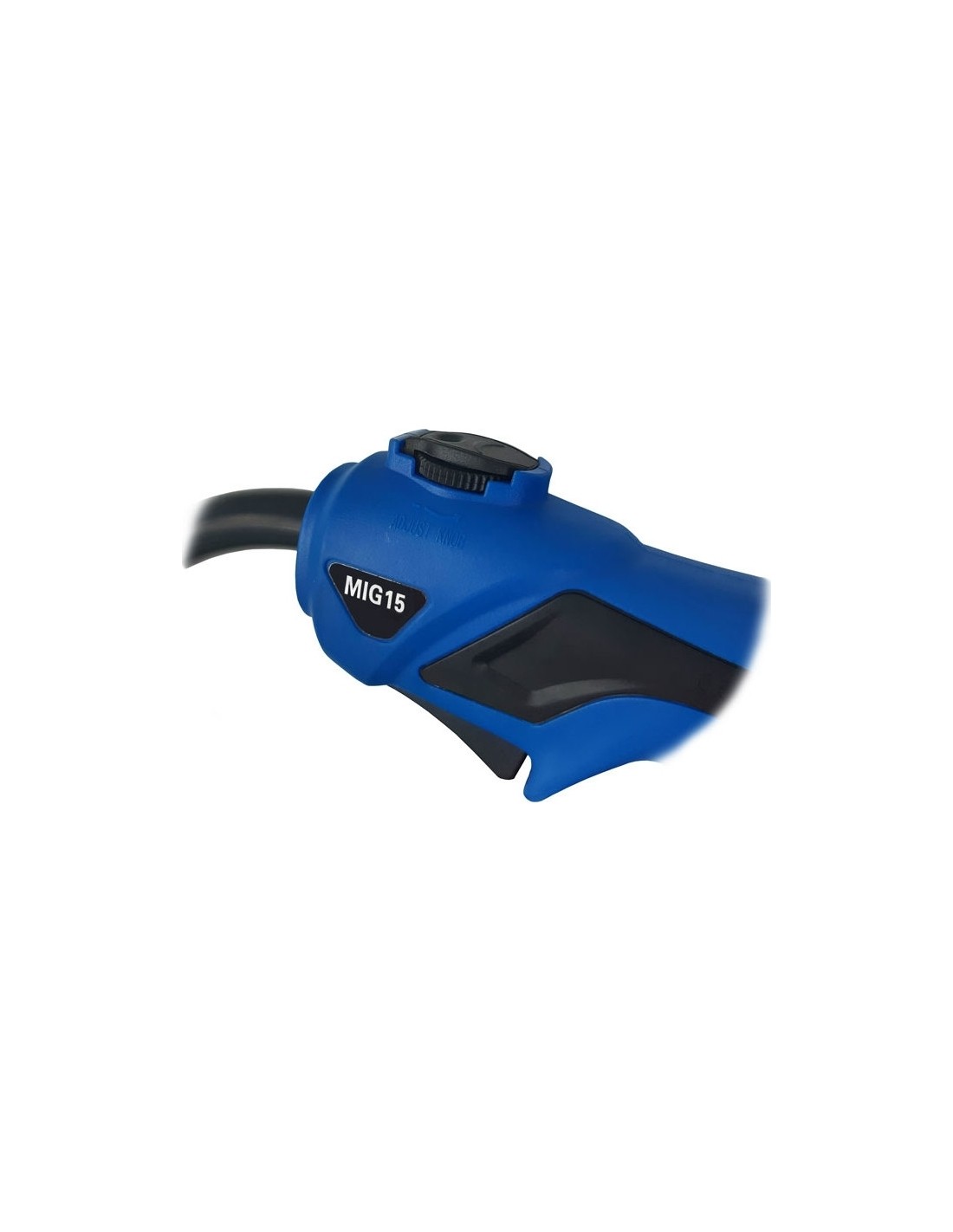

The welder comes with a unique MIG torch with a knob on the handle for remote adjustment of voltage/welding current during synergic operation.

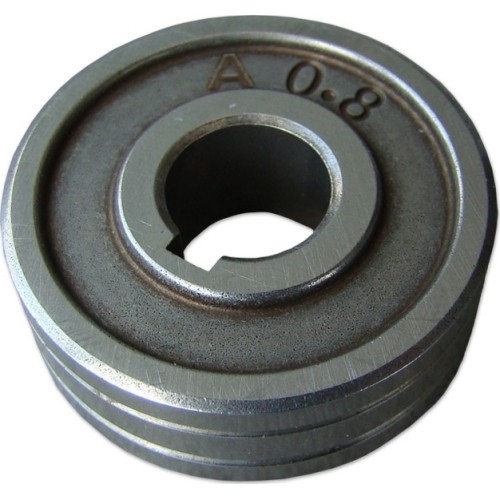

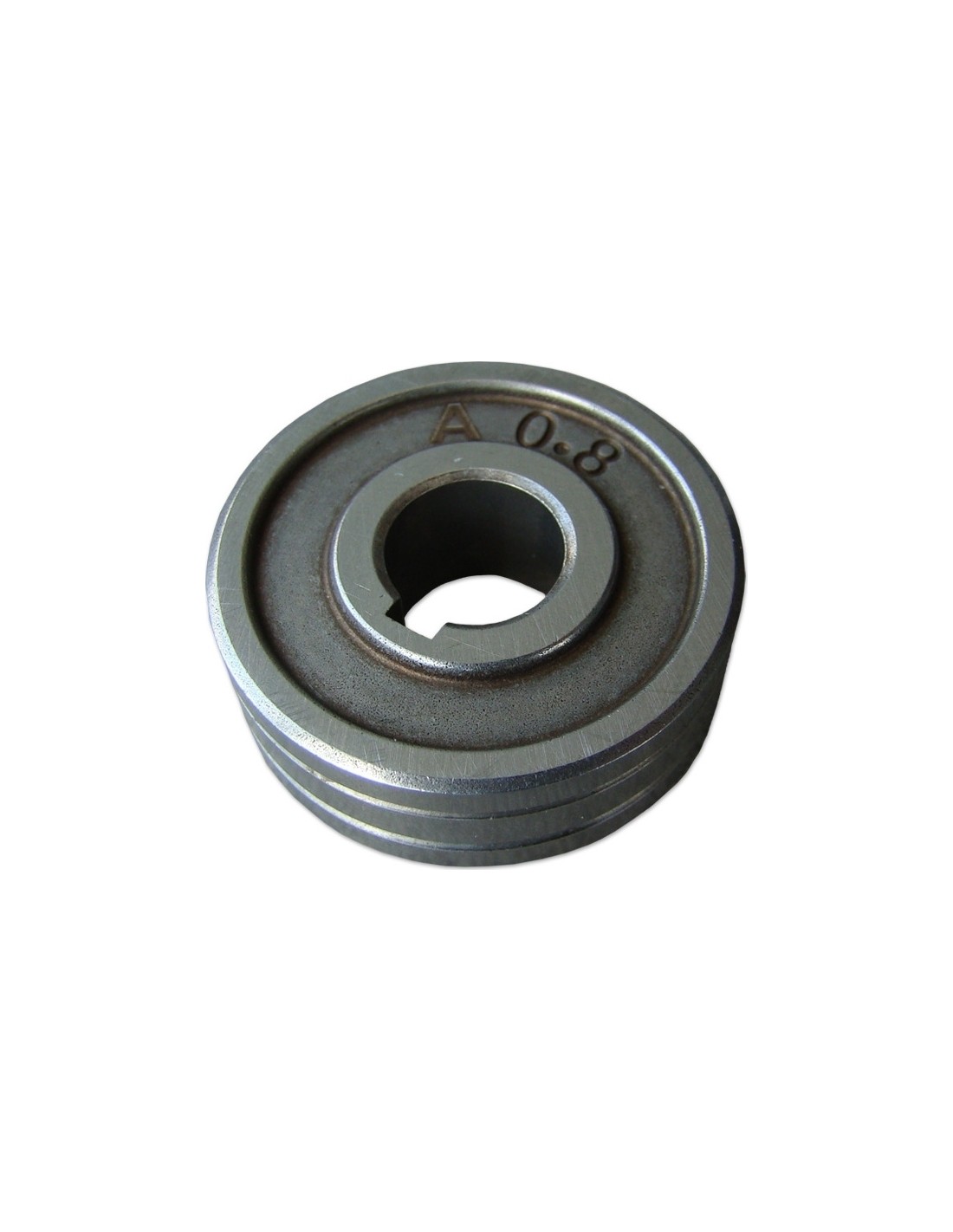

Included are a work (ground) lead, an electrode holder lead, and a drive roll for aluminum welding.
