Max. workpiece diameter
200 mm
Distance between centers
500 mm
Surface grinding
200 x 50 mm

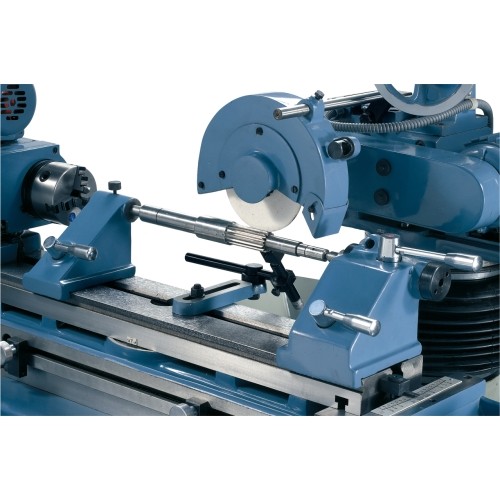

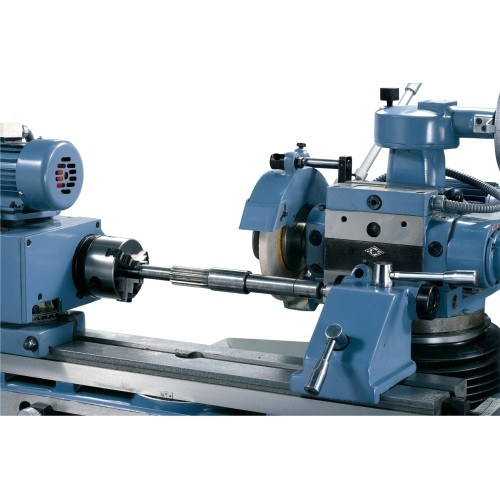

Outside grinding
Ø 5 - 50 x 400 mm
Inside grinding
Ø 10 - 50 x 75 mm
Max. workpiece weight
10 kg
Tilting range
-100° to +100°
-90° to +90°
Speed
110 / 200 / 300 rpm
2500 rpm
Spindle taper
MT 2
Chuck diameter
100 mm
Cross
230 mm
Vertical
210 mm
Scale division vertical
0,01 mm
Vertical adjustment per handwheel rotation
2 mm/rev.
Scale division
0,02 mm
Cross adjustment per handwheel rotation
2 / 4 mm/rev.
Sanding
Disc 200 x 20 x 75 mm
Speed inside grinding spindle
13500 rpm
Grindstone
Ø 26 x 20 x 6 mm
Max. travel
480 mm
Hydraulic longitudinal feed
0,01 - 6 m/min
Table tilting range
-45° to +45°
Taper of tailstock sleeve
MT 2
Travel of tailstock sleeve
15 mm
Total motor power
2,5 kW
Motor power of sanding disc
1,1 kW
Machine dimension (L x W x H)
1500 x 1150 x 1400 mm
Weight approx.
1300 kg

USM 500

1322243
Price €31,112.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1300 kg.

Description

Properties

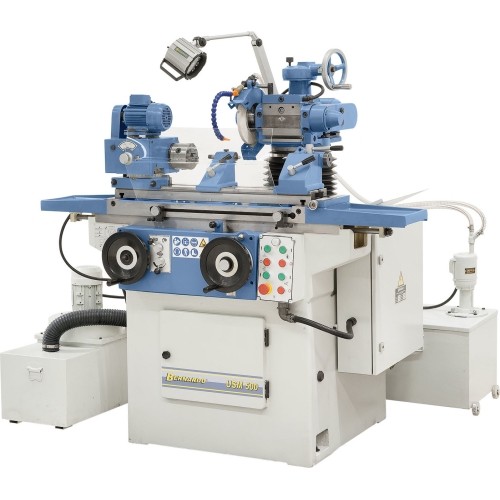

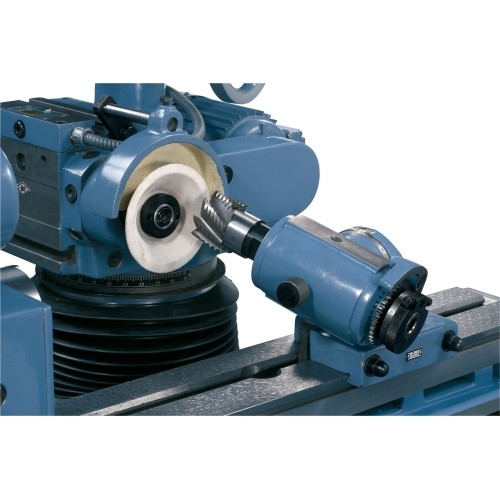

  • Round, flat and tool grinding combined in one machine
  • Heavy cast-iron construction allows vibration-free machining
  • Special spindle bearing for precise sanding results
  • Used in tool and die making, production as well as in training workshops
  • Various application areas increase productivity
  • Coolant device, central lubrication and dust extractor as standard
  • Easy gear shifting allows quick speed change
  • Hydraulic or manual longitudinal adjustment of table (in x-axis)
  • Headstock adjustable in height and tiltable (-100° to + 100°)

Standard accessories

  • Coolant device
  • Dust extractor
  • Safety guard
  • Dividing head
  • 4 grinding discs
  • 3-jaw chuck 100 mm
  • Left and right tailstock
  • Live centre
  • Half live centre
  • Balancing stand
  • Spindle extension

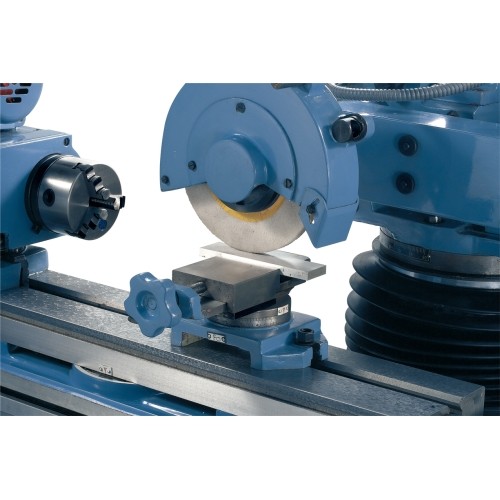

  • Vice for surface grinding
  • 5 tappets
  • Dresser
  • Central lubrication

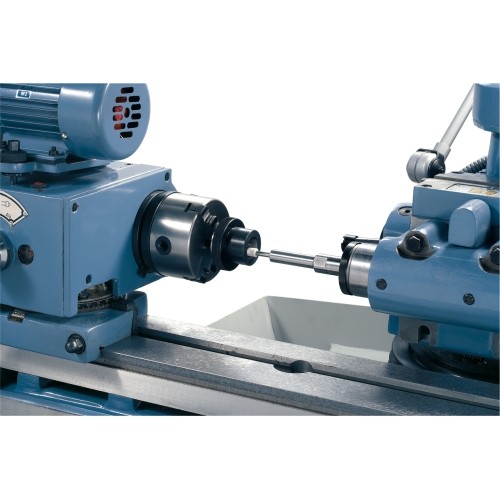

  • Inside grinding device incl. 2 grinding stones
