- Weight approx.
- 270 kg
- Motor power
- 370 W
- Machine dimension (W x D x H)
- 1050 x 830 x 1450 mm
- Voltage
- 400 V
- Sawblade diameter
- 90 - 630 mm
- Max. tool diameter
- 380 mm
- Max. grinding length
- 300 mm
- Quantity of cutters
- 24
- Diamond grinding wheel
- 125 x 10 / 8 x 32 mm
- Height adjustment of spindle head
- 225 mm
- Clearance angle radial on back of knife
- +50° to -50°
- Spindle head tiltable
- 50° left / right
- Clearance angle on side
- -20° bis +20°
- Table longitudinal movement
- 300 mm
- Table cross movement
- 130 mm
- Graduation at handwheel
- 0,05 mm
- Grinding spindle speed
- 3500 rpm
- Motor power coolant pump
- 40 W

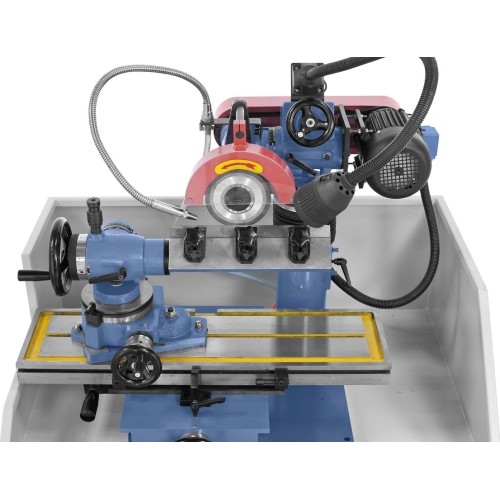

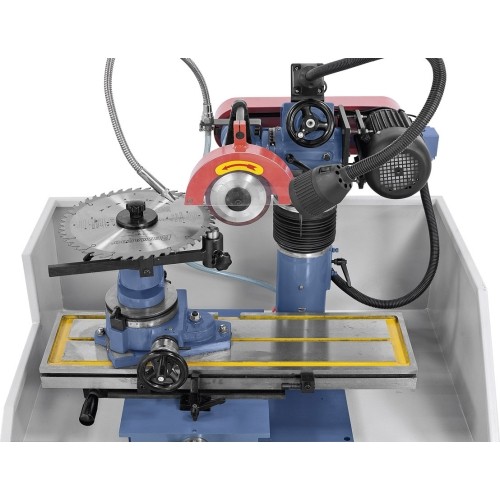

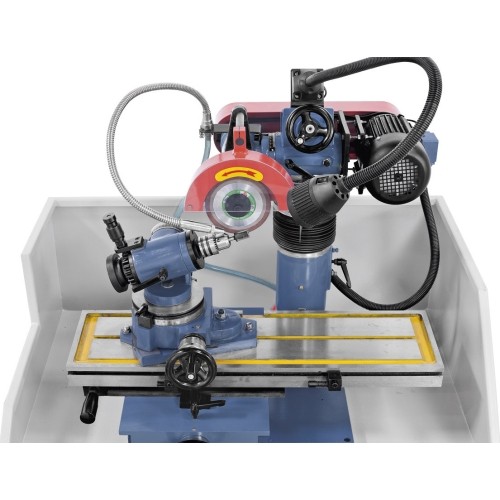

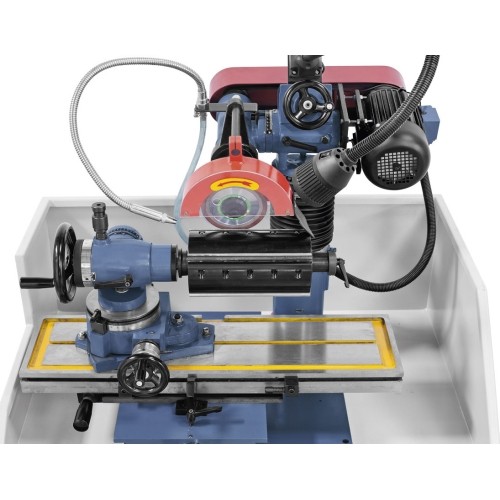

UGM 300
1091876
€5,702.00
Tax included
Monthly payment from 140.21€
Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 270 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak
(€40.99) Weight: 270 kg.
Description
Properties
- Solid construction ensures top accuracy and eliminates vibrations
- Large range of equipment comes standard
- Clearly arranged, user-friendly design are special features of the machine
- Special bearing of grinding arbor ensures precise results
- Complete with dividing plate for processing of most common number of blades
- Provide flexibility and independence in your business by maintaining and sharpening your tools - equipment is readily available
- Suitable for grinding of various tools, such as cutter knives, carbide-circular sawblades, routers, cutter knives in the cutterblock, slotting discs with diameter of up to 380 mm, groove-, jointing-, profi le and milling cutters etc.
- Adjustable ball bearing on longitudinal table guide eliminates any clearance
Standard accessories
- Diamond grinding wheel 125 x 10/8 x 32 mm
- Work arbor 30, 35, 40 mm
- Sawblade grinding device
- Cutter knife grinding device
- Adjustable table fence
- Coolant device
- Lubrication pump
- Halogen light
- Tools
